The starting point of this study is the solid state structure of a complex between human carbonic anhydrase II (HCAII) and a helically folded tetradecaamide aromatic foldamer with a nanomolar HCAII ligand appended at the N terminus of the helix. In this complex, the foldamer is achiral but its handedness is biased by diastereoselective interaction with the protein. Computational analysis of the HCAII surface and inspection of the initial solid state structure led to the suggestion of main chain and side chain modifications of the foldamer helix that would result in an extension of the foldamer protein interface as well as in absolute helix handedness control. Molecular dynamics simulations validated several of these suggested modifications as potentially resulting in favorable foldamer–protein contacts. Five new Fmoc-protected amino acid building blocks bearing new biogenic-like side chains were synthesized. Nine new tetradecaamide sequences with or without the appended HCAII ligand were synthesized on solid phase and purified by RP-HPLC. The solid state structures of four of these sequences in complex with HCAII were obtained and validated the main design principles: (i) side chains can be predictably introduced at precise positions of the foldamer surface to create new contacts with the protein; (ii) side chains modifications do not alter main chain behavior and can be implemented independent from each other; (iii) some main chain units derived from quinoline-, pyridine-, or benzene-based δ-amino acids are largely interchangeable without altering the overall helix curvature in the context of a complex with a protein. An assessment of the KD values required the adaptation of an existing fluorescence competition assay and suggested that the side chain and main chain modifications introduced in the new sequences did not result in significant improvement of the affinity of the foldamers to HCA.
The potential of helical AOFs to interfere with protein function has been highlighted in the context of amyloid fibers7 and DNA-binding proteins.8 For the latter, AOFs that specifically mimic the shape of charge distribution of DNA have been developed. In contrast, methods are still missing to design ab initio a helical AOF protein binder that does not mimic an already known binding epitope, for example through the introduction of biogenic-like side chains complementary to the protein surface. To assess the potential of some helical AOFs to interact with a given protein surface, we introduced a tethering approach where a covalent or non-covalent linkage confines the AOF at the surface of the protein (Fig. 1).8,9 Tethering between two small molecules or between a small molecule and its protein target is a common approach in the context of drug research to compensate for initially weak binding. It lies at the heart of linker design in fragment-based approaches,14 including in the context of template-assisted strategies,15 and of covalent ligands.16 Tethering of AOFs to a protein target was used to detect foldamer–protein interactions upon observing a preferred handedness in an achiral oligomer.8,9 Taken alone, the achiral AOF exists as a racemic mixture of right-handed (P) and left-handed (M) enantiomeric conformers. If either helix (M or P) interacts better than the other with the protein surface, the resulting change of proportion leads to an induced circular dichroism (CD) signal. An AOF CD signal is easy to detect because AOFs absorb above 350 nm, in regions where proteins are transparent. For these studies, we have used human carbonic anhydrase II (HCAII) as a model system.8,9 This protein was initially selected because it is robust and commercially available as an easy-to-handle freeze-dried solid, i.e. it can be supplied to a chemistry laboratory without requiring recombinant protein expression. Furthermore, commercial HCAII was found to readily crystallize and small nanomolar ligands for this enzyme that can conveniently be appended to foldamers exist. Thus, strong helix handedness induction was observed with several helical AOFs linked to the protein via a nanomolar ligand. Subsequently, solid state structures of such complexes were obtained that confirmed the preferred P helix handedness and informed about foldamer protein contacts.8,9
In the case or tetradecamide sequence 1, the solid state structure showed a large contact surface area between the foldamer and HCAII (Fig. 2).9 However, it has not yet been shown whether such a structure could serve to further design the foldamer to extend its contact with the protein surface. Furthermore, although the AOFs are known to be rigid, it remained to be demonstrated whether side chain and main chain modifications could be implemented without altering their overall structure, a task difficult to achieve with e.g. a peptide or an aliphatic peptidic foldamer.17 Here, we show that, with the help of computational tools, the solid state structure of the complex 1·HCAII can be used as a starting point to place side chains at defined positions in space to further elaborate the foldamer–protein interface. We validate that the foldamer structure remains independent of side chain variations and even some main chain variations. Although the changes implemented have not resulted in significant changes in the dissociation constant of the complexes, the results further validate the concept that AOF helices can serve as reliable scaffolds to display biogenic-like side chains at the surface of a protein. The results also show that the HCAII system had some shortcomings alongside the advantages mentioned above.
![]() | ||

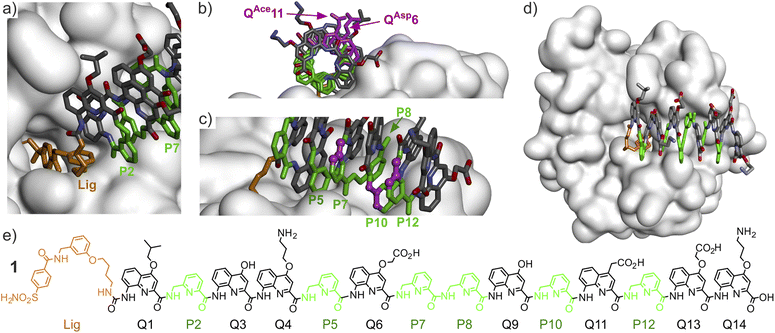

Fig. 2 (a)–(d) Show different views of the solid state structure of the complex between HCAII and AOF 1.9 Only the surface of the protein is shown. The foldamer is shown in stick representation. Pyridine units (P) are shown in green and the HCAII ligand is shown in gold. In (b), two residues of interest are shown in purple. In (c) three carbon atoms of three P residues are shown in purple balls. These carbons would belong to the additional benzenic ring when implementing a P→Q mutation at these positions. Hydrogen atoms have been omitted for clarity. (e) Structural formula of 1. |

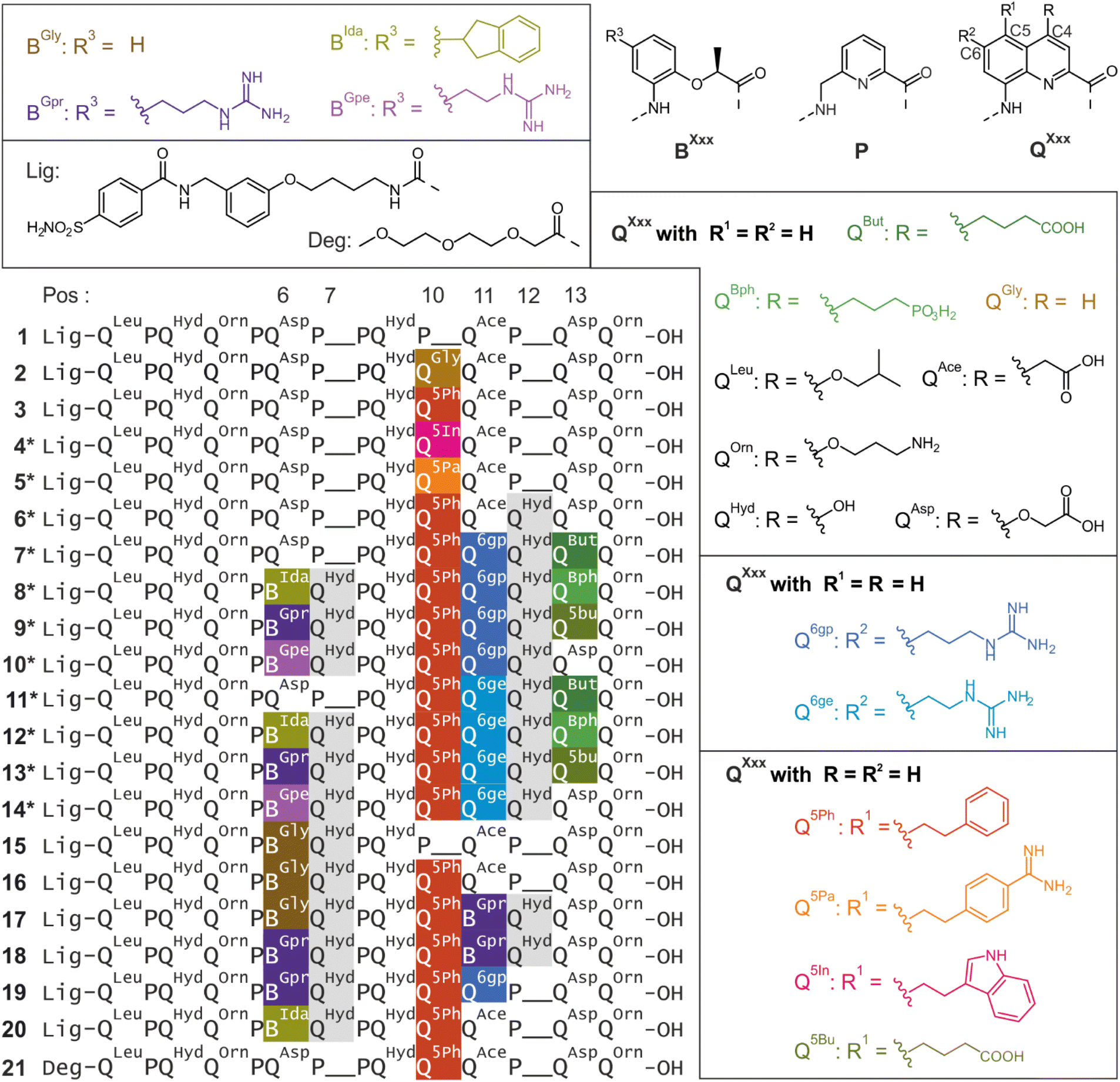

In order to extend foldamer–HCAII contacts, a number of QXxx monomers were considered bearing side chains in position 4, 5 or 6 (Fig. 3). BXxx monomers were also involved. BXxx monomers are δ-amino acids as well and may thus bring a contribution to helix curvature similar to that of Q and P.19 In addition, they carry a stereogenic center that has been shown to quantitatively bias helix handedness.20 Sequences comprising BXxx monomers are thus designed to be one handed even when they are not bound to HCAII. The S configuration of BXxx monomers is intended to favor P helicity. Among the monomers used in this study (Fig. 3), some were previously described, some were used only in computations, and five – BIda, BGpr, QGly, Q5Ph and Q6gp – were newly synthesized (Fig. S1†). The preparation of these building blocks in a form suitable for solid phase synthesis is presented in detail in the ESI.† All monomers were produced with a free carboxylic acid and an Fmoc-protected main chain amine. In addition, the side chains of BGpr and Q6gp were protected with Boc groups. Typically, side chain installation involved Sonogashira or Suzuki cross-coupling reactions on a bromoaryl precursor.13 The synthesis of Q5In is also described in the ESI.† However, although this monomer is a stable compound in its protected form (with a Boc group on the indole ring), sequences that contain it degrade over time after deprotection, apparently through an oxidation process, and could not be investigated. A representative example of this degradation is shown in Fig. S2.† It appears that oxidation is mediated by the foldamer and possibly involves light. For instance, we found that biotinylated sequences must be protected from air and light for storage to avoid the formation of biotin oxide.10a
Sequences 1–3 and 15–21 (Fig. 3) were synthesized on solid phase using an established in situ acid chloride activation protocol for the coupling steps.21 An improved procedure for the on-resin introduction of the HCAII ligand at the N-terminus of the helix using a urea linkage was also developed. Sequences were purified by RP-HPLC after TFA-mediated resin cleavage and side chain deprotection.
Sequences 4*–14* were investigated in computational studies but not synthesized. Sequences 2–3, 4* and 5* were the focus of a first phase of our investigation. They are analogues of 1 in which P10 is replaced by different, more rigid Q10, residues. In the case of 3, it could be verified experimentally that helix handedness bias upon binding to HCAII takes place despite the added rigidity, albeit significantly slower than with 1 (Fig. S3†). This first phase led to the installation of a Q5Ph10 residue in sequence 3, instead of P10 in 1. Q5Ph10 was conserved in all subsequently synthesized sequences except in 15. In a second phase, residue variations in positions 6, 7, 11, 12 and 13 were assessed computationally in sequences 6*–14* (see next section) and a selection of these variations was experimentally implemented in 15–20. Sequence 21 is an analogue of 3 lacking the N-terminal ligand.
Including chiral BXxx units to favor P helix handedness was desirable, for example to avoid conformational changes in the course of a KD value determination. For this purpose, residues 6 and 11 were chosen as possible locations. This choice was based on the observation that the side chains in position 4 of the quinoline rings of QAsp6 and QAce11 of 1 lie far from the HCAII surface (Fig. 2b). Removing these side chains and part of the pyridine ring of Q when performing a Q→B mutation should not alter the HCAII–foldamer interactions observed in the solid state. In contrast, the carbon atoms in position 5 and 6 of the quinoline rings of QAsp6 and QAce11 in 1 seem better oriented to introduce a side chain that may interact with the HCAII surface and a BXxx monomer may offer a similar side chain presentation.
Before implementing Q→B mutations, another design feature had to be considered. While chiral B units have been shown to quantitatively bias helix handedness in the context of (Q)n oligomers,20 this has not been validated when the helix also contains multiple more flexible P units, as in 1. Indeed, partial handedness bias has occasionally been observed when Q monomers are mixed with other monomers.22 To mitigate the risk that the chiral B-containing sequences would not be quantitatively one handed, we replaced some P units by Q in the vicinity of the B6 and B11 monomers. With their additional fused benzenic ring, Q monomers are bulkier than P. The structure of the 1·HCAII complex showed that this extra bulk could be accommodated without generating clashes in P7, P10 and P12, but not in P5 and P8 (Fig. 2c). Chiral B-containing sequences 15–20 therefore contain at least one and sometimes up to three Q monomers at residues 7, 10 or 12.
The one-handed nature of the new chiral foldamers could be verified by 1H NMR spectroscopy through the observation of a single set of signals. On top of ensuring quantitative handedness bias, the additional Q residues also resulted in slow helix handedness inversion in water. In case handedness bias was incomplete when the foldamer was first dissolved in water, e.g. for RP-HPLC purification, it may no longer proceed to completion. This pitfall is easily detected by the observation of two distinct sets of signals on the 1H NMR spectra, corresponding to P and M diastereomeric conformers. To solve this problem, one can dissolve and incubate the compound in an organic solvent such as DMF, where helix handedness inversion takes place faster,12 before evaporating and redissolving in water.
![]() | ||

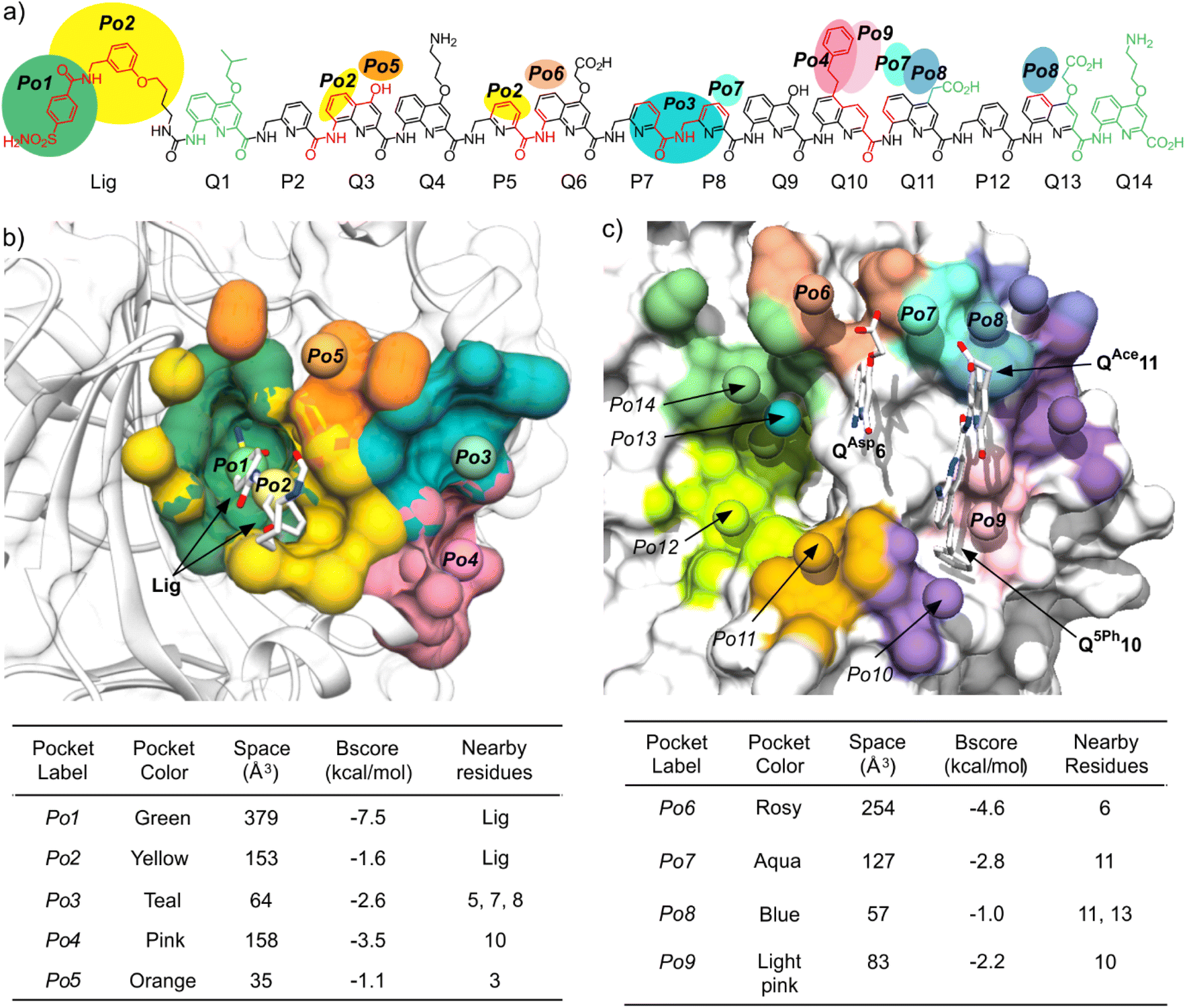

Fig. 4 (a) Structural formula of 3 including Q and P residue numbering. The bonds shown in red highlight parts of the molecule in direct contact with the HCAII surface in the solid state structure of the 3·HCAII complex (Fig. 5). The bonds shown in green highlight parts of the foldamer involved in intercomplex contacts in the crystal lattice of the solid state structure of the 3·HCAII complex. The color patches indicate the pockets near the foldamer main chain or side chains in the solid state structure of the complex. Pockets are colored and numbered as in (b) and (c). (b) Pocket analysis of the surface of HCAII restricted to the vicinity of the ligand binding site and the contact area with the foldamer helix in the solid state structure of the 1·HCAII complex (Fig. 2). (c) Pocket analysis of the surface of HCAII restricted to the vicinity of the contact area with the foldamer helix in the solid structure of the 3·HCAII complex (Fig. 5). In (b) and (c), pockets have been assessed in terms of their volume and their ligandability (BScore). Pockets Po10-Po14 were not included in this study. |
The second surface analysis was performed on the 3·HCAII complex in order to identify potentially ligandable sites in the vicinity of the foldamer helix where foldamer–protein contacts may be extended through the addition of foldamer side chains (Fig. 4c). This analysis led to the identification of pockets Po6–Po9. Po9 consists of the space left in Po4 that is not occupied by the side chain of Q5Phe10, hinting at the possibility that this side chain may be further elaborated (Fig. S5†). However, this option was not explored as many of the suggested side chains were synthetically challenging. We focused instead on Po6–Po8 which all lie on the same side of the foldamer helix, and may potentially be reached with side chains on residues Q6, P8, Q11, and Q13 (Fig. 4a). As explained above for Q10, side chains that both had a reasonable docking score and appeared to be synthetically accessible were kept for subsequent investigations (Fig. S6 and S7†). For Q6 and Q11, we have mentioned above that side chains in position 4 of the quinoline do not establish contacts with the protein surface (Fig. 2b) and that these positions were considered for the introduction of chiral B residues to control helix handedness. Instead, the HCAII surface analysis suggested the side chains in position 6 of the quinoline ring might establish contacts with the protein. This eventually led to the mutation of QAsp6 into guanidinium-containing BGpr6 or BGpe6 in sequences 9*, 10*, 13*, 14*, 18, 19, as well as indane-containing residue BIda6 in sequences 8*, 12*, 20. Similarly, mutation of QAce11 to guanidinum-containing residues Q6gp11, Q6ge11 or BGpr11 was implemented in sequences 7*–14* and 16–19.
Possible modifications of QAsp13 were inspired by a salt bridge between this residue and Lys24 of HCAII observed in one of the solid state structures presented below. To better reach this Lys24, residues QBut13, QBph13 and Q5Bu13 were considered in sequences 7*–9* and 11*–13*. It should be pointed that, given the extensive HCAII surface that the foldamer helix covers, opportunities for mutations and for the creation of new foldamer–protein contacts were too numerous to be considered at the same time. For instance, pockets Po10–Po14 were not investigated (Fig. 4c).
A first aspect concerns the rationale that led to selecting sequences 3 and 4*–14*. Because the number of possible single mutations was large, these were not investigated individually. Most sequences, carry two, three or four simultaneous side chain modifications with respect to 1, at positions 6, 10, 11 and 13. This way, all but two side chain modifications were examined in at least two distinct MD simulations. The first essential result is that the various side chain and, sometimes, main chain modifications mainly depend on where they are implemented, and generally do not depend from one another. When a mutation is performed at a given position, the behavior of the new residue tends not to vary with mutations at other positions. This is a major advantage for making predictions and sharply contrasts with aliphatic peptides where local modifications may impact global behavior.17 The consistent behavior of each new residue regardless of other sequence modifications also suggests that no mutation led to a major steric clash that would disturb the whole structure. In addition, owing to the independent behavior of the side chains, we could perform an analysis per interaction site/pocket, instead of an analysis per sequence. The results are presented in Fig. S9–S14† and a representative example is shown in Fig. 5.
The MD simulations reflected the strong interaction between the ligand and HCAII (Fig. S9–S10†). In all simulations, the bond between the HCAII-bound Zn2+ ion and the ligand sulfonamide group, tight contacts between the two aryl groups of the ligand and pockets Po1 and Po2, and contacts between Q3 and P5 with HCAII in Po2, all remained well in place (Fig. 2a, 4a and b). Concerning the mutations of P10 implemented to fill Po4, Q5Ph10 was found to form stable hydrophobic contacts with Pro137, Leu203, Glu204 and Cys205, as highlighted by the histograms of distance shown in Fig. 5. Note that sequences 4* and 5* show some deviations in these histograms because their different Q5In10 and Q5Pa10 residues establish distinct contacts. The indole side chain of Q5In10 in sequence 4* lies closer to Pro137 (Fig. S12†). This residue was synthesized but sequences containing it had stability issues that hampered experimental investigations. The benzamidinium side chain of Q5Pa10 in sequence 5* appeared to be too large for pocket Po4 and its position fluctuated more (Fig. S12†). It was not considered further and Q5Ph10 was conserved in all subsequent experiments.

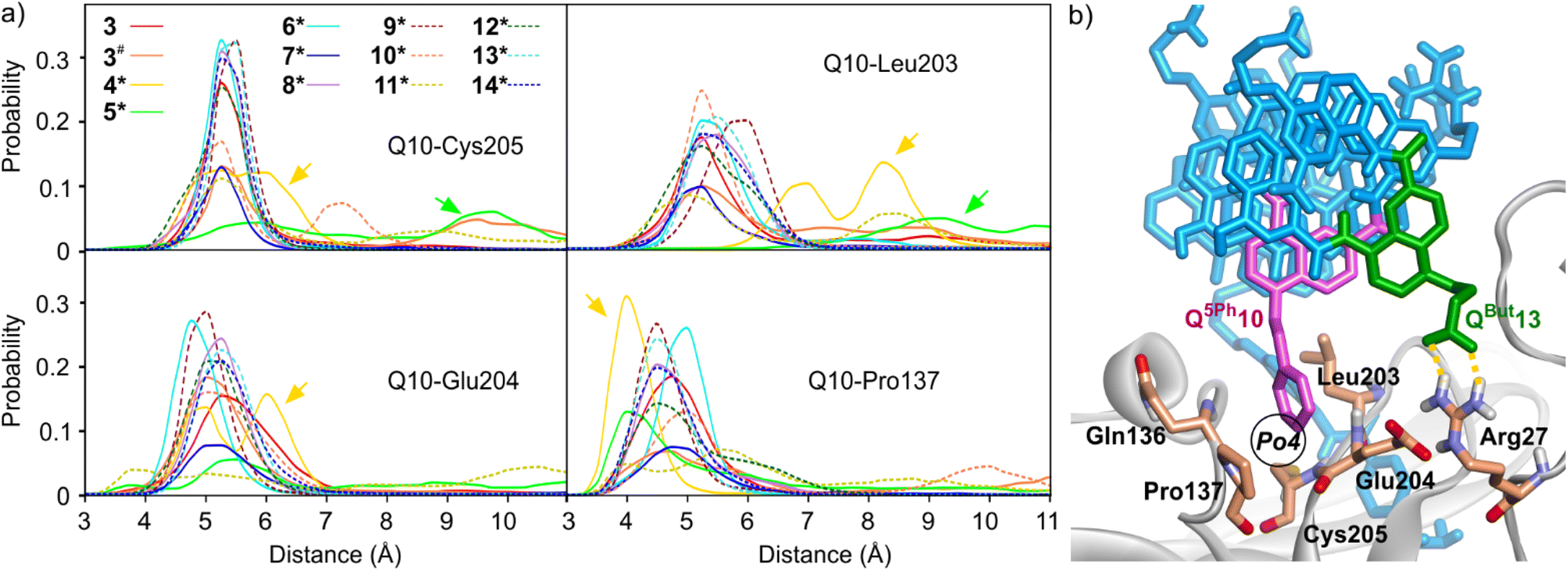

The interactions between side chains on residues 6, 11 and 13 and pockets Po6–Po8 (Fig. S13†) can be summarized as follows. Overall, the distance histograms show larger variations than for the contacts in pockets Po1–Po4. The salt bridge between QAsp13 and Lys24 seen in one solid state structure (see below) was absent or present in small percentage (3% to 41%) of the time along the trajectories in aqueous solution. Using other negatively charged side residues QBut13, QBph13, and Q5Bu13 made little difference. These were therefore not tested experimentally. In the case of residue 6, the hydrophobic side chain of BIda6 or the cationic side chains of BGpe6 or BGpr6 could potentially form contacts with Phe20 and Asp19, respectively, within pocket 6. Some of these residues were subsequently synthesized and implemented in sequences 19–20. Finally, the benefit of cationic residues in position 11 to fill pocket Po8 was not clear. Salt bridges were established only during small fractions of simulation time. With sequence 10*, a possible exception to the independent role of the side chains was observed with an apparent positive cooperative effect of the guanidinium-containing side chains of BGpe6 and Q6gp11 (Fig. S13†). Specifically, salt bridging (59% of simulation time for Q6gp11–Asp19 and 95% for BGpe6–Asp19) and hydrogen bonding (68% of simulation time for Q6gp11–Asp19) are more frequent in 10*·HCAII than with 7*, 8*, 9* and 14* in which either BGpe6 or Q6gp11 is present (0 to 28% for Q6gp11–Asp19, 74% for BGpe6–Asp19 and 0–11% H-bond for Q6gp11–Asp19).
MD simulations revealed an additional, unplanned, favorable foldamer–protein contact between QHyd7 and Gln135 (Fig. S14†). As mentioned above, P7QHyd and P12QHyd mutations were introduced to rigidify the helix and mitigate the risk that chiral B residue may not quantitatively bias helix handedness. QHyd residues were selected for that purpose because their relatively acidic yet small hydroxy side chain would not decrease foldamer water solubility. Nevertheless, MD simulations suggest that the side chain of QHyd7 can also hydrogen bond to Gln135.

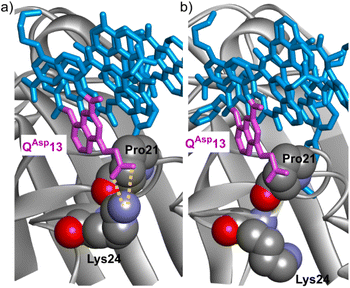

The structure of 2·HCAII validated that a P10QGly mutation of the foldamer could be performed without any steric apparent clash between the protein and QGly10 or any alteration of the foldamer helix shape (Fig. 6a and b). This structure also revealed a salt bridge between the carboxylate of the QAsp13 and residue Lys24 (Fig. 7a). In the structure of 1·HCAII, the side chain of Lys24 was only partly visible in the electron density map and the salt bridge was overlooked. As mentioned above, MD simulations suggested that this salt bridge is not stable in aqueous solution and is not convincingly stabilized when using anionic side chains longer than in QAsp13, or placed in position 5 of the quinoline ring, or having a dianionic phosphonate group, as in QBut, QBph, and Q5Bu.
![]() | ||
Fig. 6 Solid state structures of HCAII in complex with: (a) 1, (b) 2, (c) 3, (d and e) 16, (f) 20. In (a)–(c), the protein is shown as a white soft surface and the foldamer is shown in stick representation in gray except the residue in position 10 colored in purple. In (d)–(f), the protein is shown in gray ribbon representation except relevant amino acids which are in space filling representation. The foldamer is shown in blue stick representation except the residue in position 10 in (d), the residue in position 7 in (e) and the residue in position 6 in (f), which are colored in purple. Hydrogen bonds are indicated as yellow dashed lines. Pockets Po4 and Po6 are defined in Fig. 4. |
The structure of 3·HCAII then validated that the phenethyl side chain of Q5Ph10 filled Po4 as predicted by computations (Fig. 6c and d). The methylene carbon atom linked to the quinoline ring was found at 3.9 Å from a methyl group of Leu203, and one carbon atom of the phenyl ring lies within 3.5 Å from the nitrogen atom of Pro137. The structure of 16·HCAII confirmed the position of Q5Ph10 found in 3·HCAII and validated the double mutation QAsp6BGly and P7QHyd intended to introduce helix handedness bias (through BGly6) and to make the helix more rigid (through QHyd7). The proximity of QHyd7 and Gln135 (Fig. 6e) makes the hydrogen bonding observed in MD simulations plausible. In the solid state, the Gln135 amide NH2 hydrogen bonds to the main chain carbonyl of QHyd7. In addition, the proximity between the primary amide of Gln135 and the hydroxy side chain of QHyd7 likely favors contacts with the latter as well, be it in a protonated or deprotonated state. Finally, the structure of 20·HCAII validated that the indane side chain of BIda6 filled Po6 again as predicted by computations, establishing contacts with Phe20 (Fig. 6f). In this structure, Lys24 was again visible in the electron density map, but in a conformation where hydrogen bonding to QAsp13 is not established (Fig. 7b), different from the structure of 2·HCAII. Of note, in all structures, QAsp13 is involved in a salt bridge with a lysine (Lys80) belonging to another HCAII molecule of the crystal lattice as part of the intercomplex contacts (Fig. S18†). This probably influences, that is, competes with the formation of the salt bridge with Lys24 in the solid state.
Altogether, the solid state structures validate the predictions made by computations. They demonstrate the equivalent contribution to main chain helix curvature of P, Q and B monomers in the context of a foldamer–protein contact area. They also demonstrate that the positions of the foldamer side chains and the type of interactions they may engage with the protein are predictable.
![]() | ||
Fig. 8 (a) Structural formula of HCAII ligand 22 and of fluorescence probe 23 used in the competition assay. (b) Changes in fluorescence spectra (380–600 nm) upon HCAII titration of sequence 19. [19] = [23] = 50 nM; (c) Experimental (■) and calculated values using a 1![]() ![]() |
We turned to a recently published assay that exploits the quenching of the fluorescence of nanomolar ligand 23 upon binding to HCAII (Fig. 8a).32 The low KD value of 23 makes it suitable to perform competition (displacement) assays with compounds binding in the same concentration range. However, some optimization of the assay was required to perform experiments with foldamer-containing ligands because the foldamers absorb both at the excitation (373 nm) and emission (400–450 nm) wavelengths of 23. Performing classical direct displacement titrations where a foldamer is added to a solution containing 23 and HCAII would be complicated by variable inner filter effects. Instead, we performed titrations in which aliquots of an HCAII solution, typically 10 μM, were added to a solution already containing a foldamer (50 nM) and 23 (50 nM). The foldamer and 23 were also present at the same concentrations in the HCAII solution. This way, the concentrations of fluorophore and foldamer were kept constant and only the ratio of HCAII was varied. A representative titration is shown in Fig. 8b and the corresponding KD values are shown in Table 1. With this assay, the KD value for simple ligand 22 was 10 nM compared to 5 nM previously measured by SPR with HCAII immobilized on the SPR chip under slightly different buffer conditions.8a§ For the titrations of the foldamers, one may note a slight but persistent systematic deviation in the curve fitting of the data by the 1:
1 binding isotherm (blue arrows in Fig. 8). It appears that the fluorescence drops upon adding HCAII, i.e. that ligand 23 binds to HCAII, in presence of the foldamer faster than predicted by the binding model. A better fit can be artificially obtained by inputting HCAII concentrations 20% larger than those measured or foldamer concentrations 20% lower than those measured in the curve fitting program. Using a 2
:
1 binding model (two foldamers per HCAII) also gave a better fit. The results are nevertheless presented as observed because the modifications that lead to a better fit have no experimental justification. Furthermore, these modifications do not change the trend and conclusions presented below.
HCAII bindera | KDb (nM) |
---|---|
a Some remarkable features are indicated in parenthesis.b Values were found to be repeatable within ±15% in duplicate experiments. | |
22 (reference ligand) | 10 |
15 | 1.5 |
16 (with Q5Phe10) | 5.2 |
17 (with Q5Phe10, BGpr11) | 10 |
18 (with BGpr6, Q5Phe10, BGpr11) | 7.2 |
19 (with BGpr6, Q5Phe10, B6gp11) | 9.3 |
20 (with BIda6, Q5Phe10) | 7.4 |
In order to confirm these data, we tried to develop an alternate competition assay using BLI. A new biotinylated HCAII ligand 24 (Fig. 9a) was synthesized which, after immobilization on streptavidin sensors allowed for an accurate KD determination of its association with HCAII (Fig. 9). Immobilized 24 may in principle act as a reporter of the concentrations of free HCAII in solution. However, in this case as well, the kinetics were slow, a steady state regime was not reached. A calibration curve could in principle be produced by intercepting a value on the sensorgrams after a fixed amount of time instead of waiting until a steady state is reached. However, this proved not to be accurate enough to reliably determine the free HCAII concentration in solution.
Coming back to the KD values measured with the fluorescence competition assay, it appears that sequence 15, with no added side chain in positions 6, 10 and 11, is the best binder and that all others bind similarly. These results should nevertheless be taken with caution. The foldamers suffer from low water solubility and a contribution from foldamer aggregation cannot be excluded. For instance, when the fluorescence titrations were performed at higher concentrations (e.g. [23] = 100 nM, [foldamer] = 200 nM, Fig. S19†), the apparent KD were higher than in Table 1, consistent with an effect of aggregation that reduces the effective foldamer concentration for binding to HCAII. The values in Table 1 could therefore also reflect that sequences 16–20 aggregate more than 15, e.g. because of their hydrophobic Q5Ph10 residue.
