A chiral Si(IV) complex bearing a 1,2,4-triazole-2,2′-diphenol ligand: synthesis, (chiro-)optical properties and computational investigation

Abstract

The reactivity of bis-3,5-phenol 1-phenyl-1,2,4-triazole, a non-symmetrical tridentate O^N^O proligand derived from Deferasirox, towards a Si(IV) precursor is herein studied. The reaction of the proligand (O¹NO²)H₂ with SiCl₄ afforded a highly stable homoleptic hexacoordinate complex, namely Si(O¹NO²)₂, in high yield. While the emission profile of the proligand – arising from an excited-state intramolecular proton transfer (ESIPT) mechanism – appears featureless and broad, the Si(IV) complex exhibits enhanced photoluminescence in the violet-to-deep-blue region, with a quantum yield of up to 32% in spin-coated thin films. A comprehensive study, combining photophysical methods and (time-dependent) density functional theory (TD-DFT) calculations, has rationalized the emissive behavior of this complex. Due to the non-symmetrical nature of the ligand, the homoleptic Si complex is obtained as a racemate of two Δ/Λ enantiomers that were separated by chiral chromatography and characterized by electronic circular dichroism (ECD). Subsequent TD-DFT calculations enabled the modelling of the ECD spectra and the assignment of the absolute configuration of the resolved enantiomers.

---

Introduction

Organosilicon compounds are currently of great importance in the development of new chemical reagents and functional materials, such as polymers, glasses and ceramics.¹ Organosilicon derivatives offer great molecular diversity, also because, unlike carbon, silicon allows coordination greater than four.² Some of the major achievements in organosilicon chemistry over the last few decades have been related to hypercoordinated intermediates.^3,4 This coordination diversity has been studied to yield interesting tetra-, penta- or hexa-coordinated compounds with attractive applications in various fields, such as electroluminescent and electron transport materials as well as photodynamic therapy agents.⁵ For example, hexacoordinated N–Si complexes containing two 2,6-bis(benzimidazol-2-yl)pyridine pincer-type ligands have demonstrated excellent optoelectronic properties and exceptional thermal stability suitable for applications in optoelectronics, such as electroactive materials in organic light-emitting diodes (OLEDs) and photovoltaic devices (OPVs).^6,7 Very recently, we have reported the synthesis and photo-/electroluminescence properties of a neutral homoleptic hexacoordinate Si(IV) complex based on two pincer-type tridentate O^C^O N-heterocyclic carbene ligands (Scheme 1). This complex, which shows remarkable saturated true-blue emission, was then employed as an emitter in a proof-of-concept OLED.⁸ This result led us to investigate other tridentate ligands for the synthesis of homoleptic Si(IV) complexes, and among the available options, we focused on the molecular structure of Deferasirox, a tridentate O^N^O iron chelator used for the treatment of iron overload that has also recently been used in chemotherapy and as an antifungal and antimicrobial agent.^9–14 Additionally, Deferasirox derivatives have shown interesting photophysical properties for practical applications as sensors and detectors in physiological environments^15,16 and have been shown to yield phosphorescent Pt(II) complexes with excited-state lifetimes on the order of microseconds and photoluminescence quantum yields (PLQYs) of up to 17%.¹⁷

Scheme 1 Structures of Deferasirox (top, left), the previously studied NHC pincer-type O^C^O proligand (OCO)H₃ (top, right) and the synthetic strategy for obtaining the Si(IV) complex of the current work (bottom).

Herein, we report the easy access of a chiral, homoleptic, neutral and hexacoordinate luminescent complex, namely, Si(O¹NO²)₂, bearing the asymmetric bis-aryloxide triazole ligand (O¹NO²)H₂ along with its (chiro-)optical and computational investigation.

Results and discussion

It is important to note that due to the presence of the phenyl substituent on the triazole ring, the two phenoxy moieties are chemically different. As a consequence, the tridentate proligand, named (O¹NO²)H₂ for the sake of further considerations, yields a racemic octahedral complex with chiral meridional C₂ symmetry and the general structure rac-[Si(O¹NO²)₂] upon coordination to the Si(IV) centre. Therefore, the Si(O¹NO²)₂ complex exists in two possible absolute configurations, namely, and , owing to the two possible mutual orientations in space of the tridentate O¹NO² scaffolds around the Si(IV) atom (see Fig. S7† for details on the absolute configuration).

As shown in Scheme 1, the bis-tridentate, homoleptic Si(IV) complex was obtained by the direct reaction of SiCl₄ with the 3,5-bisphenol 1-phenyl-1,2,4-triazole proligand (O¹NO²)H₂ and was easily purified by column chromatography.

¹H NMR spectroscopy at room temperature exhibits a highly symmetric resonance pattern, indicative of fluxional behaviour around the Si(IV) centre and coherent with the small energetic barrier associated with the ring puckering motion of the coordinated tridentate O¹NO² ligands that deviate from planarity. The fast exchange between the different possible ligand conformations gives rise to the different helical twists that each of the two ligands may independently adopt, namely (δ,δ), (δ,λ), (λ,δ), and (λ,λ). Similarly, ²⁹Si NMR spectroscopy confirms the hexacoordinate nature of silicon with a chemical shift of δ = −194.1 ppm, that falls in the range typically observed for other hexacoordinated complexes.^6,8 NMR spectra are reported in Fig. S1–S6 of the ESI.†

Single crystals of rac-Si(O¹NO²)₂ suitable for X-ray crystallographic analysis were obtained by vapour diffusion of Et₂O into a CH₂Cl₂ solution of the racemate and the molecular structure of the Δ isomer is shown in Fig. 1. The complex crystallised in the P2₁/c monoclinic space group with an octahedral geometry around the Si centre, showing O–Si–O angles in the range of 87.92–91.86° and 178.63–179.27°, O–Si–N angles in the ranges 89.46–91.20° and an N–Si–N angle of 177.79°. The octahedral Si centre bridges two tridentate ligands in a mer-O¹NO² coordination motif, with an average length of the Si–O bonds of 1.756 Å and more elongated Si–N bonds, averaging 1.873 Å. Although the environment around silicon is perfectly octahedral, the chelate ligands adopt an arrangement that positions them at an average angle of ca. 50° to each other with respect to the N1–N4 axes (Fig. 1b displays a view along the N1–N4 axes). Interestingly, the complex has a very high thermal stability as shown by thermogravimetric analysis (TGA), with degradation starting above 300 °C and a 5% weight loss temperature T_5% being as high as 366 °C (Fig. S8†).

Fig. 1 (a) Molecular structure of Δ-Si(O¹NO²)₂. The hydrogen atoms are omitted for clarity. Selected bond lengths [Å] and angles [°]: Si(1)–O(2), 1.7468(16); Si(1)–O(3), 1.7546(15); Si(1)–O(4), 1.7583(15); Si(1)–O(1), 1.7642(15); Si(1)–N(4), 1.8721(18); Si(1)–N(1), 1.8740(18); O(2)–Si(1)–O(3), 89.45(7); O(2)–Si(1)–O(4), 91.85(7); O(3)–Si(1)–O(4), 178.62(8); O(2)–Si(1)–O(1), 179.26(8); N(2)–N(3)–N(6)–N(5), −49.83(18). (b) View of Δ-Si(O¹NO²)₂ along the N1–N4-axes. Hydrogen atoms and phenyl moieties are omitted for clarity (CCDC 2422992†).

The two enantiomers were separated under standard conditions using a Chiralpak® IB-N5 chiral stationary phase with a heptane/ethanol/CH₂Cl₂ mixture (60/20/20) as the eluent with an enantiomeric excess (ee) of over 99.5%. The successful chiral resolution of the enantiomers was confirmed by analytical chiral HPLC characterization and electronic circular dichroism (ECD) spectra. Lastly, the high configurational stability of the complexes was confirmed by ECD measurements carried out on enantiopure samples before and after thermal treatment in refluxing toluene for 24 hours (see the ESI† for further details).

Photophysical characterization

First, the electronic absorption of the ligand (O¹NO²)H₂ and rac-Si(O¹NO²)₂ was investigated in dilute CH₂Cl₂. The electronic absorption spectra are displayed in Fig. 2 and the corresponding data are listed in Table 1.

Fig. 2 UV-vis absorption and photoluminescence emission in dilute CH₂Cl₂ (2 × 10⁻⁵ M) for the complex Si(O¹NO²)₂ (solid traces) and the proligand (O¹NO²)H₂ (dashed traces). Emission spectra were recorded upon excitation at λ_exc = 320 nm.

Table 1 Photophysical properties of rac-Si(O¹NO²)₂ and (O¹NO²)H₂ in dilute air-equilibrated CH₂Cl₂ solution (2.0 × 10⁻⁵ M) at room temperature

	λ max (ε) [nm, (10^3 M^−1 cm^−1)]	λ em [nm]	PLQY (%)	τ obs [ns]	[ns]	k r [10^7 s^−1]	k nr [10^8 s^−1]
	CH2Cl2, 2 × 10^−5 M, air-equilibrated
sh denotes a shoulder.
(O^1NO^2)H2	298sh (12.81), 308 (14.60), 323sh (6.99)	519	1	2.49 (65%), 11.34 (35%)	8.76	0.1	1.13
Si(O^1NO^2)2	322 (21.52), 345sh (13.60)	414	12	3.26	—	3.7	2.70

---

In the 300–350 nm region, the electronic absorption spectrum of the proligand (O¹NO²)H₂ exhibits a slightly structured profile with moderate intensity (ε = 1.46 × 10⁴ M⁻¹ cm⁻¹) at the relative maximum at λ_abs = 308 nm. Upon complexation onto the Si(IV) centre, the absorption maximum in Si(O¹NO²)₂ is bathochromically shifted by ca. 1400 cm⁻¹ at λ_abs = 322 nm with ε values of 2.15 × 10⁴ M⁻¹ cm⁻¹ and 1.36 × 10⁴ M⁻¹ cm⁻¹ at the shoulder at λ_abs = 345 nm. The concomitant increase in band intensity is related to the presence of two chromophoric ligands in the Si(O¹NO²)₂ complex.

Upon increasing the solvent polarity, a steady hypsochromic shift of the absorption can be observed along the series toluene → THF → CH₂Cl₂ → CH₃CN → MeOH, which is indicative of a negative solvatochromic effect (see Fig. S9 and Table S1†). Comparison with the UV-vis spectrum of the ligand (O¹NO²)H₂ in CH₂Cl₂ allows us to associate the high-energy flank at λ_abs = 250–270 nm of the absorption profile of the complex Si(O¹NO²)₂ with an electronic transition of mainly singlet ligand-centred (¹LC) nature. Lastly, the broad absorption bands at λ_abs = 320–350 nm of Si(O¹NO²)₂ can be overall ascribed to overlapping electronic transitions with mixed singlet-manifold intraligand charge transfer (¹ILCT) and ¹LC with π_PhO → π*_Trz and π_O¹NO² → π*_O¹NO² character, respectively.

As far as the photoluminescence properties of the (O¹NO²)H₂ proligand in CH₂Cl₂ are concerned, the emission profile appears featureless and broad with a maximum at λ_em = 519 nm and low intensity, with PLQY being as low as 1% (see Table 1). Interestingly, its spectrum is characterized by a very large Stokes’ shift, as large as 13 200 cm⁻¹. This emission is attributed with confidence to the excited-state keto form (K*), resulting from the photoinduced keto-enol tautomerisation process between the acidic phenolic proton and the H-accepting N-atoms of the substituted 1,2,4-triazole ring, after the excited-state intramolecular proton transfer (ESIPT) process, in agreement with recently reported findings.¹⁸

In sharp contrast, upon excitation at λ_exc = 320 nm, a dilute CH₂Cl₂ sample of Si(O¹NO²)₂ shows a featureless photoluminescence profile in the violet-to-deep-blue region with a maximum centred at λ_em = 414 nm and higher intensity with a PLQY of 12%. The emission maximum of Si(O¹NO²)₂ is slightly affected by the polarity of the solvent, yet in an opposite way compared to the absorption spectra, with the peak shifting from λ_em = 414 to 410 nm upon decreasing the solvent polarity. This spectral shift is accompanied by a remarkable increase in the PLQY value from 2% in MeOH and CH₃CN to 21% in toluene.

As far as the fluorescence decay of Si(O¹NO²)₂ is concerned, time-resolved spectroscopy yields data that can be nicely fitted with a mono-exponential decay model for the three most apolar solvents, namely, toluene, THF and CH₂Cl₂, while the CH₃CN and MeOH samples yield kinetic data that require a two-exponential decay model. As listed in Table 1 and Table S1,† the observed lifetimes are in the range of a few nanoseconds, the longest being τ = 3.30 ns in toluene and τ = 3.27 ns in CH₂Cl₂ and the shortest being the two-exponential τ₁ = 1.44 ns (29%) and τ₂ = 0.88 ns (69%) in MeOH, with τ_ave = 1.10 ns. Similar excited-state lifetimes can be obtained for samples in other solvents, without a clear trend dependency on solvent polarity. This finding, combined with the lower PLQY observed for Si(O¹NO²)₂ in MeOH and CH₃CN, points towards the fact that a specific emitter–solvent interaction, such as H-bonding, might be at play, providing efficient quenching channels (see below).

These data allow us to estimate the radiative (k_r) and non-radiative (k_nr) rate constants characterising the emissive excited state by using the following equations (eqn (1) and (2)):

which provide k_r values as high as 3.7 × 10⁷ and 1 × 10⁶ s⁻¹ in CH₂Cl₂ indicative of a highly allowed radiative process (see Table 1). The singlet character of the emissive excited state is also confirmed by the absence of oxygen dependency in both the excited-state lifetime and PLQY value. On the other hand, k_nr values are in the order of 1.1–2.7 × 10⁸ s⁻¹ for the CH₂Cl₂ sample.

At a later stage, the chiroptical properties of the two enantioenriched fractions (ee > 99.5%) were investigated in CH₂Cl₂ solution. The ECD spectra obtained for the two eluted fractions provided definitive confirmation of the resolution of the two enantiomers, as evidenced by the mirror-image shape of the spectra (Fig. 3a). As far as the first eluted fraction is concerned, the ECD spectrum displays several Cotton effects with bands possessing moderate intensity, observed at λ_max = 354 nm (Δε = +6.6 M⁻¹ cm⁻¹), 333 nm (−16.1), 313 nm (+8.1), 287 nm (+12.3), and 259 nm (−18.2) (Table 2). A very similar, mirror-image ECD spectrum was found for the second enantiomer. Additional ECD spectra recorded in CH₃CN can be found in the ESI (Fig. S10 and Table S3†), exhibiting nearly identical spectral features in both intensity and wavelength.

Fig. 3 (a) Experimental ECD spectra in dilute CH₂Cl₂ at a concentration of 2 × 10⁻⁴ M and (b) computed Boltzmann-weighted ECD spectra for Λ-Si(O¹NO²)₂ (first eluted, blue trace) and Δ-Si(O¹NO²)₂ (second eluted, red trace).

Table 2 Experimental ECD data of the two Si(O¹NO²)₂ enantiomers in dilute CH₂Cl₂ at a concentration of 2 × 10⁻⁴ M

Isomer	λ max (Δε) [nm, (M^−1 cm^−1)]
Λ	259 (−18.15), 278 (12.31), 313 (8.14), 333 (−16.07), 354 (6.60)
Δ	259 (18.48), 276 (−11.82), 313 (−8.01), 334 (15.98), 354 (−6.64)

---

Regrettably, CH₂Cl₂ samples of the two enantiomers exhibit only negligible circularly polarized luminescence (CPL) with very low dissymmetry factors |g_Lum| on the order of 10⁻⁴ at λ_em = 400–450 nm (Fig. S12 of the ESI†).

Remarkably, the complex Si(O¹NO²)₂ exhibits interesting photophysical properties in the solid state. The spectra recorded for the neat powder as well as thin-film samples at a 10% doping level in 120k poly(methyl-methacrylate) (PMMA) and 35k polystyrene (PS) matrices are displayed in Fig. 4. The most meaningful photophysical data are compiled in Table 3.

Fig. 4 Photoluminescence emission spectra for Si(O¹NO²)₂ as crystalline powder (grey trace), 10 wt% doped thin film in PMMA (green trace) and 10 wt% doped thin film in PS (aqua trace). Spectra were recorded upon excitation at λ_exc = 320 nm.

Table 3 Photophysical properties of Si(O¹NO²)₂ spin-coated thin films

Compound	Doping % polymer	λ em [nm]	PLQY (%)	CIE (x, y)	τ obs [ns]	[ns]
Si(O^1NO^2)2	10% PMMA 120k	403	26	0.17, 0.07	1.79 (51%), 4.43 (62%)	5.03
	10% PS 35k	420	32	0.17, 0.11	2.15 (92%)	—

---

As far as the neat powder sample is concerned, the compound Si(O¹NO²)₂ exhibits a broad and featureless emission profile with a maximum at λ_em = 420 nm that is bathochromically shifted by 345 cm⁻¹ compared to the CH₂Cl₂ sample, yet with a comparable PLQY value (11%) and τ_ave = 2.36 ns. On the other hand, dispersion of the compound in doped polymer thin films yields emission profiles seemingly independent of the polarity of the polymer matrix, with maxima peaking at λ_em = 402 and 403 nm and with a remarkable enhancement of the PLQY values up to 29% and 26% for PS and PMMA samples, respectively. Overall, these findings point towards an emissive singlet-manifold excited state with admixed ¹ILCT/¹LC nature.

Upon lowering the temperature to 77 K, samples of racemic and enantiopure HPLC-purified Si(O¹NO²)₂ in a toluene glassy matrix exhibit a structured steady-state emission profile that allows us to identify two coexisting emissive phenomena (Fig. 5). The first one is located at higher energy and it is characterised by a short-lived emission peaking at λ_em = 392 nm with a fast two-exponential decay in the range of a few nanoseconds (τ_ave = 6.43 ns at λ_em = 400 nm). The second one is found at lower energy and it is characterized by a green structured emission instead, with maxima at λ_em = 446, 478, 510, and 550 nm and a long-lived excited state. This latter emission can be fitted by using a two-exponential decay model that provides an average lifetime value as long as τ_ave = 262 ms at λ_em = 480 nm. Both the structured profile and emission decay time allowed us to ascribe the short- and long-lived radiative processes to two excited states that are electronically decoupled with strong ¹ILCT and ³LC character, respectively.

Fig. 5 Low-temperature photoluminescence emission spectra in a toluene glassy matrix at 77 K of Λ-Si(O¹NO²)₂ (first eluted, blue trace) and Δ-Si(O¹NO²)₂ (second eluted, red trace). Spectra were recorded upon excitation at λ_exc = 320 nm.

It should be noted that since this emission profile is observed in both the racemate and the HPLC-enriched enantiomers, it is intrinsic to the complex and not due to trace impurities.

Computational investigation

First, the structures of both the ligand (O¹NO²)H₂ and the complex Si(O¹NO²)₂ were optimized starting from the coordinates obtained by single-crystal X-ray diffraction. For the complex, the conformational analysis was carried out on the stereoisomer and yielded four different structures associated with the possible helical twists adopted by the non-planar O¹NO² chelates. Indeed, it can be noticed that the phenol rings of the coordinated O¹NO² ligands are not coplanar, as shown by the ∠(C–C–C–C) dihedral angle values of −24.9 to −25.8° versus −25.8 to −29.5° for experimental and theoretical structures, respectively.

Some selected geometrical parameters and energetics are listed in Table 4. The stereoisomer Λ(δ,δ) was shown to be at the absolute minimum, named GS_a, while the Λ(λ,λ) stereoisomer, obtained by complete inversion of the O¹NO² twist, corresponds to a second energy-minimum structure, named GS_b. These two minima (Fig. 6) are computed to be almost degenerate, with GS_a lying only 0.1 kcal mol⁻¹ above GS_b, and its geometrical parameters excellently agree with those observed experimentally in the single-crystal X-ray structure.

Fig. 6 DFT-optimized structures of GS (left) and GS_c (right).

Table 4 Selected experimental and computed geometrical parameters for the different conformers of the complex. Distances, dihedral angles and Gibbs free energy differences are given in [Å], [°], and [kcal mol⁻¹], respectively. The Boltzmann population of the different conformers is computed at 300 K

	RX Λ(λ,λ)	GSaΛ(λ,λ)	GSi1Λ(λ,δ)	GSbΛ(δ,δ)	GSi2Λ(δ,λ)
Si–O1	1.747	1.772	1.770	1.773	1.769
Si–N1	1.874	1.887	1.891	1.887	1.891
Si–O2	1.764	1.784	1.780	1.783	1.782
Si–O3	1.755	1.772	1.769	1.773	1.770
Si–N2	1.872	1.887	1.891	1.887	1.891
Si–O4	1.758	1.784	1.781	1.783	1.780
C1–C2–C3–C4	−24.9	−29.3	−25.8	29.5	25.9
C5–C6–C7–C8	−25.8	−29.3	25.8	29.3	−25.7
ΔG		0.1	2.5	0.0	2.7
Relative Boltzmann population		0.451	0.008	0.534	0.006

---

Two other energy minima, named GS_i1 and GS_i2, were obtained for the conformers with an alternate helical twist of one of the two O¹NO² chelates, Λ(λ,δ) and Λ(δ,λ), respectively. These conformers lie energetically slightly above the GS_a geometry. The associated transition state between the Λ(δ,δ) and Λ(λ,δ) energy minima is low in energy, with the barrier being as small as ΔG^‡ = 4.9 kcal mol⁻¹, providing the possibility for fast interconversion in solution at room temperature between the GS_a and GS_b structures through the GS_i1 and GS_i2 intermediates (see Fig. S13† and Table 4).

Given the low interconversion barriers between the different conformers, the optical properties of the Si(O¹NO²)₂ complex in solution, whether enantiopure or as a racemate, should be the result of the contributions arising from multiple different conformers. To model the observed absorption spectrum, the electronic transitions for GS_a, GS_i1, GS_i2 and GS_b structures of the complex Si(O¹NO²)₂ as well as for the proligand (O¹NO²)H₂ were computed within the framework of time-dependent density functional theory (TD-DFT) and the corresponding data are listed in Tables S4–S8.†

The calculated absorption spectrum of the proligand (O¹NO²)H₂ agrees well with the experimental one (Fig. 7). The absorption band between 270 and 320 nm is the convolution of three electronic transitions computed at 286 (S₀ → S₁), 297 (S₀ → S₂) and 310 nm (S₀ → S₃). The computed transition at higher energy can be described as a pure π–π* localized on the phenol-triazole-phenol core (Fig. S14 and Table S4†). The two lower-energy transitions are very similar in nature and can be described as a mixture of π–π* excitation with some degrees of charge transfer character from the phenol to the triazole-phenyl moiety.

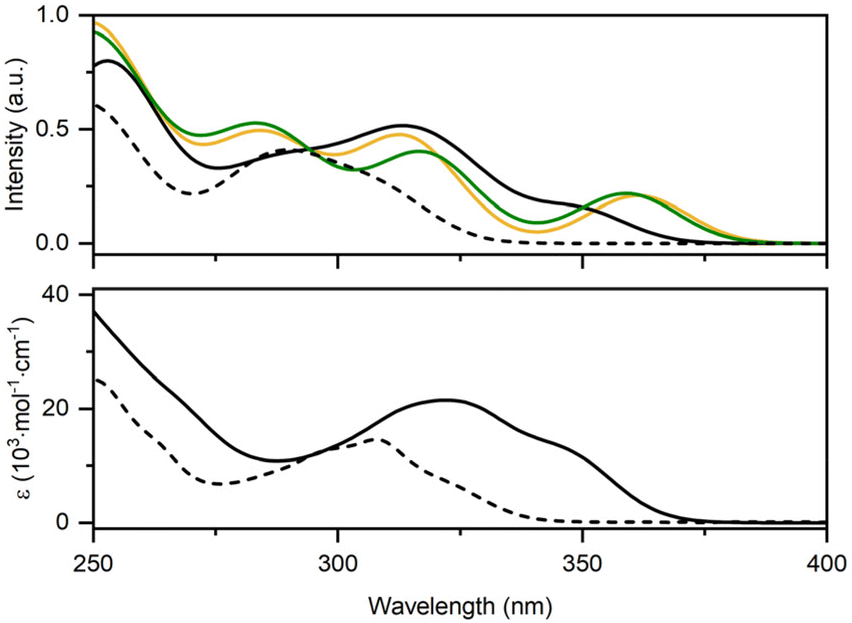

Fig. 7 Top: Computed electronic absorption spectra of the proligand (O¹NO²)H₂ (dashed trace) and of the different conformers of Si(O¹NO²)₂: GS_a (yellow), GS_i1 (black), GS_i2 (purple), and GS_b (green), where GS_i1 and GS_i2 are superimposed. Bottom: Experimental electronic absorption spectra in dilute CH₂Cl₂ of (O¹NO²)H₂ (dashed trace) and Si(O¹NO²)₂ (black solid line).

Experimentally, upon complexation of the proligand (O¹NO²)H₂ onto the Si(IV) centre, a bathochromic shift of the absorption spectrum of Si(O¹NO²)₂ is observed, yet none of the computed absorption spectra of the four conformers displayed in Fig. 7 represent the experimental profile satisfactorily. Regardless, it is evident from the computed data how the conformation of the complex has a significant impact on the shape and intensity of the absorption spectra: the computed absorption spectra of GS_a and GS_b appear to be relatively similar, whereas the absorption spectra of GS_i1 and GS_i2 are superimposable, as expected, and resemble the experimental one more closely.

As far as the conformer GS_i1 is concerned, a large absorption band is present at λ_abs = 270–370 nm. The shoulder at 350 nm agrees well with the experimental one observed at λ_abs = 345 nm. This less energetic band is the superposition of two electronic transitions with mixed ¹ILCT/¹LC character corresponding to S₀ → S₁ and S₀ → S₂ transitions (Fig. 8) computed at λ_abs = 350 and 349 nm, respectively. The more intense band computed at around λ_abs = 315 nm is also in good agreement with the experimental peak measured at λ_abs = 322 nm and is due to the convolution of many electronic transitions, with the main contribution arising from the predominantly ¹LC S₀ → S₉ transition computed at 310 nm. At higher energy, the experimental shoulder located around λ_abs = 290 nm is mainly due to ¹LC S₀ → S₁₁ and S₀ → S₁₂ transitions computed at 294 and 293 nm, respectively.

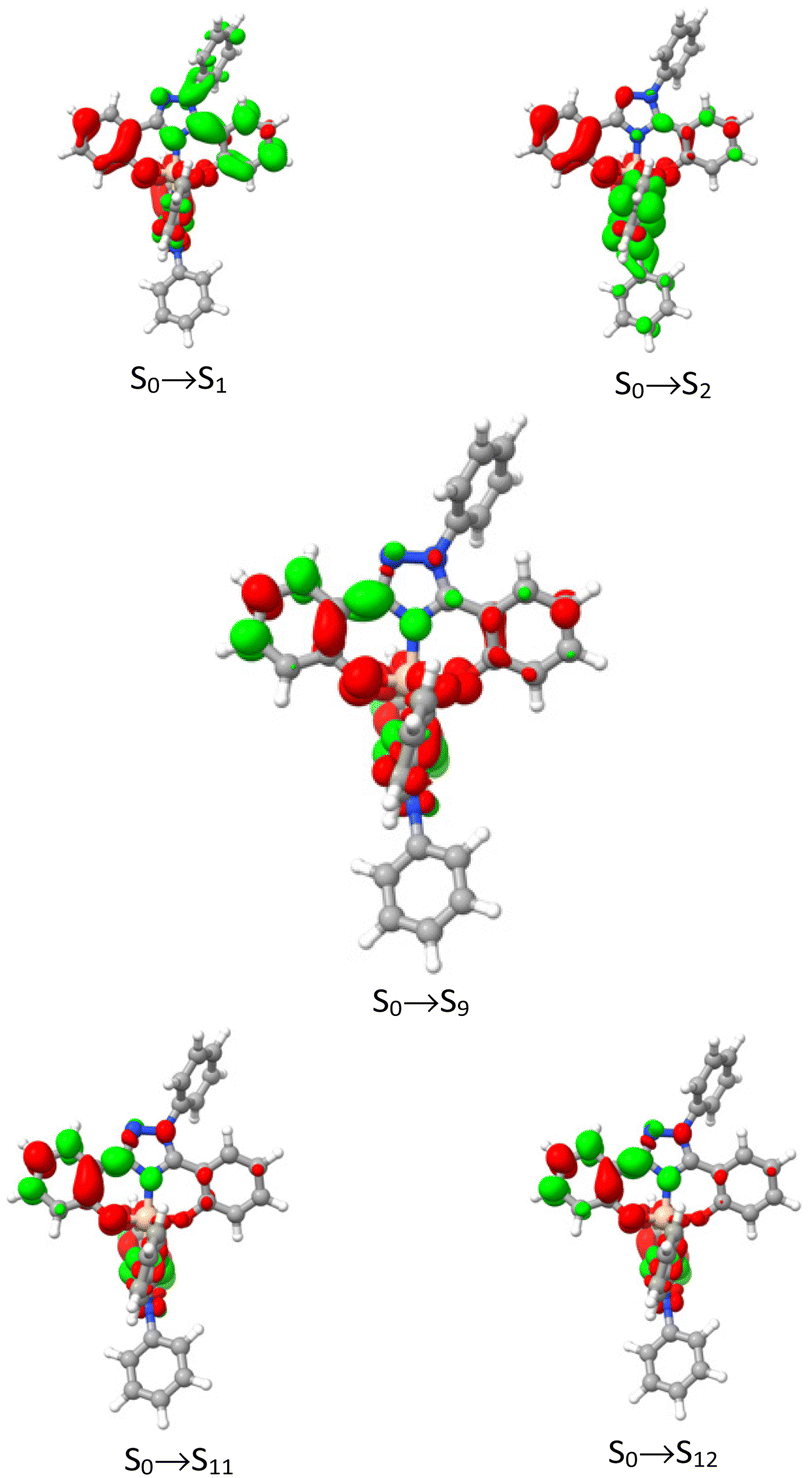

Fig. 8 Electronic density difference maps (EDDMs) computed for complex Si(O¹NO²)₂ between S₀ → S₁ (top left), S₀ → S₂ (top right), S₀ → S₉ (center), S₀ → S₁₁ (bottom left) and S₀ → S₁₂ (bottom right) at Franck–Condon geometry. Electronically enriched and depleted areas are colored in green and red, respectively.

The high conformational flexibility of the complex makes the simulation of the ECD spectra even more challenging, as it is highly sensitive to geometric parameters, or small variations thereof. For example, Fig. S15 and S16 of the ESI† clearly exemplify the variations in the computed ECD spectra for the different conformers of Λ and Δ enantiomers, respectively. At this stage, it is possible to derive the Boltzmann-weighted populations for the different conformers by employing the relative energies for the different geometries listed in Table 4, and to further derive the computed Boltzmann-weighted ECD spectra for both enantiomers, shown in Fig. 3b along the experimental spectra. Indeed, the so-obtained Boltzmann-weighted ECD spectra agree satisfactorily with the experimental data, yet with an overall bathochromic shift of about 30–40 nm compared to the experimental data. Additionally, according to these results, it is possible to assign with confidence the absolute configuration of the resolved enantiomers, with Λ being the first and Δ being the second eluted enantiomer.

The excited-state properties of the pro-ligand (O¹NO²)H₂ were investigated by considering both structures with and without taking into account the possible keto–enol tautomerism.¹⁸ Optimization of the S₁ potential energy surface (PES) leads to several minimum-energy conformations with computed emissions at λ_em,theo = 415 nm (non-ESIPT process) to 1617 and 808 nm (K* form), as listed in Table 4 and Fig. 9. All these values are far from the experimental emission centred at λ_em,exp = 519 nm. On the other hand, optimisation of the S₂ state of the lowest-energy K* structure leads to a computed emission at λ_em,theo = 516 nm, in good agreement with the experimental value (Table 1). It is reasonable to think that the weak experimental emission of the proligand arises from the S₂ tautomeric K* form and that the structures with computed emissions in the IR domain would act as close-energy non-radiative deactivation channels, in agreement with the low PLQY in solution and the relatively large k_nr values observed experimentally (Table 1).

Fig. 9 Structure, emission wavelength (λ_em,theo) and relative Gibbs free energies (ΔG) of different minima on the S₁ PES of the (O¹NO²)H₂ ligand.

Upon complexation, the absence of the acidic protons of the phenolates in the complex Si(O¹NO²)₂ leads to a sharply different picture. Upon S₁ geometry relaxation from the admixed ¹LC/¹LLCT at the Franck–Condon (FC) point, two minima are found on the PES during optimization (Fig. 10). The first state has a pure ¹LLCT character and a computed emission wavelength at λ_em,theo,1 = 528 nm, while the second state possesses ¹ILCT character with a computed emission at λ_em,theo,2 = 492 nm; however, both of these values are far from the experimental emission at λ_em,exp = 414 nm.

Fig. 10 Electronic density difference maps (EDDMs) for the complex Si(O¹NO²)₂ between S₁ → S₀ state, computed on the S₁ PES for both minima and transition state structures along with emission wavelength (λ_em,_theo) and relative Gibbs free energies (ΔG). Electronically enriched and depleted areas are colored in green and red, respectively.

Taking into account the relative energies, the ¹ILCT state lies only 1.1 kcal mol⁻¹ above the ¹LLCT state, and both minima are linked by a transition state (TS) located 2.3 kcal mol⁻¹ above the ¹LLCT state, which has a corresponding emission wavelength λ_em,theo,TS = 453 nm. These barriers associated with the TS are low enough to allow fast hopping between the different electron density distributions. Additionally, given the overall C₂-symmetric nature of Si(O¹NO²)₂, both minima are doubly degenerate. It should be noted that the computed energy minima of S₁ are probably not representative of the average structure present in solution.

Experimental section

General considerations

All reagents and solvents were purchased from commercial chemical suppliers (Acros, Alfa Aesar, Sigma-Aldrich and TCI Europe) and used without further purification. NMR spectra were recorded with a 500 MHz apparatus in deuterated solvent at 25 °C. All ¹³C NMR spectra are decoupled ¹H (¹³C{¹H}). The chemical shifts (δ) and coupling constants (J) are expressed in ppm and Hz, respectively. The following abbreviations are used: s: singlet; d: doublet; t triplet; q: quadruplet; quint: quintuplet; sext: sextet; sept: septet; m: multiplet; and br: broad signal. Thermogravimetric analyses were carried out by using a Q50 system from TA Instruments under air with a thermal scanning rate of 5 °C min⁻¹.

Synthesis

To a CH₂Cl₂ solution (6 mL) of the ligand (O¹NO²)H₂ (250 mg, 0.76 mmol, 2 equiv.) in a Schlenk tube under argon at room temperature was added a 1 M CH₂Cl₂ solution of SiCl₄ (380 μL, 0.38 mmol, 1 equiv.). After 15 minutes of stirring, Et₃N (250 μL, 1.8 mmol, 4.7 equiv.) was added dropwise, and the mixture was stirred for 6 hours. After evaporation of the CH₂Cl₂ solvent, toluene was added to the crude product and the mixture was filtered to eliminate Et₃NHCl. The filtered solution was concentrated and the crude product was purified by column chromatography on silica gel using a pentane/CH₂Cl₂ (50/50 up to 0/100 gradient). The desired product was obtained in 86% yield (223 mg, 0.327 mmol).

¹ H NMR (500 MHz, CDCl₃) δ 7.96 (dd, J = 7.8, 1.7 Hz, 2H), 7.71–7.67 (m, 4H), 7.66–7.61 (m, 6H), 6.96 (ddd, J = 8.4, 7.2, 1.8 Hz, 2H), 6.93–6.85 (m, 4H), 6.81 (ddd, J = 8.2, 7.3, 1.1 Hz, 2H), 6.50 (ddd, J = 8.2, 7.2, 1.1 Hz, 2H), 6.20 (ddd, J = 8.4, 5.0, 0.9 Hz, 4H). ¹³C{¹H} NMR (126 MHz, CDCl₃) δ 160.7 (2C), 159.1 (2C), 154.9 (2C), 149.1 (2C), 137.7 (2C), 133.5 (2C), 132.3 (2C), 130.8 (2C), 130.3 (4C), 126.6 (4C), 125.8 (4C), 125.3 (2C), 122.1 (2C), 121.0 (2C), 119.0 (2C), 118.2 (2C), 113.5 (2C), 110.5 (2C). ²⁹Si NMR (99 MHz, CDCl₃) δ −194.1. HRMS (ESI+, m/z) [M + H]⁺ calc. for C₄₀H₂₇N₆O₄²⁸Si 683.1857 found 683.1846.

Photophysical techniques

Equipment. The absorption spectra of fluid solution samples were measured on a PerkinElmer Lambda 650 double-beam UV-vis spectrophotometer and baseline-corrected.

Steady-state emission spectra were recorded on a Horiba Jobin–Yvon IBH FL-322 Fluorolog 3 spectrometer equipped with a 450 W xenon arc lamp, double-grating excitation, and emission monochromators (2.1 nm mm⁻¹ dispersion; 1200 grooves per mm) and a Hamamatsu R13456 red-sensitive Peltier-cooled PMT detector. Phosphorescence emission spectra were recorded on a Horiba PPD-850 red-sensitive Peltier-cooled PMT detector. Emission and excitation spectra were corrected for source intensity (lamp and grating) and emission spectral response (detector and grating) by standard correction curves.

Time-resolved measurements were performed using either the time-correlated single-photon counting (TCSPC) or the Multi-Channel Scaling (MCS) electronics option of the TimeHarp 260 board installed on a PicoQuant FluoTime 300 fluorimeter (PicoQuant GmbH, Germany), equipped with a PDL 820 laser pulse driver. A pulsed laser diode LDH-P-C-375 (λ = 375 nm, pulse full width at half maximum FWHM < 40 ps driven at a repetition rate in the range of 50 kHz–40 MHz) was used to excite the samples either with either single pulse or burst mode. The excitation source was mounted directly on the sample chamber at 90°. The photons were collected using a PMA Hybrid-07 single photon counting detector. The data were acquired by using the commercially available software EasyTau II (PicoQuant GmbH, Germany), while data analysis was performed using the built-in software FluoFit (PicoQuant GmbH, Germany).

All the PLQYs of the samples were recorded at a fixed excitation wavelength by using a Hamamatsu Photonics absolute PLQY measurement system Quantaurus QY equipped with a CW Xenon light source (150 W), mO1NO2chromator, integrating sphere, C7473 photonics multi-channel analyser and employing the commercially available U6039-05 PLQY measurement software (Hamamatsu Photonics Ltd, Shizuoka, Japan). All measurements were repeated five times at the excitation wavelength λ_exc = 320 nm and their average values are reported in this article, unless otherwise stated.

ECD spectra were recorded on a JASCO J-815 spectrophotometer equipped with a JASCO Peltier cell holder PTC-423 to maintain the temperature at 25.0 ± 0.2 °C. A CD quartz cell of 1 mm of optical path length was used. The CD spectrometer was purged with nitrogen before recording each spectrum, which was baseline subtracted. The baseline was always measured for the same solvent and in the same cell as the samples. Acquisition parameters: intervals of 0.1 nm, a scanning speed of 50 nm min⁻¹, a bandwidth of 2 nm, and 5 accumulations per sample.

Methods. For time-resolved measurements, data fitting was performed by employing the maximum likelihood estimation (MLE) method and the quality of the fit was assessed by the inspection of the reduced χ² function and the weighted residuals. For multi-exponential decays, the intensity, namely, I(t), has been assumed to decay as the sum of individual single-exponential decays (eqn (3)):where τ_i are the decay times and α_i are the amplitudes of the components at t = 0. In the tables, the percentages of the pre-exponential factors, α_i, are listed upon normalization. The intensity average lifetimes were calculated by using the following equation (eqn (4)):

All solvents employed were Merck Uvasol® or Carlo Erba Spectrosol® spectrophotometric grade. Deaerated samples were prepared by the freeze–pump–thaw technique by using a custom quartz cuvette equipped with a Rotaflo® stopcock.

Chiro-optical spectroscopy. Optical rotation was measured on a Jasco P-2000 polarimeter with a halogen lamp (589, 578, 546, 436 and 405 nm), in a 10 cm cell, thermostated at 25 °C with a Peltier-controlled cell holder. To ascertain the stability of the enantiomers, they were dissolved in toluene, refluxed for 24 h, evaporated to dryness, and their ECD spectra in CH₂Cl₂ were compared with the original HPLC-purified samples.

Computational details

All calculations have been performed with GAUSSIAN 16 version C01 ¹⁹ at the DFT level of theory employing the B3LYP functional²⁰ and including Grimme's dispersion corrections.²¹ All atoms were described by the 6-31+G** basis set.²² The solvent (CH₂Cl₂) was taken into account through the polarizable continuum model (PCM) formalism.²³ All structures were fully optimized and the nature of the encountered stationary points was determined by frequency analysis. Energy minima were characterized by a full set of real frequencies and transition states were characterised by one imaginary frequency. Gibbs free energies were extracted from the frequency calculation. Absorption and ECD spectra were computed by means of TD-DFT on the basis of the optimized structures. The emission wavelength was computed after geometry optimization of the lowest singlet state using the same protocol.

Electronic density difference maps (EDDMs) have been computed using the Dgrid package²⁴ on the basis of the GAUSSIAN checkpoint file.

All calculations were performed starting from the Λ(λ,λ) enantiomer directly extracted from the experimental data. The other structures of the Λ family, Λ(λ,δ), Λ(δ,λ) and Λ(δ,δ), were obtained through the computed reaction path of ligand rotation. The structures of the Δ family, Δ(λ,λ), Δ(λ,δ), Δ(δ,λ) and Δ(δ,δ) were obtained by mirroring those of the Λ family.

Conclusions

In conclusion, we have synthesized and characterized a racemic neutral hexacoordinate Si(IV) complex containing two Deferasirox-inspired tridentate O^N^O ligands and separated its two helical enantiomers via chiral HPLC resolution. The homoleptic complex exhibits remarkable blue/near-UV photoluminescence, particularly in doped polymer thin films and very long-lived green phosphorescence at low temperatures. Our studies, including X-ray crystallography, (chiro)optical steady-state time-resolved spectroscopy and subsequent TD-DFT calculations, allowed us to model the ECD spectra and assign the absolute configuration of the resolved enantiomers.

Data availability

The data supporting this article have been included as part of the ESI.† Crystallographic data of Si(O¹NO²)₂ have been deposited at the Cambridge Crystallographic Data Centre (CCDC) 2422992.†

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was supported by the Université de Strasbourg and the CNRS. This research was financed in part by the French National Research Agency (Agence Nationale de la Recherche – ANR) under the projects ANR-22-CE07-0049-01, ANR-21-CE29-0015 “ChirON”, ANR-22-CE07-0049-02 “BoostOLED” and the ITI-CSC via the IdEx Unistra (ANR-10-IDEX-0002). Dr J. Crassous (ISCR, Université de Rennes 1) is kindly acknowledged for the preliminary measurements of CPL. N. Kyritsakas of the Service de Radiocristallographie, Fédération de chimie Le Bel – FR2010, Université de Strasbourg & CNRS, is kindly acknowledged for the help in solving the X-ray structure. Dr Benoît Heinrich of the Institut de Physique et Chimie des Matériaux de Strasbourg is kindly acknowledged for the thermogravimetric studies.

References

1. T. J. Barton and P. Boudjouk, in Silicon-Based Polymer Science, American Chemical Society, 1989, vol. 224, pp. 3–46.
2. M. A. Brook, Silicon in organic, organometallic, and polymer chemistry, Wiley, New York Weinheim, 2000.
3. W. A. Chalifoux, S. K. Reznik and J. L. Leighton, Nature, 2012, 487, 86–89.
4. S. Rendler and M. Oestreich, Synthesis, 2005, 1727–1747.
5. Organosilicon Chemistry III: From Molecules to Materials, ed. N. Auner, N. Auner and J. Weis, Wiley-VCH, Weinheim, 1. Auflage., 2008.
6. M. Kocherga, J. Castaneda, M. G. Walter, Y. Zhang, N.-A. Saleh, L. Wang, D. S. Jones, J. Merkert, B. Donovan-Merkert, Y. Li, T. Hofmann and T. A. Schmedake, Chem. Commun., 2018, 54, 14073–14076.
7. M. Kocherga, K. M. Boyle, J. Merkert, T. A. Schmedake and M. G. Walter, Mater. Adv., 2022, 3, 2373–2379.
8. T. Thierry, V. Giuso, F. Polo, P. Mercandelli, Y.-T. Chen, C.-H. Chang, M. Mauro and S. Bellemin-Laponnaz, Dalton Trans., 2024, 53, 6445–6450.
9. U. Heinz, K. Hegetschweiler, P. Acklin, B. Faller, R. Lattmann and H. P. Schnebli, Angew. Chem., Int. Ed., 1999, 38, 2568–2570.
10. S. Tury, F. Assayag, F. Bonin, S. Chateau-Joubert, J.-L. Servely, S. Vacher, V. Becette, M. Caly, A. Rapinat, D. Gentien, P. de la Grange, A. Schnitzler, F. Lallemand, E. Marangoni, I. Bièche and C. Callens, J. Pathol., 2018, 246, 103–114.
11. S. Puri, R. Kumar, I. G. Rojas, O. Salvatori and M. Edgerton, Antimicrob. Agents Chemother., 2019, 63, e02152-18.
12. J.-H. Moon, C. Kim, H.-S. Lee, S.-W. Kim and J.-Y. Lee, J. Med. Microbiol., 2013, 62, 1307–1316.
13. S. Moreau-Marquis, G. A. O'Toole and B. A. Stanton, Am. J. Respir. Cell Mol. Biol., 2009, 41, 305–313.
14. S. J. Post, J. A. Shapiro and W. M. Wuest, MedChemComm, 2019, 10, 505–512.
15. A. C. Sedgwick, K.-C. Yan, D. N. Mangel, Y. Shang, A. Steinbrueck, H.-H. Han, J. T. I. Brewster, X.-L. Hu, D. W. Snelson, V. M. Lynch, H. Tian, X.-P. He and J. L. Sessler, J. Am. Chem. Soc., 2021, 143, 1278–1283.
16. X.-L. Hu, A. C. Sedgwick, D. N. Mangel, Y. Shang, A. Steinbrueck, K.-C. Yan, L. Zhu, D. W. Snelson, S. Sen, C. V. Chau, G. Juarez, V. M. Lynch, X.-P. He and J. L. Sessler, J. Am. Chem. Soc., 2022, 144, 7382–7390.
17. G. Dahm, E. Borré, C. Fu, S. Bellemin-Laponnaz and M. Mauro, Chem. – Asian J., 2015, 10, 2368–2379.
18. A. Nina-Diogo, B. Bertrand, S. Thorimbert, G. Gontard, S. Nassem-Kahn, A. Echeverri, J. Contreras-García, C. Allain, G. Lemercier, E. Luppi and C. Botuha, Adv. Opt. Mater., 2023, 11, 2300336.
19. M. J. Frisch, G. W. Trucks, H. B. Schlegel, G. E. Scuseria, M. A. Robb, J. R. Cheeseman, G. Scalmani, V. Barone, G. A. Petersson, H. Nakatsuji, X. Li, M. Caricato, A. V. Marenich, J. Bloino, B. G. Janesko, R. Gomperts, B. Mennucci, H. P. Hratchian, J. V. Ortiz, A. F. Izmaylov, J. L. Sonnenberg, D. Williams-Young, F. Ding, F. Lipparini, F. Egidi, J. Goings, B. Peng, A. Petrone, T. Henderson, D. Ranasinghe, V. G. Zakrzewski, J. Gao, N. Rega, G. Zheng, W. Liang, M. Hada, M. Ehara, K. Toyota, R. Fukuda, J. Hasegawa, M. Ishida, T. Nakajima, Y. Honda, O. Kitao, H. Nakai, T. Vreven, K. Throssell, J. A. Montgomery Jr., J. E. Peralta, F. Ogliaro, M. J. Bearpark, J. J. Heyd, E. N. Brothers, K. N. Kudin, V. N. Staroverov, T. A. Keith, R. Kobayashi, J. Normand, K. Raghavachari, A. P. Rendell, J. C. Burant, S. S. Iyengar, J. Tomasi, M. Cossi, J. M. Millam, M. Klene, C. Adamo, R. Cammi, J. W. Ochterski, R. L. Martin, K. Morokuma, O. Farkas, J. B. Foresman and D. J. Fox, Gaussian 16, Gaussian Inc., Wallingford CT, 2016.
20. A. D. Becke, J. Chem. Phys., 1993, 98, 5648–5652.
21. S. Grimme, J. Antony, S. Ehrlich and H. Krieg, J. Chem. Phys., 2010, 132, 154104.
22. R. Ditchfield, W. J. Hehre and J. A. Pople, J. Chem. Phys., 1971, 54, 724–728.
23. S. Miertuš, E. Scrocco and J. Tomasi, Chem. Phys., 1981, 55, 117–129.
24. M. D. Kohout, DGRID, Max Planck Society, Radebeul, Germany, 2011.

---

Footnotes

† Electronic supplementary information (ESI) available. CCDC 2422992. For ESI and crystallographic data in CIF or other electronic format see DOI: https://doi.org/10.1039/d5dt00392j

‡ These authors have equally contributed to this work.

---
