Novel antimony-based mixed halides exhibiting an excellent SHG response and a broad transmission range

Abstract

In this study, we successfully synthesized two novel non-centrosymmetric (NCS) antimony halide compounds, RbSbF₃Cl and Rb₃Sb₄F₁₄Cl. These compounds were formed by combining Sb³⁺ cations, which possess stereochemically active lone pairs (SCALP), with halogen atoms (fluorine and chlorine). The introduction of mixed halogen atoms enables Sb atoms to adopt multiple coordination modes, which in turn promotes the development of both compounds towards NCS structures. Notably, Rb₃Sb₄F₁₄Cl demonstrated a large second harmonic generation (SHG) response, approximately three times greater than that of KH₂PO₄ (KDP), along with a wide transparency range from 0.27 to 13.3 μm and a high laser damage threshold (LDT) of 223 MW cm⁻². These exceptional properties indicate that Rb₃Sb₄F₁₄Cl is a highly promising nonlinear optical (NLO) crystal with excellent overall performance, making it suitable for potential applications spanning the short-wave ultraviolet (UV) to mid-infrared (IR) spectral regions. In contrast, RbSbF₃Cl exhibits a large birefringence of 0.31 at 546 nm as a uniaxial crystal, suggesting its practicability as a birefringent material.

---

Introduction

Nonlinear optical (NLO) materials have significant academic and technological value in extending the wavelength range of solid-state lasers from deep ultraviolet (UV) (<200 nm) to infrared (IR) (∼20 μm) through simple frequency conversion.^1–6 From a commercial perspective, an ideal NLO crystal must possess several key characteristics, one of which is a broad transparent window, which determines the application range of the crystal.^7–10 Over the past few decades, several well-known NLO crystals, including LiB₃O₅ (LBO),¹¹ β-BaB₂O₄ (β-BBO),¹² and KTiOPO₄ (KTP),¹³ have found commercial applications in the UV and visible regions. However, in the IR region, the selection is limited to a few materials, such as AgGaS₂,¹⁴ AgGaSe₂,¹⁵ and ZnGeP₂,¹⁶ which are suitable for the mid-IR range (3–12 μm). These materials are hampered by low laser damage thresholds (LDT), significantly restricting their utility in laser communication and high-power applications. Compounds that simultaneously exhibit strong second harmonic generation (SHG) effects and broad spectral transmission, from the UV region to the IR region, are exceptionally rare. This rarity stems from the inherent trade-offs between optical properties, such as the band gap and NLO response. Typically, a large SHG response is coupled with a narrow transmission range and low LDT. Thus, balancing the competing demands for a broad transmission range and superior overall optical properties remains a substantial challenge in the development of novel NLO materials.

It is well established that the primary requirement for NLO crystal materials is a non-centrosymmetric (NCS) structure.^17,18 Thus, designing and synthesizing crystals with NCS structures is of great significance. Recently, metal halides have demonstrated strong potential as NLO materials, largely due to their tendency to form NCS structures, as observed in compounds like Na₂CeF₆¹⁹ and SrCl₂·6H₂O.²⁰ Research studies have indicated that the properties of metal halides are predominantly influenced by the choice of the central metal cation.^21–26 For instance, selecting metals with stereochemically active lone pairs (SCALP) (e.g., Sn²⁺, Sb³⁺, Bi³⁺, and Pb²⁺) often results in compounds with exceptional NLO properties, as evidenced by Pb₃Mg₃TeP₂O₁₄ (13.5 × KDP),²⁷ Bi(IO₃)F₂ (11.5 × KDP),²⁸ and Sn(IO₃)₂F₂ (3 × KDP).²⁹ In this study, we focus on antimony halides, building on our recent work with antimony oxysalt NLO crystals. Sb-based cations possess SCALP, which are easily polarizable and can favorably contribute to NLO performance. Additionally, antimony is a relatively robust metal, and its compounds typically exhibit wide band gaps, resulting in high LDT values.³⁰ Compounds such as K₂Sb(P₂O₇)F (4.0 × KDP, 4.74 eV),³¹CsSbF₂SO₄ (3.0 × KDP, 4.76 eV),³² and Rb₂SbFP₂O₇ (5.1 × KDP, 4.76 eV)³³ have been found to possess a strong SHG response and a broad transmittance range.

To enhance the likelihood of obtaining NCS antimony halide crystals, a common strategy is to modify their structures and properties by introducing mixed halogens. Sb³⁺ cations readily coordinate with halogen atoms (F/Cl/Br/I), forming a variety of irregular geometrical configurations, including SbX₃ triangular pyramids, SbX₄ seesaws, and SbX₅ tetragonal pyramids. By integrating these configurations with different combinations of the four halogen elements, a diverse array of halide compounds with varied structural features can be synthesized. This approach enables the discovery of candidates with excellent comprehensive properties, including significant NLO effects, high LDTs, and broad transparency windows, such as Cs₂Hg₂Br₂I₄·H₂O (6 × KDP),³⁴Rb₂CdBr₂I₂ (4 × KDP),³⁵ and Hg₂BrI₃ (1.2 × KTP).³⁶

Building on the halogen mixing strategy, two novel antimony-based mixed halide crystals, RbSbF₃Cl and Rb₃Sb₄F₁₄Cl, have been successfully synthesized by combining Sb³⁺ cations with fluorine and chlorine atoms. The two compounds feature NCS structures composed of different Sb-based polyhedra. Remarkably, Rb₃Sb₄F₁₄Cl exhibits a large SHG response, achieving a value three times higher than that of KDP. It also possesses a broad transparency range of 0.27–13.3 μm and a high LDT of 223 MW cm⁻². Meanwhile, RbSbF₃Cl, as a uniaxial crystal, features a high birefringence of 0.31 at 546 nm.

Experimental section

Synthesis of RbSbF₃Cl and Rb₃Sb₄F₁₄Cl

The reaction reagents SbF₃ (≥99.8%), Rb₂CO₃ (≥99.0%), and HCl (AR grade) were obtained from Aladdin and used without further purification.

The single crystals of both the compounds, RbSbF₃Cl and Rb₃Sb₄F₁₄Cl, were synthesized using an aqueous solution method. The same raw materials of Rb₂CO₃ (0.231 g, 1 mmol) and SbF₃ (0.358 g, 2 mmol) were dissolved in 1 mL of distilled water, to which 0.3 mL and 0.1 mL of HCl (12 mol L⁻¹) were added to obtain RbSbF₃Cl and Rb₃Sb₄F₁₄Cl, respectively. The resulting mixtures were stirred at room temperature for 15 to 20 minutes and then filtered. The filtrates were allowed to evaporate slowly in a refrigerator at 5 °C. After two days, colorless and transparent block crystals of RbSbF₃Cl and flake-like crystals of Rb₃Sb₄F₁₄Cl were collected from the bottom of the plastic beakers (Fig. S1†). The yields of RbSbF₃Cl and Rb₃Sb₄F₁₄Cl were approximately 38% and 42%, respectively, based on antimony.

Results and discussion

Crystal structure description

RbSbF₃Cl crystallizes in the tetragonal crystal system, belonging to the NCS space group I4̄2m (No. 121) (Tables S1, S2 and S4†).^37,38 The asymmetric unit comprises one Sb atom, one Rb atom, one Cl atom, and three F atoms. The Sb atom adopts a tetragonal pyramidal geometry as [SbF₃Cl₂]²⁻ (I), coordinating with three F atoms and two Cl atoms (Fig. 1a). The Sb–F bond lengths range from 1.917 to 1.962 Å, while the Sb–Cl bond length measures 2.889 Å. In this compound, four [SbF₃Cl₂]²⁻ (I) units interconnect by sharing four Cl atoms, forming a square-shaped [Sb₄F₁₂Cl₄]⁴⁻ (II) structure with four-membered rings (4-MR) arranged orderly within the a–b plane (Fig. 1b). Additionally, Rb⁺ ions occupy the cavities of the 4-MR, serving as charge balancers and exhibiting two distinct coordination modes in RbSbF₃Cl. Both Rb1 and Rb2 atoms coordinate with four Cl atoms, while they bind with six and eight F atoms, respectively, resulting in the anionic complexes [RbF₆Cl₄]⁹⁻ and [RbF₈Cl₄]¹¹⁻. The Rb–F bond lengths range from 2.974 to 3.562 Å, while the Rb1–Cl and Rb2–Cl bond lengths are 3.544 Å and 3.424 Å, respectively (Fig. S2a†).

Fig. 1 (a and c) Various coordination patterns and linkage modes of Sb³⁺. (b) Arrangement of 4-MR and Rb⁺ cations in RbSbF₃Cl along the a–b plane. (d) Arrangement of different Sb polyhedra and Rb⁺ cations in Rb₃Sb₄F₁₄Cl.

Rb₃Sb₄F₁₄Cl forms crystals in the orthorhombic system's NCS space group Pmn2₁ (No. 31) (Tables S1, S3 and S5†). The asymmetric unit comprises four Sb atoms, three Rb atoms, one Cl atom, and fourteen F atoms. In this compound, the three distinct Sb atoms exhibit different coordination environments; [SbF₃Cl₂]²⁻ (I) and [SbF₅]²⁻ (IV) form tetragonal pyramidal configurations, while [SbF₄]⁻ (III) adopts a seesaw configuration, with varying numbers of coordinating F and Cl atoms. The Sb–Cl bond length is 2.894 Å, whereas the Sb–F bond lengths vary from 1.913 to 2.450 Å. These polyhedra further assemble into structurally distinct clusters. For instance, two [SbF₄]⁻ (III) polyhedra share an F atom to form a [Sb₂F₇]⁻ (V) cluster, while a [Sb₃F₁₁]²⁻ (VI) cluster is formed by sharing two F atoms among two [SbF₄]⁻ (III) units and one [SbF₅]²⁻ (IV) unit (Fig. 1c). These four clusters are arranged sequentially along the a-axis in the order [SbF₃Cl₂]²⁻ (I), [Sb₂F₇]⁻ (V), [Sb₃F₁₁]²⁻ (VI), and [Sb₂F₇]⁻ (V), repeating this pattern between adjacent layers (Fig. 1d). Additionally, Rb⁺ cations serve as charge balancers and are systematically positioned within the cavities between the Sb-polyhedra, displaying three distinct coordination modes in Rb₃Sb₄F₁₄Cl (Fig. S2b†). Specifically, Rb1 coordinates with one Cl atom and nine F atoms to form the [RbF₉Cl]⁹⁻ polyhedron, Rb2 coordinates with one Cl atom and ten F atoms to form [RbF₁₀Cl]¹⁰⁻, and Rb3 coordinates with nine F atoms to form the [RbF₉]⁸⁻ polyhedron. The Rb–F bond lengths range from 2.769 to 3.454 Å, while the Rb1–Cl and Rb2–Cl bond lengths are 3.356 Å and 3.393 Å, respectively.

By calculating the bond valence sum (BVS), the validity of the structures of both compounds was confirmed.³⁹ The atomic oxidation states of Rb⁺, Sb³⁺, F⁻, and Cl⁻ in RbSbF₃Cl and Rb₃Sb₄F₁₄Cl were determined to be 0.93–1.15, 2.90–3.20, 0.90–1.29, and 0.89–1.09, respectively (Tables S2 and S3†).

Powder X-ray diffraction

The phase purity of RbSbF₃Cl and Rb₃Sb₄F₁₄Cl was verified through powder X-ray diffraction analysis. The experimental data, as presented in Fig. S3,† are consistent with the patterns derived from single-crystal X-ray diffraction, confirming that the powder samples are indeed pure phases.

Thermal properties

Thermogravimetric analysis (TGA) was conducted to evaluate the thermal stability of RbSbF₃Cl and Rb₃Sb₄F₁₄Cl. As depicted in Fig. S4,† the TGA curves indicate that both the compounds are stable up to approximately 200 °C.

Optical properties

The IR spectra of the two compounds are shown in Fig. 2a, with characteristic absorption bands near 568/513/471 cm⁻¹ and 751/572/528/479 cm⁻¹, corresponding to the stretching vibrations of the Sb–F and Sb–Cl bonds. These vibrational modes align with those reported in the literature.^40,41 The UV-vis-NIR diffuse reflectance spectra of both RbSbF₃Cl and Rb₃Sb₄F₁₄Cl, presented in Fig. 2b and Fig. S5,† indicate band gaps of 4.49 and 4.60 eV, corresponding to UV cutoff edges at 276 and 269 nm.⁴² Based on the data from the IR and UV-vis-NIR spectra, the two compounds are transparent across 0.28 to 17.6 and 0.27 to 13.3 μm, respectively, covering short-wave UV to mid-IR regions.

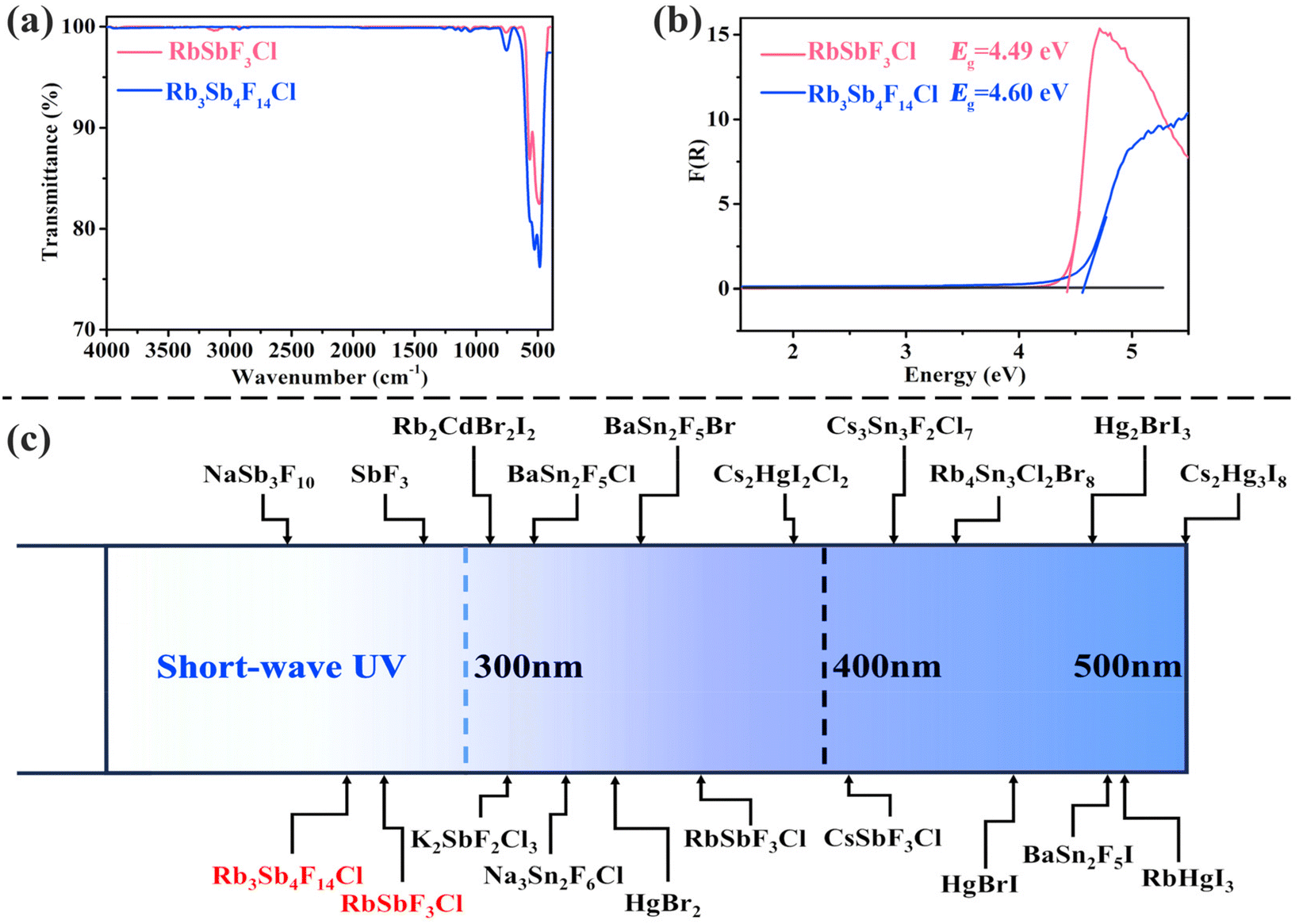

Fig. 2 (a) IR spectra of compounds RbSbF₃Cl and Rb₃Sb₄F₁₄Cl. (b) Band gaps for RbSbF₃Cl and Rb₃Sb₄F₁₄Cl. (c) Comparison of the cutoff edges of RbSbF₃Cl and Rb₃Sb₄F₁₄Cl with those various reported metal halides.

To develop broadband NLO materials, the main group Sb³⁺ cations and F⁻ ions were combined to shift the cutoff edge towards shorter wavelengths. The distortion of Sb³⁺ upon coordination promotes asymmetric structures, which may also enhance SHG response. Additionally, the incorporation of Rb⁺, which lacks d–d and f–f transitions, minimizes electronic absorption in the visible and UV regions, potentially lowering the UV cutoff and extending the transparency range. As a result, the title compounds exhibit short UV cutoffs at 276 and 269 nm. Fig. 2c compares the UV cutoff edges of the title compounds with various metal halides,^{30,35,36,43–54} such as K₂SbF₂Cl₃,³⁰Cs₂HgI₂Cl₂,⁴³ and CsSbF₃Cl,⁴⁴ which have cutoffs at 309 nm, 394 nm, and 405 nm, respectively, and are transparent in the UV range. Unlike most reported metal halides, the two title compounds presented here exhibit broad transmission ranges (0.28–17.6 μm and 0.27–13.3 μm), covering the short-wave UV to mid-IR regions, highlighting their potential as broadband optical materials.

NLO and birefringence properties

The SHG properties of RbSbF₃Cl and Rb₃Sb₄F₁₄Cl were evaluated using KDP as a reference since they crystallize in the NCS space groups I4̄2m and Pmn2₁, respectively.⁵⁵ However, the results of the frequency doubling performance of the two compounds vary a lot, with compound RbSbF₃Cl being undetectable due to the small value of the frequency doubling response signal, while Rb₃Sb₄F₁₄Cl indicates a large SHG response, which is approximately 3 times that of KDP, as depicted in Fig. 3a. Additionally, the SHG signal increases with the increased particle size of the Rb₃Sb₄F₁₄Cl crystals, suggesting that compound Rb₃Sb₄F₁₄Cl exhibits type I phase-matching properties (Fig. 3a). The difference in the SHG response of the two compounds was explored, which may be affected by the orientations of the lone pair of electrons of Sb in the unit cell. The orientations of the lone pair of electrons in compound RbSbF₃Cl are demonstrated in Fig. 3d. By roughly estimating the total dipole moment, due to the nearly opposite orientations of the effective dipole moments of Sb³⁺ ions along the c-axis, the contribution of Sb³⁺ cations to the SHG effect is almost entirely canceled out. As a result, the SHG effect of this compound is extremely weak and cannot be detected by instrumentation. However, this arrangement is conducive to the superposition of birefringence, because birefringence is scarcely affected or canceled by the opposite directions of the lone pair of electrons based on current research studies.^56,57 Hence, RbSbF₃Cl exhibits a large experimental birefringence of 0.31@546 nm ascribed to the superposition of the lone pair of electrons of Sb³⁺ along the c-axis direction (Fig. 3c).⁵⁸ For the other compound Rb₃Sb₄F₁₄Cl, it exhibits a significantly larger SHG effect, approximately three times that of KDP, compared to RbSbF₃Cl, which can be attributed to the higher density of Sb³⁺ in the unit cell (Table S6†), despite the relatively disordered orientation of the lone pair of electrons of the central Sb³⁺ cation (Fig. 3e). However, the disordered orientation results in a much smaller calculated birefringence of 0.03 at 546 nm (Fig. 3b). Compared to some SCALP-containing oxysalts,⁵⁹ such as BiOIO₃⁶⁰ and LiHgPO₄,⁶¹ the title compound Rb₃Sb₄F₁₄Cl shows a relatively weaker SHG response but features a significantly shorter UV cutoff edge. This confirms that the mixed halide antimony compounds have potential as broadband second-harmonic generation materials.

Fig. 3 (a) The phase-matching curve for Rb₃Sb₄F₁₄Cl. Inset: SHG intensity with KDP as the reference (150–212 μm). (b) Calculated birefringence for RbSbF₃Cl and Rb₃Sb₄F₁₄Cl. (c) The experimental birefringence of RbSbF₃Cl. (d) The orientations of the lone pair of electrons in the unit cell of RbSbF₃Cl. (e) The orientations of the lone pair of electrons on Sb³⁺ within a single cell in Rb₃Sb₄F₁₄Cl. The direction of the overall dipole moments is highlighted by a red arrow.

LDT measurements

As described above, the band gaps of RbSbF₃Cl and Rb₃Sb₄F₁₄Cl were found to be 4.49 and 4.60 eV, respectively. Generally, a larger band gap indicates a higher LDT. The LDTs of the two compounds were tested using a 1064 nm laser with a 10 ns pulse width, resulting in values of 163 and 223 MW cm⁻², respectively, five and seven times higher than that of AgGaS₂ (30 MW cm⁻²) under the same conditions (Table S7†).⁶²

Theoretical calculations

DFT calculations were conducted to investigate the relationship between the structures and optical properties of RbSbF₃Cl and Rb₃Sb₄F₁₄Cl.⁶³ The birefringence of RbSbF₃Cl and Rb₃Sb₄F₁₄Cl was calculated to be 0.32 and 0.03 at 546 nm (Fig. 3b), respectively. For that n₀ > n_e in RbSbF₃Cl, indicating that it is a uniaxial crystal (Fig. S6†). Furthermore, the theoretical band gaps of RbSbF₃Cl and Rb₃Sb₄F₁₄Cl were determined to be 3.79 and 4.04 eV, respectively, both of which are 0.70 and 0.56 eV lower than their experimental values (Fig. 4a and b).⁶⁴ These discrepancies align with the well-known tendency of the DFT-GGA approach to underestimate band gaps.⁶⁵ Additionally, the total densities of states (TDOS) and partial densities of states (PDOS) for RbSbF₃Cl and Rb₃Sb₄F₁₄Cl were computed, offering detailed insights into the contributions of individual atomic orbitals to the energy bands (Fig. 4c and d). For RbSbF₃Cl, the upper valence bands, spanning from −10 to 0 eV, are primarily composed of F–2p, Cl–3p, Sb–5p, and Sb–5s orbitals. In contrast, the lower conduction bands, within the energy range of 0 to 10 eV, predominantly consist of Sb–5p, Rb–5s, and Rb–5p orbitals. Similarly, in Rb₃Sb₄F₁₄Cl, the valence bands from −10 to 0 eV are primarily made up of F–2p, Rb–5p, Cl–3p, Sb–5s, and Sb–5p orbitals. Moreover, the conduction bands between 0 and 10 eV are largely dominated by Sb–5p and F–2p orbitals. The graphs of the density of states for RbSbF₃Cl and Rb₃Sb₄F₁₄Cl show a significant overlap between the Sb–5s and Sb–5p orbitals and the F–2p and Cl–3p orbitals, indicating the presence of Sb–F and Sb–Cl bonds. It is well established that states near the Fermi level play a critical role in determining the NLO properties of a compound. In the case of RbSbF₃Cl and Rb₃Sb₄F₁₄Cl, the electronic orbitals around the Fermi level include Sb–5s, Sb–5p, F–2p, and Cl–3p, indicating that the optical properties of RbSbF₃Cl are primarily influenced by the [SbF₃Cl₂]²⁻ groups, whereas those of Rb₃Sb₄F₁₄Cl are mainly influenced by the [SbF₃Cl₂]²⁻, [SbF₄]⁻, and [SbF₅]²⁻ groups. To further validate this inference, dipole moment calculations were performed for both compounds. The results indicate that in RbSbF₃Cl, the calculated dipole moment of the [SbF₃Cl₂]²⁻ groups is almost zero (Table S8†). For Rb₃Sb₄F₁₄Cl, the local dipole moments of the tetragonal pyramidal [SbF₃Cl₂]²⁻ and [SbF₅]²⁻ units and the seesaw [SbF₄]⁻ unit were calculated to be 35.18 D (Debye), 45.64 D, and 39.71 D along the z-component, respectively, while the x- and y-components of all dipole moments in Rb₃Sb₄F₁₄Cl were close to zero (Table S9†). This indicates that all three polyhedra contribute collectively to the NLO performance of Rb₃Sb₄F₁₄Cl. Moreover, highly asymmetric lobes observed around the Sb³⁺ cations can be attributed to the presence of lone pairs (Fig. 4e and f).

Fig. 4 (a and b) Calculated band structures for RbSbF₃Cl and Rb₃Sb₄F₁₄Cl. (c and b) The TDOS and PDOS of RbSbF₃Cl and Rb₃Sb₄F₁₄Cl. (e and f) Electron density difference maps of RbSbF₃Cl and Rb₃Sb₄F₁₄Cl.

Conclusions

In this study, we successfully synthesized two NCS compounds, RbSbF₃Cl and Rb₃Sb₄F₁₄Cl, using a halogen-mixing strategy in a Sb³⁺-containing system. Among these, Rb₃Sb₄F₁₄Cl stands out due to its large SHG response, which is approximately 3 times greater than that of KDP. Additionally, it demonstrates high transparency across a wide spectral range, from short-wave UV to mid-IR (0.27 to 13.3 μm), and exhibits a high LDT of 223 MW cm⁻². These remarkable properties make Rb₃Sb₄F₁₄Cl a highly promising NLO crystal with superior overall optical performance. Furthermore, RbSbF₃Cl, a uniaxial crystal, displays a notable birefringence of approximately 0.31 at 546 nm. This work thus not only presents Rb₃Sb₄F₁₄Cl as a new benchmark in advanced NLO crystal design but also highlights the exceptional birefringent characteristics of RbSbF₃Cl, demonstrating a promising pathway for the development of next-generation nonlinear optical materials.

Data availability

The authors confirm that the data supporting the findings of this study are available within the article and its ESI.† The authors will supply the relevant data in response to reasonable requests.

Conflicts of interest

The authors declare no competing financial interest.

Acknowledgements

The authors thank Dr Daichuan Ma at the Analytical and Testing Center, Sichuan University, for his valuable technical help in the Material Studio calculations. This work was supported by the National Natural Science Foundation of China (Grant No. 22375139, 22122106, 22071158, 22201195, and 22305166) and the Natural Science Foundation of Sichuan Province (2023NSFSC1066).
