Issue 11, 2023

Small-artery-mimicking multi-layered 3D co-culture in a self-folding porous graphene-based film

Abstract

In vitro vessel-mimicking models have been spotlighted as a powerful tool for investigating cellular behaviours in vascular development and diseases. However, it is still challenging to create micro-scale tubular tissues while mimicking the structural features of small arteries. Here, we propose a 3D culture model of small vascular tissue using a self-folding graphene-based porous film. Vascular endothelial cells were encapsulated within the self-folding film to create a cellular construct with a controlled curvature radius ranging from 10 to 100 μm, which is comparable to the size of a human arteriole. Additionally, vascular endothelial cells and smooth muscle cells were separately co-cultured on the inner and outer surfaces of the folded film, respectively. The porous wall worked as a permeable barrier between them, affecting the cell–cell communications like the extracellular layer in the artery wall. Thus, the culture model recapitulates the structural features of a small artery and will help us better understand intercellular communications at the artery wall in physiological and pathological conditions.

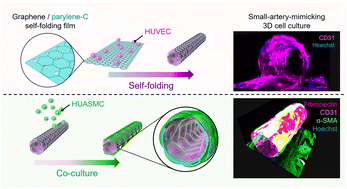

Graphical abstract: Small-artery-mimicking multi-layered 3D co-culture in a self-folding porous graphene-based film

Supplementary files

Article information

Article type
Communication
Submitted
20 Qad 2023
Accepted
21 Way 2023
First published
22 Way 2023

Nanoscale Horiz., 2023,8, 1529-1536

Small-artery-mimicking multi-layered 3D co-culture in a self-folding porous graphene-based film

K. Sakai, S. Miura, T. F. Teshima, T. Goto, S. Takeuchi and M. Yamaguchi, Nanoscale Horiz., 2023, 8, 1529 DOI: 10.1039/D3NH00304C
