Structure of clean and hydrated α-Al2O3 (102) surfaces: implication on surface charge

Abstract

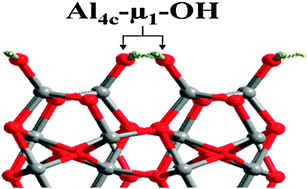

Periodic DFT calculations coupled to a first-principle thermodynamic approach have allowed us to establish a surface phase diagram for the different terminations of the α-Al₂O₃ (102) surface in various temperature and water pressure conditions. Theoretical results are compared with previous experimental data from the literature. Under a wide range of temperature and water pressure (including ambient conditions) the most stable surface (denoted C2_1H₂O in this work) is terminated with singly coordinated hydroxyls on four-fold coordinated aluminium (Al_4C-μ₁-OH) while most existing surface models are only considering six-fold coordinated surface Al atoms as in the bulk structure of alumina. The presence of more acidic Al_4C-μ₁-OH sites helps explain the low Point of Zero Charge (PZC) (between 5 and 6) determined from the onset of Mo oxoanions adsorption on (102) single crystal wafers. It is also postulated that another termination (corresponding to the hydration of the non-polar, stoichiometric surface, stable in dehydrated conditions) may be observed in aqueous solution depending on the surface preparation conditions.
