Localized growth and in situ integration of nanowires for device applications

Abstract

Simultaneous localized growth and device integration of inorganic nanostructures on heated micromembranes is demonstrated for single crystalline germanium and tin oxide nanowires. Fully operating CO gas sensors prove the potential of the presented approach. With this simple CMOS compatible technique, issues of assembly, transfer and contact formation are addressed.

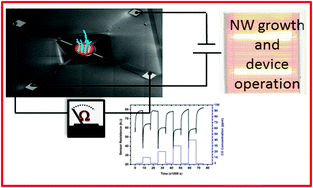

Graphical abstract: Localized growth and in situ integration of nanowires for device applications

Supplementary files

Article information

Article type
Communication
Submitted
08 Feb 2012
Accepted
20 Mar 2012
First published
21 Mar 2012

Chem. Commun., 2012,48, 4734-4736

Localized growth and in situ integration of nanowires for device applications

S. Barth, R. Jimenez-Diaz, J. Samà, J. Daniel Prades, I. Gracia, J. Santander, C. Cane and A. Romano-Rodriguez, Chem. Commun., 2012, 48, 4734 DOI: 10.1039/C2CC30920C
