Enhanced crystallinity and film retention of P3HT thin-films for efficient organic solar cells by use of preformed nanofibers in solution

Abstract

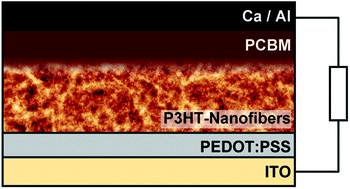

We report the preparation of films of poly(3-hexylthiophene) nanofibers suitable for fabrication of efficient multilayer solar cells by successive deposition of donor and acceptor layers from the same solvent. The nanofibers are obtained by addition of di-tert-butyl peroxide (DTBP) to a solution of P3HT in chlorobenzene. Interestingly, by varying the concentration of DTBP we are able to control both crystallinity and film retention of the spin-cast films. We also investigate the influence of the DTBP-induced crystallization on charge transport by thin-film transistor measurements, and find a more than five-fold increase in the hole mobility of nanofiber films compared to pure P3HT. We attribute this effect to the synergistic effects of increased crystallinity of the fibers and the formation of micrometer-sized fiber networks. We further demonstrate how it is possible to make use of the high film retention to fabricate photovoltaic devices by subsequent deposition of [6,6]-phenyl-C61-butyric acid methyl ester (PCBM) from a chlorobenzene solution on top of the nanofiber film. The presence of a relatively large crystalline phase strongly affects the diffusion behavior of PCBM into the P3HT film, resulting in a morphology which is different from that of common bulk heterojunction solar cells and resembles a bilayer structure, as can be inferred from comparison of the external quantum efficiency spectra. However, a high power conversion efficiency of 2.3% suggests that there is still a significant intermixing of the two materials taking place.
