Impact of fluorinated end groups on the properties of acceptor–donor–acceptor type oligothiophenes for solution-processed photovoltaic cells

Abstract

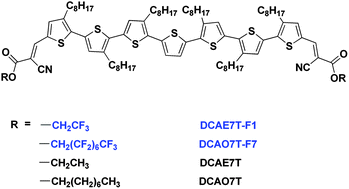

Two new oligothiophene derivatives with the acceptor–donor–acceptor structure incorporating fluorinated alkyl cyanoacetate units as the terminal acceptor groups, DCAE7T-F1 and DCAO7T-F7, have been designed and synthesized for solution-processable BHJ solar cells. The impacts of these fluorinated end groups on the optical absorption, solubility, electrochemical properties, morphology, surface energy, film forming ability, mobility and solar cell performance were studied. We found that as the fluorinated alkyl length increased, the surface energy decreased and the lipophobicity increased. Due to its high lipophobic property and a problem with its wettability, DCAO7T-F7 was not able to produce a uniform film by spin coating. A power conversion efficiency (PCE) of 2.26% was achieved with an open-circuit voltage (V_oc) of 0.83 V, short circuit current (J_sc) of 5.55 mA cm⁻² and fill factor (FF) of 0.50 for DCAE7T-F1 based solar cells. The low J_sc suggests that controlling the film morphology and molecular assembly is essential for the performance of these fluorinated small molecules.
