Synthesis, phase composition, Mössbauer and magnetic characterization of iron oxide nanoparticles

Abstract

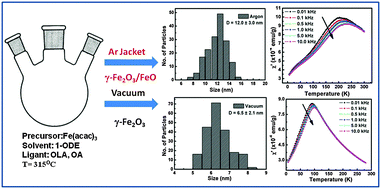

The present work describes the synthesis of iron oxide nanoparticles by thermal decomposition of Fe-precursors in argon and vacuum environments with control over particle size distribution, phase composition and the resulting magnetic properties. The Rietveld refinement analysis of X-ray diffraction data revealed the crystallinity as well the single-phase of γ-Fe₂O₃ nanoparticles prepared under vacuum, whereas the argon environment leads to the formation of multi-phase composition of γ-Fe₂O₃/Fe₃O₄ (90%) and wustite (10%). Synchrotron X-ray absorption near edge structure (XANES) indicates that the predominant phase in both samples is γ-Fe₂O₃, which is subsequently verified from the Mössbauer spectra. DC magnetic measurements indicate behavior typical of a superparamagnetic system validated by Mössbauer analysis. However, further investigation of ac susceptibility by typical Néel–Arrhenius and Vogel Fulcher magnetic models suggests an influence of interparticle interactions on the overall magnetic behavior of the system.
