Particle size spectrometer using inertial classification and electrical measurement techniques for real-time monitoring of particle size distribution

Abstract

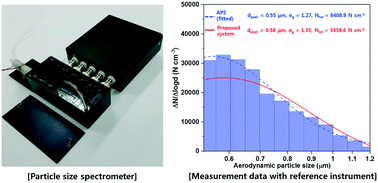

To achieve real-time monitoring of aerodynamic submicron particle size distributions at a point-of-interest, we developed a high-performance particle size spectrometer that is compact, low-cost, and portable. The present system consists of four key components: a unipolar mini-discharger for electrically charging particles, an inertial size-separator for classifying charged particles into five size fractions in terms of their aerodynamic sizes, a portable multi-channel electrometer for detecting femto-ampere currents carried by charged particles at each stage, and a retrieval algorithm for converting the current data into a smooth particle size distribution. The unipolar mini-discharger and inertial size separator were quantitatively characterised by using standard polystyrene latex (PSL) particles. The experimentally determined cut-off diameters at each stage in the inertial size separator were 1.17, 0.94, 0.71, 0.54, and 0.23 μm, respectively. Then, the system was compared with a commercial reference aerodynamic particle sizer (APS) in the environment where the number concentration and the average size of TiO₂ particles were changing. The present system resolved peak size and geometric standard deviation of particles to within 11.2%, and 6.3%, respectively, indicating that the system can be used to accurately monitor submicron particle size distributions in real time.
