Growth, characterization and optoelectronic applications of pure-phase large-area CsPb2Br5 flake single crystals†
Abstract

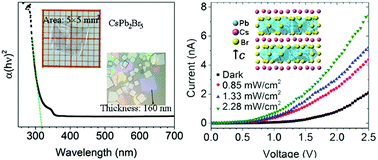

To clarify the controversies on CsPb2Br5 and extend its optoelectronic applications, from a thermodynamic equilibrium growth system, pure phase high quality CsPb2Br5 single crystals (maximum area: 5 × 5 mm2, minimum thickness: 160 nm) were successfully obtained. Optical characterization results indicated a 3.87 eV bandgap for CsPb2Br5, clarifying the controversies on CsPb2Br5. The fabricated photodetector showed a sensitive and fast deep-UV photoresponse, demonstrating the potential applications of CsPb2Br5 in deep-UV detection. Theoretical calculations suggested that the wide bandgap of CsPb2Br5 resulted from its layered structure and short Pb–Br bonds.
