Issue 28, 2018

Broadening the temperature range for high thermoelectric performance of bulk polycrystalline strontium titanate by controlling the electronic transport properties

Abstract

Strontium titanate (SrTiO3) is a promising n-type thermoelectric material at high temperature. However, to date, its reported high dimensional figure of merit (zT) > 0.4 has only been achieved in a narrow temperature range near 1000 K. In this study, zT values of >0.4 were achieved in the broad temperature range of 769–1009 K in bulk SrTiO3 co-doped with La and Nb with in situ precipitation of second phases of NbC and TiO2−δ. The electronic transport properties of the samples were optimized by adjusting the doping ratio, resulting in a large power factor of 1.82 mW m−1 K−2 at 622 K for 7 mol% La–7 mol% Nb-doped SrTiO3. Notably, the power factor (PF) decreased more gradually with increasing temperature, resulting in a high PF of 1.28 mW m−1 K−2 even at 1009 K. In addition, precipitation of the second phases occurred during sintering of the mixture of La–Nb doped SrTiO3 nano powder and carbon powder, which provided additional phonon scattering centers except for the phonon scattering centers of La and Nb point defects. This high thermoelectric performance achieved over a broad temperature range could be beneficial for broadening the range of application temperatures for bulk polycrystalline SrTiO3. Furthermore, the tailoring strategy of co-doping, an in situ second phase, and oxygen vacancies applied in this study may be applicable to other oxide thermoelectric materials.

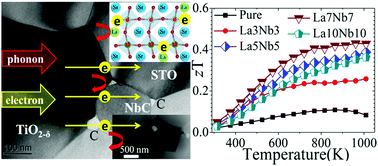

Graphical abstract: Broadening the temperature range for high thermoelectric performance of bulk polycrystalline strontium titanate by controlling the electronic transport properties

Supplementary files

Article information

Article type
Paper
Submitted
03 May 2018
Accepted
21 Jun 2018
First published
23 Jun 2018

J. Mater. Chem. C, 2018,6, 7594-7603

Broadening the temperature range for high thermoelectric performance of bulk polycrystalline strontium titanate by controlling the electronic transport properties

J. Li, J. Wang, J. Li, Y. Li, H. Yang, H. Yu, X. Ma, X. Yaer, L. Liu and L. Miao, J. Mater. Chem. C, 2018, 6, 7594 DOI: 10.1039/C8TC02130A

To request permission to reproduce material from this article, please go to the Copyright Clearance Center request page.

If you are an author contributing to an RSC publication, you do not need to request permission provided correct acknowledgement is given.

If you are the author of this article, you do not need to request permission to reproduce figures and diagrams provided correct acknowledgement is given. If you want to reproduce the whole article in a third-party publication (excluding your thesis/dissertation for which permission is not required) please go to the Copyright Clearance Center request page.

Read more about how to correctly acknowledge RSC content.

Social activity

Spotlight

Advertisements
