Issue 57, 2019

Poly(pyrrole-co-o-toluidine) wrapped CoFe2O4/R(GO–OXSWCNTs) ternary composite material for Ga3+ sensing ability

Abstract

In this study, we report a novel ternary conductive hybrid material with high stability, conductivity, and excellent electrochemical Ga3+ sensing ability. Ternary poly(pyrrole-co-o-toluidine)/CoFe2O4/reduced graphene oxide–oxidized single-wall carbon nanotube nanocomposites in the form of P(Py-co-OT)/CF/R(GO–OXSWCNTs) NCs have been synthesized through an in situ chemical polymerization method via a facile three-step approach. Single phase CoFe2O4 (CF) nanoparticles (NPs) were synthesized using an egg white method, while reduced graphene oxide–oxidized single-wall carbon nanotubes R(GO–OXSWCNTs) were prepared via co-reduction of graphene oxide along with oxidized SWCNTs flowed by coating CF and R(GO–OXSWCNTs) with a poly(pyrrole-co-o-toluidine) matrix P(Py-co-OT) copolymer. The results of X-ray diffraction spectroscopy (XRD), Fourier-transform infrared spectroscopy (FTIR) and Raman indicated that the P(Py-co-OT)/CF/R(GO–OXSWCNTs) NCs were effectively synthesized with strong interactions among the constituents. The thermal stability of P(Py-co-OT)/CF/R(GO–OXSWCNTs) NCs is considerably enhanced in the composite format. Scanning electron microscopy (SEM), transmission electron microscopy (TEM) and atomic force microscopy (AFM) demonstrated that CF and R(GO–OXSWCNTs) were well coated by P(Py-co-OT). The electrical conductivity study showed that P(Py-co-OT) and R(GO–OXSWCNTs) might significantly improve the conductivity and the electrochemical performance of the CF. A Ga3+ ion selective electrochemical sensor was fabricated by coating a glassy carbon electrode (GCE) with synthesized P(Py-co-OT)/CF/R(GO–OXSWCNTs) NCs by using 5% Nafion binder. The slope of the calibration curve was used to calculate the sensor's analytical parameters, such as sensitivity (13.0569 μA μM−1 cm−2), detection limit (96.27 ± 4.81 pM), quantification limit (43.523 pM), response time, reproducibility, large linear dynamic range, and linearity. The validation of the P(Py-co-OT)/CF/R(GO–OXSWCNTs) NCs/GCE sensor probe was investigated by a standard addition method (recovery) in the presence of various environmental samples and satisfying results were obtained.

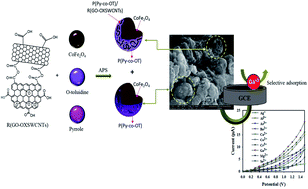

Graphical abstract: Poly(pyrrole-co-o-toluidine) wrapped CoFe2O4/R(GO–OXSWCNTs) ternary composite material for Ga3+ sensing ability

Article information

Article type
Paper
Submitted
13 May 2019
Accepted
02 Oct 2019
First published
16 Oct 2019
This article is Open Access
Creative Commons BY license

RSC Adv., 2019,9, 33052-33070

Poly(pyrrole-co-o-toluidine) wrapped CoFe2O4/R(GO–OXSWCNTs) ternary composite material for Ga3+ sensing ability

D. F. Katowah, M. A. Hussein, M. M. Alam, T. R. Sobahi, M. A. Gabal, A. M. Asiri and M. M. Rahman, RSC Adv., 2019, 9, 33052 DOI: 10.1039/C9RA03593A

This article is licensed under a Creative Commons Attribution 3.0 Unported Licence. You can use material from this article in other publications without requesting further permissions from the RSC, provided that the correct acknowledgement is given.

Read more about how to correctly acknowledge RSC content.
