Organic–inorganic hybrids of Fe–Co polyphenolic network wrapped Fe3O4 nanocatalysts for significantly enhanced oxygen evolution

Abstract

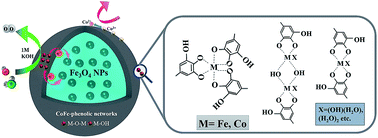

The design of organic–inorganic hybrid nanostructures with carefully balanced properties is a promising approach for constructing advanced electrocatalysts using earth abundant elements. Here we describe hybrid electrocatalysts that have strongly coupled metal (Co–Fe) polyphenolic networks (MPNs) and Fe₃O₄ nanoparticles for catalyzing the oxygen evolution reaction (OER) with exceptional activity. These catalysts were produced by a tannic acid (TA) mediated conversion process that selectively converts the surface layers of pre-synthesized zeolitic imidazole framework-67 (ZIF-67)@Fe₃O₄ core–shell nanoparticles to uniformly wrapped organic MPN layers. The MPN layers are composed of metal–phenolic complexes that are rich in molecular metal hydro(oxy)oxide (M–OH, M–O–M) centers that not only increase the electrochemical surface area by approximately four times but also serve as highly active sites for the OER. As a result of the structural and compositional benefits, the hybrid catalysts only require an overpotential of 260 mV to produce oxygen at 10 mA cm⁻² and have a Tafel slope of only 33.6 mV dec⁻¹ in alkaline electrolytes, which are the lowest when compared with pristine ZIF-67@Fe₃O₄, Fe₃O₄ and the benchmark IrO₂ catalysts.
