Integrated linker-regulation and ring-fusion engineering for efficient additive-free non-fullerene organic solar cells

Abstract

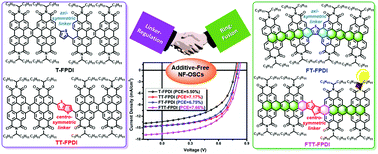

The rational molecular design and structural modification of quasi-two-dimensional fused perylene diimide (quasi-2D FPDI) acceptors have received growing attention for application in non-fullerene organic solar cells (NF-OSCs). Herein, we designed and synthesized two pairs of FPDI acceptors, one in the form of FPDI–π-bridge–FPDI with the π-bridge being either an axisymmetric thiophene (T) or a centrosymmetric thienothiophene (TT) unit, and the other being the corresponding ring-fusion counterpart. Four small molecule acceptors, namely T-FPDI, TT-FPDI, FT-FPDI and FTT-FPDI, were paired with a common PTB7-Th polymeric electron donor as active materials for a comparative study of the effects of linkers and ring fusion on their photovoltaic performances. The T-FPDI-based NF-OSC exhibited a decent power conversion efficiency (PCE) of 5.50%, while a higher PCE of 7.17% with a simultaneous enhancement in the open circuit voltage (V_oc), the short-circuit current density (J_sc) and the fill factor (FF) was achieved for the TT-FPDI-based solar cells. The solar cells based on the ring-fused FT-FPDI and FTT-FPDI acceptors displayed PCEs of 6.75% and 7.66%, respectively, both higher than those of the corresponding non-fused counterparts. Notably, the trade-off between the J_sc and V_oc, commonly observed in fullerene OSCs, is alleviated in these systems. It is also worth noting that the NF-OSCs based on these FPDI acceptors do not need any solvent additives. This successful molecular engineering based on novel quasi-2D FPDI building blocks may inspire the development of emergent electron acceptors for high performance additive-free NF-OSCs.
