Structure–property relationships in organic battery anode materials: exploring redox reactions in crystalline Na- and Li-benzene diacrylate using combined crystallography and density functional theory calculations

Abstract

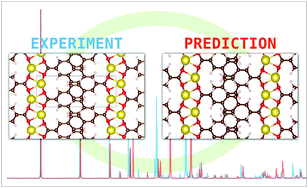

Organic-based materials are potential candidates for a new generation of sustainable and environmentally friendly battery technologies, but insights into the structural, kinetic and thermodynamic properties of how these compounds lithiate or sodiate are currently missing. In this regard, benzenediacrylates (BDAs) are here investigated for application as low-potential electrodes in Na-ion and Li-ion batteries. Aided by a joint effort of theoretical and experimental frameworks, we unveil the structural, electronic and electrochemical properties of the Na₂BDA and Li₂BDA compounds. The crystal structure of these systems in their different sodiated and lithiated phases have been predicted by an evolutionary algorithm interplayed with density functional theory calculations. Due to difficulties in obtaining useful single crystals for the BDA salts, other methods have been explored in combination with the computational approach. While the predicted structure of the pristine Na₂BDA compound has been experimentally confirmed through the 3D Electron Diffraction (3DED) technique, the hydrated version of Li₂BDA is analysed through single crystal X-ray diffraction. The calculated cell voltages for the sodiation (0.63 V vs. Na/Na⁺) and lithiation (1.12 V vs. Li/Li⁺) processes display excellent quantitative agreement with experimental findings. These results validate the developed theoretical methodology. Moreover, fundamental aspects of the electronic structures and their relationship with the reaction thermodynamics are discussed. The results suggest a possible disproportionation between the sodiated phases of Na₂BDA, supporting a two-electron process, and also unveil major differences for the two employed cations: Na⁺ and Li⁺.
