Dual anionic substitution engineering for an advanced NASICON phosphate cathode in sodium-ion batteries

Abstract

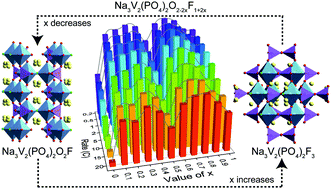

Sodium-ion batteries (SIBs) are prominently used for stationary energy storage due to the abundant resources and low cost of Na. The development of high-performance cathodes for SIBs will be a favorable choice for competing with the market-dominant lithium-ion batteries. Among the various cathodes, Na₃V₂(PO₄)₂O_2−2xF_1+2x (0 ≤ x ≤ 1) materials have become a preferred choice due to their superior structural stability, fast ion transport and high operating potential. Herein, a series of materials with various ratios of F⁻ and O²⁻ (F/O) are prepared via a high temperature solid-state method, and the tuning mechanism of different F/O ratios is studied in detail by analyzing the structural evolution, electrochemical performance and reaction kinetics of materials. The optimal F/O ratio material Na₃V₂(PO₄)₂O_0.6F_2.4 (x = 0.7) exhibits a favorable rate and cycling performance. The capacity at 20C is equivalent to that of the x = 0 material at 5C, and each cycle decay is 0.040% after 200 cycles at 0.5C. Moreover, the optimized F/O ratio material (x = 0.7) also demonstrates excellent reaction kinetics, and the Na apparent diffusion coefficient (D_app,Na) for the high potential region is about 10⁻¹⁰–10⁻¹² cm² s⁻¹. A systematic research of dual anion substitution in phosphates will be useful for the structural design and performance improvement of other cathode materials in SIBs.
