Activation of ammonia and hydrazine by electron rich Fe(ii) complexes supported by a dianionic pentadentate ligand platform through a common terminal Fe(iii) amido intermediate

Abstract

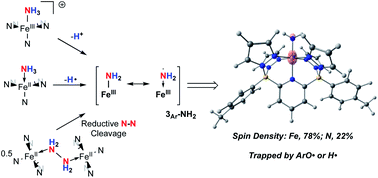

We report the use of electron rich iron complexes supported by a dianionic diborate pentadentate ligand system, B₂Pz₄Py, for the coordination and activation of ammonia (NH₃) and hydrazine (NH₂NH₂). For ammonia, coordination to neutral (B₂Pz₄Py)Fe(II) or cationic [(B₂Pz₄Py)Fe(III)]⁺ platforms leads to well characterized ammine complexes from which hydrogen atoms or protons can be removed to generate, fleetingly, a proposed (B₂Pz₄Py)Fe(III)–NH₂ complex (3_Ar-NH₂). DFT computations suggest a high degree of spin density on the amido ligand, giving it significant aminyl radical character. It rapidly traps the H atom abstracting agent 2,4,6-tri-tert-butylphenoxy radical (ArO˙) to form a C–N bond in a fully characterized product (2_Ar), or scavenges hydrogen atoms to return to the ammonia complex (B₂Pz₄Py)Fe(II)–NH₃ (1_Ar-NH₃). Interestingly, when (B₂Pz₄Py)Fe(II) is reacted with NH₂NH₂, a hydrazine bridged dimer, (B₂Pz₄Py)Fe(II)–NH₂NH₂–Fe(II)(B₂Pz₄Py) ((1_Ar)₂-NH₂NH₂), is observed at −78 °C and converts to a fully characterized bridging diazene complex, 4_Ar, along with ammonia adduct 1_Ar-NH₃ as it is allowed to warm to room temperature. Experimental and computational evidence is presented to suggest that (B₂Pz₄Py)Fe(II) induces reductive cleavage of the N–N bond in hydrazine to produce the Fe(III)–NH₂ complex 3_Ar-NH₂, which abstracts H˙ atoms from (1_Ar)₂-NH₂NH₂ to generate the observed products. All of these transformations are relevant to proposed steps in the ammonia oxidation reaction, an important process for the use of nitrogen-based fuels enabled by abundant first row transition metals.
