Atomic layer deposition of silicon oxide films using bis(dimethylaminomethylsilyl)trimethylsilylamine and ozone: first-principles and experimental study

Abstract

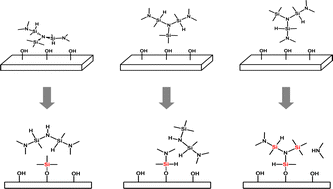

We report the atomic layer deposition (ALD) of silicon oxide films using a chlorine-free silylamine precursor and ozone (O₃). Bis(dimethylaminomethylsilyl)trimethylsilylamine (DTDN-2H2) containing three Si atoms was used as the precursor, and a high growth rate of 1.34 Å per cycle at 400 °C was obtained, which is significantly higher than ∼0.55 Å per cycle using tris-DMAS at the same temperature. DFT calculations showed that a precursor fragment containing three Si atoms could be attached to the SiO₂ substrate, which explains the higher growth rate of DTDN-2H2. The ALD temperature window was 350–400 °C with good step coverages. Stoichiometric SiO₂ films were prepared with no carbon or nitrogen impurities detected by XPS. The genuine ALD film prepared at 400 °C showed a leakage current density of 26 nA cm⁻² at 2 MV cm⁻¹ and an oxide-trapped charge density of 4.7 × 10¹¹ cm⁻².
