Structure and optical property evolution in PbM(PO4)X (M = Zn, Sn; X = halogen): SHG effect and birefringence

Abstract

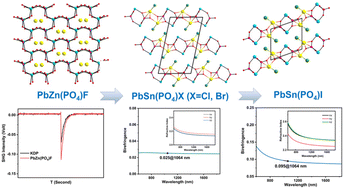

Four new phosphates, namely, PbZn(PO₄)F (1), PbSn(PO₄)Cl (2), PbSn(PO₄)Br (3) and PbSn(PO₄)I (4), were successfully synthesized by hydrothermal and solid-state reaction methods. PbZn(PO₄)F (1) was crystallized in a polar space group Pna2₁ and showed a significant SHG intensity of about 1.6 × KDP. PbSn(PO₄)Cl (2) and PbSn(PO₄)Br (3) were isostructural compounds, and they were crystallized in a monoclinic space group P2₁/n while PbSn(PO₄)I (4) was crystallized in a triclinic space group P. PbZn(PO₄)F (1) features a new 3D framework while compounds 2–4 show a layered structure. Interestingly, the thermal stability and band gap of PbM(PO₄)X are decreased with an increase of the atomic number of the halogen atom, while the rule for birefringence is the opposite. Our work revealed the evolution effects of the halogen atoms on the structure and optical properties of PbM(PO₄)X compounds.
