Particle size effect of graphite anodes on performance of fast charging Li-ion batteries

Abstract

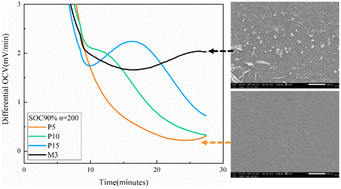

Charging energy-dense lithium-ion batteries (LIBs) with thick graphite electrodes at high current densities are typically accompanied by poor performance and safety issues. The root cause is the onset of Li plating at the surface of graphite when lithiated to a high capacity within a short time period. Here, we investigated the behavior of graphite electrodes with various particle sizes under fast charge operations. Results from the electrochemical characterization on graphite electrodes exhibit the superiority of smaller particles over bigger particles in terms of suppressing the onset of Li plating and growth of plated Li particles. Observations from scanning electron microscopy also corroborate the presence of plated Li in electrodes with big graphite particles and its absence in graphite electrodes with small particles, when the cells were lithiated to 90% of the state of charge (SOC). The improved performance of cells with the small particles might be associated with the low Li-ion concentration at the surface of graphite and thus reduced overpotential in graphite electrodes. The simulated results revealed that, compared to bigger particles, smaller particles have lower surface intercalation at any given cell SOC, which may significantly reduce the overpotential in the graphite electrodes and mitigate the onset of Li plating. This agrees well with experimental observations.
