Research on the mechanism of threefold discrepancy in thermal conductivity between room temperature and phase transition temperature for 1,3,5,7-tetranitro-1,3,5,7-tetrazocine (HMX) crystals

Abstract

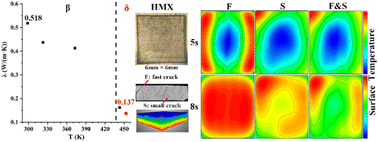

Cracks originating from thermal expansion and thermally induced phase transitions significantly hinder thermal conduction in certain energetic materials. For 1,3,5,7-tetranitro-1,3,5,7-tetrazocine (HMX) crystals, a classic explosive, their temperature-dependent thermal conductivity serves as a crucial parameter determining safety and stability. In this work, the thermal conductivity of HMX single crystals before and after thermal damage under different heating conditions was measured and calculated, as well as the thermal conductivity of different regions of each single crystal. A threefold discrepancy in thermal conductivity was observed between room temperature and the phase transition temperature of the HMX crystal. The different effects of different types of damage and cracks, characterized by using 3D X-ray computed tomography (CT), on the thermal conduction process of the crystal were further analyzed. The results indicate that different heating methods influence the phase transformation of the crystals and the distributions of fast cracks and small cracks. The strong directivity of the fast cracks will significantly impact the thermal conductivity along two horizontal directions, whereas small cracks exert the greatest influence on the primary direction of heat conduction. The relevant conclusions were also verified by finite element analysis (FEA) modeling.
