Green synthesis of polyimide by using an ethanol solvothermal method for aqueous zinc batteries

Abstract

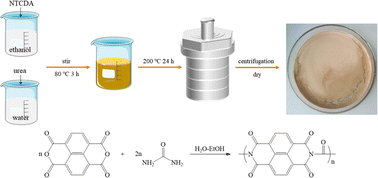

Polyimides (PIs) are welcomed by battery researchers because of their exceptional heat resistance, structural design versatility, and ion-bearing capabilities. However, most of the reported PIs are synthesized by using toxic and hazardous reagents, such as ethylenediamine, p-phenylenediamine, 1-methyl-2-pyrrolidone (NMP), N,N-dimethylacetamide (DMAc), N,N-dimethylformamide (DMF), etc., which are not conducive to environmentally friendly development. In this paper, we aim at employing green solvents and raw materials to prepare PIs using a facile solvothermal method. The reactants are urea and 1,4,5,8-naphthalene tetracarboxylic acid dianhydride (NTCDA). The solvents include pure water, pure ethanol, or water–ethanol mixed solvent. The volume ratio of ethanol in the mixed solvent is regulated to obtain the optimum synthesis condition. Depending on the proportion of ethanol, the polyimide products are labeled as U-PI-0, U-PI-50, U-PI-100, etc. The polymerization degree and structure of synthesized PIs are characterized by gel permeation chromatography (GPC), X-ray diffraction (XRD), scanning electron microscopy (SEM), etc. The results indicate that U-PIs exhibit diverse morphological features, including small fragmented, strip-like, and sheet-like structures, and have relative molecular weights ranging from 7500 to 83 000. Notably, the sheet-like U-PI-100 possesses the largest specific surface area, reaching up to 4.20 m² g⁻¹. When employed as an electrode material in aqueous zinc batteries, U-PI-100 demonstrates superior electrochemical performance compared to others. At a charge–discharge rate of 0.05C, the initial charge/discharge capacity of U-PI-100 is measured to be 314.2/443.7 mA h g⁻¹.
