The pressure response of Jahn–Teller-distorted Prussian blue analogues

Abstract

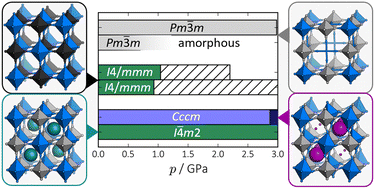

Jahn–Teller (JT) distorted Cu^II-containing compounds often display interesting structural and functional behaviour upon compression. We use high-pressure X-ray and neutron diffraction to investigate four JT-distorted Prussian blue analogues: Cu[Co(CN)₆]_0.67, CuPt(CN)₆, and ACuCo(CN)₆ (A = Rb, Cs), where the first two were studied in both their hydrated and dehydrated forms. All compounds are less compressible than the JT-inactive Mn^II-based counterparts, indicating a coupling between the electronic and mechanical properties. The effect is particularly strong for Cu[Co(CN)₆]_0.67, where the local JT distortions are uncorrelated (so-called orbital disorder). This sample amorphises at 0.5 GPa when dehydrated. CuPt(CN)₆ behaves similarly to the Mn^II-analogues, with phase transitions at around 1 GPa and low sensitivity to water. For ACuCo(CN)₆, the JT distortions reduce the propensity for phase transitions, although RbCuCo(CN)₆ transitions to a new phase (P2/m) around 3 GPa. Our results have a bearing on both the topical Prussian blue analogues and the wider field of flexible frameworks.
