iRGD-mediated liposomal nanoplatforms for improving hepatocellular carcinoma targeted combination immunotherapy and monitoring tumor response via IVIM-MRI

Abstract

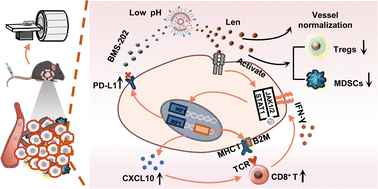

The combination therapy of targeted treatments and immune checkpoint blockade (ICB) holds great promise for hepatocellular carcinoma (HCC) treatment. However, challenges such as immunogenicity, off-target toxicity of ICB antibodies, low drug co-delivery efficiency, and lack of effective biomarkers to monitor treatment response limit the efficacy of existing targeted immunotherapies. Herein, we synthesized iRGD-modified pH-sensitive liposomal nanoparticles co-encapsulating lenvatinib (Len) and the small molecule PD-1/PD-L1 inhibitor BMS-202 (iRGD-lip@Len/BMS-202) to address issues related to inadequate tumor enrichment and distinct pharmacokinetics of these drugs. Furthermore, intravoxel incoherent motion–magnetic resonance imaging (IVIM-MRI), which is calculated using a biexponential model, can simultaneously reflect both the diffusion of water molecules within the tissue and the microcirculatory perfusion of capillaries. Consequently, we further assessed the feasibility of using IVIM-MRI to monitor the cancer treatment response in nanodrug therapy. These results demonstrated that the iRGD-targeted liposomal nanodrug effectively accumulated in tumors and released in acidic microenvironments. The sustained release of Len facilitated tumor vascular normalization, decreased the presence of Tregs and MDSCs and activated the IFN-γ signaling pathway. This led to increased PD-L1 expression in tumor cells, enhancing the sensitivity of BMS-202. Consequently, there was a synergistic amplification of antitumor immune therapy, resulting in the shrinkage of subcutaneous and orthotopic HCC and inhibition of lung metastasis. Furthermore, IVIM-MRI technology facilitated the non-invasive monitoring of the tumor microenvironment (TME), revealing critical therapeutic response indicators such as the normalization of tumor blood vessels and the degree of hypoxia. Collectively, the combination of Food and Drug Administration (FDA)-approved drugs with iRGD-modified liposomes presents a promising strategy for HCC treatment. Simultaneously, IVIM-MRI provides a non-invasive method to accurately predict the response to this nanodrug.
