Long term outdoor performance evaluation of printed semitransparent organic photovoltaic modules for BIPV/BAPV applications

Abstract

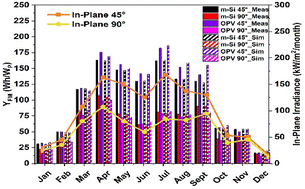

Recently, organic photovoltaics (OPV) have achieved power conversion efficiencies (PCE) above 20% thus coming closer to market entry. Building-integrated photovoltaics (BIPV) and building-attached photovoltaics (BAPV) are two key areas where the functional advantages of both OPV and BIPV/BAPV complement each other and thus could pave the way for market penetration of OPV. Herein, we report on large-area, all-solution-processed flexible OPV modules manufactured by a fully roll-to-roll (R2R) method with high levels of process repeatability. The OPV modules show an accelerated lifetime (ALT) of more than 1000 h and 2800 h under the ISOS-L2 and ISOS-D3 testing conditions, respectively. Long-term outdoor monitoring of the OPV modules was conducted in a typical central European climate, considering two distinct mounting angles that hold significant relevance for BIPV installations i.e., 45° inclination with respect to the ground (representing the optimal tilt angle of the site) and 90° vertical mounting (as mostly encountered in BIPV façades). The ISOS-O2 protocol was used as the test standard for outdoor monitoring. The results show that the OPV modules can offer higher daily specific energy yields (Y_FD), i.e., higher ratios of daily energy yield and STC W_P capacity of the module, than a reference mono-crystalline (m-Si) module for BIPV installations typical of a rooftop case (i.e., 45°), whereas for façade integrated cases (i.e., 90°), OPV modules offer Y_FD values identical to that of m-Si modules. Detailed laboratory investigations reveal that the higher Y_FD values of the OPV modules at 45° mounting stems from their negligible temperature coefficient of −0.008% °C⁻¹, whereas at 90° mounting, the angle-dependent response of the modules plays a crucial role.
