Selective reduction of graphite oxide: a novel approach

Abstract

Graphite oxide (GO) has been selectively reduced (SGO) by H⁺/Na/methanol for conversion of –COOH to –OH groups. Enhanced H-bonding is confirmed between SGO and bistartratocuprate(II)⁴⁻ via FTIR. The graphene/copper nanocomposite subsequently prepared by its in situ reduction showed superior EMI shielding properties compared to conventionally obtained nanocomposites.

---

Graphite oxide (GO), also referred to as graphitic oxide, is an important carbon based layered material.¹ It has been invariably used as a precursor in the synthesis of graphene through a variety of processes, such as, mechanical exfoliation, chemical vapour deposition and chemical or thermal reduction for various promising applications.^2–4 The presence of epoxy (–O–), hydroxyl (–OH), carboxylic acid (–COOH) and ketone (C=O) groups on the surface of GO account for its hydrophilic nature and dispersibility in polar medium.^5,6 These oxygen containing functional groups could also interact and facilitate coordination with metal complexes. In view of this, the present work is focused on preparation of nanocomposites using graphite oxide and Fehling's solution⁷ as sources of graphene and complex of Cu bistartratocuprate(II)⁴⁻ respectively. It is anticipated that the presence of –COO⁻ groups in bistartratocuprate(II)⁴⁻ complex of Fehling's solution undergoes hydrogen bonding (H-bonding) formation with HO– groups of GO (FSGO).⁸ However, availability of –OH groups undergoing such interaction could be insufficient due to steric crowding created between the –COOH of GO and bulky bistartratocuprate(II)⁴⁻ complex of Fehling's solution. As a consequence, the selective transformation of –COOH to –OH group of GO (referred as SGO) appears to be one of the ideal solution to overcome this problem. Therefore, we introduced new approach involving selective reduction of GO through the transformation of –COOH of GO to –COOR group followed by its reduction with Na/CH₃OH to convert it to –OH group according to Bouveault–Blanc⁹ reduction approach. Though, variety of chemical medication of GO are already reported,¹ no such information is available dealing with transformation of –COOH to –OH functionality of GO even till date to our best of our knowledge. Through this approach, more number of –OH groups of SGO compared to GO are likely to interact more with Fehling's solution through H-bonding (FSGO) overcoming thereby the steric crowding as discussed earlier. When this FSGO is in situ reduced by hydrazine hydrate, copper nanocomposites of selectively reduced graphite oxide (RSGOCu) are formed. Additionally, it would interesting to develop, if hydrogen bonded structure between SGO and Fehling's solution could avoid agglomeration of Cu nanoparticles on the RSGO sheet compared to Cu nanocomposites prepared by using directly GO. Detailed preparative method of GO (Hammer's method⁵) followed by its selective reduction to prepare RSGOCu nanocomposites (varying proportion of Fehling's solution) is given in ESI S1† and Scheme 1. Finally, RSGOCu has been characterized by XRD, FTIR, SEM, TEM, XPS, and conductivity measurements (ESI S2†). EMI shielding property of RSGOCu nanocomposite has also been studied to show the effect of our novel approach during its application.

Scheme 1 Schematic representation of selective reduction of GO and formation of RSGOCu nanocomposites.

X-ray diffraction (XRD) showed that the appeared hump at ∼24° for 002 planes in SGO and RSGO remains almost unaltered indicating successful reduction of GO by our novel technique. In case of RSGOCu nanocomposites three major peaks at 43.5° (111), 50.5° (200) and 74.5° (220) appeared corresponding to cubic phase of Cu including hump at ∼24° for RSGO [JCPDS card no. 4-0836] (details in ESI S3†). So our prepared SGO resembles with reported reduced GO with respect to interlayer distance. Fig. 1 shows FTIR spectra of RSGOCu2, RSGOCu5, RSGOCu10 and Cu nanoparticles. The characteristic bands appeared at 3400, 1720, 1215 and 1580 cm⁻¹ in GO due to stretching vibrations from O–H, C=O, and C–O and skeletal vibrations from unoxidized graphitic domains respectively.

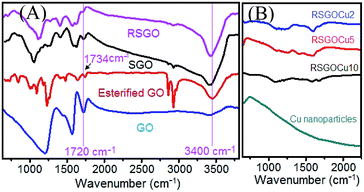

Fig. 1 FTIR spectra of (A) GO, esterified GO, SGO, RSGO and (B) RSGOCu.

These findings confirmed that both –OH and –COOH groups are present in GO.^10–12 After treating GO with CH₃OH/H₂SO₄, the peak at 1720 cm⁻¹ is found to be shifted at 1734 cm⁻¹ indicating the transformation of –COOH to –COOCH₃ groups. The bands in SGO at 1720 and 1060 cm⁻¹ corresponding to C=O and C–O stretching vibration of –COOH group almost disappeared and respective intensity of 3400 cm⁻¹ band due to O–H stretching increased remarkably. These findings clearly demonstrated that –COOH groups in GO are selectively reduced to –OH. As expected in case of RSGO, the characteristic peaks at 1720 cm⁻¹ (C=O) and 1060 cm⁻¹ (C–O) are diminished, though absorption bands due to skeletal vibrations from unoxidized graphitic domains (1600 cm⁻¹) and C–OH stretching vibrations (1220 cm⁻¹) remained unaltered. When Fehling's solution is added to SGO, it is observed that the peak at 3400 cm⁻¹ is blue shifted up to ∼3200 cm⁻¹ (Table 1, Fig. 2 and S4†). This evidenced the formation of H bond between –O–H and –COO⁻ groups of SGO and Fehling's solution respectively (Scheme 1). It is also evident from Fig. 1 that no remarkable peaks of Cu nanoparticles are present in this region. XPS analysis of samples also supported expulsion of oxygen containing functional group during successive reduction of GO to RSGO and formation of RSGOCu nanocomposites (ESI S5†). Due to difficulty in differentiation of the overlapping binding energies of carbonyl group and OH groups, NMR studies on our samples was not carried out.^13,14SEM and TEM images in Fig. 3 (ESI 6 and 7†) further provide visual supports for the formation of RSGOCu nanocomposites. It clearly shows that Cu nanoparticles synthesized from chemical reduction of Fehling's reagent remain in agglomerated state. The high resolution SEM image established that the sizes of the particles to be roughly ∼40 nm. SEM of RSGO shows the formation of sheet like structure quite similar to reduced graphite oxide reported earlier.¹⁵ It is also evident from Fig. 3 that Cu nanoparticles are well dispersed on the RSGO sheet in RSGOCu nanocomposite, which is also supported by TEM analysis. TEM images of RSGOCu10 and RGOCu10 are further confirmed the particle size of Cu nanoparticles to be ∼40 nm similar to as observed through SEM images. In case of RSGO, the formation of sheet like reduced graphite oxide sheets are clearly visible. TEM image also shows that RSGO sheets acquired several hundred square nanometers area and are rippled/entangled with each other. A fraction of RSGO sheets (marked with arrow) also appeared as transparent mono layer.¹⁶ In addition, during TEM analysis it is observed that hydrazine hydrate reduced SGO, i.e. RSGO, is quite stable under the electron beam. Fig. S7 (ESI S7†) also shows the formation of scrolled RSGO nanosheets probably due to its intrinsic property of microscopic crumpling through bending and buckling accounting for the thermodynamic stability of 2D membrane. In addition the presence of disordered graphite lattice is probably due to the partial restoration of graphite lattice from disorder to order crystal structures. TEM image of RSGOCu10 is indicating that the Cu nanoparticles are well dispersed and acts as to interconnect between successive RSGO wrapped sheets. This is in contrast to RGOCu10 nanocomposites obtained by in situ reduction of GO and Fehling's solution, where agglomeration of Cu is clearly evident from the corresponding TEM image. SEM and TEM studies supported the findings of FTIR and TGA (ESI S8†) that RSGO/Cu composites takes place through the combination of SGO and Fehling's reagent followed by in situ reduction.

Fig. 4 displays the corresponding Raman spectra of GO, SGO, RSGO, RSGOCu2, RSGOCu5 and RSGOCu10. Two distinct peaks appeared in the spectra of GO at 1351 (D band) and 1578 cm⁻¹ (G band).¹⁷ The G band corresponds to the in-plane vibration of the sp² atoms of hexagonal graphite lattice is a doubly degenerate phonon mode (E_2g symmetry) at the Brillouin zone center.^18,19 D band appears due to the breathing mode of κ-point phonons with A_1g symmetry.²⁰ In addition, GO exhibits intensity ratio (I_D/I_G) of D to G band i.e. 0.94 due to defects and disorders originating from carboxylic acid and other functionality present on its surface.²¹ When GO is selectively reduced to transform –COOH to –OH functionality, higher value of I_D/I_G (1.05) of SGO could account for the formation of new graphitic domain. After reduction of SGO to RSGO, it is observed that its G band (1578 cm⁻¹) is down-shifted to 1573 cm⁻¹. This is due to the selective reduction of isolated double bonds in C=O, –COOH followed by hydrazine hydrate reduction.²² In case of RSGO, the I_D/I_G value is found to be 1.12 which is probably due to the formation of better graphitic domain compared to SGO. When SGO and Fehling's solution together are in situ reduced by N₂H₄, no additional peaks of copper are observed in Raman spectra of produced RSGOCu nanocomposites in the selected range. However, intensity of both D and G bands are found to be reduced considerably in Cu loaded RSGO samples. It may be attributed due to the presence of conducting Cu nanoparticles which shield the incident laser beam to interact with layers of RSGO. However, it is clear that considerable structural as well as chemical changes occur during the successive transformations of GO to SGO followed by RSGO, RSGOCu2, RSGOCu5 and RSGOCu10. Room temperature D.C. electrical conductivity (σ_RT) measurements have also been carried out on RSGO and corresponding Cu loaded samples (Fig. 5 and ESI S9†). It is inferred the σ_RT values of RSGO, RSGOCu2, RSGOCu5 and RSGOCu10 are found to be 4.58, 29.919, 523.3 and 3896.5 Sm⁻¹ respectively. This clearly indicates that conductivity increases with Cu loadings and attains nearly 850 times more in RSGOCu10 with respect to RSGO alone. Interestingly, such high value of conductivity in metal/graphene nanocomposites has never been reported earlier in the literatures. We have also prepared copper nanocomposite of graphene (RGOCu10) by in situ reduction of GO and Fehling's solution maintaining other conditions similar. As expected, we found that room temperature electrical conductivity of RGOCu10 (600.5 Sm⁻¹) was significantly low compared to RSGOCu10 (3896.5 Sm⁻¹). All these findings clearly demonstrate that a continuous electronic path has been formed by deposition of highly conducting Cu nanoparticles on RSGO sheets which could account for observed enhancement in electrical conductivity. The presence of free electrons in mono dispersed metallic Cu nanoparticles (σ_RT = 1.59 × 10⁷ Sm⁻¹) could account for the formation of more conducting electronic pathways in RSGOCu nanocomposites. On the other hand RGOCu nanocomposite could unable to achieve this for agglomeration of Cu nanoparticles. As a result, the successive increment in its D.C. conductivity is observed with increasing Cu loading in RSGO, a fact also reflected from EMI SE measurements as discussed below.

Table 1 Details on sample preparation FSGO1, FSGO2, FSGO3, FSGO4, FSGO5 and FGO* (*prepared by adding 5 ml each of Fehling's A and B to dispersed GO in 50 ml of water)

Fehling A (ml)	Fehling B (ml)	H2O (ml)	Amount of SGO (g)	Sample code
1	1	58	0.5	FSGO2
2.5	2.5	55	0.5	FSGO5
5	5	50	0.5	FSGO10
7.5	7.5	45	0.5	FSGO15
10	10	30	0.5	FSGO20

---

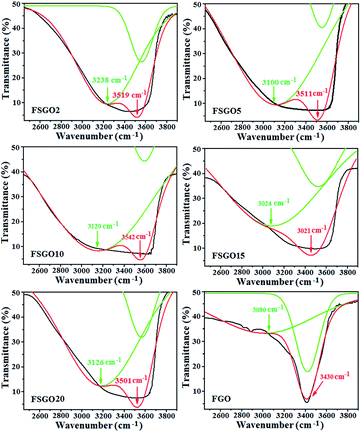

Fig. 2 FTIR and deconvoluted FTIR spectra of FSGO2, FSGO5, FSGO10, FSGO15, FSGO20 and FGO10.

Fig. 3 (a) SEM image of RSGOCu10, TEM images of (b) RSGO, (c) RSGOCu10, and (d) RGOCu10.

Fig. 4 Raman spectra of (a) GO, (b) SGO, (c) RSGO, (d) RSGOCu2, (e) RSGOCu5, (f) RSGOCu10 and (g) Cu nanoparticles.

Fig. 5 Variation of room temperature D.C. conductivity (σ_D.C.) of RSGO and its Cu nanocomposites with volume of Fehling's solution. (Inset: polynomial fitting curve).

Fig. S10 (ESI S10†) represent variation of reflection loss versus frequency (2–8 GHz) for RSGO, RGOCu10, RSGOCu1, RSGOCu5 and RSGOCu10. The corresponding values are found to be in the range of −4.34 to −6.5, −8 to −4.8 and −4.5 to −2.6, −0.34 to −0.83 and −1.14 to −0.5 dB. These findings clearly suggest that Cu loaded RSGO exhibit higher reflection loss with respect to RSGO. This could be attributed to the increase in D.C. conductivity of Cu loaded RSGO nanocomposites.²³ Fig. 6 displays variation of EMI shielding effectiveness of RSGO and its copper loaded nanocomposites in the frequency range 2–8 GHz. These findings show that EMI shielding effectiveness of RSGOCu nanocomposites is dependent on Cu loadings and frequency. It is noted that EMI shielding effectiveness of all the Cu filled RSGO nanocomposites is always higher than the neat RSGO over the entire frequency range.

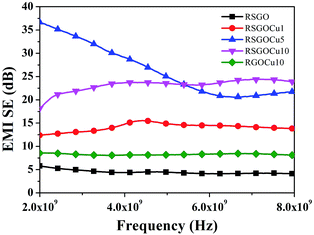

Fig. 6 Variation of EMI shielding versus frequency (2–8 GHz) of RSGO, RGOCu10, RSGOCu2, RSGOCu5 and RSGOCu10.

Further, it is also observed that EMI shielding effectiveness of RSGO, RGOCu10, RSGOCu2, RSGOCu5, RSGOCu10 are found to be 4, 8, 14, 20, 24 dB at ∼7 GHz and 6, 8.5, 12, 35, 20 dB at ∼2–6 GHz respectively. This clearly suggests that reflection accounts for the major contribution in total EMI shielding. These findings also strengthen earlier suggestions that conductivity could play an important role in influencing total EMI shielding of the composites.

It may be noted that the target value of EMI shielding effectiveness needed for commercial application is ∼20 dB (equal to or less than 1% transmittance of electromagnetic wave). Therefore, it is anticipated that developed RSGOCu5 and RSGOCu10 could find better commercial applications. The complex permittivity (ε* = ε' − iε") has been calculated using the scattering parameters (ESI S10†) S₁₁ and S₂₁ obtained from VNA instrument followed by applying standard Nicholson–Ross and Weir theoretical calculations.²⁴ Fig. S10 (ESI S10†) shows variation of room temperature frequency dependence of relative complex permittivity (ε*) of pure RSGO and RSGOCu composites. It may be mentioned that the real part of ε* (ε') is related to polarization of the materials. When polarization is increased, the storage capacity of the electrical energy is also enhanced.²⁵ Actually conductivity of Cu is higher compared to RSGO which increases the conductivity of the corresponding composites resulting in the increment of the values of ε′ and ε′′. Our observation is quite relevant with the previous reports where loading of Ag nanoparticles was responsible for the increment of the values of ε′ and ε′′ in polyaniline/graphene/Ag composites.²⁶ It is well-known that dipolar and electrical polarization in a material are induced in presence of microwave by its polarizability, which is influenced by the permittivity which depends on conductivity and electric polarization of a material. So for that reason it can be said that with increasing conductivity the values of ε′ and ε′′ increases. Interestingly it is observed that in case of RGOCu10 the values of ε′ and ε′′ are in the range 25–14 and 7–4.5 respectively. It is anticipated that free electron of copper and π electron clouds of graphene together induces the enhanced polarization under microwave irradiation. As a result, the electronic flux increases in the composites with Cu loading, a fact already established in permittivity discussion. All these findings also support the highest values of ε′, ε′′ and tan δ_E achieved in RSGOCu10. In all probability, the increased random collision between the free electrons at such higher loading of Cu in RSGO is likely to be hindered leading to the dissipation of electromagnetic energy as heat. Also it leads to dielectric loss in presence of a continuous conducting network due to accumulation of charges on the interfacial region to form large dipoles. SEM and TEM also established earlier that in RGOCu10 perfect conducting network has not been formed and is reflected in the values of tan δ_E. We also noticed that RGOCu10 shows large decrease in ε′, ε′′ and tan δ_E compared to RSGOCu10 due to its relatively low conductivity. In addition, lower values of ε′ and ε′′ due to the interfacial polarization between RGOCu and RSGOCu also cannot be ruled out.

In summary graphite oxide (GO) has been selectively reduced by Bouveault–Blanc approach to selectively reduced graphite oxide (SGO). Subsequently, SGO and Fehling's reagent has been in situ reduced by N₂H₄ to prepare RSGOCu nanocomposites. The formation and morphology of the products at different stages has been supported by XRD, FTIR, SEM, TEM and Raman analysis. FTIR of FSGO showed enhanced interaction between –OH (SGO) and –COO⁻ (Fehling's reagent) leading to the better dispersion of Cu nanoparticles on RSGO sheets during its in situ reduction. Room temperature D. C. conductivity improvement was found to be ∼850 times in RSGOCu10 compared to RSGO. In addition, improvement in conductivity was found to be 70–80 times in RGOCu10 in absence of Bouveault–Blanc approach. In EMI shielding application (2–8 GHz) RSGOCu10 showed 6–8 times more efficiency compared to RGOCu10. Our findings clearly demonstrate that the selective reduction of GO monitored the dispersion of Cu nanoparticles on graphene (RSGO) sheet accounts for such significant enhancement in conductivity, which in turn are reflected in their EMI shielding performance. To our belief, such novel technique involving selective reduction of GO could open a new scope in future.
