Probing the corrosion inhibiting role of a thermophilic Bacillus licheniformis biofilm on steel in a saline axenic culture

Abstract

The growth of some bacterial biofilms has been widely reported to have defined consequences on industrial metals, and their related metabolic activities affect the overall electrochemical process of these metals in any given medium. This work seeks to unravel the role of a thermophilic Bacillus licheniformis biofilm (an isolate from the Jazan spring of Saudi Arabia) on corrosion reduction for stainless steel (316 L grade) in a saline culture medium. Grown on the steel substrate, this bacterial biofilm and the nature of its extracellular polymeric substances have been probed chemically and electrochemically for their influences on the metal dissolution within an incubation period. Corrosion inhibition in the presence of varying concentrations (in CFU ml⁻¹) of this bacterium in the biotic-inoculate systems is explained in terms of corrosion resistance and capacitance of the biofilm. The corrosion rate of steel is found to reduce significantly in the saline culture medium within the range of concentrations of bacterium under study compared with the sterile control. This is attributed to the adhesion of a relatively compact and dense “beneficial” biofilm as well as the secretion of corrosion inhibiting substances from the bacterial biofilm as revealed during surface analysis.

---

1 Introduction

Alloyed and non-alloyed steels are used as materials of choice for many engineering applications (including construction/fabrication, storage and transportation of industrial products, etc.) due to their resistance to corrosion.^1,2 The ability of some of these grades of steel to resist corrosion is linked with their unique chemical composition formulated during their metallurgical processing. Though these metals passivate and form stable oxide layers as their constituent alloying elements (Ni, Mn, Cr, Mo, etc.) react with molecular oxygen and with water, they still corrode at a relatively slow rate and are also susceptible to microbially induced corrosion (MIC).^3–5 In alloyed pipeline steel materials, this could be explained electrochemically via the two half reactions: anodic, where metallic Fe (could also involve any other metal) is oxidized to its ions and cathodic (where dissolved molecular oxygen catalyzes a cathodic half reaction; water might be involved as well as any other products of microbial activity). The health related risks associated with the release of metal ions into portable drinking water for domestic applications, and the destruction of the industrial oil pipelines by MIC have made this form of corrosion very devastating in the long run. Corrosion episodes involving MIC are directly related to the bacterial colonization as well as the formation of acidic type biofilms by these sessile communities on the surfaces of these ferrous alloys.^6,7 Pioneering works related to bacterial biofilm are those reported by Costerton et al.⁸ in the mid 1970's where the initial theory of biofilm development and the mechanism of how it “sticks” were proposed. As the communities of these harmful bacteria adhere to metallic surfaces, they speedily grow (depending on the availability of nutrients) into larger colonies bound by heterogeneous matrices of extracellular polymeric substances secreted by individual bacterial cells. As far as they can still “quorum sense” within these complex structured microbial communities, other bioactivities are possible, including cellular growths, gene transcription and the secretion of products of metabolism capable of destroying the metallic surfaces. A bacterial biofilm is mostly made up of bacterial cells embedded within the extracellular polymeric substances (EPS) that allows for the attachment of the whole growing community to the substrate at the metal–liquid interface.⁹

Some strains of bacteria can also inhibit metal corrosion.¹⁰ In fact, corrosion inhibition by spore-forming Gram-positive bacteria have been widely reported and reviewed in the literature for many metal substrates in both surface and ground water.^10–15 These microbes alter the rate of metal dissolution as long as they remain viable in the media by reducing the concentration of oxygen at the metal surface via aerobic respiration. For this class of bacteria, the nature of their biofilms have been reported to have huge influences on the overall electrochemical process as a consequence of their metabolic activities.^12,13 Some biofilm-forming strains of Bacillus brevis and Bacillus subtilis have been reported to secrete antimicrobial substances (e.g. gramicidin S antibiotics) from their biofilms that prevent the settlement of other bacteria capable of inducing corrosion.^16,17 Arps et al.¹⁸ have reported the corrosion reduction of some steel alloys in an artificial service water using Bacillus strains capable of producing polymyxins and gramicidin S. Amongst these Gram-positive and spore-forming Bacillus species with the potency of reducing metal corrosion is Bacillus licheniformis.¹⁹

1.1 B. licheniformis

The taxonomic classification of B. licheniformis is presented in Table 1. B. licheniformis is generally a facultative anaerobic, mesophilic, Gram-positive, curved or straight rod-like (Bacillus) motile bacterium (with peritrichous flagella/hair-like outgrowths, hence the name “licheniformis”) with a full cellular size between 1.5–3.5 and 0.6–0.9 μm (Fig. 1). It is spore- and biofilm-forming B. licheniformis is endowed with enzymes that allows its spores to survive harsh conditions, including elevated temperatures, solvents (e.g. NaCl) and pH. This bacterium is widely found in the soil; since many of its strains can survive at elevated temperatures; vegetative growth is still possible between 30 and 50 °C. Higher thermophilic strains can strive in hot springs; and the strain employed in this study was isolated from the hot springs in the Jazan area of Saudi Arabia. B. licheniformis is penicillinase inducible and also known for secreting polypeptide antibiotic bacitracin (active against most Gram-positive pathogenic bacteria) (http://www.tgw1916.net/Bacillus/licheniformis.html). Some strains also possess proteases, lyases/lipases and polysaccharide degrading enzymes.

Table 1 Taxonomy of B. licheniformis

Classification
Phylum	Firmicutes
Class	Bacilli
Order	Bacillales
Family	Bacillaceae
Genus	Bacillus

---

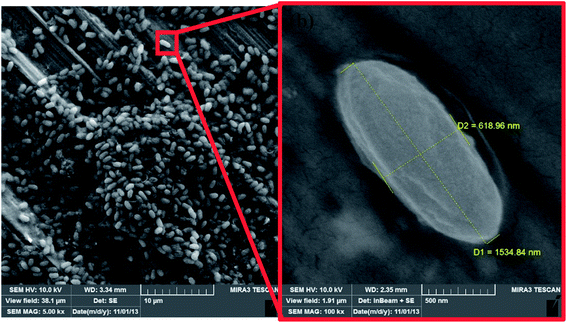

Fig. 1 SEM micrograph showing cellular clusters/distribution (a) and dimension (b) of B. licheniformis vegetative cells on stainless steel substrate.

Most corrosion inhibiting strains of B. licheniformis are biofilm-forming bacteria capable of secreting antibiotic compounds that can act as corrosion inhibitors.¹⁰ Ornek et al.¹⁹ have reported the inhibition of pitting corrosion of aluminum in the presence of B. licheniformis (specifically, the ATCC 9945A strain) in Luria Bertani culture medium. Significant reduction in aluminum pitting rate was observed after 7 days of substrate immersion in the culture medium; this was attributed to bacterial secretion of corrosion inhibiting polymer (γ-polyglutamate) by the B. licheniformis biofilm at medium pH. The effect of bacterial biofilm of nitrate reducing B. licheniformis strain has also been investigated on carbon steel by Xu et al.²⁰ This bacterium acted as a corrosion nitrate reducer against carbon steel corrosion under anaerobic condition but showed severe pitting with 14.5 μm maximum depth while degrading the metal substrate in a one-week exposure period due to its unique biofilm. Marques et al.²¹ have reported the surface corrosion and bulk carbon steel pitting for isolates of B. licheniformis (and other forms of bacteria) carbon steel in a Brazilian oil platform water. Monitored by weight loss in reactors, authors studied the effect of nitrate on bacterial biofilms on the corrosion rates of steel substrate monitored by weight loss in reactors. Significant biofilm growth were observed on the steel coupons with lower weight loss observed from corrosion inhibiting bacteria in the nitrate reactor. Our group has also recently reported the effectiveness of encapsulated endospores of this bacterium within protective sol–gel coating against steel (S36 grade) corrosion and marine fouling in highly saline medium.²² The presence of these bacterial endospores in the coating ascribed an antibiotic property to the coating surface while also increasing its hydrophobicity against the passage of ionic currents of corrosive ions and molecules via the bulk of the coating to the metal. Though this bacterium-in-coating system was found to exhibit both anticorrosion and antifouling properties, the exact mechanism of action as related to bacterial biofilm formation was not further investigated.

In the field, the extent of microbial influence on metals when exposed to their service environments depends on the type of bacterium (or more) they come in contact with, their prevalence and the nature of such environment. Since the formation of bacterial biofilms on exposure alters the chemistry of these surfaces, there is a need to study the underlining impact of the bioactivities of these microbes at the substrate/solution interfaces in a view to proffering lasting solutions to MIC. This work seeks to unravel the role of biofilm produced from thermophilic strain of B. licheniformis isolated from the Jazan spring of Saudi Arabia. The biofilm of this bacterium is grown on stainless steel (316 L grade) and the nature of EPS as well as the possible bacterial metabolites produced from its physiological activity is monitored chemically and electrochemically in an axenic culture. This culture and corrosion medium is also described as being “saline” since it consists of 1.5 wt% NaCl (in combination with other salts) deployed to accelerate the corrosion of stainless steel with and without single species (axenic) of bacterium, B. licheniformis, which acts as an inhibitor for steel incubated at 37 °C for three weeks. Stainless steel (316 L grade) is chosen as the test substrate due to its susceptibility to pitting and galvanic corrosion in solutions of high ionic (e.g. chlorides) concentrations. By dissolving in corrosive media without huge corrosion products (unlike mild steel), stainless steel allows for the study of the morphology and chemistry of adhering bacterial biofilm with limited interfacial influences.

2 Experimental

2.1 Culture medium/composition

The sourcing of this thermophilic bacterial strain has been previously reported,^23,24 and in the present study, the culturing procedure in a fresh minimal salt medium (pH 5.0) has been elaborated elsewhere;²⁵ without modification, except for the replacement of diluted water with a sterile type. Components of the medium includes: 7.5 g NaCl, 10 g glucose, 0.2 g MgSO₄·7H₂O, 0.01 g FeSO₄·7H₂O, 1 g (NH₄)₂SO₄, 0.5 g K₂HPO₄. The B. licheniformis concentration deployed in this study measured 2.79 × 10⁷ CFU ml⁻¹, and 1 ml of the bacterial suspension was inoculated in 500 ml of the sterile minimal salt culture medium (labelled as System A; pH 4.6) and cultured at 37 °C for three weeks with a sterile and highly polished stainless steel substrate (316 L grade). The other biotic set up (System 2A; with 6.80 × 10⁷ CFU ml⁻¹ at pH 3.8) had double the amount (in volume) of the bacterial suspension in System A, and was cultured in similar condition as presented in the flow chart in Fig. 2. The sterile minimal salt solution (in the absence of the bacterium) was employed as the control with a pH of 5.0. Bacterial incubation was done in a closed incubator devoid of external influences. Electrochemical biocorrosion and surface analytical evaluations of the steel coupons followed at the end of the third week.

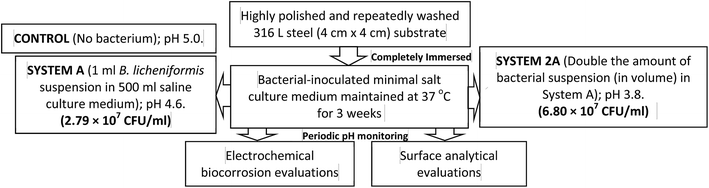

Fig. 2 Flow chart of experiments conducted in this bacterial study.

2.2 Electrochemical biocorrosion studies

The SS 316 L steel substrate used in this study has the chemical composition presented in Table 2. It was polished with a procedure previously reported²² for both electrochemical and surface analytical tests after bacterial culture. Both ac and dc experiments were conducted using a three-electrode system with a graphite rod counter electrode (Gamry, US), the polished stainless steel coupon (4 cm × 4 cm) employed as the working electrode, and with a standard calomel reference electrode (SCE). Electrodes were assembled in a 500 ml capacity conducting cell used as the bioreactor for bacterial culturing containing the bacterial suspension/minimal salt culture medium. In this bioreactor, electrochemical analyses were conducted in order to determine the effect of bacterial adhesion/maturation on steel corrosion at the end of the three week culturing period. Electrochemical impedance spectroscopy (EIS) was measured using a Gamry Instrument potentiostat/galvanostat/ZRA (GAMRY 3000, Gamry Instruments, US) corrosion measuring system with ac 10 mV amplitude perturbation at E_oc applied between 10 mHz and 100 kHz; impedance data were collected at 10 points per decade. This test was followed by Tafel polarization (on the same steel coupon), and it involved the measuring of current responses while polarizing the surface of the stainless steel electrode between −250 and +250 mV relative to E_corr (vs. SCE) at a 1 mV s⁻¹ scan rate. EChem Analyst software package 6.0 (Gamry, US) was used for all data collection and fitting as well as other simulations. Before the electrochemical analyses, values of pH of the bacterial culture solutions were also taken periodically from the onset of incubation until the third week, relative to the control.

Table 2 The percentage chemical composition of stainless steel (316 L grade) substrate employed in this study (the balance is Fe)

Elements	C	Cr	Ni	Mo	Mn	Si	P	S
Percentage	<0.03	16–18.5	10–14	2–3	<2	<1	<0.045	<0.03

---

2.3 Surface analytical evaluations

All surface analytical measurements were conducted after the 3 week exposure of the steel substrate to the bacterial-inoculate minimal salt medium in order to study the morphology and chemistry of the adhering bacterial biofilm on steel. The steel substrates were removed from the inoculated culture medium to analyze the chemical composition of the bacterial EPS/biofilm on their surfaces using Fourier transform infra-red (FTIR) spectroscopy (Nicolet 6700 Fourier Transform (FT) spectrometer, Thermo Electron Corporation, UK) in transmittance mode recorded between 400–4000 cm⁻¹, at the resolution and scan rate of 8 cm⁻¹ and 64, respectively. Scanning electron microscopy (U9320A 8500 Field Emission Scanning Electron Microscope, Agilent Technology, UK) coupled with energy dispersive spectroscopy (EDS) for elemental analysis (Oxford 7424 solid-state detector) was employed for the morphological/compositional study of the bacterial biofilm matrix as well as the evaluation of possible corrosion products on the steel surface before and after bacterial culturing.

3 Results and discussion

3.1 Electrochemical analyses

The mechanisms of bacterial cell adhesion and biofilm formation on the solid steel surface were monitored electrochemically (both ac and dc techniques) after culturing in the minimal salt medium for three weeks.

3.1.1 EIS results. The electrochemical plots of the 316 L stainless steel immersed in the culture medium containing varying concentrations of B. licheniformis endospores compared to the control are presented in Fig. 3. The Nyquist curves (Fig. 3a) are incomplete and relatively unresolved capacitive resistance semi-circle arcs for both bacterial systems (A and 2A), with System 2A having the widest diameter. With their diameters greater than that of the control, this could be attributed to the improved surface impedance due to the formation of bacterial biofilm on steel as well as the deposition of corrosion products beneath the biofilm. The presence of thicker bacterial biofilms on the steel substrate for System 2A could be the reason for its wider Nyquist curve compared to System A.²⁶ Apart from the Nyquist curves, it can also be observed that the total impedance modulus (Z_mod) are higher in the presence of the bacterial endospores at the range of frequency under study compared to those of the control; while lower magnitude of phase angle (Z_phz) are obtained for both biotic systems. This proves that corrosion inhibition was enhanced by the adhesion of B. licheniformis biofilm on 316 L steel in the culture medium. Protective bacterial biofilm capable of reducing corrosion are known to influence electrochemical reactions by forming cellular cluster thereby colonizing the metal surface.²⁶ Magnitudes of Z_mod for the abiotic and biotic systems vary significantly at range of frequency under study, with 202, 14 200 and 18 500 ohm per square centimeter (Ω cm²) recorded for the control, System A and System 2A, respectively, at 0.01 Hz. Higher magnitudes of Z_mod represents improved protection and the lower values of Z_mod obtained for the control denotes corrosion activation in the presence of the chloride ions in minimal salt medium without the bacterial cells. The phase angle plots (Fig. 3c) show distinct phase deviation in the presence of the bacteria as the biofilm is formed on steel with minima observed between 0.01 and 1 Hz for the biotic systems. From the impedance spectra, although a passive film which represents a single layer forms on 316 L SS in the minimal salt medium (control), there is substantial evidence of a second and more compact film/layer after bacterial attachment and biofilm formation for the bacterial-inoculated systems at the culture condition under study.²⁷ With this in mind, equivalent circuit models displayed in Fig. 4 were deployed to fit the experimental (a) control and (b) biofilm impedance data; values of the electrochemical parameters derived are presented in Table 3. These circuit models were designed with CPE components in other to account for possible inhomogeneity inherent in the double layers, the non-uniform thicknesses of the formed biofilm as well as other electrode surface irregularities (not limited to roughness and porosity). The impedance expression of a CPE (Z_CPE) is given in eqn (1).²⁸

Z_CPE = (jω)^−α/Y_o; (1)

where α denotes the homogeneity factor of the system while Y_o and ω are the pseudo-capacitance (denotes a possible deviation from true capacitance) and angular frequency, expressed in F cm⁻² s^−(1−αc) and rad s⁻¹, respectively;²⁷ j is an imaginary number (j = −1). The magnitude of α if equal to or close to unity demonstrates the capacitive characteristic of associated interfaces; while values of α = −1 and α = 0 denotes inductive and resistive characters, respectively. The range of magnitude of α expressed in this study demonstrates that double layers for both bacterial inoculate systems are capacitive.

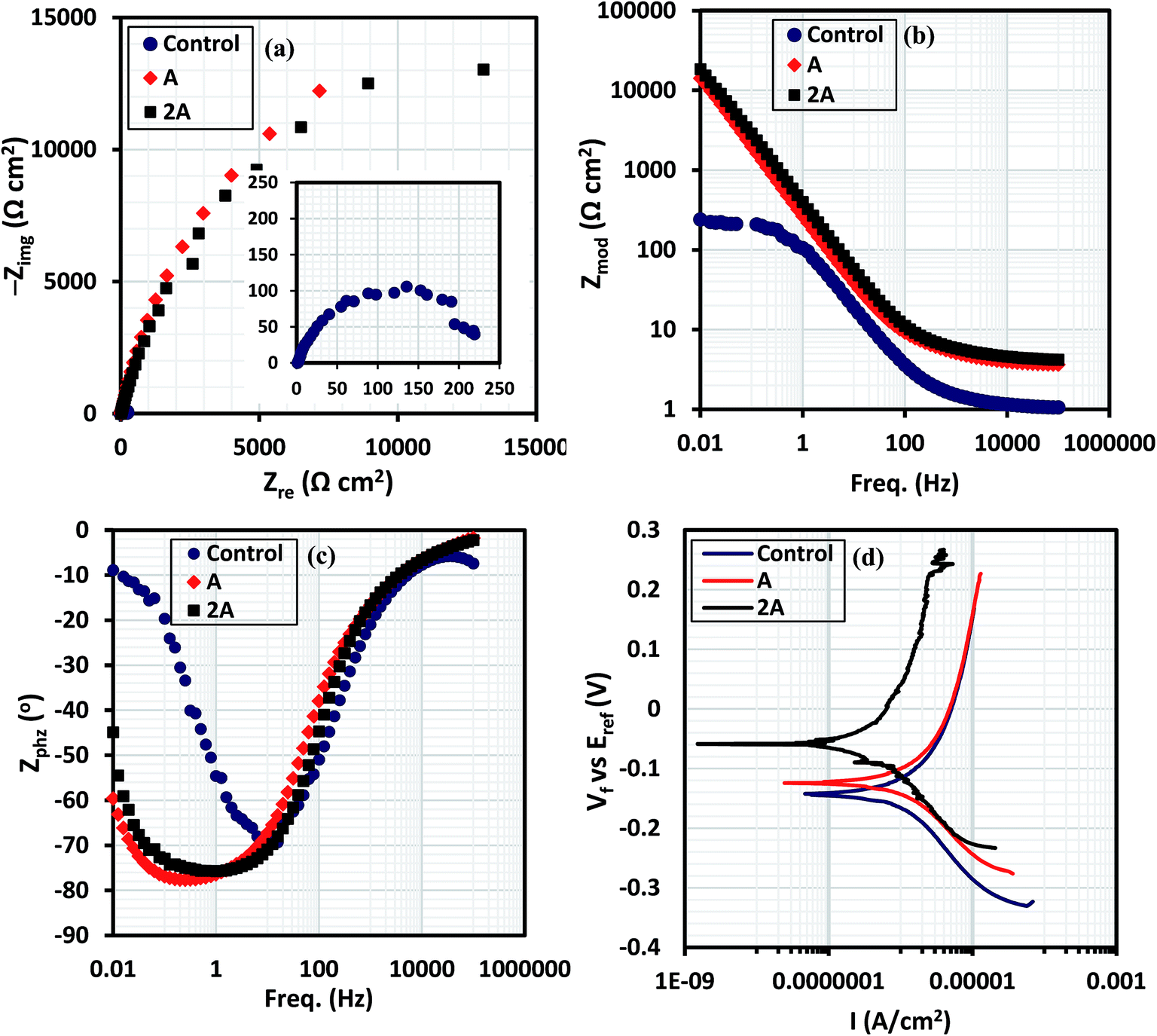

Fig. 3 Nyquist (a), Bode (modules (b) and phase angle (c)) and potentiodyamic polarization plots (d) for B. licheniformis inoculates in the culture medium compared to the control for SS 316 L corrosion.

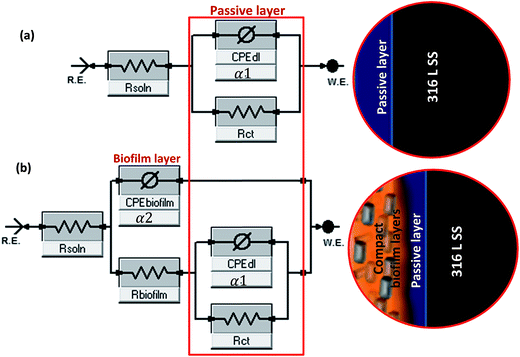

Fig. 4 Equivalent circuit models used in fitting the experimental (a) control and (b) biofilm impedance curves (Systems A and 2A); magnitudes of α1 and α2 represent the homogeneity factors of the systems as expressed in eqn (1); both circuit models are adopted from Gamry Echem Analyst software's model editor.

Table 3 Electrochemical parameters derived from Nyquist and Tafel curves for B. licheniformis inoculate in the culture medium compared to the control

Electrochemical parameters	Control	System A	System 2A
ac (EIS)
Rsoln (Ω cm^2)	1.062	4.045	4.567
Rbiofilm (kΩ cm^2)	—	5.166	10.116
CPEbiofilm (Yo, mF cm^−2 s^−(1−αc))	—	0.832	0.254
α2	—	0.890	0.900
Rct (kΩ cm^2)	0.241	2.001	2.982
CPEdl (Yo, mF cm^−2 s^−(1−αc))	0.945	0.594	0.299
α1	0.867	0.866	0.873
Circuit type	R(Q(R))	R(Q(R(QR)))	R(Q(R(QR)))
dc (Tafel)
Icorr (μA cm^−2)	8.07	4.00	0.878
Ecorr (mV)	−143	−124	−59
CR (mpy) × 10^−3	409.600	203.300	44.580

---

Magnitudes of solution resistance (R_soln), resistance of the biofilm layer (R_biofilm), charge transfer resistance (R_ct), and the capacitances of the double (CPE_dl) and biofilm (CPE_biofilm) layers are represented in the equivalent circuit models used in fitting the experimental impedance data for the B. licheniformis inoculate in the culture medium compared to the sterile control (Table 3). For the abiotic (control) system, only a single adsorption layer is represented with the following components: R_soln, CPE_dl and R_ct. R_soln is measured between the working and reference electrodes while charge transfer resistance accounts for current leakages. Higher values of R_soln obtained for the bacterial-inoculated systems compared to the sterile control could be linked with the bacterial metabolic processes occurring in the culture medium;²⁵ 1.062, 4.045 and 4.567 Ω cm² are the R_soln values for the control, System A and System 2A, respectively. Higher values of R_ct and R_biofilm for the biotic systems compared to the control denotes corrosion resistance of 316 L stainless steel in the saline medium.^25,29 With values of R_ct for the control, System A and System 2A recorded as 0.241, 2.001 and 2.982 kΩ cm², very compact bacterial biofilm–metal oxide layer is conceived to have formed at the metal surface for System 2A compared to System A; this is expected as the concentration of bacterial cells in System 2A doubles that System A in the starter culture.²⁵ The formation of thicker and more compact biofilm layers on steel for System 2A must be the reason for higher R_biofilm values compared to System A. R_biofilm represents the formation of EPS as well as the resistance of the formed bacterial biofilm layer to the passage of ionic current of corrosive chloride ions (in combination with other aggressive ions/molecules inherent in the minimal salt medium at 37 °C) after 3 week immersion. More bacteria cells must have adhered unto the surface of steel thereby impeding electron-transfer; this can also be explained in terms of increased metabolic activities as more cells (thicker biofilms) are formed.³⁰ Constant phase element (CPE) replaces pure capacitor in the equivalent circuit so as to account for metal surface irregularities/inhomogeneity as well as those of the electrode/electrolyte interface. In this study, the trend of CPE for the bacterial-inoculated systems compared to the sterile control, could be linked with surface inhomogeneity as the bacterial biofilms are formed on the metal surface. Values of CPE_biofilm for the System A and System 2A are 0.832 and 0.254 mF cm⁻² s^−(1−αc) while 0.594 and 0.299 mF cm⁻² s^−(1−αc) represents values of CPE_dl; lower CPE values for System 2A denote reduced water absorptivity due to the presence of compact and denser biofilm on steel compared to System A.²⁵ Normally for most bacteria, biofilm formation begins with cellular attachment in clusters and as they colonize the surface. If surface attachment is irreversible, a more complex community of bacteria cells in the EPS biomatrix could mature into a biofilm at a particular stage in their development depending on the availability of nutrients. EIS presents a suitable real time and online technique for monitoring biofilm formation since the application of minute voltage perturbation accompanying this technique has little or no effect on the attached bacterial cells. Polarization technique can also be used to study the same process at E_corr.

3.1.2 Tafel polarization results. In this study, Tafel polarization has been deployed to probe the formation of bacterial biofilm; the curves are presented in Fig. 3d and the extrapolated parameters are enlisted in Table 3. The presence of bacterial-inoculated systems shift the magnitudes of potential to more positive values (anodic); with −124 and −59 mV recorded for both biotic systems (A and 2A, respectively) compared to the control (−143 mV). The presence of the biofilm matrix on steel in the bacterial-inoculated systems led to reduced magnitudes of corrosion current density and corrosion rate, proving that the formation of the bacterial biofilm actually inhibited steel corrosion in the minimal salt medium. Values of corrosion rate stands at 409 × 10⁻³ mpy in the absence of the bacteria (control) compared to the biotic System A (203 x 10⁻³ mpy) and System 2A (44 × 10⁻³ mpy) while 8.07, 4.00 and 0.88 μA cm⁻² are the recorded values of corrosion current density for the control, System A and System 2A, respectively: I_corr (control) > I_corr (System A) > I_corr (System 2A). The electrochemical results from this dc technique proves that bacterial biofilm formation inhibited steel corrosion in the minimal salt medium to a great extent; dc results are consistent with those obtained from the ac (EIS) technique.

3.2 Variation of pH with culture duration

The variation of culture media pH for the uninhibited and inhibited systems with immersion period was evaluated between the onsets of bacterial incubation until the third week. The bacterial biofilm formation/maturation led to reduction in pH of the media as the more cells adhere on the steel substrate; and Fig. 5 shows reducing culture media pH as metabolic products are formed from inherent physiological bioactivity in the presence of the bacterial-inoculated systems (compared to the control) for 316 L at with exposure periods. These byproducts (alongside inorganic nutrients in the culture) could have also supported the protective biofilm formation on surface of the metal.²⁵ As displayed in Fig. 5, the pH of the control was relatively unchanged within the culture period (between 4.7 and 5) while those of bacterial inoculate systems drastically dropped throughout the culture period; pH units of 2.75 and 2.68 were recorded for Systems A and 2A, respectively, after the third week. The pH at the onset of incubation were 5.0, 4.67 and 3.86 for the control, System A and 2A, respectively. The reduction of pH of the biotic systems also denotes the formation of biofilm layers; and could also be linked with the retardation of interfacial electron-transfer kinetics and increased the electron-transfer resistance as the attachment of cells and development of a biofilm on the metal surface increases.³¹

Fig. 5 Variation in culture media pH containing B. licheniformis inoculates (compared to the control) for SS 316 L corrosion at different exposure periods.

3.3 Surface analyses

3.3.1 Biofilm morphology: SEM. Electrochemical analysis was complemented with surface analytical evaluation of the adhering biofilm on the surface of the steel substrate, especially as cellular growth continues in the minimal salt medium containing the needed nutrients. The B. licheniformis biofilms formed on 316 L coupons after 3 weeks immersion in minimal salt culture medium are presented in the SEM micrographs in Fig. 6. The biofilms are relatively compact and dense groups of bacterial cells enclosed within an EPS matrix on the metal substrate. As expected, the assemblage of these Gram-positive bacterial cells are grouped in colonies attached in no regular pattern within the phase boundaries of the stainless steel as its microstructure is exposed. The biofilms on each biotic system still show imprints of rod-like (some appear round) shaped bacterial cells excepted of B. licheniformis embedded within the EPS structure. The SEM images for each bacterial-inoculate (Systems A and 2A) also reveal exposed grain boundaries properly delineated by the corrosive chloride ions of the saline etchant (the minimal salt medium); few pits are also observed. Pitting sites would have been more without diffusional resistance induced by the formed bacterial biofilm matrix (cells, EPS, and inorganic solid phases) as well as the influence of its metabolic physiological activity. The presence of this biofilm on the surface of the steel substrate immersed in the culture medium inhibits corrosion by limiting molecular oxygen diffusion at the cathodic sites as well as inhibit electron transfer from the anodic ferrous sites on the substrate.³² EPS helps in binding the biofilm matrix to the metal surface, and the inhibiting properties of its constituents (polysaccharides, proteins, nucleic acids and phospholipids) must also have contributed to corrosion reduction of steel in the saline medium.^25,33 The thicknesses of the biofilms formed from both biotic systems cannot be compared at this point, but the electrochemical results have shown superior performance for System 2A (compared to System A) due to the presence of double bacterial cells in its starter culture. An illustrative representation of the proposed mechanism for corrosion inhibition by B. licheniformis biofilm for steel is presented in Fig. 7.

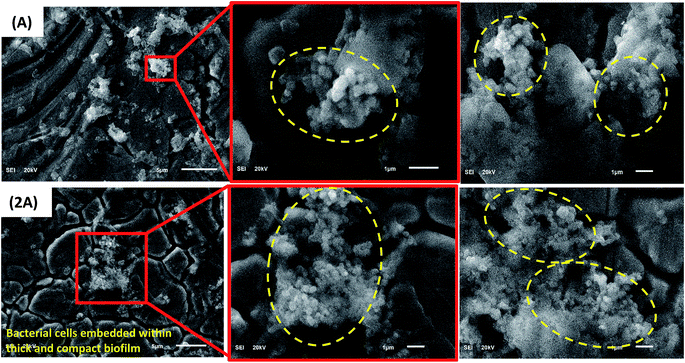

Fig. 6 SEM images showing adhering B. licheniformis biofilms (circled) on surfaces of SS 316 L coupons after 3 weeks immersion in the culture medium.

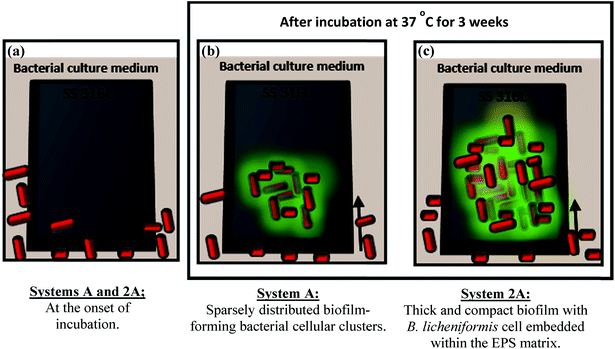

Fig. 7 Schematic illustration of the proposed mechanism of corrosion inhibition induced by B. licheniformis biofilm for steel; (a) onset of bacterial incubation in the culture medium with SS 316 L steel substrate; (b) gradual adhesion of relatively few biofilm-forming bacterial cellular clusters on steel after three week culture period for System A; and (c) the appearance of dense and compact axenic bacterial biofilms on steel for System 2A; (the mode/pathway of biofilm/cellular adhesion on steel is not restricted to the direction of the arrow). Formation of compact bacterial biofilm layers on steel increases the corrosion resistance of the surface against the conductive ionic currents capable of inducing pitting and other possible corrosion episodes. Naturally during culturing, B. licheniformis has been reported to secrete γ-polyglutamate, an antimicrobial and corrosion inhibiting polymer, from its biofilm capable of reducing metal surface corrosion around the pH reported in this study.¹⁹

3.3.2 EPS analysis: FTIR spectroscopy. The functional group chemistry of the attached B. licheniformis biofilm on 316 L coupons after 3 weeks immersion in culture medium is probed with FTIR in this study, and the spectra are displayed in Fig. 8. The IR peaks characteristic of a typical bacterial EPS are displayed on the spectra for System A and System 2A being prove of biofilm formation on steel; both spectra have no distinct difference (in shapes, intensity and position of IR absorption) since they originate from the EPS of the same bacterium. Absorption peaks stretching between 1400 and 1900 cm⁻¹ represent protein portion of the bacterial EPS.²⁵ The appearance of C–O associated with peptide amide bonds (amide I and II at 1550 and 1650 cm⁻¹, respectively) on proteins are visible between 1500 and 1650 cm⁻¹; usually, these IR peaks are normally used in probing repetitive peptide amide functional groups in proteins. However, the resolution of IR peaks associated with protein and sugar could be problematic since peaks of amide II are usually less intense than amide I, and the EPS's polysaccharides possesses a C–O stretching vibrational mode around this region (1610 cm⁻¹), and this may interfere with that of amide I.^33,34 Sugar bands are observed between 970 and 1180 cm⁻¹ while peaks at between 2900 and 3000 cm⁻¹ are C–H stretching vibrations associated with the bacterial biomass. While studying total sugar contents in dried bacterial samples with FTIR, Marcotte et al.,³⁴ opined that IR peaks of polysaccharides can be identified by probing absorption peaks of functional groups characteristic of alkanol, alkanals, alkanones, alkanoic acids and even ethers. They suggested that the ratios of the peak areas of polysaccharides and amide II (or C–H stretching) can indicate the sugar content in the dried bacterial biomass. IR vibration peaks within 900–1400 cm⁻¹ may be due to the presence of ethers, alcohols (polysaccharide components) and phosphorylated proteins inherent in the bacterial biofilms (C–OH, C–O–C bonds). ν(C–O) likely from carboxylic acid is present at 2400 cm⁻¹ and the H-bonded O–H/N–H stretching vibrations (from a sugar/proteins or just from adsorbed molecular water) are visible between 3300 and 3600 cm⁻¹. γ-Fe₂O₃ (from the steel substrate) absorbs between 400–900 cm⁻¹.²⁵ The FTIR results suggest that the EPS biomatrix could be dominantly proteins and polysaccharides. The structure of the biofilm as well as the chemistry of the EPS binding it to the substrate predetermines the ability of a biofilm-forming bacterium to promote MIC or MIC inhibition (MICI)²⁵ and even transmit disease for those that are pathogenic.³⁵

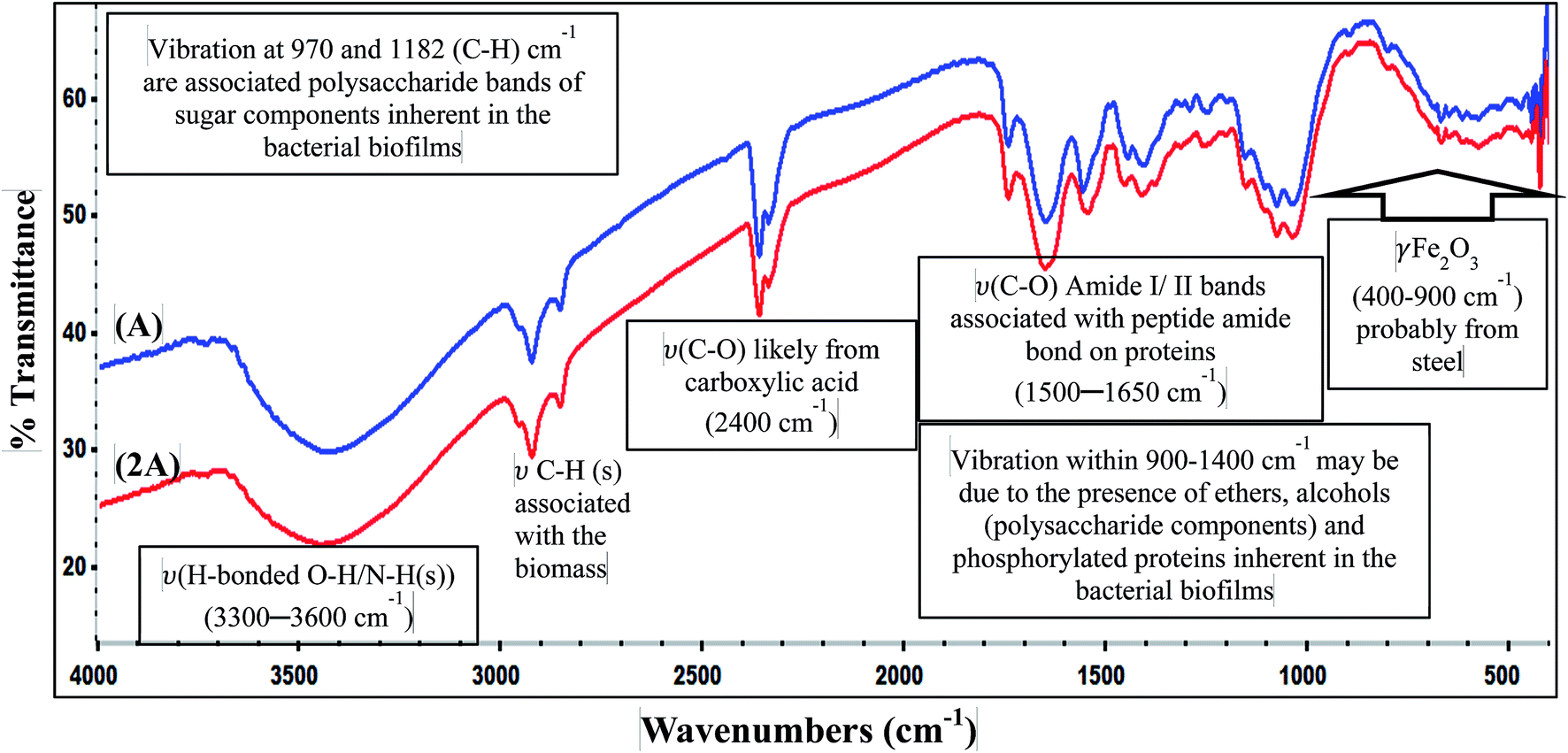

Fig. 8 FTIR spectra of adhering B. licheniformis biofilm on SS 316 L coupons after 3 weeks immersion in the culture medium.

3.3.3 Effect of bacterial adhesion/biofilm maturation on steel surface morphology. Fig. 9 shows the SEM micrographs of the 316 L steel coupon surfaces before and after the 3 weeks immersion in culture medium containing biofilm/bacterial growths (compared with the control). The polished marks on the bare non-immersed coupon are still visible in some portions, and after immersion in the sterile minimal salt medium, the grain boundaries are exposed (and without corrosion products). In mild corrosive medium, due to the presence of the unique metallic constituents (like Ni, Cr and Mo) in stainless steel, it forms passive inhibiting layer that disallows further surface or bulk corrosion. However, the observed pitting on the passivated surface must have been initiated by the corrosive chloride ions (present in the culture medium) as the metal is continuously immersed throughout the culture duration – slow rate of re-passivation encourages further pitting of the steel surfaces. A pit is generally formed when the passive layer (cathodic) is continuously penetrated by the corrosive ions as the rest of the metal becomes totally anodic. The surface of the steel coupon in the bacterial-inoculated systems do not corrode as much as the control, proving that the formation of B. licheniformis biofilm contributed to corrosion reduction to a great extent.^25,36 The EDX spectra (Fig. 9; right panel) for both biotic and abiotic systems show the chemical constituent of biofilm/corrosion products comprising of mainly oxide deposits of Cr, Mn and Fe,²⁵ and the metals displayed on each spectra are predominantly from the SS 316 L steel substrate. Evidence of B. licheniformis growth from 100 μL of each B. licheniformis suspension in the culture medium (on TT broth after incubation at 50 °C overnight) is observed at the end of the three week culture as presented in Fig. 10. Compare to the control (without growth), the bacterial-inoculated systems show distinct bacterial growth colonies; 2 and 13 visible colonies for System A and System 2A, respectively; and confirms the presence of the bacteria cells in the culture medium after 3 weeks.

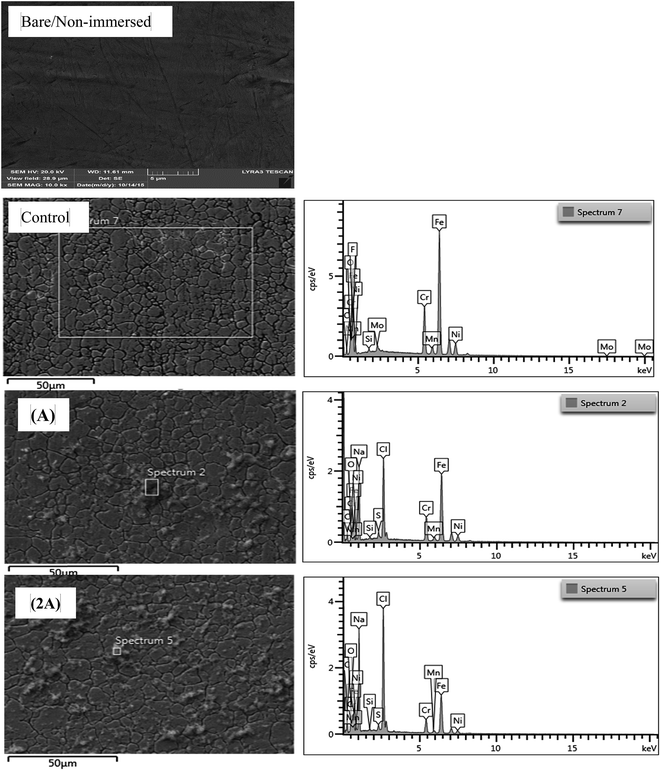

Fig. 9 SEM/EDX micrographs showing the surfaces of SS 316 L steel coupons as B. licheniformis biofilms are formed on the substrate before and after 3 weeks immersion in culture medium containing bacterial cells.

Fig. 10 Evidence of bacterial growth from 100 μL of each B. licheniformis inoculate in the culture medium (in Tetrathionate broth after incubation at 50 °C for 12 hours).

4 Conclusions

The following conclusions are drawn from the experimental results:

(1) Higher values of R_soln obtained for the B. licheniformis inoculate in the culture medium compared to the sterile control could be linked with inherent bacterial metabolic activities in the axenic culture medium. Also compared to the control, the trend in R_ct values for these biotic systems (2.001 and 2.982 kΩ cm² for System A and System 2A) could be attributed to the formation of B. licheniformis biofilm/metal oxide bilayer on steel. This also accounts for more than 90% corrosion inhibition efficiency for System 2A relative to the control.

(2) Higher values of R_biofilm for System 2A compared to System A could be attributed to the formation of denser and more compact biofilm layers on steel for System 2A. R_biofilm also represents the formation of EPS as well as the resistance of the formed bacterial biofilm layer to the passage of ionic current of corrosive chloride ions (in combination with other aggressive ions/molecules in the minimal salt medium at 37 °C) after 3 week immersion.

(3) Reduced magnitudes of corrosion current density and corrosion rates for the bacterial-inoculated systems also suggest that the formation of the bacterial biofilm could be the primary reason for steel corrosion inhibition in the minimal salt culture medium. The variation in the magnitude of I_corr is in this order: I_corr (System 2A) < I_corr (System A) < I_corr (control).

(4) SEM images of the metal substrates in the bacterial-inoculate culture media reveal the adhesion of this relatively compact and dense biofilm (groups of bacterial cells enclosed in an EPS matrix) on its surface. This further affirms the reason for corrosion inhibition of 316 L steel proposed from the electrochemical results; FTIR results suggest that the EPS biomatrix could be dominantly proteins and polysaccharides.

(5) The biofilm of B. licheniformis isolated from the Jazan spring of Saudi Arabia inhibits corrosion of 316 L stainless steel to a great extent after culturing at 37 °C for 3 weeks.
