Expanding the (cross-)hyperconjugation of 1,4-disilacyclohexa-2,5-dienes to larger monomers and oligomers: a computational investigation

Abstract

We used density functional theory calculations to examine molecules that can be regarded as expanded 1,4-disilacyclohexa-2,5-dienes as well as oligomers based on these or 1,4-disilacyclohexa-2,5-diene with the aim to identify systems with extended (cross-)hyperconjugation. Among the three “expanded 1,4-disilacyclohexa-2,5-dienes” considered cyclobutadisilole is the most interesting as it has a higher thermodynamic stability than the isomeric 1,6-disilacyclodeca-2,3,4,7,8,9-hexaene and significantly lower first electronic excitation energy than 1,6-disilacyclodeca-2,4,7,9-tetraene. Cyclobutadisilole with trimethylsilyl substituents at Si shows particularly low excitations with the first strong transition at 3.46 eV (358 nm), i.e., ∼1.1 eV lower than in 1,4-disilacyclohexa-2,5-diene. The monomers were connected into oligomers via their Si atoms using bis(dimethylsilanediyl) linkers, and some extended hyperconjugation was revealed. The first allowed UV/Vis excitation in the cyclobutadisilole-based tetramers is calculated at 2.57 eV (482 nm), although the lowering in excitation energies when going from monomer to tetramer is merely ∼0.5 eV and hyperconjugation has modest impact on geometries. Yet, the tetra(cyclobutadisilole) has a significantly lower first allowed excitation when compared to a previously studied tetra(1,4-disilacyclohexadiene) with first excitation at 3.9 eV (318 nm).

---

Introduction

Mulliken introduced and investigated the hyperconjugation concept, showing the presence of some conjugative interaction between a C=C double bond and a methyl group, even though the interaction was considered to be much smaller than that between a C=C double bond and a cyano or ethynyl group.¹ In his early work Mulliken also suggested a similarity between cyclopentadiene and pentafulvene because the two C–H bond orbitals of the methylene moiety in cyclopentadiene can jointly be treated as a molecular segment with group orbitals that resemble those of the exocyclic C=C double bond of pentafulvene. Both the CH₂ group and the exocyclic C=C double bond have π-symmetric orbitals which can enter into conjugation with those of the diene segment (Fig. 1).² Yet, Mulliken concluded that “the differences in conjugation power of these groups are more quantitative rather than qualitative”.¹ These seminal studies are the foundation of the concept of hyperconjugation, described as the interaction between a local π-symmetric orbital at a saturated molecular segment and a local π-symmetric orbital at an unsaturated segment. Its introduction into organic chemistry was subsequently furthered by Baker and Dewar in the 1950s and 60s,^3,4 and in the 70s Hoffmann and co-workers explored the concept and introduced the term through-bond conjugation.^5,6 During the same decade, studies showed that incorporation of silicon or other organometallic substituents into the molecular framework improve hyperconjugation.^7–10 More recently, cyclic hyperconjugated systems were extensively investigated by Schleyer and co-workers,^11–14 and Alabugin et al. showed on the donor–acceptor nature of the interaction.^15–17

Fig. 1 The valence isolobal analogy between pentafulvene (left) and siloles and cyclopentadienes (right); E = Si or C, respectively.

We recently examined compounds with saturated organosilicon segments (SiR₂) inserted between two π-conjugated segments, and showed that these can have electronic and optical properties that resemble those of analogous cross-π-conjugated compounds. Thus, they could be labeled as cross-hyperconjugated.^18–23 Comparison of the electron transfer through cross-hyperconjugated and cross-π-conjugated compounds confirmed the similarities between these compound classes,¹⁹ and cross-hyperconjugated oligomers could display a low conformational variation in the single-molecule conductance.²⁰ We in particular examined 1,4-disilacyclohexa-2,5-dienes (Fig. 2) and 1-silacyclopentadienes (siloles, Fig. 1),^21,22 the latter compound class being well-established in organic electronics,²⁴ as exemplified by the recent 2,5-dicarbazole substituted siloles by Tang and co-workers displaying high aggregation-enhanced electroluminescence useful in organic light-emitting diodes (OLEDs).²⁵ Similar to pentafulvenes,²⁶ siloles and cyclopentadienes are “aromatic chameleons” which can adapt their electronic structures to the different π-electron counts for aromaticity in the electronic ground state (S₀) versus the first ππ* excited states (T₁ and S₁),²² as given by Hückel's and Baird's rules, respectively.^27–31 Substituent effects on the excitation energies of siloles could be rationalized in terms of a combined consideration of ground and excited state (anti)aromaticity, as done earlier for pentafulvenes,^32,33 thus providing a comprehensive understanding based on electronic states which is alternative to the orbital-based σ*–π* model regularly applied to siloles.²² It was also found that the two SiR₂ segments, as parts of a 1,4-disilacyclohexa-2,5-diene, allow for extensive variation in the cyclic cross-hyperconjugation. A strong cross-hyperconjugation was observed when R = SiMe₃, and a much weaker one when R = Cl or Me. In general, the hyperconjugation strength in 1,4-ditetrelcyclohexa-2,5-dienes can be tuned by varying the combinations of group 14 elements (tetrel elements E and E′) incorporated in the ring and/or used as substituents (Fig. 2).²³

Fig. 2 Previously investigated 1,4-tetrelcyclohexa-2,5-diene containing structures.

So can cross-hyperconjugation be enhanced in larger molecules and can it lead to extensive hyperconjugation in oligomers and polymers? The silole ring could be expanded with one C=C double bond to yield a seven-membered ring, a silepin. However, silepins adopt non-planar structures,²² making them less suitable as monomers in conducting polymers. An expansion of the 1,4-disilacyclohexadiene would be to replace the two C=C double bonds with either two 1,3-butadienylene or two [3]cumulene units (Fig. 3) as these would couple to the SiR₂ segments similarly as the C=C bonds but with different energies of the local orbitals. Yet, the ten-membered ring of 1,6-disilacyclodeca-2,4,7,9-tetraene will be overly flexible conformationally, and the 1,6-disilacyclodeca-2,3,4,7,8,9-hexaene is likely not realistic. Instead, a compound in which the two central C=C double bonds of the two [3]cumulene units have dimerized to a cyclobutane ring, cyclobuta[1,2-c:3,4-c′]disilole, or shortly, cyclobutadisilole, could be feasible. This compound can also be described as a [4]radiallene with the four exocyclic C atoms joined pairwise via two SiR₂ segments. Although the parent [4]radiallene polymerizes rapidly when exposed to air and is stable only in dilute solution at −78 °C under nitrogen atmosphere (Fig. 4),³⁴ phenyl substituents improve the stability of [4]radiallenes because 1,1,4,4-tetraphenyl-[4]radiallene dimerizes first at 60 °C and 1,1,4,4,6-pentaphenyl-[4]radiallene is thermally stable.³⁵ Thus, cyclobutadisiloles could likely be persistent provided they are properly substituted, and consequently, they could be interesting new targets for synthesis.

Fig. 3 Compounds considered herein as expanded 1,4-disilacyclohexa-2,5-dienes.

Fig. 4 Previously synthesized [4]radiallenes.

A question is how these monomers are best connected into oligomers so as to achieve some degree of hyperconjugation. Using quantum chemical computations we previously explored the linkage of 1,4-disilacyclohexadienes through single Si–Si (or Sn–Sn) bonds, and we evaluated these oligomers as potential molecular electrical cords (Fig. 2).²⁰ It was shown that the oligomers display neutral hyperconjugative interactions between adjacent σ(E–E) and π(C=C) bond orbitals, and when compared to linear oligosilanes this led to oligomers with HOMO energies and conductances which remain much less influenced by back-bone conformation. The lowest excitation energies (∼3.9 eV) were found for the tetrameric oligo(1,4-disilacyclohexadiene)s with trimethylsilyl groups at the two Si atoms.¹⁹ Now, we explored if 1,4-disilacyclohexa-2,5-diene and cyclobutadisilole can be linked into rigid hyperconjugated oligomers with even lower excitation energies. In order to achieve an orbital analogy between the saturated (hyperconjugated) linkers and a purely π-conjugated one we connect the 1,4-disilacyclohexadienes via two dimethylsilanediyl fragments and the para-xylylenes via a C=C double bond, leading to tetrasilacyclobutane and [3]cumulene units, respectively. Even though the units have different numbers of valence electrons, they should function similarly since the frontier orbital patterns resemble each other (Fig. 5).

Fig. 5 The orbital analogy between 1,4-disilacyclohexa-2,5-diene and cyclobutadisilole oligomers linked with tetrasilacyclobutane (leading to hyperconjugation) and [3]cumulene units (leading to π-conjugation).

Results and discussion

We begin with an analysis of computational results on the oligomers of the recently synthesized 1,4-disilacyclohexa-2,5-dienes, and subsequently discuss “expanded 1,4-disilacyclohexadiene” and their oligomers. Comparisons with analogous purely π-conjugated all-carbon oligomers are made throughout, and we also compare with oligomers in which the bis(dimethylsilanediyl) linkers have been replaced by bis(methylene) linkers, which should lead to weaker (cross-)hyperconjugation.

1,4-Disilacyclohexa-2,5-diene based oligomers

Herein we first discuss the analogy between the bis(dimethylsilanediyl)-linked 1,4-disilacyclohexadiene-based oligomers (1a–d(Si), Fig. 6) and the corresponding purely π-bonded oligomers with para-xylylene units connected via C=C double bonds (2a–d, Fig. 6).

Fig. 6 Bis(dimethylsilanediyl)-linked 1,4-disilacyclohexa-2,5-dienes (1a–d(Si)), bis(methylene)-linked 1,4-disilacyclohexa-2,5-dienes (1a–d(C)), and olefin-linked para-xylylenes (2a–d).

Not surprisingly, there is a drastic decrease in the TD-B3LYP computed excitation energies for the first strong transition with increasing oligomer length of the π-conjugated oligomers 2a–d; from 4.28 to 1.14 eV (Table 1). Oligomers 1a–d(Si), on the other hand, show a much more modest decrease from 3.93 to 3.41 eV, indicating that the hyperconjugation does not expand significantly beyond the monomer. The oligomers 1a–d(C) show a similar trend as 1a–d(Si) but the first strongly allowed excitations are significantly higher in energy (5.17 eV in 1a(C) and 4.46 eV in 1d(C)). It becomes clear that incorporation of silicon into the linkage leads to lowerings of excitation energies, and it resembles the substituent effects found experimentally for 1,4-disilacyclohexadienes with four silyl or germyl groups at the two Si atoms as compared to four alkyl groups.^21,23

Table 1 The lowest five vertical excitation energies of 1a–d(Si), 1a–d(C) and 2a–d calculated with TD-B3LYP^a,b

Electronic state	1a(Si)	1b(Si)	1c(Si)	1d(Si)	1a(C)	1b(C)	1c(C)	1d(C)	2a	2b	2c	2d
a Excitation energies (in eV) calculated at TD-B3LYP/6-311G(2d,p)//B3LYP/6-311G(2d,p) level.b Transitions with calculated oscillator strengths above 0.2 are marked in bold and those within the range 0.05–0.20 are underlined.
S1	3.88	3.60	3.48	3.41	4.91	4.66	4.55	4.46	4.28	2.56	1.74	1.14
S2	3.93	3.69	3.67	3.61	5.07	4.73	4.58	4.54	4.59	3.34	2.19	1.66
S3	4.03	3̲.̲8̲8̲	3.74	3.67	5.17	4.91	4.74	4.66	4.83	3.57	3.35	2.55
S4	4.04	3.90	3.77	3.71	5.22	4.97	4.92	4.76	5.80	3.80	3.37	2.65
S5	4.28	3.96	3.86	3.75	5.56	5.02	4.93	4.79	5.98	3.81	3.39	3.09

---

Yet, a concern should be raised; the B3LYP method is widely used, but at the same time DFT and TD-DFT methods suffer from severe pitfalls that narrow their application areas.^36,37 It has been shown that (TD-)DFT overestimates conjugation, torsional barriers, and electronic couplings, and that it underestimates bond-length alternations and excited-state energies in low-band-gap polymers.^38–43 Meanwhile it is possible to solve these problems by including long-range corrections in the calculations,^42–47 and for this reason we tested the CAM-B3LYP method for the three tetramers 1d(Si), 1d(C) and 2d (Table 2). As CAM-B3LYP is a long-range corrected version of B3LYP, it could possibly provide more realistic results for the long oligomers studied here.⁴⁸ We found that TD-CAM-B3LYP gave higher excitation energies for hyperconjugated 1d(Si) and 1d(C) and slightly lower ones for the purely π-conjugated 2d than those that were calculated with TD-B3LYP. Still, the general trends are the same, and the strongly allowed transitions for all three tetramers with both methods involve the HOMO–LUMO transitions. However, at this point it is important to note that a comparison of the TD-B3LYP and TD-CAM-B3LYP results against previous experimental data for the first allowed excitations of linear oligosilanes,⁴⁹ ranging from Si₂Me₆ to n-Si₁₀Me₂₂, shows that TD-B3LYP provides much better agreement than TD-CAM-B3LYP (see the ESI†). In short, the excitation energies calculated at the TD-CAM-B3LYP are significantly higher than the experimental values (often by ∼0.5 eV), while TD-B3LYP gives energies which differ by at most 0.15 eV from the experimentally observed excitation energies. Moreover, with the lengthening of the oligosilane chain TD-B3LYP gives gradually better agreement with experiment. For this reason we discuss the TD-B3LYP results. It can also be noted that the TD-CAM-B3LYP energy for the strongly allowed transition in 2d is slightly lower than that at TD-B3LYP level (Table 2).

Table 2 The lowest five vertical excitation energies of 1d(Si), 1d(C) and 2d calculated with TD-CAM-B3LYP^a,b

Electronic state	1d(Si)	1d(C)	2d
a Excitation energies (in eV) calculated at TD-CAM-B3LYP/6-311G(2d,p)//B3LYP/6-311G(2d,p) level.b Transitions with calculated oscillator strengths above 0.2 are marked in bold and those within the range 0.05–0.20 are underlined.
S1	4.06	5.27	1.04
S2	4.11	5.34	1.76
S3	4.13	5.35	2.78
S4	4.17	5.35	2.92
S5	4.36	5.37	3.47

---

Additionally, we have also tested the influence of diffuse functions on results obtained from TD-B3LYP and TD-CAM-B3LYP calculations (see ESI†). Moreover, we probed the influence of dispersion correction in the B3LYP optimizations of 1a(Si) and 1b(Si), and the geometry data of these calculations were compared with those of standard B3LYP calculations (see ESI†). The influence on the geometries were found to be small with a maximal difference being in a dihedral angle which differed by ∼5°.

Similar trends as for the excitation energies were found in the orbital energies (Table 3). Upon oligomer elongation from 1a(Si) to 1d(Si) the LUMO energies (E_LUMO) decrease slightly from −1.02 to −1.24 eV while the HOMO energies (E_HOMO) are raised from −5.41 to −5.13 eV so that the HOMO–LUMO gap (ΔE_HOMO–LUMO) decreases by 0.50 eV. Oligomers 1a–d(C) reveal the same orbital behavior as 1a–d(Si) but the HOMO energies are lower and the HOMO–LUMO gaps are larger. On the other hand, the π-conjugated 2a–d display a much larger change in the orbital energies upon the elongation since ΔE_HOMO–LUMO decreases by 3.35 eV (Table 3), i.e., nearly seven times that of 1a–d(Si), although this is likely an exaggeration due to the insufficiencies of DFT (vide supra). Yet, it should be noted that the HOMOs and LUMOs of 1a–d(Si), 1a–d(C) and 2a–d are analogous (see Fig. 7, and the ESI†), and that the symmetries and nodal characteristics of these orbitals remain the same when going from monomers to tetramers. It is particularly noteworthy that the orbital patterns of HOMO at the linking units of all the oligomer types agree with the qualitative view of Fig. 5.

Table 3 Orbital energies and HOMO–LUMO energy gaps of 1a–d(Si), 1a–d(C) and 2a–d

Orbital energies^a	1a(Si)	1b(Si)	1c(Si)	1d(Si)	1a(C)	1b(C)	1c(C)	1d(C)	2a	2b	2c	2d
a Orbital energies (in eV) calculated at B3LYP/6-311G(2d,p) level.
ELUMO	−1.02	−1.15	−1.21	−1.24	−1.04	−1.36	−1.49	−1.56	−1.83	−2.96	−3.46	−3.74
EHOMO	−5.41	−5.24	−5.17	−5.13	−6.74	−6.60	−6.56	−6.53	−5.63	−4.84	−4.43	−4.19
ΔEHOMO–LUMO	4.39	4.09	3.96	3.89	5.69	5.25	5.07	4.98	3.80	1.88	0.97	0.45

---

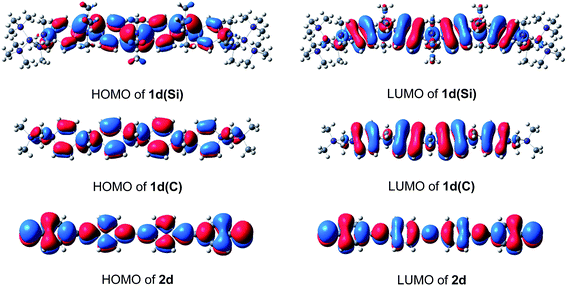

Fig. 7 HOMOs and LUMOs of 1d(Si), 1d(C) and 2d calculated at B3LYP/6-311G(2d,p) level.

π-Conjugation and hyperconjugation effects should also be visible in elongations of formal double bonds and shortenings of formal single bonds. In Fig. 8 the C2=C3 double bond lengths of oligomers 1a–d(Si), 1a–d(C) and 2a–d are displayed. When compared to the C=C bond length in cyclohexa-1,4-diene, used as a reference, the endocyclic C2=C3 double bond is elongated in all three oligomer types (Fig. 8). Yet, the bond length changes when going to longer oligomers reveal similar trends as found for the orbital energies, i.e., the C2=C3 bond lengths increase dramatically in oligomers 2a–d while in 1a–d(Si) and 1a–d(C) they have constant lengths. Thus, although 1a–d(Si) and 1a–d(C) reveal slightly elongated C2=C3 bonds in comparison with cyclohexa-1,4-diene (the difference is 0.014–0.017 Å) neither of these oligomer types demonstrate geometric evidence that hyperconjugation extends beyond the monomer unit.

Fig. 8 The formal C2=C3 double bond lengths of 1a–d(Si), 1a–d(C) and 2a–d, with the reference length being the bond length of the corresponding double bonds in cyclohexa-1,4-diene. Results from B3LYP/6-311G(2d,p) calculations. The bonds measured are for the monomers at or closest to the center of the oligomers.

The differences in these bond lengths between the oligomers can be rationalized by use of resonance structures (Fig. 9) as the longest π-conjugated oligomers 2 to a significant extent should be described by 2-IV with a central benzene ring and a C5≡C6 triple bond, a type of resonance structure that should have minute contributions in oligomers 1(Si) and 1(C). Moreover, the influence of this resonance structure to the repeat units in the centers of the oligomers 2 should increase with oligomer length as the C2=C3 bond extends towards 1.39–1.40 Å (Fig. 8), the C–C bond length of benzene.

Fig. 9 Resonance structures of the oligomers 1(Si) and 2.

To investigate the influence of heavier group 14 elements on the hyperconjugation strength, the tetramer 1d(Sn) with two dimethylstannanediyl instead of the two dimethylsilanediyl linkers was examined (Fig. 10). Calculations were performed at the TD-B3LYP/LANL2DZdp//B3LYP/LANL2DZdp level, and the excitation energy for the first strong transition of this compound is 3.06 eV, which is 0.35 eV lower than that of 1d(Si) at the same level. This corresponds to an excitation wavelength of 405 nm. Also, the endocyclic C2=C3 bond demonstrates a slight elongation by 0.02 Å when compared to 1d(Si), leading to a bond length of ∼1.37 Å. However, the monomer 1a(Sn) has the same C2=C3 bond length as 1d(Sn), again revealing no bond elongation when going from the monomer to the tetramer. The calculated excitation energy of the first strong transition of the monomer 1a(Sn) is 3.68 eV, which is 0.24 eV lower than that of 1a(Si). Thus, while the geometries of the tin-containing 1(Sn) oligomers do not reveal any extensive hyperconjugation, the lowering of excitation energies is more pronounced than that observed when going from 1a(Si) to 1d(Si). These characteristics give evidence of a moderate enhancement of the hyperconjugation with tin incorporation into the oligomers.

Fig. 10 The tin-containing oligomers 1a–d(Sn).

Expanded monomer units

To enhance the cross-hyperconjugation, the 1,4-disilacyclohexa-2,5-diene can be expanded by replacement of the two C=C double bonds with diene segments such as 1,3-butadienylene or [3]cumulenic units, leading to 1,6-disilacyclodeca-2,4,7,9-tetraene and 1,6-disilacyclodeca-2,3,4,7,8,9-hexaene, respectively (Fig. 3). Ten-membered rings result in both cases. However, the first of these will be conformationally very flexible, and the second is likely not synthetically realistic. Yet, cyclobutadisilole could function as more reasonable “expanded 1,4-disilacyclohexa-2,5-diene” monomer than the isomeric 1,6-disilacyclodecahexaene, particularly as the two compounds have rather similar first excitation energies (vide infra). According to B3LYP/6-311G(2d,p) calculations the energy difference between the parent cyclobutadisilole and 1,6-disilacyclodeca-2,3,4,7,8,9-hexaene is 18.0 kcal mol⁻¹, in favor of the first. To reveal how substituents at the two Si atoms influence the electronic structure when compared to 1,4-disilacyclohexadienes, we examined substituted 1,6-disilacyclodecahexaene, 1,6-disilacyclodeca-2,4,7,9-tetraene and cyclobutadisilole, using the substituents R shown for the latter compound in Fig. 11.

Fig. 11 The substituent pattern used in our calculations of cyclobutadisiloles.

First, the energies of the first transitions of the variously substituted 1,6-disilacyclodeca-2,4,7,9-tetraenes were shown to be significantly higher than for 1,6-disilacyclodecahexaenes and cyclobutadisiloles as they were found in the range 4.08–4.93 eV (see ESI†). The high excitation energies are presumably an effect of the extensively non-planar structure (the two C=C–C=C dihederal angles in the parent 1,6-disilacyclodecatetraene are 50.0°). For this reason the 1,6-disilacyclodeca-2,4,7,9-tetraenes were excluded from the further consideration herein (for the calculated excitation energies, see the ESI†).

The similarity between 1,6-disilacyclodecahexaenes and cyclobutadisiloles is found by comparison of the orbital properties; HOMO−n–LUMO gaps and orbital symmetries (see the ESI†). While the substituted 1,6-disilacyclodecahexanes have slight lower first calculated excitation energies than the cyclobutadisiloles (2.57–2.97 eV vs. 2.84–3.26 eV), the latter are synthetically more realistic and thermodynamically more stable (vide supra). Therefore, the further discussion is focused on cyclobutadisiloles 3a–e. For these the first excitations are forbidden (Table 4), and the oscillator strengths of the next higher excitations depend significantly on the substituents at Si. The first excitation is of lowest energy in the tetrafluoro substituted 3b and highest in the tetrakis(trimethylsilyl) substituted 3e. Yet, the situation is opposite for the first allowed transitions.

Table 4 The five lowest calculated vertical excitations of 3a–e^a,b

Electronic excitations	Substituents
	H	F	CF3	Me	SiMe3
	3a	3b	3c	3d	3e
a Excitation energies (in eV) and wavelengths (in nm) calculated on TD-B3LYP/6-311G(2d,p)//B3LYP/6-311G(2d,p) level.b Transitions with oscillator strengths above 0.2 are marked in bold and those with 0.05 < f ≤ 0.20 are underlined.
S1	3.13 (396)	2.84 (437)	2.95 (421)	3.10 (399)	3.26 (380)
S2	4.07 (305)	3̲.̲9̲2̲ (3̲1̲6̲)	3.88, (320)	3.87 (320)	3.46 (359)
S3	4̲.̲1̲4̲ (3̲0̲0̲)	4.31 (287)	3̲.̲9̲7̲ (3̲1̲2̲)	4̲.̲1̲2̲ (3̲0̲1̲)	3.64 (341)
S4	4.52 (274)	4.38 (283)	4.30 (288)	4.42 (280)	4.14 (300)
S5	4.94 (251)	4.69 (265)	4.86 (255)	4.71 (263)	4.23 (293)

---

Cyclobutadisilole 3e, with trimethylsilyl substituents at Si, has a strongly allowed excitation at even lower energy and longer wavelength (3.46 eV, 358 nm) than the slightly allowed excitations of the other cyclobutadisiloles, and it approaches the visible region. This falls in line with our earlier finding that R = SiMe₃ provides a strong red-shifted absorption in 1,4-disilacyclohexadienes when compared to those with R = Me or Cl.²¹ Here it should particularly be noted that the parent [4]radiallene has higher calculated excitation energies than 3e; 3.78 vs. 3.26 for the first (forbidden) transitions and 4.83 vs. 3.46 eV for the first strongly allowed transitions, respectively. Thus, the two Si(SiMe₃)₂ moieties, which pair-wise join the four exocyclic methylene positions of [4]radiallene, have a clear cross-hyperconjugative effect.

The HOMO–LUMO gaps demonstrate the same trend as found for the first (forbidden) excitations as they increase by 0.39 eV when going from R = F to R = SiMe₃ (Table 5). However, the strongly allowed transitions involve two configurations, with one of them (the HOMO−n → LUMO configuration) being the far most dominant one. The orbitals related to this configuration have the same symmetries and nodal properties throughout 3a to 3e (see the ESI†), so that the first allowed transitions in the cyclobutadisiloles are analogous. Also, the HOMO−n–LUMO energy gaps of 3a–e show a clear trend with a decrease by 1.36 eV when going from fluoro to trimethylsilyl substituents, attributable to a significant raise in the energy of HOMO−n by nearly 3 eV when going from 3b to 3e.

Table 5 Calculated orbital energies, HOMO–LUMO and HOMO−n–LUMO gaps of 3a–d^a

Orbital energies	Substituents
	H	F	CF3	Me	SiMe3
	3a	3b	3c	3d	3e
a Orbital energies (in eV) calculated at B3LYP/6-311G(2d,p) level.
ELUMO	−2.77	−3.66	−3.94	−2.39	−2.13
EHOMO	−6.29	−6.93	−7.31	−5.88	−5.79
EHOMO−n	−7.78, n = 2	−8.90, n = 2	−8.75, n = 2	−7.34, n = 3	−6.01, n = 1
ΔEHOMO–LUMO	3.52	3.27	3.37	3.49	3.66
ΔEHOMO−n–LUMO	5.02	5.24	4.81	4.95	3.88

---

Noteworthy, both the excitation energies for the strongly allowed transitions and the ΔE_{HOMO−n–LUMO} for cyclobutadisilole 3e are similar to the corresponding values of the tetramer 1d(Si) among the bis(dimethylsilanediyl)-linked 1,4-disilacyclohexa-2,5-diene oligomers. Thus, cyclobutadisiloles could display interesting properties, and therefore, two cyclobutadisilole oligomer types and their purely π-conjugated analogue were investigated (Fig. 12).

Fig. 12 Oligo(cyclobutadisilole)s and oligo(tricyclo〈5.3.0.0^2,6〉decatetraene)s.

Cyclobutadisilole-based oligomers

Oligomers 1a–d(Si) and 4a–d(Si) display similar results with regard to the decrease in excitation energies because the energies of the allowed transitions when going from monomer to tetramer decrease by 0.49 eV (4a–d(Si)) and 0.47 eV (1a–d(Si)), respectively (see Table 6 and 1, respectively). However, for 5a–d, i.e., the purely π-conjugated analogues of 4a–d(Si), the decrease in the first allowed excitation energies is 2.46 eV upon elongation (Table 6), although this could be an exaggerated energy lowering. Yet, the number of forbidden transitions below the first allowed excitations in 5a–d grows with elongation. With regard to 4a–d(C) the decrease in energy of the first allowed excitations (0.47 eV) is similar to that when going from 4a(Si) to 4d(Si), but the excitation energies are higher by ∼1 eV. Furthermore, and similar to 5a–d, one can note a shift of the allowed excitations in 4a–d(C) to higher excitation levels. In summary, long oligomers of 4(Si), 5 and 4(C) should display strongly allowed transitions at ∼2.5 eV (∼480 nm), well below 1 eV (∼980 nm), and ∼3.5 eV (∼350 nm), respectively.

Table 6 The lowest five vertical excitations of 4a–d(Si), 4a–d(C) and 5a–d^a,b

State	4a(Si)	4b(Si)	4c(Si)	4d(Si)	4a(C)	4b(C)	4c(C)	4d(C)	5a	5b	5c	5d
a Excitation energies (in eV) calculated at TD-B3LYP/6-311G(2d,p)//B3LYP/6-311G(2d,p) level.b Transitions with oscillator strengths above 0.2 are marked in bold and those above 0.05 are underlined.
S1	2.98	2.74	2.63	2.57	2.98	2.81	2.75	2.73	2.44	1.59	1.30	1.15
S2	3.05	2.93	2.90	2.80	3.26	2.82	2.77	2.74	3.55	1.59	1.32	1.15
S3	3.06	2.94	2.91	2.88	3.96	3.08	2.77	2.75	3.63	2.27	1.32	1.16
S4	3.45	2.95	2.91	2.90	4̲.̲0̲1̲	3.19	3.02	2.76	4.44	2.82	1.65	1.16
S5	3.58	3.10	2.92	2.91	4.04	3.21	3.06	2.99	4.50	2.82	1.90	1.27
Sn	—	—	—	—	—	3.74, n = 7	3.63, n = 14	3.57, n = 22	—	—	—	—

---

The decrease in ΔE_HOMO–LUMO when going from monomer to tetramer for the three oligomer classes are 0.45 eV (4a–d(Si)), 2.18 eV (5a–d), and 0.31 eV (4a–d(C)), respectively. Despite that the π-conjugated oligomers 5a–d display smaller ΔE_HOMO–LUMO and much more extreme decrease in this energy gap when going from short to longer oligomers, the values for 4a–d(Si) still demonstrate some extension in the hyperconjugation upon oligomer elongation. Moreover, the decrease in ΔE_HOMO–LUMO when going from monomer to tetramer of the 1,4-disilacyclohexadiene oligomers 1a–d(Si) (0.50 eV) is very similar to that of 4a–d(Si), although the HOMO–LUMO gaps are lower by ∼1 eV for 4a–d(Si).

Yet, the most important results are the energy gaps between the orbitals involved in the first allowed excitations (Table 7). These orbitals have analogous symmetries and nodal properties in each of 4a–d(Si), 4a–d(C) and 5a–d (see the ESI†). For 4a–d(Si) and 5a–d the HOMO−n orbital is HOMO except for 5a for which it is HOMO−1. On the other hand, for 4a–d(C) the HOMO−n orbital shifts down among the occupied orbitals upon oligomer elongation. The decrease in ΔE_{HOMO−n–LUMO} with elongation of 4a–d(Si) and 4a–d(C) is the same and only moderate (0.45 eV), while for 5a–d it is significantly higher (2.64 eV). Still, the ΔE_{HOMO−n–LUMO} values of 4a–d(Si) are smaller than those of 4a–d(C) by ∼1 eV.

Table 7 Orbital energies, HOMO–LUMO and HOMO−n–LUMO gaps of 4a–d(Si), 4a–d(C) and 5a–d^a

	4a(Si)	4b(Si)	4c(Si)	4d(Si)	4a(C)	4b(C)	4c(C)	4d(C)	5a	5b	5c	5d
a Orbital energies (in eV) calculated at B3LYP/6-311G(2d,p) level.
ELUMO	−2.25	−2.43	−2.51	−2.56	−2.51	−2.74	−2.85	−2.91	−2.80	−3.80	−4.21	−4.45
EHOMO	−5.70	−5.60	−5.57	−5.55	−5.90	−5.95	−5.98	−5.98	−5.79	−5.68	−5.42	−5.26
EHOMO−n	−5.70, n = 0	−5.60, n = 0	−5.57, n = 0	−5.55, n = 0	−7.01, n = 2	−6.96, n = 4	−6.95, n = 5	−6.95, n = 7	−6.24, n = 1	−5.68, n = 0	−5.42, n = 0	−5.26, n = 0
ΔEHOMO–LUMO	3.45	3.17	3.05	3.00	3.39	3.21	3.13	3.08	2.99	1.87	1.22	0.81
ΔEHOMO−n–LUMO	3.45	3.17	3.05	3.00	4.50	4.22	4.10	4.05	3.45	1.87	1.22	0.81

---

The geometries could tentatively reflect the presence of conjugation to a larger extent for 4(Si) and 4(C) than the case for 1(Si) and 1(C). However, in Fig. 13A one sees stark differences in the endocyclic C3–C4 single bond lengths between the π-conjugated 5a–d and the hyperconjugated 4a–d(Si) and 4a–d(C). The C3–C4 bond lengths of 5a–d shorten from 1.483 to 1.455 Å, while in 4a–d(Si) and 4a–d(C) these bonds remain at a constant value (1.495 Å) throughout the series. Clearly, the central tricyclic unit in 5d adopts some 10π-electron aromaticity (Fig. 14), which is not possible in 4d(Si) or 4d(C).

Fig. 13 The C3–C4 bond lengths (A) and C2–C3 bond lengths (B) of 4a–d(Si), 4a–d(C) and 5a–d. The reference lines are the bond length of the corresponding C–C bond in tricyclo〈5.3.0.0^2,6〉decatetraene. Results from B3LYP/6-311G(2d,p) calculations. The bonds are measured in the repeat unit nearest to the middle of the oligomers.

Fig. 14 Resonance structures of oligomeric 4 and 5.

Moreover, the C2–C3 bonds in 4a–d(Si) and 4a–d(C), which are formal double bonds, demonstrate no elongation and are all 1.34 Å (Fig. 13B). The elongation of the corresponding bonds in 5a–d are, however, much more significant, again revealing the impact of resonance structure 5-III (Fig. 14) with a 10π-electron aromatic moiety. According to our B3LYP/6-311G(2d,p) calculations, tricyclodecapentaene displays geometrical characteristics of an aromatic structure because the C1–C2 and C2–C3 bonds are 1.422 and 1.383 Å, respectively, and the molecule is planar. The corresponding resonance structure (4-III) should have minuscule contribution in 4(Si) and 4(C).

Finally, the tin-containing tetramer 4d(Sn), analogous to 4d(Si), was studied with the purpose of revealing possible hyperconjugation strengthening (Fig. 15). Calculations were performed at the TD-B3LYP/LANL2DZdp//B3LYP/LANL2DZdp level. The excitation energy for the first strong transition of this compound is 2.53 eV, which is essentially identical to that of tetramer 4d(Si) at the same level of computation (2.57 eV). The endocyclic C2=C3 double bonds in 4d(Sn) are slightly elongated by ∼0.02 Å in comparison with 4d(Si) while the C3–C4 single bonds are approximately of the same length. However, monomer 4a(Sn) shows the same bond lengths as the tetramer, and its first strong transition has an excitation energy of 3.06 eV which is very similar to that of 4a(Si). Thus, in contrast to the oligomers of 1,4-disilacyclohexa-2,5-dienes, incorporation of tin in place of silicon in the linking unit of the cyclobutadisilole-based oligomers seems not to be an effective means for enhancement of the hyperconjugation.

Fig. 15 The tin-containing oligomers 4a–d(Sn).

Conclusions and outlook

Cyclobutadisilole, which can be viewed both as an “expanded 1,4-disilacyclo-2,5-hexadiene” and as a silicon-bridged [4]radiallene, has been investigated by computational means. The monomeric unit with two Me₃Si substituents at each Si has a calculated first allowed excitation at 3.46 eV (358 nm), and this cyclobutadisilole should represent an interesting synthetic target with potential optoelectronic applications. We also explored oligomers based on 1,4-disilacyclohexa-2,5-diene or cyclobutadisilole as these monomer units, when connected via the Si atoms through bis(dimethylsilanediyl) linkers, can lead to rigid hyperconjugated oligomers with excitation energies at ∼2.5 eV (∼500 nm). However, analogs which are purely π-conjugated display much larger lowerings in the corresponding excitation energies. Still the oligomers of cyclobutadisilole should represent fascinating targets for synthesis and subsequent experimental studies as they can be described as [4]radiallenes coupled through saturated molecular segments. Also, as the cross-hyperconjugated silole molecule is able to act as an “aromatic chameleon” similar to the cross-π-conjugated fulvene,²² and since fulvene-based polymers can display very low band gaps,⁵⁰ we postulate that polymers based on the cyclobutadisilole could have particularly appealing properties.

Computational details

All computations were performed with the Gaussian 09 program package, revision D.01. The structures discussed were optimized at the B3LYP/6-311G(2d,p) hybrid density functional theory level,^51–53 and frequency calculations were performed at the same level to verify that stationary points correspond to minima. Structures 1a(Sn), 1d(Sn), 4a(Sn) and 4d(Sn) were optimized at the B3LYP/LANL2DZdp level.⁵⁴ Time-dependent density functional theory (TD-DFT) calculations⁵⁵ were performed as implemented in Gaussian 09, using TD-B3LYP/6-311G(2d,p) on the optimized B3LYP geometries. The five lowest excitations were calculated, in some cases for finding the first strongly visible excitation (oscillator strength > 0.2) up to twenty two lowest excitations were calculated. In order to test a long-range corrected method, the 1d(Si), 2d and 1d(C) were also investigated at the TD-CAM-B3LYP/6-311G(2d,p) level.⁴⁷ At the same time, permethylated linear silanes Si₄Me₁₀, Si₇Me₁₆, Si₁₀Me₂₂ were investigated at the TD-B3LYP/6-311G(2d,p), TD-LC-ωPBE/6-311G(2d,p)^56–58 and TD-CAM-B3LYP/6-311G(2d,p) levels in order to compare calculated results with experimental data. These structures were always optimized at the B3LYP/6-311G(2d,p) level.
