Colorimetry and phase transition characteristics in sensing fluoride anion based on hydrazide organogelators

Abstract

The fluoride anion sensing properties of BNB-t4 and BNBC-t8 consisting of hydrazide and azobenzene moieties both in solution and gel state, and the involved binding mechanism have been systematically investigated in this work. The remarkable changes in the absorption of receptor BNB-t4 with a terminal hydroxyl group demonstrate a colorimetric chemosensor with a higher sensitivity in sensing fluoride anions than that of BNBC-t8 with a terminal methoxy group. The detection limit of BNB-t4 for the analysis of F⁻ can reach as low as 4.27 × 10⁻⁸ M, while this value is 2.02 × 10⁻⁶ M for BNBC-t8. The results indicate that the F⁻ ion interacts with the amidic –NH and hydroxyl proton of BNB-t4 via hydrogen-bonding to give the stable 1 : 2 complex at the first equilibrium state, and further addition of F⁻ can induce deprotonation by forming HF₂⁻ to establish a second equilibrium state. Meanwhile, the gel–sol transition of BNB-t4 has been successfully applied in sensing fluoride anions and thus makes BNB-t4 a naked-eye sensor. The color change of BNB-t4 induced by binding fluoride anions can be safely switched off with the addition of HSO₄⁻, demonstrating an OFF–ON–OFF colorimetric sensor with a good reversibility.

---

Introduction

Anions play essential roles in many environmental, biological and industrial systems, and anion sensing has become one of the most attractive fields of supramolecular chemistry.^1–4 Fluoride is a small inorganic anion often added to toothpaste due to its beneficial role in dental health, and has also been used in the treatment of osteoporosis.^5,6 The right amount of fluoride can prevent dental cavities, and in excess can lead to skeletal and dental fluorosis in humans.⁷ Hence, regulation and detection of fluoride are crucial in various environmental and health applications. In past decades, the field of anion sensors based on different signaling mechanisms, such as intramolecular charge transfer,^8–10 twisted intramolecular charge transfer,¹¹ photo-induced electron transfer,^12–16 metal–ligand charge transfer,^17–20 fluorescence resonance energy transfer,^21–25 excited state proton transfer,^26–31 and excimer/exciplex formation,^32,33 has been well established and studied. However, most of the reported probes suffer from low sensitivity, slow response, or complicated synthetic procedures. Therefore, it is still a challenge to develop a highly selective and rapid detection method. To date, many synthetic chemical receptors incorporating neutral or cationic N–H/F⁻ hydrogen bonding donor groups (e.g., pyrrole, indole, ammonium, guanidinium, urea, thiourea, and hydrazide) have been reported.^20,34–38 In contrast, receptors based on O–H/F⁻ hydrogen bond interactions have been less exploited,^39–42 even though O–H shows higher acidity than N–H and the O–H/anion hydrogen bonding is almost as crucial as the ubiquitous N–H/anion interaction.⁴³

Stimuli-responsive organogel, structurally controlled by the assemblies of low-molecular-weight gelators (LMWGs) through noncovalent interactions is one of the most attractive examples due to its unique properties.⁴⁴ The gelation behavior involves the molecule self-assembly into three dimensional structures and is usually influenced by the external conditions, and thus can be tuned by physical and chemical stimuli, such as temperature,⁴⁵ UV/visible light,⁴⁶ ions,^47–56 ultrasound,⁵⁷ and so on. Therefore, the self-assembly behavior, sol–gel transition, and colorimetric/fluorescent change of LMWGs in gel or solution can be employed as molecular sensors in monitoring external stimuli. To create simple, convenient, and economical sensors requires successful fabrication of small molecular anion sensors into colorimetric test kits.⁴⁴ So far, a few reports on anion-tuning organogels have been reported for detecting fluoride ion.^47–49 For instance, Lee and co-workers found that translucent colorless gel can be changed to liquid and showed a strong greenish fluorescence with the presence of fluoride anion.⁴⁷ Wu and co-workers developed a specific colorimetric and fluorimetric sensor for detecting fluoride anion.⁴⁸ Jiang and co-workers demonstrated that organogels based on salicylidene Schiff base showed a highly selective dual-responsive behavior to Zn²⁺ and F⁻, respectively.⁴⁹ In the meantime, the detection limit for fluoride anion in sol phase has been improved to micromole level, which is low enough to be applied in environmental or biological fields.² Although previous works presented a wide variety of anion sensors based on electrostatic interactions, hydrogen bond donor groups, Lewis acid groups and hydrophobic interactions, it is still a challenge to design and synthesize anion organogelators with specific selectivity and high sensitivity for sensing certain anions, because of their lower charge to radius ratio and highly solvated nature.⁴⁴ Especially, the gelators showing both reversible and highly sensitive colorimetric changes and sol–gel transition by anion stimuli are still limited to date.

Here, as an attempt to obtain a smart fluoride anion-responsive gelator with potential anion sensing applications, we had designed and synthesized a gelator bearing phenol O–H and hydrazide for hydrogen bond donor subgroups, N-(3,4,5-tributoxyphenyl)-N′-4-[(4-hydroxyphenyl)azophenyl] benzohydrazide (BNB-t4), and a control molecule, N-(3,4,5-octanoxyphenyl)-N′-4-[(4-methoxyphenyl)azophenyl] benzohydrazide (BNBC-t8) (Scheme 1).^46,58 The characteristics and binding mechanism of BNB-t4 with fluoride anion have been systematically investigated in this work. The results indicate that BNB-t4 gels exhibit both colorimetric and gel–sol transition sensing properties upon addition of fluoride anion. The remarkable change in the absorption of receptor BNB-t4 with terminal hydroxyl groups demonstrates a colorimetric chemosensor with higher sensitivity in sensing fluoride anion than that of BNBC-t8 with terminal methoxy groups. In addition, the color change of BNB-t4 induced by binding fluoride anion can also be safely switched off with the addition of HSO₄⁻, demonstrating an excellent OFF–ON–OFF colorimetric sensor with a robust reversibility.

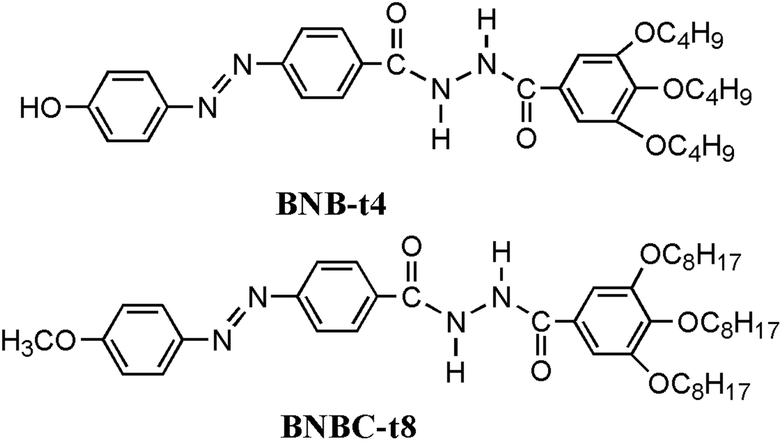

Scheme 1 Molecular structures of BNB-t4 and BNBC-t8.

Results and discussion

During anion recognition, the interaction between receptor and target anion can lead to changes in molecular electronic ground state, and thus in the absorption properties. To this end, UV-vis spectrometry was performed to evaluate the recognition ability of BNB-t4 toward F⁻, Cl⁻, Br⁻, I⁻, CH₃COO⁻ (AcO⁻), HSO₄⁻ and H₂PO₄⁻ in CHCl₃ and DMSO, respectively (using their tetrabutylammonium salts as the sources). As shown in Fig. 1a, the selective binding of BNB-t4 in CHCl₃ with anions displayed intense variations in absorption spectra upon addition of the same amount of F⁻, AcO⁻ and H₂PO₄⁻ at room temperature, while no obvious colorimetric changes were observed in the presence of Cl⁻, Br⁻, I⁻ and HSO₄⁻. With the addition of 30 equiv. F⁻ ion, the characteristic absorption maximum at 356 nm of BNB-t4 is dramatically decreased and a new broad band around 460 nm appears, indicating the formation of new complexes. The color of solution is also changed from light yellow to orange, which could be easily observed by the naked eyes. The selective binding of BNB-t4 in DMSO with anions shows the similar phenomena, in addition to having a deeper color change (from light yellow to crimson upon addition of 30 equiv. of F⁻, AcO⁻, H₂PO₄⁻ and OH⁻) (Fig. S1†). Furthermore, the pH dependence of BNB-t4 in HEPES buffer solution system was examined using UV-vis spectroscopy. The results indicate that BNB-t4 binding process with F⁻ can take place at the pH value ranging from 11 to 14 (Fig. S2†). However, when pH value of buffer solutions was 11, the characteristic absorption maximum at 485 nm of BNB-t4 in HEPES buffer solution system was almost unchanged with the addition of OH⁻ ion (Fig. S3†). So, changing the pH would be an optional and feasible way to overcome the shortcomings of the chemosensor in sensing fluoride anion from OH⁻. Specifically, to clarify the effect of the hydroxyl group in the BNB-t4 unit on responses to anions, we replaced the hydroxyl group with a methoxy group to form BNBC-t8. As expected, the selective binding of BNBC-t8 with anions only displayed an obvious variation in absorption spectra upon addition of the same amount of F⁻ and H₂PO₄⁻ at room temperature (Fig. 1b). With the addition of 30 equiv. F⁻ ion, compared to that of BNB-t4, less spectral change for BNBC-t8 was observed, indicating a lower sensitivity to F⁻. The color of the BNBC-t8 in CHCl₃ with anions was changed from light yellow to yellow, less color change than that of BNB-t4 and consistent with the absorption spectral observations. The results indicate that the introduction of hydroxy facilitates the binding-induced changes in optical signals, which is in good agreement with previous reports.^5,49,50 Similar phenomena were also observed for H₂PO₄⁻ responsive process (Fig. 1b).

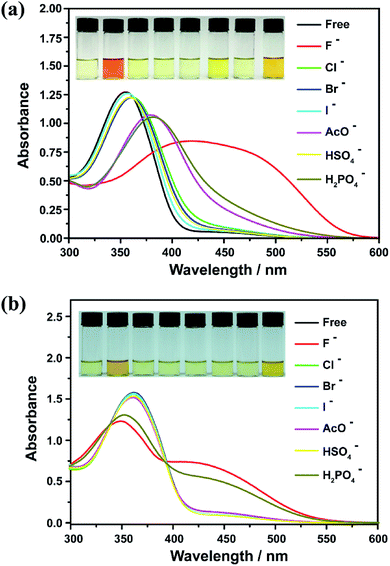

Fig. 1 UV-vis spectra of (a) BNB-t4 (1 × 10⁻⁴ mol L⁻¹) and (b) BNBC-t8 (1 × 10⁻⁴ mol L⁻¹) in CHCl₃ upon addition of 30 equiv. of various anions (F⁻, Cl⁻, Br⁻, I⁻, AcO⁻, HSO₄⁻ and H₂PO₄⁻). Inset: the corresponding images of BNB-t4 and BNBC-t8 (1 × 10⁻⁴ mol L⁻¹) in CHCl₃ upon addition of 30 equiv. of various anions (from left to right: free, F⁻, Cl⁻, Br⁻, I⁻, AcO⁻, HSO₄⁻ and H₂PO₄⁻).

To quantitatively examine the binding properties of BNB-t4 and BNBC-t8 to fluoride anion, we performed the titrated absorption spectral analysis at a low concentration (1 × 10⁻⁵ M) (Fig. 2 and 3). As shown in Fig. 2, the solution of BNB-t4 in chloroform is light yellow with a dominant absorption maximum at 356 nm (π–π* transition) and an absorption tail around 450 nm. With increasing amount of F⁻ added, the absorbance at 356 nm gradually decreased and red-shifted to 372 nm along with a clear isosbestic point at 382 nm, when 4 equiv. of fluoride anions was added. This process corresponds to the formation of a BNB-t4-F⁻ complex by hydrogen bonding during the first course of titration (0–4 equiv.). With the continuous addition of fluoride anion to 12 equiv., the absorption of π–π* transition was shifted to 404 nm and a new isosbestic point was shifted to 355 nm in the second course. Meanwhile, a new broad absorption band at 460 nm emerged during the whole titration course, demonstrating the formation of another complex and HF₂⁻ by deprotonation of –NH subgroup.^48,59 The deprotonation of BNB-t4 upon addition of F⁻ ion was eventually confirmed by ¹H NMR titration as given below (see Fig. 5). Concurrently, the colorimetric changes are striking and visible, from almost colorless to yellow with the addition of fluoride anion. Plotting the A₀/(A₀ − A) quantity for absorbance at 356 nm against the reciprocal of [F⁻]² gives a good linear response (Fig. 2b), and shows a 1 : 2 ratio for the complex composition of BNB-t4 and the F⁻ ion in chloroform.⁵⁹ Similarly, this 1 : 2 ratio of complex composition for BNB-t4 with F⁻ ion was also obtained in DMSO (see Fig. S4†). Furthermore, the stoichiometric ratio between BNB-t4 and the F⁻ ion was determined by Job's plot and indicated a 1 : 2 binding mode (Fig. 4a), which is consistent with the Benesi–Hildebrand plot observations. Likewise, two isosbestic points at 302 nm and 391 nm were observed in the absorption titration experiments of BNBC-t8 (Fig. 3a). Plotting the A₀/(A − A₀) quantity of absorbance at 450 nm against the reciprocal of [F⁻] (Fig. 3b), by contrast, gives a 1 : 1 ratio for the complex composition of BNBC-t8 and the F⁻ ion. Moreover, the absorbance value approached the maximum when the molar fraction of BNBC-t8 was 0.5 as shown in Job's plots (Fig. 4b), indicating the formation of a 1 : 1 complex between BNBC-t8 and F⁻. Taking together, these results suggest that both phenol O–H and hydrazide subgroups of BNB-t4 can recognize the added F⁻ through hydrogen bonding interaction.

Fig. 2 (a) UV-vis absorption spectra of BNB-t4 (1 × 10⁻⁵ M) in chloroform titrated with F⁻ (0–12 equiv.) (b) Benesi–Hildebrand plot for complexation of BNB-t4 with F⁻. [F⁻] is the concentration of added F⁻ (M).

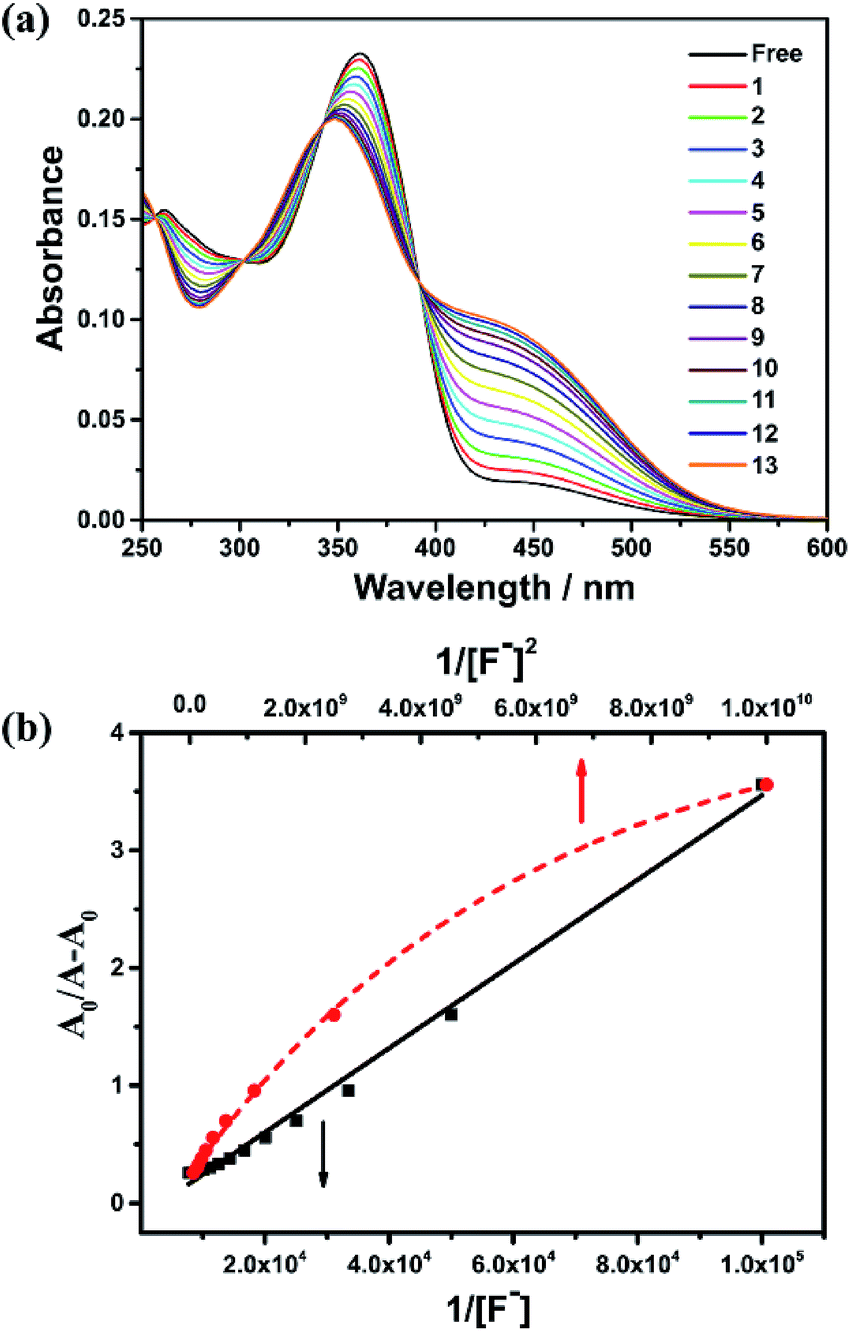

Fig. 3 (a) UV-vis absorption spectra of BNBC-t8 (1 × 10⁻⁵ M) in chloroform titrated with F⁻ (0–13 equiv.) (b) Benesi–Hildebrand plot for complexation of BNBC-t8 with F⁻. [F⁻] is the concentration of added F⁻ (M).

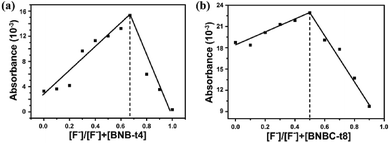

Fig. 4 Job's plots for the complexes of (a) BNB-t4 with F⁻ and (b) BNBC-t8 with F⁻ (in chloroform). Total concentration of [BNB-t4] or [BNBC-t8] + [F⁻] was kept constant at 10⁻⁵ M.

Furthermore, the sensitivity and selectivity of BNB-t4 towards anions can also be characterized by the association constant K_s of complex formation between a proton donor and an anion.⁵⁹ As mentioned above, the hydroxyl and hydrazide subgroups in BNB-t4 are the dominant sites for binding fluoride anion, the calculated association constant K_s is as large as 5.54 × 10⁹ M⁻², suggesting efficient and sensitive recognition for F⁻. In comparison, the association constant of BNBC-t8 for F⁻ was determined to be the value of 3.20 × 10³ M⁻¹. Thus, the much stronger binding ability of BNB-t4 to F⁻ compared to that of BNBC-t8 can be attributed to O–H/F intermolecular hydrogen bonding. As an important index of chemosensors, the detection limit of receptor BNB-t4 in solution for sensing F⁻ can also be obtained from the plot of absorption as a function of F⁻ concentration (Fig. S5†),^41,59 which was found to be 4.27 × 10⁻⁸ M in chloroform. In comparison, the detection limit of BNBC-t8 for F⁻ was determined with the value of 2.02 × 10⁻⁶ M (Fig. S6†), two order smaller than that of BNB-t4. As a consequence, the BNB-t4 with terminal hydroxyl group is more sensitive to fluoride anion than the BNBC-t8 with terminal methoxy group, which can be confirmed by a more visible color change. This high sensitivity for fluoride anion makes the BNB-t4 receptor a competitive candidate for environmental detection. In contrast to fluoride detection, the obtained binding ratio is 1 : 1 for BNB-t4 with both AcO⁻ and H₂PO₄⁻ anions in chloroform, and the corresponding complex constants are 7.5 × 10⁴ (M⁻¹) and 2.0 × 10³ (M⁻¹), respectively (Fig. S7 and S8†). Therefore, these results indicate that BNB-t4 with terminal hydroxyl groups is more sensitive to fluoride than to other anions.

To investigate the interaction active sites of BNB-t4 that bind with fluoride anion, the ¹H NMR titration experiments were carried out in DMSO-d₆. Fig. 5 showed the ¹H NMR spectra of BNB-t4 in the titration course of F⁻ and illustrated the spectral shifts of the phenol O–H (H_α) and hydrazide N–H (H_β and H_γ) group, respectively. The chemical shifts of the O–H and N–H protons on BNB-t4 appeared at δ 10.64, 10.47, and 10.46 ppm before the addition of F⁻, respectively. After the addition of 0.5 equiv. of F⁻, the signal of these three protons disappeared, and the simultaneous appearance of a weak broad signal at δ 10.56 ppm indicates the formation of N–H⋯F⁻ and O–H⋯F⁻ hydrogen bonding. The gradual weakening of H_α, H_β and H_γ proton signals with the increase of F⁻ suggests that the phenol O–H and hydrazide N–H underwent a deprotonation process. However, after the addition of 10 equiv. fluoride anion, the existence of a weak peak at 10.50 ppm of BNB-t4 indicates that not all of the phenol O–H and hydrazide N–H experienced a deprotonation process. In the NMR spectra of BNBC-t8 with different amount of F⁻ anion, a weak peak at 10.41 ppm was also observed upon the addition of 6 equiv. F⁻, suggesting only one of hydrazide N–H underwent deprotonation (Fig. S9†). Meanwhile, a new weak triplet signal appeared at δ 16.43 ppm, 16.13 ppm and 15.83 ppm (Fig. 5g), clearly demonstrates the formation of HF₂⁻. Moreover, the spectral shifts of aromatic phenyl rings (H_δ, H_ε and H_ω) linked to the hydroxyl and hydrazide group are shown in Fig. S10.† The continuous increase of F⁻ concentration resulted in the protons H_δ, H_ε and H_ω of the phenyl rings to be out of the same chemical environment, and thus the up-field shifts of resonance signals for the H_δ, H_ε and H_ω were observed in the NMR spectra.

Fig. 5 Partial ¹H NMR spectra of BNB-t4 (5 mM) in DMSO-d6 upon the addition of F⁻ (a) free, (b) 0.5 equiv., (c) 2 equiv., (d) 4 equiv., (e) 6 equiv., (f) 8 equiv. and (g) 10 equiv.

Combining all the previous observations and obtained results, the sensing behavior of BNB-t4 for fluoride anions can be schematically described in Scheme S1.† Due to the existence of hydrogen bonding subgroups –OH and –NH for fluoride anion in BNB-t4, the addition of F⁻ induces the rebalancing among hydrogen bonding, van der Waals and π–π stacking in solution. Moderate amount of F⁻ ion establishes a hydrogen-bonding interaction with BNB-t4 to generate a stable 1 : 2 complex, while excess amount of fluoride anion causes one of the NH group to deprotonate, and the other NH group together with the oxygen atom nearby deprotonated nitrogen atom forms an intramolecular hydrogen bonding. Concomitantly, the recognition of BNB-t4 to fluoride anion leads to colorimetric changes visible to naked eyes in solution. In contrast with the situation of BNBC-t8, the hydrogen bonding subgroup –NH dominates the recognition of fluoride anion, demonstrating the 1 : 1 ratio for the complex composition of BNBC-t8 and F⁻. Therefore, it can be concluded that the terminal hydroxyl group of BNB-t4 effectively improves the binding ability and the detection limit in sensing fluoride anion, resulting in a more obvious color change that can be sensed by naked eyes. The good performance in binding/sensing fluoride anion over other anions including acetate and phosphate makes BNB-t4 a highly sensitive and selective chemosensor.

To test the ability of receptor BNB-t4 as a colorimetric for fluoride anion against other anions, we carried out competition experiments in the presence of F⁻ mixed with various anions. As shown in Fig. 6, the fluoride anion induced absorption spectral response demonstrates little change with the addition of the other coexistent anions except for HSO₄⁻. The experimental results indicate that the receptor BNB-t4 has a good selectivity for F⁻ ion in the presence of other anions, making it very useful in practical applications. With the addition of HSO₄⁻, there is no obvious change observed in the absorption spectrum of BNB-t4 without the presence of fluoride anion, indicating a very weak recognition of BNB-t4 to HSO₄⁻ (Fig. 6). However, it is very interesting to notice that the absorption spectral change of BNB-t4 induced by F⁻ ion can be efficiently recovered to the initial state with the addition of 10 equiv. HSO₄⁻. In other word, the bonded fluoride anion with BNB-t4 can be totally released by the addition of HSO₄⁻ ion. Correspondingly, the color change of BNB-t4 induced by binding F⁻ ion can also be safely switched off with the addition of HSO₄⁻ (the inset of Fig. 6), demonstrating a typical OFF–ON–OFF colorimetric sensor with a great recycling feature. Furthermore, the absorption spectral change of BNB-t4 induced by binding F⁻ ion can also be recovered with the addition of H⁺, such as HClO₄ and methanol (MeOH) (Fig. S11†).

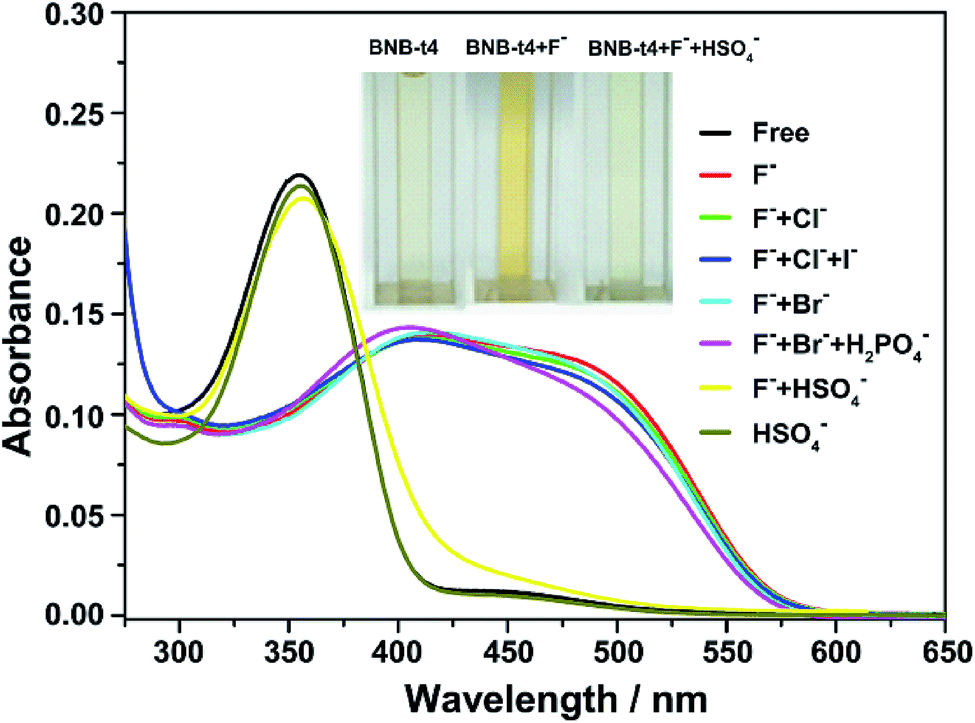

Fig. 6 Competitive selectivity of BNB-t4 (1 × 10⁻⁵ mol L⁻¹) towards F⁻ (10 equiv.) in the presence of other anions (10 equiv.) in CHCl₃. Inset: the image of BNB-t4 (1 × 10⁻⁵ mol L⁻¹) in CHCl₃ (left), upon addition of 10 equiv. of F⁻ (middle) and BNB-t4 treated with F⁻ (10 equiv.), then added HSO₄⁻ (10 equiv.) (right).

The gelation properties of BNB-t4 were discussed in our previous work, and the results indicate that BNB-t4 is capable of forming stable gels in moderately polar solvents such as dichloromethane, chloroform, and aromatic solvents.⁴⁶ The introduction of anions is expected to break the balance among the involved driving forces and induces the phase transition to sense the specific anion in turn. The effect of anions on BNB-t4 gelator was revealed by the gelation experiments in the presence of fluoride anion. When 5 equiv. of F⁻ was added into the chloroform organogel of BNB-t4 at 25 °C, a thin column of wine-colored solution immediately appeared at the upper part and then the gel underwent a gradual decomposition of the gelatinous state in 25 min, yielding a wine-colored solution (Fig. 7). This observation clearly indicates that the force balancing in BNB-t4 gel is destroyed by the introduction of F⁻ and thus causes the dramatic phase transition from gel to sol with the concomitant color change visible to the naked eyes. The changed color of solution can be readily recovered by adding proton reagents such as MeOH. Similar phenomena were also observed upon the addition of solid TBA salts of AcO⁻ or H₂PO₄⁻ (Fig. S12†), but the corresponding phase transition took a much longer time. This different response rate can be thus used to discriminate fluoride anion from acetate and phosphate anions. However, the color transition and gel decomposition was not observed with the addition of Cl⁻, Br⁻, I⁻ and HSO₄⁻ at the identical condition (Fig. S13†), indicating the selectivity of BNB-t4 gelator for the recognition of anions. In addition, these results also demonstrate the anions such as F⁻, AcO⁻ and H₂PO₄⁻, rather than TBA cations, are responsible for the transformation from organogel to solution.

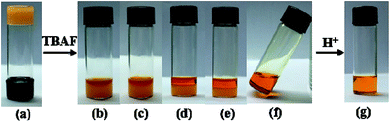

Fig. 7 (a) Photograph of the chloroform gel of BNB-t4 (8.0 mg mL⁻¹), photographs of the gel after addition of solid TBAF (5 equiv.) in (b) 0.5 min; (c) 3 min; (d) 10 min; (e) 16 min; (f) 25 min, and (g) 20 min after addition of 0.05 mL MeOH.

The fluoride anion induced gel–sol transition can be further confirmed by scanning electron microscopy (SEM) study. Without the presence of F⁻ ion, the morphology of BNB-t4 xerogel from chloroform (Fig. 8a) shows entangled and dense fibers. In contrast, these fibers are morphed into bent and swelled sausage structure to expel the gelated solvent (Fig. 8b) with the addition of fluoride anion. Based on the fact that fluoride anion has strong attacking ability to –NH and –OH subgroups in BNB-t4, this morphology transformation suggests that F⁻ can be inserted into the molecular assembly by hydrogen binding with the receptor BNB-t4, similar to the binding mode in solution. As a result, the host–guest binding destroys the balance of intermolecular interactions and initiates the driving force competition with the introduction of F⁻. It is however worthwhile to mention that this phase transition could also be partly attributed to the deprotonation of –NH and –OH subgroups, especially in the case of excess F⁻. As a consequence of the deprotonation, a new established balance among the driving forces consisting of hydrogen bonding, van der Waals and π–π stacking results in the formation of final solution phase.

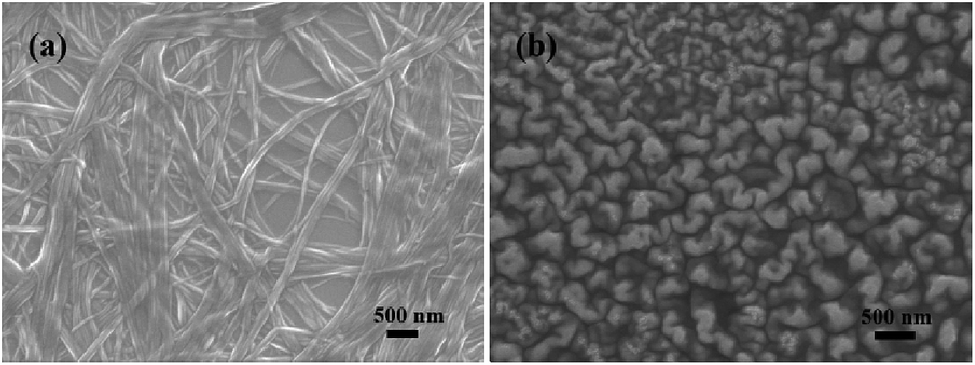

Fig. 8 SEM images of BNB-t4 (a) xerogel from chloroform and (b) chloroform gel treated with F⁻.

Experimental

Materials

All the solvents for spectral measurements were of spectroscopic grade and used as received. Tetrabutylammonium salts were all >98% pure and dried in vacuum overnight before use. The solutions used in titrations were prepared from freshly opened solvent bottles.

Synthesis and characterization

The synthesis and characterization of receptors BNB-t4 and BNBC-t8 were described in our previous work.^46,58 The UV-vis absorption spectra were obtained on a Cary 5000 UV-vis-NIR spectrometer with quartz cuvettes of the appropriate path length (0.1–1 cm) at room temperature. ¹H NMR spectra were recorded with an Avance-400 400 MHz spectrometer using tetramethylsilane (TMS) as an internal standard. Field emission scanning electron microscopy (FE-SEM) images were taken with a JSM-6700F apparatus. Samples for FE-SEM measurement were prepared by wiping a small amount of gel or solution onto a silicon plate and followed by drying in a vacuum for 12 h at room temperature.

Spectrophotometric titrations. Titrations were performed at room temperature in chloroform. In a typical experiment, the solution of the receptor (BNB-t4 and BNBC-t8) was titrated with a 200-fold concentrated solution of the tetrabutylammonium salt of the desired anion. The pH dependence experiment was performed in HEPES buffer solution system (DMSO : H₂O = 80 : 20 [v/v], containing 0.01 mol L⁻¹ HEPES, pH = 1–14).

Gelation test. Weighted gelator was mixed in a cap sealed test tube [3.5 cm (height) × 0.5 cm (radius)] with an appropriate amount of solvent, and the mixture was heated until the solid dissolved. The sample vial was cooled to 4 °C and then turned upside down. When a clear or slightly opaque gel formed, the solvent therein was immobilized at this stage.

Conclusions

The dually responsive properties of BNB-t4 bearing hydrazide and azobenzene groups in the recognition of fluoride anion have been systematically studied in this work. The selective response to fluoride anion over other anions indicates that the BNB-t4 is a good candidate in recognizing fluoride anion. The interactions of fluoride anion with amidic –NH and hydroxyl proton of BNB-t4 via hydrogen bonding and deprotonation cause the formation of new complexes and regulate their electronic states and molecular configurations. As a consequence, the remarkable changes in the absorption of receptor BNB-t4 with terminal hydroxyl group demonstrate a colorimetric chemosensor with better selectivity and higher sensitivity in sensing fluoride anion than BNBC-t8 with terminal methoxy group. It can be concluded that the introduction of hydroxyl group greatly improves the recognition ability and detection limit of BNB-t4 for sensing fluoride anion in solution. Meanwhile, the anion induced gel–sol transition of BNB-t4 self-assembly demonstrates a potential application in sensing fluoride anion through the noticeable color change and phase transition. Meanwhile, the proposed sensing mechanism and binding ratio for BNB-t4 with fluoride anion has been used to interpret the observations both in solution phase and in gel phase. Moreover, the color change of BNB-t4 induced by binding fluoride anion can be safely switched off with the addition of HSO₄⁻, indicating that the BNB-t4 is a typical OFF–ON–OFF colorimetric sensor with a great reversible feature. Therefore, the dual responsive receptor BNB-t4 with high selectivity and sensitivity for fluoride anion could be a competitive chemosensor candidate for environmental applications.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The authors are grateful to the National Natural Science Foundation of China (projects No. U1504510, U1604129, U1404619 and 21173068).
