Aqueous Suzuki couplings mediated by a hydrophobic catalyst

Abstract

The catalytic activity of [(Ph₂P-o-C₆H₄)₂N]PdCl in aerobic aqueous Suzuki couplings is described. Though hydrophobic, this molecular catalyst is competent in cross-coupling reactions of arylboronic acids with a variety of electronically activated, unactivated, and deactivated aryl iodides, bromides, and chlorides upon heating in aqueous solutions under aerobic conditions to give biphenyl derivatives without the necessity of amphiphiles even in the presence of an excess amount of mercury.

---

Transition metal-mediated cross-coupling catalysis has evolved over the last decades into one of the most powerful methodologies in organic synthesis, pharmaceutics, and materials chemistry.^1–12 The advance of this catalysis in aqueous media is attractive given the non-toxic, non-flammable, and abundant nature of water.^13–15 Successful examples of aqueous cross-coupling catalysis by well-defined molecular catalysts, however, are rather limited due to the low stability or solubility of catalytically active species in aqueous solutions.¹⁶ To improve aqueous solubility, catalysts are typically designed to contain hydrophilic ligands¹⁷ such as those bearing carboxylate,^18,19 ammonium,²⁰ sulfonate,^20–22 or polyol²³ functional groups, etc. Utilization of amphiphilic additives^24–26 is almost inevitable for hydrophobic catalysts in aqueous cross-coupling reactions. Microwave irradiation^27–29 and heterogeneous catalysis by means of immobilized catalysts^30–33 or metal nanoparticles produced upon decomposition of molecular precatalysts^34–37 represent alternative prevalent approaches.

Metal nanoparticles³⁸ differ inherently in size and shape, typically rendering rather undesirable multiple active sites comprising different compositions for catalysis. The constitutions and thus activities of these active sites could be very sensitive to their formation procedures and the presence of traces of usually unnoticed components, particularly those prepared in situ when molecular precatalysts decompose under catalytic conditions. Reproducibility of catalysis of this type could be troublesome. In this regard, there have been several reports addressing this challenge,^39,40 including concerns of commercially available molecular precatalysts.^41,42 The development of well-defined molecular catalysts where leaching of the metal does not occur during catalysis is therefore of interest and benefit.

Palladium-catalyzed Suzuki couplings are versatile in the development of biaryl derivatives.⁶ We have previously reported the catalytic competence of amido phosphine complexes of palladium, e.g., 1 and 2 in Fig. 1, for Suzuki couplings in organic solvents.^43,44 Of note are reactions conducted under aerobic conditions in the presence of exogenous water, an unusual result considering the inherently high basicity of a Pd–amide bond.⁴⁵ Note that water in these attempts is not a major solvent. We were therefore interested in aerobic aqueous Suzuki couplings with these promising catalysts. We report herein the catalytic activity of 2a in this regard without the requirement of any amphiphilic additives despite the hydrophobic nature of this catalyst. Of interest is also its unchanged activity in the presence of mercury,^39,40,46,47 consistent with homogeneous catalysis by a well-defined molecular catalyst that contrasts with the heterogeneous feature of palladium nanoparticles derived in situ from the decomposition of other molecular precatalysts such as commercially available Pd(PPh₃)₄ and Pd(OAc)₂ (vide infra).

Fig. 1 Representative examples of amido phosphine complexes of palladium.

Complex 2a is thermally stable at temperatures as high as 200 °C.⁴⁸ To survey reaction parameters, we chose to examine the reaction of 4-tolyl bromide with phenylboronic acid catalyzed by 0.1 mol% 2a in water at 100 °C. Among eight inorganic bases examined (Table 1, entries 1–8), K₂CO₃ outperforms the others to give 4-methylbiphenyl in 67% yield (entry 1). Several organic additives were considered (entries 9–17), among which nBuOH effectively improves this catalysis to give 4-methylbiphenyl in 96% yield (entry 15). Tuning the volume ratio of water to nBuOH to 2 : 1 led to the desired product in quantitative yield (entry 19). This protocol is also applicable to the transformation of 4′-bromoacetophenone into 4-acetylbiphenyl quantitatively (entry 20). Interestingly, high yield production of 4-acetylbiphenyl from 4′-bromoacetophenone can also be achieved in neat water without exogenous nBuOH (entry 21). No palladium black was observed in all these reactions. These results are in sharp contrast to those derived from the majority of studies necessitating a hydrophilic catalyst^17–21,23 or an amphiphile^24–26 to assist a hydrophobic catalyst in aqueous catalysis.^13–15 The methodology developed herein thus represents to date a rare example in this regard.

Table 1 Optimization of reaction parameters^a

entry	Y	Base	Solvent	Yield^b (%)
a Reaction conditions: 1.0 equiv. of aryl bromide (0.15 mmol), 1.5 equiv. of phenylboronic acid, 2.0 equiv. of base, 2 mL of solvent, run in the air.b Determined by GC against dodecane as an internal standard, based on aryl bromide, average of two runs. Yields in parentheses refer to isolated yields; average of two runs.c Without 2a.d 0.01 mol% 2a.e 150 equiv. Hg.f 2b in place of 2a.g Pd(PPh3)4 in place of 2a.h Pd(OAc)2 in place of 2a.
1	Me	K2CO3	H2O	67
2	Me	Na2CO3	H2O	18
3	Me	Cs2CO3	H2O	29
4	Me	Ba(OH)2·8H2O	H2O	17
5	Me	KOH	H2O	30
6	Me	NaOH	H2O	59
7	Me	K3PO4·H2O	H2O	17
8	Me	KOtBu	H2O	58
9	Me	K2CO3	3/1 (v/v) H2O/MeCN	0
10	Me	K2CO3	3/1 (v/v) H2O/DMSO	0
11	Me	K2CO3	3/1 (v/v) H2O/acetone	9
12	Me	K2CO3	3/1 (v/v) H2O/MeC(O)OEt	10
13	Me	K2CO3	3/1 (v/v) H2O/Et2O	3
14	Me	K2CO3	3/1 (v/v) H2O/nPrOH	80
15	Me	K2CO3	3/1 (v/v) H2O/nBuOH	96
16	Me	K2CO3	3/1 (v/v) H2O/1-pentanol	83
17	Me	K2CO3	3/1 (v/v) H2O/t-pentanol	71
18	Me	K2CO3	13/1 (v/v) H2O/nBuOH	54
19	Me	K2CO3	2/1 (v/v) H2O/nBuOH	100 (100)
20	C(O)Me	K2CO3	2/1 (v/v) H2O/nBuOH	100 (99)
21	C(O)Me	K2CO3	H2O	96
22	C(O)Me	—	2/1 (v/v) H2O/nBuOH	1
23^c	C(O)Me	K2CO3	2/1 (v/v) H2O/nBuOH	0
24^d	C(O)Me	K2CO3	2/1 (v/v) H2O/nBuOH	37
25^e	Me	K2CO3	2/1 (v/v) H2O/nBuOH	100
26^e	C(O)Me	K2CO3	2/1 (v/v) H2O/nBuOH	100 (99)
27^f	Me	K2CO3	2/1 (v/v) H2O/nBuOH	34
28^f	C(O)Me	K2CO3	2/1 (v/v) H2O/nBuOH	93
29^g	Me	K2CO3	2/1 (v/v) H2O/nBuOH	100
30^g	C(O)Me	K2CO3	2/1 (v/v) H2O/nBuOH	100
31^h	Me	K2CO3	2/1 (v/v) H2O/nBuOH	100
32^h	C(O)Me	K2CO3	2/1 (v/v) H2O/nBuOH	94
33^e^,^f	Me	K2CO3	2/1 (v/v) H2O/nBuOH	0
34^e^,^f	C(O)Me	K2CO3	2/1 (v/v) H2O/nBuOH	16
35^e^,^g	Me	K2CO3	2/1 (v/v) H2O/nBuOH	13
36^e^,^g	C(O)Me	K2CO3	2/1 (v/v) H2O/nBuOH	36
37^e^,^h	Me	K2CO3	2/1 (v/v) H2O/nBuOH	14
38^e^,^h	C(O)Me	K2CO3	2/1 (v/v) H2O/nBuOH	9

---

Without a base (entry 22) or 2a (entry 23), this catalysis hardly proceeds. A turnover number of up to 3.7 × 10³ is realized upon lowering 2a loading to 0.01 mol% (entry 24). In the presence of an excess amount of mercury,^39,40,46,47 the catalytic activities of 2a remain unchanged (entries 25–26), thereby eliminating the possibility that this catalysis is involved with colloidal, nanoparticle, or bulk Pd(0).^34–37 Though 2b (ref. 49) (Fig. 1), Pd(PPh₃)₄,^50,51 and Pd(OAc)₂ (ref. 41,52,53) are catalytically active under otherwise identical conditions (entries 27–32), palladium black was observed in these reactions. Their activities diminish significantly in the presence of mercury (entries 33–38), consistent with, at least in part, heterogeneous catalysis resulting from the decomposition of these precatalysts.^39,40,46,47 Evidently, 2a does not decompose under the conditions employed but undergoes molecular catalysis in aqueous Suzuki couplings. This result is worth noting in view of the complex nature of multiple active sites derived from commercially available Pd(PPh₃)₄ or Pd(OAc)₂. Of equal interest is the comparison between activities of 2a (entries 25–26) and 2b (entries 33–34) in mercury poisoning experiments, highlighting the role that P-substituent in the amido PNP ligand plays in this aqueous catalysis.

A number of functional groups are compatible with this aqueous catalysis (Table 2), such as nitro, ketone, aldehyde, fluoride, alkyl, alkoxy, amino, etc. Aryl iodides (entries 1–4), bromides (entries 5–12), and chlorides (entries 13–14) are all suitable electrophiles. Building blocks having ortho substituents are more challenging (entries 15–24). Increasing the heating bath temperature to 140 °C or the catalyst loading to 0.5 mol% facilitates these reactions. The synthesis of 2,6- or 2,2′-disubstituted biphenyls is straightforward, but the preparation of tri-ortho-substituted analogues is less successful. Without steric hindrance, the reaction employing 3,5-dimethylphenyl bromide proceeds smoothly (entry 25).

Table 2 Catalytic Suzuki couplings of aryl halides with arylboronic acid^a

entry	X	Y	R	Temp^b (^oC)	Yield^c (%)
a Reaction conditions: 1.0 equiv. of aryl halide (0.15 mmol), 1.5 equiv. of arylboronic acid, 2.0 equiv. of K2CO3, 2 mL of solvent (2/1 (v/v) H2O/nBuOH), run in the air.b Heating bath temperature.c Determined by GC against dodecane as an internal standard, based on aryl halide, average of two runs. Yields in parentheses refer to isolated yields; average of two runs.d 0.5 mol% 2a.
1	I	4-C(O)Me	H	100	100
2	I	H	H	100	100
3	I	4-Me	H	100	100
4	I	4-OMe	H	100	100
5	Br	4-NO2	H	100	100 (94)
6	Br	4-C(O)Me	H	100	100 (99)
7	Br	4-CHO	H	100	100 (100)
8	Br	4-F	H	100	100 (99)
9	Br	H	H	100	100
10	Br	4-Me	H	100	100 (100)
11	Br	4-OMe	H	100	100 (95)
12	Br	4-NMe2	H	100	100 (93)
13	Cl	4-C(O)Me	H	100	62
14	Cl	H	H	100	41
15	Br	H	Me	100	30
16	Br	H	Me	140	100 (97)
17	Br	2-OMe	H	140	95 (94)
18	Br	2-OMe	Me	140	67 (60)
19	Br	2-F	H	140	49
20^d	Br	2-F	H	140	100 (100)
21^d	Br	2-F	Me	140	100
22	Br	2,6-Dimethyl	H	140	65 (56)
23^d	Br	2,6-Dimethyl	H	140	82
24^d	Br	2,6-Dimethyl	Me	140	14
25	Br	3,5-Dimethyl	H	140	96 (95)

---

To gain insights into mechanistic possibilities, we examined a series of competitive reactions of phenylboronic acid with electronically activated, unactivated, and deactivated aryl bromides catalyzed by 2a in H₂O/nBuOH at 100 °C, a Hammett plot of which shows a reaction constant ρ of 1.54 ± 0.06 (Fig. 2). This value is relatively small as compared with those found for oxidative addition of aryl iodides to Pd(PPh₃)₂ (ρ = 2)⁵⁴ and aryl chlorides to Pd(XPhos) (ρ = 2.3)⁵⁵ or Pd(dippp) (ρ = 5.2).⁵⁶ Oxidative addition of aryl bromides in this study is therefore unlikely the rate-determining step. Relatively smaller reaction constants have also been reported for Suzuki couplings catalyzed by 1a (ρ = 0.48),⁴³ 1b (ρ = 0.66),⁴³ or 2a (ρ = 0.25 in dioxane, ρ = 1.08 in toluene),⁴⁴ Heck olefination by 2a (ρ = 0.60),⁴⁸ and Sonogashira couplings by 2a (ρ = 0.82)⁴⁹ in organic solvents, where transmetallation is proposed to be the slowest. A similar proposition was also suggested in other Suzuki couplings having a small reaction constant.^57,58 The hypothesis regarding transmetallation as the rate-determining step in this aqueous catalysis is also consistent with the consequence that 2a outperforms 2b taking into account that oxidative addition of aryl halides and reductive elimination of biaryl products are more encouraged by the latter given its more electron-releasing and larger P-substituents, respectively.

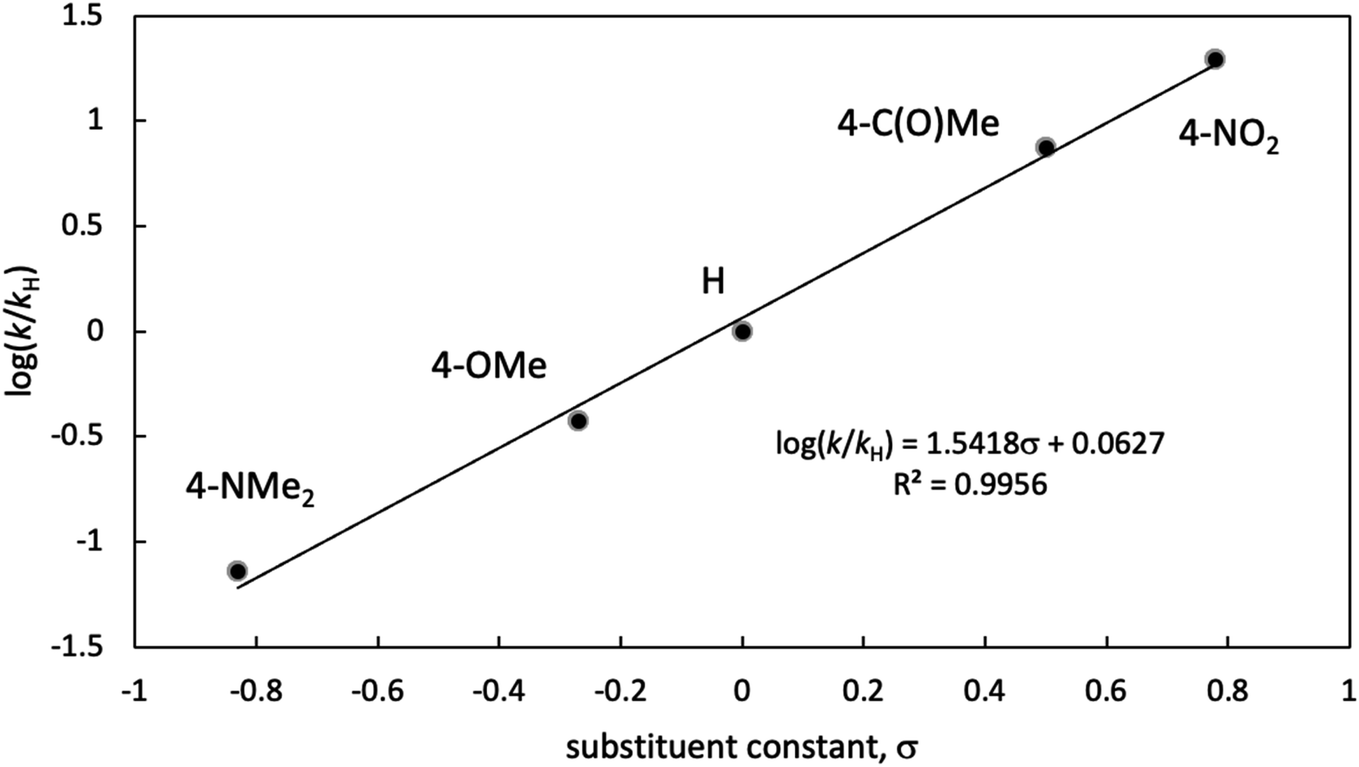

Fig. 2 Hammett plot of competitive reactions of phenylboronic acid with 4-substituted aryl bromides catalyzed by 2a in H₂O/nBuOH at 100 °C.

In summary, the amido PNP complex 2a is a competent catalyst in aqueous Suzuki coupling reactions under aerobic conditions. Of note is the feasibility of this hydrophobic catalyst in aqueous catalysis without the assistance of amphiphiles. A variety of electronically activated, unactivated, and deactivated aryl iodides, bromides, and chlorides are suitable electrophiles, resulting in biaryl products straightforwardly. Mercury poisoning experiments and Hammett reaction constant collectively implicate a molecular mechanism where transmetallation is likely the rate-determining step. All in all, this study demonstrates a facile entry into aerobic aqueous catalysis with a robust hydrophobic catalyst, a rare example contrasting with those requiring amphiphiles^24–26 or those transforming into catalytically active nanoparticles.^34–37 Studies aiming at expanding the territory of 2a in aqueous catalysis are currently underway.

Author contributions

S.-B. H.: investigation, methodology, formal analysis, validation; L.-C. L.: conceptualization, funding acquisition, project administration, supervision, writing – original draft, writing – review & editing.

Conflicts of interest

There are no conflicts of interest to declare.

Acknowledgements

Financial support by the Ministry of Science and Technology of Taiwan (MOST 110-2113-M-110-014 and MOST 111-2113-M-110-006) is acknowledged. We thank Ms. Chiao-Lien Ho at NSYSU for the assistance of 600 MHz NMR spectrometer (JEOL ECZ600R) and Ms. Yunming Li at NYCU for high resolution gas chromatography mass spectrometer (JEOL AccuTOF GCx).
