Reece W.
Lewis
*a,
Aswin
Muralidharan
abc,
Benjamin
Klemm
a,
Pouyan E.
Boukany
a and
Rienk
Eelkema
*a
aDepartment of Chemical Engineering, Delft University of Technology, 2629 HZ Delft, The Netherlands. E-mail: R.W.Lewis@tudelft.nl; R.Eelkema@tudelft.nl
bDepartment of Bionanoscience, Delft University of Technology, 2629 HZ Delft, The Netherlands
cKavli Institute of Nanoscience, Delft University of Technology, 2629 HZ Delft, The Netherlands
First published on 9th March 2023
Polycationic carriers promise low cost and scalable gene therapy treatments, however inefficient intracellular unpacking of the genetic cargo has limited transfection efficiency. Charge-reversing polycations, which transition from cationic to neutral or negative charge, can offer targeted intracellular DNA release. We describe a new class of charge-reversing polycation which undergoes a cationic-to-neutral conversion by a reaction with cellular nucleophiles. The deionization reaction is relatively slow with primary amines, and much faster with thiols. In mammalian cells, the intracellular environment has elevated concentrations of amino acids (∼10×) and the thiol glutathione (∼1000×). We propose this allows for decationization of the polymeric carrier slowly in the extracellular space and then rapidly in the intracellular milleu for DNA release. We demonstrate that in a lipopolyplex formulation this leads to both improved transfection and reduced cytotoxicity when compared to a non-responsive polycationic control.
Cationic polymers can electrostatically bind to negatively charged nucleic acids, resulting in the formation of nanoparticle complexes. These are typically termed polyplexes when the polycation is a homopolymer, while block copolymers with a neutral, water-soluble block yield polyplex micelles, which have a protective corona.2,6 This corona typically conveys polyplex micelles with improved extracellular stability, however it can also reduce cellular internalisation, leading to poor transfection.7 An alternative is to coat polyplexes with lipids to form lipopolyplexes, combining favourable characteristics from polyplexes (facilitated endosomal release and nucleus entry) and lipid complexes (improved cytotoxicity and cellular uptake).8–13
Polyplex performance can be tuned by varying the ratio of positive charges on the polycation to negative charges on the nucleic acid.5 An excess of cationic charge is typically used to achieve sufficient DNA packaging and cellular entry, however this can limit complex dissociation once inside the cell, resulting in poor transcription efficiency.4,14,15 Additionally, highly cationic polyplexes are often cytotoxic, since cationic polymers can damage cell membranes.2,12 This has motivated the development of charge-reversing polycations which are able to transition from cationic to neutral or negative charge, either gradually through hydrolysis at physiological pH,15–20 or in response to intracellular signals such as reactive oxygen species (ROS),7,21 and esterases.22,23 For example, Zhu et al. reported reduced cytotoxicity and improved in vitro luciferase expression for their ROS responsive polysulfonium polyplexes when compared to permanently cationic controls.21 We note, however, that many of these systems are either relatively non-specific for the intracellular environment (hydrolysis), or rely on signals which are mainly elevated inside cancerous cells, limiting scope of application.
Thiol/amine nucleophiles (S/N), which can be found in a wide range of biomolecules with typically elevated intracellular concentrations, are until now an unexplored class of charge-reversing signal. We were inspired to investigate nucleophile responsive polycations after our recent work demonstrating controlled (de)cationization of polyvinylpyridine (PVP) copolymers by successive additions of an allyl acetate (ionization), and S/N-nucleophiles (deionization).24,25 With an appropriate polyanion, the PVP copolymers (dis)assembled into coacervate core micelles, effectively achieving signal controlled polyanion encapsulation and release.26 Importantly, we found that the decationiziation reaction is significantly faster for thiols compared to primary amines (Fig. 1a). We therefore hypothesised that the responsive cationic PVP could be applied as a two-stage charge-reversing polymer within polyplexes.
![]() | ||
Fig. 1 Outline of nucleophile responsive charge-reversing polycation study. (a) General structure of responsive polycation and its charge-reversing reaction with S/N-nucleophiles. Representative 1H NMR conversion data for the decationization reaction in phosphate buffer (pH 7.4, 100 mM) at RT ([cationic units] = [nucleophile] = 7 mM), see Fig. S1 and S2† for additional data. Curves are fit with pseudo first-order kinetic model. (b) General structure of non-responsive polycation. (c) Scheme showing proposed two-stage charge reversing process of responsive pDNA complexes in extracellular and intracellular conditions. *In this work cellular transfection is demonstrated by combining the polymer complexes with a lipid. |
The first stage would occur extracellularly, where amine moieties on free amino acids (∼3 mM in human blood plasma),27,28 could be exploited to slowly reduce cationic charge, leading to reduced extracellular cytotoxicity. Once inside the cell, the second stage can begin where an elevated concentration of amino acids (∼50 mM)29,30 and the thiol glutathione (GSH, 1–10 mM in cytosol and 2–20 μM extracellularly),3,31 could be used to trigger an accelerated decationization and release of pDNA for transfection (Fig. 1c).
The lipids 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine (DOPE) and 3β-[N-(N′,N′-dimethylaminoethane)-carbamoyl]cholesterol hydrochloride (DC-Chol) were purchased from Avanti Polar Lipids Company. Nutrient Mixture Ham's F-12 (Sigma Aldrich), fetal bovine serum (FBS, Sigma Aldrich) and 0.25% Trypsin-EDTA (Gibco) were used as received. pEGFP-C1 plasmid (4.7 kb) was amplified with competent E. coli cells (Invitrogen™ Subcloning Efficiency™ DH5α Competent Cells), transformed using the heat shock method. After transformation, the cells were cultured overnight in LB broth w/Kanamycin and then the plasmids were harvested using the GeneJET plasmid mini prep kit.
The polyvinylpyridine block co-polymer (2) was prepared in a two-step process starting with the synthesis of a water-soluble macro-CTA (pDMA261). For this, CETCPA (82.2 mg, 0.27 mmol), DMA (7.93 g, 80 mmol), DSS (21.3 mg, 0.10 mmol, as internal std) and DI water (11.7 mL) were combined in a glass tube sealed with rubber septum. The reaction mixture was deoxygenated by bubbling with argon for 30 minutes and placed into a LED reactor (444 nm). The reaction was quenched after 2 h irradiation (87% conversion by 1H NMR spectroscopy, Mn,conv = 26.2 kDa) by removing the glass tube from the light source and opening to air. The polymer was then purified by dialysis (MWCO 500–1000 Da), followed by freeze-drying to obtain 6.2 g of a light-yellow powder (pDMA261).
2. pDMA261 (1.86 g, 0.071 mmol), 4VP (1.22 g, 11.6 mmol), DSS (8.5 mg, 0.039 mmol, as internal std) and MeOH (5 mL) were combined in a clear glass tube and deoxygenated by bubbling with argon for 15 minutes. The tube was then placed into a LED reactor (444 nm). The reaction was quenched after 29 h irradiation (64% conversion of 4VP by 1H NMR spectroscopy, Mn,conv = 37.2 kDa) by removing the glass tube from the light source and opening to air. The polymer was then diluted with methanol and twice precipitated into diethyl ether (250 mL). Lastly, the precipitate was dissolved in DI water/ethanol (50/50) and dialysed against DI water (MWCO 500–1000 Da). After freeze-drying, 1.05 g of a white powder (2) was obtained.
All polymers were analysed by GPC (DMF, LiBr 25 mM), with low to moderate dispersities (Đ ≤ 1.35). Successful chain extension for 2 from pDMA261 was supported by a shift of a single peak from 28.5 kDa to 30.0 kDa (Table S1 and Fig. S14†).
Coumarin maleimide labelled polycations were prepared using a modified one-pot aminolysis/thiol–ene procedure (full details in ESI†).32 Cy5 labelled 1 (1c) was prepared using an azide functionalised allyl derivative and subsequently functionalising with Cy5-alkyne via Cu catalysed click (full details in ESI†).
The lipid solution was then added to the desired polyplex at an L/P (lipid/pDNA) mass ratio of 10:
1. This was then diluted with PB to a final pDNA concentration of 32.5 ng μL−1. These were then briefly centrifuged and incubated at room temperature for 30 min before characterisation or use. For size analysis, complexes were diluted to 6.5 ng μL−1 (pDNA) just before analysis, with data presented means ± SD (n = 3). The lipid complex (Lipid) was prepared as above without the addition of a polycation and cell culture medium used as diluent rather than PB. Note: the use of cell culture medium is important, as lipid complexes prepared in PB transfected poorly (similar to naked pDNA).
![]() | ||
Fig. 2 Preparation of polycations and their pDNA (pEGFP-C1) complexes. (a) Preparation of polyamines by RAFT polymerisation followed by their reaction with electrophiles to generate either responsive or permanently cationic (control) polycations. (b) Formation of micelle and polyplex type pDNA complexes studied in this work. (c) Titration of polycations to pDNA (6.5 μg mL−1 pDNA; 20 μM phosphates) as a function of N/P (prepared in 10 mM pH 7.4 phosphate buffer). (d) Summary of N/P = 4 pDNA complex size. Diameters are reported as the average across 3 samples (DLS) or 3 images (TEM) ± SD. For TEM, diameter is the length of the longest dimension. (e) TEM images of N/P = 4 pDNA complexes (stained, 2 wt% uranyl acetate), scale bar 200 nm. Additional characterisation data can be found in Fig. S4–14† (gel electrophoresis, polymer characterisation and additional DLS/TEM data). |
We then combined these polycations with pDNA (pEGFP-C1, 4.7 kbp) and studied their complex formation as a function of N/P, defined here as the ratio of cationic nitrogens (N) to anionic phosphates (P) (Fig. 2b and c). With increasing N/P, the zeta potential increased from negative values for pure pDNA (−25 ± 7 mM) to positive values, plateauing around 14 and 17 mV for 1a and 1b, indicating the formation of polyplexes with a net positive surface charge. Complexes from the block copolymers 2a and 2b recorded near neutral zeta potentials (0 and 3 mV) due to their micelle forming neutral block dominating the surface charge. Encapsulation of pDNA appears complete at N/P ≥ 2 for all polymers, a conclusion supported by retention of samples to the baseline for N/P ≥ 2 during gel electrophoresis (Fig. S4†).
Lastly, we studied the size and morphology of the pDNA complexes (N/P = 4) by both dynamic light scattering (DLS) and transmission electron microscopy (TEM, Fig. 2d and e). The responsive polyplex 1a-4 (pDNA complex designation:
polymer number-N/P ratio) consisted of a mixture of spherical and short wormlike species, while the control polyplex 1b-4 was typically spherical. The pDNA micelle complexes 2a-4 and 2b-4 formed a mixture of worm-like and ring species, as is expected for cationic block-copolymer pDNA complexes.4 Thus, the presence of worms for 1a-4 may be due to the phosphodiester terminus of the responsive cationic moiety acting as a water interfacing group. The size of pDNA complexes was typically in the 100–250 nm range, with good agreement between DLS and TEM. In the case of 1b-4, however, the DLS diameter (1.44 μm) was found to be 10-fold larger than that observed from TEM (139 nm). We note that this disparity is most likely due to a numerically small amount of large (>1 μm) species dominating the DLS measurement (Fig. S6†).
![]() | ||
Fig. 3 Decationization and pDNA release studies under model intra- and extra-cellular conditions. Samples were maintained at 37 °C and the concentration of pDNA (as anionic phosphates) was maintained at 0.02 mM for zeta potential (ZP) measurements and 0.06 mM for gel electrophoresis. (a) Expected responsive complex pDNA release under model extracellular (HAMS-F12 media, CCM) and intracellular (1.0 mM GSH) conditions. (b) Change in ZP over time for responsive (blue) and non-responsive (red) polyplexes in CCM and 1 mM GSH. (c) Gel electrophoresis measurements of 1a-4 after incubation in CCM or 1 mM GSH for 1 and 4 h. (d) Change in ZP over time for responsive (blue) and non-responsive (red) micelles in CCM and 1 mM GSH. (e) Gel electrophoresis measurements of 2a-4 after incubation in CCM or 1 mM GSH for 1 and 4 h. Additional gel electrophoresis data in Fig. S15 and S16.† |
We studied the de-ionization process at 37 °C by both zeta potential (ZP) and gel electrophoresis across 4 h. Control complexes were found to be stable in both CCM and 1 mM GSH by gel electrophoresis, as expected (Fig. S15†). Interestingly, a reduction in zeta potential to near neutral values was typically observed for the control complexes, likely due to adsorption of ions from the media (Fig. 3, red data points).
Promisingly, the responsive complexes (Fig. 3, blue data points) yielded greater reductions in ZP for all conditions, indicating loss of cationic charge. The rate of this loss is dependent on the media, complex morphology and N/P; with low N/P polyplexes in 1 mM GSH giving the most rapid response. For example, the responsive polyplex 1a-4 recorded a gradual reduction in ZP over 4 h in CCM from −2 to −24 mV (Fig. 3b), indicating approximately complete pDNA release (ZP = −17 mV for pDNA only in CCM). In 1 mM GSH a significantly faster release was observed, with ZP reducing from +14 to −25 mV in 15 minutes (ZP = −24 mV for pDNA only in 1 mM GSH). This demonstrates a 16 times faster release of pDNA in model intracellular conditions compared to extracellular conditions for 1a-4. These conclusions were supported by gel electrophoresis, with complete release observed within 4 h and 1 h for CCM and 1 mM GSH, respectively (Fig. 3c).
Increasing N/P to 16 (1a-16) resulted in a quite similar ZP decrease in CCM, albeit starting at a more positive value (from +3.3 to −18 mV in 4 h). Interestingly, in GSH the ZP drop to −24 mV was approximately 8 times slower compared to the N/P = 4 polyplex, suggesting a significantly slower decationization and pDNA release. Note, however, that at N/P = 16 the molar excess of nucleophilic species to responsive cationic units is reduced to approximately 3 in GSH (from 12 for N/P = 4), while in CCM the excess remains greater than 10 for all N/P. Thus, the difference may at least partly be due to a reduced nucleophile excess in our model closed system.
For the micelle complexes in CCM, little change in ZP was observed over 4 h for both 2a-4 (from −0.7 to −2.1 mV) and 2a-16 (from −0.3 to −2.2 mV, Fig. 3d). To probe a possible longer release profile, an additional measurement was taken at 24 h, which recorded a significantly greater reduction for both 2a-4 (−7.1 mV) and 2a-16 (−12.5 mV). While this suggests pDNA release in the order of 24 h, gel electrophoresis measurements on 2a-4 identified release within 4 h. It is worth noting that the expected product after responsive micelle deionization (2) shifts ZP values measured for pDNA closer to zero (Table S2†). This does complicate interpretation of the ZP data, therefore the release timeframe can likely only be estimated as being between 4 and 24 h. In 1 mM GSH, the responsive micelles were similarly found to deionize slower than their polyplex counterparts. Here, however, a reduction in ZP was already clear after 4 h and gel electrophoresis measurements indicated a partial pDNA release after only 1 h (Fig. 3e).
To improve transfection performance, we prepared lipopolyplexes from both the responsive and control polyplexes at a mass ratio of lipid:
pDNA = 10
:
1 (Fig. 4a). Again, the lipid mixture of DC-Chol/DOPE (70/30) was used, as has already been successfully applied in lipopolyplex preparations.22 The lipopolyplexes (N/P = 4) were characterised by DLS, yielding a size of 334 ± 9 nm for the responsive lipopolyplex (L1a-4) and 2.45 ± 1.8 μm for the control lipopolyplex (L1b-4). This difference in Z-ave diameter follows the same trend observed from the constituent polyplexes (1b-4 is approximately 6 times larger than 1a-4) and again may be related to the phosphodiester moiety in the responsive complexes acting as a water interfacing group, reducing aggregation. The lipopolyplexes were positively charged, with ZP values of 15.4 mV (L1a-4) and 16.9 mV (L1b-4). TEM images revealed the formation of layered or walled structures, which tended to aggregate under TEM imaging conditions (Fig. S21†). Promisingly, CHO cells treated with L1a-4 had a noticeable increase in EGFP expression with normalised GFP fluorescence more than 7 times larger than its control lipopolyplex (L1b-4, Fig. 4b).
![]() | ||

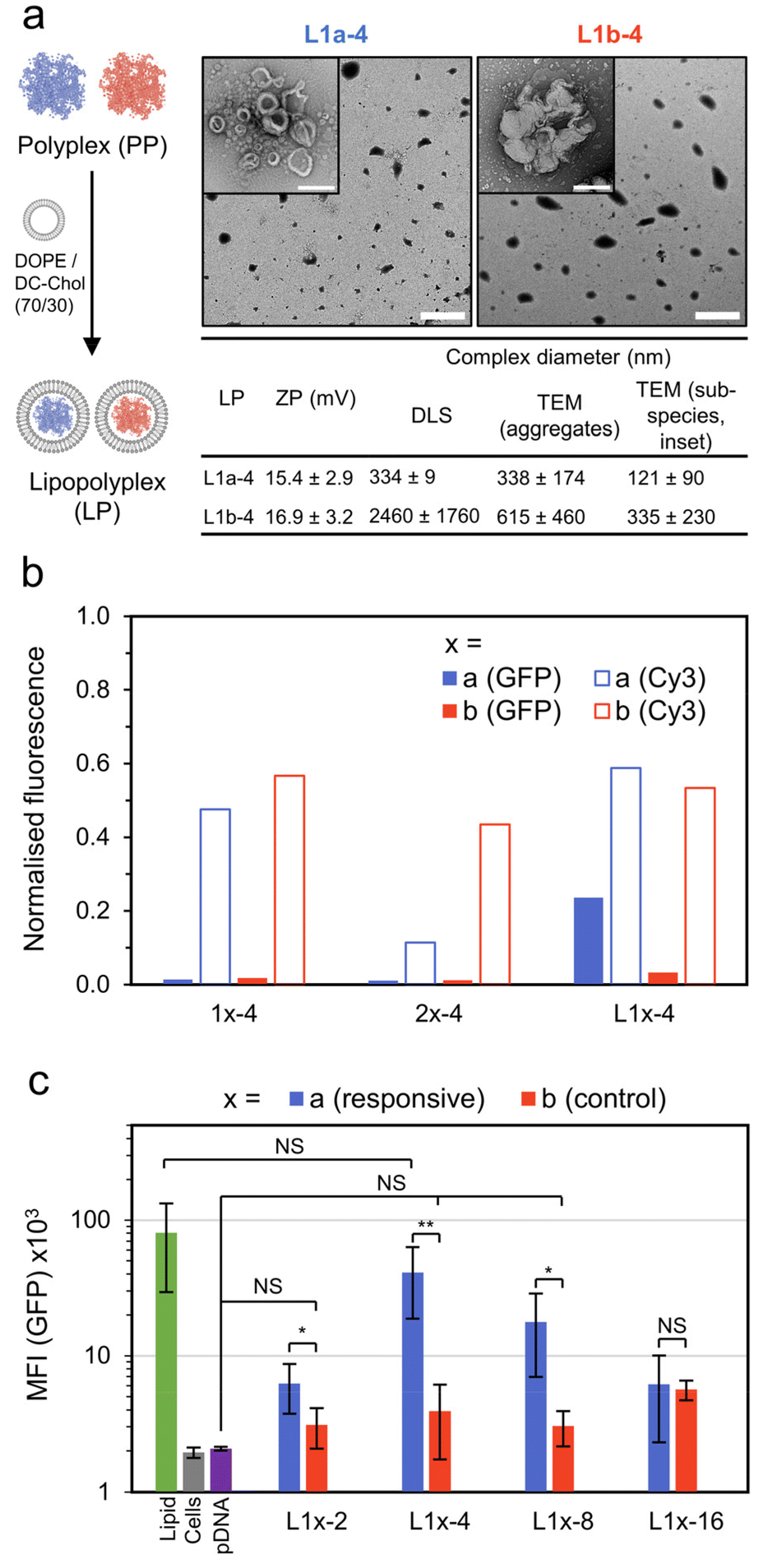

Fig. 4 Lipopolyplex preparation, EGFP transfection and pDNA localisation data. (a) Preparation and particle characterisation of responsive and control lipopolyplexes (lipid![]() ![]() ![]() ![]() ![]() ![]() |
With this promising result we investigated the cellular uptake of polycation and pDNA for all complexes to understand if cellular internalisation was limiting, particularly for the 1b-4 and L1b-4 complexes, which have a noticeably larger diameter (DLS) than the other complexes. We prepared coumarin end-functionalised derivatives of our synthesised polycations (Scheme S1†) and combined them with Cy3 labelled pDNA. The extent of pDNA and polymer internalisation in CHO cells was then evaluated 4 h after treatment using CLSM (Fig. 4b and Fig. S19†). Uptake of pDNA was found to be similar for all complexes except 2a-4, which internalised poorly. Importantly, L1a-4 and L1b-4 had normalised Cy3 fluorescence values within 10% of each other, indicating that the observed difference in transfection is not due to poor pDNA cellular entry with the control complex. A similar uptake pattern was observed for the polycations (coumarin fluorescence), as expected for complexed species (Fig. S20†). While a poor cellular uptake may have been expected for L1b-4 due to its large Z-ave diameter (2.45 μm), TEM image analysis shows the complex was highly disperse and includes many smaller species (≤350 nm) which may more readily internalise.
Comparing the responsive lipopolyplex (L1a-4) to its constituent polyplex (1a-4), we note only a 19% larger Cy3 fluorescence, despite its more than 16 times increase in EGFP expression. A plausible explanation may be that the polyplex (and micelle) carriers have poor endosome escape, which is overcome in lipopolyplexes where lipids such as DOPE are known to assist.8,35 Indeed, polymers 1 and 2 lack specific endosomal escape functionality such as amino monomers which become protonated in the acidic endosomes or lipophilic monomers.36–40
To better quantitate the relative performance of the responsive and control lipopolyplexes, an extensive transfection study was analysed by flow cytometry (Fig. 4c). Lipopolyplexes were prepared at N/P values ranging from 2 to 16, with the control lipopolyplexes offering no significant improvement (NS: p > 0.05) over cells treated with pDNA alone for all N/Ps except 16. Importantly, the responsive lipopolyplexes either significantly outperformed (N/P = 2, 4, 8) or matched (N/P = 16) their control counterparts. At N/P = 4 the greatest improvement was observed, with a GFP mean fluorescence intensity (MFI) 10 times greater than its control and a MFI that was insignificantly different from the lipid.
We began by synthesising a new variant of polymer 1a (1c, Fig. 5a), with a fraction of the responsive cationic moieties replaced with a Cy5 labelled analogue (see ESI† for full synthetic details). NMR studies on 1c indicated similar decationization behaviour to 1a when exposed to an excess of a model amino acid (threonine, Fig. S30†). Promisingly, cells treated with lipopolyplexes prepared from 1c (N/P = 4 and 16) had noticeable intracellular Cy5 fluorescence 4 h after treatment (Fig. 5b and c). To account for any internalisation of the free Cy5 species formed after deionization, a decationized sample of 1c was prepared by treating it with 5× excess GSH. Cells treated with the decationized 1c (GSH pre-treat) recorded little Cy5 fluorescence (<4% of the corresponding L1c complex), indicating that the free Cy5 moiety internalises poorly. These experiments strongly indicate that the responsive cationic moiety does reach the intracellular milieu intact.
![]() | ||
Fig. 5 Investigations into role of nucleophile responsive polycationic functionality. (a) Polymer structure of 1c, a Cy5 labelled responsive polycation. (b) Cy5 (red) localisation study of CHO cells treated with lipopolyplexes prepared using 1c (L1c-4, Control). These are compared to cells treated with matching lipopolyplexes prepared from 1c pre-treated with 5× excess GSH (L1c-4, GSH pre-treat). Images were taken using CLSM with Cy5 (λex = 633 nm, λdet = 638–797 nm, red) and bright field channels overlayed, scale bar is 25 μm. (c) Normalised Cy5 fluorescence of cells treated with lipopolyplexes prepared from 1c (Control) and decationized 1c (GSH pre-treat). (d) Normalised EGFP transfection of cells treated with L1a-4 (Control) compared to L1a-4 with GSH pre-treatment (2 mM GSH in CCM, 37 °C for 1 h). Data is mean ± SD (n = 3) as evaluated by flow cytometry. (e) GFP fluorescence 48 h (or 24 h where stated) of lipopolyplex treated CHO cells relative to untreated cells under the same culture condition (standard culture or 1 mM BSO). Data is mean ± SD (n ≥ 3) as evaluated by flow cytometry. (f) Intracellular GSH concentration of standard culture and BSO treated cells at t = 0 and 48 h. Data is mean ± SD (n = 4) as measured using a commercial luminescence-based assay which produces luciferase in the presence of GSH (Fig. S28†). *For t = 0 (1 mM BSO) intracellular GSH was below limit of detection. |
To investigate this further, we ran additional EGFP transfection studies comparing the responsive lipopolyplex L1a-4 to L1a-4 which has been pre-treated with 2 mM GSH in CCM for 1 h at 37 °C (GSH pre-treat). This treatment is intended to induce significant ‘extracellular’ deionization. In this way, if the responsive lipopolyplex derives its transfection capability from extracellular degradation, we would expect similar or enhanced transfection performance. Promisingly, we observed a greater than 75% reduction in transfection for the deionized L1a-4 (GSH pre-treat) compared to non-treated L1a-4 (control, Fig. 5d). Size analysis after this treatment demonstrated a near 50% reduction in diameter for L1a-4 and a drop in zeta potential to negative values (−32.6 mV), which was not observed for L1b-4 under the same treatment (Fig. S27†).
After demonstrating internalisation of responsive polycationic functionality, we next studied the role of intracellular GSH. For this, we repeated the EGFP expression study on cells treated with buthionine sulfoximine (BSO), which is known to inhibit GSH production.41 Surprisingly, BSO treated cells had little change in EGFP expression relative to untreated cells, with only the N/P = 2 lipopolyplex recording a near significant reduction (p = 0.11) in expression (Fig. 5e). To confirm intracellular GSH levels had reduced after BSO treatment, a luciferin based GSH assay was applied. We measured GSH levels immediately after BSO treatment, corresponding to the time when pDNA complexes are added to the cells (t = 0), and after a further 48 h, when the cells would be harvested for transfection analysis (t = 48 h). At t = 0, intracellular GSH for standard culture conditions was found to be within the expected range (4.6 mM), while cells treated with 1 mM BSO had significantly reduced intracellular GSH (below limit of test detection, Fig. 5f). After 48 h, intracellular GSH was no longer depleted in BSO treated cells, with standard culture (3.1 ± 0.9 mM) and BSO (2.9 ± 0.3 mM) recording similar GSH concentrations. This recovery in intracellular GSH clearly limits the conclusions that can be drawn from the 48 h transfection measurements, and thus EGFP expression after only 24 h was studied for the N/P = 4 complex (Fig. 5e). At 24 h, EGFP expression was significantly reduced compared to 48 h, and while relative GFP fluorescence in standard culture (2.9 ± 0.9) was larger compared to BSO treated cells (1.7 ± 0.9), this difference was again found to be insignificant (p = 0.21).
The mismatch of timescales around GSH depletion and EGFP transfection does not allow for definitive conclusions from this experiment. What is most likely, however, is that given the high concentration of intracellular GSH and amino acids (∼50 mM), a combination of both trigger polymer decationization and pDNA release. Such a conclusion is also supported by our model pDNA release studies, which demonstrate release within 4 h for both 1.0 mM GSH and 3.8 mM amino acids.
![]() | ||

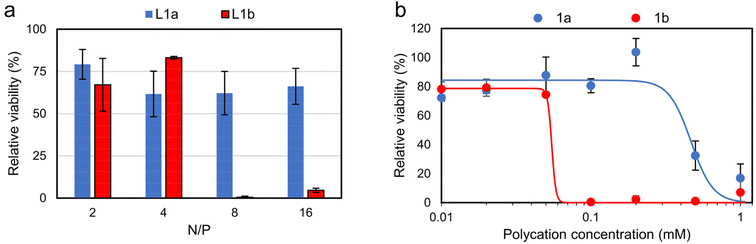

Fig. 6 In vitro cytotoxicity studies on CHO cells via MTS assay (mean ± SD, n = 3). Cells were treated with (a) lipopolyplexes (0.5 μg pDNA per well) at various N/P ratios and (b) responsive and non-responsive polycations. Data is fitted using sigmoidal four-parameter logistic model, with EC50 determined as 0.47 mM for 1a and 0.05 mM for 1b, see Fig. S32† for full description of fitting parameters. Note: at N/P = 4 lipopolyplexes contain a polycation concentration of 0.06 mM. |
Footnote |
† Electronic supplementary information (ESI) available: Additional experimental details and methods, including 1H NMR spectra, GPC chromatograms, TEM micrographs, CLSM images and DLS data. See DOI: https://doi.org/10.1039/d3py00075c |
