Surface passivation with an electron-donating sulfonate group for high-performance and stable perovskite solar cells

Abstract

Perovskite solar cells (PSCs) have gained significant attention due to their potential for high power conversion efficiency (PCE). However, the presence of surface traps has hindered further improvements in their performance and stability. To address this issue, a post-annealing treatment with functional molecules has emerged as an effective method for mitigating trap-mediated non-radiative recombination. Herein, 4-aminophenyl sulfone (APS), containing a Lewis base group (S=O), could interact with uncoordinated Pb²⁺ on the perovskite surface, which not only reduces trap state density but also induces a more p-type surface of the perovskite film. As a result of the APS modification, the device achieved a higher PCE of 23.03%, compared to a pristine device of 21.26%, and the values of open-current voltage (V_OC), short-circuit current density (J_SC), and fill factor (FF) were also improved obviously. Moreover, the APS-modified device demonstrated excellent environmental and thermal stability, maintaining 93% and 90% of its initial PCE after 1000 h at a relative humidity of 30% at room temperature and 200 h in an inert environment at 70 °C, respectively.

---

Introduction

Perovskite solar cells (PSCs) have received tremendous attention over the past decade due to their exceptional light absorption coefficient, low exciton binding energy, high carrier mobility, and low-cost fabrication processes.^1–8 These characteristics make them suitable for potential commercialization, especially given that their power conversion efficiency (PCE) has reached 26.1%.^9,10 Formamidinium (FA)-based lead triiodide perovskites, with a narrow bandgap (E_g ≈ 1.5 eV) and promising thermal stability, are commonly employed as light absorbers.^11–13 However, excess lead iodide (PbI₂) is inevitably retained during the preparation of FA-based perovskite films.^14,15 As a result, the device experiences rapid degradation and severe nonradiative recombination due to the presence of uncoordinated Pb²⁺, significantly impacting both device performance and long-term stability.^16,17

Surface passivation has emerged as a key strategy to reduce extrinsic defects in perovskites and consequently enhance PSC efficiency.¹⁸ Various methods, including 2D/3D heterojunction layer formation,^19–21 organic polymer modification,^22–24 and wide bandgap materials passivation,²⁵ have been explored to improve surface morphology, regulate energy level alignment, and reduce non-radiative recombination. Additionally, small organic molecules containing Lewis-based functional groups such as O-donor, S-donor and N-donor Lewis bases have been investigated for their ability to effectively passivate the perovskite surface.^26–30 The use of S-donor Lewis bases has proven to be more effective than that of O-donor bases in PSCs with structures incorporating thiophene, thiourea, and their derivatives.³¹ Functional groups within these small molecules form coordinate bonds with lone electron pairs to minimize non-radiative recombination and modify the Pb–I surface termination.^32–34 While most reports have focused on utilizing sulfonate-based salts to enhance perovskite crystallization and reduce trap density during perovskite film processing, there are few reports about covalent compounds containing the S=O group.^35–37

In this study, a covalent compound molecule named 4-aminophenyl sulfone (APS) with symmetric space charge distribution was introduced to passivate the perovskite surface. Theoretical calculations and experimental studies demonstrated that APS with the S=O group strongly coordinates with Pb²⁺ on the perovskite surface, reducing surface defects. Additionally, the thin film formed between the perovskite layer and the hole transport layer proved beneficial for minimizing charge carrier recombination. The device with APS modification exhibited improved efficiency, achieving over 23% PCE with a high fill factor (FF) over 80% as well as excellent environmental and thermal stability, maintaining 93% and 90% of its initial PCE after 1000 h at a relative humidity of 30% at room temperature and 200 h in an inert environment at 70 °C, respectively.

Results and discussion

The passivation strategy employed in this study involved the use of an APS molecule with a symmetrical spatial distribution, as depicted in its chemical structure in Fig. S1.† This molecule containing a negatively charged S=O functional group, a benzene ring, and a positively charged –NH₂ functional group was applied to modify the top surface of the perovskite film. The electron distribution, as revealed using the electrostatic potential (ESP) (Fig. 1a), showed that the positive region is primarily distributed in benzene rings and the –NH₂ group, while the S=O group in APS exhibited a high-density electron cloud, providing suitable conditions to form stronger bonds with uncoordinated Pb²⁺ ions.³⁸ Density functional theory calculations indicated that the high electron density of oxygen atoms on sulfonate anions effectively bonded with Pb²⁺ due to their Lewis base properties (Fig. 1b), leading to fewer Pb²⁺ defects on the surface after APS modification.

Fig. 1 (a) ESP analysis of an APS molecule. (b) Interactions between APS and perovskite films. Theoretical model of APS to passivate uncoordinated Pb²⁺ with a S=O group. (c and d) The FTIR spectra of PbI₂, APS, and APS with PbI₂. (e and f) XPS spectra of Pb 4f and I 3d for perovskite films with/without APS modification.

Fourier transform infrared spectroscopy (FTIR) was carried out to analyse the chemical mechanism. The pure APS power exhibited slight peaks at 1186.97 cm⁻¹ and 3455.81 cm⁻¹ (Fig. 1c and d), caused by the symmetric stretching vibrations of the S=O bond and –NH₂ bond, respectively.³⁹ After mixing APS with PbI₂ powder, the peaks of the S=O bond and –NH₂ bond shifted to lower wavenumbers (1179.26 and 3444.72 cm⁻¹, respectively), suggesting strong coordination between APS and PbI₂. This shift demonstrated that the S=O group in APS affected the surface chemical environment.

We also performed X-ray photoemission spectroscopy (XPS) tests to investigate the interaction between APS and perovskite films. As shown in Fig. 1e, the main peaks for the pristine perovskite film, located at 143.31 and 138.46 eV, were attributed to Pb 4f_5/2 and Pb 4f_7/2, respectively.⁴⁰ After APS modification, these peaks shifted to lower binding energies at 143.15 and 138.29 eV, respectively, suggesting that the high electron density of S=O groups could form a strong band with Pb. The presence of Pb⁰, a by-product resulting from the degradation of PbI₂ under light or X-ray conditions, has the potential to induce deep-level defects and cause serious degradation of the PSCs.^41–45 Its noticeable reduction after APS modification suggests that APS can efficiently suppress perovskite defects with electron-donating groups.⁴⁶ Additionally, the I 3d_3/2 and I 3d_5/2 peaks of the APS-modified perovskite film at 630.53 and 619.08 eV slightly shifted to the lower binding energy region compared to the pristine film (630.78 and 619.33 eV, respectively), as shown in Fig. 1f, confirming the chemical environment changed by APS modification. The shift observed in the Pb 4f and I 3d peaks indicated effective passivation of both cationic and anionic defects on the perovskite surface.⁴⁷ Thereby, we speculate that the electro-donor of the S=O group interacted with the Pb²⁺ defects and the –NH₂ provides a hydrogen bond to interact with I 3d. With the synergistic effect of the two groups, the Pb–I framework could coordinate strongly. Furthermore, a strong peak at 168.1 eV was observed after the APS modification (Fig. S3†), confirming the existence of the S element at the perovskite surface. Importantly, the S 2p signal remained even after washing the APS-modified film with pure chlorobenzene (Fig. S4†), further suggesting the strong interaction between APS and the perovskite film.

To further understand the impact of APS modification on the morphology of perovskite films, scanning electron microscopy (SEM) and atomic force microscopy (AFM) measurements were conducted. As shown in Fig. 2a and b, there was no significant change in grain size between pristine and APS-modified films. Interestingly, a passivation layer was observed on the surface of the film, and we speculated that APS may have formed a buffer layer on the surface. Additionally, AFM analysis revealed that the APS-modified perovskite film (17.4 nm) became smoother compared to the pristine film (20.9 nm) (Fig. 2c and d). Furthermore, wettability assessment through contact angle measurements showed an increase in the contact angle for the APS-modified perovskite film (75.6°) compared to the pristine film (57.9°) (Fig. 2e and f), indicating improved hydrophilicity and long-term stability.

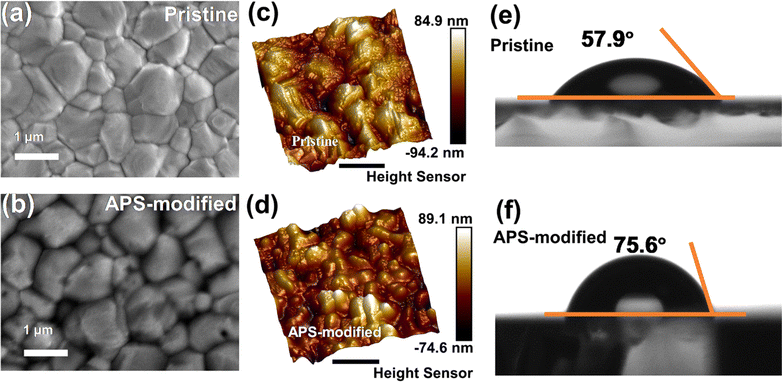

Fig. 2 Top-view SEM and AFM images of (a and c) pristine and (b and d) APS-modified perovskite films. The contact angle measurements of water on (e) pristine and (f) APS-modified perovskite films.

To investigate the effect of APS on the photoelectric properties of perovskite films, we conducted UV-vis absorption, excitation–emission matrix (EEM), time-resolved PL (TRPL), and space charge-limited current (SCLC) measurements on pristine and APS-modified perovskite films. The APS-modified perovskite film showed a characteristic absorption spectrum similar to that of the pristine one (Fig. S5†), with an even higher absorption intensity in the lower wavelength region, suggesting that the passivation of the APS molecule does not alter the light absorption capacity of the perovskite layer and may potentially enhance photon absorption.⁴⁸ Furthermore, both films exhibited an identical band gap (1.56 eV), as determined using the Tauc plot method.

The EEM spectra of the APS-modified films demonstrated a higher emission peak intensity at around 800 nm compared to the pristine film (Fig. 3a and b), with the structure of an ITO/perovskite/APS layer. This phenomenon was attributed to the decrease in the nonradiative recombination after APS modification. TRPL decay spectra (Fig. 3c) and the fitting curve data (Table S1†) indicate a slower charge carrier recombination process in the APS-modified film, suggesting a reduction in trap defects and successful passivation of APS at the perovskite-hole transport layer interface. The SCLC was employed to explore the passivation effect of APS using an electron-only device structure of ITO/SnO₂/perovskite/with or without APS/PCBM/Ag under dark conditions. The APS-modified devices presented a lower trap-filled limit voltage (0.38 V) and reduced trap-state densities (1.95 × 10¹⁶ cm⁻³) compared to the pristine device, 0.61 V (Fig. 3d), suggesting improved performance and reduced interface defects after APS modification.

Fig. 3 EEM spectra of (a) pristine and (b) APS-modified perovskite films. (c) TRPL decays of pristine and APS-modified perovskite films. (d) Dark current–voltage curves of electron-only devices with/without APS modification.

To verify the advantage of APS modification, a device with the structure of ITO/SnO₂/perovskite/spiro-OMeTAD/Ag was constructed (Fig. 4a). After optimizing the concentration of APS modification on the perovskite surface, a concentration of 3 mg mL⁻¹ was selected for demonstrating the best PCE of 23.03% (details in Fig. S6 and Table S2†). Subsequently, we conducted measurements of the photocurrent density–voltage (J–V) characteristics of the best device, as illustrated in Fig. 4b, with the corresponding photovoltaic data listed in Table S3.† Comparative analysis revealed that the APS-modified device exhibited enhanced performance compared to the pristine device, primarily attributed to higher open-current voltage (V_OC) and FF. Moreover, the J–V hysteresis of the APS-modified device was 7.79% compared to that of pristine device (11.42%). The lower hysteresis confirms that APS could effectively passivate surface defects and decrease carrier recombination. The boxplot representations of PCE (Fig. 4c), short-circuit current density (J_SC, Fig. 4d), V_OC (Fig. 4e), and FF (Fig. 4f) for several pristine and APS-modified PSCs indicated good reproducibility, displaying narrow distributions for both sets of devices. These observations underscore the consistent and reliable enhancement achieved through APS modification.

Fig. 4 (a) Device structure of PSCs with APS modification. (b) J–V curves of the champion PSCs based on pristine and APS-modified perovskite films in forward scan and reverse scan. The statistical distribution of (c) PCE, (d) J_SC, (e) V_OC, and (f) FF for the devices.

Furthermore, Fig. S7† displays the external quantum efficiency (EQE) spectrum of the champion device in the 300–900 nm range. Interestingly, the APS-modified device outperformed the pristine device with a higher integrated photocurrent density. Notably, the data reveal a stronger absorbance in the lower wavelength region for the APS-modified perovskite film, suggesting that APS-modified films generate more charge carriers and mitigate defects. This finding aligns with the UV measurement presented in Fig. S5,† which exhibits a higher absorption in the lower wavelength region for the APS-modified perovskite film. The enhancement mechanism associated with APS modification was further explored through ultraviolet photoelectron spectroscopy (UPS) and electrochemical impedance spectra (EIS) measurements. The UPS spectra and energy level diagrams of pristine and APS-modified perovskite films are depicted in Fig. S8.† The conduction band and valence band maximum (VBM) of the pristine film changed from −4.28 and −5.84 eV to −4.18 and −5.74 eV, respectively. Furthermore, the energy offset between the VBM of the pristine film and the highest occupied molecular orbital of spiro-OMeTAD was 0.62 eV, which reduced to 0.52 eV after APS-modification, demonstrating an improved band alignment with the hole transport layer after APS modification. Moreover, EIS measurements revealed that the APS-modified PSCs could augment charge mobility and impede charge recombination (Fig. S9†). These findings collectively validate the positive impact of APS modification on charge transport and recombination processes, ultimately leading to improved PSC performance.

The environmental stability of PSCs is an important factor in assessing their quality. Long-term stability measurements of PSCs with and without APS modification were performed at a relative humidity (RH) of 30% at room temperature without encapsulation, as depicted in Fig. 5a. Both the APS-modified and pristine devices exhibited an increase in PCE over 200 h. This phenomenon was attributed to the oxidation of the spiro-OMeTAD layer.⁴⁹ However, after 200 h, the efficiency gradually decreased due to perovskite layer degradation. Notably, the device with APS modification retained 90% of its initial efficiency after 1000 h under ambient conditions, demonstrating superior stability compared to the pristine device. Additionally, thermal stability testing at 70 °C in a N₂ atmosphere was conducted, as shown in Fig. 5b. The APS-modified PSC exhibited improved thermal stability compared to the pristine device. The efficiency of the pristine device rapidly decreased to less than 60% of its initial PCE after 80 h, while the APS-modified PSC retained more than 90% of its initial PCE. The X-ray diffraction (XRD) results in Fig. S10† reveal that the perovskite film with APS modification exhibits a lower PbI₂ peak and (111) peak compared to the pristine film, which may be attributed to the strong Lewis acid–base interactions between APS and free PbI₂, indicating the passivation effect of APS on the perovskite film.^50–53 Furthermore, the absence of a new peak after APS modification suggested that APS does not combine with perovskites to form two-dimensional phases. Long-term stability of the APS-modified perovskite films probed by phase evolution after storage was measured by XRD, as shown in Fig. 5c and d. These XRD patterns illustrate that the perovskite (100) orientation decreased after 1000 h due to the degradation of the perovskite layer. Moreover, the perovskite with APS modification exhibited a lower decrease under the same conditions. Additionally, a new peak at around 12° in the pristine film was identified as the δ-phase perovskite resulting from the degradation of the FA-based perovskite film.^54–57 These results highlight excellent performance with APS modification, illustrating its ability to passivate perovskite films and suppress perovskite degradation.

Fig. 5 (a) Long-term stability measurements of devices with/without APS modification at room temperature at RH 30% without encapsulation. (b) Thermal stability measurements of PSCs based on pristine and APS-modified perovskite films under a N₂ atmosphere. (c and d) XRD patterns of pristine and APS-modified perovskite films before and after exposure to ambient conditions for 1000 h, respectively.

Conclusions

In conclusion, our study showcased a multifunctional optimization strategy through the utilization of APS molecules for surface modification of the perovskite layer. The electron-donating sulfonate group within APS effectively passivated the surface defects, interacted with Pb²⁺, and ultimately enhanced device performance. Notably, several film characteristics were improved, leading to an increase in V_OC from 1.11 V to 1.14 V and an enhancement in PCE from 21.26% to 23.03%, respectively. Moreover, the optimized PSCs exhibited robust stability, retaining 93% and 90% of their initial PCE after 1000 h at a relative humidity of 30% at room temperature and 200 h in an inert environment at 70 °C, respectively. This work introduces a new small molecule for modifying the perovskite film surface in PSCs, thereby advancing the development of high-performance and long-term stability PSCs.
