A. J. C.
Varandas
abc
aSchool of Physics and Physical Engineering, Qufu Normal University, 273165 Qufu, China. E-mail: varandas@uc.pt
bDepartment of Physics, Universidade Federal do Esp rito Santo, 29075-910 Vitória, Brazil
cDepartment of Chemistry, and Chemistry Centre, University of Coimbra, 3004-535 Coimbra, Portugal
First published on 20th May 2025
A general (3+4)-atom partitioning scheme, quasi-molecule theory or simply tiling, is briefly reviewed and used anew for rationalizing the propensity to planarity of the families of Group-XIV pentatomic dihydrides. Ab initio molecular orbital theory is used to calculate the structures of such dihydrides in their electronic ground states, as well as the tiles [tri- and tetratomic quasi-molecules (quasi-radicals)] embedded on them. Using cc-pVXZ and aug-cc-pVXZ basis sets up to quadruple-ζ in conjunction with coupled-cluster theory, and its explicitly correlated variant, including single, double, and perturbative triple excitations, a brief study of the involved potential energy surfaces is presented, including equilibrium geometries and harmonic vibrational frequencies of many reported stationary points. Unveilled are the structural shapes of the title species, aiming in particular to explain why they all tend to assume planar forms. Although a cyclic structure is frequently the global minimum, in striking similitude with the also unusual purely carbonated structure recently conjectured to be present in the atmosphere of Titan, other variants turn out to be more stable in some cases. The relative stabilities of the isomers of the title species are also determined. Although not at the focal point, optimizations of other molecules and radicals were also done aiming at put in perspective recent work while providing further benchmark tests on linearity, planarity or otherwise.
![]() | ||
Fig. 1 Triangular plot in number of atoms of C, Si and Ge of the title penta-atomic dihydrides. Indicated in light blue are their linear (L) or planar (P) shapes. |
Following Xu et al.,5 we begin by surveying some marked differences between the hydrides of Group-XIV elements. At diatomic level, the lowest-lying excited states of (SiH, GeH) are known to be markedly weakly bound in comparison to CH.8–10 In turn, CH2 and (SiH2, GeH2) have different ground state multiplicities and geometries,11,12 while CH3 and (SiH3, GeH3) have different ground state geometries.13 The list is larger,5 and the differences even more pronounced for other compounds, e.g., the ground-state of C2H2 is linear but the ground states of Si2H2 and Ge2H2 have a “butterfly” structure,14–16 while the ground states of Si2H4 and Ge2H4 have a trans-bent structure, not a planar geometry as in C2H4,4,17–21 a point where we return in Section 4.
The so-called “first row anomaly22” was examined by Kutzelnigg23 in 1984, which implies that the chemistry of the first row elements differs from that of elements in subsequent rows. By focusing on concepts that were justified for first row elements, but which, contrary to widespread belief, cannot be generalized to the higher main group elements, he noted “If one assumes that the lower the promotional energy the more readily hybridization occurs, one would expect more hybridization in heavy atoms-contrary to what is observed.” From his analysis, he concluded that the decrease in ns participation in the X-atom bond orbitals was the cause of the changes in the chemical behavior of the main group elements down a column; X = C, Si, Ge. This was corroborated by Xu et al.5 in their analysis of the SCGVB orbitals of the (CHn, SiHn, GeHn) series where the X-atom bond orbitals were found to have more np character in (SiHn, GeHn) than in CHn. They also noted5 that the case is even more complicated due to the difference in the bond energies of the C-, Si- and Ge-hydrides which plays another key role in the encountered anomalies.
The literature on bonding in the first versus subsequent rows of the periodic table is too vast to address it all, but the work by Thomas et al.24 on the formation of the elusive dibridged germaniumsilylene molecule [(Ge(μ-H2)Si)] via reaction of ground-state Ge with silane (SiH4) under single-collision conditions deserves attention. While the thermodynamically most stable isomer of the acetylene potential energy surface25 (PES) is linear (H–CC–H), vinylidene carbene (H2C
C) is less stable26 by 186 kJ mol−1. Additionally, as also discussed in Section 3, the stability sequence is reversed in the SiCH2 and GeCH2 isomers: silavinylidene (H2CSi)27 and germavinylidene (H2CGe)28 represent the global minima being thermodynamically favored by 145 and 177 kJ mol−1 relative to the trans bent isomers silaacetylene (HCSiH)29 and germaacetylene (HCGeH).30,31 This has been rationalized from the reduced overlap of the valence s and p orbitals of the Si and Ge atoms as compared to C, which hinders their ability to form the sp orbital hybrids that explain the linear geometry of acetylene,24,32,33 while promoting the stability of hydrogen-double-bridged molecules in contrast to acetylenic or carbene-type structures.24 Such an exotic chemical bonding and unusual molecular structures of Si and Ge have actually been demonstrated by spectroscopic detection of the hydrogen-bridged Si(μ-H2)Si,34 HSi(μ-H)Si,35 Ge(μ-H2)Ge and HGe(μ-H)Ge36 isomers, which are energetically favored when compared to their carbene [H2SiSi, H2GeGe], and trans-acetylenic-type isomers [HSiSiH, HGeGeH].36–38
Although it is well established that ab initio quantum chemistry followed by MO analysis leads in principle to the correct explanation of bonding in any polyatomic, there are clearly limitations imposed by the physical size of the system. Additionally, the analysis is clean-cut only up to tetratomics when accuracy is best attained and concepts such as hybridization are easier to understand and vizualize. One then wonders whether the known facts from small molecules may help on rationalizing the geometries of larger ones. Such an approach, quasi-molecule theory or tiling, has recently been suggested39 and the method applied to a variety of medium and large molecules.40–44 It will be briefly reviewed in Section 2 and put on perspective by considering novel examples, while further illustrated later anew by focusing on the title pentatomic dihydrides. Naturally, the exotic chemical bonding and unusual molecular structures of Si and Ge demonstrated above (whose C-analogs do not exist as equilibrium structures) may presage difficulties, thus posing additional challenges. Unravelling them is the goal of the present work.
![]() | (1) |
![]() | (2) |
![]() | (3) |
![]() | (4) |
→ 3X(1D) + 2H(2S) | (5) |
It turns out that the energy separation between the singlet and triplet electronic states of the group-XIV atoms,453P → 1D, is 1.26 eV for C, 0.78 eV for Si, and 0.88 eV for Ge. So, it is reasonable to consider the lowest energy separation between the singlet and triplet potential energy surfaces (PESs) of the pentatomic dihydride to decide which of the singlet versus triplet mechanistic routes is likely the dominant process. For example, consider the C(3P, 1D) + C2H2 reactions that may occur on the singlet C3H2 PES where the minima of several isomers are present as we will discuss later: propynylidene (i.e., propargylene, HCCCH, the simplest acetylenic carbene), propadienylidene (the simplest vinylidene carbene, H2CCC), and cyclopropenylidene (the smallest aromatic carbene, c-C3H2). It turns out that cyclic-propenylidene c-C3H2 is energetically the lowest structure, but roughly only by 17 kcal mol−1 ≈ 70 kJ mol−1 ≈ 0.725 eV (units are used interchangeably according to common use in the literature) when compared with the lowest triplet isomer (propargylene).46 Since intersystem crossing and even crossings are likely to occur on the 9-dimensional PES of the pentatomic, one then expects that dissociation to both C(3P, 1D) + C2H2 may occur:
![]() | (6) |
Suffice it to note here that the above partitions should be observed for a given geometry of the parent molecule and, if such breakups are unique, they can be the basis for the construction of a global PES for the title pentatomics via a many-body expansion48 of the total potential energy, using either the MBE formalism49,50 or double-MBE50,51 (DMBE) whereby the total energy is first split into short- and long-range components, eventually in its combined-hyperbolic-inverse-power-representation52–54 (CHIPR) form. This is not the aim of the present work. In fact, the only partitions here involve three- and four-atom fragments as in eqn (1) and (2), and hence the approach may be referred to as (3+4)-atom partitioning ((3+4)AP), commonly referred to as “tiling”.39–44 Since the tiles are quasi-molecules in the sense specified later, it may be equivalently referred as quasi-molecule theory. At stake is to know in what extent can such a split help on understanding the geometrical shape of the parent molecules. As already noted, other systems rather than the title group-XIV pentatomic dihydrides will be considered anew as testing grounds. Note that only the electronic and spin state of the fragment species is indicated in eqn (1), (2) and (4) for a specific state of the parent, while no reference is made to the specific isomers of the product species in case there are more than one.
Lemma 1. If all triads of points in a set are on a line, they all are on the same line (are collinear in an Euclidean sense).
Lemma 2. If all tetrads of points in a set are on a plane, they all are on the same plane (are coplanar in an Euclidean sense).
The term triad should not be confused with Döbereiner's homologue in the history of Chemistry55 (where the elements were sort out into groups of three elements – triads – whose physical properties were similarly related56). Such Lemmas, proven elsewhere,39 are here briefly sketched for completeness. Recalling the inherent vector spaces, each atom (assumed a point) of a linear triatomic 123 is the tip of an arrow, with the associated vectors 1,
2,
3 spanning a vector space V. Since all atoms are on the same line, there is a vector subspace W, W⊂V, that is a minimal spanning set. In fact, any of the three vectors (e.g.,
1) is enough, since there is
such that any vector on the assumed line may be written as, e.g.,
2 = α
1, thus implying collinearity. In matrix form, if A is formed by the coordinates of the three atoms, it will be a matrix with three column vectors and three row vectors in
, but two are the vector 0. Although for an m × n matrix, where n > m, the rows may form a basis for a vector space, the columns cannot because (n–m) of them and any space that they span must be a subspace of
: at most m vectors are required (the columns are a linear dependent set). For linearity, the matrix is 1 × 1, thence a scalar.
Consider next a second triad of atoms (234). Since the rank of the corresponding B matrix is 1, the coordinates of the additional atom (4) are simply a multiple scalar times those of atoms 2 and 3 of previous set: all atoms are collinear. An even easier way to reach the same conclusion is to note that with two atoms common to both triads, the line must be common to both pairs.
A similar analysis may be extended to the case of planarity, sufficing to note that one is now dealing with a vector space of four vectors in lying on a plane. Thence, there is a set of vectors
that span V′, but there is also a subspace W′, W′⊂V′, that is a minimal spanning set, now of rank 2.
As a further example, consider tetracarbon dioxide, also regarded as butatriene dione, the double ketone of butatriene or 1,2,3-butatriene-1,4-dione.61 Is its linear structure expected and consistent with the geometries of the tiles with which it correlates? The answer is yes, since both 3Σ− and ã1Δ states of ketenylidene62 (C2O) are linear, and also ground singlet C3.63–65
A similar reasoning is applicable to C5O2 (pentacarbon dioxide or penta-1,2,3,4-tetraene-1,5-dione), a linear66 singlet (X1Σ+g) that was suggested to serve as a powerful tracer of the temperature history of formerly carbon monoxide rich ices in molecular clouds and star-forming regions [stick-and-ball plot obtained via CCSD(T)/VDZ optimization in the Graphical Abstract].67 Analogously, C4O2 is a triplet61 that is indefinitely stable in matrices but decomposes by light into tricarbon monoxide C3O and carbon monoxide.61,68,69 Although this raises the question of stability, such an issue requires a quantitaive explanation either experimentally or via accurate quantum chemistry. It turns out that ab initio calculations seem to deny existence to the O(C)n
O family with large even n values which appear unstable.70 In fact, their existence and shape is unknown, and hence cannot afford a test of consistency with its tiles. One wonders though whether this may be due to the possibility of forming carbon clusters, that may also be nonlinear with increasing number of C atoms.58 Of course, linearity is also present in cumulenes71 as well as linear C clusters,44,72,73 which are not here discussed.
Examining all possible triads or tetrads (to be discussed in the next subsection) of atoms is not cumbersome in the present case. However, it can be for large molecules, although a scheme for overcoming it has been suggested.39–44 On the other hand, examining the triads for linearity may occasionally help when assessing planarity of a molecule (see the next paragraph). For example, consider an atom bonded to 4 other atoms or groups of atoms, where two or more at the fringe are free from any other bonding. This is the case of CH3 in methane (CH4) or when capping alkanes (e.g., CH3 in butane C4H14). Let the three terminal H atoms be labelled 1,2,3 with C being number 4. For simplicity, assume further that the fifth atom is a H atom (but can be any other). Noting that the two tetrads 1234 and 2345 would relate to CH3, which is known to be planar, it might appear (from reasons discussed in Section 2.2.2) that CH4 would be planar. However, this would imply two linear HCH triads. Since these relate to CH2, the answer invalidates the previous assessment since methylene (CH2) is bent both in its triplet (ground-state) and singlet states.74
The above argument might lead to predict that cyclobutane is nonplanar, and indeed it is not planar, with strained non-ideal angles ∠CCC of 90 deg rather than 109.5 deg that one would expect from the sp3 hybridized carbon atom. The same argument holds for cyclopropane, since not all atoms are in a single plane, thus contradicting conventional wisdom that considers it to be a planar molecule. In fact, the ∠CCC angle is now 60 deg with the three carbon atoms forming a planar C-ring granting the molecule to possess D3h symmetry, but not with all atoms on the same plane: they occupy three parallel planes, one defined by 3 C atoms and two other planes by 3 H atoms each.
Even simpler by analogy with the case of linearity, is to consider triads of bonds rather than tetrads of atoms, say . For a pentatomic, only the triads
,
and
would require consideration.
To illustrate the above, consider benzene, C6H6. With 495 possible tetrads, the analysis to examine its planarity would start to be prohibitive. However, the actual number reduces to 10 involving HCCH and CCCH tetrads, 5 of each, as long as we are interested in geometries close to equilibrium. No need exists to consider the C or H atoms separately, which simplifies the analysis. The second of the above tetrads is the C3H quasimolecule, which is planar in its ground-doublet59 state and remains so in its lowest quartet state, although as a saddle point of index 1, with an imaginary frequency of 81.6 cm−1 for out-of-plane bending, at the geometry of the doublet. (Parenthetically, this is located 37.4 kcal mol−1 above the linear minimum at the CCSD(T)/AVTZ level of theory; 141.3 cm−1 and 37.5 kcal mol−1 with a VQZ basis, in the same order.) In turn, the HCCH tetrads have C2H2 as the quasimolecule, linear in its ground-singlet state25 (planar25 on its high-lying vynilidene isomer) but trans-planar75,76 in its lowest triplet state (see Fig. 2 and the ESI,† where it is optimized at the CCSD(T)/AVQZ level of theory). Both such tiles are therefore consistent with benzene being planar. Note that C6H6(1A) → 3C2H2(3A) and C6H6(1A) → 2C3H(2A) + 4H(2S). Note further that the quartet state of HC3 is irrelevant in the present case. As already noted, the CCCC tetrads are of no concern (as long as the focus is on regions close to the equilibrium geometry of the parent) for two reasons. First, the formation of a C4 quasimolecule would require at least four C–H bonds to be broken, thence a high energetic process. Second, even so, it might form a linear C4, which could be assumed to lie on the plane defined by the HCCH and HCCC tetrads that edge the CCCC ones. So, they can be discarded. Regarding HHHH, such tetrads share difficulties common to CCCC besides not being bound: thence, may be assumed to satisfy any geometry implied by other tetrads.
![]() | ||

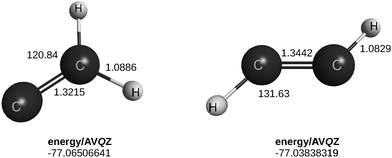

Fig. 2 Optimized geometrical parameters for triplet acetylene calculated to in the present work. Distances in Å, angles in deg. All calculations here reported are run without imposing symmetry. |
A similar analysis as for benzene is valid for naftalene (C10H8) and anthracene (C14H10): only the HCCH and HCCC tiles need consideration. This is not so for the anthracene photodimer77,78 (dianthracene), since a pair of new C–C bonds is formed as a result of the [4+4] cycloaddition. The tetrads will then be HCCH, CCCH, and CCCC. Because ground-state C4 is linear in its triplet state, and its singlet is rombohedral [although there are predictions58 of a linear isomer and a weakly bound singlet Cs monocyclic ring (distorted kite, d-C4(1A′)) that lies high up in energy], it is impossible to warrant the parent's planarity without further analysis.41–43
Consider next anthraquinone. Formed from the oxidation of anthracene, C14H8O2 has HCCH, CCCH, HCCO and CCCO tiles that require consideration. The quasimolecules are now H2C2, HC3, and C3O. The novel tetrad is tricarbon monoxide, the first known interstellar carbon chain molecule containing oxygen.79,80 Classified as a ketene or oxocumulene, it is linear in its ground-singlet state. However, CCCO can be associated to cyclopropynone, an isomer that is planar in its triplet state, as shown81 with B3PW91/6-311+G* and confirmed in Fig. 3 at CCSD(T)/AVTZ level of theory. Furthermore, it assumes an open (∠CCO = 167.5 deg) planar structure in its singlet state. So, all tiles are consistent with anthraquinone being planar.
![]() | ||
Fig. 3 Optimized geometrical parameters of propynone. Units as in Fig. 2. |

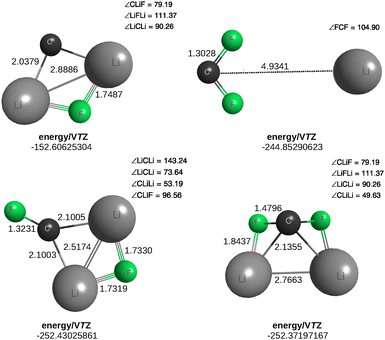

It may appear from the paragraph before the last in Section 2.2.1 that molecules with tetracoordinated atoms could hardly be planar. Yet, a paper titled “Carbon flatland: planar tetracoordinate carbon and fenestranes” highlights the broad topic of planarizing distortions of tetracoordinated carbon.82 Pople and coworkers83 report there minimal basis set ab initio (RHF/STO-3G) calculations on the geometries of both tetrahedral and planar structures for various species. An intriguing one is CLi2F2, which they suggested to be cis-planar in its most stable configuration, rather than tetrahedral. Without diving on the topic, one wonders whether such a proposal is consistent with the structures of the CF2Li or CLi2F tiles. The answer is yes, although no attempt has been made to check whether any of the structures shown in Fig. 4 is the absolute minimum in the CLi2F2 PES. Nevertheless, all their calculated harmonic vibrational frequencies are real. However, rather than tetrabonded, the C atom in the present CCSD(T)/VTZ optimizations emerges as tribonded in the planar structure, possibly due to accounting for electron correlation. It is tetrabonded, but in the pyramidal structure optimized at the same level of theory, thus confirming our expectation.
Of course, the number of molecules has to be limited by necessity, with the reader addressed elsewhere40–44 for further examples. To conclude this section, suffice it to recall the hypercoordinated arenes or hyparenes (families of molecules with planar pentacoordinated carbons),84 and others alike.82 Are they consistent with the propensity of C2B2 and CB3 to planarity, as shown in Fig. 5? The answer is positive but this and other questions are left for brevity without details.
![]() | ||
Fig. 5 Optimized CCSD(T)/VTZ geometries of CB3 (lhs) and C2B2 (rhs). Units as in Fig. 2. |
![]() | ||
Fig. 6 Except for the top parent anions, optimized at the DFT/B3LYP,91 including Grimme's D3 dispersion,92 and M06-2X93 functionals,85 the tetranions are from the present work at CCSD(T) level of theory. All optimizations employed AVTZ basis sets. Units as in Fig. 2. |
We now turn to molecules that are known to experience strain when their chemical structures undergo stress which raises the internal energy in comparison to a strain-free structure. Well known is cyclopropane discussed in Section 2.2.2. Others may be just hypothetical like benzotriyne (cyclo[6]carbon), a C6 allotrope of carbon where the C atoms are connected by alternating triple and single bonds.94 Yet, this is just the beginning of the so-called cyclo[n]carbon family which has attracted much experimental and theoretical research;95,96 see also elsewhre.40
The last paragraph leads one to well established examples of strain in clusters, in particular the Cn clusters. These vary from small58 to large, from linear chains to rings to closed cages to nanotubes, with increasing size of the cluster.97 When the cluster size exceedes 6 atoms or so, they have been suggested to present ring forms whose stability tends to increase due to reduction in angle strain. In fact, isomers of C6, C8 and C10 rings are often predicted at high level of theory to be near isoenergetic or even lower in energy than their linear counterparts58,95 (and references therein). Experimentally, Raman spectra observed for C14, C16, C18, and C20 clusters led to assigned them to linear chains, while the fluorescence observed spectra of C14 and C18 in the same experimental conditions suggested instead to cumulene rings.98,99 In turn, the observed electronic spectra of C18 and C22 in gas phase were assigned to several transitions of monocyclic cumulenic rings with D9h (for C18) and D11h (for C22) symmetries.100 So, despite the intense research activity and continuing progress, the predictions diverge depending on the experimental set up and employed level of theory. The possible shapes should though show conformity with the predictions from quasi-molecule theory as it appears to be the case from previous work.40–44 Of course, one cannot exclude to attribute the many possible shapes to the flatening of their high-dimensional PESs. This may explain the natural appearance of multiple shallow minima (stable or metastable) with increasing cluster size, and also lead one to conjecture that the shape of how they are “visible” may depend on the way they are looked upon.
To sum up, it seems unfruitful any attempt to rationalize the multiple minima of clusters as they cannot be distinguished even by quantitative quantum chemistry, particularly when the cluster size grows. Abridged is also any discussion on van der Waals molecules. Involving mostly interacting closed shell systems, they may assume almost any geometry due to resting on a delicate balance of short- and long-range interactions. We turn in the following to the title group-XIV pentatomic dihydrides.
For accuracy, the relative energies of the predicted isomers for the group-XIV pentatomic dihydrides have been determined using both canonical CCSD(T)/V5Z and explicitly correlated CCSD(T)-F12 calculations at the optimized geometries. Such F12 calculations employed the specialized VXZ-F12 ansätze107 jointly with the VXZ-F12/OPTRI basis sets, which entered by default to construct the complementary auxiliary orbital basis (CABS). In all these cases, the CABS singles correction was used to improve the Hartree–Fock reference energy.108,109 Only the pure pentatomic hydrides of C and Si have been considered at the explicitly correlated level since, to our knowledge, no specialized VXZ-F12 basis sets have been reported for germanium.
A summary of the numerical output from the calculations in the previous paragraph is gathered in Table 1, while a summary of the calculations performed in the present work is given in the ESI.† It should be noted that all reported calculations are valence only, thus disregarding core and core-valence correlations.
Molecule | Isomer | CCSD(T)a | CCSD(T)-F12bb | Otherf | ||||
---|---|---|---|---|---|---|---|---|
E | ΔEd | ΔEZPEe | E | ΔEd | ΔEZPEe | |||
a With V5Z basis. b With V5Z-F12 basis. c At optimized CCSD(T)/VTZ geometry. d Without ZPE. e At CCSD(T)/VTZ level with ZPE. f From Vázquez et al.110 using CCSDTQ/VQZ. From Ernst et al.111 for Si3H2 at CI level with triple-ζ polarization basis. g At optimized CCSD(T)/AV(T+d)Z geometry. h n.c. = not calculated. i At CCSD(T)/AVTZ level, with ZPE. j At the minimum; see the text. k At the saddle point. | ||||||||
C3H2c | A | −115.17673701 | 0.000 | 0.000 | −115.18297587 | 0.000 | 0.000 | 0.0 |
B | −115.15342488 | 14.628 | 13.735 | −115.15920978 | 14.913 | 14.020 | 13.751 | |
C | −115.13434515 | 26.601 | 24.205 | −115.14029053 | 26.785 | 24.061 | ||
D | −115.12085708 | 35.065 | 32.479 | −115.12685580 | 35.216 | 32.630 | ||
E | −115.09376404 | 52.066 | 49.670 | −115.09975603 | 52.221 | 49.825 | ||
Si3H2c | A | −868.31401950 | 0.000 | 0.000 | −868.31980538 | 0.000 | 0.000 | 0.0 |
B | −868.31262419 | 0.876 | 0.893 | −868.31818859 | 1.014 | 1.031 | 1.4 | |
C | −868.30995348 | 2.552 | 2.395 | −868.31542240 | 2.806 | 2.649 | 1.7 | |
D | −868.30641860 | 4.770 | 4.184 | −868.31183712 | 5.000 | 4.414 | 4.9 | |
E | −868.30519013 | 5.540 | 5.381 | −868.31071932 | 5.702 | 5.543 | 6.6 | |
Si3H2g | A | −868.31414472 | 0.000 | 0.000 | −868.31995184 | 0.000 | 0.000 | |
B | −868.31274409 | 0.879 | 0.896 | −868.31832631 | 1.020 | 1.037 | ||
C | −868.31003124 | 2.581 | 2.424 | −868.31533455 | 2.897 | 2.740 | ||
D | −868.30652380 | 4.782 | 4.196 | −868.31195629 | 5.017 | 4.424 | ||
E | −868.30531370 | 5.542 | 5.383 | −868.31086229 | 5.704 | 5.545 | ||
Ge3H2c | A | −6227.73807857 | 0.000 | 0.000 | n.c.h | n.c. | ||
B | −6227.73795297 | 0.079 | 0.562 | n.c. | n.c. | |||
C | −6227.73533125 | 1.724 | 2.093 | n.c. | n.c. | |||
D | −6227.72811421 | 6.253 | 6.844 | n.c. | n.c. | |||
E | −6227.72736783 | 6.721 | 7.076 | n.c. | n.c. | |||
CSiGeH2di | A | −2403.77628475 | 0.000 | 0.000 | n.c. | n.c. | ||
B | −2403.75710130 | 12.038 | 11.850 | n.c. | n.c. | |||
C | −2403.74560337 | 19.253 | 19.828 | n.c. | n.c. | |||
D | −2403.74459499 | 19.886 | 18.927 | n.c. | n.c. | |||
Ej | −2403.73293091 | 27.205 | 25.615 | n.c. | n.c. | |||
Ek | −2403.73226210 | 27.625 | 25.690 | n.c. | n.c. | |||
F | −2403.70915954 | 42.122 | 39.618 | n.c. | n.c. | |||
G | −2403.68007800 | 60.371 | 56.605 | n.c. | n.c. |
For the tetratomics, the predicted optimized structures are in Fig. 7, and ordered from bottom to top according to their energy in relation to that of the most stable isomer which is at the bottom of each column. To avoid a larger computational burden, only the mono- and dihydride tetratomics of relevance for the present work are here considered, thus leaving aside hybrid species such as SiC2H, CSi2H, and so on.
![]() | ||

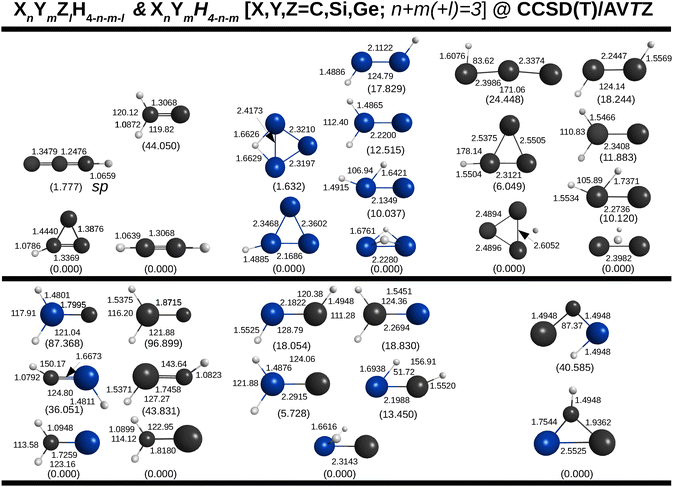

Fig. 7 Tetratomic mono- and dihydrides of C, Si and Ge optimized at the CCSD(T)/AVTZ level of theory. Given in brackets are relative energies in kcal mol−1. Due to lack of space, not all relevant coordinates may have been indicated. They may be obtained from the ESI.† Also there are the harmonic vibrational frequencies. |

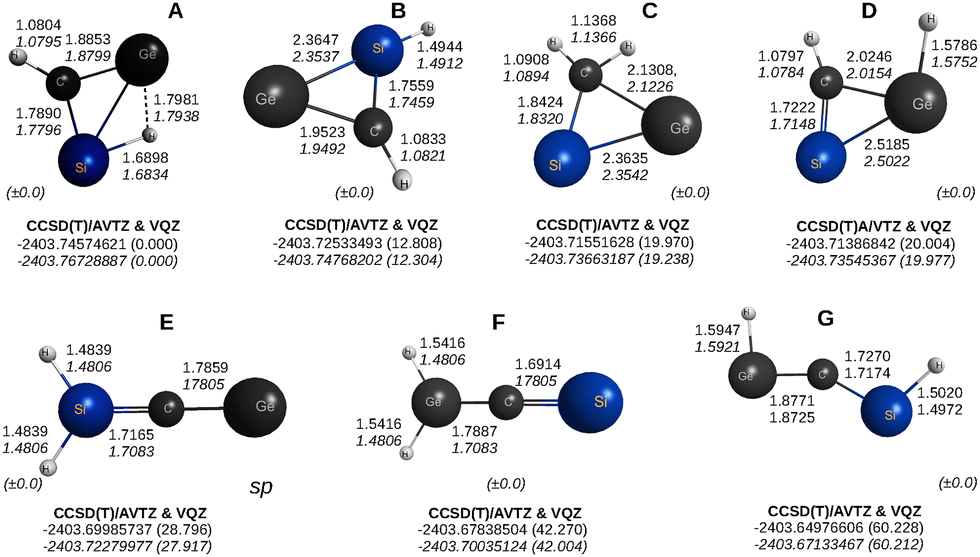

The optimized pentatomic dihydride structures are in the compilation of Fig. 8. Although an attempt has been made to locate all possible minima (thence, stable or metastable structures), such an effort has not been extended to other stationary points, but some that turned out to appear during the calculations are also indicated. Although the survey is fairly extensive at the CCSD(T) level of theory, there is no warranty that further stationary points cannot be found for higher energies.
In an attempt to search for further extremal, we have employed the optimized reaction coordinate for stimulated evolution58 (ORCSE) scheme as illustrated in the top panel of Fig. 10. Briefly, the following three-point premise is accepted: (1) all intermediates are well approximated at CCSD(T)/VDZ level of theory; (2) all are accessible through a reaction coordinate that involves the stretch of a bond (this is marked with a star in the corresponding plot), once all other degrees of freedom are fully optimized; (3) given the limitations of the optimization process, other paths may be potentially useful and hence have been tried in an attempt to unveil possible stationary points. Although, a wider variety of procedures has been suggested,58 they were not attempted (or deemed necessary) in the present work. As seen, the ORCSE path climbs too fast in energy and shows no evidence of additional minima up to a reasonable energy above the most stable isomer. Indeed, the geometry of other structures are shown in Fig. 8 but they turn out to be saddle points in the C3H2 PES. As shown there is no evidence of any marked break in the ORCSE path that could suggest the existence of any further extremal point in that energy range. Note that all optimized structures are planar showing dihedral angles of 0 or 180 deg.
![]() | ||
Fig. 10 ORCSE paths for C3H2 and Si3H2 searching for possible structural isomers as obtained by varying the distance between atoms separated by a star. With this bond treated as inactive coordinate, all other DOF are optimized, and energies measured relative to starting-geometry one. In this plot and that of Fig. 13, n.c. stands for non-converged. |

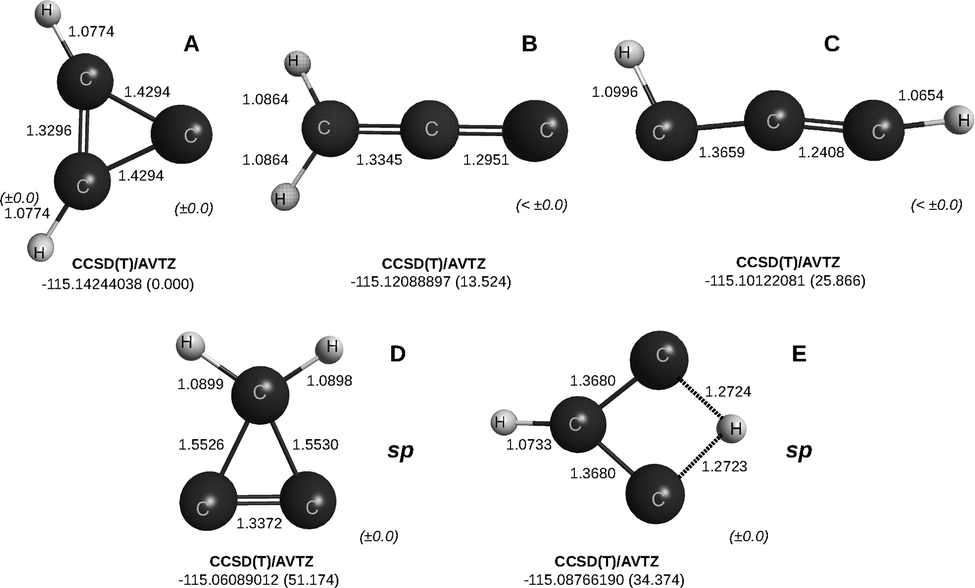

Because the structures of the tiles (tetratomics at their equilibrium geometries in isolation) are either linear (C2H2 in its ground-singlet state) or planar (C2H2 in the triplet state, and C3H), the (3+4)-atom partitioning scheme implies that the lowest isomers of C3H2 should be planar, as is actually the case without exception up to more than 26 kcal mol−1 or so above the energy of reference isomer. In fact, even the highest lying saddle point (sp) structure here reported at 51 kcal mol−1 above the reference energy is planar at the CCSD(T)/AVTZ level of theory. Indeed, one of the dihedral angles in this structure is rather small (0.8 deg), while the other is nearly 180 deg (179.1 deg). However, when tightening the convergence criterion, such deviations from planarity become smaller than ±0.1 deg. So, there is a clear propensity for planarity in C3H2 as it is also visible from the ORCSE profiles in Fig. 10, which cover basically planar structures all the way up to where shown.
As in the case of C3H2, we may now try to find whether the pristine tri-silicium dihydrides could be predicted to be planar from those of the tetratomic fragments Si2H2 and Si3H. The basis for the prediction appears to be less confortable in the present case due to the fact that the most stable structure of Si2H2 has a butterfly structure, thence non-planar. Yet, it should be highlighted the fact that there is no implication in the order of the tetratomic planar isomers, sufficing it to appear in the list of possible isomers that obey the appropriate spatial-spin state of the parent pentatomic dihydride. This is actually the case, with all tri-silicium monohydrides and all but one di-silicium dihydride being planar (eventually, quasiplanar within 1–2 deg) depending on the employed optimization constraints. In this regard, it should be noted that they have all been optimized with default convergence parameters. Indeed, both the H2SiSi and trans-bent HSiSiH singlet structures are planar and local minima.14 Moreover, in the triplet state, the planar H2SiSi is the global minimum, and the planar trans-bent HSiSiH plus a bridged structure are local minima.14 CBS extrapolated energies for the tetratomic silicium dihydrides, Si2H2, have been reported by Thomas et al.24 who reported values of 0.0, 9.1, 12.0, and 16.5 kcal mol−1, here too in good agreement with our estimates.
![]() | ||
Fig. 13 As in Fig. 10 but for Ge3H2. |
As for the pure silicium analog in the previous subsection, in this case too the most stable di-germanium tetratomic dihydride is butterfly shaped, and hence the explanation for planarity of the pentatomic dihydrides may appear in this case too to be somewhat questionable. This is not so. As for Si3H2, it suffices to recall that the remaining isomeric structures reported in Fig. 7 are essentially, if not strictly, planar. Similarly, all tri-germanium monohydrides are planar within the employed optimization constraints. Additionally, the lowest isomer of triplet Ge2H2 is planar as we have also found in the present study (see the ESI†).
As seen from Fig. 7 and 14, except for the relative energy ordering, basically all isomeric forms are present in all pentatomic dihydrides here studied. In fact, when not showing as stable isomers (minima), they appear as saddle points, in all cases of index 1. Indeed, they were often rerun with high convergence criteria to warrant that the stationary point shows the correct index.
Regarding the tetratomic fragments, the calculations predict the existence of up to five stable structural isomers (depending on the group-XIV atomic combination) in their singlet ground states. Interesting is the Siμ-H2Ge butterfly molecule, which is here too predicted as the most stable structure.24,30 As already emphasized, this shows the preferential stability of hydrogen-bridged dinuclear molecules in the absence of carbon, which in contrast favors acetylenic or carbene-type structures. The agreement with the five stable isomeric structures predicted in the present work is excellent; see Fig. 7. In fact, a similar observation goes for the tetratomic CSiGeH with the two structural isomers here reported being also planar. With all but the energetically lowest tetratomic structures being planar, this should explain the propensity of CSiGeH2 to be itself a planar molecule as illustrated by the whole set of structures shown in Fig. 8 and 14.
A query then emerges from a further look to Fig. 8 and the fact that CGeSiH2 is a sadlle point of index 1 with a very small imaginary bending frequency of −14.4 cm−1. If so, is there a non-planar minimum nearby? Prompted by this, we have performed a further optimization with a tight convergence of 10−5Eha0−1 for the gradient. This led to the prediction of a broad minimum with a well dept of 0.25 kcal mol−1 (0.25 kcal mol−1 at the CCSD(T)/V5Z level of theory; see Table 1) relative to the top of the barrier and an angle of ∠GeCSi = 127.4 deg; the bond distances are in an obvious correspondence with those of the saddle point in Fig. 14: 1.4838, 1.7165, and 1.7859a0. This should not at all be disappointing. Although one can hardly tell for sure whether such details are correct (as it is located relatively far from the absolute minimum of the CGeSiH2 PES and the method is single-reference), one should recall that the configuration space of a pentatomic is expected to be mostly nonplanar in its 9D configurational space (a plane has zero-dimensionality in such a space). Can the same reasoning apply to the two saddle point structures reported for C3H2? The answer is “not necessarily”, since the involved imaginary frequencies are fairly large, thus suggesting that they connect relatively distant minima. Although one could answer by tracing the intrinsic reaction coordinate starting at each saddle point, this is beyond the scope of the present work.
Having analysed the various group-XIV pentatomic dihydrides, a further question arises: why is lacking the open structure with H-atoms bound to the terminal atom in both tri-Si and tri-Ge dihydrides (panel B of Fig. 8 and 9 for C3H2)? This encounters an explanation in the fact that Si3 and Ge3 have nonlinear minima, conversely to C3 which can be easily shown to have a linear singlet ground state structure, with a real double-degenerate frequency for bending of 102.4 cm−1 at B3LYP/AVTZ level of theory. In fact, for Si3, the linear geometry is at B3LYP/AVTZ level predicted to be a saddle point of index 1 with an imaginary frequency of −60.8 cm−1 and energy of 15.327 kcal mol−1 above the minimum (for Ge3, the corresponding values are −23.8 cm−1 and 10.898 kcal mol−1). Similarly, for GeCSi the above values read −41.1 cm−1 and 0.262 kcal mol−1 in the same order, somehow explaining by the latter the appearance of both a saddle point and a minimum with similar structures (panels E and F of Fig. 8).
Quoting McCarthy et al.,124 “Ab initio calculations of Si2H4 have focused almost exclusively on the stability and structures of two isomers: disilene (H2SiSiH2) and silylsilylene (H3SiSiH). The most recent studies conclude that disilene is the ground state and that silylsilylene lies 5–10 kcal mol−1 higher in energy, but there is little agreement as to the precise geometry of disilene, with roughly half predicting a planar structure and the rest a trans-bent structure”.17 This noted, they reported yet another isomer on the basis of CCSD(T)/AVTZ calculations. Predicted to lie only 7 kcal mol−1 above disilene, the most stable Si2H4 isomeric arrangement, this new monobridged isomer has been denoted H2Si(H)SiH and detected from its rotational spectrum by Fourier transform microwave spectroscopy of a supersonic molecular beam through the discharge products of silane. It was then made clear that conversely to C2H4 none of the three isomers of Si2H4 was planar. The same has been established125 for the digermene molecule, Ge2H4(X1Ag), in low temperature matrices via infrared spectroscopy, and DFT/B3LYP/6-311G(d,p) calculations. In this case, the relative energies among the Ge2H4 system are somewhat different from the relative energies obtained for Si2H4, but the order of relative energies are identical between Si2H4 and Ge2H4. Regarding the most stable Ge2H4 isomer, it was predicted to be the trans-bent H2GeGeH2, immediately followed by the H3GeGeH type structure, with the bond angles of such structures being found similar to those of the corresponding Si2H4 isomers. Additionally, mono-bridged H2Ge(H)GeH, square di-bridged trans-HGeHHGeH, and square di-bridged cis-HGeHHGeH were also predicted lying 20, 48, and 57 kJ mol−1 above the most stable one, which is much less than those of the corresponding isomers of Si2H4, respectively 30, 83, and 94 kJ mol−1. Apart the details, it is obvious that none of the isomers of singlet Si2H4 and Ge2H4 is planar. Why such a marked difference? To better understand what is going on, and despite being much studied and known to have distinct geometries,5,13 we have optimized the structure of the singlet (1A) and triplet (3A) states of CH2, SiH2 and GeH2, as well as the ground-doublet (2A) states of CH3, SiH3 and GeH3, all employing the level of theory that we have mostly utilized thus far, namely CCSD(T)/AVTZ for CH3 and GeH3, CCSD(T)/AV(Q+d) Z for SiH3. As also shown, the results differ only slightly from the ones obtained at the quadruple-ζ level by Xu et al.5 and hence indicate that the conclusions do not depend on the level of theory that is employed.
Fig. 15 depicts the optimum structures so obtained for such triatomic and tetratomic fragments. In addition to the fact that the triplet (rather than the singlet) is the lowest state (by 9.56 kcal mol−1 at AVTZ level versus 9.28 kcal mol−1 at AVQZ) for CH2, the notable difference in shape arises for CH3 which is predicted to be planar while the other tetratomics for Si and Ge are nonplanar. This may be the key explanation for the different structural forms assumed by the X2H4 molecules when X is one of the group-XIV elements C, Si or Ge. Indeed, since we have 6 atoms, we hope to encounter differences from planarity in 3 possible tetrads: HXXH (or XXHH), XHHH, and HHHH. Since H4 is a van der Waals species, thence disposable to some extent, and the trend for planarity is common to all isomers via the HCCH tetrads, the key point that distinguishes them is CHHH as clearly shown through the corresponding ground-doublet species. Note, for this, that the doublet of XH3 is the only state that satisfies the spin-spatial correlation rules via X2H4(1A) → XH3(2A) + H(2S), with X a group-XIV element.
Although theoretical tools based on molecular orbital, density functional theory, spin-coupled generalized valence bond, and intrinsic quasi-atomic bonding analysis can provide accurate predictions of the geometry, energetics and electronic structure1–7 of a molecule, it is well recognized that they have difficulty in establishing global properties, relationships between sets of elements (such as the properties here studied) or even establish the trends common to a family of related compounds. For example, the structures need often optimization at various levels of theory and basis sets to ascertain that planarity is not an artifact of the employed methodology. Having an external guidance for consistency may therefore be comforting. Naturally, despite extensively used with success for a variety of other systems,39–44 it is too soon to conclude that exceptions will not arise. Nevertheless, it is reassuring that the present approach is based on geometrical principles and basic theory, while employing rigorous quantum chemical calculations only for the tiles. Because databases are emerging in an impressive cadence and size, one may think of databases on molecular shapes for the tiles that can be used to check the consistency of the structure of a panoply of large molecules for which rigorous quantum chemical calculations may not be affordable.
From the studies here reported, numerous stationary points on the PESs of mono- and di-hydride group-XIV molecules have also been located and characterized. Much studied in the literature, some were just confirmed while others were reported anew for the pristine pentatomic dihydrides involving C, Si and Ge as well as the fully mixed one, CSiGeH2. The results show both cyclic and noncyclic structures, which should be experimentally observable as actually done already in some cases. Regarding the cyclic c-CHSiHGe structure, it is predicted to be the global minimum followed by a c-CHGeHSi isomer with the hydrogens bound to the C and Ge atoms. Showing like all others a significant dipole moment, they should be themselves experimentally observable. A final query remains: being the title hydrides of atoms of the same group (XIV) of the periodic table, why does the topography of the PESs (not to mention the energy ordering) of the ground state compounds of Si or Ge (even when mixed with C) tend to show distinct isomers from those involving only C? A related query has recently been raised126 for the XH4+ (X = C, Si, Ge) cations, which justifies being here also asked. Is it a problem of method, basis set or simply more than that?
