Isomer-selective dissociation dynamics of 1,2-dibromoethene ionised by femtosecond-laser radiation

Abstract

We study the isomer-specific photoionisation and photofragmentation of 1,2-dibromoethene (DBE) under strong-field fs-laser irradiation in the gas phase complementing previous studies utilising ns- and ps-laser excitation. Our findings are compatible with a dissociative multiphoton-ionisation mechanism producing a variety of ionic photofragments. Using both Stark deflection and chemical separation of the two isomers, pronounced isomer-specific photofragmentation dynamics could be observed for different product channels. While for Br⁺ formation, the isomer specificity appears to originate from different photoexcitation efficiencies, for the C₂H₂Br⁺ channel it is more likely caused by differences in the coupling to the exit channel. By contrast, the formation of the C₂H₂⁺ photofragment does not seem to exhibit a pronounced isomeric dependence under the present conditions. The present work underlines the importance of isomeric effects in photochemistry even in small polyatomics like the present system as well as their pronounced dependence on the photoexcitation conditions.

---

1 Introduction

The relationship between molecular structure and chemical reactivity, the broad field of stereochemistry, is one of the central topics of chemical research. Different isomers of molecules exhibit distinct physical and chemical properties^1–3 and small changes in molecular geometry can have a profound influence on the dynamics and even the outcome of chemical reactions.^4–11

In this context, the photochemistry of 1,2-dibromoethene (DBE) serves as a prototypical example. DBE exhibits two geometric isomers, a polar cis and an apolar trans species (see insets in Fig. 1), which classify within the C_2v and C_2h symmetry groups, respectively. Although the isomers of DBE can be separated by chromatography, they are not stable under ambient conditions and catalytically interconvert in the presence of atmospheric oxygen O₂.¹²

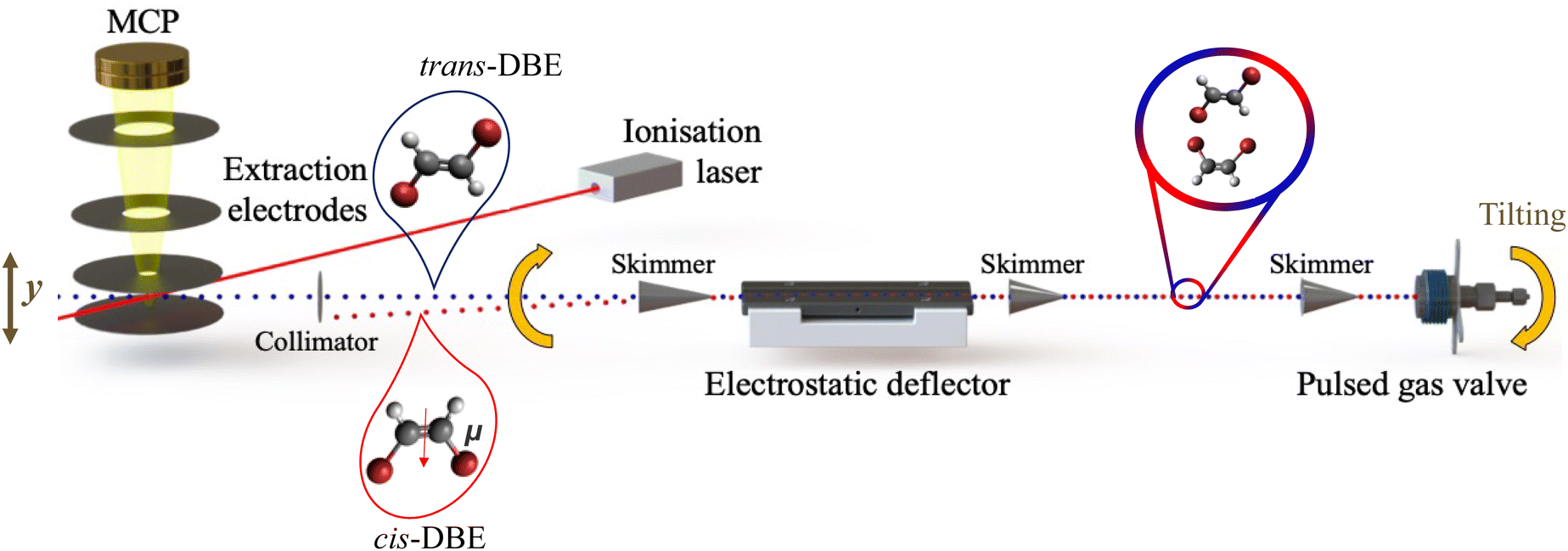

Fig. 1 Schematic of the molecular-beam setup used for the electrostatic spatial separation and investigation of the photoionisation and photofragmentation of cis- and trans-1,2-dibromoethene (C₂H₂Br₂, DBE) with a femtosecond (fs) laser at a wavelength of 775 nm.

The photolysis of bromine-substituted ethenes is of general interest because the weak C–Br bond can dissociate to form bromine atoms. For instance, in atmospheric chemistry such processes contribute to the depletion of ozone in the stratosphere.¹³ The photochemistry of DBE has therefore been the subject of a number of studies in the past covering different wavelengths and dynamic regimes. The photodissociation of DBE at a wavelength of 248 nm was studied by Lee et al.¹⁴ using photofragment translational spectroscopy. In their study, Br₂⁺, Br⁺ and C₂H₂⁺ products were observed which were generated by photodissociation of the parent molecule followed by electron-impact ionisation of the fragments. These products were conjectured to originate from the elimination of Br₂ and Br from DBE following photoexcitation with ns laser pulses. No C₂H₂Br⁺ signals were observed in this study which was interpreted with the rapid decay of a C₂H₂Br intermediate producing Br and C₂H₂ fragments which were subsequently ionised. In a later study, Chang et al.¹⁵ investigated the Br₂ photoproducts generated at the same photolysis wavelength using cavity-ring-down spectroscopy. Based on extensive ab-initio calculations, they proposed different isomer-specific photodissociation pathways leading to Br₂. The generation of Br₂⁺ and Br⁺ ionic photoproducts was revisited by Hua et al.¹⁶ by velocity-mapped ion imaging using ns-laser photoexcitation at 233 nm. They showed that under their experimental conditions, Br₂⁺ was generated by dissociative multiphoton ionisation of DBE rather than ionisation of neutral Br₂ photofragments, while a range of possible pathways was discussed for the formation of the Br⁺ fragment.

Lipson and co-workers studied the spectroscopy and photodissociation dynamics of the individual isomers of DBE using resonance-enhanced multiphoton ionisation (REMPI) and dissociation with ultraviolet photons in the range between 280 and 312.5 nm.^17–19 The spectra observed by monitoring Br⁺ fragments were found to be identical for both isomers. By contrast, spectra obtained by monitoring C₂H₂⁺ fragments were found to depend markedly on the isomer. These differences were explained in terms of different intermediates arising in the photofragmentation pathways leading to these products which compete in the ns-laser photoexcitation dynamics. In contrast to the preceding studies, C₂H₂Br⁺ but no Br₂⁺ fragments were observed in these experiments.

More recently, the photofragmentation dynamics of both isomers of DBE have been studied by ps-laser multiphoton excitation with photon wavelengths in the range 232–320 nm by some of us.²⁰ In contrast to the ns-laser excitation experiments covering a similar wavelength range,¹⁹ both C₂H₂Br₂⁺ and Br₂⁺ products were observed besides C₂H₂⁺ and Br⁺. The experimental findings supported by ab-initio calculations provided evidence for the Br⁺ and Br₂⁺ ionic fragments to originate from photodissociation of the ionic ground state of DBE, rather than from the ionisation of neutral photoproducts. Moreover, it could be shown that the Br₂⁺ ions originate predominantly from the cis rather than the trans isomer. These differences between the ps- and ns-laser experiments were tentatively attributed to the different multiphoton excitation dynamics in both cases.

The recent development of techniques for the spatial separation of isomers in the gas phase by electrostatic deflection^21,22 has opened up new avenues for studying isomer-specific chemistry.^{9,10,21,23–27} In this approach, different isomers are deflected to different extents in inhomogeneous electric fields based on their different effective dipole moments. These depend on both the permanent dipole moment in the molecular frame as well as on the rotational state of the molecule. This approach is particularly suited for separating structural isomers where one of them does not have a permanent electric dipole moment, as in the present case.

In a previous publication,²⁸ we employed this technique to study the isomer-specific chemi-ionisation of cis- and trans-DBE. Here, we focus on the ultrafast (fs) photoionisation and dissociation dynamics of DBE with the aim of complementing the previous ns- and ps-laser studies to obtain additional information on isomeric specificities in the photochemistry of this molecule.

2. Experimental and theoretical methods

A detailed description of the present experimental setup has been reported previously,²⁶ a schematic is displayed in Fig. 1. A molecular beam of an ≈1 : 1 isomeric mixture¹⁸ of DBE (Sigma-Aldrich, chemical purity 98%) seeded in helium at 100 bar was supersonically expanded into high vacuum using an Even–Lavie pulsed gas valve.²⁹ The beam was skimmed and passed through the inhomogeneous electric field of an electrostatic deflector held at a potential difference of 35 kV, where the two isomers were spatially separated based on their effective dipole moments. Different regions of the molecular beam thus exhibited different relative compositions of the isomers which were ionised by multiphoton absorption using a fs-laser beam with a wavelength of 775 nm. The ionisation energy of DBE was assumed to be 9.64 eV, see ref. 28. The fs laser operated at a repetition rate of 50 Hz, a pulse duration of 150 fs, and a pulse energy of ∼0.2 mJ. The fs-laser beam was focused into the vacuum chamber using a lens with a focal length of 15 cm. To avoid signal saturation and excessive fragmentation of the resulting ions, the focal point of the laser beam was offset from the centre of the molecular beam by adjusting the position of the lens.

Instead of translating the fs-laser beam to access the different regions of the deflected molecular beam, the supersonic expansion was moved by tilting the entire molecular-beam apparatus as illustrated in Fig. 1 while keeping the position of the laser beam fixed. The associated tilt angle was converted into a deflection coordinate which indicates the spatial offset of the deflected from the undeflected molecular beam at the location of the laser focus.

In another series of experiments the DBE isomers were first chemically separated by liquid chromatography in order to compare with the results gained by electrostatic deflection. The cis species was then individually entrained into the molecular beam to gain additional information on its isomer-specific photodynamics. The isomeric purity of the sample amounted to ≥90% in these measurements as confirmed by NMR spectroscopy.

The resulting ions were electrostatically accelerated towards a microchannel plate (MCP) detector through a time-of-flight tube enabling the recording of time-of-flight mass spectra (TOF-MS). Slightly different focussing conditions were used in the experiments with the isomeric mixture and with cis-DBE in order to suppress saturation.

TOF-MS were recorded at different deflection coordinates. By integrating the different peaks in the TOF-MS as a function of the deflection coordinate, deflection profiles corresponding to various ion species were obtained.^9,24,26 The deflection profile of the parent ion, i.e., DBE⁺, represents a measurement of the density of DBE across the deflected molecular beam. The deflection profiles of fragment ions also encode the photofragmentation dynamics leading to their generation under the specific conditions in addition to the density distribution of the parent in the molecular beam.

The deflection profiles were simulated using Monte-Carlo trajectory calculations.^9,21–24,26 The dipole moment of cis-DBE (μ = 1.7 D) required as input for the simulations was calculated using the B3LYP density functional method and the 6-311++G(d,p) basis set implemented in Gaussian16.³⁰ The deflection profile of an isomer results from the weighted sum of the deflection profiles corresponding to its populated rotational quantum states. The rotational quantum states of asymmetric top molecules are characterised by the rotational-angular-momentum quantum number j and the pseudo quantum number τ = K_a − K_c, where K_a and K_c represent the pseudo quantum numbers of the projection of j⃑ onto the a and c inertial axes, respectively. For quantum state (j, τ), 50 000 trajectories were computed under varying initial conditions to generate the corresponding simulated deflection profile. For each value of j, the individual (j, τ) profiles were summed with weights according to their thermal populations at the rotational temperature of the molecular beam. All j-specific profiles of a given isomer were summed up to produce isomer-specific deflection profiles. Finally, the profiles of both isomers were summed up for comparison with the experimental data.

Possible differences in the photofragmentation rate of the two isomers can affect the deflection profiles obtained from fragment-ion signals. To account for such effects, a least-squares fit was performed by introducing a relative photofragmentation rate S_rel weighing the contributions of trans- with respect to cis-DBE to a specific profile. Thus, S_rel > (<) 1 indicates a stronger propensity of the trans- (cis-) isomer for photofragmentation in the relevant channel.

3. Results

Fig. 2 presents a typical TOF-MS of DBE (here the cis isomer) obtained by fs-laser ionisation. The spectrum revealed four primary product-ion species around mass-to-charge ratios m/z = 186, 106, 80, and 26 u, corresponding to C₂H₂Br₂⁺, C₂H₂Br⁺, Br⁺ and C₂H₂⁺. While the discussion in the present paper focusses on these main product channels, we note that weaker fragment-ion peaks were observed at m/z = 160, 92, 40, 12, 13 and 1 u which were assigned to Br₂⁺, CBr⁺, Br²⁺, C⁺, CH⁺ and H⁺. These peaks can also be observed in the TOF-MS of the isomeric mixture.

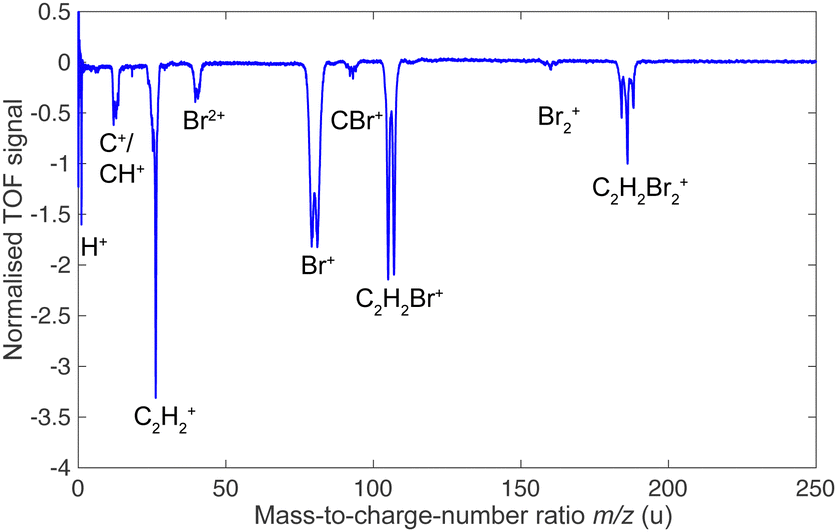

Fig. 2 Time-of-flight mass spectra of cis-DBE ionised by fs-laser radiation in the centre of an undeflected molecular beam.

Normalised deflection profiles of the dominant ion species in the TOF-MS were recorded to characterise the isomer-specific photofragmentation dynamics of cis- and trans-DBE under the present conditions. Fig. 3(a) shows the deflection profiles of ions obtained from the DBE mixture. Profiles obtained at 0 kV deflector voltage are shown in various shades of grey for the different species. Profiles obtained at 35 kV deflector voltage are plotted in blue for C₂H₂Br₂⁺, in orange for C₂H₂Br⁺, in green for C₂H₂⁺, and in black for Br⁺. The same colour code has been maintained in the subsequent Fig. 4 and 5.

Fig. 3 Deflection profiles of the parent and fragments of (a) a ≈1 : 1 mixture of the DBE isomers and (b) cis-DBE obtained by fs-laser ionisation. All profiles have been normalised with respect to their maxima. Error bars represent the standard error of three measurements with each being an average over 2000 laser shots.

Fig. 4 Deflection profiles obtained by monitoring different photofragment ions generated by fs-laser photoionisation (data points) of a mixture of cis-DBE and trans-DBE at 35 kV deflector voltage. The blue- and red-shaded curves represent simulated deflection profiles of trans-DBE and cis-DBE, respectively, and the solid lines their sum. Error bars denote the standard error of three individual measurements consisting of 2000 laser shots each. The inset in (a) shows deflection profiles of individual rotational states j of cis-DBE scaled by their thermal populations and the red-shaded area represents their sum.

Fig. 5 Doubly logarithmic representation of ion yields vs. fs-laser power for (a) an isomeric mixture of DBE and (b) cis-DBE. The straight lines are linear fits to the data with m denoting the slope. Uncertainties represent the standard deviations of the fits. Each data point represents the average of three measurements with each being an average over 2000 laser shots.

Fig. 3(a) and (b) illustrate that the deflection profiles obtained without applied voltage on the electrostatic deflector exhibit a symmetric shape centred at zero deflection coordinate. In contrast, the deflection profiles obtained at a 35 kV deflector voltage are asymmetric. In Fig. 3(a), the asymmetry of the profile of the parent ion (C₂H₂Br₂⁺, blue curve) shows marked intensity at higher deflection coordinates y ≥ 1.5 mm suggesting that the polar cis isomer is partially separated from apolar trans-DBE. The extent of deflection of cis-DBE depends on its rotational state which gives rise to different effective dipole moments in the inhomogeneous electric field of the deflector.^23,28 Simulated rotational-state-specific deflection profiles of cis-DBE are shown in the inset of Fig. 4(a). For clarity, curves for specific j rotational quantum numbers are displayed which were obtained by summing all corresponding profiles with different asymmetric-top pseudo-quantum number τ. In general, low-j states exhibit larger effective dipole moments and are, therefore, more strongly deflected thus appearing at higher deflection coordinates.

It can be seen in Fig. 3(a) that the deflection profiles of the parent and the different fragments all differ markedly. The parent C₂H₂Br₂⁺ and the fragment C₂H₂Br⁺ show a stronger deflection compared to the fragments C₂H₂⁺ and Br⁺. These differences in the deflection profiles may result from different relative photofragmentation rates either of the isomers (isomeric effect) or of the different rotational states of cis-DBE (rotational effect) - or potentially both.

To deconvolute these effects, the corresponding deflection profiles of cis-DBE at 35 kV were obtained as shown in Fig. 3(b). Interestingly, in this case all deflection profiles appear essentially identical under the present experimental conditions. This suggests that the observed differences in (a) are, therefore, not of rotational, but rather of isomeric origin.

Consequently, Monte-Carlo trajectory simulations were used to deconvolute the contributions of cis-DBE and trans-DBE in the deflection profiles of the various ion species, see Fig. 4. In this figure, the data points indicate the experimental deflection profiles, while the blue and red shaded areas correspond to the simulations for trans- and cis-DBE, respectively, and the solid lines their sum. For the C₂H₂Br₂⁺ parent (Fig. 4(a)), the relative contribution of the curves of both isomers corresponds to their population of ≈1 : 1 in the molecular beam.^18,28 The best match between experiment and simulation was achieved by assuming a rotational temperature T_rot = 3.3 K in the simulation. For the fragment profiles, the relative contributions of cis and trans were scaled by the fit factor S_rel capturing different photofragmentation rates in order to match the experimental data. The values of S_rel obtained for the various fragments are indicated in Fig. 4(b)–(d).

The results displayed in Fig. 4(b) suggest that trans-DBE has five times reduced photofragmentation rate for the formation of the C₂H₂Br⁺ ion compared to the cis species. By contrast, the photofragmentation rate of trans-DBE for the formation of the Br⁺ product is obtained to be about twice as high as that of the cis isomer (Fig. 4(c)). Fig. 4(d) shows that the formation rate of the C₂H₂⁺ product appears comparable for both isomers. The pronounced isomer-specific differences observed in the various channels suggest that different photofragmentation mechanisms are effective for the different products.

This conclusion is corroborated by measurements of the fragment-ion yield as a function of the fs-laser intensity. As the energy of a single 775 nm-photon only amounts to ≈1.6 eV, all ions had to be generated by multiphoton ionisation and fragmentation. The ion yields exhibit a pronounced dependence on the fs-laser power, as shown in Fig. 5(a) for the isomeric mixture and in (b) for cis-DBE. The slopes m obtained from a fit of the data to a linear function y = mx + d in a doubly logarithmic representation indicate the apparent number of photons absorbed in the multiphoton processes leading to the different ion species.

The fits yielded apparent photon numbers m = 3.4 (2.6), 3.9 (3.7), 4.9 (4.6) and 4.8 (5.8) for producing C₂H₂Br₂⁺, C₂H₂Br⁺, C₂H₂⁺ and Br⁺ ions from the isomeric mixture (cis-DBE). However, from energy conservation the minimum number of photons required for the formation of C₂H₂Br₂⁺, C₂H₂Br⁺, C₂H₂⁺ and Br⁺ starting from neutral DBE are 6, 8, 9 and 10. This is illustrated in Fig. 6 which presents calculated vertical (VEE) and adiabatic excitation energies (AEE) of the electronic states of cis- and trans-DBE⁺, along with the energies corresponding to various dissociative ionisation (DI) channels (see ref. 28 for details of the calculations). While the apparent photon numbers follow the expected trend m_C2H2Br2⁺ < m_C2H2Br⁺ < m_C2H2⁺ < m_Br⁺, the discrepancy with the minimally required photon number may indicate that some intermediate absorption steps are at least partially saturated under the present experimental conditions, possibly because of (near) resonances. Note also the differences between the behaviour of the isomeric mixture in Fig. 5(a) and cis-DBE in (b): while the apparent photon numbers for producing the C₂H₂Br₂⁺, C₂H₂Br⁺ and C₂H₂⁺ are similar in both cases, there is a significant difference for the generation of the Br⁺ fragment (4.8 vs. 5.7 photons). This may point to the existence of additional intermediate resonances for this channel in the trans species which are absent in the cis isomer.

Fig. 6 Cationic electronic energy levels and photofragmentation thresholds of cis- and trans-DBE. The vertical (VEE) and adiabatic (AEE) excitation energies were calculated at the MP2 (ionisation energy) and CASPT2 (excitation energy) levels of theory (see ref. 28 for details of the calculation). Dissociation limits leading to different DI products are also indicated where the dotted horizontal line at 12.14 eV indicates the first dissociation threshold. Energies are referenced to the S₀ ground state of the neutral molecule. Arrows represent the energy of a fs-laser photon of 775 nm (1.6 eV).

4. Discussion

The formation of the parent ion C₂H₂Br₂⁺ can readily be explained by a multiphoton-ionisation mechanism according toas illustrated in Fig. 6. Because the corresponding deflection profile in Fig. 4(a) can be simulated by maintaining the original isomeric ratio of the supersonic expansion (i.e., assuming that S_rel = 1), it can be conjectured that under the present conditions the multiphoton ionisation of DBE does not exhibit a pronounced dependence on the isomer.

For the formation of ionic fragments of DBE, two types of mechanisms have been discussed in the literature: dissociative ionisation, where the DBE cation is first generated by multiphoton ionisation and then fragmented by the absorption of additional photons,^16,20 or the parent molecule dissociates after excitation to an intermediate electronic state of the neutral and the fragments are subsequently ionised by the laser field.^14,19 Given the present experimental conditions of fs-laser excitation, the latter pathway appears unlikely considering typical timescales of C–Br bond breaking (several hundreds of fs^31,32) relative to the pulse duration of the present laser (150 fs). This conclusion is in line with the previous ps-laser study²⁰ which evidenced that dissociative multiphoton ionisation is the dominant mechanism under conditions of short-pulse laser irradiation.

For the generation of the C₂H₂Br⁺ fragment, the value of S_rel is 0.20 ± 0.04 extracted from Fig. 4(b) suggests that the photofragmentation rate of cis-DBE is approximately five times larger than that of trans-DBE. Assuming a dissociative ionisation mechanism, at least two additional 775 nm photons are required to reach the C₂H₂Br⁺ + Br dissociation threshold from the ionic ground state D₀ (see Fig. 6). The oscillator strengths for excitations from D₀ to excited cationic states D_n, n ≤ 5, do not differ greatly between the isomers (see the supplementary information of ref. 20) and the apparent number of photons absorbed in this channel are identical for the isomeric mixture and cis-DBE within the error bars. Therefore, it can be surmised that the isomeric differences observed in the photofragmentation rate are more likely due to isomer-specific variations of the couplings of the photoexcited states to the C₂H₂Br⁺ + Br exit channel rather than the photoexcitation dynamics themselves.

Similarly, the value S_rel = 2.0 ± 0.7 extracted for the Br⁺ formation in Fig. 4(c) suggests an appreciable isomeric specificity for this fragmentation channel, albeit a smaller one than observed for C₂H₂Br⁺ generation. Assuming again a dissociative multiphoton ionisation mechanism, the absorption of at least four additional 775 nm photons from D₀ are required to reach the corresponding dissociation threshold (see Fig. 6). The smaller apparent photon numbers required for this channel in the isomeric mixture (m = 4.8 + 0.1) than in cis-DBE (m = 5.8 ± 0.1) (see Fig. 5) are in line with the conclusion drawn from Fig. 4(c) that the trans species appears more readily photodissociated in this channel compared to cis possibly because of additional intermediate resonances. It also suggests that isomeric differences in the multiphoton excitation from D₀ seem to play a role here. An alternative, sequential mechanism forming Br⁺ from previously produced C₂H₂Br⁺ fragments seems unlikely, given the expected time scales of the laser excitation and fragmentation involved. Moreover, the isomeric differences found for the C₂H₂Br⁺ and the Br⁺ formation were found to be markedly different, suggesting that a C₂H₂Br⁺ intermediate plays no major role for the Br⁺ channel.

The value S_rel = 1.2 ± 0.4 determined from Fig. 4(d) for the C₂H₂⁺ channel indicates that the corresponding photofragmentation rates of both cis- and trans-DBE are comparable. This is in line with similar apparent photon numbers extracted for this channel in the isomeric mixture and the cis species in Fig. 5.

Finally, it is worth noting that the present findings of photofragmentation dynamics that is independent of the parent isomer for C₂H₂⁺ and dependent on the isomer for Br⁺ are in contrast to the previous ns-laser experiments¹⁹ which observed just the opposite. These differences once more underline the important role of photon energy and laser-pulse duration in the photochemistry of this molecule which in the end result in different fragmentation mechanisms: direct multiphoton dissociative ionisation as conjectured to dominate the present fs-laser experiments vs. sequential fragmentation mechanisms as inferred for the conditions of the ns-laser study in ref. 19.

5. Conclusions

In the present study, we investigated the isomer-specific photoionisation and photofragmentation dynamics of 1,2-dibromoethene (DBE) under strong-field fs-laser irradiation. The experimental findings are compatible with a dissociative multiphoton ionisation mechanism yielding a variety of ionic photofragments. Using both Stark deflection and chemical separation of the two isomers, pronounced isomer-specific photofragmentation dynamics could be observed for different product channels. While for Br⁺ formation, the isomer specificity seems to originate from different photoexcitation efficiencies, for the C₂H₂Br⁺ channel it is more likely caused by variations in the coupling to the exit channel. By contrast, the formation of the C₂H₂⁺ photofragment does not seem to exhibit a notable isomeric dependence.

The present work complements previous studies of the photodissociation dynamics of the DBE isomers utilising ns- and ps-laser excitation. It underlines the complexity of the photochemistry even in small polyatomics like the present system, as well as its pronounced dependence on the molecular geometry and specific photoexcitation conditions. While a variety of experimental studies now exist on this photochemical model system, further insights into its isomer-specific photodynamics would critically require progress in theory, in particular concerning the multiphoton excitation dynamics of the cation and nonadiabatic couplings connecting the photoexcited states to the different product channels. Such advances in theory should ideally be complemented by channel-resolved measurements as have been demonstrated, e.g., in ref. 33 and 34.

Data availability

The primary data supporting the findings of this article are available at Zenodo at https://doi.org/10.5281/zenodo.15119353

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

We thank Dr A. Johnson, G. Holderried, G. Martin, and Ph. Knöpfel for technical assistance. This research was supported by the Swiss National Science Foundation under the Korean-Swiss Science and Technology Program (KSSTP) (grant nr. IZKSZ2_188329) and the University of Basel. J.K. and S.K.K. thank the support of National Research Foundation of Korea (NRF) under project No. 2019K1A3A1A14064258. J.K. also acknowledges support from the KAIST Jang Young Sil Fellow Program.

References

1. E. L. Eliel and S. H. Wilen, Stereochemistry of Organic Compounds, John Wiley & Sons, 1994.
2. H. Frauenfelder, S. G. Sligar and P. G. Wolynes, Science, 1991, 254, 1598.
3. E. G. Robertson and J. P. Simons, Phys. Chem. Chem. Phys., 2001, 3, 1.
4. S. T. Park, S. Y. Kim and M. S. Kim, Nature, 2002, 415, 306.
5. M. H. Kim, L. Shen, H. Tao, T. J. Martinez and A. G. Suits, Science, 2007, 315, 1561.
6. C. A. Taatjes, O. Welz, A. J. Eskola, J. D. Savee, A. M. Scheer, D. E. Shallcross, B. Rotavera, E. P. Lee, J. M. Dyke, D. K. Mok, D. L. Osbornand and C. J. Percival, Science, 2013, 340, 177.
7. E. G. Champenois, D. M. Sanchez, J. Yang, J. P. F. Nunes, A. Attar, M. Centurion, R. Forbes, M. Gühr, K. Hegazy, F. Ji, S. K. Saha, Y. Liu, M.-F. Lin, D. Luo, B. Moore, X. Shen, M. R. Ware, X. J. Wang, T. J. Martnez and T. J. A. Wolf, Science, 2021, 374, 178–182.
8. Y.-P. Chang, K. Dlugolecki, J. Küpper, D. Rösch, D. Wild and S. Willitsch, Science, 2013, 342, 98.
9. A. Kilaj, H. Gao, D. Tahchieva, R. Ramakrishnan, D. Bachmann, D. Gillingham, O. A. von Lilienfeld, J. Küpper and S. Willitsch, Phys. Chem. Chem. Phys., 2020, 22, 13431.
10. A. Kilaj, J. Wang, P. Straňák, M. Schwilk, U. Rivero, L. Xu, O. A. von Lilienfeld, J. Küpper and S. Willitsch, Nat. Commun., 2021, 12, 1.
11. N. Dias, H. Li and A. G. Suits, J. Phys. Chem. A, 2023, 127, 5202–5208.
12. H. Steinmetz and R. M. Noyes, J. Am. Chem. Soc., 1952, 74, 4141–4147.
13. R. R. Garcia and S. Solomon, J. Geophys. Res.: Atmos., 1994, 99, 12937–12951.
14. Y. Lee, C. Chou, Y. Lee, L. Wang and S. Lin, J. Chem. Phys., 2001, 115, 3195–3200.
15. Y.-P. Chang, P.-C. Lee, K.-C. Lin, C. Huang, B. Sun and A. Chang, ChemPhysChem, 2008, 9, 1137–1145.
16. L. Hua, W.-B. Lee, M.-H. Chao, B. Zhang and K.-C. Lin, J. Chem. Phys., 2011, 134, 194312.
17. W. Shi and R. Lipson, J. Chem. Phys., 2007, 127, 224304.
18. W. Shi and R. Lipson, Mol. Phys., 2007, 105, 1701–1709.
19. W. Shi, V. N. Staroverov and R. Lipson, J. Chem. Phys., 2009, 131, 154304.
20. J. Kim and S. K. Kim, J. Chem. Phys., 2021, 155, 16304.
21. F. Filsinger, J. Küpper, G. Meijer, J. L. Hansen, J. Maurer, J. H. Nielsen, L. Holmegaard and H. Stapelfeldt, Angew. Chem., Int. Ed., 2009, 48, 6900–6902.
22. J. H. Nielsen, P. Simesen, C. Z. Bisgaard, H. Stapelfeldt, F. Filsinger, B. Friedrich, G. Meijer and J. Küpper, Phys. Chem. Chem. Phys., 2011, 13, 18971–18975.
23. Y.-P. Chang, D. A. Horke, S. Trippel and J. Küpper, Int. Rev. Phys. Chem., 2015, 34, 557.
24. D. Rösch, S. Willitsch, Y.-P. Chang and J. Küpper, J. Chem. Phys., 2014, 140, 124202.
25. A. Kilaj, S. Käser, J. Wang, P. Straňák, M. Schwilk, L. Xu, O. A. von Lilienfeld, J. Küpper, M. Meuwly and S. Willitsch, Phys. Chem. Chem. Phys., 2023, 25, 13933–13945.
26. L. Ploenes, P. Straňák, H. Gao, J. Küpper and S. Willitsch, Mol. Phys., 2021, 119, e1965234.
27. L. Ploenes, P. Straňák, A. Mishra, X. Liu, J. Pérez-Ríos and S. Willitsch, Nat. Chem., 2024, 16, 1876–1881.
28. A. Mishra, J. Kim, S. K. Kim and S. Willitsch, Faraday Discuss., 2024, 251, 92–103.
29. U. Even, J. Jortner, D. Noy, N. Lavie and C. Cossart-Magos, J. Chem. Phys., 2000, 112, 8068.
30. M. J. Frisch, G. W. Trucks, H. B. Schlegel, G. E. Scuseria, M. A. Robb, J. R. Cheeseman, G. Scalmani, V. Barone, G. A. Petersson, H. Nakatsuji, X. Li, M. Caricato, A. V. Marenich, J. Bloino, B. G. Janesko, R. Gomperts, B. Mennucci, H. P. Hratchian, J. V. Ortiz, A. F. Izmaylov, J. L. Sonnenberg, D. Williams-Young, F. Ding, F. Lipparini, F. Egidi, J. Goings, B. Peng, A. Petrone, T. Henderson, D. Ranasinghe, V. G. Zakrzewski, J. Gao, N. Rega, G. Zheng, W. Liang, M. Hada, M. Ehara, K. Toyota, R. Fukuda, J. Hasegawa, M. Ishida, T. Nakajima, Y. H onda, O. Kitao, H. Nakai, T. Vreven, K. Throssell, J. A. Montgomery, Jr., J. E. Peralta, F. Ogliaro, M. J. Bearpark, J. J. Heyd, E. N. Brothers, K. N. Kudin, V. N. Staroverov, T. A. Keith, R. Kobayashi, J. Normand, K. Raghavachari, A. P. Rendell, J. C. Burant, S. S. Iyengar, J. Tomasi, M. Cossi, J. M. Millam, M. Klene, C. Adamo, R. Cammi, J. W. Ochterski, R. L. Martin, K. Morokuma, O. Farkas, J. B. Foresman and D. J. Fox, Gaussian 16 Revision C.01, 2016, Gaussian Inc., Wallingford CT.
31. A. S. Chatterley, F. Lackner, D. M. Neumark, S. R. Leone and O. Gessner, Phys. Chem. Chem. Phys., 2016, 18, 14644–14653.
32. B. W. Toulson, M. Borgwardt, H. Wang, F. Lackner, A. S. Chatterley, C. D. Pemmaraju, D. M. Neumark, S. R. Leone, D. Prendergast and O. Gessner, Struct. Dyn., 2019, 6, 054304.
33. S. L. Horton, Y. Liu, R. Forbes, V. Makhija, R. Lausten, A. Stolow, P. Hockett, P. Marquetand, T. Rozgonyi and T. Weinacht, J. Chem. Phys., 2019, 150, 174201.
34. P. Hockett, E. Ripani, A. Rytwinski and A. Stolow, J. Mod. Opt., 2013, 60, 1409–1425.

---
