Enhancing the low-temperature performance of Pt-based three-way catalysts using CeO₂(core)@ZrO₂(shell) supports

Abstract

Developing robust Pt/CeO₂-based three-way catalysts (TWCs) with enhanced oxygen buffering capability and low-temperature activity is highly desirable. In this study, a new TWC family, Pt/(1 − x)CeO₂(core)@xZrO₂(shell) (where x = 0–0.5), was prepared and evaluated at degreened (DG) and hydrothermally aged (HTA) states. Incorporation of 0.1 molar concentration of ZrO₂ resulted in a decreased temperature that 50% (T₅₀) (CO: 167 °C, THCs: 218 °C, NO: 228 °C) and 90% (T₉₀) (CO: 207 °C, THCs: 237 °C, NO: 244 °C) conversions achieved over HTA 1.8 wt% Pt/0.9CeO₂@0.1ZrO₂ compared to the HTA 1.8 wt% Pt/CeO₂ sphere (CO: T_50,90 = 179, 222 °C, THCs: 234, 252 °C, NO_x: 240, 260 °C). An enhanced oxygen storage capacity and oxygen release rate were observed over Pt/0.9CeO₂@0.1ZrO₂ compared to the Pt/CeO₂ sphere. Increasing the ZrO₂ molar concentration to values greater than 0.2 resulted in increased T₅₀s (224, 265 274 °C) and T₉₀s (251, 289, 292 °C) for CO, THCs, and NO_x, respectively, over 1.8 wt.% Pt/0.5CeO₂@0.5ZrO₂. Overall, this work highlights the potential of forming a ZrO₂ shell on CeO₂ spheres as a support for TWC applications.

---

1. Introduction

Three-way catalysts (TWCs) can simultaneously convert carbon monoxide (CO), hydrocarbons (HCs), and nitrogen oxides (NO_x) to less harmful products (CO₂, H₂O, N₂) and they are the key components for the control of stoichiometric spark ignition engine emissions.¹ TWCs are currently highly efficient when the vehicle emission temperature is higher than 350 °C. However, approximately 80% of vehicle emissions are emitted to the atmosphere during the cold start period (first 1–3 min of vehicle operation) when the TWCs are not warm enough.² Moreover, the improved engine efficiency of vehicles operating on stoichiometric feed has led to low engine operating temperatures and lower exhaust temperatures. Low exhaust temperatures in gasoline aftertreatment systems necessitate the development of TWCs that are active at low temperatures.^3–5 Specifically, the “150 °C challenge”⁶ aimed to achieve 90% conversion of CO, HCs, and nitrogen NO_x at temperatures as low as 150 °C. The most common commercial TWCs utilize platinum group metals (PGMs), such as Pd,⁷ Pd/Rh,^8,9 Pt/Rh,^10,11 and Pt/Pd/Rh,^12,13 which can simultaneously convert CO, HCs, and NO_x to CO₂, H₂O, and N₂, respectively, via the following reaction routes:¹⁴


Pt-based TWCs have attracted significant attention due to the lower cost of Pt ($956 per troy ounce; Jan. 2025) compared to Rh ($4675 per troy ounce; Jan. 2025).¹⁵

The active metals are often dispersed on a support to maximize their active surface area. The rare earth metal oxide, ceria (CeO₂), is of particular interest in TWCs because Ce exists in two oxidation states (Ce⁴⁺/Ce³⁺) under operating conditions.¹ The Ce⁴⁺/Ce³⁺ redox couple allows CeO₂ to store/release O₂ through a redox reaction (2CeO₂ ↔ Ce₂O₃ + 0.5 O₂)^16,17 under oxygen-rich/deficient conditions, respectively.^18–20 The oxygen storage capacity (OSC) of CeO₂ is important in TWCs as it can buffer the oxygen-rich/deficient conditions resulting from the imprecise control of fuel injection in gasoline vehicles, leading to 1% oscillations for an air/fuel ratio of around 14.7 during vehicle operation.^21,22 Oxygen-rich/deficient conditions can significantly impact the efficiency of TWCs to mitigate CO, HCs, and NO_x.^12,23,24 Specifically, oxygen can be stored in CeO₂ under lean conditions and can be supplied to the oxidation reactions under rich conditions. Zirconium is typically incorporated into CeO₂ to increase its lattice oxygen mobility to further improve the TWC performance.^25–27 For example, a more than an order of magnitude increase in OSC (from 25 to 350 μmol_O g⁻¹) was reported by increasing the Ce : Zr molar ratio from 0 (CeO₂) to 1 (Ce_0.5Zr_0.5O₂).²⁵ Moreover, the CO and NO_x catalytic activity over Pd/CeO₂–ZrO₂–Pr₂O₃ with various Ce : Zr ratios revealed that a higher OSC (488.4 mol_O g⁻¹) was responsible for a wider operational window (100% CO conversion at λ ≥ 0.925 and 100% NO conversion at λ ≤ 1.075).²⁶

Although CeO₂ possesses high OSC, it can suffer from sintering when exposed to elevated temperatures. For instance, TWCs can exposed to 900–950 °C during deceleration fuel cut-offs, scavenging, and disabled fuel enrichment at high engine loads.²⁸ Polyhedral CeO₂, commonly used in catalytic reactions,^29–31 losses the majority of its surface area when exposed to elevated temperatures. Specifically, the surface area of polyhedral CeO₂ is decreased from 89 to 21 m² g⁻¹ when increasing the calcination temperature from 450 to 600 °C.³² Therefore, CeO₂ supports that can maintain their surface area after exposure to elevated temperatures attract a lot of interest. Several strategies have been adopted to enhance the thermal stability of CeO₂. In a study by Chen et al., CeO₂ islands were anchored onto the surface of penta-site rich Al₂O₃ leading to smaller CeO₂ crystalline sizes (∼11–17 nm) than the bare CeO₂ sample (∼22 nm) after hydrothermal aging.¹ Other methods include the incorporation of ZrO₂ to the CeO₂ lattice to form ceria–zirconia solid solutions.³² Herein, an approach of coating CeO₂ nanospheres with a ZrO₂ shell is studied by synthesizing (1 − x)CeO₂@xZrO₂ (x = 0, 0.1, 0.2, 0.3, 0.5) supports for TWC applications. The TWC activity and hydrothermal stability of Pt/(1 − x)CeO₂@xZrO₂ catalysts were evaluated using the U.S. DRIVE test protocol.³³ High-resolution transmission electron microscopy (HRTEM), scanning transmission electron microscopy (STEM), and energy dispersive X-ray spectroscopy (EDS) were conducted to reveal the morphology of (1 − x)CeO₂@xZrO₂. Moreover, CO-pulse chemisorption and CO diffuse reflectance infrared Fourier transform spectroscopy (CO-DRIFTS) were conducted to identify the Pt dispersion. X-ray photoelectron spectroscopy (XPS) was used to determine the Ce oxidation states. Finally, complete oxygen storage capacity (OSCC) and oxygen release rate (ORR) measurements were conducted to elucidate their effect on the TWC performance.

2. Experimental

2.1. Reagents and materials

Zirconium(IV) butoxide (Zr(BuO)₄) solution (80 wt% in 1-butanol, Sigma-Aldrich), anhydrous ethanol (EtOH, 200 proof, Decon), ethylene glycol (C₂H₆O₂) (Fisher Scientific, 99.99%), ammonium hydroxide (NH₄OH, 28–30 wt% solution of NH₃ in water, Sigma-Aldrich), 2,2,4-trimethylpentane (i-C₈H₁₈) (Sigma Aldrich, 99.8%), and silicon carbide (SiC) (Alfa Aesar, ≥98%) were used as received. A Brij30 solution (100 wt%, Acros Organics, purity 99.79%) was diluted with D.I. water to a 3.8 wt% Brij30 solution prior to usage. Cerium(III) nitrate hexahydrate (Ce(NO₃)₃·6H₂O) (Sigma Aldrich, 99.999%), zirconium(IV) oxynitrate hydrate (ZrO(NO₃)₂·xH₂O) (Sigma Aldrich, 99%), and tetraammineplatinum nitrate (Pt(NH₃)₄(NO₃)₂) (STREM Chemicals, 99%) were diluted with D.I. water to form 0.1 M, 0.5 M Ce(NO₃)₃, 0.1 M ZrO(NO₃)₂, and 0.015 M Pt(NH₃)₄(NO₃)₂ solutions prior to usage. D.I. water with a resistivity of 18.2 MΩ cm was used for all the syntheses in this study.

2.2. Catalyst synthesis

CeO₂ spheres were prepared by a hydrothermal synthesis method (Scheme 1).³⁴ Briefly, CeO₂ spheres were synthesized by mixing 5.2 mL of 0.5 M Ce(NO₃)₃ solution with 78 mL ethylene glycol and the obtained solution was stirred for 4 h. The mixture was then transferred to an autoclave fitted with a Teflon liner and heated to 180 °C for 8 h, followed by cooling down to room temperature. The obtained mixture was centrifuged at 5000 rpm for 20 min and the solid phase was redispersed in D.I. water and centrifuged three times. The solid phase was subsequently redispersed in anhydrous EtOH and centrifuged three times. The retrieved solid phase was then dried (110 °C/overnight) and calcined (500 °C/2 h) to obtain CeO₂ spheres.

Scheme 1 Synthesis procedure of CeO₂@ZrO₂ supports.

(1 − x)CeO₂@xZrO₂ supports were synthesized using CeO₂ spheres (dispersed in anhydrous EtOH). Briefly, CeO₂ spheres were dispersed in 39 g anhydrous EtOH, followed by the addition of 0.13 mL of 3.8 wt% Brij 30 solution under constant stirring at room temperature. The solution was stirred for an hour, followed by the addition of 0.132, 0.297, 0.509, and 1.189 mL of 0.1 M Zr(BuO)₄, followed by overnight stirring to synthesize (1 − x)CeO₂@xZrO₂ with x = 0.1, 0.2, 0.3, 0.5, respectively. The solution was centrifuged and redispersed in 50 mL D.I. water. This step was repeated four times. The solution was then aged for 3 days at room temperature. The solid phase was separated, followed by drying (110 °C/overnight) and calcination (500 °C/2 h).

The reference Ce_0.9Zr_0.1O₂ solid solution support was synthesized by co-precipitation as reported previously³² for an immediate comparison with 0.9CeO₂@0.1ZrO₂. Briefly, 72 mL of 0.1 M Ce(NO₃)₃ solution and 8 mL of 0.1 M ZrO(NO₃)₂ solution were mixed, resulting in a Ce/Zr precursor solution. This Ce/Zr precursor solution was added dropwise into 48 mL of NH₄OH under stirring. The solution was stirred for 30 min. The formed precipitant was washed with 50 mL D.I. water followed by vacuum filtation. The obtained solids were dried (110 °C/overnight) and calcined (500 °C/2 h).

1.8 wt% Pt was deposited to (1 − x)CeO₂@xZrO₂ (x = 0.1, 0.2, 0.3, 0.5) and Ce_0.9Zr_0.1O₂ by wet-impregnation. Specifically, 6.3 mL of 0.015 M Pt(NH₃)₄(NO₃)₂ solution was added to 1 g of (1 − x)CeO₂@xZrO₂ and Ce_0.9Zr_0.1O₂ supports. The liquid was evaporated under stirring at room temperature, followed by drying (110 °C/overnight) and calcination (500 °C/2 h).

2.3. Material characterization

The Brunauer–Emmett–Teller (BET) surface areas of as-synthesized supports and catalysts were determined by nitrogen physisorption with a Micromeritics Tri-Star II surface area analyzer.

The morphology of (1 − x)CeO₂@xZrO₂ (x = 0 and 0.3) supports was determined by HRTEM, STEM, and EDS techniques. HRTEM images were obtained at an accelerating voltage of 200 kV using a JEM-2010 equipment. The powdered samples were dispersed in anhydrous EtOH (HRTEM) and isopropyl alcohol (STEM, EDS) followed by ultrasonication. The obtained mixture was then added dropwise onto carbon-coated copper grids (Electron Microscopy Sciences, CF300-CU) followed by drying in air at room temperature. STEM images and EDS elemental maps of individual particles were collected using an FEI Talos F200X.

X-ray diffraction (XRD) patterns of (1 − x)CeO₂@xZrO₂ (x = 0, 0.1, 0.2, 0.3, 0.5) supports were collected using a Rigaku Ultima IV with a Cu Kα X-ray source. The data were collected from 2θ = 10 to 90° with a step size of 0.02° and scan speed of 2° min⁻¹.

CO-pulse chemisorption experiments were conducted using a Micromeritics AutoChem II 2920 equipped with a thermal conductivity detector. An approximately 50 mg sample was loaded in a U-shaped quartz tube reactor. The catalysts were initially oxidized with 20% O₂/Ar at 500 °C for 30 min. The catalysts were then cooled down to 250 °C in Ar, followed by purging with Ar for 30 min to remove physisorbed O₂. The catalysts were then reduced with 10% H₂/Ar for 30 min at 250 °C followed by purging with Ar for another 30 min to remove physisorbed H₂. The reactor was immersed in a dry ice–ethanol mixture and cooled to −78 °C under a He flow to prevent CO adsorption on CeO₂.³⁵ CO pulses (10% CO/He, 0.5 cm³) were injected every 5 min until no CO consumption was observed. The total flow rate for the CO-pulse chemisorption experiment was maintained at 50 sccm (cm³ min⁻¹ (STP)). The Pt particle size was calculated assuming all particles were equally sized hemispheres and a stoichiometry of CO/Pt = 1 was assumed.³⁶

CO-DRIFTS experiments were performed as reported previously³⁷ using a Nicolet iS50 FTIR spectrometer (Thermo Fisher) equipped with a high temperature reaction chamber (Harrick Praying Mantis). An approximately 25 mg sample was loaded in a sample holder and it was initially pretreated in Ar at 200 °C for 30 min. The sample was then cooled down to 25 °C in Ar, where background spectra were collected at a resolution of 4 cm⁻¹ and 32 scans. Samples were then exposed to 1% CO/Ar for 30 min, followed by purging with Ar for another 30 min to remove gas phase CO. The total flow rate for the CO-DRIFTS experiments was 100 sccm.

The OSCC and ORR were measured using the low-temperature TWC test protocol defined by U.S. DRIVE in a customized reactor setup described in section 2.4.³³ OSCC measurements on ∼25 mg of degreened catalyst were performed isothermally from 550 °C to 350 °C to 150 °C. The catalysts were initially exposed to 1.5% O₂/Ar for 10 min, followed by switching to 0.2% CO/Ar for another 10 min. The switch from one gas stream to another was facilitated with an automated four-way valve for a smoother transition. Before exposure to O₂ at each steady-state temperature, the catalyst surface was purged with Ar for 30 min. The OSCC was calculated by integrating the CO consumption from 0 to 10 min and the ORR was calculated from the slope of the CO concentration vs. time plot between 6 and 9 s after 0.2% CO/Ar was introduced to the feed stream. CO (m/z = 29) and Ar (m/z = 40) signals were recorded with a Pfeiffer Omnistar GSD 320 mass spectrometer with a 200 ms interval.

XPS spectra were recorded on a Kratos Axis Ultra XPS spectrometer equipped with an Al Kα (1486.6 eV) X-ray source at 200 W power and a pressure of 3.0 × 10⁻⁸ mbar. Survey scans were obtained between 0 and 1200 eV with a step size of 1 eV, a dwell time of 200 ms, and a pass energy of 140 eV averaged over 5 scans. Core-level region scans for Ce 3d, Zr 3d, C 1s, and O 1s were obtained at the corresponding binding energy ranges with a step size of 0.1 eV, an average dwell time of 260 ms, and a pass energy of 20 eV averaged over 5 scans. Data processing was performed using CasaXPS software employing Shirley-routine background subtraction and instrument-specific atomic sensitivity factors.

2.4. Catalyst evaluation

Catalyst evaluation was performed in a customized U-shaped quartz reactor, as reported previously.³⁸ Briefly, 100 mg of catalyst powder diluted with 200 mg SiC was placed in the reactor tube stabilized by two loosely packed quartz wool plugs. The reactor was then placed in a cylindrical furnace surrounded by quartz wool to eliminate heat gradients. A K-type thermocouple was inserted into the top quartz wool plug in the U-shaped reactor to record the inlet gas temperature. Another K-type thermocouple was attached outside the reactor at the same height as the inlet temperature thermocouple to allow the PID temperature controller to control the furnace temperature. The gases used to simulate the TWC performance were purchased from Airgas and were the following: 99.999% CO₂, 99.999% O₂ (UHP), 10.01% H₂/Ar, 10.1% CO/Ar, 1% NO/Ar, 5% C₂H₄/Ar, 5% C₃H₆/Ar, 1% C₃H₈/Ar, and 99.999% Ar (UHP). All gases were regulated by a set of MKS mass flow controllers. Liquid i-C₈H₁₈ was placed in a bubbler immersed in a controlled temperature (0 °C) water bath and gas phase i-C₈H₁₈ was carried by Ar to the reactor. The Clausius–Clapeyron equation and the vapor pressure of i-C₈H₁₈ (1.78 kPa at 0 °C)³⁹ were used to calculate the Ar flow required to carry i-C₈H₁₈ from the bubbler to the reactor. Water was supplied to the reactor (0.027 mL min⁻¹) by a D-series pump (Teledyne Isco) and steam was generated in a tube furnace set at 200 °C that was carried by Ar to the reactor. The catalytic performance experiments were conducted from 100 to 500 °C at a heating rate of 2 °C min⁻¹. The temperature was recorded every second using a LabView program. The total flow rate was maintained to 333 sccm, corresponding to a gas hourly space velocity of 142 500 h⁻¹. The reactor outlet gas was diluted with 1332 sccm Ar and analyzed using an MKS MultiGas 2030 FTIR gas analyzer operating at 191 °C. The reactor gas lines were heated at 170 °C to avoid water condensation.

Catalysts were evaluated after degreening (DG) and redox hydrothermal aging (HTA). Degreening of the catalysts was conducted at 700 °C for 4 h under 10% H₂O, 10% CO₂, Ar balance. Redox HTA was conducted at 800 °C for 10 h at a switching frequency of 0.1 Hz between a lean (5% O₂, 10% H₂O, 10% CO₂, Ar balance) and a rich (3% CO, 1% H₂, 10% H₂O, 10% CO₂, Ar balance) gas stream. Prior to evaluating the DG and HTA catalysts, the catalysts were pretreated at 600 °C (10% H₂O, 13% CO₂, Ar balance) for 20 min. Simulated TWC oxidation experiments were performed using the low temperature oxidation catalyst test protocol stoichiometric gasoline direct injection (S-GDI) gas composition defined by U.S. DRIVE³³ (13% CO₂, 10% H₂O, stoichiometric O₂, 1670 ppm H₂, 5000 ppm CO, 1000 ppm NO, 700 ppm C₂H₄, 1000 ppm C₃H₆, 300 ppm C₃H₈, 1000 ppm i-C₈H₁₈, hydrocarbons in C₁ basis, Ar balance).

3. Results and discussion

3.1. Surface characterization

The BET surface areas and N₂ adsorption/desorption isotherms of (1 − x)CeO₂@xZrO₂ (where x = 0, 0.1, 0.2, 0.3, and 0.5) and Ce_0.9Zr_0.1O₂ solid solution supports are summarized in Table S1 and Fig. S1,† respectively. All (1 − x)CeO₂@xZrO₂ supports have surface areas of 69.3–95 m² g⁻¹ and type II isotherms, characteristic of non-porous or macroporous materials.⁴⁰ The solid solution Ce_0.9Zr_0.1O₂ has a surface area of 77.2 m² g⁻¹ and a type IV isotherm, characteristic of mesoporous materials.

The morphology of synthesized CeO₂ is spherical (Fig. S2†) with a uniform diameter of ∼160 nm. Fig. 1(a, b and d) show the HRTEM image and EDS maps of the 0.7CeO₂@0.3ZrO₂ support. The EDS elemental maps of Ce and Zr suggest that the ZrO₂ overlayer covers the surface of CeO₂ uniformly. Fig. 1(c) shows that ZrO₂ is enriched in the shell layer of 0.7CeO₂@0.3ZrO₂, while the Ce signal is more dominant in the core and decreases when approaching the shell, suggesting that a core@shell structure was prepared. However, an uneven ZrO₂ coating was formed (Fig. S3†) when the Zr molar concentration increased from 0.3 (0.7CeO₂@0.3ZrO₂) to 0.5 (0.5CeO₂@0.5ZrO₂), attributed to excess ZrO₂ that cannot be coated evenly.

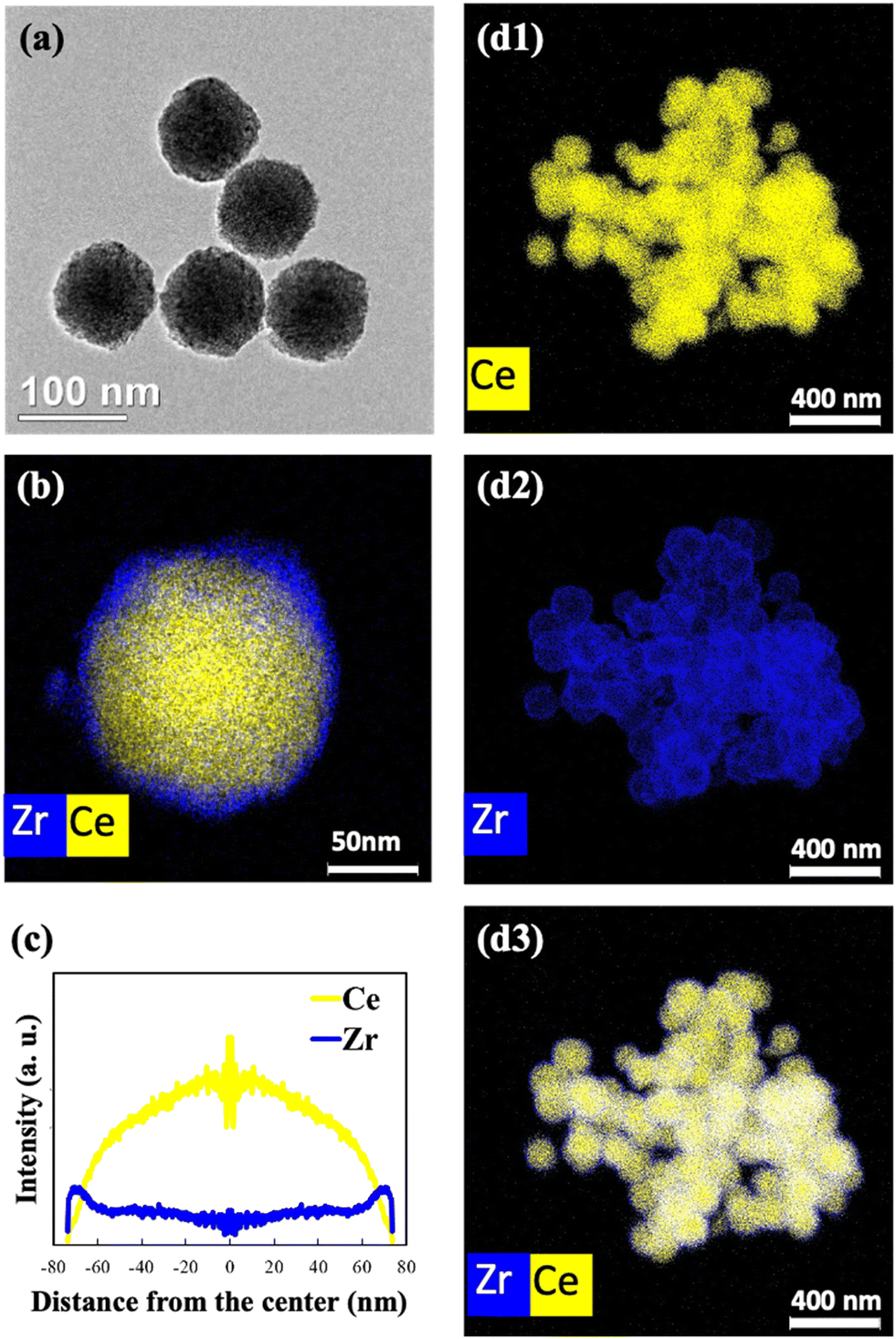

Fig. 1 (a) HRTEM image, (b and d) EDS elemental maps of Ce and Zr of the 0.7CeO₂@0.3ZrO₂ support and (c) Ce and Zr elemental distributions obtained by converting the brightness in intensity from the EDS elemental map in (b).

XRD spectra of the (1 − x)CeO₂@xZrO₂ supports (Fig. 2) show that CeO₂ spheres possess peaks at 2θ of 28.5° and 33.1° that correspond to the (111) and (200) planes of cubic CeO₂, respectively.⁴¹ Increasing the Zr molar concentration to values ≥0.2 led to the appearance of additional peaks at 30.2 and 35.2°, which correspond to the (111) and (200) planes of tetragonal ZrO₂, respectively.^42,43

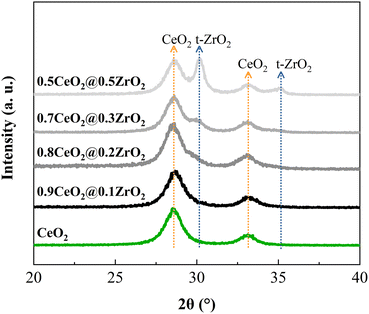

Fig. 2 XRD patterns of (1 − x)CeO₂@xZrO₂ (x = 0, 0.1, 0.2, 0.3, 0.5) supports (t: tetragonal).

The average Pt particle size and dispersion of 1.8 wt% Pt/(1 − x)CeO₂@xZrO₂ were obtained by CO-pulse chemisorption (Fig. 3). The Pt/CeO₂ sphere showed an average Pt particle size of 7.7 nm, corresponding to a Pt dispersion of 13.5%. Similar average Pt particle sizes and dispersions were observed over Pt/(1 − x)CeO₂@xZrO₂ with x ≤ 0.2. Specifically, the average Pt particle size of Pt/0.9CeO₂@0.1ZrO₂ and Pt/0.8CeO₂@0.2ZrO₂ was 6.8 nm (Pt dispersion: 15.4%) and 7.2 nm (Pt dispersion: 15.7%), respectively. The similar Pt particle size and dispersion observed at low Zr molar concentrations suggest the existence of strong metal–support interactions between Pt and CeO₂.⁴⁴ An increase in Zr molar concentration to 0.3 and 0.5 in Pt/(1 − x)CeO₂@xZrO₂ led to an increase in the average Pt particle size to 9.9 nm (Pt dispersion: 11.4%) and 14.3 nm (Pt dispersion: 7.9%), respectively.

Fig. 3 Average Pt particle size and dispersion of 1.8 wt% Pt/(1 − x)CeO₂@xZrO₂ catalysts obtained by CO-pulse chemisorption.

CO-DRIFTS experiments conducted over Pt/(1 − x)CeO₂@xZrO₂ catalysts (Fig. 4) showed that Pt/(1 − x)CeO₂@xZrO₂ contains two types of Pt species. The high wavenumber peak (2097 cm⁻¹) is attributed to CO adsorbed on ionic Pt²⁺ strongly interacting with CeO₂.^45,46 The low wavenumber peak (2087 cm⁻¹) is attributed to CO adsorbed on Pt⁰ particles.^47,48 The 2097 cm⁻¹ and 2087 cm⁻¹ peaks are more pronounced at low (x ≤ 0.1) and high (x > 0.1) Zr molar concentrations, respectively. This observation suggests that increasing the molar concentration of Zr can hinder the occurrence of Pt²⁺ species that can strongly interact with CeO₂. Instead, Pt⁰ particles are formed, consistent with the CO-pulse chemisorption results that show a decreased Pt dispersion with increasing Zr molar concentration.

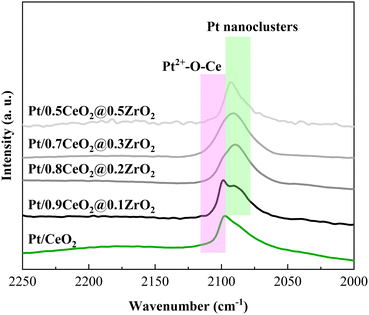

Fig. 4 CO-DRIFTS over fresh 1.8 wt% Pt/(1 − x)CeO₂@xZrO₂ (x = 0, 0.1, 0.2, 0.3, 0.5) catalysts.

The XPS survey of 0.9CeO₂@0.1ZrO₂ (Fig. S4†) shows the presence of 16.6 atomic% of Zr, suggesting the successful deposition of ZrO₂ on the surface of 0.9CeO₂@0.1ZrO₂. The XPS results for Ce 3d of the CeO₂ spheres and 0.9CeO₂@0.1ZrO₂ supports are shown in Fig. 5. The peaks labeled Vo, V′, u₀, and u′ correspond to Ce³⁺ and peaks labeled u, u′′, u′′′, v, v′′, and v′′′ correspond to Ce⁴⁺.⁴⁹ The peak area that belongs to Ce³⁺ is 13.0% and 17.2 % for CeO₂ spheres and 0.9CeO₂@0.1ZrO₂, respectively, suggesting that Zr incorporation leads to a higher Ce³⁺/Ce⁴⁺ ratio. It was reported that oxygen vacancies from nano-sized CeO₂ are associated with the presence of Ce³⁺ on the surface resulting in a higher Ce³⁺/Ce⁴⁺ ratio compared to bulk CeO₂.⁵⁰ Therefore, the increase of Ce³⁺/Ce⁴⁺ ratio in 0.9CeO₂@0.1ZrO₂ may result in a higher oxygen storage capacity and oxygen release rate (discussed in section 3.2).

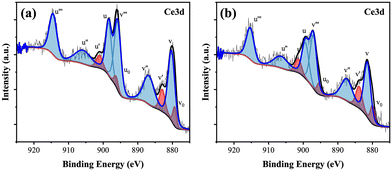

Fig. 5 XPS results for Ce 3d of (a) CeO₂ and (b) 0.9CeO₂@0.1ZrO₂.

3.2. TWC performance

The temperatures that 50% and 90% CO, total HCs (THCs) and NO_x conversions achieved (T₅₀ and T₉₀, respectively) over Pt/(1 ∼ x)CeO₂@xZrO₂ (DG) catalysts are summarized in the bar chart shown in Fig. 6 and the light off curves shown in Fig. S5.†T₉₀s for CO/THCs/NO_x were achieved at 207 °C/244 °C/256 °C over Pt/CeO₂ spheres (DG), respectively. The performance improved with the incorporation of 0.1 molar concentration of Zr. Specifically, Pt/0.9CeO₂@0.1ZrO₂ (DG) achieved T₉₀s for CO (188 °C), THCs (229 °C), and NO_x (240 °C) at a lower temperature compared to Pt/CeO₂ spheres (DG). Further, Pt/0.8CeO₂@0.2ZrO₂ (DG) showed a slightly improved performance compared to Pt/0.9CeO₂@0.1ZrO₂ (DG) with T₉₀s achieved at 185 °C, 223 °C, and 234 °C for CO, THCs, and NO_x, respectively. However, a further increase in Zr molar concentration to ≥0.3 led to a decrease in the catalytic performance with a shift in T₉₀s to higher temperatures. For instance, the T₉₀s achieved over Pt/0.7CeO₂@0.3ZrO₂ (DG) and Pt/0.5CeO₂@0.5ZrO₂ (DG) were 206 °C/245 °C/254 °C and 216 °C/255 °C/268 °C for CO/THCs/NO_x, respectively. The decreased performance of the catalysts with Zr loadings ≥0.3 can be attributed to sintering of Pt particles on crystallized ZrO₂. Furthermore, the activity of 1.8 wt% Pt/Ce_0.9Zr_0.1O₂ (DG) was compared to 1.8 wt% Pt/0.9CeO₂@0.1ZrO₂ (DG) (Fig. S6a†). The results indicate that Pt/0.9CeO₂@0.1ZrO₂ (DG) outperformed Pt/Ce_0.9Zr_0.1O₂ (DG), with the latter achieving T₉₀s of CO/THCs/NO_x at 205 °C/248 °C/260 °C, respectively.

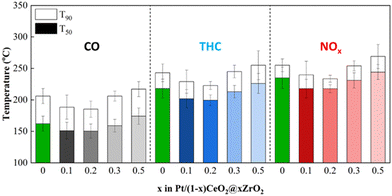

Fig. 6 Comparison of T_50,90s of CO, THCs and NO_x over DG 1.8 wt% Pt/(1 ∼ x)CeO₂@xZrO₂ (x = 0, 0.1, 0.2, 0.3, 0.5) catalysts; each bar represents the average T_50,90s of three different batches of the catalyst and the error bars represent the standard deviation of the T_50,90s.

The oxygen storage/release properties of the catalyst are crucial in near stoichiometric TWC reactions. Therefore, the OSCC and ORR of Pt/(1 − x)CeO₂@xZrO₂ (DG) were measured and correlated with the catalytic performance results (Fig. 7 and S7†). The Pt/CeO₂ sphere had an OSCC and ORR of 155 μmol g⁻¹ and 4.7 μmol g⁻¹ s⁻¹, respectively. The OSCC and ORR were improved when a small amount of ZrO₂ (x = 0.1, 0.2) was deposited on CeO₂ spheres. Specifically, Pt/0.9CeO₂@0.1ZrO₂ and Pt/0.8CeO₂@0.2ZrO₂ had a greater OSCC (259 and 246 μmol g⁻¹, respectively) and ORR (5.2 and 5.1 μmol g⁻¹ s⁻¹, respectively) compared to Pt/CeO₂ spheres. However, further addition of Zr (molar concentrations >0.2) decreased the OSCC and ORR. Specifically, the OSCC decreased to 211 and 185 μmol g⁻¹ and the ORR decreased to 4.6 and 4.1 μmol g⁻¹ s⁻¹ for Zr molar concentrations of 0.3 and 0.5, respectively. Fig. 7 shows that an increase in OSCC and ORR was accompanied by a decrease in T₅₀s and vice versa, implying that optimization of the OSCC and ORR of Pt/(1 − x)CeO₂@xZrO₂ (DG) by varying the Zr molar concentrations can tune the TWC performance. The ORR of bare supports was measured at three different temperatures (150, 350, and 550 °C). 0.7CeO₂@0.3ZrO₂ showed an enhanced ORR compared to CeO₂ spheres at 150 °C and a similar ORR compared to CeO₂ spheres at 350 and 550 °C (Fig. S8†). Moreover, 0.7CeO₂@0.3ZrO₂ and the Ce_0.7Zr_0.3O₂ solid solution showed a similar ORR at 150 °C, while 0.7CeO₂@0.3ZrO₂ showed a greater ORR than the Ce_0.7Zr_0.3O₂ solid solution at 350 and 550 °C.

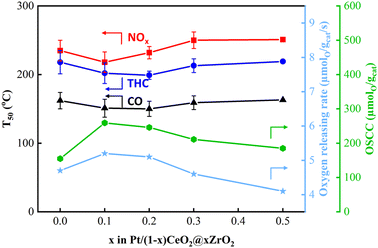

Fig. 7 T ₅₀s of CO, THCs, NO_x (left) and OSCC and ORR (right) of 1.8 wt% Pt/(1 − x)CeO₂@xZrO₂ (DG) catalysts.

The hydrothermal stability of Pt/(1 − x)CeO₂@xZrO₂ was assessed after redox HTA was conducted, followed by a TWC performance evaluation. The evaluation results of Pt/(1 − x)CeO₂@xZrO₂ (HTA) catalysts are summarized in Fig. 8 and Fig. S9.† All catalysts showed higher T_50,90s compared to their DG states (Fig. 6), suggesting that the catalysts deactivate after redox HTA. For example, the Pt/CeO₂ sphere (HTA) reached T₉₀s for CO/THCs/NO_x at 222 °C/252 °C/258 °C, which are 15 °C/8 °C/3 °C higher than the T₉₀s achieved over Pt/CeO₂ sphere (DG), respectively. Deposition of the Zr shell with a Zr molar concentration <0.2 alleviated the deactivation caused by redox HTA and improved the catalytic performance compared to the Pt/CeO₂ sphere (HTA). For instance, Pt/0.9CeO₂@0.1ZrO₂ (HTA) achieved lower T₉₀s for CO (207 °C), THCs (237 °C), and NO_x (244 °C) compared to Pt/CeO₂ (HTA) with T₉₀s for CO/THCs/NO_x achieved at 222 °C/252 °C/258 °C, respectively. Moreover, Pt/0.9CeO₂@0.1ZrO₂ (HTA) outperformed Pt/0.8CeO₂@0.2ZrO₂ (HTA) (CO/THCs/NO_xT₉₀s achieved at 223 °C/251 °C/258 °C, respectively). A further increase in Zr molar concentrations to 0.3 and 0.5 led to higher T₉₀s for Pt/0.7CeO₂@0.3ZrO₂ (HTA) (239 °C (CO)/270 °C (THCs)/279 °C (NO_x)) and Pt/0.5CeO₂@0.5ZrO₂ (HTA) (252 °C (CO)/289 °C (THCs)/292 °C (NO_x)). Finally, Pt/0.9CeO₂@0.1ZrO₂ (HTA) outperformed the Pt/Ce_0.9Zr_0.1O₂ (HTA) (Fig. S6†) solid solution catalyst, with the latter achieving T₉₀s at 220 °C/262 °C/263 °C for CO/THCs/NO_x, respectively. This behavior indicates the advantage of the formation of the (1 − x)CeO₂@xZrO₂ structured support compared to the bare CeO₂ support. TEM images of redox HTA Pt/0.9CeO₂@0.1ZrO₂ (Fig. S10†) showed mild sintering of the spherical support, while no large Pt nanoparticles were identified, which is consistent with the CO-DRIFTS results (Fig. 4). Pt/CeO₂ and Pt/0.9CeO₂@0.1ZrO₂ showed the lowest ΔT₅₀s (= T_50,HTA – T_50,DG) (Fig. S11†), suggesting the least deactivation after redox HTA compared to the rest of the studied catalysts. The ΔT₅₀s increased when the Zr molar concentration increased to values ≥0.2, indicating that a thick ZrO₂ coating layer does not favor stability.

Fig. 8 Comparison of T_50,90s of CO, THCs and NO_x for 1.8 wt% Pt/(1 − x)CeO₂@xZrO₂ (HTA) (x = 0, 0.1, 0.2, 0.3, 0.5) catalysts; each bar represents the average T_50,90s of the three different batches of the catalyst and the error bars represent the standard deviation of the T_50,90s.

4. Conclusions

A simulated S-GDI gas mixture was used for the TWC evaluation of a series of Pt/(1 − x)CeO₂@xZrO₂ catalysts. Pt/CeO₂ spheres (DG) achieved T₉₀s at 207, 244, and 256 °C for CO, THCs, and NO_x, respectively. However, deactivation was observed after HTA with the T₉₀s of the Pt/CeO₂ sphere (HTA) increased to 222, 252, and 258 °C for CO, THCs, and NO_x, respectively. With the incorporation of 0.1 molar concentration of Zr, Pt/0.9CeO₂@0.1ZrO₂ showed the most promising performance considering both DG and HTA evaluation results by achieving the lowest T₉₀s for CO, THCs, and NO_x at 207, 237 and 244 °C (HTA), respectively, compared to all studied Pt/(1 − x)CeO₂@xZrO₂ catalysts. Tuning the Zr molar concentration and thus the Ce : Zr molar ratio of the Pt/(1 − x)CeO₂@xZrO₂ TWCs affected their low temperature catalytic activity by altering their OSCC and ORR. Specifically, improved OSCC (259 μmol g⁻¹) and ORR (5.2 μmol g⁻¹ s⁻¹) values were observed over Pt/0.9CeO₂@0.1ZrO₂ (DG), while increasing the Zr molar concentration further led to a decrease in OSCC and ORR. Furthermore, sintering of Pt can be minimized (average Pt particle size of 6.8 nm) over Pt/0.9CeO₂@0.1ZrO₂ compared to an excess amount of zirconium (x > 0.2), which contains thick ZrO₂ shell that interacts weakly with Pt. Overall, this work highlights the potential of Pt-only catalysts supported on (1 − x)CeO₂@xZrO₂ supports as TWCs and reveals that an improved TWC performance can be achieved by incorporating moderate amounts of zirconium (Zr molar concentration = 0.1).

Data availability

The data supporting this article have been included as part of the ESI.† Any additional data are available from the corresponding author upon request.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was partially supported by start-up funding from the Department of Chemical and Biological Engineering, University at Buffalo (UB), The State University of New York (SUNY). A portion of this research was sponsored by the U. S. Department of Energy's Vehicle Technology Office, with particular thanks to Gurpreet Singh, Siddiq Khan, and Nicholas Hansford of the Offroad, Rail, Marine and Aviation (ORMA). Additionally, the FEI Talos F200X STEM was provided by the Department of Energy, Office of Nuclear Energy, Fuel Cycle R&D Program and the Nuclear Science User Facilities.
