Irina Bozhinovskaab,
Gregori Ujaquea,
Matthias Westerhausen
*b and
Agustí Lledós
*a
aDepartament de Química, Universitat Autònoma de Barcelona, Cerdanyola del Vallès, Bellaterra, 08193 Barcelona, Spain. E-mail: agusti.lledos@uab.cat
bInstitute of Inorganic and Analytical Chemistry, Friedrich-Schiller-University Jena, Humboldtstr. 8, 07743 Jena, Germany
First published on 26th May 2025
The addition of H–P(V) bonds of phosphane oxides across alkynes (hydrophosphorylation reaction) presents an effective synthetic strategy to generate alkenylphosphane oxides. This reaction requires a strong P-nucleophile, such as phosphinite, which can be generated by the reaction of a phosphane oxide with alkali metal amides, such as hexamethyldisilazanides (M-HMDS). Hydrophosphorylation exemplifies an important synthetic reaction facilitated by s-block metal bases. Extensive experimental studies have demonstrated the crucial impact of both the alkali cation and the P-bound substituent on reaction rates, product distribution, and the regio- and stereoselectivity of phosphane oxide addition. This study aims to provide a comprehensive mechanistic interpretation of the alkali metal-catalysed hydrophosphorylation reactions, employing density functional theory (DFT) calculations to clarify experimental findings. Our analysis focuses on two critical stages: 1) formation of the active alkali metal phosphinite species through the metalation–deprotonation of phosphane oxide by M-HMDS, and 2) the subsequent H–P addition onto the alkyne. Additionally, the study addresses side processes that may deactivate the active species by lowering its concentration in solution, potentially impacting the overall reaction efficiency. Computational modelling of reaction mechanisms involving s-block metal cations has been less explored than those with transition metal complexes and faces solvation and speciation as major challenges. This article also discusses the computational requirements necessary for accurate chemical modelling of these systems, as well as the limitations inherent in the employed approach.
The direct addition of P–H bonds onto unsaturated substrates is an attractive synthetic strategy for creating new C–P bonds, facilitating the preparation of organophosphorous compounds. s-Block metal catalysts are particularly well-suited for catalysing these reactions.5,6 In this vein, hydrophosphorylation reactions, that is, the addition of H–P(V) bonds of phosphane oxides across alkynes (Pudovik reaction), yield alkenylphosphane oxides (E- and Z-1-R) and alkane-1,2-diy-bis(phosphane oxides) (2-R) (Scheme 1). A significant number of experimental results have been collected on the s-block metal mediated Pudovik reaction,7–10 which makes it a very appealing subject for computational studies aimed at both rationalising these findings and evaluating the computational methodologies applicable to s-block metal catalysis, revealing their successes and limitations.
The reaction demands the presence of a strong P-nucleophile.11 Alkali metal hexamethyldisilazanides (M-HMDS: M–N(SiMe3)2) have been employed as precatalysts for these reactions to generate alkali metal phosphinites, which serve as the ultimate nucleophiles, by deprotonation and metalation of phosphane oxides. Lithium, sodium, and potassium bis(trimethylsilyl)amides are commercially available and are soluble in a range of polar and nonpolar organic solvents. However, in solution they are involved in aggregation and solvation processes, complicating the accurate assessment of their chemical speciation in specific solvents.12–14
The proposed mechanism of the Pudovik reaction promoted by M-HMDS is illustrated in Scheme 2.10 The initial step involves the metalation of di(organyl)phosphane oxide by M-HMDS of the alkali metals, resulting in the formation of the active species, the alkali metal diorganyl phosphinite (M-OPR2). The ensuing step involves a nucleophilic attack by the phosphorous atom of M-OPR2 (active species) on the CC functional group. Subsequently, the intermediate undergoes protonation with a proton donated by an additional molecule of R2P(O)H. This step regenerates M-OPR2 and yields E/Z-mixtures of mono-phosphorylated 1-R. Experimentally, this addition exclusively yields the anti-Markovnikov product, indicating that regioselectivity is decided in the initial step. Depending on the P-bound substituent of the phosphane oxide and the alkali cation present in the active species, a second phosphinite may be added to the newly formed alkene moiety. The subsequent and final step involves another protonation step, resulting in the formation of bis-phosphorylated 2-R. Experimental evidence demonstrates that bis-phosphorylated 2-R precipitates from the reaction mixture, preventing 2-R from interfering with the equilibrium by reverting back to 1-R.10 Additionally, the M-OPAr2 molecules formed as by-products in the protonation steps can be reused in subsequent catalytic cycle. Phosphane oxides with bulky substituents, such as Mes2P(O)H do not form the bis-phosphorylated product 2-R. Instead, the mono-phosphorylated 1-R undergoes a cyclization process to yield a phosphindole 1-oxide.10
![]() | ||

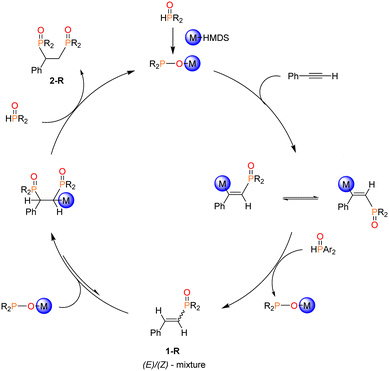

Scheme 2 Proposed mechanism for the formation of the (E)/(Z)-mixture of 1-R and the subsequent bis-phosphorylated 2-R. |
In the Pudovik reaction, the reaction rate and product ratio exhibit a notable dependency on both the alkali metal and the P-bound substituent utilised in the experiment. When comparing the three alkali cations in the case of P-bound mesityl group, it was observed that the lighter metal-based precatalyst (Li-HMDS) was unable to mediate the reaction within 1 h, achieving only 8% conversion with 5/1 ratio for E/Z isomers after 27 h. In contrast, precatalysts based on heavier alkali metals such as Na and K, successfully mediated the reaction within 1 h, resulting in conversion rates of 31% and 93% respectively. This resulted in the formation of E and Z isomers in a 3:
1 ratio (Na) and 5
:
1 ratio (K). Interestingly, the same trend was found in the hydrophosphorylation of styrenes catalysed by monometallic group 1 alkyls M–CH2SiMe3, with the order of conversion being K (99%) ≈ Na (81%) > Li (19%).15 Furthermore, using M-HMDS as a base, similar effects of alkali-metal cations, with Li-HMDS failing to give the desired product, were also noted in the direct nucleophilic trifluoromethylation using fluoroform, which proceeded by the initial generation of MCF3 from CF3H and M-HMDS.16 However, a computed energy profile for this reaction indicated no significant alkali-metal-dependent variations in the barriers during the trifluoromethylation. It was proposed that the failure in trifluoromethylation when using Li-HMDS was due to a decomposition reaction suffered by the LiCF3 reagent.17
The influence of the P-bound group on the hydrophosphorylation reaction has been investigated using potassium amide (K-HMDS). In the case of dimesitylphosphane oxide, hydrophosphorylation generated only phenylethenyl-dimesitylphosphane oxide (1-Mes). When one mesityl substituent was substituted by a phenyl ((Ph)(Mes)P(O)H) the reaction rate decreased slightly, resulting in a drop in conversion from 93% to 76% after 1 h, with minimal formation of the Z-isomer. Additionally, double-hydrophosphorylated phenylacetylene 2-Ar was detected in this case. Substituting all mesityl P-bound substituents by phenyl groups (Ph2P(O)H) fast-tracks the second hydrophosphorylation to the extent that only 2-Ph product was observed despite incomplete conversion. Conversely, under the same conditions, potassium-mediated hydrophosphorylation of phenylacetylene via alkyl (Cy2P(O)H) and alkoxy ((OEt)2P(O)H) P-bound substituents is inhibited.
The experimental results commented on above were obtained in tetrahydrofuran (THF) solutions. Potassium-mediated hydrophosphorylation of phenylacetylene with dimesitylphosphane oxide in various solvents showed that increasing the polarity and donor strength of the solvent increases the reaction rate, achieving quantitative conversions after one hour for acetonitrile (ε = 36.0).10
This article aims to rationalise the complete set of experimental results on the Pudovik reaction promoted by alkali metal cations, by means of density functional theory (DFT) calculations. The main issues to be addressed in this study are the effect of the metal and the substituents, as well as the origin of the regio- and stereo-selectivity of the Pudovik reaction. Computational modelling of reaction mechanisms involving s-block metal cations has been less thoroughly explored than that of transition metal complexes and faces significant challenges related to solvation and speciation. The article will also discuss the computational requirements for the chemical modelling of the system to tackle these issues, as well as its limitations.
As discussed later, accurately describing the solvent is essential for reproducing some of the experimental trends. Therefore, in some parts of the study the solvent was represented using a cluster–continuum approach, also referred to as a hybrid implicit–explicit solvation scheme.26 In this case, alongside the SMD polarizable continuum model for THF, explicit solvent molecules (ranging from 1 to 4) were introduced to describe the solvation sphere of the cation.
Energies in solvent were refined using single-point calculations at the optimised BS1 geometries using an extended basis set (BS2). BS2 comprises the def2-TZVP basis set for all the atoms.27,28 The Gibbs energies in THF solvent were calculated at 298.15 K by adding the thermal and entropic corrections obtained with BS1 to the BS2 energies in solvent. An additional correction of 1.9 kcal mol−1 was applied to all Gibbs energies to change the standard state from the gas phase (1 atm) to the condensed phase (1 M) at 298.15 K (ΔG1atm→1M).29 In this way, all the energy values given in the article are Gibbs energies in solution calculated using the formula:
G = E(BS2) + G(BS1) − E(BS1) + ΔG1atm→1M |

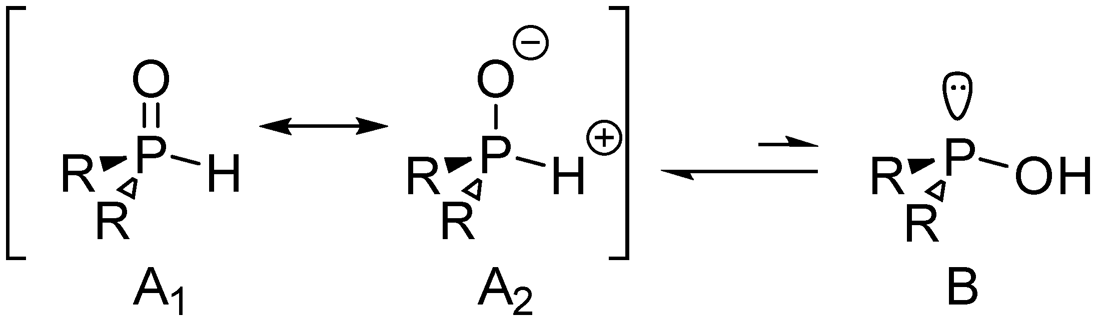

A preliminary consideration regarding the speciation of the phosphorous substrate involves its prototropic tautomerism. Phosphinylidene compounds typically exist in two forms: P(V) and P(III).31 The so-called P(V) form A1/A2 is almost invariably the most stable species; however, in cases with strong electron acceptors, the less stable P(III) form B may become the more stable species (Scheme 3).31,32 An experimental and computational study by Montchamp et al. on this tautomerism indicated that the direct P,O-proton transfer would proceed through a strained three-membered ring, via unaffordable reaction barrier.33 This tautomerism therefore requires catalysis by a proton shuttle, such as a water molecule. Gas-phase calculations for the diphenylphosphane oxide favoured the P(V) P–H form by 6.8 kcal mol−1 with an energy barrier of 30.8 kcal mol−1 assuming catalysis by a single H2O molecule.33 Our own calculations yielded a Gibbs energy difference between both isomers of 10.2 kcal mol−1 in THF, also favouring the P(V) tautomer. Hence, it can be concluded that the predominant species in our solution will be the A1/A2 configuration, with no presence of B configuration. Consequently, all further calculations will be conducted with the A configuration of the Ar2P(O)H reagent.
The formation of the metal-phosphinites (active species) from the corresponding M-HMDS precatalysts and R2P(O)H can be described by reaction 1.
![]() | (1) |
However, this reaction involves two steps: i) the deaggregation of the alkali-metal amides M–N(SiMe3)2 in THF (step 1), and ii) the metalation–deprotonation of the phosphane oxide by monomeric and solvated M–N(SiMe3)2 (step 2) (Scheme 4).
![]() | ||

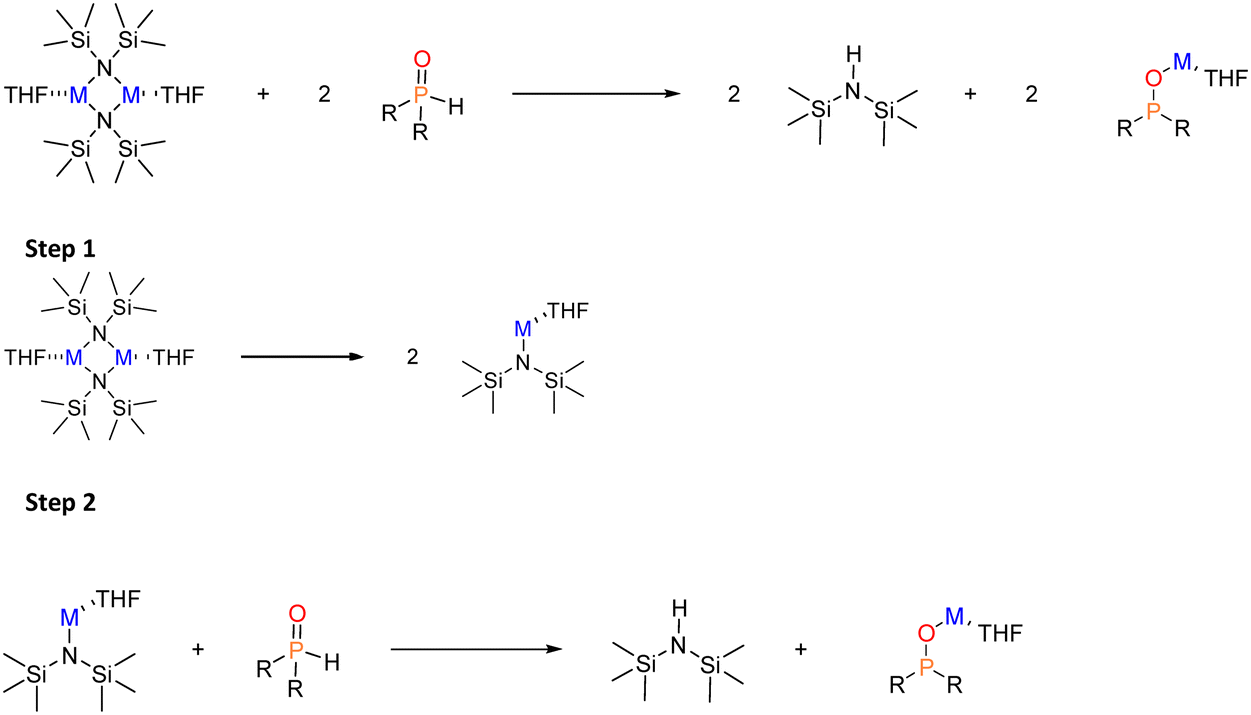

Scheme 4 General scheme for the two steps involved in the generation of active species M-OPR2 (M = Li, Na and K; R = Mes). For M = K also R = Mes, Ph, OEt, and Cy. |
![]() | ||

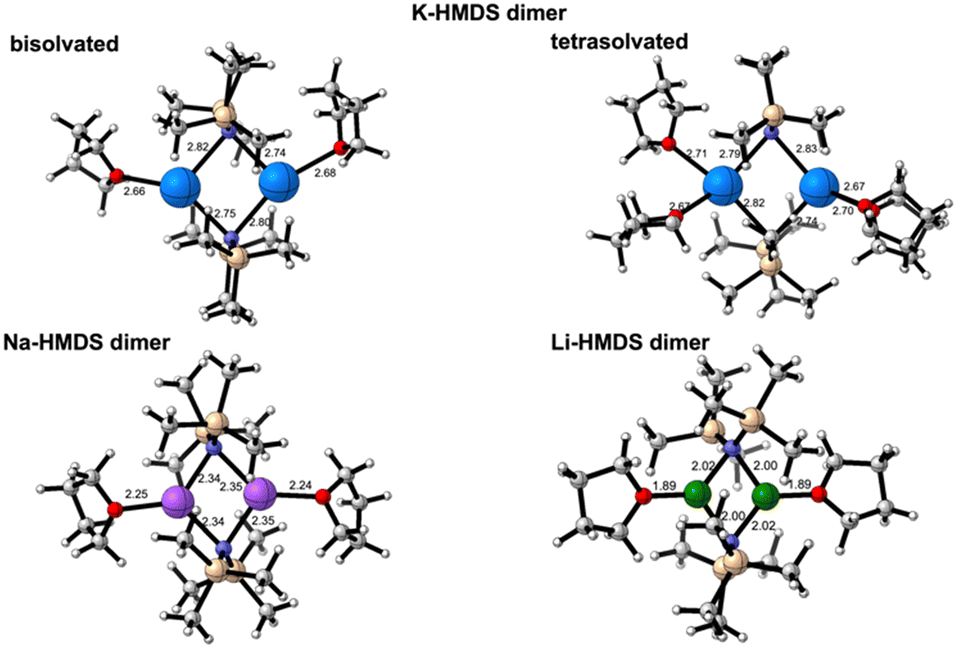

Fig. 1 Optimised structures in THF solvent of ligated M-HMDS reagents considered in the computational study. The distances presented are given in Å. |
For step 1 (Scheme 4), we computed ΔGR of 18.8, 22.3 and 16.6 kcal mol−1, respectively, for the deaggregation of disolvated K-, Na- and Li-HMDS dimers, respectively. For potassium, using the tetrasolvated dimer as starting structure, ΔGR is 17.1 kcal mol−1. A recent study reported a deaggregation energy of 15 kcal mol−1 at 195 K for the non-solvated dimer.12 These ΔGR values suggest that deaggregation is thermodynamically hindered. Experimentally, dimers are observed in concentrated solutions, whereas dilution prompts deaggregation to monomeric species.12,37 The aforementioned ΔGR values describe monomeric species as monosolvated adducts, which would be the case in highly concentrated solutions with relatively low THF content.

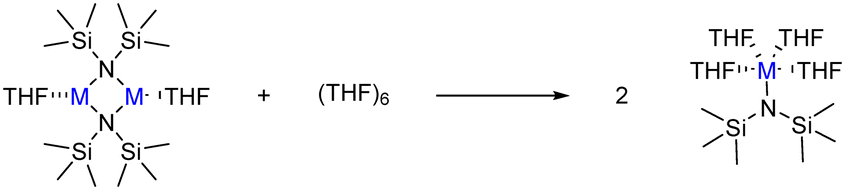

In diluted THF solutions, tetrasolvated (THF)4M-HMDS monomers have been proposed as the most abundant species. When describing the deaggregation step as depicted in Scheme 5, significantly different ΔGR values are obtained: −18.3 kcal mol−1 (K, disolvated dimer), −1.5 kcal mol−1 (K, tetrasolvated dimer), −12.8 kcal mol−1 (Na) and 1.0 kcal mol−1 (Li). These results indicate that solvation of the monomers is the driving force shifting the reaction toward deaggregation. In these calculations we have employed a cluster model of six THF molecules ((THF)6) for disolvated dimers and four ((THF)4) for tetrasolvated K-dimer to describe the process in which tetrasolvated monomers are formed (Scheme 5). This model has been previously been shown to yield reliable values for solvent coordination processes.41 Fig. 2 illustrates the optimised structures of the THF-saturated M-HMDS monomers.
Considering the stabilization of the deaggregated monomer through tetrasolvation, the dissociation of the M-HMDS dimer is relatively easy for potassium and sodium bis(trimethylsilyl) amides. However, Li-HMDS deaggregation is considerably less favourable, resulting in significantly lower concentration of monomer in solution. This may partly explain the reduced efficiency of Li-HMDS as precatalyst in the Pudovik reaction.
Entry | Metal | P-bound group (R) | ΔGR | ΔG† | |
---|---|---|---|---|---|
(THF)1a | (THF)4b | ||||
a Monosolvated species.b Tetrasolvated species (numbers in italics). | |||||
1 | Li | Mes | −5.7 | −19.7 | 16.6 (17.3)b |
2 | Na | Mes | −8.0 | −9.9 | 11.7 |
3 | K | Mes | −8.1 | −9.2 | 11.2 (9.5)b |
4 | K | Mes/Ph | −8.1 | −9.3 | 12.0 |
5 | K | Ph | −11.7 | −13.1 | 7.1 |
6 | K | Cy | 8.6 | 7.8 | 13.0 |
7 | K | OEt | −15.3 | −13.6 | 6.4 |
The ΔGR values for monosolvated and tetrasolvated species are similar, with the exception of the lithium dimesitylphosphinite case in which the tetrasolvated species is much more stabilized (Table 1, entry 3). Therefore, to simplify calculations, we have computed the Gibbs energy profiles by locating all structures (intermediates and transition state) for the P- to N-proton transfer (Scheme 6) using monosolvated structures. To verify the validity of this simplification, we have also computed the energy profile for the tetrasolvated species in the case of K-OPMes2 and Li-OPMes2 (entries 1 and 3, Table 1). The barriers (ΔG†) for mono- and tetrasolvated species were found to be comparable. The optimized structures for the pathway with M = K and R = Mes are depicted in Fig. 3.
![]() | ||
Scheme 6 General scheme for the proton transfer step in the formation of alkali metal diorganylphosphinites (M-OPR2). |
Coordination of the alkali metal to the oxygen atom of the phosphane oxide in the initial intermediate RI positions the P–H proton in the vicinity of the N-centre where the proton transfer will occur (Fig. 3).
The Gibbs energy profiles for the proton transfer step are presented in the ESI† (Fig. S1 and S2). For all the three cations with R = Mes, the reaction is exergonic and proceeds with low barriers, although lithium exhibits a notably higher barrier (16.6 kcal mol−1) compared to sodium and potassium, which exhibit similar values (11.7 and 11.2 kcal mol−1, respectively). A Gibbs activation energy of 21.5 kcal mol−1 was computed for the lithium/proton exchange between LiN(SiMe3)2 and benzylamine.42 The Gibbs energy of the reaction depends strongly on the P-bound group of the phosphane oxide. With aryl substituents on phosphorous the reaction is highly exergonic, whilst when the substituent is an alkyl (R = Cy) the process is highly unfavourable (ΔGR = 7.8 kcal mol−1), indicating an inefficient stabilization of the alkyl phosphinite. When the P-substituent is an aryl, the cation engages in interactions with both the oxygen atom of the phosphinite and the aryl ring. However, this intramolecular cation–aryl π-interaction is not present when R = Cy. The unfeasibility to form K-OPCy2 appears to be the primary reason for the absence of hydrophosphorylation with Cy2P(O)H. With R = OEt the cation interacts with both the oxygen atom in the phosphinite functionality and an oxygen atom in one ethoxy group, making the reaction highly exergonic. Nonetheless, hydrophosphorylation does not proceed with (EtO)2P(O)H either, indicting that another factor must be responsible for the lack of reactivity in this case.
![]() | ||

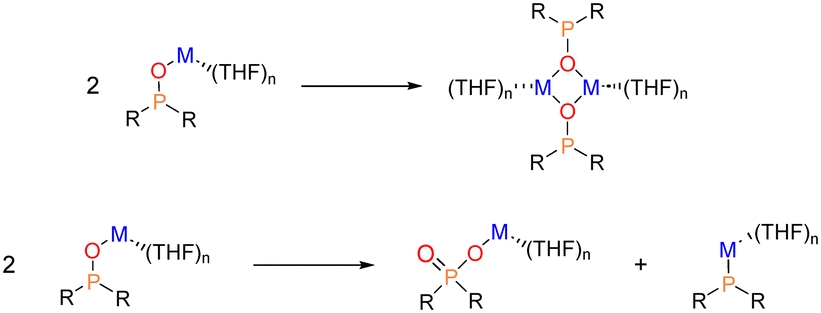

Scheme 7 Deactivation processes of alkali metal diorganylphosphinites M-OPR2: dimerization (top) and dismutation (bottom). |
The crystal structures of alkali metal diarylphosphinites show a tendency to aggregate. Tetranuclear lithium and potassium diarylphosphinites featuring central M4O4 cages have been characterised.7,43 However, understanding of the coordination chemistry of the alkali metal diarylphosphinites remains limited. A recent study described the metalation of dimesitylphosphane oxide with n-butyllithium as well as with sodium and potassium hexamethyldisilazanides in THF, leading to the formation of alkali metal dimesitylphosphinites M-OPMes2.44 From the lithium reagent, the dinuclear complex [(THF)3(Li–O–PMes2)2] was crystalized, while tetranuclear species of the form [(THF)M–O–PMes2]4 with central heterocubane cages were obtained from Na- and K-HMDS. In the potassium reaction with bulky P-bound 2,4,6-triisopropylphenyl substituents, a dimeric complex [(THF)4(K–O–PMes2)2] forms in which each potassium ion is coordinated by two THF molecules.44

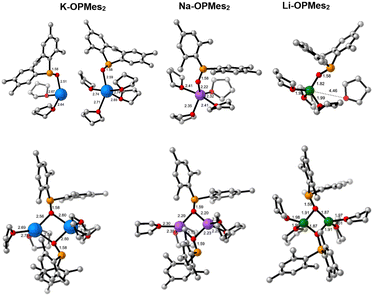

We have computationally examined the dimerization of the alkali metal diorganylphosphinites. Our analysis revealed that, due to the reduced steric pressure induced by the P-substituents compared to the two trimethylsilyl groups of HMDS, two THF molecules are able to coordinate to each cation, resulting in the formation of tetrasolvated dimers (Scheme 8).
![]() | ||
Scheme 8 Dimerization process of M-OPR2 phosphinites considering disolvalted (top) or tetrasolvated (bottom) monomers. |
In akin manner to the M-HMDS case, we have examined the solvation state of the monomer by calculating the reaction for both disolvated and tetrasolvated species. Fig. 4 displays the optimised structures of dimesitylphospinites.
Table 2 presents the computed Gibbs reaction energies for the dimerization reactions depicted in Scheme 8. As observed in the deaggregation of dimeric M-HMDS (Scheme 5), the solvation state of the monomer significantly influences the thermodynamics of the reaction. The values for the tetrasolvated monomers provide a more accurate representation of the conditions in pure THF. For the potassium case (ΔGR = −0.7 kcal mol−1) there is a significant amount of monomeric active species present. In contrast, for sodium and lithium (ΔGR = −3.8 and −4.4 kcal mol−1, respectively) the equilibrium shifts towards the dimer side, leading to a notable reduction in the concentration of the active species in THF solution.
It is known that certain alkali metal phosphinites, such as Li-OPMes2, undergo dismutation into phosphinate (M(O2PMes2)) and phosphanide (M-PR2) (Scheme 7, bottom).45 Similarly, homologous potassium diphenylphosphinite also undergoes dismutation.8 Increasing the steric requirements of the P-bound substituents hampers the disproportionation reaction. We have evaluated the thermodynamics of dismutation by examining tetrasolvated species (Scheme 7, bottom, with (THF)4). The Gibbs reaction energies (ΔGR) for the dismutation reaction are summarized in Table 3.
Entry | Metal | P-bound group (R) | ΔGR |
---|---|---|---|
1 | Li | Mes | −5.7 |
2 | Na | Mes | −13.4 |
3 | K | Mes | −19.3 |
4 | K | Mes/Ph | −17.2 |
5 | K | Ph | −20.0 |
6 | K | OEt | −17.1 |
The results highlight that dismutation is thermodynamically favoured for all the three alkali metal cations, following the trend K > Na > Li. For potassium, comparable Gibbs reaction energies are obtained across the P-substituents (R = Mes, Mes/Ph and Ph). In contrast, disproportionation is unfavourable when R = OEt, as this leads to the formation of a species with four oxygen atoms bonded to phosphorous. Since dismutation requires the approach of solvated M-OPR2 phosphinites, it is evident that steric effects significantly influence the reaction kinetics.
The complexities of speciation and solvation entail significant challenges in the computational simulation of the formation and deactivation of the alkali metal phosphinite active species in the Pudovik reaction within THF solution. Achieving more accurate results would require performing DFT-based molecular dynamics simulations, akin to those conducted for the Schlenk equilibrium in Grignard reagents, which are beyond the scope of this study.46 Moreover, the reactions of dimerization and dismutation involve two alkali metal phosphinite molecules and are influenced by concentration effects, which were not taken into account when conducting the calculations. However, static DFT calculations can provide useful insights in the behaviour of these systems in solution, especially when solvation is carefully modelled by including explicit THF molecules in the computational model. Although our investigation focused on a limited number of species, it should be noted that other species might also exist in solution. Nevertheless, our study points out that the concentration of active species in solution is highly dependent on both the alkali metal cation present and the P-bound substituents. Specifically, the combination of a potassium cation combined with bulky mesityl groups at the phosphorous atom, which hinder aggregation and dismutation of the phosphinite, appears as the best combination to affording high concentration of active species in solution.
![]() | ||
Fig. 5 Top: calculated HOMO of K-OPMes2 without explicit THF molecules solvating the cation (left) and with four THF solvent molecules (right). Bottom: LUMO of phenylacetylene. |
To analyse the relative nucleophilicity of the species involved in the nucleophilic addition, as well as the influence of solvation, we have calculated the empirical global nucleophilicity index (N) for each species. This nucleophilicity index is derived from the HOMO energies obtained within the Kohn–Sham scheme, and is defined as N = εHOMO (Nu) − εHOMO (TCE), where tetracyanoethylene (TCE) serves as the reference, due to its particularly negative εHOMO, enabling the calculation of positive values of N.48 Within this framework, organic molecules with N ≥ 3.0 eV are classified as strong nucleophiles, while those with N ≥ 4.0 eV are categorised as supernucleophiles.49
The nucleophilicity index N in Table 4 clearly demonstrates that deprotonating phosphane oxide substantially increases the nucleophilicity of P-nucleophiles. Specifically, N increases from 3.11 in dimesitylphosphane oxide to over 4.00 in alkali metal phosphinites, classifying them as supernucleophiles. The influence of the cation is minor but follows the trend K > Na > Li in agreement with an increasing electronegativity difference. Phosphorous substituents have a greater influence on nucleophilicity, with a notable decrease when R = OEt. Furthermore, the inclusion of four explicit THF molecules to solvate the cation has very little impact on N, only causing a slight increase. Charge model 5 (CM5) atomic charges50 on the metal indicate a primarily ionic interaction between the potassium or sodium and the oxygen atom of the phosphinite (charges about 0.9 e in the potassium and 0.8 e in the sodium dimesitylphosphinite). This ionic character is notably decreased with lithium.
Entry | Metal phosphinites (M-OPR2) | No explicit THF molecules | (THF)4 | ||||
---|---|---|---|---|---|---|---|
HOMO energy (eV) | Na (eV) | Mb charge | HOMO energy (eV) | Na (eV) | Mb charge | ||
a Relative nucleophilicity index, taking tetracyanoethylene (TCE), which is the expected least nucleophilic neutral species, as a reference: N = εHOMO(Nu) − εHOMO(TCE). In THF εHOMO(TCE) = −8.64 eV.b CM5 atomic charge at the alkali metal.c H instead of M. | |||||||
1 | [OPMes2]− | −3.26 | 5.38 | — | — | — | — |
2 | K-OPMes2 | −4.15 | 4.49 | 0.90 | −4.09 | 4.55 | 0.88 |
3 | Na-OPMes2 | −4.32 | 4.32 | 0.82 | −4.12 | 4.52 | 0.73 |
4 | Li-OPMes2 | −4.55 | 4.09 | 0.69 | −4.29 | 4.35 | 0.52 |
5 | H-OPMes2 | −5.53 | 3.11 | 0.35c | — | — | — |
6 | K-OPPhMes | −4.26 | 4.38 | 0.91 | −4.09 | 4.55 | 0.87 |
7 | K-OPPh2 | −4.45 | 4.19 | 0.89 | −4.32 | 4.32 | 0.87 |
8 | K-OPCy2 | −3.97 | 4.67 | 0.89 | −3.84 | 4.80 | 0.85 |
9 | K-OPOEt2 | −5.19 | 3.45 | 0.96 | −4.97 | 3.67 | 0.88 |
Two key observations emerge from the calculations. First, the interactions between the metal cation and the π-system are notably weak. For the most stable structures, the computed phosphinite–alkyne binding energies (ΔG) are −0.8 (K), −1.6 (Na) and −2.9 (Li) kcal mol−1. The most stable conformations for the three alkali cations are depicted in Fig. 6. As shown, all interactions exhibit slightly attraction, indicating a weak M–π binding in a highly dynamic environment where the metal cation has a minimal impact on the π system. Our findings on the metal effects in cation–π interaction align with Schleyer's observations regarding the conformational “floppiness” of the metal cations.52 This “floppiness” of the metal cations relative to the π system posed significant challenges in identifying transition states as significant positional changes led to small variations in energy values.
![]() | ||
Fig. 6 Top: most stable conformations computed for phenylacetylene·M-OPMes2 (M = Li+ (green), Na+ (purple), and K+ (blue)) adducts. Bottom: X-ray structures of PhCH2M·Me6TREN (M = Li, Na, and K) complexes.53 ΔG binding in kcal mol−1. Certain H atoms are omitted for clarity reasons. The distances are given in Å. |
The second key observation relates to the preferred orientation of the metal cation relative to the π-system in its most stable conformation. Potassium cation preferably interacts with the aryl-system rather than the triple bond CC π-system, whereas lithium cation shows the opposite preference favouring interaction with the π-system of the C
C triple bond. Sodium cation's coordination preference falls somewhere in the middle. This behaviour mirrors the shift observed in X-ray structures of PhCH2M·Me6TREN54 and alkali metal aryl methyl anions, where increasing the size of the alkali metal and hence its softness leads to displacement of the metal from the lateral ‘carbanionic’ carbon towards the softer aromatic π-system (Fig. 6).55
The reaction proceeds in two steps: i) nucleophilic addition of the P-nucleophile and ii) subsequent protonation. During the first step, the nucleophilic attack can target either the internal carbon (Markovnikov) or the terminal carbon (anti-Markovnikov) of the CC triple bond of phenylacetylene. We have computed both additions and our computational results are consistent with experimental findings, indicating that only the anti-Markovnikov addition occurs. We have found a much higher barrier for the addition to the internal carbon atom (19.1 kcal mol−1) compared to the terminal carbon atom (10.3 kcal mol−1) (details provided in Fig. S3 and S4, ESI†). The presence of phenyl group polarises the alkyne π* orbital, increasing the contribution of the terminal carbon in the π* (Fig. 5), thereby rendering the terminal carbon more electrophilic and promoting it as the site for nucleophilic attack.56,57
The second step involves the protonation of the internal carbon. There are two possible protonating agents in the reaction medium: Mes2P(O)H and H-HMDS, the latter being a product formed during the generation of the active phosphinite species K-OPMes2. Our calculations indicate that protonation with Mes2P(O)H occurs with a lower barrier (10.5 kcal mol−1) compared to H-HMDS (15.8 kcal mol−1) (refer to Fig. S5 and S6 in the ESI† for details). The formation of the Z-alkene is very exergonic, with a computed ΔG of −20.8 kcal mol−1.
The preceding calculations considered the unsolvated cation, treating THF solvent as a continuum medium with the dielectric constant ε = 7.43 (SMD model), without including explicit THF molecules in our system. To evaluate the validity of this assumption, we have computed the Gibbs energy profile for the formation of the Z-isomer, this time solvating the potassium cation with one or two explicit THF molecules. Since the potassium cation interacts with both the π system and the oxygen atom of the phosphinite, coordinating two THF molecules to the cation yields a more realistic description of its first coordination sphere. A comparison of the transition states for the nucleophilic addition (TS-1-Mes-K) and the protonation (TS-2-Mes-K) with 0, 1 and 2 explicit THF molecules coordinated to K is illustrated in Fig. S7 in the ESI.† Table 5 summarizes the Gibbs energy barriers (ΔG†) for both steps with 0, 1 and 2 explicit THF molecules. This comparison sheds light to how explicit solvation affects the reaction energies.
Entry | (THF)n | Nuc attack | Protonation |
---|---|---|---|
1 | n = 0 | 10.3 | 10.5 |
2 | n = 1 | 12.0 | 10.0 |
3 | n = 2 | 11.2 | 9.7 |
Results in Table 5 demonstrate that coordinating explicit THF molecules to the potassium cation has a minor impact on the reaction barriers. For this reason and considering the added complexity in optimization steps when explicit THF molecules are included, as well as the significant number of calculations required, we opted out to proceed without explicit THF molecules in the model for future computations. This approach streamlines the computational process while maintaining a reliable level of accuracy for the system under study.
Numerous attempts were conducted to attain the direct nucleophilic attack for formation of the E-hydrophosphorylated product E-1I-Mes-K but all proved unsuccessful. Interestingly, a similar preference for the Z isomer was found in the study of the Na-HMDS mediated enolization of ketone.58 A thermal study on the E/Z isomerization of Mes2–P(O)–C(Me)C(H)Ph showcased that at slightly elevated temperature (80 °C) rotation around the C
C double bond is feasible with a low barrier of 14.1 kcal mol−1.9 This observation prompted us to investigate the possibility of a transition state for an isomerization from Z-1I-Mes-K to E-1I-Mes-K intermediates occurring before protonation. We successfully located this transition state (TS-3-Mes-K), which corresponds to bending of the Cterminal–Cinternal–CPh angle from 135○ in the Z-intermediate to almost 180○ in the transition state. TS-3-Mes-K exhibits an allene-like nature, as indicated by its similar Cterminal–Cinternal and Cinternal–CPh distances (1.31 and 1.36 Å, respectively, Fig. 8). The change in the coordination of the potassium cation during the isomerization is remarkable. In the Z-1I-Mes-K intermediate the cation interacts with the π system of the aryl moiety, whilst in E-1I-Mes-K intermediate the cation becomes σ coordinated to the Cinternal (Fig. 8). This isomerization occurs with a barrier of only 4.9 kcal mol−1, low enough to be easily surpassed at the temperature at which the reaction proceeds. This transformation is additionally thermodynamically assisted as E-1I-Mes-K is found at −9.9 kcal mol−1 in the Gibbs energy profile, whilst intermediate Z-1I-Mes-K is located at −6.2 kcal mol−1.
![]() | ||

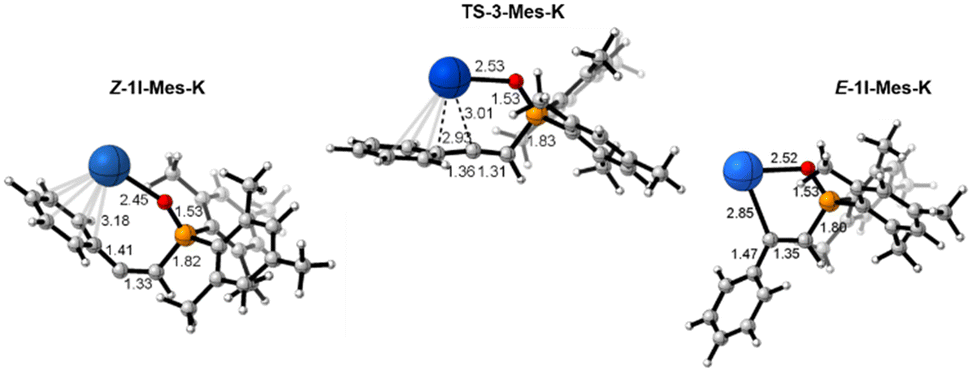

Fig. 8 Optimised structures of intermediates and transition state involved in the Z/E isomerization. The distances presented are given in Å. |
The computed Gibbs energy profile for the formation of the E-mono-phosphorylated alkene is presented in Fig. 9. In the final step, the E-1I-Mes-K intermediate is protonated by an additional molecule of Mes2P(O)H through transition state TS-4-Mes-K, with a barrier of 12.9 kcal mol−1. This step yields the final product at −25.6 kcal mol−1 below the starting reagents in the Gibbs energy profile, while simultaneously regenerating the catalytically active species as side product.
By comparing the Gibbs energy profiles for the formation of both Z and E isomers it can be inferred that the outcome of this reaction is governed by the thermodynamics: the E-isomer (−25.6 kcal mol−1) exhibits greater thermodynamic stability than the Z-isomer (−20.8 kcal mol−1). This difference in stability suggests a thermodynamic driving force that favours the formation of the E-isomer over the Z-isomer.
The second nucleophilic attack in the hydrophosphorylation process proceeds at Cinternal. It is important to highlight that Z-1P-Mes-K is less stable than E-1P-Mes-K, yet it offers more spatial room. This increased space in Z-1P-Mes-K facilitates a more favourable environment for the second hydrophosphorylation to take place, in contrast to E-1P-Mes-K, where steric constrains are more pronounced (Fig. 10). Consequently, the second hydrophosphorylation is expected to preferentially occur at Z-1P-Mes-K, which is consistent with experimental results involving P-bound phenyl groups.
We have computed the second addition starting from Z-1P-Mes. The mechanistic steps for the second addition closely mirror those of the first addition, as depicted in Scheme 2. The Gibbs energy diagram for the formation of the bishydrophosphorylated alkane is depicted in Fig. S8 in the ESI.† The optimised structures for the transition states involved in the formation of bishydrophosphorylated alkane are presented in Fig. S9 in the ESI.† The second nucleophilic attack proceeds at Cinternal and displays a significantly higher barrier compared to the first nucleophilic attack (16.2 vs. 10.3 kcal mol−1). Furthermore, the energy barrier for the protonation step (ΔG† = 26.6 kcal mol−1, TS-2-Mes-DA) is even higher, rendering the second addition unfeasible for the dimesitylphosphane oxide. These results give us an insight why the formation of bishydrophosphorylated alkynes is not observed under these conditions.
Experimentally, only very low concentrations of the double-hydrophosphorylation product have been observed.10 Calculations indicate that the rather high barrier computed for the second P-addition renders the addition of a second Mes2P(O)H onto the alkenyl moiety formed in the first addition highly disadvantageous. Conversely, experiments revealed the formation of 2-benzyl-1-mesityl-5,7-dimethyl-2,3-dihydrophosphindole 1-oxide. In the original paper it was proposed that this product arises from a cyclization reaction, initiated by deprotonation of an ortho-methyl group of a mesityl substituent in the Z-product of the first addition. This is followed by cyclization triggered by an intramolecular nucleophilic attack at the alkenyl substituent of the resulting carbanion. The final product is expected to form via protonation by H–N(SiMe3)2.10 We have computationally assessed the proposed mechanism. Fig. 11 displays the computed Gibbs energy profile for the cyclization, including the optimised structures of the transition states involved.
The formation of the phosphindole 1-oxide product (3-Mes) proceeds through a sequence of three steps. Initially, a strong interaction occurs between the oxygen of Z-1P-Mes and the potassium ion from K-HMDS. This interaction facilitates the approach of the nitrogen center of K-HMDS to a C–H bond of an ortho-methyl group of the mesityl substituent, enabling an easy deprotonation, which requires a barrier of only 18.8 kcal mol−1 (TS-1-Mes-CYC, Fig. 11). The second step involves cyclization, wherein the carbanion, formed from the deprotonation, attacks the alkenyl carbon bonded to phosphorous, thereby closing the cycle. This second step has a Gibbs energy barrier of 10.6 kcal mol−1 (TS-2-Mes-CYC, Fig. 11). Finally, protonation at the benzylic carbon atom by H-HMDS occurs, yielding the phosphindole 1-oxide product 3-Mes after overcoming a Gibbs energy barrier of 15.3 kcal mol−1 (TS-3-Mes-CYC, Fig. 11). This step also regenerates the catalytic species K-HMDS. The cyclization product is found 22.3 kcal mol−1 below Z-1P-Mes-K, indicating a strong thermodynamic driving force favouring cyclization. Furthermore, the cyclic 3-Mes product is 1.9 kcal mol−1 more stable than the double-added product 2-Mes.
The results in Table 6 display a minimal influence of the alkali metal cation on the nucleophilic addition, which aligns with the comparable nucleophilicities of the three M-OPMes2 nucleophiles, as reflected in their nucleophilicity index (N in Table 6). Notably, a slightly high addition barrier is found with lithium consistent with the lower nucleophilicity index of Li-OPMes2 (Table 6). Overall, the barriers are very similar and low, suggesting that, if the alkali metal phosphinite forms, the addition could proceed under the reaction conditions without significant variation attributable to the alkali metal. This result seems to contradict the experimental results, which show almost no conversion with Li-HMDS. However, the reaction does successfully yield bisphosphorylethane (in THF solvent, at 70 °C, 4 h) when employing t-BuOLi and diphenylphosphane oxide, as reported by Yoshimura et al.59 This fact suggests that the lack of activity observed with Li-HMDS precatalyst may stem more from the low concentration of the active species Li-OPMes2 in the reaction medium, rather than from any inherent limitation in the reaction mechanism itself. Indeed, dismutation and sparing solubility of lithium dimesitylphosphinate lead to the precipitation of dinuclear [(thf)2Li(O2PMes2)]2 when Mes2P(O)H is lithiated with BunLi in THF.45
To further assess the impact of the metal cation over the reaction barriers we conducted calculations using a hydrogen atom (formally a proton) in the place of the metal ion, considering H-OPMes2 as the nucleophile (Fig. S18 in the ESI†). Our findings indicate that replacing the alkali cation with a proton indeed results in doubling the barrier for the nucleophilic attack (Table 6), which corresponds to the decrease in nucleophilicity of H-OPMes2 compared with alkali metal phosphinites (K+: N = 4.49; H+: N = 3.11, Table 6). This suggests that substitution of the proton with the alkali cation, thereby generating supernucleophilic species, is necessary for the reaction to ensue. However, if the active species were accessible only minor differences between the three alkali cations can be expected.
In Table 7 the computed reaction barriers have been summarized. The results show a clear correlation with the nucleophilicity of the phosphinite species. Specifically, the lowest nucleophile K-OP(OEt)2 exhibits the highest barrier (18.1 kcal mol−1), which is comparable to that of the phosphane oxide H-OPMes2 (22.7 kcal mol−1). Accordingly, this indicates that (EtO)2P(O)H cannot efficiently mediate the addition reaction. In contrast, K-OPCy2, identified as the highest nucleophilic species, shows the lowest computed barrier (9.1 kcal mol−1). Notably, in the presence of t-BuOLi, dicyclohexylphosphane oxide was able to proceed with the addition reaction onto phenylacetylene readily, resulting in quantitative formation of the 1,2-bisphosphoryl compound (in THF solution, at 70 °C, 4 h).59 However, deprotonation of phosphane oxide Cy2P(O)H by K-HMDS is endergonic (ΔG = 7.8 kcal mol−1, Table 1), suggesting that the active species is not formed through this pathway, which ultimately explains the lack of observed reactivity.
Experimentally, in contrast to the reaction outcome observed with R = Mes, when the P-bound group is phenyl, the second hydrophosphorylation occurs, leading exclusively to the bis-hydrophosphorylated product. We have computed the Gibbs energy profile for the formation of the bis-phosphorylated alkane product from the Z-alkenyl diphenylphosphane oxide (Fig. S27 and S28 in the ESI†). The nucleophilic addition associated with the second phosphorylation displays a barrier comparable to that of the first phosphorylation (11.8 and 11.4 kcal mol−1, respectively), much lower than that for the second addition involving the mesityl system (16.2 kcal mol−1). The protonation barrier for the diphenylphosphane oxide (7.6 kcal mol−1) is much lower than that for the mesityl-substituted phosphane oxide (26.6 kcal mol−1). The bis-phosphorylated product is highly stable (−56.1 kcal mol−1), showing a strong thermodynamic driving force for the reaction. Overall, these theoretical findings align with the experimental observance of a >99% conversion to the bis-hydrophosphorylation product when utilizing diphenylphosphane oxide. It appears that steric effects, due to the bulkiness of the mesityl groups, are responsible for the lack of formation of the double-hydrophosphorylation product in reactions involving Mes2P(O)H.

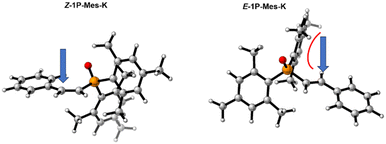

We have analysed the regio- and stereoselectivity in the reaction, finding a clear preference for the anti-Markovnikov addition at the terminal carbon of the triple bond. The anti-Markovnikov regioselectivity is governed by the polarization of the π* orbital caused by the phenyl group, making the terminal carbon more electrophilic and promoting the site for nucleophilic attack. Regarding Z/E-stereoselectivity, our analysis indicates that only the Z-addition occurs initially. The formation of the E-alkene phosphane oxide results from isomerization of the initially formed pro-Z intermediate. This isomerization step has a low barrier and leads to a more stable dimesityl(styryl)phosphane oxide, providing a thermodynamic driven force for the formation of the E-alkene phosphane oxide. Furthermore, our calculations suggest that the double addition of dimesitylphosphane oxide to yield the 1,2-bisphosphoryl product is primarily hindered by steric factors. Conversely, the Z-alkene product from the first addition can undergo cyclization. This pathway beginning with the deprotonation of the ortho-methyl group of the mesityl substituent, ultimately forming a phosphindole 1-oxide product. The energy barrier for this cyclization (22.4 kcal mol−1) is lower than that for the second addition (26.6 kcal mol−1), demonstrating that the cyclization pathway is more favourable for this system.
Substituents on the phosphorous atom significantly influence the nucleophilicity of the phosphinite. Overall, there is a good correlation between the barriers for the addition of the P-nucleophile (ΔG†) and the nucleophilicity index N (Fig. 12).
![]() | ||

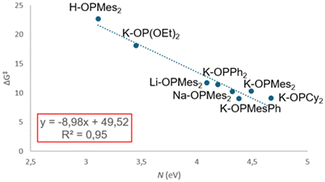

Fig. 12 Plot of the Gibbs energy barriers for the addition of the P-nucleophile (ΔG†, kcal mol−1) versus nucleophilicity index (N, eV). |
For instance, when R = OEt the nucleophilicity index decreases to a value comparable to that of the phosphane oxide, preventing the reaction from proceeding. Surprisingly, even the most nucleophilic substituent (R = Cy) does not react. This outcome may be attributed to the high endergonic deprotonation of Cy2P(O)H phosphane oxide by K-HMDS, which has a Gibbs energy change of ΔG = 7.8 kcal mol−1. This suggests that the active species is not generated under these conditions and no reaction occurs. Additionally, the impact of steric effects is evident in the calculation for the second addition reaction with diphenylphosphane oxide. Contrarily to the case with Mes2P(O)H, the reduced steric pressure exerted by phenyl enables the formation of the bis-hydrophosphorylated product.
Experimentally, an increase in solvent polarity increases the reaction rate. The active species, alkali metal phosphinite M-OPMes2, generally exists as a contact ion-pair, characterised by a strong electrostatic interaction between the cation and the phosphinite oxygen. As the solvent polarity increases, this interaction is expected to shift from contact ion-pair to solvent separated ion-pair. Calculations indicate that the anionic dimesitylphosphinite, when uncoupled from the cation, emerges as the strongest nucleophile (Table 4). Therefore, detaching the cation from [OPMes2]− in a more polar solvent is expected to reduce the activation barrier of the nucleophilic addition, thereby increasing the overall reaction rate.
Computational studies of reaction mechanisms of s-block metal promoted processes have garnered less attention compared to those centred on transition-metal catalysed processes. From a computational perspective this study highlights the difficulties associated with computationally modelling reaction mechanisms for catalytic processes involving s-block metal cations. Key issues include speciation and solvation, particularly evident in the analysis of the formation and deactivation of the alkali metal phosphinite active species. In contrast, these factors have a reduced impact in the P–H addition reaction, where the cations play a minor role. Achieving more quantitative insights into the formation and stability of the active species would require performing expensive time-consuming DFT-based molecular dynamics simulations, using a box with tens of solvent molecules, an approach beyond the scope of this work. Nonetheless, our findings depict that static DFT calculations, using a careful choice of a cluster–continuum solvent model, incorporating a limited number of explicit THF solvent molecules, can provide valuable insights and outline key trends to understand the behaviour of such systems.
Footnote |
† Electronic supplementary information (ESI) available. See DOI: https://doi.org/10.1039/d5cy00269a |
