A water-soluble heterometallic iron(IV)–ruthenium(IV) μ-nitrido porphyrin complex: synthesis, structure and catalytic activity

Abstract

A heterometallic Fe(IV)–Ru(IV) nitrido complex bearing a water-soluble porphyrin ligand has been synthesized, and its redox and catalytic properties have been investigated. Treatment of Na₄[Fe(TPPS)(H₂O)₂] ([TPPS]⁴⁻ = meso-tetrakis(4-sulfonatophenyl)porphyrinate) with [Ru(N)(L_OEt)Cl₂] (L_OEt⁻ = [Co(η⁵-C₅H₅){P(O)(OEt)₂}₃]⁻) afforded the water-soluble μ-nitrido complex Na₄[(H₂O)(TPPS)Fe(μ-N)RuCl₂(L_OEt)] (Na₄[1]). Cation metathesis of Na₄[1] with Ph₄PCl gave (Ph₄P)₄[(H₂O)(TPPS)Fe(μ-N)RuCl₂(L_OEt)] ((Ph₄P)₄[1]), which has been characterized by single-crystal X-ray diffraction. The observed Ru–N(nitride) [1.701(5) Å] and Fe–N(nitride) [1.676(5) Å] distances and the Fe–N–Ru angle [171.4(3)°] of diamagnetic [1]⁴⁻ are indicative of the Fe(IV)=N=Ru(IV) bonding behavior. The cyclic voltammogram of Na₄[1] in 0.1 M HCl displayed reversible redox couples at +0.66 and +0.94 V versus a saturated calomel electrode, which are assigned metal-centred and porphyrin-based oxidations, respectively. Treatment of Na₄[1] with Ag(CF₃SO₃) and PPh₃ resulted in the formation of Na₃([(H₂O)(TPPS)Fe(μ-N)Ru(L_OEt)Cl₂{Ag(PPh₃)}]) (2). Na₄[1] is capable of catalyzing sulfide oxidation with H₂O₂ in aqueous medium. For example, in MeCN/H₂O (1 : 1, v/v), in the presence of 2 mol% of Na₄[1], methyl p-tolyl sulfide was oxidized by H₂O₂ to afford methyl p-tolyl sulfoxide selectively in 95% yield. Electrospray ionization mass spectrometry indicated that the reaction of Na₄[1] with H₂O₂ generated new species with m/z = 430.2228 and 434.2198 corresponding to [1 + O]⁴⁻ and [1 + 2O]⁴⁻, respectively, which are possible active intermediates in the catalytic sulfide oxidation.

---

Introduction

Nitride (N³⁻) is a good supporting ligand for high-valent transition metal ions owing to its strong π-donating capability. As a bridging ligand, it can bind to two metal ions in either a symmetric or unsymmetric fashion depending upon the extent of π delocalization in the M–N–M′ unit (Scheme 1).¹ Of interest are dinuclear iron complexes with symmetric nitrido bridges, such as [Fe(L)]₂(μ-N) (L²⁻ = phthalocyanine or a porphyrin dianion), which are capable of catalyzing C–H oxidation of hydrocarbons, including methane, with H₂O₂ or alkyl hydroperoxides,^2–12 in which high-valent diiron-oxo species (“Fe=N–Fe=O”) have been proposed to be the active oxidants. It has been suggested that the enhanced oxidation capability of the diiron-oxo active species originates from the π-donation of the μ-nitrido ligand that increases the basicity of the Fe=O group and facilitates the H-atom abstraction.^13,14 Nevertheless, the catalytic activity of analogous heterometallic Fe–N–M complexes has not been explored.^14,15

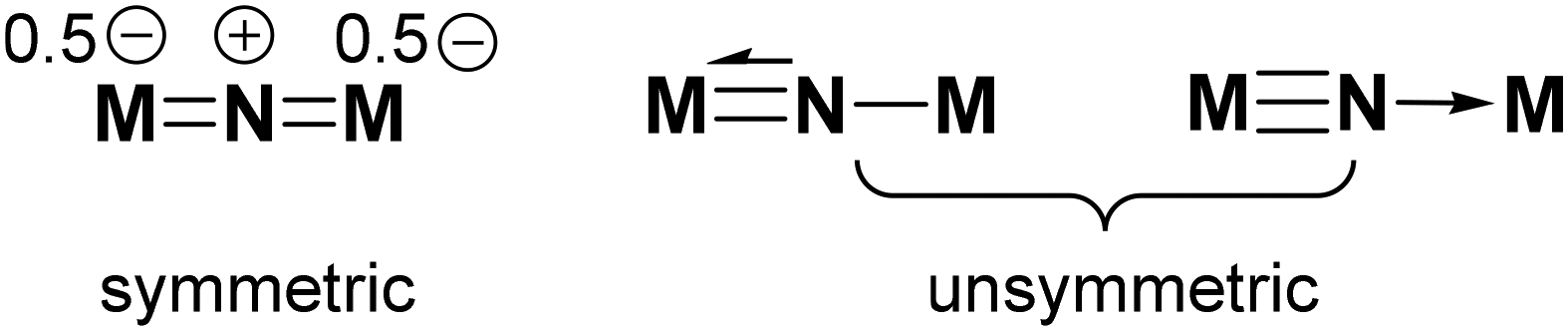

Scheme 1 Dinuclear μ-nitrido complexes with symmetric and unsymmetric nitrido bridges.

In previous work, we have synthesized a series of heterometallic Fe–N–Ru complexes via the reactions of a Ru(VI) terminal nitride, [Ru(L_OEt)(N)Cl₂] (L_OEt⁻ = [(η⁵-C₅H₅)Co{P(O)(OEt)₂}₃]⁻), with Fe(II) complexes bearing macrocyclic ligands, including porphyrin, phthalocyanine, and tetradentate Schiff base ligands (Scheme 2).^16–18 X-ray diffraction studies revealed that these heterometallic complexes possess M=N double bonds that are indicative of the Fe(IV)=N=Ru(IV) resonance structure. Although they exhibit well-defined oxidation couples in the cyclic voltammograms (CVs), attempts to synthesize high-valent heterometallic nitrido complexes were unsuccessful. For instance, the oxidation of [(Pc)Fe–N–Ru(L_OEt)Cl₂] (Pc²⁻ = phthalocyanine dianion) with NR₃SbCl₆ (R = 4-bromophenyl) and PhI(CF₃CO₂)₂ led to the isolation of Fe(IV)/Ru(IV) complexes with a Pc cation radical and a hydroxy-Pc ligand, respectively.¹⁷

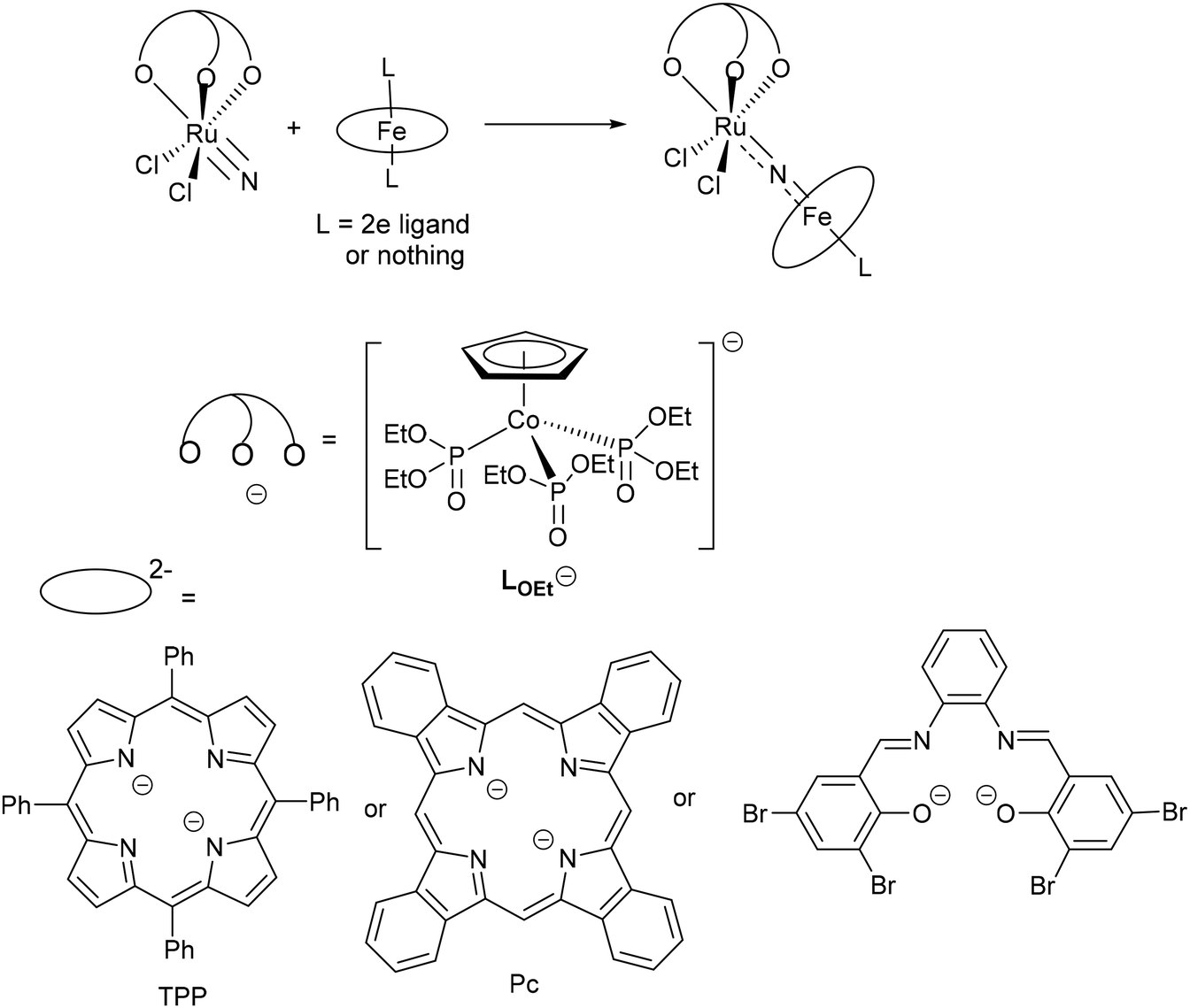

Scheme 2 Heterometallic Fe(IV)–Ru(IV) nitrido complexes derived from Ru(VI) nitride [Ru(L_OEt)(N)Cl₂].^16–18

It is well-known that transition metal aqua complexes can be oxidized to high-valent hydroxo/oxo species in aqueous media via proton-coupled electron transfer.^19,20 This prompted us to synthesize water-soluble heterometallic iron aqua complexes and explore their oxidation chemistry. It may be noted that a water-soluble dinuclear iron nitrido complex with tetrakis(4-sulfophthalocyanine) (SPc), [{Fe(SPc)}₂(μ-N)]⁸⁻, has been used as a catalyst for oxidative degradation of polychlorophenols with H₂O₂.²¹ To our knowledge, iron nitrido complexes with water-soluble porphyrin ligands have not been reported.

Metal complexes with water-soluble porphyrins such as 5,10,15,20-tetrakis(4-sulfonatophenyl)porphyrin [H₂TPPS]⁴⁻ (Scheme 3) have attracted much attention due to their applications in catalytic oxidations.^22–25 In particular, the oxidation chemistry of Fe(TPPS) complexes that can serve as functional models for heme enzymes has been studied extensively.^26–35 In non-acidic solutions, Fe(TPPS) complexes tend to dimerize to μ-oxo species, [{Fe^III(TPPS)}₂(μ-O)]⁸⁻,³⁶ rendering the isolation of high-valent Fe-oxo species difficult. Although nitrido-bridged iron porphyrins such as [Fe(TPP)]₂(μ-N)³⁷ and [{Fe(TPP)}₂(μ-N)](SbCl₆)³⁸ (TPP²⁻ = tetraphenylporphyrin dianion) are well documented, water-soluble Fe(TPPS) μ-nitrido complexes have not been isolated.

Scheme 3 Synthesis of Fe(IV)–Ru(IV) nitrido TPPS complexes.

Herein, we report the synthesis of the first heterometallic Fe(TPPS) μ-nitrido complex, [(H₂O)(TPPS)Fe(μ-N)RuCl₂(L_OEt)]⁴⁻ ([1]⁴⁻), which has been isolated as Na⁺ as well as Ph₄P⁺ salts. The structure of (Ph₄P)₄[1] featuring an Fe=N=Ru bridge has been established by X-ray crystallography. In 1 M HCl, Na₄[1] exhibited a reversible redox couple at +0.66 V versus the standard calomel electrode (SCE), which is ascribed to a metal-centred oxidation. Na₄[1] is capable of catalyzing sulfide oxidation with H₂O₂ in aqueous media. Electrospray ionization (ESI) mass spectrometry indicated that the reaction of Na₄[1] with H₂O₂ generated new species assigned as [1 + 2O]⁴⁻ and [1 + O]⁴⁻, which are proposed to be reactive intermediates in the catalytic sulfide oxidation.

Results and discussion

Synthesis

Treatment of a suspension of Na₄[Fe(TPPS)(H₂O)₂]³⁹ in methanol with [Ru(L_OEt)(N)Cl₂] resulted in the formation of a heterometallic nitrido complex, Na₄[(H₂O)(TPPS)Fe(μ-N)RuCl₂(L_OEt)] (Na₄[1]) (Scheme 3). Unlike Na₄[Fe(TPPS)(H₂O)₂], which is sparingly soluble in methanol, Na₄[1] is soluble in both water and methanol, but it is insoluble in acetonitrile or acetone. The ¹H NMR spectrum of Na₄[1] in D₂O showed sharp peaks that can be assigned to the TPPS⁴⁻ and L_OEt⁻ ligands in normal regions, which is indicative of its diamagnetic behavior. The UV/visible spectrum in water displayed the porphyrin Soret and Q bands at 425 and 548 nm, respectively, which are red-shifted compared with Na₄[Fe(TPPS)(H₂O)₂] (413 and 517 nm, respectively). The ESI mass spectrum of Na₄[1] in water showed a signal at m/z = 426.2221 corresponding to [1]⁴⁻ (Fig. S13, ESI†). Despite many attempts, we have not been able to obtain single crystals of Na₄[1] for structure determination. We have also synthesized the L_OMe⁻ analogue of Na₄[1], Na₄[1-Me], from Na₄[Fe(TPPS)(H₂O)₂] and [Ru(N)(L_OMe)Cl₂] (L_OMe⁻ = [(η⁵-C₅H₅)Co{P(O)(OMe)₂}₃]⁻). Recrystallization of Na₄[1-Me] from MeOH/MeCN/acetone afforded red single crystals, which were identified as the heterometallic Fe–N–Ru complex [H][Na₃(Me₂CO)(MeOH)(H₂O)][(MeOH)(TPPS)Fe(μ-N)RuCl₂(L_OMe)] according to an X-ray diffraction study (Fig. S1, ESI†). However, the bond lengths and angles of the L_OMe⁻ complex have not been analyzed owing to serious disorder problems.

Cation metathesis of Na₄[1] with PPh₄Cl in methanol led to the isolation of [Ph₄P]₄[(H₂O)(TPPS)Fe(μ-N)RuCl₂(L_OEt)], (Ph₄P)₄[1], which is soluble in organic solvents such as CH₂Cl₂. Recrystallization from CH₂Cl₂/Et₂O/hexane afforded dark red crystals, which were suitable for X-ray diffraction. To our knowledge, (Ph₄P)₄[1] is the first structurally characterized Fe(TPPS) nitrido complex. It should be noted that very few crystal structures of Fe(TPPS) complexes have been reported in the literature.⁴⁰ The structure of the complex anion in (Ph₄P)₄[1] is shown in Fig. 1. Displacements of atoms from the porphyrin N4 plane are given in Fig. 2. The porphyrin macrocycle displays a saddled distortion. The Fe–N(porphyrin) distances [av. 2.003 Å] are similar to those of [(py)(TPP)Fe(μ-N)Ru(L_OEt)Cl₂] (py = pyridine) (1.997 Å)¹⁶ but shorter than those of [{Fe(TPPS)}₂(μ-O)]⁸⁻ (av. 2.079 Å).⁴⁰ The Fe–OH₂ distance of 2.069(4) Å is similar to that of the Pc complex [(H₂O)(Pc)Fe(μ-N)RuCl₂(L_OEt)] [2.046(5) Å].¹⁷ The Fe–N(nitrido) [1.676(5) Å] and Ru–N(nitrido) [1.701(5) Å] distances in [1]⁴⁻ compare well with those of [(py)(TPP)Fe(μ-N)Ru(L_OEt)Cl₂] [1.683(3) and 1.704(3) Å, respectively].¹⁶ The Fe–N–Ru unit is roughly linear with a bond angle of 171.4(3)°. The observed short M–N(nitride) bond distances and diamagnetism of [1]⁴⁻ are indicative of the Fe(IV)=N=Ru(IV) bonding behavior.

Fig. 1 Molecular structure of the tetra-anion [1]⁴⁻. Hydrogen atoms are omitted for clarity. The ellipsoids are drawn at the 30% possibility level. Selected bond lengths (Å) and angles (°): Fe1–N1: 1.676(5); Fe1–N2: 2.006(4); Fe1–N3: 1.997(4); Fe1–N4: 2.016(4); Fe1–N5: 1.994(4); Fe1–O10: 2.069(4); Ru1–N1: 1.701(5); Ru1–Cl1: 2.3284(13); Ru1–Cl2: 2.3412(13); Ru1–O7: 2.124(3); Ru1–O8: 2.075(4); Ru1–O9: 2.068(3); Fe1–N1–Ru1 171.4(3).

Fig. 2 Atomic displacements (10⁻³ Å) from the porphyrin N4 plane in [1]⁴⁻.

Electrochemistry

The CV of Na₄[1] in 0.1 M HCl (pH 1) displayed two reversible oxidation couples at +0.66 and +0.94 V versus the saturated calomel electrode (SCE) (Fig. 3). To gain insight into the nature of the first couple, the oxidation of Na₄[1] with a 1-electron oxidant, cerium(IV) ammonium nitrate ([NH₄]₂[Ce(NO₃)₆]) (CAN), which has a redox potential of +0.88 V versus SCE,⁴¹ was studied. Treatment of Na₄[1] with 1 equivalent of CAN in water resulted in a blue-shift of the Soret band from 425 to 398 nm in the UV/visible spectrum (Fig. 4). A similar spectral change was found for the oxidation of Na₄[1] with CAN in 0.1 M HCl. No absorption at ∼800 nm that is characteristic of a porphyrin radical cation was found, suggesting that the oxidation at +0.66 V is a metal-centred event, either Fe(V/IV), Ru(V/IV) or a combination of both. No further spectral change was found when excess (>3 equivalents) CAN was added. The nature of the second redox couple is unclear, but it is very likely that it resulted from a porphyrin-based oxidation. When the pH was increased to 3, similar half-wave potentials were found for the two redox couples, but they were less reversible (Fig. 5). At pH 6, only irreversible oxidation waves were found (Fig. 6). In contrast, the CV of (Ph₄P)₄[1] in CH₂Cl₂ displayed an irreversible oxidation wave with E_pa = +0.51 V versus Fc^+/0 (Fc = ferrocene) (Fig. S11, ESI†), whereas the reported compound [(py)(TPP)Fe(μ-N)Ru(L_OEt)Cl₂] exhibited two oxidation events at +0.29 and +0.77 V in CH₂Cl₂.¹⁶

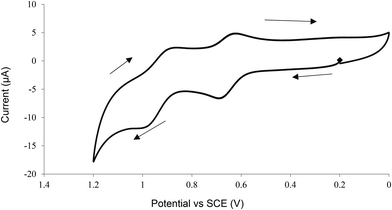

Fig. 3 CV of Na₄[1] in 0.1 M HCl (pH 1). Working electrode: glassy carbon, reference electrode: standard calomel electrode, scan rate = 100 mV s⁻¹.

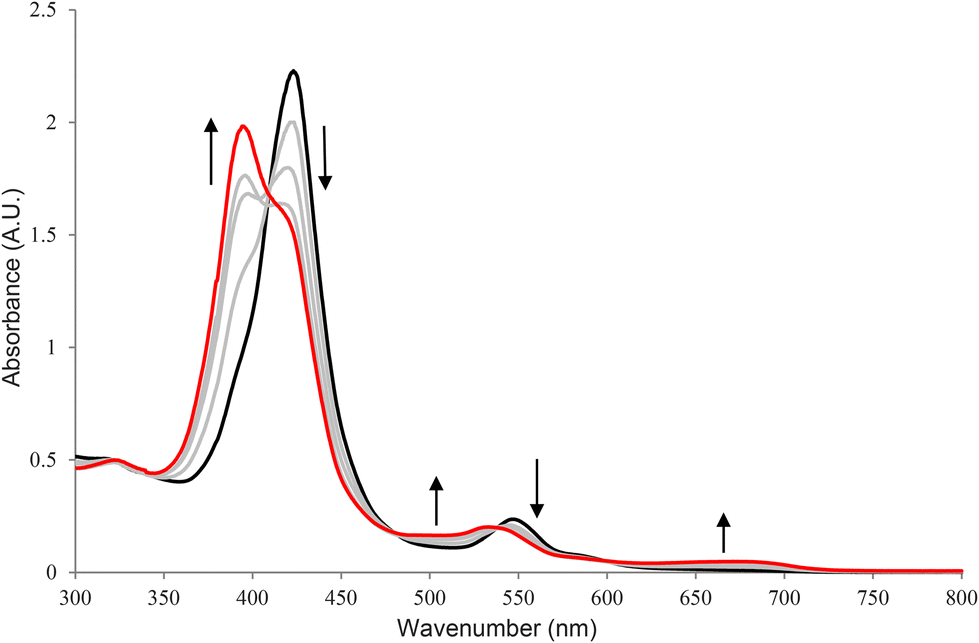

Fig. 4 UV/visible spectral change for the reaction of Na₄[1] with 1 equivalent of CAN in water at room temperature. 1/4 equiv. of CAN was added in each scan.

Fig. 5 CV of Na₄[1] at pH 3. Working electrode: glassy carbon, reference electrode: standard calomel electrode, scan rate = 100 mV s⁻¹.

Fig. 6 CV of Na₄[1] at pH 6. Working electrode: glassy carbon, reference electrode: standard calomel electrode, scan rate = 100 mV s⁻¹.

Reaction of Na₄[1] with oxidizing agents

Attempts have been made to synthesize high-valent heterometallic nitrido complexes by chemical oxidation of Na₄[1]. Treatment of Na₄[1] with 1 equivalent of AgNO₃ in water resulted in a red-shift of the Soret band from 425 to ca. 440 nm (see the ESI†). No AgCl precipitate was found, indicating that the Ag(I) ion did not abstract the chloride ion at the Ru center. Attempts to isolate the product by adding excess acetone to the aqueous reaction mixture failed. To increase the solubility of the product in organic solvents, [1]⁴⁻ was reacted with Ag(I) in the presence of a ligand that can bind to the Fe center. Thus, treatment of Na₄[1] with Ag(CF₃SO₃) in methanol, followed by the addition of PPh₃, led to the isolation of red crystals that were characterized as Na₃[(H₂O)(TPPS)Fe(μ-N)Ru(L_OEt)Cl₂{Ag(PPh₃)}] (2) (Scheme 4). The ¹H NMR spectrum of 2 showed resonances that can be attributed to the TPPS⁴⁻, L_OEt⁻ and PPh₃ ligands, indicative of the diamagnetic properties. The ³¹P{¹H} NMR spectrum showed a resonance at δ 15.99 ppm due to the Ag-bound PPh₃ ligand. We have not been able to crystallize 2 for structure determination. However, we have structurally characterized the TPP analogue of 2, [(TPP)Fe(μ-N)Ru(L_OEt)Cl₂{Ag(PPh₃)}](CF₃SO₃) (2-TPP), which was synthesized from [(TPP)Fe(μ-N)Ru(L_OEt)Cl₂], Ag(CF₃SO₃) and PPh₃ (Scheme 4). A preliminary X-ray diffraction study revealed that the [Ag(PPh₃)]⁺ unit binds to the two chloride ligands of the [Ru(L_OEt)Cl₂] moiety in 2-TPP (Fig. S3, ESI†). We believe that 2 has a core structure similar to 2-TPP featuring Ru(μ-Cl)Ag bridges. Thus, instead of oxidizing the metal centers, the Ag(I) ion binds to the chloride ligands in [1]⁴⁻.

Scheme 4 Reactions of Fe–N–Ru porphyrin complexes with Ag(I) and PPh₃.

As mentioned earlier, the oxidation of Na₄[1] with CAN in water gave a high-valent species that displayed absorption bands at 398 and 507 nm in the UV/visible spectrum. Attempts to precipitate this species by the addition of acetone to the aqueous reaction mixture failed.

When Na₄[1] in water at room temperature was treated with 1 equivalent of H₂O₂, no significant change was found in the UV/visible spectrum, but some gas bubbles, presumably oxygen, were observed. When excess H₂O₂ (>10 equivalents) was added, new absorption bands centred at 398 and 515 nm that are similar to those found for the CAN oxidation of [1]⁴⁻ appeared, suggesting that a high-valent species, possibly an Fe(V) or Ru(V) complex, was generated. When Na₄[1] was reacted with H₂O₂ in methanol, the same spectral change was found. Upon addition of excess methyl p-tolyl sulfide (20 equivalents) to the methanol solution, methyl p-tolyl sulfoxide that was identified by GC-MS was formed, but there was no change in the Soret band at 398 nm, indicating that this high-valent species was not involved in the sulfide oxidation. However, when a large excess of methyl p-tolyl sulfide (200 equivalents) was added to the mixture, the absorption peak at 398 nm dropped slowly and the Soret band of [1]⁴⁻ (425 nm) appeared (Fig. S9, ESI†). Therefore, in the presence of a large excess of thioether, this high-valent species will also be slowly reduced to [1]⁴⁻.

Catalytic sulfide oxidation with H₂O₂

The above results indicate that the reaction of [1]⁴⁻ with H₂O₂ generated a reactive species that is capable of OAT. The use of [1]⁴⁻ as a catalyst for sulfide oxidation with H₂O₂ has been explored, and the results are summarized in Table 1. Treatment of methyl p-tolyl sulfide with H₂O₂ in MeCN/H₂O (1 : 1, v/v) in the presence of 2 mol% of Na₄[1] afforded methyl p-tolylsulfoxide selectively in 95% yield. Only a trace amount of sulfone was detected. A similar yield (92%) was obtained when methanol was used as the solvent. However, only 5% of sulfoxide was formed when the oxidation was carried out in CH₂Cl₂ using (Ph₄P)₄[1] as a catalyst, indicating that the aqueous medium favors the catalytic oxidation of the heterometallic nitrido complex. The reduced catalytic activity of the [PPh₄]⁺ salt can be attributed to the high oxidation potential of [1]⁴⁻ in CH₂Cl₂ (+0.51 V versus Fc^+/0), which renders the generation of a high-valent active species difficult. Similarly, the binding of the cationic [Ag(PPh₃)]⁺ moiety has a negative impact on the performance of the Fe/Ru catalyst; the yield of sulfoxide was decreased to 25% when trianionic 2 was used as the catalyst.

Table 1 Catalytic sulfide oxidation with H₂O₂ ^a

Entry	Catalyst	Solvent	% yield^b
a Experimental conditions: catalyst (1 μmol), methyl p-tolyl sulfide (0.1 mmol) and H2O2 (50 μmol) were stirred at room temperature in air for 3 h.b Yield determined by GC-FID using bromobenzene as the internal standard.c A trace amount of sulfone was detected.
1	Na4[1]	MeCN/H2O (v/v, 1 : 1)	95^c
2	Na4[1]	MeOH	92^c
3	(Ph4P)4[1]	CH2Cl2	5
4	2	MeCN/H2O (v/v, 1 : 1)	25

---

MS monitoring of the reaction of Na₄[1] with H₂O₂

The reaction of Na₄[1] with H₂O₂ has been monitored by ESI-MS in the range of m/z 420–440 (Fig. 7). Upon addition of ca. 10 equivalents of H₂O₂, a new signal at m/z 434.2198, which can be assigned to [1 + 2O]⁴⁻ (Fig. S14, ESI†), was observed. The intensity of the [1]⁴⁻ signal decreased gradually as the [1 + 2O]⁴⁻ peak rose. At about 16 min, a new signal at m/z 430.2228 that is attributed to [1 + O]⁴⁻ (Fig. S15, ESI†) appeared. After 56 min, the [1 + 2O]⁴⁻ peak became the predominant signal in the mass spectrum. It seems reasonable to assume that the reaction of [1]⁴⁻ with H₂O₂ afforded [1 + 2O]⁴⁻, which was subsequently converted to [1 + O]⁴⁻.

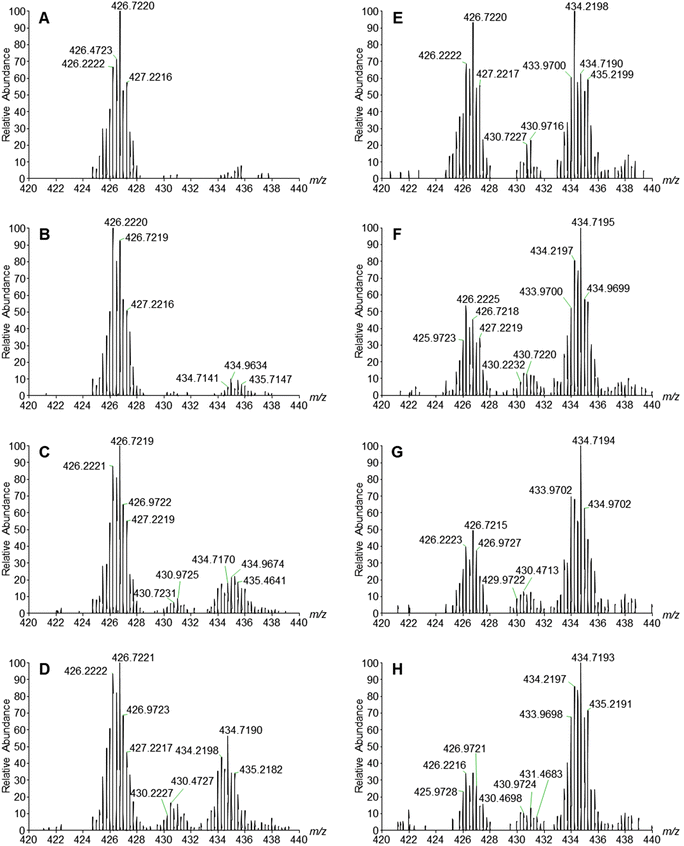

Fig. 7 ESI-MS monitoring of the formation of [1 + O]⁴⁻ (m/z 430.2228) and [1 + 2O]⁴⁻ (m/z 434.2198) species via the reaction of [1]⁴⁻ with H₂O₂ (10 equivalents) in water at room temperature at t = 0 (A), 8 (B), 16 (C), 22 (D), 30 (E), 41 (F), 47 (G), and 55 (H) min.

A previous work has shown that the active oxidants of diiron-catalyzed oxidations with H₂O₂ are high-valent diiron-oxo species, which are formed via heterolytic O–O cleavage of (hydro)peroxo intermediates.⁸ We therefore assign the MS signals at m/z 434.2198 and 430.2228 as heterometallic Ru/Fe peroxo and oxo species, respectively. A possible mechanism for the catalytic sulfoxidation with [1]⁴⁻ is shown in Scheme 5. Reaction of [1]⁴⁻ with H₂O₂ generates a peroxo intermediate, I, which in the absence of a substrate decomposes to [1]⁴⁻ readily. If excess H₂O₂ is used, a sufficient amount of I is accumulated, and it can be observed in ESI-MS. Subsequently, O–O cleavage of I affords a reactive dimetallic oxo species, II, which is the active oxidant for the sulfoxidation. The reaction of [1]⁴⁻ with excess H₂O₂ also generates a high-valent species, possibly an Fe(V) or Ru(V) complex, via another pathway that is not clear at this stage. This high-valent species is, however, unable to undergo OAT with the thioether.

Scheme 5 Proposed mechanism for the [1]⁴⁻-catalyzed sulfide oxidation.

Conclusions

We have synthesized a heterometallic Ru(IV)–Fe(IV) nitrido complex bearing a water-soluble porphyrin, [1]⁴⁻. (Ph₄P)₄[1] is the first Fe(IV) TPPS nitrido complex that has been characterized by X-ray diffraction. The binding of the Ru(VI) nitride moiety to [Fe(TPPS)]⁴⁻ not only increases the solubility of the TPPS complex in organic solvents, facilitating its isolation and crystallization, but also inhibits its aggregation in aqueous solution. This strategy can be exploited for isolation and crystallization of other water-soluble metalloporphyrins in aqueous media. [1]⁴⁻ undergoes 1-electron oxidation at a relatively low potential (E_½ = +0.66 V versus SCE) in an acidic solution to yield a high-valent heterometallic nitrido complex that has an overall d⁷ configuration. [1]⁴⁻ proved to be an efficient catalyst for sulfide oxidation with H₂O₂ in aqueous media. ESI-MS indicated that the oxidation of [1]⁴⁻ with H₂O₂ produced peroxo and oxo species. It is believed that O–O cleavage of the peroxo intermediate generates an heterometallic oxo species, which is the active species for the sulfide oxidation. The results of this work demonstrate the potential application of water-soluble heterometallic nitrido complexes in catalytic OAT reactions in aqueous media.

Experimental

General information

All manipulations were performed under nitrogen using standard Schlenk techniques. NMR spectra were recorded on a Bruker ARX 400 spectrometer operating at 400, 376.5, and 162 MHz for ¹H, ¹⁹F, and ³¹P, respectively. Chemical shifts (δ, ppm) were reported with reference to SiMe₄ (¹H), CF₃C₆H₅ (¹⁹F), and H₃PO₄ (³¹P). UV-visible spectra were recorded on a Dynamica HALO DB-20 spectrometer. ESI mass spectrometry was performed on an UltiMate 3000 UHPLC system coupled with an Orbitrap Exploris™ 120 mass spectrometer (Thermo Fisher, Waltham, MA). Cyclic voltammetry was performed with a CH Instrument model 600D potentiostat. The reference electrodes for aqueous and non-aqueous studies were the standard calomel electrode and Ag–AgNO₃ (0.1 M in acetonitrile) electrodes, respectively. Elemental analyses were performed by Medac Ltd, Surrey, UK. The compounds Na₄[Fe(TPPS)(H₂O)₂]³⁹ and [Ru(L_OEt)(N)Cl₂]⁴² were prepared according to literature methods. Other reagents were purchased from Aldrich Ltd and used as received.

Preparation of Na₄[(H₂O)Fe(TPPS)(μ-N)RuCl₂L_OEt] (Na₄[1]). To a suspension of Na₄[Fe(TPPS)(H₂O)₂] (50 mg, 0.045 mmol) in MeOH (10 mL) was added 1 equivalent of [Ru(N)(L_OEt)Cl₂] (32 mg, 0.045 mmol), and the reaction mixture was stirred at room temperature overnight. The solvent was pumped off, and the residue was extracted with MeOH/MeCN (5 mL, 1 : 3 v/v). Recrystallization from MeOH/MeCN/acetone afforded red crystals. Yield: 39 mg, 50%. ¹H NMR (400 MHz, D₂O): δ 0.81 (t, J = 7.2 Hz, 6H, CH₃), 0.89 (t, J = 7.2 Hz, 6H, CH₃), 1.14 (t, J = 7.2 Hz, 6H, CH₃), 2.44 (m, 4H, CH₂), 3.34 (m, 4H, CH₂), 4.66 (s, 5H, Cp), 8.22 (d, J = 8.4 Hz, 8H, H_m), 8.41 (m, 8H, H_o), 9.03 (s, 8H, H_pyrrole). ³¹P{¹H} NMR (162 MHz, D₂O): δ 117.79 (m). MS-ESI: m/z 426 [1 − H₂O]⁴⁻. Anal. calc. for C₆₁H₆₁Cl₂CoFeN₅Na₄O₂₂P₃RuS₄·9H₂O: C, 37.04; H, 4.03; N, 3.54. Found: C, 37.11; H, 3.86; N, 4.08.

Preparation of ((Ph₄P)₄[(H₂O)(TPPS)Fe(μ-N)RuCl₂L_OEt] (PPh₄)₄[1]). To a suspension of Na₄[1] (50 mg, 0.029 mmol) in MeOH (5 mL) were added 4 equivalents of Ph₄PCl (44 mg, 0.12 mmol). The solvent was pumped off, and the residue was washed with water and dried in vacuo. Recrystallization from CH₂Cl₂/Et₂O/hexane gave dark red single crystals. Yield: 43 mg, 48%. ¹H NMR (400 MHz, CDCl₃): δ 0.68 (t, J = 7.2 Hz, 6H, CH₃), 0.91 (t, J = 7.2 Hz, 6H, CH₃), 1.08 (t, J = 7.2 Hz, 6H, CH₃), 2.27 (m, 3H, CH₂), 2.41 (m, 3H, CH₂), 3.28 (q, J = 7.2 Hz, 6H, CH₂), 4.49 (s, 5H, Cp), 7.84 (m, 65H, Ph), 7.97 (m, 19H, Ph), 8.10 (m, 12H, Ph), 8.76 (s, 8H, H_pyrrole). ³¹P{¹H} NMR (162 MHz, CDCl₃): δ 22.91 (s, PPh₄⁺), 117.14 (m, L_OEt⁻). Anal. calc. for C₁₅₇H₁₆₀Cl₂CoFeN₅O₃₂P₇RuS₄: C, 57.83; H, 4.95; N, 2.15. Found: C, 57.85; H, 4.87; N, 2.33.

Preparation of Na₃[(H₂O)(TPPS)Fe(μ-N)Ru(L_OEt)Cl₂{Ag(PPh₃)}] (2). To a solution of Na₄[1] (50 mg, 0.029 mmol) in MeOH (5 mL) were added AgCF₃SO₃ (7.5 mg, 0.029 mmol) and PPh₃ (6.4 mg, 0.029 mmol), and the mixture was stirred overnight at room temperature and filtered. The solvent was pumped off, and the residue was extracted with MeOH/MeCN (5 mL, 1 : 3 v/v). Recrystallization from MeOH/MeCN/acetone afforded red crystals. Yield: 39 mg, 50%. ¹H NMR (400 MHz, D₂O): δ 0.58 (overlapping t, 6H, CH₃), 0.83 (overlapping t, 6H, CH₃), 1.01 (overlapping t, 6H, CH₃), 2.43 (m, 2H, CH₂), 2.55 (m, 2H, CH₂), 3.25 (m, 8H, CH₂), 4.66 (s, 5H, Cp), 7.26 (m, 5H, Ph), 7.40 (m, 5H, Ph), 7.51 (m, 3H, Ph), 8.18 (m, 10H, Ph and H_m), 8.37 (m, 8H, H_o), 9.01 (s, 8H, H_pyrrole). ³¹P{¹H} NMR (162 MHz, D₂O): δ 15.99 (dd, ¹J(³¹P-¹⁰⁷Ag) = 654 Hz, ¹J(³¹P-¹⁰⁹Ag) = 755 Hz, PPh₃), 117.79 (m, L_OEt⁻). Anal. calc. for C₇₉H₇₄AgCl₂CoFeN₅Na₃O₂₁P₄RuS₄·8H₂O: C, 41.45; H, 3.96; N, 3.06. Found: C, 38.39; H, 3.79; N, 2.88.

Catalytic oxidation of p-tolyl methyl sulfide with H₂O₂. To a solution of p-tolyl methyl sulfide (0.1 mmol) and Na₄[1] (1 μmol) in water (10 mL) was added H₂O₂ (50 mmol), and the mixture was stirred at room temperature in air for 3 h. The yield of p-tolyl methyl sulfoxide was determined by GLC using bromobenzene as the internal standard.

ESI-MS monitoring of the reaction of Na₄[1] with H₂O₂ in water. To a solution of Na₄[1] in double deionized water (950 μL, 6.5 μM) was added aqueous H₂O₂ (50 μL, 1.1 mM). The resulting mixture was subjected to MS analysis at t = 0, 8, 16, 22, 30, 41, 47, and 55 min.

X-ray crystallography

Crystallographic data and experimental details for [Ph₄P]₄[1] are summarized in Table S1 (ESI†). Intensity data of the complexes were collected with a Rigaku SuperNova Atlas X-ray diffractometer using graphite-monochromated Cu-Kα radiation. The collected frames were processed using CrysAlisPro software. Using Olex2,⁴³ the structure was solved with the SHELXT⁴⁴ structure solution program using intrinsic phasing and refined with the SHELXL⁴⁵ refinement package using least squares minimisation. Atomic positions of non-hydrogen atoms were refined anisotropically and with restraints applied to those disordered atoms. Hydrogen atoms were refined as riding on their respective parent atoms before the final cycle of least-squares refinement. Disorder is found in some solvent molecules in the structure. However, as the disorder does not affect the interpretation of the overall structure of the compound, no further modeling was made.

Data availability

The data supporting this article, including syntheses of Na₄[1-Me] and 2-TPP, NMR, UV-visible and mass spectra, cyclic voltammograms and X-ray crystallographic data, have been included as part of the ESI.†. Crystallographic data for (PPh₄)₄[1] have been deposited at the CCDC under CCDC 2417666.†

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This work was supported by the Hong Kong Research Grants Council (project numbers 16301120, 16301621 and 16301424) and the Hong Kong University of Science and Technology.
