Effect of adsorbent loading on NaNiRu-DFMs' CO₂ capture and methanation: finding optimal Na-loading using Bayesian optimisation guided experiments

Abstract

Designing dual function materials (DFMs) entails an optimisation of CO₂ adsorption and catalytic conversion activity, often requiring a large number of experimental parametric studies screening various types and loadings of adsorbent and catalyst components. In this study, we used a Gaussian process model optimised with Bayesian optimisation (BO) to find the DFM composition leading to the highest methanation activity. We focused on optimising Na (adsorbent) loading in a DFM where Na loading was varied from 2.5–15% by weight. The results from the experimental tests indicated that the sample with the highest Na-loading (15 wt%) possessed the highest CO₂ desorption during CO₂-TPD, however, it was not the best DFM, as it did not show the highest methane production. By testing Bayesian optimisation recommended experiments we identified 7.9 wt% Na as the optimal Na loading, which showed the highest methane production for a cycle (398.6 μmol g_DFM⁻¹) at 400 °C. This forms a case study for how BO can help accelerate materials discovery for DFMs.

Keywords: DFM; ICCC; Methanation; Gaussian process; Bayesian optimisation.

---

1 Introduction

Integrated CO₂ capture and conversion (ICCC) with the aid of dual function materials (DFMs) is gathering momentum as a potential solution to dealing with the rising amount of CO₂ in the atmosphere.^1–3

ICCU using DFMs presents a promising approach for simultaneously mitigating carbon emissions and producing value-added chemicals or fuels.^4–7 This approach offers a cost-effective alternative to conventional, sequential processes. By utilising DFMs that combine CO₂ adsorption and catalytic functionalities, ICCU decreases energy consumption and capital investment while enhancing process efficiency.^8–10 Moreover, the tunability of DFMs allows for optimisation toward specific CO₂-derived products, such as methane, syngas, or methanol, through tailored adsorbent-catalyst compositions and operating conditions. This approach not only contributes to the circular carbon economy but also reduces the energetic and economic burdens associated with CO₂ capture and separate conversion stages, making it a viable strategy for industrial-scale carbon valorisation.^11,12

DFMs have demonstrated remarkable capability of capturing CO₂ and converting it to methane.^13–15 However, there is still a need to improve the capture capacity of the DFMs using alkali/alkaline earth material as adsorbents.^16,17 Hence designing DFMs with high adsorption and conversion rates is of vital importance. Researchers have investigated various designs by alternating the adsorbents or catalytic materials in DFMs' structure sorbent.^18–26 The literature studied the Ru-based DFMs in various realistic conditions in CO₂ capture and methanation. Jeong-Potter et al., reported that increasing the Ru loading from 0.1 to 1% can increase the methane production for Ru10Na/Al while the adsorption feed gas contains 400 ppm of CO₂, 21% O₂, and N₂ as balance.¹⁷ They showed that the sample with 1Ru10Na/Al has stable methanation behaviour under realistic conditions (0.027 g g_sample⁻¹). Zheng et al. evaluated the effect of the various parameters (temperature, time of stream (TOS), feed flow rates) on the performance of 5Ru10Ca/Al DFMs with the feed gas containing: 7.5% CO₂, 15% steam, 4.5% O₂ and N₂ as balance.²⁷ They reported that the samples were producing methane under all the tested conditions. Lin et al., demonstrated that a monolith containing 0.25Ru6.1Na/Al is resistant under realistic conditions in CO₂ capture and methanation processes.²⁸ It showed a slight decrease in its performance after being aged for 250 hours (TOS) under various conditions using 400 ppm CO₂ per air. The produced methane was 400 μmol g_washcoat⁻¹. Our earlier study on 5Ru10Ca/Al also states that the sample was stable (300 μmol g⁻¹) after 20 CO₂ capture and methanation cycles using 8% CO₂, 21% H₂O, and balance air.²⁹ All of these studies showed the robustness of Ru-based in DFMs in the presence of realistic conditions and that could be associated with the fact that ruthenium can rapidly and reversibly transform between Ru and RuOx and oxidising (adsorption) and reducing (hydrogenation) environments. Sodium-based DFMs attract more attention when designing DFMs for methanation because of their satisfactory reversible adsorption/desorption capability at intermediate temperatures.^30,31 They also evaluate different loadings of effective materials on the performance of the DFM in the CO₂ capture and conversion process; however, to date, no computationally guided optimisation methodologies have been utilised in the context of DFMs' design.

DFM design commonly employs an experimental “screening” approach where the loading of components is systematically varied. Tsiotsias et al. studied varying the loading of Ru as the catalytic material in CO₂ capture and methanation with XRuNaAl (X = 0.25, 0.5, 1, 2, and 4 wt%). They reported that increased Ru loading promotes the production of CH₄ at lower temperatures. The highest CH₄ production capacity was reported as 0.97 mmol g⁻¹ for 4RuNaAl DFM in the H₂-TPSR test.³² In another study, Tsiotsias et al. investigated XRu20NiNa/Al (X = 0, 0.1, 0.2, 0.5, and 1 wt%), and determined the sample with 0.2Ru20NiNa/Al showed the highest methane production at 300 °C with more than 500 μmol g_DFM⁻¹ over 30 minutes of hydrogenation.³³ Vandelois also investigated the effect of Ru loading on XRuNa (1, 2, 4, and 5 wt%) DFMs' CO₂ capture and methanation performance. The study indicated that the higher the Ru loading the better the DFMs' performance in CH₄ production.³⁴ However, it is apparent that continuously increasing the Ru loading will not result in increasingly better performance due to the need to balance the number of sites with the efficiency with which Ru atoms participate in the reaction; in other words, there must be an optimal loading which was not screened in this study. This highlights the need for careful design of experiments to find optimised compositions of DFMs, which is an area where computational techniques can greatly speed up material discovery. In another study, Tsiotsias et al. investigated the influence of the weight ratio between the catalytic material and adsorbent in a series of monometallic and bimetallic DFMs for methanation: Ru–10Ni/Pr–CeO₂, Na₂O/Al₂O₃, and 10Ni/Pr–CeO₂, Na₂O/Al₂O₃ DFMs, in CO₂ adsorption and conversion to methane. They reported that the sample with 1 : 3 catalyst-to-adsorbent ratio in bimetallic DFM was the sample with the highest methane yield. The cumulative CH₄ yield was 0.45 (mmol g⁻¹) in 30 minutes.³⁵

In our early investigations into methanation DFMs we systematically screened the influence of varying adsorbent loadings (MgO, K₂CO₃, and Na₂CO₃) in DFMs where Ru was the methanation catalyst.³⁶ Adsorbent loadings were increased from 5% to 20% by weight to examine their effect on CO₂ capture capacity and the reversibility of the process. The results indicated that the DFM containing 20 wt% K₂CO₃ achieved the highest CO₂ capture capacity, while the DFM with 10 wt% Na₂CO₃ exhibited superior reversibility (leading to higher conversion of captured CO₂). Bermejo-López et al. evaluated varying the loading of the adsorbent material for Ru–XCaO/Al₂O₃ and Ru–XNa₂CO₃/Al₂O₃ (X = 5, 10, and 15 wt%) DFMs. They reported that the CO₂ capture and conversion performance of the DFMs improved by increasing the adsorbent materials' loading and the highest methane production (414 μmol g⁻¹) was achieved by Ru15CaO/Al₂O₃ at 400 °C. The study also stated that higher Ru dispersion and lower carbonate stability in Ru10Na₂CO₃/Al₂O₃ enhances methane production at lower temperatures (383 μmol g⁻¹ at 310 °C).³⁰ These findings highlight the significance of adsorbent composition and loading in optimising DFMs for effective CO₂ capture and utilisation, but it is not possible to know from these where the true optimum sorbent composition is. The situation becomes even more complex if we wish to optimise the full dual function material (adsorbent, catalyst, support, and possibly promoters), and hence a computational optimisation approach to guide experimental efforts can greatly simplify the process of DFM design.

Bayesian optimisation (BO) is a data-driven technique that excels in modelling complex systems and optimising experimental processes with minimal resource expenditure. By building a surrogate model from experimental data with the aid of the Gaussian process (GP), Bayesian optimisation predicts an objective function and its probability distribution within a defined design space. This iterative approach balances exploitation, using data from the surrogate model, and exploration, searching unexplored areas, to efficiently uncover global optima. Each iteration refines the surrogate model's accuracy by incorporating new experimental data, enabling progressively better predictions. In the context of designing DFMs for integrated CO₂ capture and hydrogenation, Bayesian optimisation has not been used before, however, in the catalysts' design for CO₂ hydrogenation and other processes, it is demonstrated significant utility in reducing the number of experiments required to achieve optimal results, thereby controlling costs and project duration.^37–39

In this paper, we synthesised 15%Ni1%Ru, X%Na/Ce–Al (where X = 2.5–15 wt%) DFMs, starting with a screening of 4 initial compositions to investigate the effect of adsorbent loading on the CO₂ capture and methanation process. The combination of Ni and Ru in CO₂ conversion catalysts has gained significant attention due to the synergistic effects that enhance catalytic performance.^40–46 Ru is known to improve the activity of Ni-based catalysts by increasing the dispersion and reducibility of Ni sites. Furthermore, the incorporation of Ni into Ru-based catalysts offers a cost-effective strategy by reducing the overall Ru loading while maintaining high catalytic activity.^47–50 This balanced combination of Ni and Ru (with the 10–20% ratios) not only optimises performance but also reduces material costs, making it a promising approach for sustainable CO₂ hydrogenation. This combination was kept constant for all samples as the goal was to perform some experiments, varying only the adsorbent loading, for the foundation of a basic model for optimisation study. We then used Bayesian optimisation to identify additional experiments to find the optimum adsorbent composition while reducing the number of the required experiments. Hence, the main goal of the study is the optimisation of the adsorbent loading for the NiRuXNa-DFMs utilising GP + BO. After acquiring data from experimental tests, we added the data to our GP model to be optimised by BO. The recommended point by the model was tested experimentally and the results were added to the model to get the next recommended point. We also thoroughly characterised the DFMs using XRD, SEM, EDS, BET, ICP-MS, CO₂-TPD, to understand how structural differences contribute to the observed methanation activity.

2 Results and discussion

All XNa-DFMs exhibited characteristic peaks corresponding to the support (γ-Al₂O₃, CeO₂) and to NiO which indicated the decomposition of Ni nitrates (Fig. 1) diffraction planes to Na₂O were observed in all samples.⁵¹ Residual sodium nitrate peaks were evident in the XRD patterns, which increased while increasing the loading of sodium in samples. Peaks of RuO₂ were not observable in any XNa-DFM diffraction pattern as the amount is very low and they are probably present as dispersed nanoparticles on the support. The reference XRD patterns are presented in the ESI.†

Fig. 1 XRD graphs of 15Ni1RuXNa-DFMs (X = 2.5–15%).

SEM and EDS were performed for the lowest (2.5%) and the highest (15%) adsorbent loading DFMs. SEM and EDS mapping of 15Na-DFM (Fig. 2 and 3) indicate that Ni, Ru, Al, and Ce components are dispersed finely on the support. Areas rich in sodium were observed. Interpreting these results together with XRD results can identify these Na-rich regions as residual sodium nitrates from the sodium precursor. Additionally, the EDS mapping for 2.5Na-DFM, Fig. 4, demonstrated that at low sodium loading, these Na-rich areas appear to be less prevalent, which shows the better dispersion of the adsorbent and lower residual nitrates for lower loadings of the adsorbent.

Fig. 2 SEM image of 15Ni1Ru, 15Na-DFM.

Fig. 3 EDS mapping of 15Ni1Ru, 15Na-DFM.

Fig. 4 EDS mapping of 15Ni1Ru, 2.5Na-DFM.

Despite the observation of Na-rich regions on the surface of the DFMs, BET analysis (Table 1) indicates that the surface area and pore volume are influenced by the adsorbent loading, showing the preferential deposition of adsorbent in the pores of the support.

Table 1 Structural properties of 15Ni1RuXNa-DFMs (X = 2.5–15%)

DFMs	SBET (m^2 g^−1)	Vpore (cm^3 g^−1)	Dpore (Å)
2.5Na-DFM	157	0.40	79
5Na-DFM	88	0.24	73
10Na-DFM	64	0.18	73
15Na-DFM	33	0.09	74

---

ICP-MS results for samples, Table 2, show that the loadings of the adsorbent (Na) and catalytic materials (Ni and Ru) are lower than the amounts described in ESI.† This would be due to the loss of some materials and not impregnating them on the support while weighing, mixing, or drying. However, the findings show almost the same loadings of Ni and Ru for all samples and an increasing trend for Na. The DFMs' nomenclature is based on the initial calculated amounts throughout the paper.

Table 2 Elemental loadings of 15Ni1RuXNa-DFMs (X = 2.5–15%)

DFMs	wt%	wt%	wt%
	Ni	Ru	Na
2.5Na-DFM	11.49	0.40	1.05
5Na-DFM	11.49	0.50	3.84
10Na-DFM	11.27	0.54	6.77
15Na-DFM	11.67	0.42	9.32

---

To evaluate the impact of adsorbent loading on the available weak (40–200 °C), medium (200–600 °C), and strong (>600 °C) basic sites (relevant for understanding differences in CO₂ capture behaviour) of the DFMs with different Na loadings, CO₂-TPD was performed. The results shown in Fig. 5 and Table 3 indicate that except for 2.5Na-DFM, the samples present weak, medium, and strong basic sites. However, as Table 3 shows, the amount of weakly, medium, and strongly adsorbed carbonates varies with the loading of the adsorbent. Table 3 shows increasing trends for medium and strong basic sites by increasing the Na-loading. More CO₂ desorption from medium basic sites with increasing Na-loading is an indicator that more CO₂ can be reversibly adsorbed at intermediate temperatures (relevant to catalysis). Since the focus of this study was CO₂ capture and methanation and the medium basic sites play a significant role at 400 °C, DFMs with higher loadings of sodium seem promising samples, with 15Na-DFM showing the highest number of medium basic sites. However, the highest CO₂ adsorption amount is not necessarily going to lead to the best performance of the DFM since the methanation performance depends on the reversibility of the CO₂ capture at temperatures where the catalyst is most active and also on the proximity and cooperation between adsorbent and catalyst sites. As per usual in catalysis Sabatier's principle must be considered and the interplay of adsorption/reaction/desorption must be carefully adjusted.

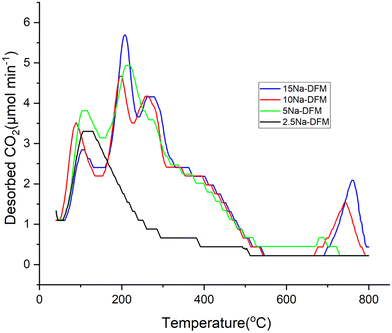

Fig. 5 CO₂-TPD profiles of 15Ni1Ru, XNa-DFMs (X = 2.5–15%), with 10% CO₂/N₂ (50 mL min⁻¹), 40–800 °C.

Table 3 Weak, medium, and strong basic sites 15Ni1RuXNa-DFMs (X = 2.5–15%)

DFMs	Desorbed CO2 (μmol gDFM^−1)
	Weak	Medium	Strong	Total
2.5Na-DFM	85.48	48.72	0	134.2
5Na-DFM	110.68	192.96	21.52	325.16
10Na-DFM	92.44	195.12	33.32	320.88
15Na-DFM	73.92	230.16	41.16	345.24

---

H₂-TPSR has been performed for all XNa-DFMs after being exposed to air to evaluate the appropriate temperature for CO₂ methanation. The results of the dynamic evolution of gases are depicted in Fig. S1† and the H₂ consumption, CH₄, and CO production during the whole process (room temperature to 900 °C) are illustrated in Fig. 6. Fig. S1† demonstrates that for all samples the onset of H₂ consumption is before the CH₄/CO production, associated with the reduction of Ru and Ni metals to their active phase for the conversion of the adsorbed CO₂.^24,52,53 All samples except for 2.5Na-DFM produce both CH₄ and CO from the CO₂ captured from air with CH₄ being the main product at intermediate temperatures (350–600 °C). Moreover, all samples, except for 2.5Na-DFM, demonstrated that they have adsorbed CO₂ from the surrounding air prior to the test, indicating their potential use for direct air capture (DAC) processes.^26,31,54 Fig. 6, illustrating the quantitative analysis of H₂-TPSR tests, shows that increasing the adsorbent loading leads to enhanced CH₄ production until a Na loading of 5%. After this point, increasing the loading to 10 and 15% resulted in decreased overall production of CH₄. However, the increased H₂ consumption (2.7–10.1 mmol g_DFM⁻¹) with increased loading of adsorbent (2.5–15%), while the amount of Ni and Ru is same for all samples and decrease of CH₄ (167.86–62.5 μmol g_DFM⁻¹) and CO production (41.07–33.93 μmol g_DFM⁻¹) for 5–15% loadings, demonstrates that hydrogen is being consumed in other reaction(s) besides reducing the metals and producing CH₄ and CO. According to our previous study, this hydrogen consumption might be related to the conversion of Na₂O to sodium hydroxide (eqn (1)).^31,55

Na₂O + H₂O ⇆ 2NaOH (1)

The cyclic performance of XNa-DFMs was investigated for CO₂ adsorption and conversion processes at 400 °C, with described pre-treatment conditions in section 4. First, CO₂ adsorption was done at room temperature to saturate the DFM, after heating to 400 °C in 10% H₂/N₂ and holding at 400 °C to convert the adsorbed CO₂ to CH₄/CO, the cyclic adsorption/hydrogenation tests were performed for four cycles. The dynamic results are demonstrated in Fig. S2,† and CH₄, and CO produced during adsorption and hydrogenation are depicted in Fig. 7–9. Dynamic activity plots (Fig. S2†) show that all the XNa-DFMs have almost the same capture and conversion performance over four cycles, which indicates that no obvious material degradation occurs after the first cycle, although it should be noted that long term aging studies (including real emission streams) are needed to determine the suitability of any DFM for industrial implementation. All samples demonstrate some CO production during adsorption, which shows that pre-reduction of some metallic sites available on the surface contributes to CO₂ dissociation. CO production during capture is the highest for the 2.5Na-DFM and it decreases as the loading of sodium increases (Fig. 7). This could be related to the enhancement in reducibility of NiRu in the presence of low loading of Na, as the reduction peaks shift to lower temperatures by the addition of Na to Ni and Ru catalysts.^30,56–58 Fig. S1† also demonstrates that the onset of H₂ consumption shifts to higher temperatures by increasing Na-loading. Fig. 8 and 9 illustrate that the CH₄ and CO productions during hydrogenation follow the same trend, except for 15Na-DFM. By increasing the loading of sodium up to 10% both CH₄ and CO production increase, a further increase to 15% Na, results in a drop in CH₄ and CO production. These findings reveal that, probably, the blockage of the pores, reduced surface area, and coverage of NiRu sites as shown by SEM/EDS are responsible for the lower CO₂ methanation performance of 15Na-DFM despite its better CO₂ desorption during CO₂-TPD at medium temperatures. The total amounts of CH₄ and CO produced during adsorption and hydrogenation (in 4 cycles) show that the highest CH₄ produced belongs to 10Na-DFM with 391.07 μmol g⁻¹ in the first cycle. The produced gases during H₂-TPSR and first and last cycles are exhibited in Table 4. The methane and CO productions show that despite the 10Na-DFM showing the highest CH₄ production, its selectivity towards methane is the lowest (89.14%) due to the higher CO produced in hydrogenation. Selectivity decreases in the order 2.5Na-DFM > 15Na-DFM > 5Na-DFM >10Na-DFM (Table 5). NiRu's selectivity towards methane production can change by adding Na to the catalyst. RWGS could occur at lower temperatures over NiRuNa DFMs due to the partially reduced oxides of NiRu.^59–61

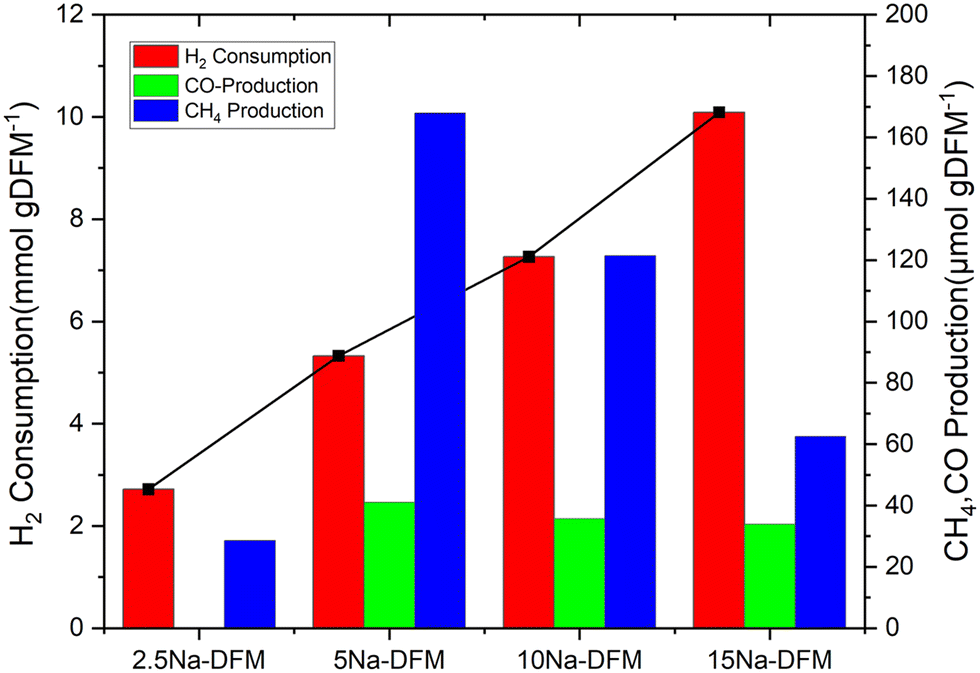

Fig. 6 Total H₂ consumption, CH₄ production and CO production of 15Ni1Ru, XNa-DFMs (X = 2.5–15%) during H₂-TPSR, with 10% H₂/N₂ (50 mL min⁻¹), 25–900 °C.

Fig. 7 CO production during the adsorption step for 15Ni1Ru, XNa-DFMs (X = 2.5–15%), at 400 °C, with 10% CO₂/N₂ (50 mL min⁻¹) in adsorption step – 15 minutes.

Fig. 8 CH₄ production during the hydrogenation step for 15Ni1Ru, XNa-DFMs (X = 2.5–15%), at 400 °C, with 10H₂/N₂ (50 mL min⁻¹) in hydrogenation step – 15 minutes.

Fig. 9 CO production during the hydrogenation step 15Ni1Ru, XNa-DFMs (X = 2.5–15%), at 400 °C, with 10H₂/N₂ (50 mL min⁻¹) in hydrogenation step – 15 minutes.

Table 4 Gases produced during H₂-TPSR, first and last cycle

DFM	Produced gases (μmol gDFM^−1)
	CH4-TPSR	CO-TPSR	CH4-Cycle 1	CH4-Cycle 4	CO-Hyd-Cycle 1	CO-Hyd-Cycle 4	CO-Ads-Cycle 1	CO-Ads-Cycle 4
2.5Na-DFM	132.14	0.00	57.14	55.36	0.00	0.00	69.64	75.00
5Na-DFM	337.50	7.14	346.43	319.64	5.36	5.36	30.36	39.29
10Na-DFM	214.29	5.36	391.07	369.64	48.21	46.43	35.71	35.71
15Na-DFM	189.26	7.14	257.14	232.14	1.79	1.79	32.14	23.21

---

Table 5 Average methane production and selectivity of 15Ni1Ru, XNa-DFMs (X = 2.5–15%)

DFMs	Average methane produced in 1 cycle (μmol gDFM^−1)	Average selectivity (%)
2.5Na-DFM	55.36	100.00
5Na-DFM	332.14	98.41
7.9Na-DFM	398.60	96.04
10Na-DFM	381.25	89.14
15Na-DFM	241.52	99.26

---

The findings from characterisation and activity screening tests show that the DFM's performance is not continuously improved by the addition of more adsorbent during synthesis but shows an interplay of multiple effects. The increase in Na loading leads to differences in the formation of Na oxide due to changes in the precursor reducibility (due to agglomeration) and resulting dispersion on the support, with some Na covering NiRu nanoparticles. Moreover, the activity screening results imply that Na loading also influences NiRu reducibility and hence low Na loadings can promote undesirable CO production during adsorption, while higher loadings can lower the selectivity to methane. The results from CO₂-TPD tests illustrate that by increasing the loading of the adsorbent, the medium basic sites to capture CO₂ increase while the H₂-TPSR results indicate that the catalytic material should also be sufficiently available on a higher surface area to convert this adsorbed CO₂. 15Na-DFM did not possess the highest CH₄/CO production while it had the highest CO₂ desorbed during CO₂-TPD test. An interesting result was that the sample with 5% Na-loading, showed the highest CH₄ production during H₂-TPSR (CO₂ was adsorbed directly from the air before the experiment started), while it did not produce the highest methane during isothermal cyclic tests (conversion time 20 minutes and conversion temperature 400 °C with 10% CO₂/N₂.) These findings illustrate the convoluted nature of material optimisation due to the interdependency of catalyst activity and adsorbent–catalyst interaction and show that clearly we cannot find the true optimum composition in an initial screening study. This is where computational techniques can be of use for material optimisation with fewer numbers of experiments.

The GP models for both selectivity towards methane and produced methane were developed using the initial screening results and are illustrated in Fig. S3 and S4.† The models showed the areas with uncertainty indicate the possible loadings of Na with higher produced methane and selectivity. BO recommended 7.9% of Na-loading as the next point to explore. The results of the cyclic test for this sample with the same conditions described in section 4 are demonstrated in Fig. S5† and Table 5.

The cyclic activity results for the 7.9Na-DFM (recommended by the Bayesian optimisation), show that this sample demonstrated stable performance during three cycles, the produced methane is the highest for this sample, and the selectivity is better than the 10Na-DFM (Table 5). This indicates that the GP model and optimisation are reliable, and it can recommend samples with higher methane production and good selectivity. The data from the cyclic test of 7.9Na-DFM was also added to the model. Fig. 10 and 11 illustrate the predictions of the models after adding 7.9% in X and the regarding selectivity and produced methane in Y₁ and Y₂ datasets, respectively.

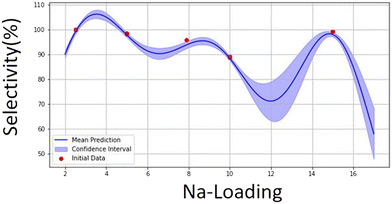

Fig. 10 Selectivity towards methane predicted by BO utilising GP model for 15Ni1Ru, XNa-DFMs (X = 2.5–15%).

Fig. 11 Produced methane predicted by BO utilising GP model for 15Ni1Ru, XNa-DFMs (X = 2.5–15%).

The subsequent recommended point was 6.7% for Na-loading with predicted Y₁ = 90.67% and predicted Y₂ = 380.94 μmol g_DFM⁻¹. Since the loading amount (X) is very close to the previous loading (1.2% difference) and selectivity and produced methane do not show much difference with the previous point, a plateau was forming, 7.9Na-DFM was selected as the DFM with optimal loading of Na.

The results for the realistic testing (Fig. 12 and 13) show that the presence of oxygen and water can affect the performance of the 7.9Na-DFM in CO₂ capture and methanation processes. As the dynamic curves (Fig. 12) demonstrate, “A” for adsorption step and “H” for hydrogenation step, the onset of methane production in the catalytic conversion step was delayed and decreased when O₂ and H₂O were present in the adsorption step. This may be associated with the impact of O₂ on the catalytic materials, especially Ni.^27,62,63 Oxygen can oxidise the metallic sites, which deactivates them for methanation. However, Ru can facilitate the reducibility of Ni during hydrogenation.^35,46,64 During the hydrogenation step, first, the oxidised metals are reduced to their active forms, and then these reduced sites can catalyse the methanation reaction. Due to this delay, the methane peak is not as sharp as in ideal conditions but broader. The cycles where O₂ and H₂O were present during the capture step (C2–6 inclusive in Fig. 13b) also show increasing amounts of desorbed CO₂ during hydrogenation; this CO₂ desorption is associated with the delay for the reduction of the metallic sites that can lead to lower methane production since the desorbed CO₂ cannot spill over to adjacent catalytic sites at the beginning of the conversion step, and they will leave the reactor unreacted.^25,41 In addition, the selectivity during hydrogenation shifts slightly towards CO production under realistic conditions (methane selectivity goes from 98.8% to 97.7% for C1 and C2, and 94.7% for C3 to 86.6% for C6) due to the presence of partially oxidised sites and probably because of the competition between methanation and moisture-driven desorption of adsorbed carbonates.^35,61 The selectivity to methane increased again when oxygen and water were no longer present in the feed gas (C7 and C8 to 95.5% and 97.7%, respectively). It should be noted that due to the shorter cycle time used in this test, the tail end of methanation activity for cycles C2–6 inclusive was cut off, which also contributed slightly to the lowered methanation activity measurements. After switching back to O₂-free and dry conditions (C7, C8), the DFM regains its original capture and conversion capability, indicating reversible deactivation through oxidation during the realistic testing. Another interesting finding was associated with the production of CO during adsorption due to the presence of reduced sites (which dissociate CO₂). When oxygen was present in the feed gas, undesirable CO formation was completely suppressed (Fig. 13a), as oxygen oxidised the reduced metallic sites.⁶² All in all, the results demonstrate that the presence of O₂ and H₂O benefits CO₂ capture by suppressing CO formation but slows down methanation, leading to increased CO₂ desorption and lower methanation activity (36% decrease in produced methane). However, the DFM showed stable performance for realistic cycles, and it regained nearly all its original methanation capacity after the elimination of O₂ and H₂O from the feed gas. This behaviour is associated with the dynamic (oxidising/reducing) nature of the adsorption–conversion cycles.

Fig. 12 Dynamic curves of ideal and realistic cyclic testing with 15Ni1Ru, 7.9Na/Al, ideal adsorption step: 10% CO₂/N₂, realistic adsorption step: 10%CO₂ + 2.7%O₂ + 2.9%H₂O/Ar, hydrogenation step: 10% H₂/N₂, at 400 °C.

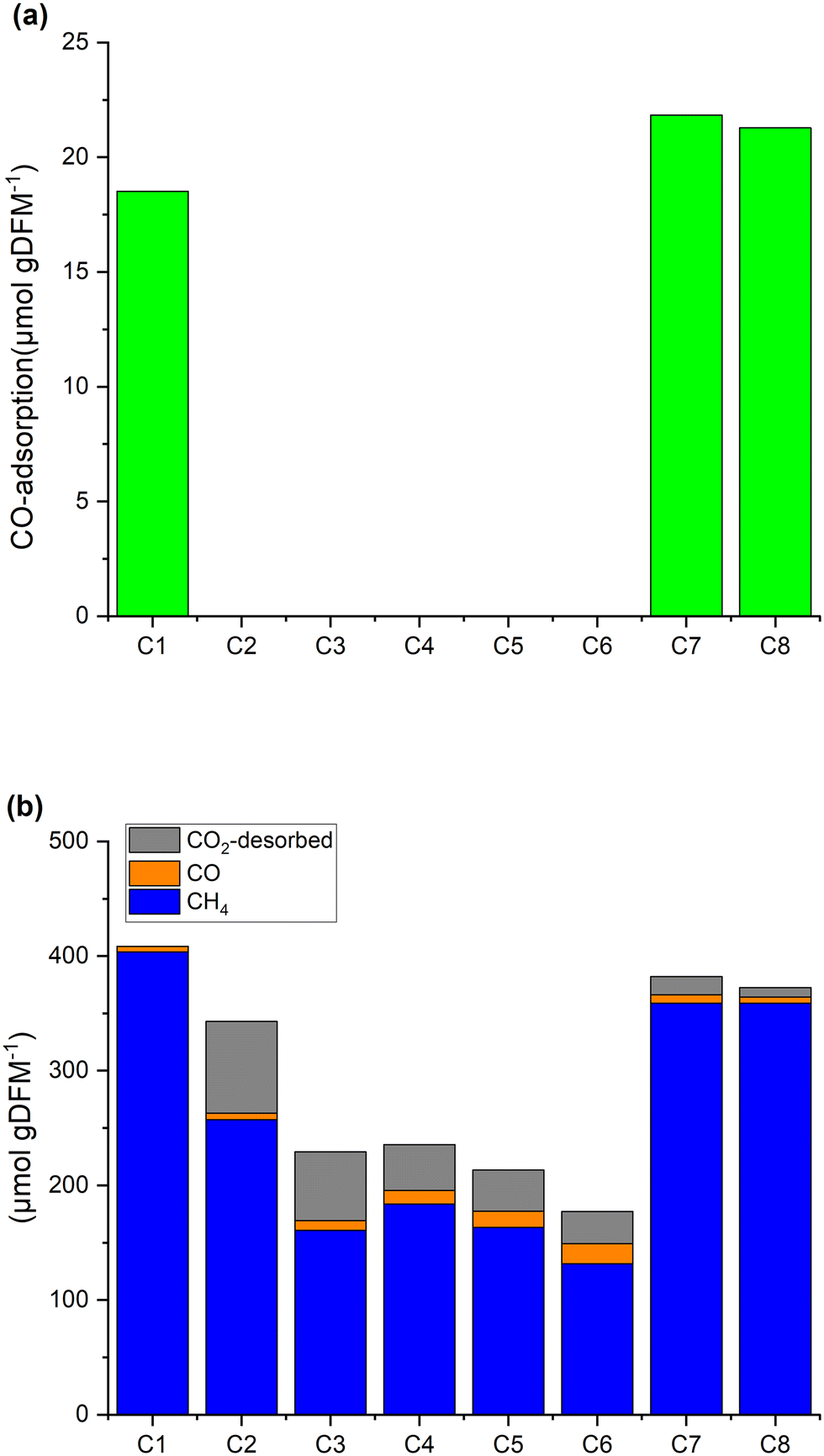

Fig. 13 Produced gases during hydrogenation in ideal and realistic cyclic testing with 15Ni1Ru, 7.9Na/Al, ideal adsorption step: 10% CO₂/N₂, realistic adsorption step: 10%CO₂ + 2.7%O₂ + 2.9%H₂O/Ar, hydrogenation step: 10% H₂/N₂, at 400 °C.

3 Conclusions

Na adsorbent loading on NiRuNa DFMs has been optimised using a combination of experimental activity screening and Bayesian Optimisation. The findings from H₂-TPSR and cyclic activity showed that the addition of Na to NiRu can affect performance not just via increased number of adsorption sites for CO₂ but can also influence the selectivity of the catalytic sites, an effect we have ascribed to a change in NiRu reducibility. The availability of reduced metallic sites could lead to different results during adsorption and hydrogenation steps. The reduced metallic sites could contribute to CO production during adsorption, while their presence in sufficient numbers could lead to higher CH₄ production during hydrogenation. Partially reduced NiRu sites could shift the selectivity towards CO production during hydrogenation. The CO₂-TPD results indicated that the highest CO₂ capture capability will not necessarily lead to the highest methanation capacity. All of these results emphasised that an optimisation approach is required to find out the optimal loading. Bayesian optimisation with Gaussian process utilised in this study offers a novel approach to finding the true optimal adsorbent loading of DFMs. While the model herein focused only on adsorbent loading optimisation, it can be a starting point for overall composition optimisation in DFMs where new combinations of adsorbent and catalyst are being tested. The best performing DFM, which was recommended by the BO and GP, with a loading of 7.9% Na demonstrated a methane production capacity per cycle of 398.6 μmol g_DFM⁻¹ with good selectivity (96.04%). The realistic testing with 7.9Na-DFM showed that the presence of O₂ and H₂O favourably affects the capture stage by suppressing CO formation, but results in slower methanation performance of the DFM, however, this impact is reversible. By increasing the hydrogenation time and the concentration of H₂ during hydrogenation, the DFM could show a stable performance under real conditions.

This study is limited to a simplified (idealised) feed to develop the GP + BO model at a certain temperature. For the foundation of this model, a feed gas composition of 10% CO₂/N₂ was selected, as it closely reflects the concentration of CO₂ in most industrial point sources.^8,65 The focus was placed on adsorbent loading, representing an initial step toward employing computational tools in material design for ICCU. Several limitations were encountered in implementing this novel approach. Notably, the effects of O₂ and steam were not evaluated while performing the optimisation tests, despite their presence in typical industrial waste streams, and the stability tests were not applied. Nevertheless, the proposed model and methodology can be adapted for various setups using different process parameters, with different feed gas compositions, enabling the investigation of both adsorbent and catalytic material compositions in DFMs.

4 Experimental

The synthesis method followed a similar protocol to our previous work.³¹ Briefly, DFMs were synthesised using sequential wet impregnation. First, the adsorbent was impregnated on the support through dissolution. For various loadings of Na, the calculated amounts of sodium precursor, NaNO₃ (Fluka), were dissolved in deionised water and the support CeO₂(20)–Al₂O₃(80), (SCFa-160 Ce20 Puralox), was added to the solution. Each loading for Na precursor was calculated as described in ESI.† After stirring the mixture with a magnetic stirrer for 30 minutes at room temperature, the mixture was transferred to a rotary evaporator flask to remove the excess water at elevated temperature and reduced pressure (60–70 °C, atmospheric pressure to 100 mbar). The obtained powder was placed in the oven at 120 °C overnight to complete the drying procedure. After that, the dried sample was transferred to a muffle furnace and calcined at 400 °C for 4 hours (with a 5 °C min⁻¹ heating ramp). During this calcination step sodium nitrate was thermally decomposed to the dispersed oxides by following eqn (2) and (3).⁶⁶

NaNO₃ → NaNO₂ + O₂ (2)

The data from XRD spectra and XPS (our previous work³¹) can confirm the presence of Na₂O, which can turn to NaOH in the presence of water (from the air).

Once the supported adsorbents, namely 2.5% Na/CeO₂–Al₂O₃, 5% Na/CeO₂–Al₂O₃, 10% Na/CeO₂–Al₂O₃, and 15% Na/CeO₂–Al₂O₃ were formed, the second phase of synthesis began. In the second stage of synthesis, the calculated quantities of catalyst precursors, as described in the ESI,† Ni(NO₃)₂·6H₂O (Acros Organics), and Ru(NO)(NO₃)₃ solution (1.5 w/v Ru, Alfa Aesar), were dissolved in deionised water and the supported adsorbents with various loadings of sodium were added to the solution, separately, to achieve the final 15Ni1Ru–XNa/CeO₂–Al₂O₃ (X = 2.5, 5, 10 and 15) DFMs. The weight percentages of the adsorbent after impregnation of the catalytic materials became 2.2%, 4.3%, 8.6%, and 12.9%. Following the same steps as stage 1 for supported adsorbents, the excess water of DFMs was removed by drying in the oven before calcination at 500 °C (5 °C min⁻¹) for 3 hours in a muffle furnace. The sample recommended by the Bayesian optimisation (15Ni1Ru–7.9Na/CeO₂–Al₂O₃) was also synthesised following the same procedure. For simplicity, the DFMs were named 2.5Na-DFM, 5Na-DFM, 7.9Na-DFM, 10Na-DFM, and 15Na-DFM in this article. The exact loadings of sodium are characterised by the ICP-MS method. The safety precautions described in ESI.†

X-ray diffraction (XRD) was conducted for all XNa-DFMs (X = 2.5, 5, 10, 15) to evaluate the crystalline phase utilising the X'Pert Powder apparatus from PANalytical. Cu Kα radiation was used, with a wavelength of λ = 0.154 nm. The diffraction patterns were recorded over a 2θ° range of 10–90° at 30 mA and 40 kV.

Elemental mapping was achieved by employing scanning electron microscopy (SEM) and energy dispersive spectroscopy (EDS) techniques. EDS analysis was conducted by a JEOL JSM-7100F instrument. Pathfinder software was used to perform the mappings. Moreover, the microscopic image of 15Na-DFM was obtained using the same device. Carbon paint was used to fix the DFMs to the holder, and to decrease the charging effect, silver paint and gold coating were applied.

The porosity and surface area of the samples were analysed by the Brunauer–Emmett–Teller (BET) method using a Micromeritics 3Flex apparatus. DFMs were initially degassed in a vacuum at 150 °C for 2 hours before obtaining the N₂ adsorption–desorption isotherms at liquid nitrogen temperature (−196.15 °C).

Gases (99.80% CO₂, 99.998% N₂) coming from cylinders (Linde) were used to feed a 10% CO₂/N₂ mixture when performing all the tests. As Table 1 in our review paper^8,65 shows, there are point sources with almost 10% CO₂ in their waste stream such as waste incineration smoke, coal burning, and IGCC smoke. Hence, considering 10% CO₂/N₂ as feed gas can reflect the concentrations that are available in several point sources.

To evaluate the basicity of the surface of the XNa-DFMs temperature programmed desorption (CO₂-TPD) was employed. TPD profiles were obtained using a fixed-bed quartz reactor (0.4′′ ID) housed in a tube furnace. 250 mg of DFM was placed in the reactor and the temperature was fixed at 40 °C, then a 50 mL min⁻¹ 10% CO₂/N₂ mixture was introduced to the reactor for 45 minutes. After purging with N₂ for 30 minutes, the temperature was increased from 40 to 800 °C with a 10 °C min⁻¹ ramp to achieve CO₂ desorption. The vol% of CO₂ was recorded every 5 seconds using an online ABB AO2020 analyser with a sensitivity of 0.01%.

The elemental composition of the DFMs was determined by ICP-MS using an iCAP 7200 ICP-OES Duo spectrometer (Thermo Fisher Scientific) and solutions of the DFMs with a concentration of 10 mg 30 mL⁻¹ in all cases. The solutions were prepared by microwave acid digestion (HCl : HNO₃ 1 : 1) in an ETHOS EASY microwave digestion platform (Milestone) at 230 °C for 15 min. The content of the Ni, Ru and Na were analysed by this method.

Temperature programmed reduction was performed on DFMs which had been exposed to air after synthesis. As these samples have adsorbed CO₂ from the ambient environment, leading to reactions with hydrogen, we are referring to these tests as temperature programmed surface reactions with hydrogen (H₂-TPSR). In this approach, 250 mg of DFM was loaded in the fixed-bed quartz reactor with 0.4′′ ID. Subsequently, 10% of H₂/N₂ (50 mL min⁻¹) was introduced to the reactor while the temperature was ramped from room temperature to 900 °C (10 °C min⁻¹). CH₄, CO, CO₂, and H₂ were detected using an online ABB AO2020 analyser equipped with IR and TCD detectors.

Cyclic tests for CO₂ capture and hydrogenation were performed to evaluate the XNa-DFMs, to investigate their adsorption and conversion activity through four consecutive cycles. The fixed quartz bed reactor with 0.4′′ ID was used for these tests. 250 mg of the DFM was loaded into the reactor. 50 mL min⁻¹ 10% CO₂/N₂ was sent to the reactor for 30 minutes at room temperature to saturate the sample, after 10 minutes of purge with N₂, the samples were heated to 400 °C in hydrogen – using a 50 mL min⁻¹ feed of 10% H₂/N₂. The samples were held at 400 °C in the hydrogen mixture until methane production could no longer be detected. This has been done to ensure that the surface is clean from carbonates and the sample is ready for cyclic test. Subsequently, holding the temperature at 400 °C, 50 mL min⁻¹ 10% CO₂/N₂ was introduced into the reactor during the “CO₂ capture” step (15 min). The reactor was then purged with N₂ to prevent gas phase mixing of CO₂ and H₂ so that all carbon containing products could be attributed to adsorbed CO₂. In the conversion step, 50 mL min⁻¹ 10% H₂/N₂ was fed to the reactor for 20 minutes to convert the adsorbed CO₂ to hydrogenation products. At the end of each cycle of adsorption and hydrogenation, an N₂ purge was utilised to purge all the H₂ and get the setup ready for the next cycle. Vol% of the feed gases and products (CO₂, H₂ CH₄, and CO) was recorded by the online ABB AO2020 analyser.

The realistic testing is done following the same procedure for cyclic tests, with 7.9Na-DFM. For these experiments, first, CO₂ adsorption was completed at room temperature (for 30 min) and after heating to 400 °C in the presence of 10% H₂/N₂ and keeping it there until CH₄ reached zero, the cyclic tests started. The first cycle (C1), was the ideal testing of the sample for comparison purposes with 10% CO₂/N₂ (50 mL min⁻¹) for 15 min during the capture step and 10% H₂/N₂ (50 mL min⁻¹) during the hydrogenation step for 20 min. The second cycle (C2) followed the same steps with 10%CO₂ + 2.7%O₂ + 2.9%H₂O/Ar (50 mL min⁻¹) during adsorption and 10% H₂/N₂ (50 mL min⁻¹) for methanation to assess the behaviour of the sample under realistic conditions. O₂ was sent into the reactor from a cylinder containing 3%O₂ + 97%Ar, and the feed gas passed through a water bubbler before entering the reactor. Cycles three to six (C3–C6) were done under the same realistic conditions except for the adsorption and hydrogenation time, which were 5 and 10 min, respectively. These durations are chosen to have more cycles in a certain period. Cycles seven and eight (C7 and C8) were done under ideal conditions (10% CO₂/N₂ for 15 min and 10% H₂/N₂, for 20 min, 50 mL min⁻¹ total flow rate) after realistic conditions to evaluate the regaining of the capture and methanation capability of the sample when oxygen and water were no longer present in the feed gas. The online ABB analyser recorded the gas composition (CO₂, CO, CH₄, and H₂) every 5 seconds.

We used Bayesian optimisation (BO) with a Gaussian process (GP) surrogate to find the optimal loading for NiRu, XNa (X: 2.5–15% wt) DFMs, using the data from our initial screening studies, produced methane and selectivity for 4 different loadings of sodium in 4 cyclic adsorption (10% CO₂/N₂) hydrogenation (10% H₂/N₂) tests at 400 °C. The GPyOpt package was used in this optimisation.⁶⁷ The loading of the sodium was the initial input X ∈ [2, 16], and the selectivity towards methane and the average produced methane over four cycles for each loading were the objectives (Y₁ and Y₂, respectively). Since the significance of the two objectives was the same, the final objective was written as:

Y = w₁Y₁ + w₂Y₂ (4)

The initial dataset (4 points) forms the initial training set for the Gaussian process (GP) models, which are trained to predict objective values at unexplored points in the domain. The GP surrogate was selected due to its suitability for handling sparse data and providing uncertainty estimates at predicted points. Separate GP models were constructed for each objective, allowing for flexible and independent modelling. The RBF (radial basis function) kernel was utilised for both (Y₁ and Y₂) models because of its smoothness properties and capability to capture variations in the objective functions across the domain. To ensure the GP models interpolated the initial data exactly, the noise variance parameter in each model was fixed to 0.2. After producing a surrogate model with the aid of GP, Bayesian optimisation was applied to iteratively explore the domain, identifying the next best experimental input (X: Na loading) that maximises the produced methane and selectivity towards methane simultaneously. The expected improvement (EI) acquisition function was used to balance exploration and exploitation.

Data availability

Data for this article, including the X–Y data for Fig. 5, 7–10, S1, S2 and S5† is available at Mendeley Data Repository at DOI: https://doi.org/10.17632/36j9dpfxjf.1.

Conflicts of interest

The authors declare no conflict of interest.

Acknowledgements

The financial support for this study was provided by the Faculty of Physics and Engineering of the University of Surrey. The team at the University of Seville acknowledges support from the Spanish Ministry of Science through SMART-FTS project (ref: PID2021-126876OB-I00) and FPU grant (FPU21/04873). Sasol is kindly acknowledged for providing Al₂O₃–CeO₂ support. The technician team of the Chemical and Process Engineering department, Ben Gibbons, Matthew Crick and Yusuf El-Hassan, of the University of Surrey is greatly acknowledged for their technical support.
