The role of Ni substitution in manganite perovskite Li–O₂ battery

Abstract

A fundamental understanding of the electrochemical processes in Li–O₂ batteries is critical for the further development and commercialization of Li–O₂ and air-breathing battery technology. This study explores the electrochemistry of nickel-substituted manganite perovskites, La_0.7Sr_0.3Mn_1−xNi_xO₃ (x = 0, 0.1, 0.3, 0.5), which were subsequently used as catalysts in Li–O₂ battery operating in 1 mol dm⁻³ bis trifluoromethane sulfonimide lithium salt (LiTFSi) in tetra ethylene glycol dimethyl ether (TEGDME) electrolyte. In situ Raman spectroscopy fingerprints on the discharge products correlated with charge–discharge profiles revealed that the electrochemical reaction pathway involves the formation of superoxide (LiO₂) followed by reduction to lithium peroxide (Li₂O₂) during the battery discharge and corresponding two-step oxidation process in the charge phase. The superoxide (LiO₂) was exceptionally stable for more than 2 h, which is in contrast to previous studies and expectations for short-lifetime intermediate formations. Electrochemical analysis revealed a significant improvement in the Li–O₂ battery performance for oxygen electrodes substituted with 10% of nickel, reaching a specific capacity of 3554 mAh g⁻¹. Substitution of Mn with Ni in La_0.7Sr_0.3Mn_0.9Ni_0.1O₃ led to enhanced charge transfer kinetics due to a high surface population of the low valence state of B-site ions (Mn³⁺/Mn⁴⁺ ratio) accommodating the presence of e_g¹ electrons in line with Jahn–Teller disordered metal–oxygen octahedra effect. The current finding offers new insights for designing of aprotic LiO₂ batteries.

---

Introduction

Lithium–air (Li–air) and lithium–oxygen (Li–O₂) batteries have a high potential to become an efficient energy storage solution because of their relatively high theoretical energy density estimated to be 11 400 W h kg⁻¹, comparable to that of gasoline.^1,2 One of the benefits over conventional lithium-ion batteries is the advantage of utilizing oxygen from air-breathing electrode or pure oxygen, significantly reducing the battery's weight, which is beneficial for commercial applications in electric vehicles and aviation.^1–4 The electrochemical process in Li–O₂ battery is based on the reduction of molecular oxygen, O₂, on the cathode side to form lithium peroxide (Li₂O₂) upon discharge process and recovery of O₂ from the discharge product during the charging process. It is generally accepted that the main discharge product is lithium peroxide (Li₂O₂) whereas lithium superoxide (LiO₂) and lithium oxide (Li₂O) formation, stability, and their impact on battery operation is under debate. The reversibility of discharge products on the cathode side is the main bottleneck of Li–O₂ technology, hampering its commercialization. A key enabling component in the battery system is a chemically stable electrocatalyst with inartistic catalytic active sites necessary for efficient oxygen reduction and oxygen evolution reactions, which further decide the battery's power density and energy efficiency. The application of noble metals and platinum group metals, palladium (Pd),⁵ silver (Ag),⁶ ruthenium (Ru),⁷ gold (Au),⁸ and platinum (Pt)⁹ catalysts has been extensively studied and is rather limited to fundamental studies due to relatively high costs.¹⁰ Among the cost-effective materials, transition metal nitrides/oxides,^11–13 carbon-promoted transition materials,¹⁴ conductive polymers,¹⁵ and functional carbon metals¹⁶ have been examined.

Perovskite-type compounds have attained recent attention because of their chemical and structural flexibility, improved oxygen mobility, high catalytic activity and reduced cost, making them promising candidates as bifunctional catalysts in metal–air batteries.^17,18 The catalytic activity of perovskite-type compounds may be effectively controlled by the substitution of B-site ion on the corner of the perovskite lattice.^19–21 Recent reports indicate that Ni-substitution of double perovskite, La_1−xSr_xMn_1−yNi_yO₃ creates structure distortion and oxygen vacancies thus enhancing the catalytic activity of cathode in metal-air battery.²²

The substitution of B-site ion in the lattice changes the population of oxygen vacancies in the lattice, as well as the configuration of B–O bonds and corresponding surface state, typically boosting oxygen evolution and oxygen reduction reaction performance. By fine-tuning the ratio of nickel to manganese, it is possible to enhance the electronic and structural properties of the material, leading to improved electrocatalytic performance.^19,23 La_1−xSr_xMnO₃ has been previously studied as a prominent perovskite-type catalyst for oxygen reduction reaction (ORR).²⁴ The low activity towards oxygen evolution reaction (OER) is possibly associated with low covalency of the Mn–O bond and deficiency of highly active transition metal ions, thereby hindering the rechargeability and degrading the overall cell performance in the battery systems. Recent studies demonstrated that the nickel substitution played an important role in enhancing the OER catalytic activity in various catalytic systems.^19,22 In the current study, we investigate the performance of La_0.7Sr_0.3Mn_1−xNi_xO₃ depending on the substitution level of nickel, supported by in situ observations on Li₂O₂, LiO₂ having fundamental aspects on Li–O₂ battery operation (Fig. 1).

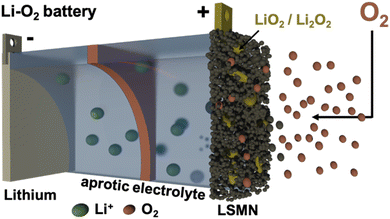

Fig. 1 Scheme of Li–O₂ battery with La_0.7Sr_0.3Mn_1−xNi_xO₃ double perovskite catalyst (LSMN) in the cathode. Red, green and yellow spheres correspond to lithium ions, oxygen, and superoxide/peroxide compounds, respectively.

Results and discussion

La_0.7Sr_0.3Mn₁Ni₀O₃ perovskite crystalizes in the R3̄c space group (no. 167) with lattice constants a = 5.50300 Å, c = 13.4241 Å and cell volume of 349.916086 Å3 (PDF 96-152-1157).^25,26 The double perovskite has a general formula of AA′BB′O₃ having BO₆ units constructing a three-dimensional structure of corner-sharing MnO₆ octahedra with A cations located in the interstitial spaces. The ions La³⁺/Sr⁴⁺ occupying the A-site are nine-fold coordinated, while the Mn³⁺/Mn⁴⁺ ions that occupy the octahedral B-site are six-fold coordinated, according to R3̄c symmetry (Fig. 2).XRD patterns of La_0.7Sr_0.3Mn_1−xNi_xO₃, where x = 0, 0.1, 0.3, 0.5, are depicted in Fig. 3c. The crystallite size calculated by Scherrer equation is 16.3, 15.8, 16.9, and 17.8 nm, for La_0.7Sr_0.3Mn₁O₃, La_0.7Sr_0.3Mn_0.9Ni_0.1O₃, La_0.7Sr_0.3Mn_0.7Ni_0.3O₃, and La_0.7Sr_0.3Mn_0.5Ni_0.5O₃, respectively. The splitting of characteristic peaks of La_0.7Sr_0.3Mn_0.5Ni_0.5O₃ shows the rhombohedral distortion of the perovskite structure.²⁷ The substantial peak splitting for La_0.7Sr_0.3Mn_0.5Ni_0.5O₃ is typically observed for all peaks except the (100) reflections. Variations from the ideal cubic form cause a small elongation or compression along the body diagonal of the unit cell. The preservation of the unsplit (100) peaks and the splitting of other reflections gives strong evidence that the distortion is rhombohedral. This structural shift is most noticeable at the highest nickel content (x = 0.5), implying a relationship between nickel doping and the degree of rhombohedral distortion.

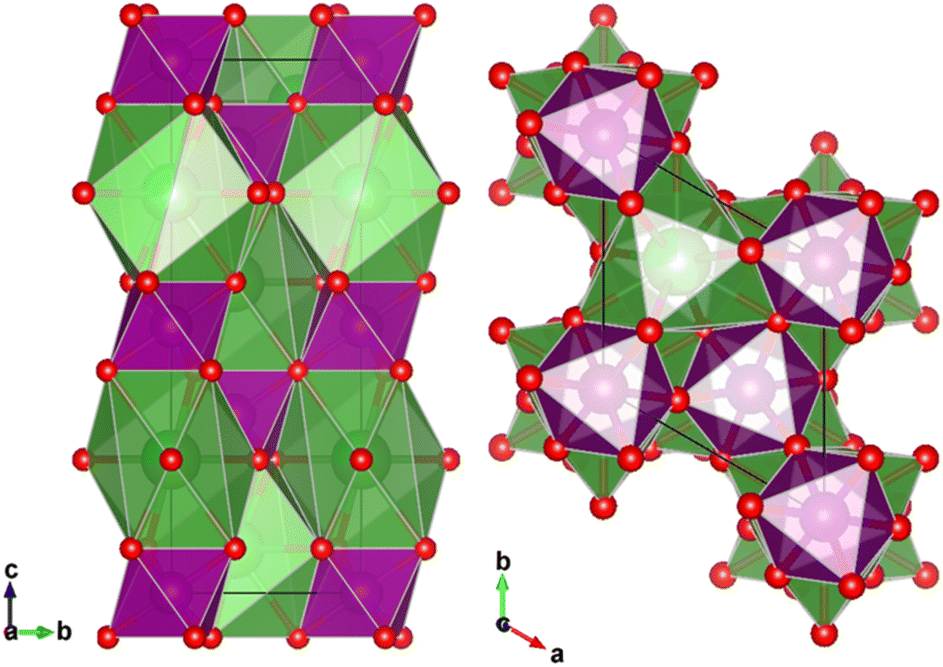

Fig. 2 Crystallographic structure of the AA′BB′O₃ double perovskite of La_0.7Sr_0.3Mn₁Ni₀O₃ compound having a 167 R3̄c symmetry. The unit cell dimensions are a = 5.50300 Å, b = 5.50300 Å, c = 13.4241 Å and cell volume of 349.916086 ų.

Fig. 3 TEM and corresponding EDS elemental mapping for La, Sr, Mn Ni, O and superimposed MnNi and NiLa (a and b), (c) ex situ XRD patterns and (d) ex situ Raman spectra of La_0.7Sr_0.3Mn_1−xNi_xO₃ (x = 0, 0.1, 0.3, 0.5) pristine catalyst.

The ex situ Raman spectroscopy results for the as-formed catalysts (Fig. 3d), the peaks that have been detected convey significant details about the structural properties of double perovskites. A characteristic of perovskite-type manganites, the Mn–O stretching vibration in the MnO₆ octahedra is responsible for the high-intensity peak observed at ca. 660 cm⁻¹.²⁸ The Mn–O–Mn bending mode is most likely represented by the lower intensity peak, which is located at c.a. 531 cm⁻¹. The blue shift of these peaks, which is noticed with increased nickel content, indicates that the metal-oxygen interactions are strengthening.

The Raman peaks move towards higher wavenumbers as a result of the replacement of Mn³⁺ ions by Ni²⁺ ions, which also causes a contraction of the lattice and greater metal–oxygen interactions. The observed alterations in peak locations and intensities in response to different nickel contents suggest that nickel incorporation alters the local structure and bonding environment inside the perovskite lattice, which could have an impact on the materials catalytic characteristics. TEM (HAADF) images with corresponding high-resolution EDS elemental maps in Fig. 3a and b show the homogeneous distribution of La, Sr, Mn and O in La_0.7Sr_0.3Mn_0.5Ni_0.5O₃ structure.

The superimposed EDS elemental maps for MnNi and LaNi reveal nanoregions with enriched nickel content. Those slight compositional alternations most likely contribute to the rhombohedral distortion in the double perovskite. The discharge and charge voltage profiles of cells with La_0.7Sr_0.3Mn_0.5Ni_0.5O₃ cathode having different ratios of active material, carbon, and binder are demonstrated in Fig. S1.† The 5 : 4 : 1 ratio most likely gives a more ideal ionic conductivity and balanced environment for ionic transport, hence increasing initial discharge capacity. Conversely, imbalances were observed in the 2 : 7 : 1 and 7 : 2 : 1 ratios resulting in higher resistance and less effective ion transport.

Hence for all the following electrochemical studies the electrode ratio of 5 : 4 : 1 was used. Fig. 4a depicts the discharge/charge voltage profiles obtained with four distinct perovskites at a discharge current density of 100 mAg⁻¹.

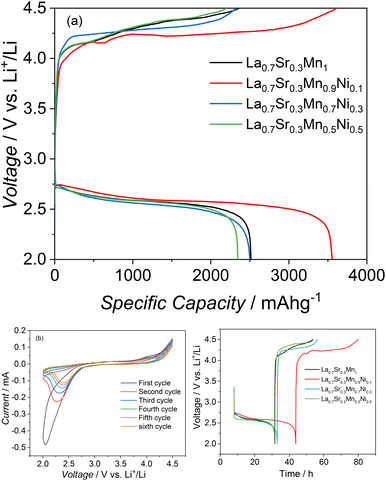

Fig. 4 a) Galvanostatic discharge and charge cycles for La_0.7Sr_0.3Mn₁Ni₀O₃, La_0.7Sr_0.3Mn_0.9Ni_0.1O₃, La_0.7Sr_0.3Mn_0.7Ni_0.3 O₃, and La_0.7Sr_0.3Mn_0.5Ni_0.5O₃ and corresponding voltage-time curves obtained at first cycle at a current density of 100 mAg⁻¹ b) cyclic voltammograms of first five consecutive cycles of La_0.7Sr_0.3Mn_0.9Ni_0.1 at a scan rate of 0.1 mV s⁻¹ in 1 mol dm⁻³ bis trifluoromethane sulfonimide lithium salt (LiTFSi) in tetra ethylene glycol dimethyl ether (TEGDME).

The cell with La_0.7Sr_0.3Mn₁O₃, La_0.7Sr_0.3Mn_0.9Ni_0.1O₃, La_0.7Sr_0.3Mn_0.7Ni_0.3O₃, and La_0.7Sr_0.3 Mn_0.5Ni_0.5O₃ catalysts at the cathode delivered a total discharge capacity of 2500 mAh g⁻¹_(electrode), 3554 mAh g⁻¹_(electrode), 2507 mAh g⁻¹_(electrode) and 2373 mAh g⁻¹_(electrode), respectively. Furthermore, the charge voltage plateau of La_0.7Sr_0.3Mn_0.9Ni_0.1O₃ is approximately 100 mV lower than La_0.7Sr_0.3Mn₁O₃. La_0.7Sr_0.3Mn_0.9Ni_0.1O₃ has better electrochemical performance and a lower discharge–charge voltage gap than other three studied electrocatalysts.

The substitution of 10% manganese with nickel is supposed to create catalytic centers oxygen reduction/oxidation reactions. The cyclic voltammetry (Fig. 4b) results for La_0.7Sr_0.3Mn_0.9Ni_0.1O₃ show a major decrease in peak current after the first cycle. Despite the initial fading, the CV curves general shape and structural patterns are stable across all the cycles indicating that the fundamental electrochemical process remains constant across the cycles.

A more fundamental understanding of electrochemical processes during discharge/charge was investigated using in situ Raman spectroscopy in Fig. 5.^29–32 Raman bands at open circuit voltage originate from the electrode, electrolyte, and optical window. In the first stage of discharge (2.41 V), two peaks appear at 1127 cm⁻¹ and 1517 cm⁻¹. The O–O stretching of lithium superoxide (LiO₂) in the discharge products is assigned the Raman shift at 1127 cm⁻¹. The 1517 cm⁻¹ Raman band is generated in conjunction with the 1127 cm⁻¹ band, assigned to the LiO₂-C mode, where carbon is used as a conductive additive in the electrode.³³

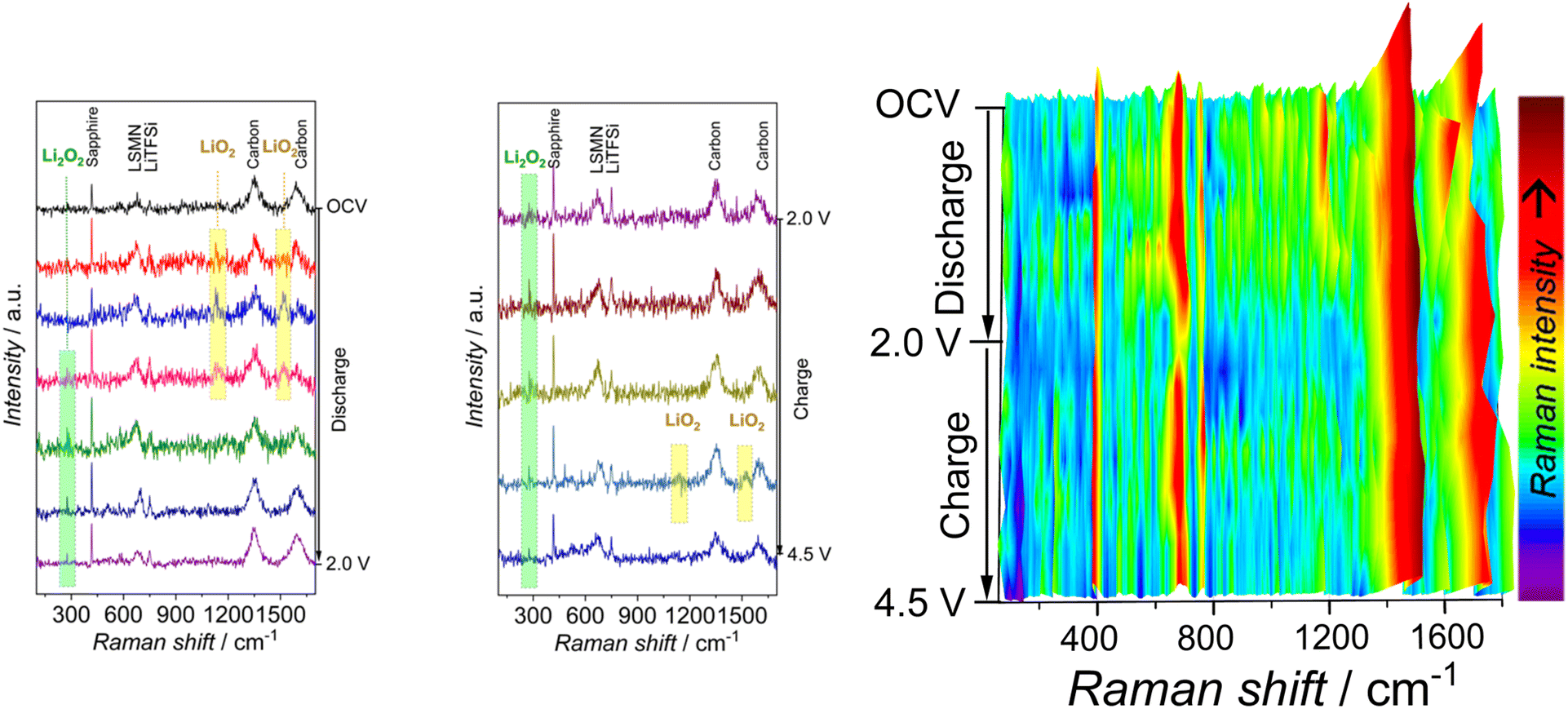

Fig. 5 In situ Raman spectroscopy for Li–O₂ battery composed La_0.7Sr_0.3Mn_0.9Ni_0.1O₃ catalyst obtained at the first discharge, charge cycle at a current density of 100 mAg⁻¹ in 1 mol dm⁻³ bis trifluoromethane sulfonimide lithium salt (LiTFSi) in tetra ethylene glycol dimethyl ether (TEGDME).

The formation and disappearance of LiO₂ is displayed in 3D in situ Raman spectrum in Fig. 5. The reversible processes in non-aqueous Li–O₂ cell include the development and evolution of mostly lithium peroxide (Li₂O₂) products, where superoxide (LiO₂) plays an essential role. Reference Li₂O₂ powder Sigma Aldrich gives ex situ Raman spectra with expected O–O stretching frequency of peroxide at around 802 cm⁻¹ and Li–O vibrations located at 256 cm⁻¹.^34,35 The Li₂O₂ peak assigned to Li–O vibrations is detected at 279 cm⁻¹ (Fig. 5), while the O–O stretching at 790 cm⁻¹ is absent in the spectra in the current study.

Most of the studies report difficulties in peroxide detection with low intensity and broad peaks, particularly without surface enhancement.³⁶ The variations in the strength of the signals between the literature data³⁷ and the current study may arise from differences in Raman scattering from peroxide due to surface enhancement issues. Peroxide may be in the form of amorphous, crystalline or a mixture of overlapping amorphous/crystalline layers with complex morphology features. The amorphous Li₂O₂ is less coordinated than crystalline Li₂O₂, with a larger population of lithium vacancies and hole polaron defects.³⁸ In addition, the O–O peroxide bond is expected to be shorter for the amorphous phase. Recent studies by others indicate the presence of amorphous Li₂O₂ as a discharge product, giving unique Raman spectroscopy profiles such as higher O–O vibrational frequencies than crystalline Li₂O_2.^39–41

In situ Raman spectra obtained during the discharge process suggest that the reduction reaction involves one electron transfer to form superoxide (O₂⁻, LiO₂) in the first stage of the discharge process:

O₂ + e⁻ → O₂⁻ (1)

O₂⁻ + Li⁺ → LiO₂ (2)

The lithium superoxide (LiO₂) is detected at first stage of discharge and further reduced to lithium superoxide (Li₂O₂) as the discharge proceeds. Lithium superoxide formation may proceed via i) catalyst surface route (3), and/or ii) solution-mediated route, i.e. disproportionation (4):⁴²

LiO₂ + Li⁺ + e⁻ → Li₂O₂ (3)

2LiO₂ → Li₂O₂ + O₂ (4)

The presence of lithium peroxide in the charge phase suggests that Li₂O₂ remains stable during the charging process. The recovery of molecular oxygen (5–6) in the charge cycle seems to proceed through a two-step oxidation process⁴³ involving lithium superoxide (LiO₂) formation as the O–O stretching at 1127 cm⁻¹ is detected. The presence Li₂O₂ through the charge cycle indicates that the kinetics of Li₂O₂/LiO₂ oxidation is sluggish and the decomposition seems to be dominant at the end of the charge cycle.

Li₂O₂ → LiO₂ + Li⁺ + e⁻ (5)

LiO₂ → Li⁺ + O₂ + e⁻ (6)

Lithium superoxide (LiO₂) feature at 1127 cm⁻¹ drops intensity during the charge cycle, suggesting that it is extracted from the electrode surface. It is evident from the data that LiO₂ is not merely an intermediate but rather a reversible product that forms and changes during the cycle. The main concern referring to superoxide generation is the widespread perception that superoxides are extremely unstable. The dissolved superoxides have been proven to be kinetically stable in specific organic solvents. Recent reports by Gittleson et al. on superoxide stability in high-purity Li–O₂ electrolyte solvents, such as monoglyme, diglyme, tetraglyme and indicate that superoxide ions may be stable for up to 16 days.³⁴ In the current study the superoxide (LiO₂) is stable for two hours during the discharge process indicating its long lifetime. The potential factor influencing the stability of superoxide is the structure of the electrolyte. TEGDME has a donor number of 16.6, which comparatively promotes weak solvation of Li⁺ ions compared to the solvents with high donor numbers. Due to the moderate solvation effect, the dissolution of LiO₂ in the electrolyte is typically limited, promoting the retention of LiO₂ on the electrode surface. According to the studies by Johnson et al.,⁴⁴ solvents having a high donor number are expected to facilitate the dissolution of LiO₂ into the electrolyte, which leads to rapid disproportionation into Li₂O₂. At the same time, solvents with low donor numbers (e.g., TEGDME) tend to retain LiO₂ for a longer time on the electrode surface further proceeding to the formation of Li₂O₂ film on the electrode through disproportionation or a second electron reduction. Another critical factor is the structure of the formed lithium superoxide. The computational studies by Das et al.⁴⁵ suggest that the stability of lithium superoxide is related to the type and shape of the superoxide cluster formed on the electrode surface. Although LiO₂ is thermodynamically unstable according to disproportionation (2LiO₂ → Li₂O₂ + O₂), in terms of kinetics, it is expected to be stable due to the reaction barrier for the O₂ removal. For example, the LiO₂ clusters have a disproportionation barrier of c.a. 1 eV, which is higher than that for LiO₂ dimer (c.a. 0.5 eV). The above scenario demonstrates that disproportionation proceeding through superoxide cluster formation, may influence its integration into the discharge product. The contact between electrolyte and LiO₂ should bring obstacles in O₂ desorption by increasing the barrier and thereby the lifetime of LiO₂.⁴⁵ Fig. 6c depicts the positive-ion TOF-SIMS spectra performed for the pristine and post-cycling electrodes. The results from the post-cycling electrode clearly show Li₂O⁺ at 30.03 m/z and Li₃O⁺ at 37.04 m/z secondary ions related to the fragments of lithium oxides.³ Interpretation of higher mass peaks is rather problematic due to overlapping with organic fragments from electrolyte and binder. Lower/higher m/z peaks consist of organic compounds, and they arise from the electrolyte species. In situ Raman spectroscopy results combined with TOF-SIMS analysis provide strong evidence for the formation of lithium oxides.

Fig. 6 Ex situ impedance and ToF-SIMS analysis. Electrochemical impedance spectra (EIS) for Li–O₂ battery composed of La_0.7Sr_0.3Mn₁Ni₀O₃, La_0.7Sr_0.3Mn_0.9Ni_0.1O₃, La_0.7Sr_0.3Mn_0.7Ni_0.3O₃, and La_0.7Sr_0.3Mn_0.5Ni_0.5O₃ catalyst were obtained at open circuit voltage for prisine electrode. EIS obtained after full discharge of Li–O₂ battery composed of La_0.7Sr_0.5Mn_0.5Ni_0.5O₃ and La_0.7Sr_0.3Mn_0.9Ni_0.1O₃ catalyst are shown for comparition, experimental data were fitted with an equivalent circuit of R₁[R₂Q₂]W. ToF-SIMS spectra were obtained of pristine (green) and fully discharged electrode (red) of La_0.7Sr_0.3Mn_0.9Ni_0.1O₃.

Electrochemical impedance spectroscopy was utilized to investigate the electrocatalyst's impedance both at open circuit voltage and after discharge process. Fig. 6a and b depicts the Nyquist plots for experimental data as well as simulated data using the equivalent circuit fitting, where R₁ denotes the internal resistance of the battery; R₂ is the charge transfer resistance, representing the kinetics of an electrochemical process; Q₂ is the constant-phase element representing capacitive nature of the process or battery component; W denotes the Warburg impedance.^46–49 The simulated data matches well the experimental data across the full range of frequency with χ²/|Z|² fitting at 0.1. The arc located in the high-frequency zone corresponds to R₂, with the diameter depending on type of catalyst; here the reduced diameter of the arc indicates facilitated charge transfer. In the analogous circuit diagram, the straight line located in the low-frequency region represents the diffusion component, i.e., Warburg impedance. The catalyst composed of La_0.7Sr_0.3Mn_0.9Ni_0.1O₃ possesses lowest charge transfer resistance of 273 Ω compared to 422, 377 and 356 Ω for La_0.7Sr_0.3Mn₁O₃, La_0.7Sr_0.3Mn_0.7Ni_0.3O₃ and La_0.7Sr_0.3Mn_0.5Ni_0.5O₃, respectively. Hence, the La_0.7Sr_0.3Mn_0.9Ni_0.1O₃ electrocatalyst facilitates faster electron transfer during the electrochemical reactions in the current battery configuration. The Mn³⁺/Mn⁴⁺ ratio seems to play a critical role in the electrical conductivity of perovskite electrodes. The connection between the Mn³⁺/Mn⁴⁺ ratio and the charge storage capability is discussed further in XPS analysis.

The trend is the same in the spectra after discharge, with an evident increase in the charge transfer resistance by a factor of two. The formation of low conductivity discharge products, i.e. LiO₂ and Li₂O₂ on the electrode surface as indicated by in situ Raman supported by ToF-SIMS analysis is the main reason for a significant increase of charge transfer resistance at completed discharge. The low value of charge transfer resistance of La_0.7Sr_0.3Mn_0.9Ni_0.1O₃ correlates with the increased discharge–charge performance.

From the electrochemical data it is evident that 10% of nickel substitution has a beneficial impact on the catalytic activity of catalyst. The Mn and Ni valence states in La_0.7Sr_0.3Mn_1−xNi_xO₃ are shown in XPS spectra (Fig. 7 and S2,† respectively). The Ni 3p, does not show a clear peak for x = 0.1 due to relatively low Ni content. Two peaks at 66.0 and 67.5 eV appear for x = 0.3 and x = 0.5 assigned to 3p_3/2 and 3p_1/2 spin–orbit components of Ni²⁺ states, respectively.^50,51 The 3p_3/2 and 3p_1/2 peaks of Ni³⁺ states of reference LaNiO₃ appear around 69 and 71 eV,⁵⁰ which differs from our study indicating that the Ni cations favor remaining in the Ni²⁺ valence state and the higher valence state Ni³⁺ is very scarce in all the studied double perovskites. Mn 2p spectra show variable Mn valence states with variation of x. All compositions show a sharp peak around 641 eV and a broad peak around 658 eV, attributed to 2p_3/2 and 2p_1/2 spin–orbit components, respectively (Fig. 7). The deconvolution of the 2p_3/2 peak was performed with binding energy full width at half maximum (FWHM) kept constant. The presence of Mn³⁺ and Mn⁴⁺ valence states in La_0.7Sr_0.3Mn_1−xNi_xO₃ was evident at 641.8 and 643.2 eV, respectively.^22,52 The molar ratio of Mn³⁺/Mn⁴⁺ increases with increasing x from 0 to 0.1 and decreases with increasing x above 0.1 (Table S4†) indicating the highest population of Mn³⁺ oxidation states in La_0.7Sr_0.3Mn_0.9Ni_0.1O₃, in which more than 90% of the manganese ions occupy the Mn³⁺ valence state.

Fig. 7 Mn 2p XPS spectra for pristine La_0.7Sr_0.3Mn₁Ni₀O₃, La_0.7Sr_0.3Mn_0.9Ni_0.1O₃, La_0.7Sr_0.3Mn_0.7Ni_0.3O₃, and La_0.7Sr_0.3Mn_0.5Ni_0.5O₃ catalyst demonstrating population of Mn³⁺ on the oxide surface depending on the Ni substitution ratio. The molar ratios of Mn³⁺/Mn⁴⁺ determined from fitting analysis are listed in ESI.†

The catalytic centers for oxygen reduction reaction tend to be associated with a high population of lower valence states of manganese ions. One of the most efficient catalysts reported for oxygen reduction reaction are cobalt oxides containing Co³⁺ ions in the intermediate spin state t_2g⁵e_g¹.⁵³ The manganese oxides containing Mn³⁺, which are at the highest population on the surface of La_0.7Sr_0.3Mn_0.9Ni_0.1O₃ catalyst are in the t_2g³e_g¹ spin state. The similarity between both transition metals is that they have Jahn-Teller disordered metal–oxygen octahedra due to the presence of e_g¹ electrons.⁵³ Several studies indicated that the presence of e_g¹ electrons of redox-active transition metal atoms, i.e., B-site cations has a key impact on the catalytic activity of the perovsites.^19,53 The presence of a single e_g¹ electron is expected to improve the electronic communication in the oxide structure⁵⁴ and, therefore facilitate the charge transfer kinetics as observed for catalysts composed of La_0.7Sr_0.3Mn_1–xNi_xO₃ at the maximum population of Mn³⁺ states.

Conclusions

Nickel-substituted lanthanum strontium manganite La_0.7Sr_0.3Mn_1−xNi_xO₃ perovskite with x level of 0, 0.1, 0.3, and 0.5 was synthesized using citrate precursor method and studied as an oxygen electrode in an aprotic Li–O₂ battery operating in 1 mol dm⁻³ bis trifluoromethane sulfonimide lithium salt (LiTFSi) in tetra ethylene glycol dimethyl ether (TEGDME) electrolyte. The substitution of manganese with nickel was optimized to achieve high electrocatalytic activity of oxygen electrode; at a current density of 100 mAg⁻¹ in a voltage window of 2.0–4.5 V vs. Li⁺/Li, the discharge capacity for La_0.7Sr_0.3Mn_0.9 Ni_0.1O₃ catalyst was 3554 mAh g⁻¹. The in situ Raman spectroscopy revealed lithium superoxide (LiO₂) formation during discharge and its further reduction to lithium peroxide (Li₂O₂). A reversible formation of LiO₂ from Li₂O₂ was observed during the charge stage. The superoxide (LiO₂) was electrochemically stable for the first two hours at the discharge, indicating that LiO₂ is more stable than expected for short-lifetime intermediates such as superoxides. The formation of stable and reversible LiO₂ is in contrast to earlier reports proposed that LiO₂ is an intermediate in the formation of Li₂O₂.

Experimental section

Materials synthesis. The citrate precursor method was employed to prepare specimens of La_0.7Sr_0.3Mn_1−xNi_xO₃ (x = 0, 0.1, 0.3, 0.5). La (NO₃)₃·6H₂O (Sigma-Aldrich, ≥99.99%), Sr (NO₃)₂ (Sigma-Aldrich, ≥99.99%), Mn (NO₃)₂·6H₂O (Sigma-Aldrich, ≥99.99%), and Ni (NO₃)₂·6H₂O (Sigma-Aldrich, ≥99.99%) were the primary reagents used for the synthesis. Following the proper dissolution of the reagents in distilled water, an equal molar ratio of citric acid (Sigma-Aldrich, ≥99.5%) was added as a complex agent. The citrate solution was heated to 64 °C while being agitated to promote polymerization. After being prefired in air for one hour at 450 °C, the resultant product was fired for twelve hours at 800 °C in an O₂ environment. The morphological aspects for of La₀.₇Sr₀.₃Mn_1−xNi_xO₃ have been discussed elsewhere.¹⁹

Materials characterization. XRD analysis was performed with Rigaku Rint-2000 using Cu Kα radiation (wavelength 1.5405). The Debye–Scherrer equation (D = Kλ/βcos θ) was used to calculate the average crystallite size of the catalyst. K is an arbitrary constant having a value of 0.9, the wavelength of the source radiation is λ, the full width at half maximum (FWHM) of the most significant peak in the XRD spectrum is represented by β, and θ is the angle of diffraction. A transmission electron microscope (FEI, Talos F200X) provided with tools for an energy-dispersive X-ray spectroscope (Bruker Super-X EDS system) was used to observe specimens morphology. Raman scattering spectra were collected using a DXR3 Raman Microscope (Thermo Scientific) equipped with a 50× objective having a numerical aperture of 0.25, a spot size of 2.88 μm, and a DPSS laser (532 nm). To ensure the alignment of spectra, the cell was calibrated prior to the experiment. In order to prevent sample deterioration and unintended side reactions, the laser power was kept at 1% maximum intensity.

Electrochemical techniques. The composite electrode was prepared by mixing 50 wt% of active material, 40 wt% acetylene black, and 10 wt% polyvinylidene fluoride (PVDF). All the components were added and mixed with N-methyl-2-pyrrolidone (NMP) to form a slurry of uniform consistency. The resultant mixture was uniformly distributed in small circular pieces of nickel mesh and dried overnight at 90 °C in a muffle furnace under an oxygen atmosphere to completely remove the solvent from the electrode surface.

The assembly of ECC-Air electrochemical cells (EL-CELL) was done inside an argon-filled glove box (mBraun Labstar) with the moisture and oxygen levels kept <0.5 ppm. The Li–O₂ cells were assembled with a lithium metal anode, a glass fiber separator (GF/B, Whatman), and an electrolyte composed of 1 mol dm⁻³ LiTFSi (Bis(trifluoromethane) sulfonimide lithium salt, ≥99.0%) in TEGDME (tetra ethylene glycol dimethyl ether), and La_0.7Sr_0.3Mn_1−xNi_xO₃ catalyst cathode.

The electrochemical performance of the batteries was tested using BioLogic SP-300 potentiostat. Before applying electrochemical protocol, rest time was given for all the cells for 8 hours with O₂ flow. For the study of the discharge/charge cycles a constant current of 100 mAg⁻¹ was applied in 2.0–4.5 V vs. Li⁺/Li voltage window. The specific capacities were calculated by normalizing the mass of the catalyst loaded at the cathode. The cyclic voltammetry was performed with a scan rate of 0.1 mV s⁻¹. The electrochemical impedance spectroscopy (EIS) study was performed at open-circuit potential before and after discharge in the frequency range 10⁵ to 10⁻¹ Hz, using a sinusoidal voltage signal amplitude of 5 mV. The impedance spectra were analyzed using an equivalent circuit model R₁[R₂Q₂]W. The experimental data were fitted to the corresponding circuit using BioLogic's EC-Lab software. The distribution of ions over the sample surface was obtained with a time-of-flight secondary ion mass spectrometry (TOF-SIMS). The measurements were performed on a TOF-SIMS.5 spectrometer (ION-TOF GmbH, Germany) operating in Bi³⁺ mode (at 30 keV energy and 0.48 pA ion current conditions). The LSMN powder was pressed onto copper tape to form a thick layer as a reference sample. The electrode grid after discharge was mounted gently using metal clips. The base pressure in the chamber was below 2 × 10⁻⁹ mbar. Analyses were done over 500 μm × 500 μm area. The internal mass calibration was performed using mass a series of ions: Li⁺, Na⁺, K⁺, Mn⁺, La⁺. Identification of molecular ions and fragments was performed using SurfaceLab 7.0 software (ION-TOF GmbH, Germany).

Data availability

The data supporting this article have been included as part of the ESI.†

Author contributions

Sandra Sajeev: investigation, methodology, writing – original draft. Mewin Vincent: methodology. Marcin Stawski: methodology, analysis. Piotr Garbacz: resources. Chunyu Zhu: resources. Yoshitaka Aoki: methodology, resources, Damian Kowalski: supervision, manuscript writing.

Conflicts of interest

There are no conflicts to declare.
