The van der Waals antiferromagnetic proximity effect at the FePS₃/Pt uncompensated interface

Abstract

van der Waals antiferromagnetic insulators are emerging as promising candidates for spintronics and quantum computing due to their unique magnetic properties. However, detecting antiferromagnetism at the atomic scale remains challenging due to compensated spin order. In this study, we present a novel approach to observe the antiferromagnetic proximity effect in FePS₃/Pt heterostructures. This effect arises from interfacial magnetic moments, which induce significant spin polarization in the Pt layer via strong interlayer exchange interactions. As a result, a pronounced anomalous Hall effect is observed in the Pt layer. Fe atom vacancies at the FePS₃/Pt interface play a critical role in creating localized surface magnetic moments and enhancing exchange interactions. These findings shed light on the complex interplay between two-dimensional antiferromagnetic insulators and heavy metals with strong spin–orbit coupling, providing a promising strategy to exploit interfacial effects for creating magnetization in antiferromagnetic materials.

---

New concepts

Low-dimensional magnetic materials, particularly antiferromagnetic insulators, hold great promise for spintronic applications but present challenges in detecting and manipulating magnetization at the atomic scale due to their lack of net magnetic moment. To address this, we studied FePS₃/Pt heterostructures and proposed a novel approach to induce and detect magnetization in antiferromagnetic insulator/heavy metal systems. Our study demonstrates the antiferromagnetic proximity effect, where Pt exhibits magnetization despite the net-zero magnetic moment of FePS₃ in its bulk state. Besides, we show that Fe atom vacancies at the interface induce local net magnetic moments and enhance interfacial exchange interactions, providing a pathway for magnetization creation. Using a defect model, we elucidate the van der Waals antiferromagnetic proximity effect, offering insights into the interplay between magnetic proximity effects, defect engineering, and interfacial interactions. These findings present universal strategies to induce net magnetization in metals with strong spin–orbit coupling for spintronic applications in low-dimensional systems.

Introduction

van der Waals magnetic materials have attracted attention for their potential applications in spintronics,^1–5 quantum computing,⁶ and other advanced technologies.^7–12 van der Waals antiferromagnetic insulators, in particular, possess unique magnetic properties, such as ultrafast dynamics, zero stray fields, and diverse spin configurations.^13–15 As a van der Waals antiferromagnetic insulator, FePS₃ exhibits robust exchange interactions and strong magnetic anisotropy,^14,16 making it a compelling platform for studying magnetic phenomena in two-dimensional (2D) systems. However, detecting and manipulating the magnetization of these materials at the atomic scale are challenging. Antiferromagnetic ordering in FePS₃ leads to a zero net magnetic moment, making the traditional magnetization detection techniques ineffective.¹⁷

Interfacial magnetic interactions provide opportunities for advancing the detection and manipulation of magnetism at the nanoscale. When a magnetic material is in contact with a heavy metal with strong spin–orbit coupling, a novel magnetic effect can arise due to interfacial interactions.^18–20 This effect, known as the magnetic proximity effect (MPE),^21–26 has attracted significant research interest in the field of van der Waals materials and heterostructures due to its potential to induce various magneto-transport phenomena such as the spin valve effect,²⁷ quantum anomalous Hall effect,²⁸ and spin–valley coupling.²⁹

Recent studies of the MPE in 2D materials have revealed a variety of mechanisms, significantly enhancing our understanding of this phenomenon.³⁰ Zollner et al.³¹ investigated the MPE in graphene/transition-metal phosphorus trichalcogenide (MPX₃; M = Mn, Fe, Ni, Co; X = S, Se) heterostructures. Through first-principles calculations, they demonstrated the induction of sizable magnetization in graphene. Zhong et al.³² and Lyons³³ et al. in 2020 explored the MPE in transition metal dichalcogenide (TMD)/ferromagnet heterostructures, showing that a strong exchange field and spin–orbit coupling can be induced in TMDs such as WSe₂ and MoSe₂. These studies create enhanced spin-polarized electronic states for novel spintronic devices.

Shi et al.^18,20,34,35 have made significant contributions to leveraging the MPE for detecting nanoscale magnetism. Their studies demonstrated that the magnetic properties of 2D magnetic insulators could be effectively probed through the anomalous Hall effect (AHE) of adjacent metals.^20,25,36,37 However, most existing studies focus on 2D ferromagnetic materials such as Cr₂Ge₂Te₆²⁰ and CrBr₃.²¹ Investigations into 2D antiferromagnetic insulators using the MPE remain scarce. In this work, we report the AHE in antiferromagnetic FePS₃/Pt heterostructures. Despite the absence of net magnetic moment in FePS₃, the AHE was detected in the Pt layer, suggesting the emergence of net magnetization in the Pt layer. This phenomenon is primarily attributed to the MPE; specifically, the antiferromagnetic order in FePS₃ influences the Pt layer via strong interlayer exchange coupling.^18,19 Supported by first-principles calculations, we point out the potential role of Fe atom vacancies in introducing local magnetic moments and enhancing the exchange interactions at the FePS₃/Pt interface, thereby amplifying the MPE.³⁸ A series of transport measurements reveal that interfacial physics influences the magnetic properties and transport behaviors in the heterostructures.

Results and discussion

The structural, compositional, and magnetic characterization of bulk FePS₃ is presented in Fig. 1. The photograph of the FePS₃ bulk crystal is shown in the inset of Fig. 1a. The Raman spectrum displays the characteristic vibrational modes of FePS₃ (Fig. 1a). The Raman peaks correspond to the in-plane phonon modes of the E_g and E_u types and out-of-plane modes of the A_1g type, all originating from the vibration of [P₂S₆]⁴⁻ units.³⁹ Elemental analysis via energy-dispersive X-ray spectroscopy (EDS) (Fig. 1b, top panel) confirms the stoichiometric composition of FePS₃. The atomic percentage of Fe is 19.57%, close to the theoretical stoichiometry and is within the acceptable error range of the instrument. The X-ray diffraction (XRD) pattern (Fig. 1b, bottom panel) validates the crystalline structure of FePS₃, with sharp peaks corresponding to (001), (002), (003), and (004) crystal planes, confirming the high crystallinity. The magnetization curves (Fig. 1c and d) clearly demonstrate the antiferromagnetic nature of FePS₃. The magnetization versus temperature (M–T) curves measured at 1000 Oe show clear antiferromagnetic–paramagnetic transitions and confirm the Néel temperature to be around 118 K (Fig. 1d). The magnetization versus applied magnetic field (M–H) curves (Fig. 1c) confirm the characteristics of an antiferromagnet with strong anisotropy. The perfect linear response with the field perpendicular to the Néel vector persisting up to 7 T indicates the non-canting nature of the antiferromagnetic alignment of spins with near-zero net moment. It is also evident that the Néel vector is parallel to the c-axis, i.e., there is a perpendicular magnetic anisotropy.

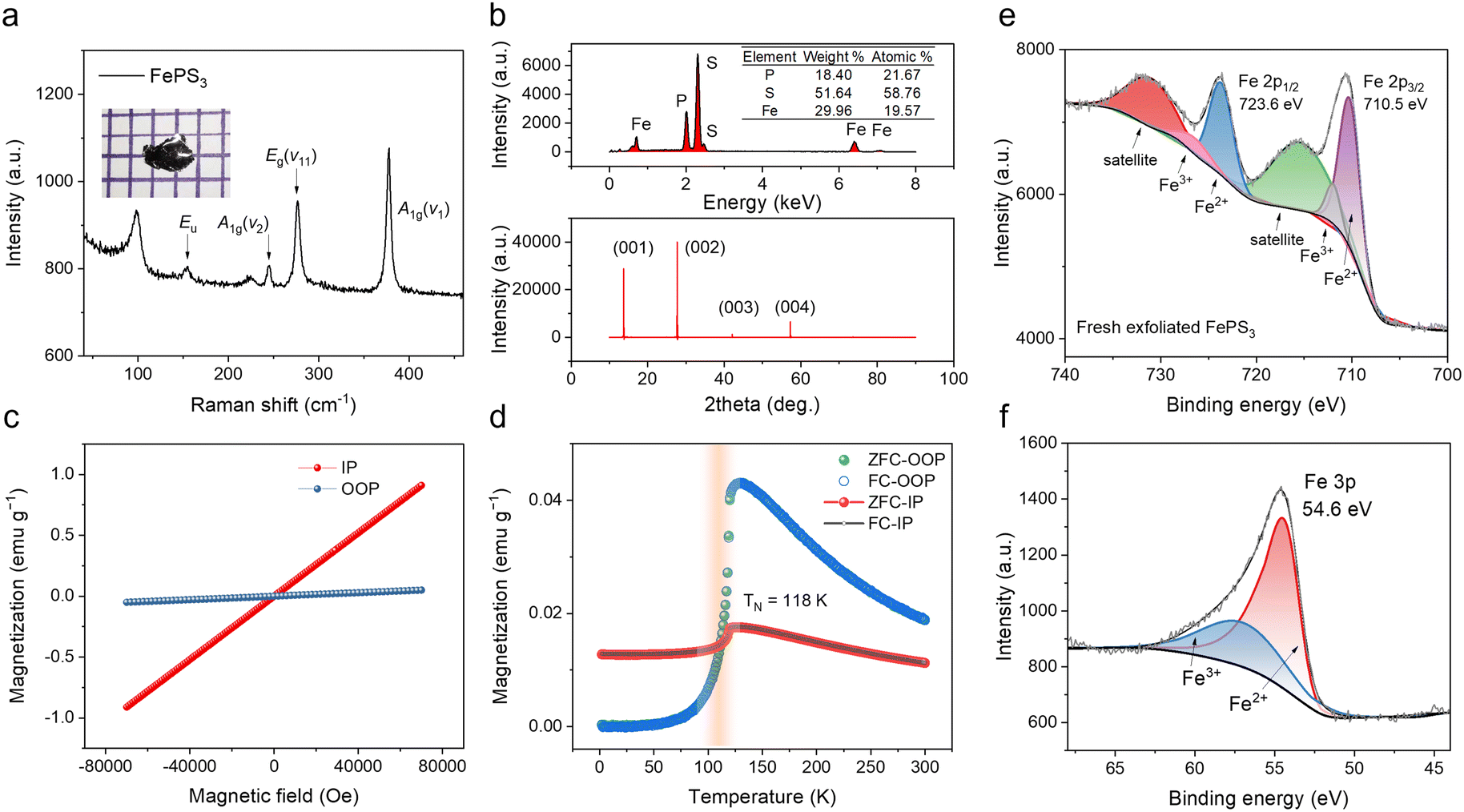

Fig. 1 Structural, compositional and magnetic characterization of FePS₃ bulk crystals. (a) Raman spectrum showing the characteristic peaks of FePS₃. Inset: Photograph of the FePS₃ bulk crystal. Grid size: 1 mm × 1 mm. (b) Top panel: Elemental analysis of FePS₃ using EDS and a table listing the weight percentages and atomic percentages of P, S, and Fe. Bottom panel: XRD pattern of FePS₃. (c) Magnetization–field curves of bulk FePS₃. (d) Magnetization–temperature curves of bulk FePS₃ measured under 1000 Oe. IP and OOP in (c) and (d) refer to in-plane and out-of-plane, respectively. (e) XPS spectra of Fe 2p peaks for exfoliated few-layer FePS₃ crystals. (f) XPS of Fe 3p peaks for few-layer FePS₃.

To investigate the structural and electronic properties of FePS₃ in two dimensions, the as-grown bulk crystal was mechanically exfoliated into few-layer flakes. XPS measurements of freshly exfoliated FePS₃ flakes reveal the coexistence of Fe²⁺ and Fe³⁺ valence states (Fig. 1e and f), which are attributed to vacancies rather than oxidation, as the samples were transferred to a high-vacuum chamber immediately after exfoliation to exclude surface oxidation. Quantitative analysis of XPS data is shown in Tables S1 and S2 (ESI†). Transmission electron microscopy confirms the existence of Fe vacancies in exfoliated ultra-thin (6-nm) FePS₃ samples (Fig. S1, ESI†). The Fe vacancies could alter coordination environments on the surface of exfoliated flakes. Such a significant change of the surface state is also evident from the blue-shifted Raman characteristic peaks after exfoliation (top panel of Fig. S2, ESI†). The blue shift of the Raman peaks is a feature of lattice compression because a small lattice constant corresponds to a higher phonon frequency and a larger Raman shift. The bottom panel of Fig. S2 (ESI†) illustrates how a vacancy induces local lattice distortions. The neighboring atoms are distorted around the vacancy. Both compressive strain and local bond stiffening are reasons for Raman blue shifts.

The possible effect of these surface states on the nanoscale magnetic properties cannot be directly detected using a superconducting quantum interference device (SQUID) magnetometer. Therefore, to investigate the elusive magnetization in few-layer FePS₃, the exfoliated few-layer flakes were fabricated into FePS₃/Pt Hall bar devices for magneto-transport measurements. Fig. 2 displays the structure of the FePS₃/Pt heterostructures. The 3D schematic and optical microscopy image (Fig. 2a) display the fabricated Hall bar device constructed from an FePS₃ (20 nm)/Pt (6 nm) heterostructure. Fig. 2b depicts the MPE at the interface between a heavy metal and a magnetic material.⁴⁰ Magnetic ordering in the magnetic material induces spin polarization in the adjacent metal layer. In this study, Pt is chosen primarily because of its high susceptibility to magnetic influence. Specifically, it provides strong spin–orbit coupling and considerable exchange energy, bringing it close to satisfying the Stoner criterion: (I_E·DOS(E_F) > 1, where I_E is the exchange integral and DOS(E_F) is the density of states at the Fermi level).⁴¹ The Stoner criterion indicates the tendency of a material to become ferromagnetic based on the balance between the exchange interaction energy and the kinetic energy of the conduction electrons. Pt, while not ferromagnetic in bulk form, has a large DOS(E_F) and a large I_E that bring it close to meeting the Stoner criterion. This implies that even a slight magnetization from an adjacent magnetic material can convert Pt into a magnetic state. Proximity-induced spin polarization in Pt is a key for understanding the magnetic order in few-layer FePS₃ and elucidating the origin of the AHE observed in this work.

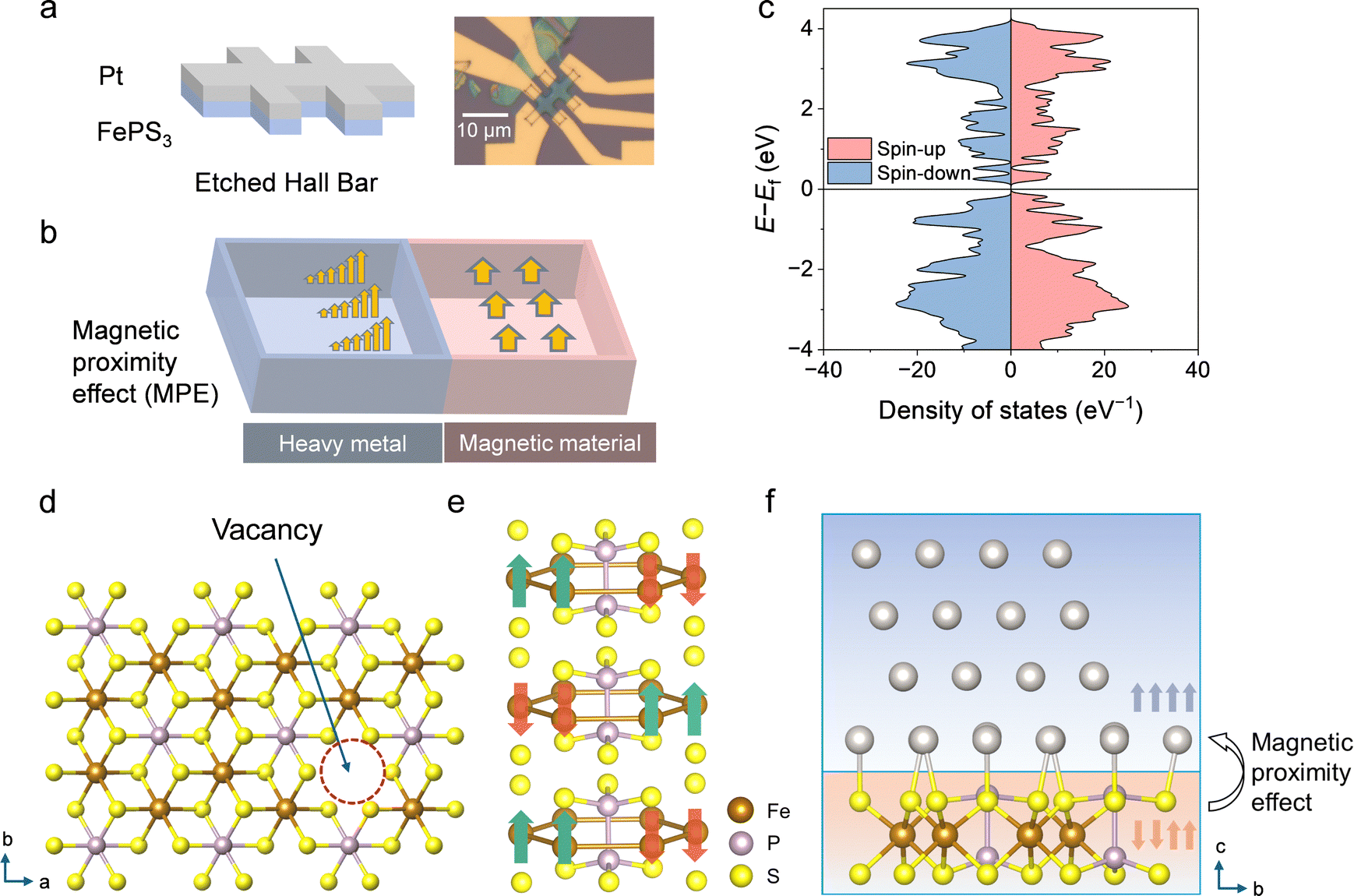

Fig. 2 Device fabrication and structure details of FePS₃/Pt heterostructure. (a) Left panel: schematic of the etched Hall bar composed of exfoliated FePS₃ and sputtered Pt. Right panel: optical microscope image of the fabricated Hall bar device based on an FePS₃ (20 nm)/Pt (6 nm) heterostructure. Scale bar: 10 μm. (b) Schematic of the MPE-induced magnetization distribution at the interface of a heavy metal and a magnetic material, with arrows indicating the direction of spin polarization. (c) Calculated spin DOS as a function of energy for FePS₃ with Fe vacancies. (d) FePS₃ crystal structure with an Fe vacancy, predicted by DFT calculations. (e) Crystal structure of FePS₃ with antiferromagnetic order (indicated by arrows) along the c-axis. (f) Schematic of DFT-predicted atomic structure of the FePS₃/Pt interface. Interfacial magnetic ordering in FePS₃ induces spin polarization in the proximate Pt layer.

Fig. 2e shows the layered stacking of FePS₃ along the c-axis, with inherent antiferromagnetic ordering reported in previous studies.^13,42 The magnetic moments of the Fe atoms are aligned in antiparallel directions both within the same plane and between the layers, suggesting both interlayer and intralayer antiferromagnetic coupling. Removal of an Fe atom can disrupt the periodic lattice arrangement and long-distance magnetic exchange interactions, affecting the spin compensation of Fe atoms (Fig. 2d). This can create magnetic moments, modify localized magnetic interactions and potentially alter the type of magnetic order. In FePS₃/Pt heterostructures, Fe vacancies can induce ferromagnetic-like order at the interface, leading to spin polarization in the Pt layer and pronounced spin-dependent transport properties through the MPE (Fig. 2f). Understanding this vacancy-induced magnetization is crucial for optimizing FePS₃ and other 2D antiferromagnets in spintronic applications, because such vacancies can be exploited to achieve the desired magnetic properties. Fig. 2c presents the calculated spin density of states in the predicted defective FePS₃. The spin-up and spin-down states are asymmetric near the Fermi level, indicating net spin polarization. Fig. S3 (ESI†) presents the spin charge density distribution in the defective FePS₃ structure. The noticeable imbalance between the spin-up and spin-down densities suggests net magnetization. These first-principles calculations reveal the electronic structural modifications at the interface, which is a prerequisite for explaining the subsequent magneto-transport measurement results.

The electric measurements of the FePS₃/Pt heterostructure were conducted to elucidate the interfacial coupling through magneto-transport characteristics (Fig. 3). The decrease in longitudinal resistance (R_xx) with increasing temperature (Fig. S4, ESI†) shows a typical characteristic of metallic conductors, indicating that the Pt layer dominates the transport properties. The transverse resistance (R_xy) versus magnetic field plots at various temperatures (Fig. 3a) strongly support the presence of the AHE in the Pt layer. The abrupt change of R_xy near zero field indicates the contribution of the anomalous Hall resistance. R_xy saturating at ±2 T indicates the saturation field. The AHE is most pronounced at 2 K (the lowest investigated temperature). The anomalous Hall resistance is expressed as R_AHE = (R_xy+ − R_xy−)/2, where R_xy+ and R_xy− are the R_xy values extrapolated from the maximum positive and negative magnetic fields to zero magnetic field.⁴³ Fig. 3b and c shows the evolution of the anomalous Hall resistance with temperature. The AHE resistance decreases with increasing temperature, finally reversing the sign above 100 K (Fig. 3d). This transition temperature agrees with the measured T_N in Fig. 1d, showing consistency between the AHE resistance and magnetization. This consistency suggests that the induced magnetization in the Pt layer is responsible for the observed AHE. The R_AHE–H relation approaches linearity as the temperature rises above 140 K (Fig. S5d, ESI†), suggesting that the induced magnetization in Pt weakens at higher temperatures. The temperature sensitivity of the AHE indicates that the proximity-induced spin polarization in Pt is associated with the magnetization in FePS₃. A contrast experiment was conducted by inserting a 4 nm Cu layer between the FePS₃ and Pt layers. The FePS₃/Cu/Pt heterostructure shows an almost vanished AHE signal compared to FePS₃/Pt, confirming that the observed AHE originates from the proximity effect (Fig. 3e).

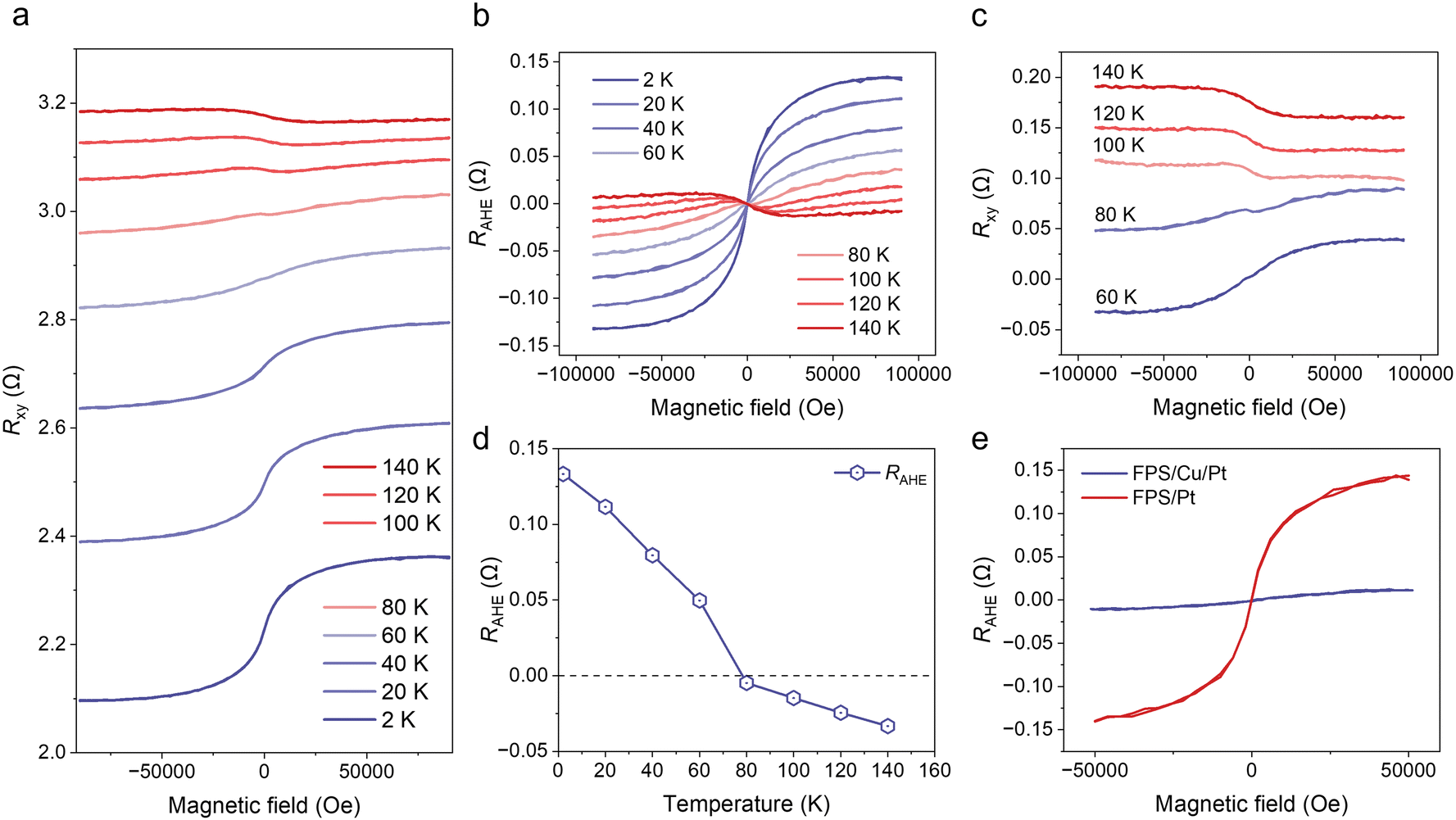

Fig. 3 Magneto-transport measurements of FePS₃/Pt heterostructures. (a) R_xy versus magnetic fields from −9 T to 9 T at various temperatures. The field is applied OOP. (b) R_AHE versus magnetic fields at various temperatures. (c) R_AHE versus magnetic field showing the sign reversal of the Hall resistance near 100 K. (d) Temperature dependence of R_AHE. (e) Comparison of R_AHE between FePS₃/Pt and FePS₃/Cu/Pt heterostructures.

To understand the underlying mechanisms of the observed AHE, Fig. 4 schematically depicts the MPE and the induced magnetization in the FePS₃/Pt heterostructure. The non-defective state (Fig. 4a) shows FePS₃ with its antiferromagnetic ordering and Pt as a non-magnetic material. The antiferromagnetic order in pristine FePS₃ is represented by antiparallel spin pairs that produce zero net magnetization. As Pt is non-magnetic, it does not exhibit any intrinsic magnetic order when it is far away from the magnetic layer. Fig. 4b presents the induction of net magnetization in the Pt layer caused by the MPE at the FePS₃/Pt interface, where the thin FePS₃ flake contains Fe vacancies. When FePS₃ and Pt are brought into close contact, the magnetic order of FePS₃ influences the Pt layer, causing a large spin polarization. The spins align toward the applied magnetic field orientation. This induced spin polarization is a direct consequence of the interfacial exchange interactions between the net moments of the vacancies in the antiferromagnetic FePS₃ and the adjacent Pt. The contribution of the vacancy is crucial for understanding the generation of ferromagnetism in this antiferromagnet/heavy metal system. The introduction of Fe atom vacancy in FePS₃ can create local magnetic moments that disrupt the perfect antiferromagnetic order, serving as an effective medium for localized short-distance ferromagnetic exchange coupling. These vacancies enhance the exchange interactions at the FePS₃/Pt interface, strengthening the induced magnetization in the Pt layer. The local magnetic moments generated by these vacancies are estimated as 3.3μ_B per vacancy based on our DFT calculations and the literature.^44–51 Fig. 4c depicts the spin orientation in the heterostructure under a downward magnetic field. The reversal of magnetic moment alignment in Pt, induced by the downward field, demonstrates the effective moments of vacancies and the switchable polarity of the MPE in response to an external field.

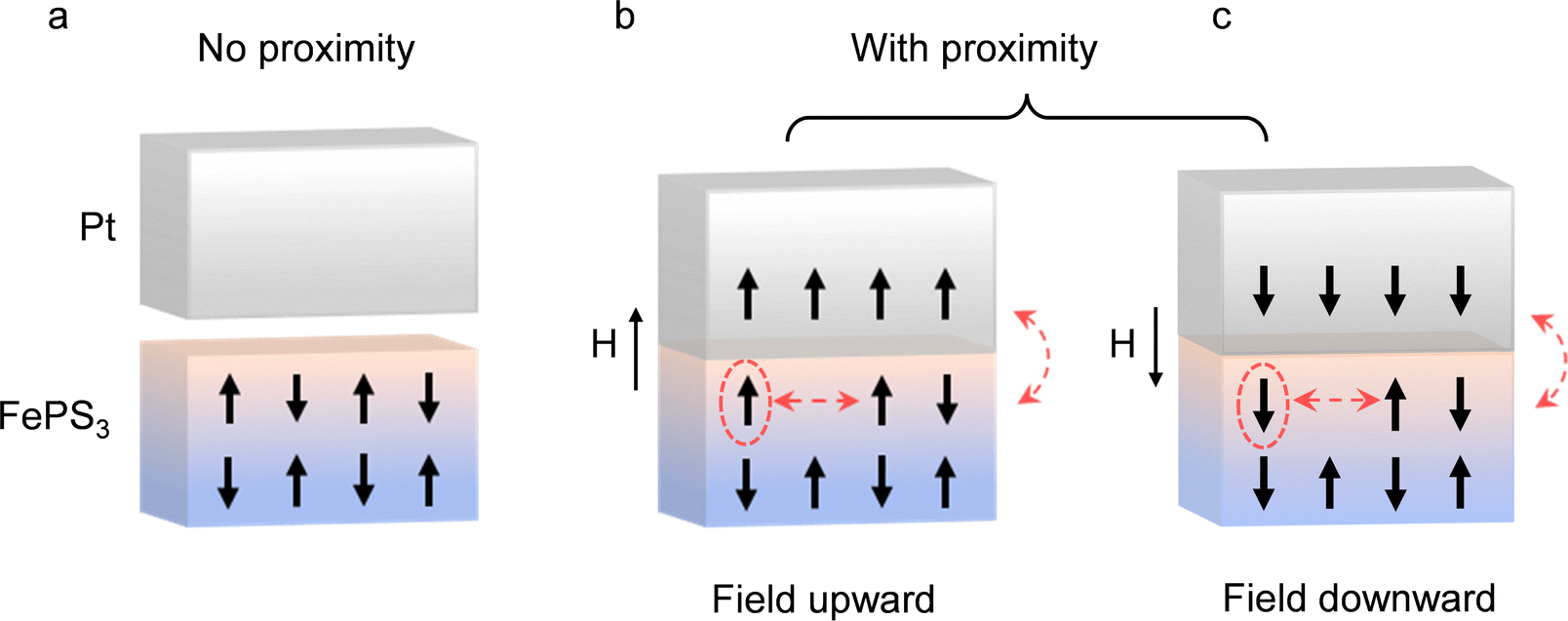

Fig. 4 Schematics of magnetic proximity effect and induced magnetization in FePS₃/Pt heterostructures. (a) Initial state, in which FePS₃ is antiferromagnetically ordered and Pt is non-magnetic. (b) Emergence of net magnetization in the Pt layer due to the MPE at the FePS₃/Pt interface, where the ferromagnetic order mediated by Fe atom vacancy in FePS₃ influences the Pt layer, causing spin polarization. The net magnetization in FePS₃ and Pt aligns toward the external magnetic field orientation. (c) Spin configuration with proximity effect and a downward magnetic field. The net moments are marked by circles.

While the proximity-induced AHE is evident, whether it can persist at minimized thickness is still an open question. To explore the size effect, the thickness of FePS₃ in the heterostructure was decreased to 8 nm. At this reduced thickness, the AHE remains evident. The loops diminish with increasing temperature, and the inversion of the AHE signal is clearly observed around 100 K (Fig. S5a and d, ESI†). Moreover, the variation of AHE resistance with temperature (Fig. S5b and c, ESI†) shows that AHE resistance exhibits a large value at low temperature, consistent with the weakening of the MPE at higher temperatures as the thermal energy overcomes the exchange interactions at the FePS₃/Pt interface, thereby reducing the induced magnetization.

The observed AHE inversion can be attributed to several possible factors: (1) competing magnetic interactions;⁵² (2) competition between spin Hall magnetoresistance (SMR) and MPE-induced anomalous Hall conductivity;^53–55 (3) thermal activation of defects;^56,57 and (4) spin reorientation transition.⁵⁸ There could be competition between different magnetic interactions across the interface or between multiple co-existing magnetic phases in the heterostructure. As the temperature increases, the balance between them might shift, leading to a change in the direction of induced spin polarization. Competition between the SMR-induced AHE and the proximity-induced AHE provides another explanation for the observed sign reversal of the AHE. Different from the origin of the AHE, SMR arises from the interactions between the spin-polarized currents and the magnetic moments on top surface of FePS₃, where the orientation and magnitude of the magnetization affect the resistance experienced by spin currents. The dynamic interplay between these two mechanisms can lead to variations in the sign of R_AHE, depending on which mechanism is dominant under different magnetic field strengths and temperatures.

To investigate SMR and anisotropic magnetoresistance (AMR), the angular dependence of R_xx was obtained (Fig. 5 and Fig. S6, S7, ESI†). Fig. 5 schematically illustrates how the spin current behavior in Pt is influenced by the surface magnetic state of FePS₃. Fig. S6a and S7a (ESI†) illustrate the measurement setup, where the applied magnetic field rotates in the x–z plane and y–z plane, respectively, with the rotation angle (β and γ, respectively) varying from 0° to 360°. The observed sinusoidal variation in R_xx confirms the SMR (Fig. 5c) and AMR effects (Fig. S7b, ESI†) in the FePS₃/Pt heterostructure. Fig. S6b and S7b (ESI†) plot the angular dependence of R_xx at different magnetic field strengths (from 1 T to 9 T) at a fixed temperature of 2 K. The fitting equations for R_xx is given by

R_xx(β) = R₁ + R_SMR cos²(2β), (1)

R_xx(γ) = R₂ + R_AMR cos²(2γ), (2)

where R₁ and R₂ are the base resistance, R_SMR and R_AMR represent the SMR and AMR contributions, respectively, and γ and β are the field angles. The values of these parameters and SMR and AMR, which is calculated by (R_Max − R_Min)/R_Min for all investigated fields are extracted and listed in Table S3 (ESI†). Fig. S6c and S7c (ESI†) display the angular dependence of R_xx at different temperatures (2 K to 80 K) at a fixed magnetic field strength (7 T). At lower temperatures (2 K and 10 K), R_xx exhibits strong angular dependence, indicating significant AMR. As the temperature increases, the amplitude of the angular variation in R_xx decreases, indicating a reduction in SMR and AMR.

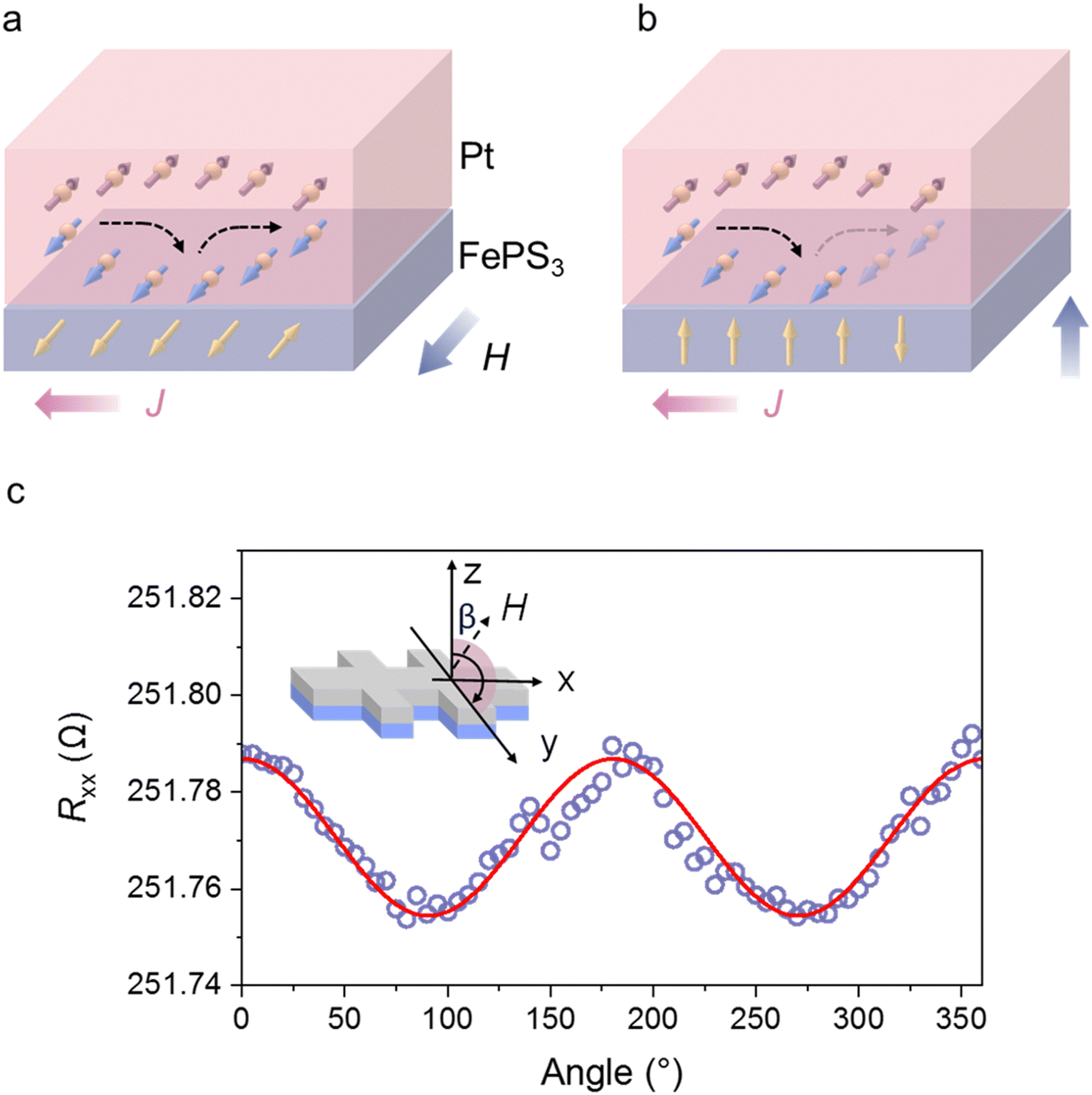

Fig. 5 SMR measurements of FePS₃/Pt heterostructure. (a) Schematics of the SMR mechanism, where a spin current is generated in the Pt layer due to an applied current and spin Hall effect. When the magnetic field aligns the magnetization in FePS₃ parallel to the spin direction of spin current in Pt, the spin current is reflected at the interface, resulting in low resistance. (b) When the applied field drives the magnetization in FePS₃ perpendicular to the spin direction of spin current in Pt, the spin current is absorbed by FePS₃, leading to an increase in resistance. (c) Angular dependence of the longitudinal resistance R_xx as a function of the angle between the external magnetic field and the z-axis. The inset illustrates the experimental setup. The field rotates in y–z plane.

In summary, we investigate the magnetic and electrical properties of FePS₃/Pt heterostructures, focusing on the AHE in the Pt layer. Despite FePS₃ being an antiferromagnetic insulator with no net magnetic moment, local magnetic moments are created at the interface. Facilitated by strong spin–orbit coupling, the MPE induces significant magnetization in Pt. Comprehensive measurements of the temperature, magnetic field, and angular dependence verify the occurrence of robust interfacial exchange interactions. The strong magnetization induction is attributed to Fe atom vacancies, which mediate the coupling and enhances these interactions. This finding suggests that combining defect engineering with interfacial phenomena such as the MPE makes an effective approach to creating net magnetization in non-magnetic metals in low-dimensional systems, paving the way for developing 2D heterostructures with both strong spin polarization and metallic conductivity for advanced spintronic devices.

Experimental methods

Material growth

High-quality bulk FePS₃ crystals were synthesized through the chemical vapor transport (CVT) method. Stoichiometric amounts of Fe, P, and S powders were mixed with a transport agent (I₂) in a sealed and evacuated quartz tube. The tube was placed for 7 days in a two-zone furnace with the source zone at 700 °C and the growth zone at 650 °C. The resulting FePS₃ crystals were then mechanically exfoliated into thin flakes using Scotch tape.

Compositional analysis

EDS measurements were performed using a Nova scanning electron microscope equipped with an EDS detector. The EDS analysis quantifies the composition ratios and possible Fe vacancies in the samples.

Device fabrication

The FePS₃/Pt heterostructures were fabricated using a mechanical exfoliation technique followed by sputtering deposition. The exfoliated FePS₃ flakes were transferred onto a Si/SiO₂ substrate using a dry transfer method assisted by polydimethylsiloxane (PDMS) stamps. A thin Pt layer was then deposited on the exfoliated FePS₃ flakes using magnetron sputtering under high-vacuum conditions. Optical microscopy and atomic force microscopy were used to confirm the thickness and quality of the transferred flakes and deposited Pt layers. Metal electrodes were patterned using electron beam lithography.

Characterization techniques

The structural characterization of the FePS₃ crystals was carried out using XRD with a Bruker D8 Advance diffractometer equipped with a Cu K_α X-ray source (λ = 1.5406 Å). Raman spectroscopy was performed using a Wetec Raman microscope with a 532-nm laser to verify the phase purity and crystallinity of the FePS₃ flakes. XPS was performed using a Kratos AMICUS XPS instrument equipped with a non-monochromated Al K_α (hν = 1486.6 eV) X-ray source operated at 100 W with a pass energy of 75 eV. The base pressure of the analysis chamber was maintained below 5 × 10⁻⁷ Pa during data acquisition. For the high-resolution scan used to identify the peaks of Fe oxidation states, a dwell time of 500 ms per point was used. Atomic resolution HAADF-STEM images were obtained using FEI Titan Themes Cubed G2 300 (Cs Probe) TEM operated at 300 kV.

Magnetic and electrical measurements

The magnetic properties of the FePS₃/Pt heterostructures were measured using a Quantum Design superconducting quantum interference device (SQUID) magnetometer. The M–H curves were obtained at various temperatures ranging from 2 to 300 K. The magneto-transport behavior was measured using a Quantum Design physical property measurement system (PPMS). The longitudinal and transverse resistivity (R_xx and R_xy) were measured simultaneously using PPMS as a function of the magnetic field at different temperatures. The applied current was set to 100 μA. The magnetic field was applied perpendicular to the sample plane at the initial position (0°) that was rotated in x–z and y–z planes during angular dependence tests.

First-principles calculations

The first-principles calculations were conducted using the Vienna ab initio simulation package (VASP), employing the projector-augmented wave (PAW) method⁵⁹ along with the Perdew–Burke–Ernzerhof (PBE) exchange–correlation functional⁶⁰ for the simulations. A plane-wave energy cut-off of 450 eV was set for all calculations. For structural relaxations, a gamma-centered k-point grid with ka > 30 Å was used to sample the Brillouin zone, where k is the number of mesh points and a is the lattice constant. Specifically, a 3 × 3 × 1 k-point grid was employed to achieve this density. A similar k-point mesh was used for all static runs. To avoid interactions between periodically repeated layers, a vacuum spacing of at least 20 Å was included along the c-axis. All atomic structures were relaxed until energy differences were below 10⁻⁶ eV, and the forces converged within 5 × 10⁻³ eV Å⁻¹. To accurately account for van der Waals interactions, the DFT-D3 method with Becke–Johnson damping function was utilized.^61,62 Additionally, spin polarization was enabled to account for magnetic effects.

Data availability

All data are presented in the main text or the ESI.†

Conflicts of interest

The authors declare that they have no competing interests.

Acknowledgements

This work was supported by King Abdullah University of Science and Technology (KAUST) Office of Sponsored Research under Award Nos ORA-CRG10-2021-4665 and ORA-CRG11-2022-5031. This research was undertaken with the resources from the Supercomputing Laboratory at KAUST in Saudi Arabia and the National Computational Infrastructure (NCI) in Australia.
