Trapping in situ generated CF₃-nitrile imines with maleimides under solvent-free mechanochemical conditions

Abstract

A series of trifluoromethylated pyrrolo[3,4-c]pyrazoles was obtained via mechanochemical (3 + 2)-cycloaddition of in situ generated trifluoroacetonitrile imines with maleimide and its N-aliphatic/aromatic analogues. The presented work demonstrated that the aforementioned 1,3-dipoles can be efficiently trapped with electron-deficient dipolarophiles under solvent-free ball-milling conditions.

---

There is increasing interest in applications of fluorinated nitrile imines for the synthesis of both heteroatom and heterocyclic systems,¹ and in this context, special attention has recently been paid to di- and trifluoroacetic acid analogues recognized as powerful building blocks for organofluorine synthesis.² The latter CF₃-nitrile imines 1 are readily available in situ by base-mediated dehydrohalogenation of the respective hydrazonoyl halides 2 (Scheme 1a), and they have been successfully applied for preparation of various five- and six-membered products including 1,3,4-thiadiazole,³ 1,2,4-triazole,⁴ pyrazoline and pyrazole,⁵ as well as 1,3,4-thiadiazine⁶ and 1,2,4-triazine derivatives,⁷ available via formal (3 + 2)-cycloadditions or (3 + 3)-annulations, respectively.

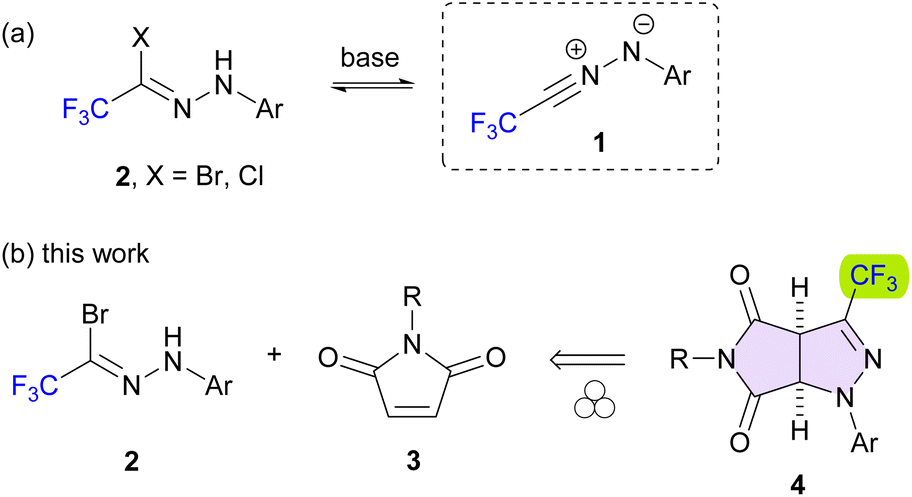

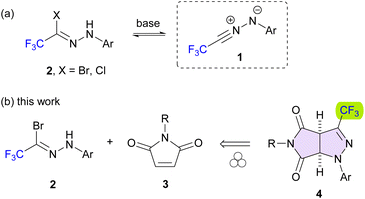

Scheme 1 (a) Base-induced generation of CF₃-nitrile imines 1 and (b) the mechanochemical (3 + 2)-cycloadditions of 1 with maleimides reported herein.

In a series of recent reports, Huisgen cycloadditions of transient trifluoroacetonitrile imines 1 with suitable electron-deficient dipolarophiles leading to monocyclic as well as bicyclic (3 + 2)-cycloadducts, were demonstrated. For example, trapping of 1 with enones,⁸ quinones,⁹ nitro- and cyanoalkenes¹⁰ in organic solutions is known; however, the mentioned transformations required rather longer reaction times (up to several days) and/or elevated temperatures (up to 90 °C) to afford reasonable amounts of the desired products. Thus, despite remarkable progress in exploration of nitrile imines 1 in reactions performed in solutions, development of alternative mild approaches, e.g. under ball-milling activation, is of general interest. Taking into account the well documented significance of pyrrolo-pyrazole scaffolds for drug discovery (Fig. 1),¹¹ here, we report (3 + 2)-cycloaddition reactions of CF₃-nitrile imines 1 with maleimides 3 leading to trifluoromethylated pyrrolo[3,4-c]pyrazoles 4 under solvent-free mechanochemical conditions (Scheme 1b).

Fig. 1 Exemplary fluorinated bioactive pyrrolo[3,4-c]pyrazoles.

We commenced our study with N-phenylmaleimide (3a) selected as a model dipolarophile and N-(4-tolyl)-trifluoro-acetohydrazonoyl bromide (2a) applied as a precursor of the respective nitrile imine 1a (Scheme 2). First, based on our experience in (3 + 2)-cycloaddition reactions of 1 with electron-deficient dipolarophiles, the designed reaction was briefly examined in solutions, to afford the expected pyrrolo[3,4-c]pyrazole 4a in fair 81% yield under the optimized conditions (THF, 60 °C, 24 h, excess K₂CO₃). Notably, in contrast to previously reported cycloadducts of nitrile imines 1 with benzoquinones,⁹ no spontaneous air-aromatization of 4a could be observed and the final 4a was obtained exclusively. The structure of the isolated bicyclic product 4a was established on the basis of NMR data supplemented by MS measurements, while combustion analysis confirmed the molecular formula of 4a as C₁₉H₁₄F₃N₃O₂ and the analytical purity of the sample. In ¹H NMR (600 MHz, CDCl₃) of 4a, a set of two diagnostic absorptions located at δ = 4.80 (dq, ⁴J_H–F = 1.2 Hz, J_H–H = 11.5 Hz) and δ = 5.41 (d, J_H–H = 11.5 Hz), attributed to 3a-H and 6a-H, respectively, confirmed the relative cis-configuration of the obtained bicyclic product. As expected, two characteristic quartets at δ = 120.2 (¹J_C–F = 270.0 Hz) and δ = 131.3 (¹J_C–F = 39.8 Hz) attributed to the CF₃ group and the C(3) atom of the core heterocycle were found in the ¹³C NMR (151 MHz, CDCl₃) of 4a.

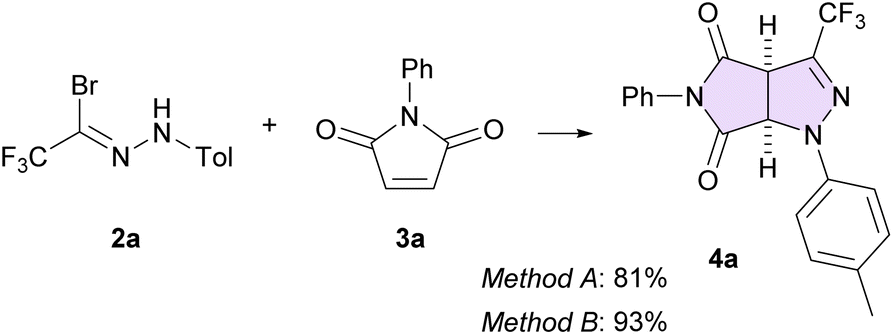

Scheme 2 Synthesis of pyrrolo[3,4-c]pyrazole 4a. Method A: 2a (1.25 equiv.), K₂CO₃ (5.0 equiv.), THF, 60 °C, 24 h; Method B: 2a (1.1 equiv.), K₂CO₃ (1.1 equiv.), ball-milling (5 mL jar, one steel ball ø 7 mm), rt, 90 min.

Initial mechanochemical experiments were carried out using equimolar amounts of starting materials 2a and 3a, in a ball-mill, using a 5 mL stainless steel vessel (one steel ball, ø 7 mm, 22 Hz), and a series of organic (Et₃N and DABCO) and inorganic (KF, CsF, Na₂CO₃, K₂CO₃, and Cs₂CO₃) bases was checked to indicate nearly complete conversion (96%) and a high isolated yield of 85% in the case of K₂CO₃ (1.2 equiv.) used for the dehydrohalogenation step, after 90 min of grinding (see the ESI†). Further optimization with respect to diameter and number of milling balls (ø 3, 5 or 7 mm; up to 3 balls) showed no remarkable changes, whereas the use of a slight excess of the nitrile imine precursor 2a (1.1 equiv.) was found to be beneficial and provided the target cycloadduct 4a almost quantitatively (100% conversion; 93% isolated yield).§

With optimized conditions in hand, a series of solid hydrazonoyl bromides 2b–2g was subjected to neat grinding with N-phenylmaleimide (3a) to provide the expected (3 + 2)-cycloadducts 4b–4g, which were generally isolated in high yield (80–95%; Fig. 2). However, in certain cases a prolonged reaction time was necessary to lead the reaction to completion (for details, see the ESI†); for example, in the case of the nitrile imine precursors 2f and 2g bearing strongly electron-withdrawing substituents (two Cl atoms and a CN group, respectively) attached to the phenyl ring, ball-milling for 10 h (for 2f) and 18 h (for 2g), assured complete consumption of starting materials. Noteworthily, neither 2f nor cycloadduct 2g could be obtained in solution according to Method A reported for model Tol-functionalized pyrrolo[3,4-c]pyrazole 4a. Only in the case of p-nitrophenyl-functionalized hydrazonoyl bromide of type 2 no desired product could be obtained under mechanochemical conditions; NMR analysis of the crude reaction revealed a low consumption of maleimide 3a (<10%) even after 48 h of ball-milling. In addition, partial decomposition of the starting nitrile imine precursor, leading to a complex mixture, was observed.

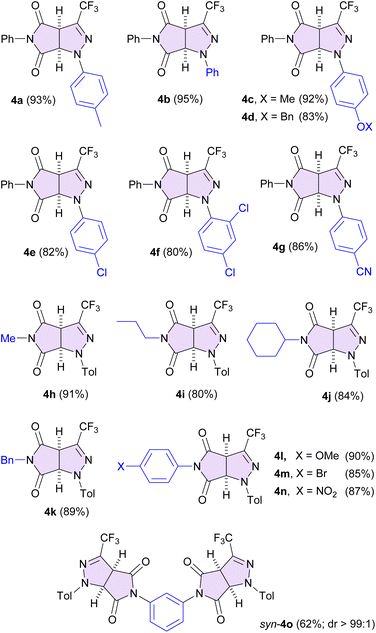

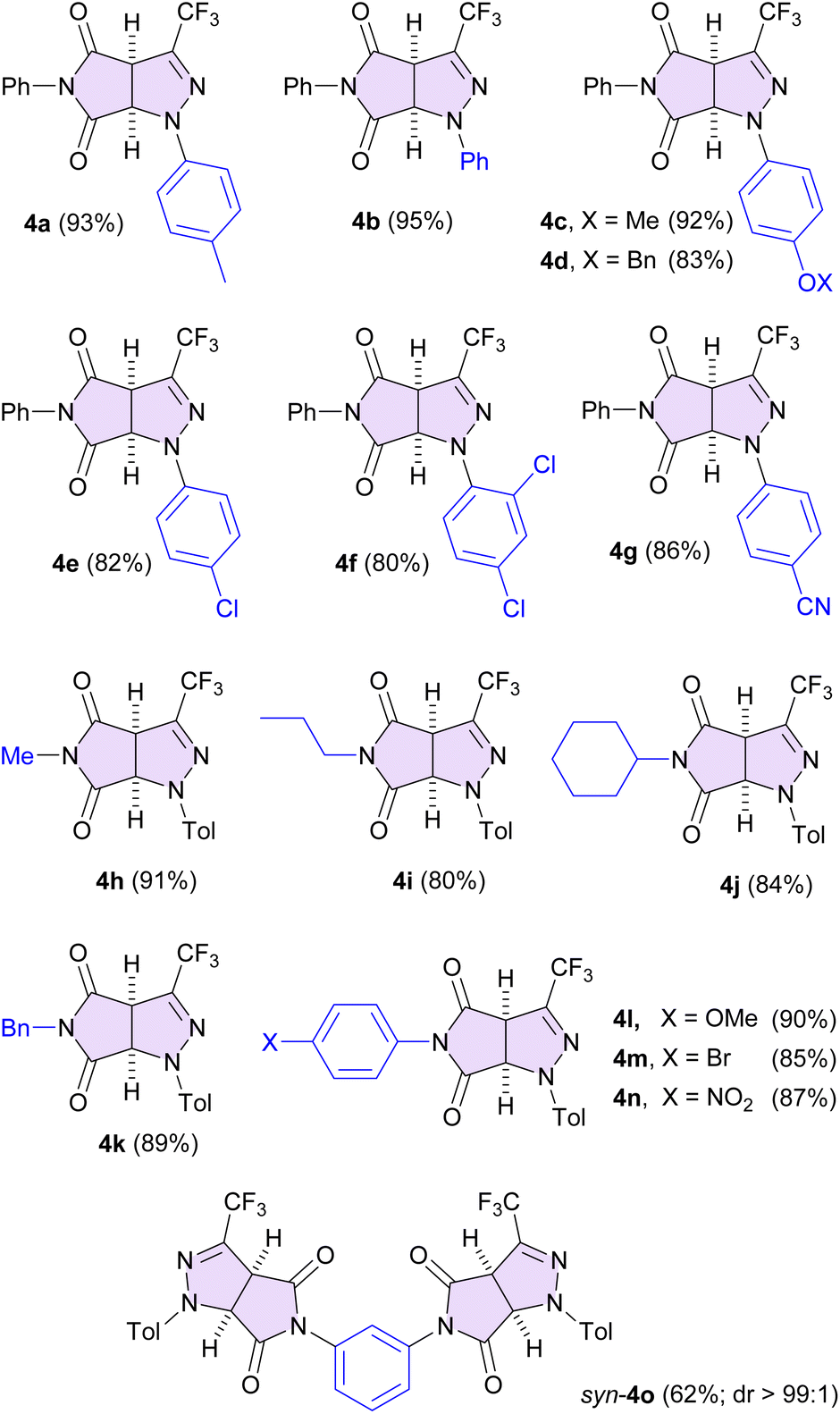

Fig. 2 Scope of trifluoromethylated pyrrolo[3,4-c]pyrazoles 4a–4o.

The scope of maleimides was also checked, and a series of selected solid N-(cyclo)alkyl (3b–3d) and N-aryl-substituted (3f–3h) analogues was examined in mechanochemical (3 + 2)-cycloaddition with bromide 2a (Fig. 2). Similar to the result noticed for the model compound 4a, in all reactions complete consumption of the starting materials was observed in a reasonable reaction time of 90 min, irrespective of the steric and electronic character of the N-substituent in maleimide. For example, Me- (4h, 91%) and cHex- (4j, 84%), as well as p-MeOC₆H₄- (4l, 90%) and p-NO₂C₆H₄- (4n, 87%) analogues were isolated as spectroscopically pure materials by simple filtration through a short silica gel pad.

Next, 1,3-phenylene bis-maleimide 3i was involved in the study to provide the corresponding product 4o (62%) resulting from double (3 + 2)-cycloaddition, and the analysis of the ¹H NMR (600 MHz, CDCl₃) spectrum of the mother liquor revealed the formation of a single diastereomeric product (dr > 99 : 1). According to the literature, double cycloadditions of bis-imide 3i can either lead to products of C₂-symmetry (anti-addition)^12a,b or to syn-configured^12c,d materials. To get more information about the structure of 4o, the isolated product was analysed by NMR spectroscopy in the presence of (–)-(R)-mandelic- and (+)-(R)-(tert-butyl)(phenyl)phosphonothioic acids selected as chiral solvating agents (in 1 : 1 and 1 : 2 ratios of 4o : additive, respectively).¹³ In all four measurements a single set of signals attributed to 4o was found in ¹H NMR spectra. Furthermore, HPLC analysis of 4o by using a chiral stationary phase (Chiralcel OD) provided a single fraction of the product. Thus, based on the above experiments the meso structure of 4o resulting from syn-addition of the second nitrile imine molecule 1a was tentatively proposed (Fig. 2).

To check whether the N-unsubstituted pyrrolo[3,4-c]pyrazoles of type 4 can also be accessed by the devised mechanochemical approach, the model hydrazonoyl bromide 2a was treated with maleimide (3j) (Scheme 3). Gratifyingly, the desired product 4p was formed in a highly chemoselective manner, and was isolated in 85% yield, although the formation of small amounts of unidentified intermolecular by-products was also detected. Possibly, the competitive reaction initiated by nucleophilic attack of the N atom of maleimide onto the positively charged C-termini of the 1,3-dipole 1a takes place, analogous to a recent report by Madabhushi on reactions of classical C,N-diaryl nitrile imines with succinimide;¹⁴ however, attempted isolation of by-product(s) by standard column chromatography was unsuccessful.

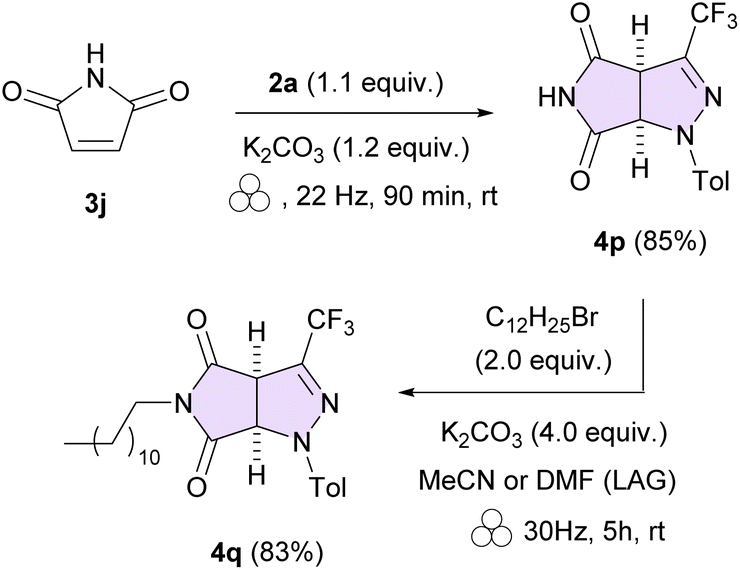

Scheme 3 One-pot telescopic mechanochemical synthesis of pyrrolo[3,4-c]pyrazole 4q through (3 + 2)-cycloaddition of 2a with maleimide (3j) and subsequent alkylation of the first formed cycloadduct 4p.

Subsequent functionalization of 4p with dodecyl bromide, selected as an exemplary oleophilic electrophile, was carried out under standard alkylation conditions, i.e. in MeCN solution (K₂CO₃, 60 °C, 16 h), and provided the expected material 4q (87%) as a sole product. Furthermore, prompted by the work by Margetić dealing with mechanochemical alkylations of imides,¹⁵ we examined the solvent-free one-pot telescopic approach towards 4q. To our delight, treatment of the initially formed crude (3 + 2)-cycloadduct 4p with excess C₁₂H₂₅Br (2.0 equiv.) in the presence of K₂CO₃ (10.0 equiv.) opened up access to the final compound under exclusive mechanochemical activation; however, addition of either MeCN or DMF as a liquid assisted grinding solvent (η = 0.35 μL mg⁻¹) was found to be essential as no desired product could be obtained under simple neat grinding.

Conclusions

In conclusion, an operationally simple and highly efficient protocol for the mechanochemical synthesis of trifluoromethylated pyrrolo[3,4-c]pyrazoles by trapping of CF₃-nitrile imines with maleimides is reported. The presented results indicate that hydrazonyl halides can serve as suitable precursors for in situ generation of the corresponding nitrile imines under solvent-free ball-milling conditions. Of note, the remarkable decrease in reactivity with increasing electron-deficient character of the substituent located at the N-termini of the starting hydrazonoyl halide was observed. On the other hand, a series of N-functionalized maleimides bearing (cyclo)alkyl groups or variously substituted phenyl substituents reacted smoothly with the model 1,3-dipole. Finally, the parent maleimide lacking substituent at the N atom was successfully applied for one-pot telescopic (3 + 2)-cycloaddition followed by N-alkylation under mechanochemical conditions. The devised approach supplements hitherto reported classical methods for the synthesis of fluorinated and non-fluorinated pyrrolo[3,4-c]pyrazoles of interest in the context of chemical biology applications.^11,12b,16
