Solid-state mechanochemical activation of anthracene–maleimide adducts: the influence of the polymer matrix

Abstract

The repertoire of established mechanophores has been on a steady rise over the last few years, holding the promise of generating materials capable of delivering programmable, beneficial responses upon mechanical stimulation. However, investigations are usually confined to demonstrating activation within limited and seemingly arbitrary choices of polymer matrices. In contrast, the broader applicability of the mechanophore across various types of polymer materials is rarely explored. The experimental techniques generally used to achieve mechanochemical activation are also a source of discrepancy. Ultrasonication of dilute polymer solutions is a popular method that applies extreme strain rates to isolated, solvated chains. The technique is practical and convenient, but its experimental conditions are not conducive to elucidating the activity of the same mechanophore in a bulk polymer system under tensile strain. Here, we report a comparative study on the mechanochemical behaviour of anthracene–maleimide Diels–Alder adducts in a series of polymeric materials. We embed the mechanophores either in the backbone of linear polymers or as cross-links of polymer networks. We show that the solution-phase ultrasonication efficiently activates the mechanophores, regardless of the design of the linear polymer. In contrast, mechanophore activation in bulk is highly dependent on the polymer matrix, topology, and the connectivity of the mechanophore and the matrix.

---

Introduction

The field of polymer mechanochemistry has flourished over the past two decades thanks to the establishment of the concept of mechanically responsive motives known as mechanophores.^1–3 These rationally designed molecules have provided profound insights into how mechanical forces impact polymer materials and allowed several mechanically triggered responses, including mechanochromism, i.e., changes in polymers' optical properties,⁴ the release of small molecules,⁵ and the activation of catalytic species,⁶ to name but a few.

The activation of covalent mechanophores typically involves the cleavage of intentionally labile chemical bonds under tension and can be achieved in different states of matter, i.e., solutions, gels, and the solid state. Pulsed ultrasonication is generally the method of choice to activate force-responsive systems in solution,⁷ while compression or uniaxial elongation are the main methods typically applied for gels and bulk materials.^8,9 These activation strategies can differ significantly in strain rate and other parameters.¹⁰ Additionally, the interactions and dynamics of polymer chains and, thus, their individual and collective response to externally applied mechanical stresses, differ significantly if one compares dilute solutions and solid-state materials.¹¹ While the outcome of solution experiments provides an initial proof of the mechanochemical viability of a given molecular motif, in bulk polymer materials the force transduction experienced by a mechanophore is highly dependent on the polymer's composition and topology.^12–14 This results in a discrepancy where activation of mechanophores through ultrasonication of dilute solutions is essentially ubiquitous, while the selection of mechanophore, method of mechanophore incorporation, and testing conditions are all important parameters to consider in solid-state experiments.

Several perspectives and reviews have highlighted the role of macromolecular design in controlling the (extent of) mechanochemical activation in solid-state systems.^15–17 Still, a predictive understanding of mechanophore activation in bulk systems has yet to be reached.^13,18 Here, we highlight the facile activation of a mechanophore through pulsed ultrasound in different polymer backbones and contrast this with bulk tensile studies on the mechanochemical activation of the same mechanophore incorporated into different polymer matrices. In the bulk studies, we embed the mechanophore within tough thermoplastics and elastomers, either within the backbone of linear chains or as cross-links in polymer networks, to provide a broad range of mechanical properties to compare the solution studies to. Additionally, we probe how the variations in stress accumulation can affect mechanophore activation by comparing linear and cross-linked systems.

Within the repertoire of established mechanophores, numerous Diels–Alder (DA) adducts have been shown to undergo force-induced retro-cycloadditions.^4,16,19 These include maleimide–furan (MF),^20–24 maleimide–cyclopentadiene (MC),^19,25 furan–acetylene,²⁶ and maleimide–anthracene (AM; Fig. 1) adducts.^27–39 Investigations probing DA mechanophores' designs have revealed a strong dependence on the regiochemistry of polymer attachment.^20,24 These DA-adduct mechanophores have been used to fabricate mechanically responsive materials, in which MF and MC adducts were shown to promote force-induced small molecule release^21,40 and unmasking of photoswitches.^19,25

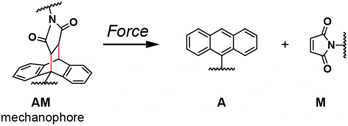

Fig. 1 Force-assisted retro-[4 + 2] cycloaddition of AM adducts.

The mechanochemical susceptibility of anthracene–maleimide DA adducts (AM) was first reported in 2014.³¹ The mechanical stimulation of judiciously designed macromolecules that contain such AM motifs can trigger the retro-[4 + 2] cycloaddition, affording the anthracene and maleimide constituents (Fig. 1).¹⁵ The process can be conveniently monitored by fluorescence spectroscopy, as anthracene is emissive, while the DA adduct is not fluorescent.

Following the establishment of AM adducts as mechanophores, derivatives featuring aromatic extensions in the 9-position of the anthracene, namely 9-π-extended anthracene AM adducts, were rapidly developed.³⁷ This structural variation allowed the design of AM mechanophores with red-shifted absorption/emission and higher fluorescence quantum yields. Further developments of 9-π-extended anthracene AM adducts also enabled dual-fluorescent optical force probes, in which the non-activated AM adduct is also fluorescent, and the fluorescence readout is facilitated by the large spectral separation due to the bathochromically shifted emission of the 9-π-extended anthracene.^35,38,41 The drastic change in the optical properties accompanying the force-induced scission of such 9-π-extended anthracene AM adducts facilitated locally resolved, quantitative damage detection by confocal laser scanning microscopy.^38,41 Furthermore, the improved quantum yield and higher resistance to photobleaching have made the 9-π-extended AM mechanophores a popular choice, with numerous investigations involving the 9-π-extended anthracene derivatives generating mechanoresponsive solid materials.^{27,28,30,36,39,42} These derivatives have been shown to activate in various poly(meth)acrylate-based networks, epoxy resin composites, and poly(N-isopropylacrylamide) hydrogels successfully when incorporated as cross-links.^{27,28,30,36,39,42} On the other hand, the mechanochemistry of AM motifs that do not comprise 9-π-extended anthracenes, hereafter referred to as non-π-extended AM, has been extensively explored in solutions and at the interface between polymer brushes and surfaces.^16,43–46 In contrast, only a few studies have been dedicated to the mechanochemical activation of these motifs in solid-state polymers.^32,34,47 One investigation disclosed the release of anthracene due to compressive forces on poly(N,N-dimethylacrylamide) networks cross-linked by non-π-extended AM units.³² Laser-induced stress waves have been used to activate non-π-extended AM units bonded between silica–epoxy interfaces,³⁴ while manual grinding of poly(norbornene)-graft-poly(styrene) was used to cleave non-π-extended AM units at backbone-arm junctions.⁴⁷

The wealth of force-sensitive systems investigated incorporating the AM motif led our curiosity to embark on the study presented here. Consequently, we compare the mechanochemical activation of the AM unit (i.e., non-π-extended) in four different polymer matrices to investigate how the nature of the polymer matrix and mechanophore location affect the activation of this particular AM mechanophore.

Results and discussion

Synthesis of the small molecule mechanophores and their incorporation into polymers

We started our investigation by synthesising non-π-extended AM-1, AM-2, AM-3, and AM-4, which are based on the basic skeleton of the anthracene–maleimide adduct (Fig. 2a–d). We kept the core of the molecular design of AM-1/2/3/4 consistent and decorated it with judiciously chosen functional groups to allow the incorporation of these AM derivatives into a series of polymer matrices.

Fig. 2 Chemical structures and synthetic strategies used for the preparation of (a) AM-1 and PU_L-AM-1 (the cartoon represents only one of the many configurations synthesised), (b) AM-2 and PMA_L-AM-2, (c) AM-3 and PMA_N-AM-3, and (d) AM-4 and PDMS_N-AM-4.

Diol AM-1 (ref. 32) afforded polyurethane PU_L-AM-1 upon reaction with butanediol, methylene diphenyl diisocyanate (MDI), poly(tetrahydrofuran) (PTHF), and dibutyltin dilaurate (DBTL) (Fig. 2a). The polymer made had a number-average molecular weight (M_n) of 123 kg mol⁻¹, a dispersity (Đ) of 2.24, and a mechanophore concentration of 0.014 mmol of AM-1 units per gram of polymer (0.014 mmol g⁻¹), which translates into an average of 1.1 mechanophores per chain molecule (ca. 0.62 mol%). The nature of the polymerisation reaction (step-growth) causes the mechanophores to be incorporated statistically anywhere along the polymer chains. Thus, the cartoon of PU_L-AM-1 shown in Fig. 2a represents only one of the many possible configurations synthesised. Compound AM-2, equipped with two α-bromoisobutyryl groups, served as a bifunctional initiator for the Cu(0)-catalysed atom transfer radical polymerisation (ATRP) of methyl acrylate (MA),⁴⁸ which afforded linear poly(methyl acrylate) PMA_L-AM-2 with M_n = 99.5 kg mol⁻¹ and Đ = 1.23 (Fig. 2b). The polymer chains contain one AM-2 residue in the central region of the chain, corresponding to an AM-2 content of 0.018 mmol g⁻¹ (ca. 0.63 mol%). We employed AM-3, functionalised with two acrylate groups, as a cross-linker in the photopolymerisation of MA to produce poly(methyl acrylate) networks PMA_N-AM-3 (Fig. 2c). The density of AM-3 cross-links in the final material was 0.014 mmol g⁻¹ to mirror the loading of AM-2 in PMA_L-AM-2 (ca. 1.2 mol%). Finally, the bifunctional terminal-olefin-bearing AM-4 enabled the preparation of poly(dimethylsiloxane) (PDMS) network PDMS_N-AM-4 via the hydrosilylation of the commercially available Sylgard® 184 silicone elastomer kit (Fig. 2d). Note that AM-4 was used as an auxiliary cross-linker in PDMS_N-AM-4, while AM-3 was the only cross-linker in PMA_N-AM-3. The mechanophore loading of PDMS_N-AM-4 was 0.014 mmol g⁻¹, similar to the other materials, and the material was cured in the shape of films. To verify the inclusion of AM-4 in the PDMS network, a strip of the film was soaked in THF overnight. The resulting THF solution was dried in vacuo and redissolved in CDCl₃ to be analysed by ¹H NMR spectroscopy. The ¹H NMR spectrum revealed just the presence of solvents and some soluble PDMS fraction, suggesting that the entire feed of AM-4 was covalently incorporated in PDMS_N-AM-4 (Fig. S3†). The synthetic procedures and characterisation of AM-1/2/3/4 and related polymer systems can be found in the ESI (pages S4–S7†).

Evaluation of the mechanochemical reactivity in linear polymers

We first evaluated the mechanochemical reactivity of our AM mechanophores embedded in the linear polymers, starting with the ultrasonication of dilute (2 mg mL⁻¹) THF solutions of PU_L-AM-1 and PMA_L-AM-2. The solutions were subjected to pulses (1 s on, 1 s off) of 20 kHz ultrasound for a total of 2.5 hours of effective sonication time while being kept in an ice bath. At regular time intervals, aliquots (1 mL) of the solutions were analysed by fluorescence spectroscopy and size exclusion chromatography (SEC). The fluorescence spectra (λ_ex = 350 nm) of ultrasonicated aliquot solutions of PU_L-AM-1 and PMA_L-AM-2 were recorded and compared to those acquired for solutions of the untreated polymers (Fig. 3a and b). The emission of the ultrasonicated solutions (Fig. 3) shows the characteristic profile of the released anthracene species, with emission maxima at 390, 412, and 436 nm, as previously reported for other non-π-extended AM-based systems.^32,43

Fig. 3 Fluorescence spectra (λ_ex = 350 nm) of solutions of (a) PU_L-AM-1 and (b) PMA_L-AM-2 in THF (concentration = 2 mg mL⁻¹) before (grey line) and after (black line) ultrasound treatment (150 minutes, 10% amplitude, max power 400 W). The photographs show the polymer solutions before and after ultrasound treatment under irradiation with UV light (λ_ex = 365 nm).

To obtain further insights into the ultrasound-assisted scission of the AM adduct, we monitored the polymer fractioning as a function of sonication time by SEC analysis. For PU_L-AM-1, ultrasound treatment resulted in the continuous scission of the starting polymer (M_n = 123 kg mol⁻¹) to lower M_n values and reached a value of 65 kg mol⁻¹ after 150 min (Fig. 4a and S5†). In the case of PMA_L-AM-2 (M_n = 100 kg mol⁻¹), ultrasound-induced scission of the AM mechanophore was expected to yield new species whose M_n values correspond to roughly half of the original polymers due to the placement of the mechanophores in the central region of each chain (Fig. 4b). The shoulder of the main peak in the SEC trace of PMA_L-AM-2, which appears at 11.8 min, is due to bimolecular termination during ATRP (Fig. 4b). After 30 minutes of sonication, a bimodal trace with a lower molecular weight peak corresponding to a newly formed species of approximately 48 kg mol⁻¹ was observed (Fig. 4b). This is accompanied by the disappearance of the shoulder peak initially observed at 11.8 min (Fig. 4b). Further sonication time points at 60, 90, and 150 minutes for PMA_L-AM-2 revealed continuous growth of the peak associated with the reduced M_n of ca. 48 kg mol⁻¹ and a concomitant decrease of the peak centred around 100 kg mol⁻¹ (Fig. S5†). In addition, a weak, shoulder peak associated with lower M_n species emerges with increased sonication time, which suggests that the chains can be cleaved again, albeit with lower efficiency and certainly in a process that does not involve the mechanophores, which after the first cleavage must be located near the ends of the polymer chains (Fig. 4b and S5†).

Fig. 4 (a) Normalized SEC traces (RID) of PU_L-AM-1 measured at time zero, and after 30 and 150 min of effective sonication time. (b) Normalized SEC traces (RID) of PMA_L-AM-2 measured at time zero, and after 30 and 150 min of effective sonication time. (c) Plot of integrated peak area (λ = 347 nm) against effective sonication time as measured by the VWD detector during SEC analysis for PU_L-AM-1 and first-order kinetics fit. Minor absorbance originating from the polyurethane results in the absorbance value of t₀ being non-zero. (d) Plot of integrated peak area (λ = 254 nm) against effective sonication time as measured by the VWD detector during SEC analysis for PMA_L-AM-2 and first-order kinetics fit. (e) Fluorescence spectra of PU_L-AM-1 aliquots at different effective sonication times. (f) Fluorescence spectra of PMA_L-AM-2 aliquots at different effective sonication times. (g) Plot of fluorescence intensity (λ_em = 390 nm) against sonication time for PU_L-AM-1 and first-order kinetics fit. (h) Plot of fluorescence intensity (λ_em = 390 nm) against sonication time for PMA_L-AM-2 and first-order kinetics fit.

It was also possible to monitor the AM cleavage as a function of sonication time using the UV detector of the SEC instrument (Fig. S5†), which can be set at a pre-determined wavelength. In the case of PU_L-AM-1, the absorbance was monitored at 347 nm, where the anthracene exhibits an absorbance peak, and the polyurethane has a negligible absorption. In the case of PMA_L-AM-2, the absorbance was measured at 254 nm, as the unsonicated polymer has negligible absorbance at this wavelength. The UV detector's SEC trace of PMA_L-AM-2 taken before sonication shows a feint anthracene absorbance, possibly due to a minor amount of degraded AM-adducts before sonication. The fraction of these species was determined to be 1.7 mol% (vide infra), and this value was subtracted from the percentage of activated AM units in subsequent timepoints. We did not observe any evolution of anthracene spectroscopically during the sonication of small molecule AM-4 (Fig. S6†), and therefore attribute the increasing absorbance/fluorescence of sonicated PMA_L-AM-2 to the mechanochemical processes alone. First-order kinetic profiles were evident from the evolution of the anthracene absorbance in both systems (Fig. 4c and d). The rate constants for the retro-DA reaction were determined by fitting the integrated areas of the chromatograms from the SEC's UV detector against sonication time to a first-order kinetics equation (eqn (1))

A_t = A₀ + A(1 − e^−kt) (1)

where A_t is the absorbance peak area of the cleaved polymer at time t, A₀ is the absorbance peak area of the unsonicated polymer, A is the maximum absorbance peak area, and k is the rate constant (Fig. 4c). The calculated rate constants for PU_L-AM-1 and PMA_L-AM-2 were 1.3 × 10⁻² min⁻¹ and 1.2 × 10⁻² min⁻¹, respectively.

Building on these results, it was possible to gain further insights into the degree of AM activation in PU_L-AM-1 and PMA_L-AM-2 by conventional UV-vis absorption spectroscopy, using a calibration curve that was built from solutions of known anthracene concentrations. The latter provided the amount of activated AM (or liberated anthracene) within the final aliquot of the sonication experiment (page S9†). For PU_L-AM-1, AM activation reached ca. 22% after 150 minutes of effective sonication time (Fig. S6†). For PMA_L-AM-2, it was possible to determine the extent of AM activation using the methods previously described by Diesendruck and coworkers.⁴⁹ Thus, an AM activation of 50 mol% after sonication for 150 minutes was determined (Fig. S7 and S8†). ¹H NMR analysis of the final timepoint provided a value of ca. 47 mol%, corroborating the degree of AM activation determined by UV-vis (Fig. S4†). The random distribution of AM units within the backbone of PU_L-AM-1 evidently impacts mechanophore activation compared to PMA_L-AM-2, where the mechanophore is highly localised at the chain centre. It should also be noted that the higher molecular weight shoulder seen at the 30 minutes timepoint SEC trace (UV detector) of PMA_L-AM-2 is more likely to arise from AM-activation in the polymer chains, which underwent bimolecular termination during synthesis (Fig. S5b†).

Additionally, we monitored the outcome of the sonication experiments by fluorescence spectroscopy (Fig. 4e and f for PU_L-AM-1 and PMA_L-AM-2, respectively). The aliquots taken during the sonication experiments were directly transferred to fluorescence cuvettes. The intensity of anthracene fluorescence increased with sonication time for both PU_L-AM-1 and PMA_L-AM-2 (Fig. 4e and f). Plotting the fluorescence intensity at 390 nm against the effective sonication time reflect again that the AM activation fits a first-order kinetic profile for PU_L-AM-1 and PMA_L-AM-2 (Fig. 4g and h, respectively). Such fluorescence profiles contrast starkly with the absence of appreciable fluorescence in the untreated solutions of PU_L-AM-1. Once more, the feint anthracene fluorescence could be observed for the untreated PMA_L-AM-2 solution. Using eqn (1) (replacing absorbance for fluorescence intensity), fluorescence spectroscopy yielded rate constants of 3.6 × 10⁻² min⁻¹ and 1.3 × 10⁻² min⁻¹ for PU_L-AM-1 and PMA_L-AM-2. In both cases, i.e., fitting the absorbance and fluorescence data, the rate constant determined for PU_L-AM-1 was higher than that of PMA_L-AM-2. The maximum evolution of anthracene is likely reached faster for PU_L-AM-1 over PMA_L-AM-2 due to a higher occurrence of non-selective scissile events in the former polymer.⁵⁰ However, the specific chain-centred location of AM units in PMA_L-AM-2 results in a significant increase in overall mechanophore activation efficiency.

Evaluation of the mechanochemical reactivity in solid-state polymers

Having established the mechanochemical activity of the AM motifs in our linear polymer systems by exposure to pulsed ultrasounds, we investigated the mechanoresponse of AM-1 to AM-4 embedded in solid polymer matrices. Films of the four polymers with a thickness of between 180 and 300 μm were prepared following different procedures. The linear polymers PU_L-AM-1 and PMA_L-AM-2 were solvent-cast from THF solutions into poly(tetrafluoroethylene) (PTFE) Petri dishes. This was followed by air- and subsequently vacuum-drying overnight at room temperature. Films of PU_L-AM-1 were then cut into dogbone-shaped specimens due to the high tensile strength of this material, while PMA_L-AM-2 films were cut into rectangular strips. The cross-linked PMA_N-AM-3 samples were prepared by performing the photopolymerisation (cf. Fig. 2d) between glass slides, air drying the resulting films, and cutting them into rectangular strips. Finally, PDMS_N-AM-4 was prepared by polymerisation (cf. Fig. 2e) in PTFE dishes, air drying the obtained material, and cutting the films thus made into rectangular strips.

Besides the positioning of the mechanophore's functional handles for incorporation into polymers, which was the same for all materials investigated here, effective force transduction onto mechanophores in solid materials depends on the material's inherent properties, such as its glass transition temperature (T_g) and viscoelasticity.⁵¹ Thus, we characterised the thermal properties of the four polymers by differential scanning calorimetry (DSC). From the DSC data of PU_L-AM-1, the soft segments were determined to have a T_g of ca. −71 °C, while the hard segments had a T_m of ca. 190 °C (Fig. S9†). This demonstrates that in PU_L-AM-1, the AM motif sits in a phase-segregated host matrix. The absence of any other transition in the DSC traces of PMA_L-AM-2, PMA_N-AM-3, and PDMS_N-AM-4, other than the T_g at ca. 13 and 17 °C for PMA_L-AM-2 and PMA_N-AM-3, respectively, reflects that these polymers are amorphous (Fig. S10–S12†).

Tensile tests carried out on films of PU_L-AM-1, PMA_L-AM-2, PMA_N-AM-3, and PDMS_N-AM-4 reveal that the mechanical properties of the four polymer materials cover a broad range (Fig. 5a and Table S1†). On account of its microphase-separated morphology and the high density of physical cross-links, PU_L-AM-1 is the stiffest and toughest material, exhibiting a tensile strength (σ_B) of 58 MPa, and a strain at break (ε_B) of 762% (Fig. 5a, orange line). Due to its low T_g and the absence of any cross-links other than entanglements, PMA_L-AM-2 is much softer (σ_B = 0.59 MPa) yet highly deformable (ε_B = 1778%) (Fig. 5a, green line). The stress–strain curve of the cross-linked PMA_N-AM-3 falls in between those of PU_L-AM-1 and PMA_L-AM-2, and reflects σ_B = 19 MPa, and ε_B = 773% (Fig. 5a, blue line). PDMS_N-AM-4 proved to be much weaker, with σ_B = 3.7 MPa and ε_B = 127% (Fig. 5a, purple line), values similar to previous reports of PDMS networks produced from Sylgard® 184.^52,53 The inflexion observed for PMA_N-AM-3 at σ ≈ 12.5 MPa and ε ≈ 485% is accompanied by the onset of opaqueness of the materials and attributed to strain-induced crystallisation.

Fig. 5 (a) Stress–strain curves of the studied AM-containing polymer systems. (b) Photographs of AM-containing polymers before and after tensile extension until failure (films placed in a black box and illuminated with 365 nm light). (c) Fluorescence spectra (λ_ex = 350 nm) of a PMA_N-AM-3 film before and after uniaxial elongation to failure.

To investigate how the different molecular topologies and mechanical properties of the four polymers affect the mechanochemical activation of the AM units, the polymer samples were deformed by uniaxial elongation at a strain rate of 125% min⁻¹ (=50 mm min⁻¹) to failure, and their emission was qualitatively assessed by visually comparing the films before and after deformation upon irradiation with 365 nm light (Fig. 5b). Neither of the materials shows any appreciable fluorescence in the as-prepared state, which reflects that the mechanophores are not activated during processing. Interestingly, only PMA_N-AM-3 shows a clear fluorescence change upon mechanical deformation. The sample was non-emissive before applying force, but a blue emission reminiscent of the colour observed for the corresponding ultrasonicated solution shown in Fig. 2 was detected (Fig. 5b). The post-mortem picture shows that the emission developed only in the region of the sample that was not clamped, i.e., in the part that had been strained. Under UV light, the PMA_L-AM-2 samples appear somewhat brighter than the PU_L-AM-1 and PDMS_N-AM-4 films, possibly due to small amounts of residual copper complex impurities from the ATRP polymerisation. The latter are highly emissive, although they are present in traces.

Steady-state fluorescence measurements on the ruptured samples confirmed the qualitative results discussed above (Fig. 5c). In situ fluorescence measurements of solid, as-prepared, and uniaxially deformed polymer samples were measured using an optical fibre setup. The fluorescence spectra of PU_L-AM-1, PMA_L-AM-2, and PDMS_N-AM-4 are featureless and do not display significant changes upon deformation (Fig. S17–S19†). In contrast, the characteristic emission spectrum of anthracene – albeit slightly red-shifted and perturbed with respect to the fluorescence spectrum of the corresponding ultrasonicated solution (Fig. 3) – was observed for the mechanically deformed PMA_N-AM-3 (Fig. 5c). The data reflects that the activation of the AM mechanophore differs considerably if one compares solution and solid-state experiments. In solution, the AM mechanophore activation is highly effective upon the application of ultrasonication, while the widespread activation of AM in the solid state could only be achieved in the case of PMA_N-AM-3, where the mechanophore motif is used as the exclusive cross-linking species within a host polymer matrix able to withstand significant stresses and strain.

As previously mentioned, one of the crucial differences between ultrasonication of dilute solutions and bulk elongation of solid films is the strain rate experienced by the polymer chains. The cavitation phenomena occurring during ultrasonication result in hydrodynamic forces producing strain rates that are multiple orders of magnitude larger than what is generally accessible with tensile testing machines.¹⁰ Besides appropriate strain rates, the applied stress must exceed the bond's tensile strength and be applied within a time frame less than the vibration period of the bond to produce the mechanical bond scission.⁵⁴ Previous reports have demonstrated an increased mechanophore activation rate with increased strain rate.^55,56 Consequently, we were intrigued to see if significantly increasing the strain rate during the elongation of our bulk films could potentially lead to noticeable AM activation of the samples that had not shown any activity in the experiments shown in Fig. 5. PU_L-AM-1, PMA_L-AM-2 and PDMS_N-AM-4 films were stretched until failure at strain rates of 2500% min⁻¹ and 5000% min⁻¹ (Fig. 6a). We noticed drastic differences between the mechanical properties of the same polymers under these new experimental conditions (compare Fig. 5a and 6a). This was expected, as the tensile properties of polymers are sensitive to the applied strain rate.⁵⁷

Fig. 6 (a) Stress–strain curves of PU_L-AM-1, PMA_L-AM-2, and PDMS_N-AM-4 measured at strain rates of 2500% min⁻¹ and 5000% min⁻¹. (b) Fluorescence spectra (λ_ex = 350 nm) of PU_L-AM-1, PMA_L-AM-2, and PDMS_N-AM-4 films after uniaxial elongation to failure at strain rates of 2500% min⁻¹ and 5000% min⁻¹. (c) Photographs of PU_L-AM-1, PMA_L-AM-2, and PDMS_N-AM-4 after uniaxial elongation to failure at high strain rate (films placed in a black box and illuminated with 365 nm light).

Indeed, the stress–strain curves of PMA_L-AM-2 showed well-defined elastic and strain-hardening regions (Fig. 6a), which are absent in the stress–strain curve shown in Fig. 5a. Moreover, ε_B decreased to 770% (2500% min⁻¹) and 510% (5000% min⁻¹), while σ_B significantly increased to 9 MPa (2500% min⁻¹) and 6.3 MPa (5000% min⁻¹). The increased strain rates resulted in lowering σ_B to 24.6 MPa and 19.9 MPa for 2500% min⁻¹ and 5000% min⁻¹ for PU_L-AM-1, respectively, with relatively similar ε_B (Fig. 6a). The mechanical properties of PDMS_N-AM-4 remained relatively unaffected at these strain rates (Fig. 6a).

Despite these drastic changes in tensile properties, we observed no distinct fluorescence in the stretched regions of these samples (Fig. 6c). Examining the fractured films using the optical fibre setup near the point of fracture revealed the activation of AM motifs in PMA_L-AM-2 (Fig. 6b). However, such activation is challenging to interpret due to the small cross-section of the film, the limited area in which it can be measured, and the variations in the distance of the optical fibre probe from the sample during hand-held measurements. The localisation of the AM activation near the fracture point in PMA_L-AM-2 is congruent with existing reports of other non-π-extended AM and 9-π-extended AM mechanophores used as cross-links in glassy (meth)acrylate and acrylamide networks.^{32,36,38,39,41} This feature has previously allowed for quantitative measurement of broken cross-links at rupture sites of these glassy polymers by confocal microscopy.³⁸

Discussion on the mechanochemical reactivity of the AM mechanophores in the four solid-state polymer systems

It is generally known that the activation of covalent mechanophores in solid-state matrices requires the force-responsive species to experience a combination of relatively high stress and strain. Additionally, polymer topology and location of the mechanophore in the architectures are crucial for successful activation in solid-state polymers.⁵⁸ For example, tensile elongation of cross-linked materials concentrates stress on the cross-links, which prevent chains from sliding past each other. It follows that the retro-cycloaddition of the AM motifs is a favoured stress dissipation mechanism throughout the elongated regions of PMA_N-AM-3, which is solely cross-linked by AM units. In contrast, the areas held in the clamps remain unaffected.

The lack of AM activation in PDMS_N-AM-4 is possibly due to the lower tensile strength of PDMS, which results in insufficient stress accumulation at the level of the cross-links before failure of the material. The lack of evident AM activation may further be exacerbated in the PDMS system due to competing scission of non-functional cross-link units. Previous reports on PDMS-based systems featuring phenyltriazolinedione–anthracene adducts as cross-links disclosed that the force-modulated liberation of anthracene could only be triggered at very high temperatures (175 °C),⁸ suggesting that in a weak polymer matrix such as PDMS, the combination of mechanical force and thermal energy at room temperature does not suffice to overcome the activation barrier for such retro-cycloadditions. Nevertheless, alternative PDMS network designs solely relying on AM units as cross-links ought to concentrate internal stresses on AM units exclusively and thus yield mechanophore activation. Spiropyran, dioxetane, and rhodamine mechanophores have also been shown to activate in interpenetrated double- or triple-network elastomers.^59–62 While such approaches reduce the onset strain for activation, it should be mentioned that the critical stress of activation for these mechanophores is significantly lower than that of AM.¹⁶ Moreover, certain triple networks are capable of reaching σ_B values of up to 29 MPa.⁶⁰ It follows that material design plays a crucial role in optimizing mechanophore activation in elastomers.

In the case of linear elastomeric polymer materials such as PMA_L-AM-2, stress transfer between chains is based on chain disentanglement; the mechanical stress is not explicitly concentrated on the AM motifs during chain elongation, which explains the lack of mechanochemical activation. Previous studies on spiropyran-containing triblock copolymers have demonstrated that microphase separation was beneficial in enhancing mechanophore activation, as it resulted in the formation of physical cross-links.⁵¹ A similar strategy could lead to solid-state AM activation in linear polyacrylates, although the previous studies used mechanophores that (i) already activated in simple linear acrylates and (ii) had lower force activation thresholds.⁵¹

The composition of soft and hard segments of PU_L-AM-1 makes it challenging to establish fair comparisons with the other amorphous systems. This case study is intriguing also because of the mechanical properties of the material, which is by far the strongest and the toughest of the scope that we investigated. Based on these properties, one might have predicted a priori an easy activation of the AM motifs in this matrix, yet our experiments document the opposite. Polyurethanes experiencing tensile stress can be considered to undergo multiple distinct processes,^55,63 with preferential orientation of domains occurring at low strains⁶⁴ and phase-mixing followed by alignment of segments at higher elongations. The onset of activation of covalent mechanophores in polyurethanes typically occurs within the strain hardening region, indicating that a high degree of chain alignment along the tensile stress direction is a prerequisite.⁶⁵ Mechanophores are generally introduced within the soft segments of polyurethanes.^66,67 Thus, their activation is favoured by the alignment of the soft segments in the direction of the applied tensile stress. Nonetheless, spiropyran and dioxetane mechanophores have also been included in the hard segment of polyurethanes,^55,68 and these studies revealed similar levels of activation compared to soft segment inclusion, albeit with a lower degree of mechanophore alignment to the tensile stress direction.⁶⁸ The case of 1,2-dioxetane mechanophores is intriguing, as they have similar force threshold values to AM.^15,55 The difference between our system and that of 1,2-dioxetanes⁵⁵ is in the composition and loading of the mechanophore in the polyurethane design, with a lower molecular weight PTHF (650 g mol⁻¹ instead of 2000 g mol⁻¹) and lack of butanediol chain extender in the case of 1,2-dioxetane. Furthermore, a higher loading (4.5 mol%) of 1,2-dioxetane mechanophore was employed, and the polyurethanes produced were significantly lower in molecular weight (max. 43 kDa).⁵⁵ This final formulation achieved higher stress and strain at break than PU_L-AM-1. All these elements suggest that AM activation in polyurethanes can possibly be achieved by introducing the mechanophore within the hard segments, increasing the AM loading, and altering the polyurethane design.

Intermolecular hydrogen bonding (H-bonding) interactions are another important element to consider in polyurethanes, as they serve as physical cross-links and provide the inherent toughness of this class of polymers.⁵⁵ The strength and density of H-bonding interactions also influence the transfer of macroscopic force onto the mechanophore.^55,69 Under applied tensile stress, the H-bonds are disrupted prior to the activation of the mechanophores.⁷⁰ Building on this concept, polyurethane formulations comprising ureidopyrimidinone (UPy) H-bonding supramolecular motifs have been investigated.^65,70,71 The UPy motifs phase-separate into hard domains in these UPy-functionalised polyurethanes, which results in enhanced chain orientation and strain-induced crystallisation of soft segments under tensile strain.⁶⁵ These two properties consequently increased the load transfer to spiropyran mechanophores, ultimately enhancing their mechanochemical activation.^70,71 The lower activation force of spiropyrans compared to AM does not guarantee that a similar approach would work for AM. Thorough computational studies might shed light on principal design aspects to optimise for enabling sufficient force transduction onto mechanophores that have not yet been reported to activate in bulk thermoplastic polyurethanes.^72,73 Nonetheless, we speculate that further judicious design of hard/soft segment content could provide effective solid-state activation of AM units in this matrix.

Finally, we must draw attention to the fact that the synthetic strategies used to obtain PU_L-AM-1, PMA_L-AM-2, PMA_N-AM-3, and PDMS_N-AM-4 result in differing chemical nature of the linking unit between the AM and the polymer matrix. The type of linker present has been shown to impact the rupture force of mechanophores.⁷⁴ PMA_L-AM-2, PMA_N-AM-3, and PDMS_N-AM-4 are all connected to the mechanophore via the alkoxy side of an ester group, yet only PMA_N-AM-3 is mechanically active in bulk studies. This would suggest that considerations on the general ductility, strength, stress distribution in the host material, and location of the mechanophore take priority over the linker composition.

Conclusions

In conclusion, we have investigated the ability of the AM moieties to undergo the force-mediated retro-Diels–Alder process in various polymer matrices of different toughness and extensibility, in which the mechanophores were either incorporated in the backbone or as cross-links. Our experiments show that the successful activation of the AM mechanophores depends strongly on the nature of the polymer matrix, i.e., the molecular topology and perhaps also the mechanical behaviour that it imparts. Strain-rate dependent tensile deformation experiments showed that the activation of the AM mechanophores can be achieved in AM-centred, linear PMA only at very high strain rates. The work on cross-linked PMA networks suggested that for immediately apparent and strain-rate-independent mechanochemical activation of the AM units throughout a material, the mechanophores should serve as cross-links in networks of sufficient toughness and ductility. In the case of polyurethanes, the matrix itself provides a versatile and modular platform that not only influences the material's mechanical properties but also directly impacts force transduction on a molecular scale. We speculate that it should be possible to activate AM units in polyurethanes in the solid state by fine-tuning the location of the mechanophore and the strength/density of intermolecular H-bonding interactions. In the case of weak, cross-linked elastomers such as PDMS, reinforcement through interpenetrated network formation may yield materials capable of transducing sufficient stress upon the AM units. AM has a significantly large activation force as far as reported mechanophores are concerned, which limits suitable host matrices in which it could serve as a force sensor. Finally, we emphasise that while ultrasonication of dilute polymer solutions provides valuable insight for establishing (new) molecular designs as mechanophores, such knowledge may not necessarily translate into comparable activity in bulk materials.

Experimental

PU_L-AM-1

PolyTHF (PTHF) (2 g, 2000 g mol⁻¹) was placed in a 2-necked round-bottom flask with a stirring bar. The flask was kept under vacuum overnight at 80 °C, after which the temperature was decreased to 45 °C. AM-1 (15 mg, 0.0432 mmol) was placed in a vial, and anhydrous THF (10 mL) was added. The solution was added to the flask containing PTHF by syringe (while kept at 45 °C). Methylene diphenyl diisocyanate (910 mg, 3.64 mmol) was weighed in a vial and dissolved in anhydrous THF (10 mL). This solution was added to the flask containing PTHF and AM-1 by a syringe (while kept at 45 °C). Dibutyl tin dilaurate (3 drops) was added, and the mixture was stirred for 2 hours at 45 °C. Finally, butanediol (200 μL, 2.26 mmol, kept over molecular sieves) was added to the reaction mixture, and the solution was allowed to stir for 2 hours at 45 °C. The reaction was quenched with ethanol (2 mL). THF (10 mL) was added to dilute the mixture. The quenched reaction mixture was poured into excess methanol to favour precipitation. The polymer was allowed to dry under air, and then it was redissolved in THF (30 mL). The solution was poured into a poly(tetrafluoroethylene) Petri dish and dried over several days. This resulted in 2.92 g (94%) of a polymer film.

PMA_L-AM-2

Cu⁽⁰⁾-wire was ground with sandpaper, immersed in 1 M HCl for 15 minutes to remove any copper oxide species, and washed with acetone. Prior to polymerisation, methyl acrylate was passed over basic alumina to remove inhibitors. Bis-functional ATRP initiator AM-2 (16 mg, 0.024 mmol) and deinhibited methyl acrylate (2.2 mL, 24 mmol) were dissolved in DMSO (1 mL) in a scintillation vial equipped with a pierceable membrane. The Cu⁽⁰⁾-wire was wrapped around a magnetic stirring bar and submerged into the reaction mixture in the scintillation vial. The reaction mixture was sparged with N₂ gas for 20 minutes before adding Me6TREN (26 μL, 0.097 mmol). The reaction was allowed to stir at room temperature for 2 hours. The highly viscous solution was poured into H₂O/MeOH to precipitate out PMA_L-AM-2, yielding 1.8 g (86%) of polymer. The polymer was redissolved in chloroform and passed over a silica plug to remove residual copper complex species. The filtered polymer solution was poured into a PTFE Petri dish and allowed to air dry to yield polymer films.

PMA_N-AM-3

Irgacure 2959 (1.5 mg; 0.00446 mmol) and AM-3 diacrylate mechanophore (6.0 mg; 0.132 mmol) were placed in a vial with methyl acrylate (1 mL, 11 mmol). The mixture was sparged with N₂ for 1 minute. Two glass microscope slides were covered carefully with clear tape. Two pieces of parafilm were cut and folded and used as spacers to separate the glass slides. The slides were then clamped together with office clamps, and the solution was added to the gap with a Pasteur pipette. This was immediately irradiated with 365 nm light until the polymerisation was complete. The glass slides were separated. The polymer film was removed and then air-dried over several days.

PDMS_N-AM-4

Sylgard® 184 prepolymer base (2 g) was weighed into a beaker and dissolved in THF (20 mL). AM-4 (14.9 mg; 0.0292 mmol) was weighed in a vial and dissolved in THF (1 mL). The AM-4 solution was added to the THF Sylgard® 184 prepolymer solution and stirred until a homogeneous dispersion was obtained. In a separate vial, Sylgard® 184 curing agent (200 mg) was dissolved in THF (2 mL) and then added to the prepolymer/AM-4 beaker while stirring. The resulting mixture was stirred for 10 minutes. The contents of the beaker were poured into a 10 cm diameter Teflon dish and allowed to dry and cure for 24 hours.

Incorporation of AM-4 into PDMS verification

To verify that the AM mechanophore had been successfully incorporated into the PDMS network, the obtained films were submerged and swollen in THF in a 20 mL scintillation vial. The PDMS network was kept in THF overnight, after which the PDMS film was removed, followed by removing the THF in vacuo. The recovered residue was then analysed by ¹H NMR to determine whether any AM had leached out.

Ultrasonication experiments

The experiments were conducted using a Branson Digital Sonifier 450 equipped with a tapered microtip (1/2′′/13 mm diameter). Polymer solutions in THF (2 mg mL⁻¹) were introduced to a 25 mL Suslick cell and purged with argon for 10 minutes. The distance between the tip and bottom of the Suslick cell was 1 cm. Temperature control was facilitated by immersing the Suslick cell into an ice bath. The sonication probe was set at 25% amplitude and 1.0 s on and 1.0 s off. The total time for experiments was 300 minutes (150 minutes effective sonication time). Aliquots (1 mL) were taken at regular time intervals and directly used for fluorescence and SEC measurements (in that order).

Ultrasonication experiments on model compound AM-4 were performed on 15 μg mL⁻¹ THF solutions to mirror the amount of AM mechanophores present in the experiments on the linear polymers. The sonication probe was set at 25% amplitude, 1.0 s on and 1.0 s off. The total effective sonication time was 150 minutes.

Size-exclusion chromatography (SEC)

Size-Exclusion Chromatography (SEC) experiments were performed on an Agilent 1200 series HPLC system equipped with an Agilent PLGel mixed guard column (particle size = 5 μm) and two Agilent PLGel mixed-D columns (ID = 7.5 mm, L = 300 mm, particle size = 5 μm). Samples were run using THF as the eluent at 30 °C at a flow rate of 1.0 mL min⁻¹. Signals were recorded by a UV detector (Agilent 1200 series) and a differential refractometer (Agilent 1260 RID). Molecular weights were determined based on narrow molecular weight poly(methyl methacrylate) calibration standards.

Tensile testing

Tensile tests were conducted on a Zwick/Roell Z010 (Ulm, Germany) equipped with a 200 N Xforce HP load cell following ASTM D882 standards. For PMA_L-AM-2, PMA_N-AM-3, and PDMS_N-AM-4, rectangular-shaped samples (length: 40 mm, width: 5.35 mm, thickness: 0.25–0.3 mm) were measured at a strain rate of 125% min⁻¹ (=2% s⁻¹). For PU_L-AM-1, dogbone-shaped samples with a length of 40 mm, width of 5 mm, and height of 0.18 mm were measured at a strain rate of 125% min⁻¹. The data reported are averages of three independent measurements, and all errors are standard deviations, reported as the variance in a set of samples compared to the mean of the measurement. Films of identical dimensions were used for the tensile tests at increased strain rates (2500% min⁻¹ = 42% s⁻¹, and 5000% min⁻¹ = 84% s⁻¹).

Optical characterisation

Fluorescence spectra of polymer solutions were measured with a Horiba Fluorolog 3 spectrometer equipped with a 450 W xenon light source for excitation and an FL-1030-UP photomultiplier as the detector with right-angle (90°) illumination. Fluorescence spectra were recorded with a variable excitation and emission beam slit of 4–14 nm adjusted to record a peak emission intensity of approximately 1.5 × 10⁶ counts per second with an excitation wavelength of 350 nm.

In situ fluorescence measurements of solid, as-prepared, and uniaxially deformed polymer samples were measured using an Ocean Optics QE65Pro spectrometer equipped with an LLS-365 LED light source with an excitation wavelength (λ_ex) of 365 nm and an Ocean Optics QP230-2-XSR optical fibre (230 μm core) with a measurement spot size of approximately 200 μm. Photographs of the polymer samples were taken under illumination with Phillips UV tube lamps (365 nm, 8 W) inside a black box.

Data availability

The data supporting this article have been included as part of the ESI.†

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The authors acknowledge funding from the Office of Naval Research (ONR) Global (grant no. N629092212036). All authors thank the Adolphe Merkle Foundation for its generous support.

Notes and references

1. J. Li, C. Nagamani and J. S. Moore, Acc. Chem. Res., 2015, 48, 2181–2190.
2. D. A. Davis, A. Hamilton, J. Yang, L. D. Cremar, D. Van Gough, S. L. Potisek, M. T. Ong, P. V Braun, T. J. Martínez, S. R. White, J. S. Moore and N. R. Sottos, Nature, 2009, 459, 68–72.
3. H. Chen, F. Yang, Q. Chen and J. Zheng, Adv. Mater., 2017, 29, 1606900.
4. S. He, M. Stratigaki, S. P. Centeno, A. Dreuw and R. Göstl, Chem.–Eur. J., 2021, 27, 15889–15897.
5. T. Zeng, L. A. Ordner, P. Liu and M. J. Robb, J. Am. Chem. Soc., 2024, 146, 95–100.
6. A. Piermattei, S. Karthikeyan and R. P. Sijbesma, Nat. Chem., 2009, 1, 133–137.
7. S. L. Potisek, D. A. Davis, N. R. Sottos, S. R. White and J. S. Moore, J. Am. Chem. Soc., 2007, 129, 13808–13809.
8. G. R. Gossweiler, G. B. Hewage, G. Soriano, Q. Wang, G. W. Welshofer, X. Zhao and S. L. Craig, ACS Macro Lett., 2014, 3, 216–219.
9. M. B. Larsen and A. J. Boydston, J. Am. Chem. Soc., 2014, 136, 1276–1279.
10. M. M. Caruso, D. A. Davis, Q. Shen, S. A. Odom, N. R. Sottos, S. R. White and J. S. Moore, Chem. Rev., 2009, 109, 5755–5798.
11. M. Rubinstein and R. H. Colby, in Polymer Physics, Oxford University Press, Oxford, 2003, pp. 361–422.
12. C. M. Kingsbury, P. A. May, D. A. Davis, S. R. White, J. S. Moore and N. R. Sottos, J. Mater. Chem., 2011, 21, 8381–8388.
13. G. I. Peterson and T.-L. Choi, Chem. Commun., 2021, 57, 6465–6474.
14. M. N. Silberstein, K. Min, L. D. Cremar, C. M. Degen, T. J. Martinez, N. R. Aluru, S. R. White and N. R. Sottos, J. Appl. Phys., 2013, 114, 023504.
15. I. M. Klein, C. C. Husic, D. P. Kovács, N. J. Choquette and M. J. Robb, J. Am. Chem. Soc., 2020, 142, 16364–16381.
16. Y. Chen, G. Mellot, D. van Luijk, C. Creton and R. P. Sijbesma, Chem. Soc. Rev., 2021, 50, 4100–4140.
17. N. Deneke, M. L. Rencheck and C. S. Davis, Soft Matter, 2020, 16, 6230–6252.
18. B. H. Bowser and S. L. Craig, Polym. Chem., 2018, 9, 3583–3593.
19. X. Hu, M. E. McFadden, R. W. Barber and M. J. Robb, J. Am. Chem. Soc., 2018, 140, 14073–14077.
20. R. Stevenson and G. De Bo, J. Am. Chem. Soc., 2017, 139, 16768–16771.
21. X. Hu, T. Zeng, C. C. Husic and M. J. Robb, J. Am. Chem. Soc., 2019, 141, 15018–15023.
22. J. Kida, K. Imato, R. Goseki, D. Aoki, M. Morimoto and H. Otsuka, Nat. Commun., 2018, 9, 3504.
23. H.-Y. Duan, Y.-X. Wang, L.-J. Wang, Y.-Q. Min, X.-H. Zhang and B.-Y. Du, Macromolecules, 2017, 50, 1353–1361.
24. S. J. Bailey, C. W. Barney, N. J. Sinha, S. V. Pangali, C. J. Hawker, M. E. Helgeson, M. T. Valentine and J. Read de Alaniz, Mater. Horiz., 2022, 9, 1947–1953.
25. R. W. Barber, M. E. McFadden, X. Hu and M. J. Robb, Synlett, 2019, 30, 1725–1732.
26. M. B. Larsen and A. J. Boydston, J. Am. Chem. Soc., 2013, 135, 8189–8192.
27. M. Stratigaki, C. Baumann and R. Göstl, Macromolecules, 2022, 55, 1060–1066.
28. J. Slootman, V. Waltz, C. J. Yeh, C. Baumann, R. Göstl, J. Comtet and C. Creton, Phys. Rev. X, 2020, 10, 41045.
29. E. Izak-Nau, D. E. Demco, S. Braun, C. Baumann, A. Pich and R. Göstl, ACS Appl. Polym. Mater., 2020, 2, 1682–1691.
30. X. P. Morelle, G. E. Sanoja, S. Castagnet and C. Creton, Soft Matter, 2021, 17, 4266–4274.
31. J. Li, T. Shiraki, B. Hu, R. A. E. Wright, B. Zhao and J. S. Moore, J. Am. Chem. Soc., 2014, 136, 15925–15928.
32. C. P. Kabb, C. S. O'Bryan, C. D. Morley, T. E. Angelini and B. S. Sumerlin, Chem. Sci., 2019, 10, 7702–7708.
33. A. R. Sulkanen, J. Sung, M. J. Robb, J. S. Moore, N. R. Sottos and G. Liu, J. Am. Chem. Soc., 2019, 141, 4080–4085.
34. J. Sung, M. J. Robb, S. R. White, J. S. Moore and N. R. Sottos, J. Am. Chem. Soc., 2018, 140, 5000–5003.
35. C. Broschinski, F. Majer, S. He, A. J. C. Kuehne and R. Göstl, ACS Appl. Opt. Mater., 2024, 2, 1764–1769.
36. D. Yildiz, C. Baumann, A. Mikosch, A. J. C. Kuehne, A. Herrmann and R. Göstl, Angew. Chem., Int. Ed., 2019, 58, 12919–12923.
37. R. Göstl and R. P. Sijbesma, Chem. Sci., 2016, 7, 370–375.
38. C. Baumann, M. Stratigaki, S. P. Centeno and R. Göstl, Angew. Chem., Int. Ed., 2021, 60, 13287–13293.
39. M. Stratigaki, C. Baumann, L. C. A. van Breemen, J. P. A. Heuts, R. P. Sijbesma and R. Göstl, Polym. Chem., 2020, 11, 358–366.
40. X. Hu, T. Zeng, C. C. Husic and M. J. Robb, ACS Cent. Sci., 2021, 7, 1216–1224.
41. M. Stratigaki, C. Baumann and R. Göstl, Macromolecules, 2022, 55, 1060–1066.
42. C. Baumann, M. Stratigaki, S. P. Centeno and R. Göstl, Angew. Chem., Int. Ed., 2021, 60, 13287–13293.
43. T. Xie, Z. Li, Y. Zhou, B. Xi and Y. Li, Macromolecules, 2024, 57, 3416–3422.
44. S. M. Luo, R. W. Barber, A. C. Overholts and M. J. Robb, ACS Polym. Au, 2023, 3, 202–208.
45. C. Baumann, N. Willis-Fox, D. Campagna, E. Rognin, P. Marten, R. Daly and R. Göstl, J. Polym. Sci., 2022, 60, 3128–3133.
46. J. Li, B. Hu, K. Yang, B. Zhao and J. S. Moore, ACS Macro Lett., 2016, 5, 819–822.
47. G. I. Peterson, J. Lee and T.-L. Choi, Macromolecules, 2019, 52, 9561–9568.
48. N. H. Nguyen and V. Percec, J. Polym. Sci., Part A: Polym. Chem., 2011, 49, 4241–4252.
49. C. E. Diesendruck, L. Zhu and J. S. Moore, Chem. Commun., 2014, 50, 13235–13238.
50. M. Di Giannantonio, M. A. Ayer, E. Verde-Sesto, M. Lattuada, C. Weder and K. M. Fromm, Angew. Chem., Int. Ed., 2018, 57, 11445–11450.
51. S. Jiang, L. Zhang, T. Xie, Y. Lin, H. Zhang, Y. Xu, W. Weng and L. Dai, ACS Macro Lett., 2013, 2, 705–709.
52. R. Moučka, M. Sedlačík, J. Osička and V. Pata, Sci. Rep., 2021, 11, 19090.
53. I. D. Johnston, D. K. McCluskey, C. K. L. Tan and M. C. Tracey, J. Micromech. Microeng., 2014, 24, 035017.
54. D. Dondi, A. Zeffiro, A. Buttafava, C. Marciano, M. Bianchi and A. Faucitano, Polym. Degrad. Stab., 2013, 98, 392–407.
55. Y. Chen and R. P. Sijbesma, Macromolecules, 2014, 47, 3797–3805.
56. J. W. Kim, Y. Jung, G. W. Coates and M. N. Silberstein, Macromolecules, 2015, 48, 1335–1342.
57. C. R. Siviour and J. L. Jordan, Journal of Dynamic Behavior of Materials, 2016, 2, 15–32.
58. R. Janissen and G. A. Filonenko, J. Am. Chem. Soc., 2022, 144, 23198–23204.
59. T. Wang, N. Zhang, J. Dai, Z. Li, W. Bai and R. Bai, ACS Appl. Mater. Interfaces, 2017, 9, 11874–11881.
60. E. Ducrot, Y. Chen, M. Bulters, R. P. Sijbesma and C. Creton, Science, 2014, 344, 186–189.
61. J. M. Clough, C. Creton, S. L. Craig and R. P. Sijbesma, Adv. Funct. Mater., 2016, 26, 9063–9074.
62. W. Qiu, P. A. Gurr and G. G. Qiao, Macromolecules, 2020, 53, 4090–4098.
63. M. F. Rubner, Macromolecules, 1986, 19, 2129–2138.
64. I. Kimura, H. Ishihara, H. Ono, N. Yoshihara, S. Nomura and H. Kawai, Macromolecules, 1974, 7, 355–363.
65. Y. Chen, H. Zhang, X. Fang, Y. Lin, Y. Xu and W. Weng, ACS Macro Lett., 2014, 3, 141–145.
66. K. Imato, T. Kanehara, T. Ohishi, M. Nishihara, H. Yajima, M. Ito, A. Takahara and H. Otsuka, ACS Macro Lett., 2015, 4, 1307–1311.
67. C. K. Lee, D. A. Davis, S. R. White, J. S. Moore, N. R. Sottos and P. V Braun, J. Am. Chem. Soc., 2010, 132, 16107–16111.
68. C. K. Lee, B. A. Beiermann, M. N. Silberstein, J. Wang, J. S. Moore, N. R. Sottos and P. V Braun, Macromolecules, 2013, 46, 3746–3752.
69. Y. Chen, A. J. H. Spiering, S. Karthikeyan, G. W. M. Peters, E. W. Meijer and R. P. Sijbesma, Nat. Chem., 2012, 4, 559–562.
70. X. Fang, H. Zhang, Y. Chen, Y. Lin, Y. Xu and W. Weng, Macromolecules, 2013, 46, 6566–6574.
71. H. Zhang, Y. Chen, Y. Lin, X. Fang, Y. Xu, Y. Ruan and W. Weng, Macromolecules, 2014, 47, 6783–6790.
72. Y. Sun, W. J. Neary, X. Huang, T. B. Kouznetsova, T. Ouchi, I. Kevlishvili, K. Wang, Y. Chen, H. J. Kulik, S. L. Craig and J. S. Moore, J. Am. Chem. Soc., 2024, 146, 10943–10952.
73. S. Zhu, N. Lempesis, P. J. in ‘t Veld and G. C. Rutledge, Macromolecules, 2018, 51, 1850–1864.
74. S. Kumar and T. Stauch, RSC Adv., 2021, 11, 7391–7396.

---
