Chloe M. Shilling,
Lloyd A. Shaw,
Juan A. Aguilar
,
William D. G. Brittain
* and
Clare S. Mahon
*
Chemistry Department, Durham University, Lower Mount Joy, South Road, Durham, DH1 3LE, UK. E-mail: clare.mahon@durham.ac.uk; William.d.brittain@durham.ac.uk
First published on 2nd July 2025
A series of cationic ring opening polymerisations (CROP) were conducted on a library of electronically diverse para-substituted 2-phenyl-2-oxazolines. Polymerisations were conducted under microwave irradiation and monitored by 1H NMR spectroscopy to elucidate kinetic parameters for both homo- and co-polymerisations. The inclusion of electron donating substituents in the para-position led to decreases in the rates of homopolymerisation compared to an unsubstituted 2-phenyl-2-oxazoline. Conversely, in copolymerisations, monomers containing electron donating substituents were incorporated at a higher rate than 2-phenyl-2-oxazoline, with the inverse effect observed with monomers displaying electron withdrawing substituents. The reactivity ratios of four representative monomer combinations were then determined using 1H NMR spectroscopy and are consistent with a proposed model where copolymerisation kinetics are dictated largely by the relative nucleophilicity of the monomer.
The increasing adoption of rapid microwave-assisted CROP16–19 has opened the door to the generation of structurally diverse libraries of poly(oxazoline)s,20 enabling the investigation of structure–property relationships.21 Functionality can be introduced into poly(oxazoline) scaffolds at chain termini through choice of initiating and terminating agents,22,23 or by introducing pendant functionality through selection of the 2-oxazoline monomer,21 enabling convenient tuning of the properties of the resultant polymers. 2-Oxazolines can be easily accessed from a variety of starting materials including aldehydes,24 nitriles25 and carboxylic acids,26 enabling the preparation of a diverse range of functional macromolecules. The introduction of additional functionality in this manner can allow for the programming of polymer self-assembly, inclusion of temperature-27 or pH-28 responsive characteristics and tuning of polymer properties including viscoelasticity29 and mechanical strength.30 Modification of the 2-oxazoline core, however, can result in significant effects towards the kinetics of polymerisation,31–33 as a consequence of differences in the stability of the propagating carbocation intermediate. In copolymerisations, the effect of differing monomer reactivity must also be considered. These differences in reactivity can be exploited to dictate the properties of the resultant polymer during synthesis. For example, the copolymerisation of 2-nonyl-2-oxazoline and 2-ethyl-2-oxazoline has been shown to yield random copolymers, whilst the replacement of 2-ethyl-2-oxazoline with 2-methyl-2-oxazoline leads to gradient copolymers.34 Understanding the kinetics of copolymerisation is therefore critical to the preparation of complex polymer amphiphiles in one-pot approaches,35 streamlining the synthesis of new functional materials.
Previous studies have suggested that the electron donating capability of a substituent can dramatically impact the rate of CROP of aryl oxazolines,16,31 with electron donating substituents observed to decrease the rate of polymerisation, through stabilisation of the propagating carbocation. Schubert and coworkers have previously demonstrated this phenomenon using a set of mono- and di-fluorinated 2-phenyl-2-oxazolines, with 2-phenyl-2-oxazoline observed to polymerise more rapidly than the corresponding para-fluoro derivative. This observation suggests that the mesomeric donating effect of the fluorine substituent increases the electron density on the phenyl ring stabilising the propagating cation and thus lowers the rate of propagation.33 A similar decrease in rate of polymerisation was observed by Saegusa and coworkers when studying the polymerisation of methyl- and methoxy- substituted 2-phenyl-2-oxazolines.31 In some cases, it is difficult to quantitatively compare the findings of kinetic studies due to the range of reaction conditions employed, including differences in choice of solvents, initiators, reaction temperatures and concentrations.36 This variation makes it difficult to quantitatively evaluate or predict the impact of factors such as electronics and sterics on the kinetics of polymerisation. This study aims to address how substituent effects alter the homopolymerisation and copolymerisation kinetics of a range of para-substituted 2-phenyl-2-oxazolines under set reaction conditions. We have therefore conducted kinetic studies across an electronically diverse library of oxazoline monomers with consistent polymerisation conditions, to allow for direct quantitative comparison of electronic effects.
![]() | ||

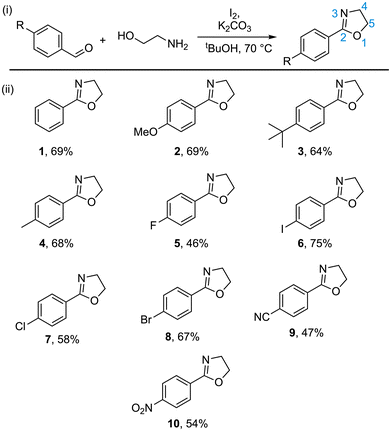

Fig. 1 (i) Preparation of 2-phenyl-2-oxazolines by direct oxidative conversion from functionalised benzaldehydes.23 (ii) A selection of para-substituted 2-phenyl-2-oxazolines prepared in this study. |
Monomers 1–10 were subjected to microwave-assisted homopolymerisation via a method adapted from Sinnwell and Ritter,37 using methyl para-toluenesulfonate as initiator (Table 1, 4 M monomer, 100 eq.). The kinetics of polymerisation were investigated by quenching polymerisations at different time points, and quantifying consumption of monomer using 1H NMR spectroscopy, through integral analysis of signals corresponding to the hydrogens on positions 4 and 5 of the oxazoline ring (Fig. 2), compared to the hydrogens present in the solvent (DMF). In all cases, the polymerisations were observed to obey first-order kinetics (ESI, Section 1.4†).
![]() | ||
Fig. 2 (i) CROP of para-substituted 2-phenyl-2-oxazolines. (ii) 1H NMR spectra (400 MHz, CDCl3) acquired during polymerisation of 1, showing the monomer depletion over time. |
Polymer | Monomer | kobs (x 10−3 s−1) | DP![]() |
Mn![]() |
Mn![]() |
Mw![]() |
Đ![]() |
---|---|---|---|---|---|---|---|
a Determined by 1H NMR spectroscopy.b Determined by gel permeation chromatography (GPC) analysis in DMF + 1 g L−1 LiBr, 50 °C, 0.6 mL min−1, calibrated using near monodisperse poly(methylmethacrylate) standards.c To the best of our knowledge, this report is the first to describe polymerisation of these monomers. | |||||||
P1 | 1 | 1.20 | 83 | 12![]() |
2700 | 5400 | 1.2 |
P2 | 2 | 0.04 | 25 | 4![]() |
nd | nd | nd |
P3 | 3 | 0.40 | 70 | 14![]() |
5300 | 6900 | 1.3 |
P4 | 4 | 0.40 | 79 | 12![]() |
4![]() |
5![]() |
1.5 |
P5 | 5 | 0.40 | 68 | 11![]() |
4200 | 6000 | 1.3 |
P6c | 6 | 0.60 | 95 | 25![]() |
2500 | 2600 | 1.2 |
P7 | 7 | 0.40 | 47 | 8700 | 2700 | 3200 | 1.2 |
P8c | 8 | 0.40 | 82 | 18![]() |
nd | nd | nd |
P9c | 9 | 0.20 | 68 | 11![]() |
nd | nd | nd |
P10 | 10 | 2.50 | 35 | 6700 | 2500 | 3000 | 1.2 |
Polymerisation of 2-phenyl-2-oxazoline monomer 1 was found to display kobs = 1.20 × 10−3 s−1 (Table 1). Electron donating substituents, as defined by their Hammett parameters,38 are represented in our palette of monomers by methoxy- (2), tert-butyl- (3) and methyl- (4) substituted 2-phenyl-2-oxazolines. The rate constants for homopolymerisation of these monomers were found to be at least an order of magnitude smaller than that of 1, with kobs ∼10−4–10−5 s−1 (Table 1). This effect can be rationalised through stabilisation of the propagating carbocation through electron donation, which in turn lowers its susceptibility to nucleophilic attack, thus decreasing the rate of propagation.21
The presence of strongly electron withdrawing substituents such as nitro- (10), conversely, are postulated to destabilise the propagating carbocation, increasing its susceptibility to nucleophilic attack. Homopolymerisation of 10 was demonstrated to proceed with kobs = 2.50 × 10−3 s−1 (Table 1), supporting this hypothesis. It was noted, however that a similar enhancement in rate was not observed during homopolymerisation of 9 (Table 1), which displays a more weakly electron withdrawing cyano-substituent. Halogenated 2-phenyl-2-oxazolines 5–8 were all observed to polymerise at a slower rate than 1, with kobs ∼10−4 s−1 (Table 1).
Whilst the incorporation of a para-halogen results in an inductive withdrawal of electron density it also provides a positive mesomeric effect, thus stabilising the propagating carbocation resulting in a slower rate of polymerisation. Gel permeation chromatography (GPC) analysis, where possible, (Table 1) revealed a range of dispersities between 1.1 and 1.5, suggesting that polymerisations proceeded with a degree of control. The Mn and Mw values obtained through GPC analysis were lower than would be predicted based on theoretical molecular weights and 1H NMR spectroscopic analysis, consistent with previous reports,39,40 reflecting differences in hydrodynamic volume between poly(oxazolines) and poly(methyl methacrylate) standards used for calibration.
To further probe the impact of the electronic effects of substituents, a Hammett plot38,41 was constructed (Fig. 3) demonstrating an overall correlation between Hammett substituent coefficient and measured rate constant. The most positive Hammett substituent constant, denoting the strongly electron withdrawing nature of the group, is presented by 10, which displays the fastest rate of homopolymerisation. The opposite effect is observed in 2-phenyl-2-oxazolines with the most strongly electron donating substituents and most negative Hammett coefficients: methoxy-(2) and tert-butyl-(3), which display the slowest rates of homopolymerisation. The correlation observed in the Hammett plot evidences the impact of the para-substituent on the stability of the propagating carbocation, and consequently the rate of homopolymerisation. It is notable that the rate of homopolymerisation of 1 was greater than would be predicted based on the overall trend, resulting in the line of best fit not dissecting the origin, contrary to observations made by Saegusa and coworkers,31 who constructed a Hammett plot using a subset of the monomers explored here, under thermal activation. The higher than anticipated rate of homopolymerisation of 1 is, however, in line with observations made by Schubert and coworkers, whereby the para-substituted fluorinated monomer 5 displayed a slower rate of homopolymerisation under microwave irradiation than 1, an observation that would not be predicted based upon Hammett parameters.33 Other notable deviations from the line of best fit correspond to monomers 2 (p-OMe) and 9 (p-CN). These substituents exert a negative inductive effect, but a positive resonance effect, whereby electron density can be donated into the π-system, which is only partially accounted for using the Hammett σ constant.41

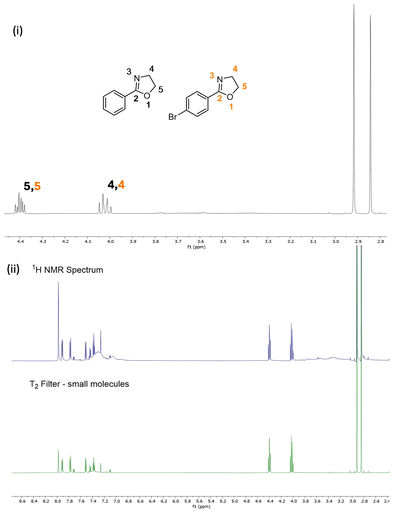

An alternative method of analysis was required to determine the composition of the reaction mixture during copolymerisations, as signals corresponding to protons at positions 4 and 5 (Fig. 4(i)) of the oxazoline monomers were observed to overlap in 1H NMR spectra acquired during copolymerisations. In addition, the 1H NMR signals corresponding to aryl protons of monomers were observed to be distinct, but overlapped with the corresponding signals from the polymer. It was therefore necessary to suppress macromolecular resonances to enable monomer quantification by 1H NMR spectroscopy. This suppression is typically achieved by exploiting the differences in spin–spin relaxation (characterised by the T2 constant) between large and small entities, as large entities have shorter T2 (broader signals) than small ones (sharper signals).42 The Carr–Purcell–Meiboom–Gill (CPMG)43 T2 filter is most commonly used to supress signals corresponding to macromolecules, however, CPMG pulse sequences are energy intensive, and require refocussing times that may damage the spectrometer if used for more than 100 ms, depending on hardware specifications. In cases such as ours, the differences in T2 are the smallest at the beginning of the reaction, as the molecular weight of the polymer is small. To differentiate between the signals of the incipient polymers and those of small molecules, the T2 filter time must be extended beyond the safe limits of the CPMG pulse sequence. To solve this problem, we adopted the approach of Morris and coworkers,44 who proved that CPMG filter times can be greatly extended by introducing planar mixing in the form of a perfect echo. Using this approach, dubbed PROJECT, we managed to use T2 filters of 350 ms, filter times that are long enough to suppress the polymer signals at all stages of the reaction. Care must be taken when using T2 filters to monitor polymerisations because of the fact that the T2 of all signals will decrease if the viscosity of the sample increases.45 To compensate for this effect, samples were taken from the reaction vessel and diluted before analysis, signals were normalised to a known concentration of reference molecule (DMF) and T2 spectra were overlaid to check for variation in the linewidth of the signals, as the linewidth is inversely proportional to T2. This method allowed for the resolution of resonances corresponding to small molecules and polymers.
In the copolymerisation of 1 with para-OMe substituted 2, it was observed that 2 was incorporated within the polymer at a faster rate (Fig. 5(i)), consistent with its increased nucleophilicity. A similar, though less pronounced effect was observed during copolymerisation of 1 with methyl-substituted 4 (Fig. 5(ii)). Similarly, during copolymerisation of 1 with bromo-substituted 8, the more electron rich 1 was incorporated more rapidly (Fig. 5(iii)). Whilst nitro-substituted 10 had been observed to display the fastest rate of homopolymerisation (Table 1), a feature attributed to destabilisation of the propagating cation, during copolymerisation it was observed to display a limited rate of incorporation, likely as a consequence of its decreased nucleophilicity compared to 1. Other literature reports support this reversal in the monomer reactivity across homopolymerisations and copolymerisations for oxazolines and oxazines,35,46 where the oxazine monomer is consumed in preference to the oxazoline. The effect can be explained by the increased nucleophilicity of the oxazine nitrogen compared to the oxazoline nitrogen.
![]() | ||
Fig. 5 Analysis of monomer consumption during copolymerisations of 1 with (i) 2; (ii) 4; (iii) 8 (iv) 10. 4 M total monomer concentration (100 eq.), MeOTs, DMF, 90 W, 130 °C. |
To further investigate the kinetics of copolymerisation, reactivity ratios were determined using both the Mayo–Lewis and Fineman–Ross models (Table 2 and ESI Section 1.6–1.7†).47 These analysis methods require the quantitative determination of monomer consumption at low conversion. Under these conditions it was judged that monomer consumption could be directly determined by integral analysis of signals corresponding to aryl protons, as no macromolecular resonances could be observed.47,48 Polymerisations were conducted at various feed ratios for 2 min without sampling to ensure sufficiently low monomer conversion to prevent changes in effective monomer concentration.
Monomer A | Monomer B | Mayo–Lewis | Fineman–Ross | ||
---|---|---|---|---|---|
rA | rB | rA | rB | ||
a An rB value of −0.4 was determined (ESI Section 1.7†). The Fineman–Ross model suggests that any negative values can be approximated to 0, representative of an extremely slow rate of uptake. | |||||
1 | 2 | 0.3 | 1.3 | 0.3 | 1.3 |
1 | 4 | 1.7 | 3.2 | 1.7 | 3.2 |
1 | 8 | 1.4 | 0.9 | 1.5 | 1.1 |
1 | 10 | nd | Nd | 1.5 | 0.0a |
Copolymerisation of 1 and 2 resulted in an rA value of 0.3, suggesting propagating chains terminated with 1 favour cross-propagation, and rB 1.3, indicating a preference for self-propagation of chains terminated with 2. This observation suggests that the increased nucleophilicity of 2 exerts a greater effect on copolymerisation kinetics than the stabilisation offered to the propagating chain by the electron-donating methoxy substituent. During copolymerisation of 1 and 4, both monomers display a preference for self-propagation, which is more pronounced in the case of 4 (rB 3.2; rA 1.7). Within this combination of monomers, the inductive electron donation supplied by the methyl substituent in 4 would be expected to contribute less to both monomer nucleophilicity and stabilisation of the propagating carbocation than in the case of 1 and 2.
In the case of copolymerisation of 1 and 8, 1 displayed some preference for self-propagation (rA ∼1.5), consistent with its increased nucleophilicity, while 8 displayed no significant preference for self- or cross-propagation (rB 0.9/1.1), suggesting that the halogen substituent exerts limited stabilising/destabilising influence on the propagating carbocation. A more pronounced effect was observed during the copolymerisation of 1 and 10, where 1 was observed to display a preference for self-propagation (rA 1.5), while an rB value of 0 was obtained for 10, suggesting negligible self-propagation. This behaviour is in line with our observations of limited consumption of 10 during copolymerisation with 1 (Fig. 5(iv)), and the decreased nucleophilicity of 10 on account of the electron withdrawing effect of the nitro-substituent.
Overall, these observations are consistent with a model where copolymerisation kinetics are dictated largely by the relative nucleophilicity of the monomer, with effects of stabilisation or destabilisation of the propagating chain contributing to a lesser extent.
The copolymerisation kinetics of 2-phenyl-2-oxazoline 1 with a selection of para-substituted 2-phenyl-2-oxazolines were studied using the PROJECT T2 filter approach44,49 to enable determination of monomer consumption during copolymerisation. 2-Phenyl-2-oxazolines with electron donating substituents displayed increased rates of polymerisation compared to 1, on account of increased nucleophilicity of these monomers. The opposite effect was observed for the copolymerisation of 1 with the nitro-substituted monomer 10, as a consequence of the decreased nucleophilicity of this monomer. Reactivity ratios were determined using the Fineman–Ross and Mayo–Lewis methods, and suggested that the incorporation of the next monomer unit during copolymerisation is largely dictated by the relative nucleophilicity of the monomer, with substituent effects on the stability of the propagating chain observed to contribute to a lesser extent.
