Reinvestigation of the ionic conductivity of a layered Li(BH₃NH₂BH₂NH₂BH₃) salt

Abstract

We reinvestigated the ionic conductivity of lithium ions for Li(BH₃NH₂BH₂NH₂BH₃), an ammonia borane derivative. The observed conductivity (4.0 × 10⁻⁶ S cm⁻¹ at 65 °C) was found to be over four orders of magnitude higher than the value reported previously at 70 °C for this compound. Since very slow thermal decomposition of Li(BH₃NH₂BH₂NH₂BH₃) progresses already below 100 °C, the previous results reported for 70–130 °C most likely correspond to decomposed samples. The activation energy for the lithium conductivity of polycrystalline layered Li(BH₃NH₂BH₂NH₂BH₃) (57 kJ mol⁻¹) resembles that of powdered Li₃N (59 kJ mol⁻¹), suggesting a similar mechanism of lithium diffusion in both materials.

---

Introduction

The rapid development of portable electronics and mobile applications has put immense pressure on the development of highly efficient energy storage units. Currently, lithium-ion batteries are preferred owing to their very beneficial large electrical charge-to-mass ratio. However, despite the 40 years development of lithium batteries,¹ safety issues still arise due to flammability and the relatively large mass of the components used.

All types of commercially available lithium-ion batteries use liquid electrolytes to some extent.² Organic-solvent-based liquid electrolytes used in Li-ion batteries have numerous advantages (e.g. very high lithium solubility and conductivity, excellent wetting properties, and sufficient electric contact with the electrode), but they might be problematic due to flammability when exposed to air, low thermal and electrochemical stability, and poor ionic selectivity.³ Moreover, organic solvents decrease the effective energy density of the system and promote the formation of dendrites at the surface of lithium electrodes.

The minimisation of the amount of liquid electrolytes used in Li-ion batteries has been one of the hottest research targets in recent years. Systems with an ultra-small volume of electrolytes have been successfully constructed (e.g. 10 μL cm⁻² (ref. 4)); however, the ultimate goal is the construction of an all-solid-state Li-ion battery with no liquid electrolyte, which was first considered as early as the 1950s but was attempted for the first time in the 1990s, followed by numerous successful studies in the 21st century.^5–8 All-solid-state lithium batteries are believed to be lighter, safer, and reach higher capacities than currently used standard batteries; however, issues concerning insufficient cell conductivity at low temperatures and sensitivity to mechanical stress can be expected. None of the studied and constructed all-solid-state lithium-ion batteries are commercially available considering their production problems and relatively high cost. The introduction of such batteries is limited mostly by the inaccessibility of suitable solid electrolyte materials.

Various promising lithium-ion conducting materials were already known in the early 2000s.^9–11 Li-β-alumina (Li₂₀·11Al₂0₃) with a layered crystal structure facilitating the migration of lithium ions exhibits a conductivity of 1.3 × 10⁻⁴ S cm⁻¹ at room temperature (RT) but cannot be used as an electrolyte because of its high hygroscopicity.¹² Layered Li₃N shows a very high conductivity of 1.2 × 10⁻³ S cm⁻¹ at RT in the single-crystal form along structural layers but exhibits a low decomposition voltage of 0.44 V.^13–16 LIPON (Li_2.88PO_3.86N) shows good overall properties but suffers from moderate conductivity of only 2 × 10⁻⁶ S cm⁻¹, which is insufficient for practical use.¹⁷ In recent years, significant progress has been observed in the field of lithium-ion conducting materials. Currently, Li₁₀GeP₂S₁₂ is believed to be the best solid-state candidate for solid electrolyte application, having a conductivity of 1.2 × 10⁻² S cm⁻¹ but a slightly too narrow electrochemical stability window of 5 V.¹⁸

Hydride-based materials have also been reported as lithium-ion conductors. LiBH₄ exhibits a conductivity of 1 × 10⁻³ S cm⁻¹ after transition to the high-temperature (HT) form above 115 °C, while the low-temperature (LT) form shows a conductivity three orders of magnitude lower.¹⁹ It was subsequently discovered that some doped lithium borohydride materials (e.g. 7LiBH₄·LiI;²⁰ LiCe(BH₄)₃Cl ²¹) retain the HT-LiBH₄ crystal structure below 115 °C, showing high conductivity at RT (4.5 × 10⁻⁵ S cm⁻¹;²⁰ 1.0 × 10⁻⁴ S cm⁻¹ (ref. 21)).

Protonic-hydridic materials are also known to conduct lithium cations in the solid state. Lithium amidoborane Li(NH₂BH₃) has a relatively poor ionic conductivity of 5.5 × 10⁻⁹ S cm⁻¹ at RT.²² However, the adducts of LiBH₄ with molecular ammonia borane were reported to show very high conductivity at 40 °C: (LiBH₄)(NH₃BH₃) 4.9 × 10⁻³ S cm⁻¹ and (LiBH₄)₂(NH₃BH₃) 1.2 × 10⁻⁴ S cm⁻¹.²³ Recently, Cascallana-Matías et al. reported ammonia borane adduct-related materials exhibiting high lithium conductivity at 70 °C: (LiBH₄)₂(NH₃BH₃) 2.83 × 10⁻⁵ S cm⁻¹, (LiI)(NH₃BH₃) 1.80 × 10⁻⁶ S cm⁻¹ and (LiI)(NH₃BH₃)₂ 1.79 × 10⁻⁵ S cm⁻¹, while Li(BH₃NH₂BH₂NH₂BH₃) had a much poorer conductivity of 4.11 × 10⁻⁹ S cm⁻¹ at 70 °C.²⁴ Surprisingly, the figure for Li(BH₃NH₂BH₂NH₂BH₃) was as low as the conductivity of Li(NH₂BH₃) (5.5 × 10⁻⁹ S cm⁻¹ at RT²²), having an unfavourable crystal structure with neither the 1D nor 2D lithium cation substructure.

Herein, we present a detailed reinvestigation of the ionic conductivity of Li(BH₃NH₂BH₂NH₂BH₃) performed using an in-house designed IMPED CELL.²⁵ We present the results of electrochemical impedance spectroscopy (EIS) supported by spectroscopic (FTIR, NMR, Raman, ⁷Li NMR) and structural (PXRD) studies of the title compound with respect to earlier reports.^24,26,27 We discuss the influences of the chosen synthesis method, the purity of the samples, and the methodology of the solid-state EIS investigation on the material's conductivity.

Results and discussion

Li(BH₃NH₂BH₂NH₂BH₃) (in short: Li[B3N2]) was previously reported by us as a promising hydrogen storage material with a total hydrogen content of 15.2%.^26,27 Its layered crystal structure, with flat sheets of lithium cations separated by thick layers of perpendicularly oriented (B3N2)⁻ anions,²⁶ resembles that of Li₃N,¹³ a well-known super-ionic lithium conductor.^14–16

For this study, we have designed a novel approach to the synthesis of Li[B3N2], which is an improvement of the previously reported mechanochemical method.²⁶ Instead of milling the solid mixture of LiH and NH₃BH₃ in a high-energy mill, we ground the reactants using an agate mortar and pestle to receive an unreacted quasi-homogeneous mixture of the starting compounds, which was further subjected to a 2 hour thermal treatment at 80 °C. The novel method is much easier and more efficient than the classical one²⁶ and it also avoids the use of metal tools and vessels, ensuring the highest purity of the product received with no electron-conducting metal impurities added upon treatment, which could easily interfere with the results of the EIS investigation. The high purity of Li[B3N2] samples obtained via the novel method was confirmed by Rietveld analysis‡ of its X-ray powder pattern and spectroscopic analyses showing the sole presence of the Li[B3N2] crystalline phase in the product and no contamination with moisture absorbed, which is crucial for the stability of the compound known to be highly hygroscopic.

The EIS measurements were conducted using an in-house developed setup, IMPED CELL.²⁵ We have acquired several series of temperature-resolved EIS spectra (temperature range of 9–65 °C) for three different batches of Li[B3N2], obtaining consistent results (Fig. 2 and 3). We observed Nyquist plots having shapes of a semicircle followed by spurs at lower frequencies (Fig. 2), typical of materials exhibiting ionic conductivity. The observed semicircles were slightly flattened, similar to the shape of the spectra of related ammonia borane derivatives characterised before.²² For fitting the spectra, various forms of the dielectric function were tested: Cole–Cole, Davidson–Cole, Jonscher, and Havrilak–Negami. The best quality of the fit was obtained using an equivalent circuit consisting of two branches: one with a single capacitor, and the second with a series connection of Havriliak–Negami and Warburg elements (Fig. 6).²⁸ The Havriliak–Negami element models ionic relaxation behaviour for the broad and asymmetric distribution of relaxation times characteristic of amorphous materials. The high-frequency capacitance observed at low temperatures takes into account the influence of polymer/anion relaxations at high frequencies.²⁹ The Warburg element describes diffusive transport mechanisms at low frequencies with charge accumulation at blocking electrodes. The errors of all fitted parameters were below 3%.

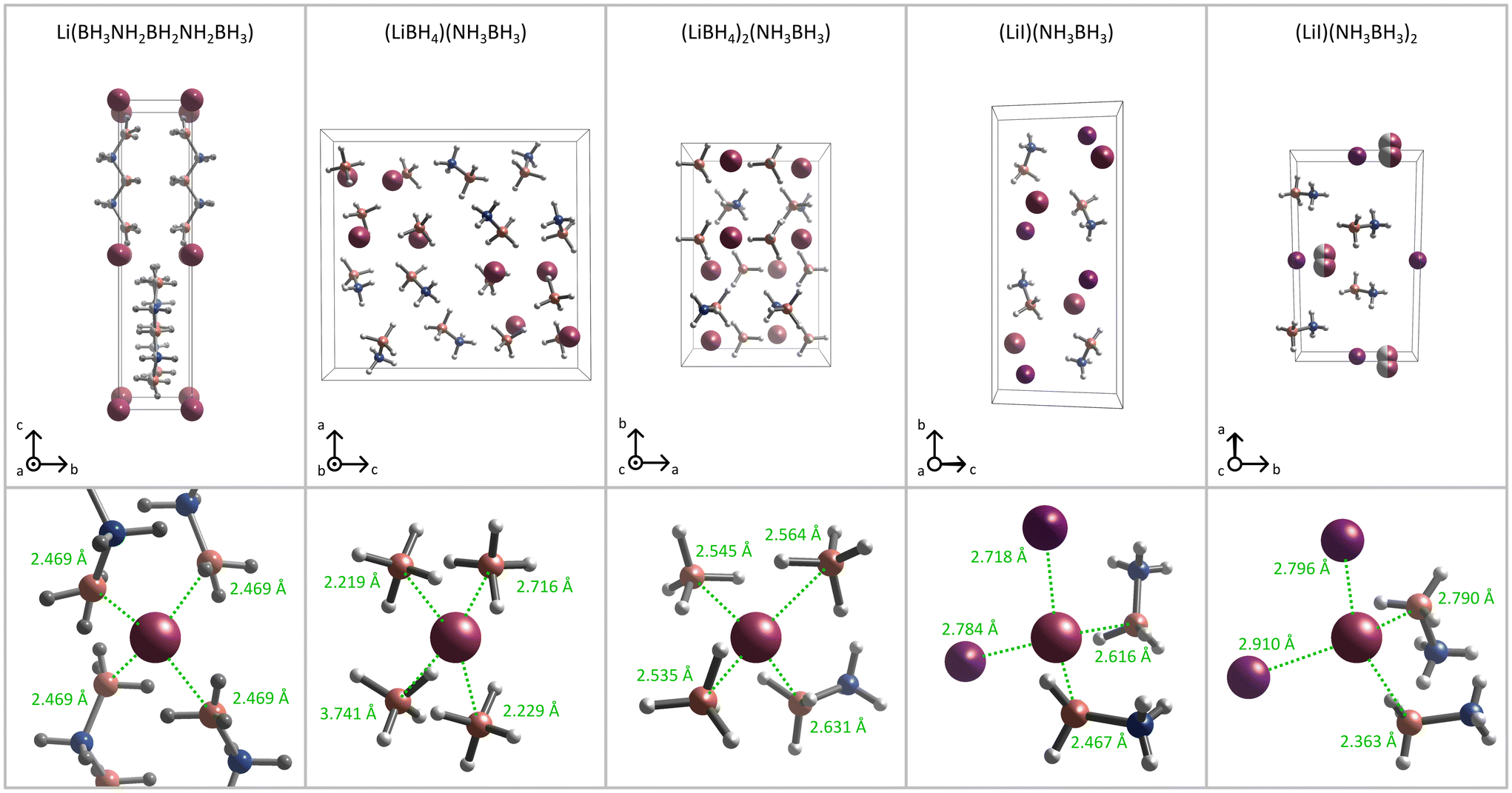

Fig. 1 Top: A comparison of the crystal structures of Li[B3N2],²⁶ (LiBH₄)(NH₃BH₃),²³ (LiBH₄)₂(NH₃BH₃),²³ (LiI)(NH₃BH₃),²⁴ and (LiI)(NH₃BH₃)₂.²⁴ Bottom: coordination spheres of lithium cations with Li–B and Li–I distances. For clarity of visualisation, Li coordination spheres are shown with no distortion of (B3N2)⁻ anions in Li[B3N2]²⁶ and Li⁺ cations in (LiI)(NH₃BH₃)₂.²⁴

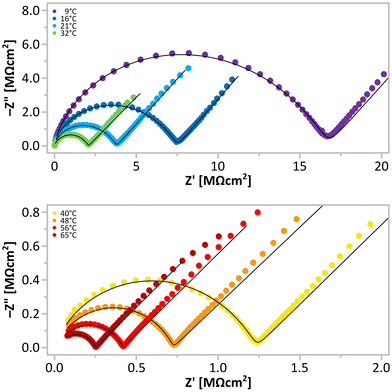

Fig. 2 Nyquist plots of Li[B3N2] recorded in the temperature range of 9–65 °C under 200 MPa, normalised to the electrodes and the effective thickness of the samples in the given conditions and the electrode's area: higher conductivity plots recorded at 40 °C, 48 °C, 56 °C and 65 °C (top) and lower conductivity plots recorded at 9 °C, 16 °C, 21 °C and 32 °C (bottom).

Fig. 3 Bode modulus (top) and Bode phase angle (bottom) plots of Li[B3N2] EIS spectra recorded in the temperature range of 9–65 °C (9 °C, 16 °C, 21 °C, 32 °C, 40 °C, 48 °C, 56 °C, 65 °C) under pressure of 200 MPa, normalised to the samples’ effective thickness and the electrode's area.

We observed the moderate conductivity of Li[B3N2] of 2.6 × 10⁻⁷ S cm⁻¹ at RT with an activation energy of 57 kJ mol⁻¹, and the expected growth of the material's conductivity at elevated temperatures reached 4.0 × 10⁻⁶ S cm⁻¹ at 65 °C (Fig. 4 and Table 1). The values at roughly this level of conductivity are characteristic of doped LiBH₄ materials exhibiting the HT-LiBH₄ crystal structure at lower temperatures.²⁰

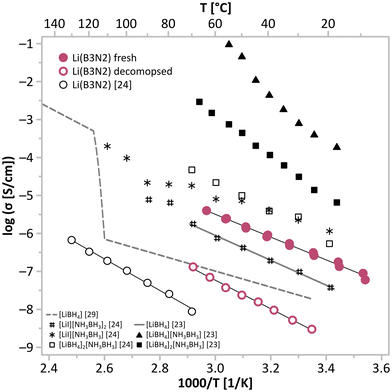

Fig. 4 Comparison of the values of conductivity and activation energy of Li[B3N2] measured in this study (fresh and decomposed at 200 °C) and reported by Cascallana-Matías et al.,²⁴ together with the values characteristic of other ammonia borane-based materials^23,24 and reference values for LiBH₄.^23,31

Table 1 A comparison of lithium ion conductivity parameters of Li[B3N2] and the values reported earlier for Li[B3N2]²⁴ and other relevant hydridic materials: (LiBH₄)(NH₃BH₃),²³ (LiBH₄)₂(NH₃BH₃),^23,24 (LiI)(NH₃BH₃),²⁴ (LiI)(NH₃BH₃)₂,²⁴ LiBH₄,¹⁹ Li(NH₂BH₃),²² NH₃BH₃ ²² and Li₃N ^14–16

Compound	E a [kJ mol^−1]	σ [S cm^−1]	T [°C]	Ref.
Li(BH3NH2BH2NH2BH3) – fresh	57	6.0 × 10^−8	9	[Here]
Li(BH3NH2BH2NH2BH3) – fresh	57	2.6 × 10^−7	21	[Here]
Li(BH3NH2BH2NH2BH3) – fresh	57	4.0 × 10^−6	65	[Here]
Li(BH3NH2BH2NH2BH3) – dec.	71	3.0 × 10^−9	25	[Here]
Li(BH3NH2BH2NH2BH3) – dec.	71	1.3 × 10^−7	69	[Here]
Li(BH3NH2BH2NH2BH3)	83	8.7 × 10^−9	70	24
(LiBH4)(NH3BH3)	12	4.9 × 10^−3	40	23
(LiBH4)2(NH3BH3)	24	1.2 × 10^−4	40	23
(LiBH4)2(NH3BH3)	69	2.8 × 10^−5	70	24
(LiI)(NH3BH3)	67	1.8 × 10^−6	70	24
(LiI)(NH3BH3)2	46	1.8 × 10^−5	70	24
LT-LiBH4	67	2.0 × 10^−8	25	19
HT-LiBH4	51	1.0 × 10^−3	117	19
Li(NH2BH3)	140	5.5 × 10^−9	25	22
NH3BH3	117	5.2 × 10^−11	60	22
Li3N (powder)	59	3.7 × 10^−8	25	14
Li3N (sintered powder)	24	6.6 × 10^−4	25	15
sc-Li3N (out-of-plane)	47	1.0 × 10^−5	27	16
sc-Li3N (in-plane)	27	1.2 × 10^−3	27	16

---

Surprisingly, the conductivity observed here for polycrystalline Li[B3N2] (2.6 × 10⁻⁷ S cm⁻¹ at 21 °C, 57 kJ mol⁻¹) is ca. fifteen times higher than the conductivity shown by powdered Li₃N (3.7 × 10⁻⁸ S cm⁻¹ at RT; 59 kJ mol⁻¹)¹⁴ having a comparable activation energy, similar layered crystal structure (Table 1) and comparable lithium-lithium distances within the layers (4.020 Å for Li(B3N2),²⁶ 3.648 Å for Li₃N ¹³). This may stem from differences in electrostatic anion–cation interactions. In Li(B3N2), a single negative charge is diluted along the whole (B3N2)⁻ anion, with partial negative charges localised on nitrogen atoms and hydridic atoms bonded to boron atoms, while in Li₃N a triple-negative charge is localised on nitrogen atoms in Li₂N⁻ layers, which might inhibit the mobility of Li⁺ in lithium. On the other hand, comparable values of conductivity, together with structural similarities of both systems, suggest that lithium diffusion in the crystals of Li[B3N2] may resemble the mechanism present in Li₃N,¹⁶ which involves the out-of-plane hopping of Li⁺ cations when migrating along the [Li₂N]⁻ layers in the crystal structure. A closer look at the layered structure of Li[B3N2] revealed that for Li⁺ cations to move between the occupied and vacant tetrahedral sites (T) in the lithium layers, they need to pass through out-of-plane octahedral sites (O) (Fig. 5). Such a T–O–T lithium migration pathway is observed in most solid-state lithium conductors that, unfortunately, do not show ultra-high values of conductivity due to the significant energy barrier of crossing the unstable octahedral sites.³⁰ Numerous similarities between Li[B3N2] and Li₃N also suggest that the conductivity of Li[B3N2] might be several orders of magnitude higher and the activation energy much lower if measured in-plane in single crystals, just as observed for Li₃N (1.2 × 10⁻³ S cm⁻¹ at 27 °C, 27 kJ mol⁻¹ (ref. 16)).

Fig. 5 Visualisations of the crystal structure of Li[B3N2] in the side and top views²⁶ (left), and the alternating occupied (purple) and vacant (grey) tetragonal sites (T) present within the cationic lithium layers shown in the side and top views (right). Vacant octahedral sites (O) (facing tetragonal sites) are formed on both sides of the cationic layers.

The conductivity and activation energy of Li[B3N2] obtained here (4.0 × 10⁻⁶ S cm⁻¹ at 65 °C, 57 kJ mol⁻¹) significantly differ from the data reported earlier by Cascallana-Matías et al.²⁴ (8.7 × 10⁻⁹ S cm⁻¹ at 70 °C; 83 kJ mol⁻¹) (Table 1 and Fig. 5). The differences in both conductivity and activation energy are so large that they cannot be simply explained by differences in the measurement setup used or sample quality. Analysis of the results reported by Cascallana-Matías et al.²⁴ led us to conclude that their samples were at least partially thermally decomposed during EIS measurements. Cascallana-Matías et al.²⁴ presented the results of temperature-resolved EIS measurements conducted in the temperature range of ca. 70–130 °C (343–403 K), i.e., nominally below the temperature of the thermal decomposition and hydrogen evolution of Li[B3N2] observed at ca. 135 °C.^26,27 However, this value was obtained in non-stationary conditions upon dynamic heating,^26,27 while the onset of this process was observed below 100 °C, especially when heated at a low rate.²⁷ Performing this study, trying to collect data in the temperature range reported in the previous study,²⁴ we could not obtain stable or reproducible EIS spectra at ca. 95 °C, which we believe was a result of the slow decomposition of Li[B3N2]. Thus, Cascallana-Matías et al.,²⁴ while performing their tests at temperatures reaching 130 °C with ≥1 h temperature equilibration, and willing to get reproducible values, must have recorded the data several times in the presented temperature range, effectively decomposing the material. In other words, their conductivity data correspond to at least partially decomposed Li[B3N2].

To check this hypothesis, we subjected a fully thermally decomposed Li[B3N2] sample (1 h at 200 °C under argon) to an EIS study in the temperature range of 13–69 °C. We repeatably obtained the conductivity of 1.3 × 10⁻⁷ S cm⁻¹ at 69 °C, with an activation energy of 71 kJ mol⁻¹, comparable to the conductivity of LT-LiBH₄. These values are still one order of magnitude higher than the figures reported by Cascallana-Matías et al.,²⁴ however, our simple experiment proves that at elevated temperatures Li[B3N2] undergoes substantial chemical changes that adversely affect its electronic conductivity. It should be added here that sample operations reported by Cascallana-Matías et al.²⁴ (the exposure of the sample to air and moisture, presence of platinum paste, heating of a compressed pallet, etc.) added so many uncontrollable factors that it would be surprising if their and our samples (thermally decomposed and measured in inert gas conditions) were not different.

We have also compared the figures obtained for Li[B3N2] with the conductivity reported earlier for ammonia borane-based adducts with LiI and LiBH₄.^23,24 We noticed that Li[B3N2] showed similar conductivity to LiI-NH₃BH₃ adducts (Fig. 4) whose crystal structures comprise lithium chains, pseudo-layers, and columns (Fig. 1).²⁴ Li–Li in-chain distances in LiI(NH₃BH₃) (4.291 Å (ref. 24)) and LiI(NH₃BH₃)₂ (4.442 Å (ref. 24)) are only slightly larger than the nearest in-plane distances in Li[B3N2] (4.020 Å (ref. 26)), which is in good agreement with the observed similar conductivities (Tables 1 and 2). Interestingly, lithium chains in LiI(NH₃BH₃)₂ lie close to each other, with a Li–Li distance between the chains of just 4.391 Å, forming non-flat pseudo-layers (rendering lithium diffusion easier), while lithium chains in LiI(NH₃BH₃) are well separated from each other, resulting in inferior conductivity.

Table 2 The nearest distances between Li⁺ cations observed in lithium planes, chains or columns (Li–Li_IN) and between these planes, chains or columns (Li–Li_OUT), and the nearest distances between Li⁺ cations and boron or iodine atoms in the crystal structure of Li[B3N2] and earlier reported materials^{24,26,32–34}

Compound	Li–LiIN [Å]	Li–LiOUT [Å]	Li–X [Å]	Ref.
Li(BH3NH2BH2NH2BH3)	4.020	8.475	2.469	26
Li(BH4)(NH3BH3)	3.158	5.380	2.219	33
Li(BH4)2(NH3BH3)	3.417	4.295	2.535	32
LiI(NH3BH3)	4.291	6.258	2.467	24
LiI(NH3BH3)2	4.420	7.178	2.363	24
LT-LiBH4	3.539	4.271	2.381	34
HT-LiBH4	4.253	4.268	2.474	34

---

Li[B3N2] exhibits lower conductivity than LiBH₄-NH₃BH₃ adducts^23,24 (Fig. 4), and its crystal structures seem to be more favourable for lithium conductivity. (LiBH₄)₂(NH₃BH₃) is comprised of alternating lithium borohydride ionic layers separated by ammonia borane molecular layers. Lithium cations do not form clear chains or layers, but the Li–Li distances are very short within the lithium borohydride layers (3.417 Å (ref. 30)), and only slightly longer (4.295 Å (ref. 30)) between these layers, which may explain the high conductivity of this material. On the other hand, the crystal structure of (LiBH₄)(NH₃BH₃) consists of borohydride columns separated by regions built exclusively of ammonia borane molecules. Lithium cations do not form straight chains within these columns but rather a network of cations with short interaction distances (3.158–4.363 Å (ref. 33)), while the closest Li–Li distances between the borohydride columns are noticeably longer (5.380 Å (ref. 33)). The high conductivity of (LiBH₄)(NH₃BH₃) can also be explained by the remarkably large volume of the unit cell caused by a substantial share of ammonia borane in the structure. The volume of the unit cell of (LiBH₄)(NH₃BH₃) is 1.4 times larger than the volume of the unit cell of (LiBH₄)₂(NH₃BH₃) (both with Z = 8) resulting in an effective decrease in the volume density of lithium cations and this in turn favours high Li-ion conduction.

Conclusions

We have presented a detailed EIS study on the lithium ionic conductivity of Li[B3N2]. The observed conductivity (σ = 4.0 × 10⁻⁶ S cm⁻¹ at 65 °C; E_a = 57 kJ mol⁻¹) was found to be significantly higher than the value reported previously for Li[B3N2] (8.7 × 10⁻⁹ S cm⁻¹ at 70 °C; 83 kJ mol⁻¹ (ref. 24)) which is now believed to have shown properties of a thermally decomposed sample. We found that Li[B3N2] undergoes very slow thermal decomposition at ca. 95 °C, consistent with earlier thermogravimetric observations.^26,27 This explains why samples of Li[B3N2] studied earlier²⁴ were largely thermally decomposed, and thus incorrect lithium-ion conductivities were measured for their specimen. Moreover, the conductivity of Li[B3N2] was found to be comparable with that of ammonia borane hybrid adducts with LiI.²⁴ Surprisingly, polycrystalline Li[B3N2] was found to have a higher conductivity and similar energy barrier for conductivity compared to powdered Li₃N (3.7 × 10⁻⁸ at RT; 59 kJ mol⁻¹ (ref. 14)). The measurement setup used here (IMPED CELL), allows for the easy and highly precise EIS investigation of air/moisture-sensitive samples of powdered solids.

Experimental

All manipulations were performed under an inert atmosphere of argon (5.0) in an MBRAUN Labmaster DP or Vigor SG1200 glovebox (O₂ < 1.0 ppm; H₂O < 1.0 ppm), avoiding the use of metal tools and vessels. High-purity reactants were used: NH₃BH₃ (98%, JSC Aviabor), and LiH (95%, Sigma Aldrich).

Synthesis

Li[B3N2] was obtained using a novel method derived from a dry mechanochemical approach reported earlier by us.²⁶ The entire procedure was carried out without the use of metal tools and vessels to ensure no sample contamination with electronically conducting fractions. LiH and NH₃BH₃ in a molar ratio of 1 : 3 were ground using an agate mortar and pestle for ca. 60 seconds until a fine powder was obtained. The as-obtained mixture of starting reactants was heated for 2 h at 75 °C. The process can be described by eqn (1):

LiH + 3NH₃BH₃ → Li(BH₃NH₂BH₂NH₂BH₃) + NH₃↑ + 2H₂↑ (1)

The quality of the product was comparable with the purity of the samples obtained with other known methods^26,27 as judged from PXD, FTIR, and Raman measurements.

Powder X-ray diffraction

PXRD measurements were obtained using a Panalytical X'Pert Pro with linear PIXcel Medipix2 detector (parallel beam; the CoK_α1 and CoK_α2 radiation intensity ratio of ca. 2 : 1, λ ∼1.7890 Å). Samples were sealed in 0.5 mm thick quartz capillary tubes under an inert argon atmosphere.

Nuclear magnetic resonance

⁷Li NMR spectra were obtained using a Bruker AVANCE II 500 MHz spectrometer. Pb(NO₃)₂ was used as an intrinsic temperature reference. Due to the risk of explosion (lead nitrate is an oxidant while Li[B3N2] is a reductant), only non-metal tools were used during the sample preparation to avoid sparks. For safety reasons, the temperature range of the measurements was narrowed down to 272–348 K.

Electric impedance spectroscopy

EIS measurements were performed in the frequency range of 10⁻²–10⁶ Hz using a Solartron 1260A Frequency Response Analyzer with a 1296A Dielectric Interface using the approach reported earlier.²² All measurements were performed using an in-house designed IMPED CELL²⁵ available from KEMI (Warsaw, Poland). The IMPED CELL housed the sample under an inert atmosphere (if needed) in an air-tight measurement module that can be loaded inside a glovebox under an inert atmosphere (Fig. 6) with no need for binders or electric contact deposition, enabling the reliable investigation of reactive solids in pure form, which is crucial for moisture sensitive Li(B3N2). The IMPED CELL stabilized the temperature (T ± 0.01 °C) and pressure (p ± 0.1 MPa) with the continuous real-time monitoring of these parameters, together with monitoring the sample's thickness (d ± 1 μm) throughout the entire test, allowing the reliable correction of the results. Each sample (ca. 100 mg) was placed inside a sealed stainless-steel module directly between two electrodes (working surface of 0.785 cm²) and compressed under a pressure of ca. 200 MPa during the entire measurement. The temperature was stabilised with a dedicated water jacket coupled with a Lauda RE 1050 thermostat and controlled via SMART software from Solartron. The pressure was stabilised using a SPECAC ATLAS 15T laboratory press. The sample thickness was monitored using a SICK OD Mini LIDAR distance sensor. All the auxiliary data (T, p, d) were collected and synchronised using a dedicated data acquisition unit. The IMPED CELL was loaded under argon gas inside the glovebox. Each experimental spectrum was measured until the value was reproduced. Fitting was carried out using the ZPlot software from Scribner Associates, Inc.

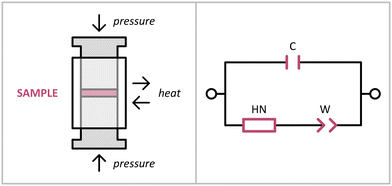

Fig. 6 Scheme of the IMPED CELL showing an air-tight measurement module with the indicated direction of compression and heat exchange (left); the equivalent circuit employs a capacitor (C), Havriliak–Negami (HN) and constant phase element representing the Warburg impedance (W) used for fitting the EIS spectra of Li[B3N2].

The IMPED CELL was designed to provide a versatile, user-friendly tool for EIS research. The development was performed under the Stanford Design Thinking Model approach with a functional usability study based on qualitative analysis employing in-depth interviews and mini-focus group workshops with participants representing the International Electrochemical Society.

Graphical presentation

Visualisations of crystal structures have been performed with Vesta.³⁵ Illustrations have been prepared using Inkscape 0.92.1.³⁶

Data availability

The data supporting this article have been included as part of the ESI.†

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

This research was funded by Polish National Science Centre within the projects Sonata Bis 8 (UMO/2018/30/E/ST5/00854) and Preludium 13 (UMO/2017/25/N/ST5/01977). Development and prototyping of IMPED CELL was funded by Polish National Centre for Research and Development within the project Tango 2 (TANGO2/340584/NCBR/2017). The authors thank all the participants of the functional usability study from Cambridge in the UK, Belgrade in Serbia, and Warsaw in Poland. The authors thank Mr Krzysztof Dawid (KEMI, Warsaw, Poland) for his support in the development of IMPED CELL. The research was carried out with the use of CePT infrastructure financed by the European Union – the European Regional Development Fund within the Operational Programme “Innovative economy” for 2007–2013 (POIG.02.02.00-14-024/08-00). This work is dedicated to Prof. Zbigniew Galus at his 90th birthday.

References

1. M. S. Whittingham, Electrical energy storage and intercalation chemistry, Science, 1976, 192, 1126–1127.
2. J. M. Tarascon and M. Armand, Issues and challenges facing rechargeable lithium batteries, Nature, 2001, 414, 359–367.
3. E. Quartarone and P. Mustarelli, Electrolytes for solid-state lithium rechargeable batteries: recent advances and perspectives, Chem. Soc. Rev., 2011, 40, 2525–2540.
4. B. Hamankiewicz, A. Czerwiński, M. Krajewski, M. Michalska, L. Lipińska, J. Kozakiewicz, J. Przybylski, K. Sylwestrzak and W. Sarna, Lithium-ion cel, Polish patent application noP.416704, 2016.
5. K. Iwamoto, N. Aotani, K. Takada and S. Kondo, Application of Li₃PO₄-L₂S-SiS₂ glass to the solid state secondary batteries, Solid State Ionics, 1995, 79, 288–291.
6. Y. Kato, S. Hori, T. Saito, K. Suzuki, M. Hirayama, A. Mitsu, M. Yonemura, H. Iba and R. Kanno, High-power all-solid-state batteries using sulphide superionic conductors, Nat. Energy, 2016, 1, 16030.
7. T. Takeuchi, H. Kageyama, K. Nakanish, M. Tabuchi, H. Sakaebe, T. Ohta, H. Senoh, T. Sakai and K. Tatsumi, All-Solid-State Lithium Secondary Battery with Li₂S-C Composite Positive Electrode Prepared by Spark-Plasma-Sintering Process, J. Electrochem. Soc., 2010, 157, A1196–A1201.
8. K. Yoon, J. J. Kim, W. M. Seong, M. H. Lee and K. Kang, Investigation on the interface between Li₁₀GeP₂S₁₂ electrolyte and carbon conductive agents in allsolid-state lithium battery, Sci. Rep., 2018, 8, 8066.
9. V. Thangadurai and W. Weppner, Recent progress in solid oxide and lithium ion conducting electrolytes research, Ionics, 2016, 12, 81–92.
10. S. Stramare, V. Thangadurai and W. Weppner, Lithium Lanthanum Titanates: A Review, Chem. Mater., 2003, 15, 3974–3990.
11. V. Thangadurai, H. Kaack and W. Weepner, Novel Fast Lithium Ion Conduction in Garnet-Type Li₅La₃M₂O₁₂ (M = Nb, Ta), J. Am. Ceram. Soc., 2003, 86, 437.
12. J. L. Briant and G. C. Farrington, Ionic Conductivity in Lithium and Lithium-Sodium Beta Alumina, J. Electrochem. Soc., 1981, 128, 1830–1934.
13. A. Rabenau and H. Schulz, Re-evaluation of the lithium nitride structure, J. Less-Common Met., 1976, 50, 155–159.
14. B. A. Boukamp and R. A. Huggins, Lithium ion conductivity in lithium nitride, Phys. Lett. A, 1976, 58, 231–233.
15. B. A. Boukamp and R. A. Huggins, Fast ionic conductivity in lithium nitride, Mater. Res. Bull., 1978, 13, 23–32.
16. U. v. Alpen, A. Rabenau and G. H. Talat, Ionic conductivity in Li₃N single crystals, Appl. Phys. Lett., 1977, 30, 621–623.
17. J. B. Bates, N. J. Dudney, G. R. Gruzalski, R. A. Zuhr, A. Choudhury, C. F. Luck and J. D. Robertson, Electrical properties of amorphous lithium electrolyte thin films, Solid State Ionics, 1992, 53–56, 647–654.
18. N. Kamaya, K. Homma, Y. Yamakawa, M. Hirayama, R. Kanno, M. Yonemura, T. Kamiyama, Y. Kato, S. Hama, K. Kawamoto and A. Mitsui, A lithium superionic conductor, Nat. Mater., 2011, 10, 682–686.
19. M. Matsuo, Y. Nakamori, S. Orimo, H. Maekawa and H. Takamura, Lithium superionic conduction in lithium borohydride accompanied by structural transition, Appl. Phys. Lett., 2007, 91, 224103.
20. H. Maekawa, M. Matsuo, H. Takamura, M. Ando, Y. Noda, T. Karahashi and S. I. Orimo, Halide-Stabilized LiBH₄, a Room-Temperature Lithium Fast-Ion Conductor, J. Am. Chem. Soc., 2009, 131, 894–895.
21. M. B. Ley, D. B. Ravnsbek, Y. Filinchuk, Y. S. Lee, R. Janot, Y. W. Cho, J. Skibsted and T. R. Jensen, LiCe(BH₄)₃Cl, a New Lithium-Ion Conductor and Hydrogen Storage Material with Isolated Tetranuclear Anionic Clusters, Chem. Mater., 2012, 24, 1654–1663.
22. K. J. Fijalkowski, R. Jurczakowski, W. Koźmiński and W. Grochala, Insights from impedance spectroscopy into the mechanism of thermal decomposition of M(NH₂BH₃), M = H, Li, Na, Li_0.5Na_0.5, hydrogen stores, Phys. Chem. Chem. Phys., 2012, 14, 5778–5784.
23. H. Liu, Z. Ren, X. Zhang, J. Hu, M. Gao, H. Pan and Y. Liu, Incorporation of Ammonia Borane Groups in the Lithium Borohydride Structure Enables Ultrafast Lithium Ion Conductivity at Room Temperature for Solid-State Batteries, Chem. Mater., 2020, 32, 671–678.
24. I. Cascallana-Matías, J. Breternitz, A. Baker, H. Davis, E. J. Cussen and D. H. Gregory, Molecular-salt hybrids; integration of ammonia borane into lithium halides, Inorg. Chem. Front., 2019, 6, 808–812.
25. K. J. Fijalkowski and R. Jurczakowski, Cell and method for electrical measurements of highly reactive powder and liquid samples, Patents no. PL221643 (2016), EP2788745 (2016), US9651595 (2017), JP6219831 (2017).
26. K. J. Fijalkowski, T. Jaroń, P. J. Leszczyński, E. Magoś-Palasyuk, T. Palasyuk, M. K. Cyrański and W. Grochala, M(BH₃NH₂BH₂NH₂BH₃) – the missing link in the mechanism of the thermal decomposition of light alkali metal amidoboranes, Phys. Chem. Chem. Phys., 2014, 16, 23340–23346.
27. R. Owarzany, K. J. Fijałkowski, T. Jaroń, P. J. Leszczyński, Ł. Dobrzycki, M. K. Cyrański and W. Grochala, Complete Series of Alkali-Metal M(BH₃NH₂BH₂NH₂BH₃) Hydrogen-Storage Salts Accessed via Metathesis in Organic Solvents, Inorg. Chem., 2016, 55, 37–45.
28. J. R. Dygas, Dielectric function of ionic conductors studied by impedance spectroscopy, Solid State Ionics, 2005, 176, 2065–2078.
29. I. B. Pehlivan, R. Marsal, P. Georén, C. G. Granqvist and G. A. Niklasson, Ionic relaxation in polyethyleneimine-lithium bis (trifluoromethylsulfonyl) imide polymer electrolytes, J. Appl. Phys., 2010, 108, 074102.
30. Y. Wang, W. D. Richards, S. P. Ong, L. J. Miara, J. C. Kim, Y. Mo and G. Ceder, Design principles for solid-state lithium superionic conductors, Nat. Mater., 2015, 14, 1026–1032.
31. D. Sveinbjornsson, J. S. G. Myrdal, D. Blanchard, J. J. Bentzen, T. Hirata, M. B. Mogensen, P. Norby, S. I. Orimo and T. Vegge, Effect of Heat Treatment on the Lithium Ion Conduction of the LiBH₄−LiI Solid Solution, J. Phys. Chem. C, 2013, 117, 3249–3257.
32. H. Wu, W. Zhou, F. E. Pinkerton, M. S. Meyer, G. Srinivas, T. Yildirim, T. J. Udovic and J. J. Rush, A new family of metal borohydride ammonia borane complexes: Synthesis, structures, and hydrogen storage properties, J. Mater. Chem., 2010, 20, 6550–6556.
33. J. Luo, H. Wub, W. Zhou, X. Kang, Z. Fang and P. Wang, LiBH₄·NH₃BH₃: A new lithium borohydride ammonia borane compound with a novel structure and favorable hydrogen storage properties, Int. J. Hydrogen Energy, 2012, 37, 10750–10757.
34. Y. Filinchuk, D. Chernyshov and R. Cerny, Lightest Borohydride Probed by Synchrotron X-ray Diffraction: Experiment Calls for a New Theoretical Revision, J. Phys. Chem. C, 2008, 112, 10579–10584.
35. K. Momma and F. Izumi, VESTA 3 for three-dimensional visualization of crystal, volumetric and morphology data, J. Appl. Crystallogr., 2011, 44, 1272–1276.
36. Inkscape project, 2017.

---

Footnotes

† Electronic supplementary information (ESI) available: Synthesis, ⁷Li MAS NMR, Rietveld analysis of Li(B3N2) PXRD, EIS of pristine Li(B3N2). See DOI: https://doi.org/10.1039/d4qi01595a

‡ Obtained Li[B3N2] lattice parameters: a = 4.014 Å, c = 16.924 Å in P4̄2c, purity = 99%, GOF = 1.21, R_p = 0.97, wR_p = 1.38.

---
