High-performance TADF-OLEDs utilizing copper(I) halide complexes containing unsymmetrically substituted thiophenyl triphosphine ligands

Abstract

Highly efficient OLEDs fabricated with thermally activated delayed fluorescent Cu(I) complexes have attracted significant attention. However, achieving both high quantum efficiency and short decay lifetimes remains a considerable challenge. Herein, we reported the successful synthesis and characterization of two rigid triphosphine ligands, each containing two unsymmetrically substituted thiophenyl rings, and their corresponding mononuclear copper(I) halide complexes, CuX(L1) and CuX(L2) [L1 = (2-PPh₂-C₄H₂S)₂(3-PPh), X = I (1), Br (2), Cl (3); L2 = (2-PPh₂-5-SiMe₃-C₄HS)₂(3-PPh), X = I (4), Br (5), Cl (6)]. The structures and photophysical properties of these complexes were thoroughly investigated. At room temperature, the powder samples of complexes 1–6 exhibited intense delayed fluorescence, ranging from yellow-green to yellow in color (λ_em = 553–581 nm, τ = 3.8–9.4 μs, and Φ = 0.19–0.29 for 1–3; λ_em = 565–589 nm, τ = 2.2–7.6 μs, and Φ = 0.36–0.61 for 4–6). The incorporation of two trimethylsilyl groups into the unsymmetrically substituted thiophenyl rings significantly improved the photoluminescence quantum yield (PLQY) and allowed for fine-tuning of the light-emitting color of the complexes. Among them, complex 4 displayed a high PLQY of 0.61 and a short decay lifetime of 2.2 μs. The radiative decay rate (k_r) was 2.8 × 10⁵ s⁻¹, comparable with that of Ir(III) complexes. Vacuum-deposited organic light-emitting devices incorporating complex 4 exhibited yellow emission, achieving a maximum external quantum efficiency (EQE) of 14.57% and a current efficiency of 33.44 cd A⁻¹.

---

1 Introduction

Luminescent Cu(I) complexes, as an important class of thermally activated delayed fluorescence (TADF) emitters, represent a highly promising category of emitters for applications in electroluminescent devices since they facilitate the efficient conversion of all electrically generated excitons into light.^1–6 TADF operates through a singlet harvesting mechanism, which significantly shortens the emission decay time at ambient temperature. This results in the suppression of efficiency roll-off as the current density increases. To achieve TADF in Cu(I) complexes, it is essential that the energy gap (ΔE_ST) between the first singlet excited state (S₁) and the first triplet excited state (T₁) be small.^7–11 Furthermore, Cu(I) complexes should exhibit a high photoluminescence quantum yield (PLQY). Therefore, rigidifying the molecular structure either through the use of sterically demanding ligands or by creating a rigid environment is crucial. This strategy helps to reduce the radiative deactivation of the luminescence, which can be caused by structural distortions at the copper center in the excited state.

Tsuboyama's group synthesized a rigid diphosphine ligand, dppb (1,2-bis(diphenylphosphino)benzene), and its Cu(I) halide complexes. The dinuclear, four-coordinated, halogen-bridged structure of these complexes resulted in a PLQY of up to 80%.¹² Osawa et al. reported a diphosphine ligand, dtpb (2-bis(o-ditolylphosphino)benzene), with a methyl substituent at the ortho position of the peripheral phenyl group. The o-methyl group in dtpb was essential for the formation of three-coordinate Cu(I) halide complexes.¹³ The trigonally planar coordination geometry of the Cu(I) halide complexes results in high PLQY of up to 71%. Furthermore, a vapor-deposited OLED incorporating these complexes exhibited a maximum EQE of 21.3%, which is comparable to that of cyclometalated iridium(II)-based devices.

Apart from rigid diphosphine ligands that can be used to construct highly emissive Cu(I) halide complexes, a rigid triphosphine ligand (TTPP = 2,2′-(phenylphosphinediyl)bis(2,1-phenylene)bis(diphenylphosphine)) was firstly reported by Xu's group.¹⁴ Complexes CuX(TTPP) show PLQY of as high as 85%, and provided 16.3% for EQE.

Thiophene is an electron-rich heteroaryl ring, which is widely used as a donor material in solar cells.¹⁵ It was also selected to construct dinuclear Cu(I) halide complexes containing diphosphine^16,17 and mononuclear heteroleptic Cu(I) halide complexes containing diphosphine and monophosphine^18,19 by our group and Lu's group. The replacement of benzene by more electron-rich thiophene usually results in the blue-shifting emission of the complexes,¹⁶ emission color can be largely tuned from deep blue to green.¹⁸ Moreover, Cu(I) halide complexes [Cu(I-2)X]₂ containing unsymmetrically substituted thiophenyl diphosphine I-2 displayed higher quantum efficiency than [Cu(I-1)X]₂-containing symmetrically substituted thiophenyl diphosphine I-1 (Fig. 1).¹⁷

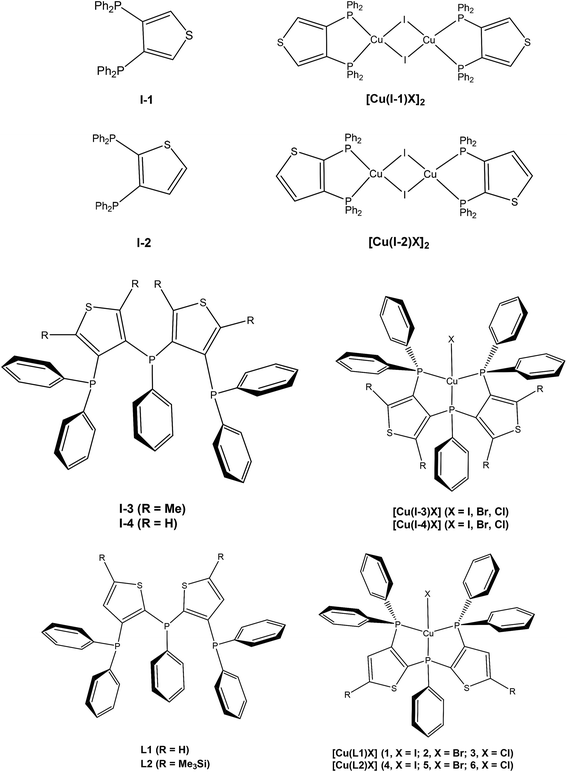

Fig. 1 Previously reported symmetrically substituted thiophenyl diphosphine (I-1) and triphosphine (I-3 and I-4), unsymmetrically substituted thiophenyl diphosphine (I-2) and their corresponding Cu(I) halide complexes and the present work.

Recently, two symmetrically substituted thiophenyl rings were used to replace two benzene rings to construct rigid triphosphine (Fig. 1, I-3 and I-4) and the corresponding Cu(I) halide complexes [Cu(I-3)X] and [Cu(I-4)X] by our group²⁰ (Fig. 1), apart from tuning of the emission color can, good solubility of the complexes makes it suitable to fabricate solution-processed OLEDs. To the best of our knowledge, rigid triphosphine Cu(I) halide complexes are rarely reported, and the focus has been mainly on symmetrically substituted aromatic or heteroaromatic rings, while unsymmetrically substituted heteroaromatic triphosphine Cu(I) halide complexes have not been reported so far. With our great interests in Cu(I) halide complexes with excellent photophysical properties,^21–28 here, we described the synthesis, structures and photophysical properties of two unsymmetrically substituted thiophenyl triphosphine ligands (L1 and L2), and six mononuclear Cu(I) halide complexes 1–6 (Fig. 1). Vacuum-deposited OLED devices based on complex 4 were fabricated and their electroluminescent behaviors were studied.

2 Experimental section

2.1 Synthesis of ligand L1

Under nitrogen at a temperature of −90 °C, n-BuLi (2.5 M in hexane, 9.16 mL, 22.90 mmol) was added dropwise into a dry THF (30 mL) and diethyl ether (30 ml) solution containing bis(3-bromothiophen-2-yl)(phenyl)phosphine (4.50 g, 10.41 mmol). The resulting mixture was stirred at −90 °C for 0.5 h, then PPh₂Cl (5.05 g, 22.90 mmol) was added and the mixture was stirred at −90 °C for 0.5 h. After that, the mixture naturally warmed up to room temperature. Water (20 mL) was added to quench the reaction. The organic phase was separated, and the aqueous phase was extracted using CH₂Cl₂ (3 × 20 mL). The organic phase was combined and then dried with magnesium sulfate. After removing the solvent from the filtrate, the remaining substance was purified by column chromatography over silica gel using PE (petroleum ether)/DCM(dichloromethane) (9 : 1, v : v) as the eluent. The product was obtained as a white solid.

L1 (yield: 3.70 g, 55.3%). ¹H NMR (400 MHz, d₆-DMSO), δ 7.81 (d, J = 4.0 Hz, 2H), 7.33–7.26 (m, 15H), 7.23–7.19 (m, 2H), 7.16–7.08 (m, 8H), 6.75–6.73 (m, 2H). ³¹P NMR (162 MHz, CDCl₃), δ −25.68 (1P), −26.39 (1P), −42.71 (1P, J_P–P = 114.21 Hz). ¹³C NMR (101 MHz, CDCl₃), δ 147.02, 146.73, 146.61, 146.33, 144.91, 144.75, 144.62, 144.46, 137.91, 137.80, 137.63, 137.54, 133.55, 133.38, 133.18, 133.01, 131.32, 128.95, 128.39, 128.35, 128.28, 128.21, 128.13. Anal. calcd for C₃₈H₂₉P₃S₂: C, 71.02; H, 4.55, found: C, 72.03; H, 4.54. HRMS (ESI): m/z calcd for [C₃₈H₃₀P₃S₂]⁺, 643.1002, found: 643.1009.

2.2 Synthesis of the ligand L2

Under nitrogen at 0–5 °C, n-BuLi (2.5 M in hexane, 3.83 mL, 9.58 mmol) was added dropwise into a dry THF (20 mL) and diethyl ether (20 ml) solution containing the ligand L1 (2.80 g, 4.36 mmol). The resulting mixture was stirred at 0–5 °C for 15 min, then trimethylchlorosilane (TMSCl, 1.04 g, 9.58 mmol) was added and the mixture was stirred at 0–5 °C for 20 min. After that, the mixture naturally warmed up to room temperature. Water (15 mL) was added to quench the reaction. The organic phase was separated, and the aqueous phase was extracted using CH₂Cl₂ (3 × 15 mL). The organic phase was combined and then dried with magnesium sulfate. The solvent from the filtrate was removed and the residue was purified by column chromatography over silica gel using petroleum ether/dichloromethane (7 : 1, v : v) as the eluent. The product was obtained as a white solid.

L2 (yield: 3.00 g, 87.5%). ¹H NMR (400 MHz, d₆-DMSO), δ 7.36–7.26 (m, 17H), 7.14–7.09 (m, 8H), 6.89 (d, J = 2.0 Hz, 2H), 0.12 (s, 18H, 2SiMe₃). ³¹P NMR (162 MHz, CDCl₃), δ −25.81 (1P), −26.52 (1P), −41.62 (1P, J_P–P = 115.02 Hz). ¹³C NMR (101 MHz, CDCl₃), δ 152.13, 151.85, 151.72, 151.44, 147.10, 144.91, 144.75, 144.62, 144.46, 139.53, 139.49, 138.25, 138.13, 137.74, 133.66, 133.63, 133.43, 133.37, 133.18, 128.85, 128.25, 128.18, 128.06, 0.08. Anal. calcd for C₄₄H₄₅P₃S₂Si₂: C, 67.15; H, 5.76, found: C, 67.16; H, 5.75. HRMS (ESI): m/z calcd for [C₄₄H₄₆P₃S₂Si₂]⁺, 787.1792, found: 787.1789.

2.3 Synthesis of complexes 1–6

Complexes 1–6 were prepared according to the following method. At room temperature, a solution of ligand L1 (0.96 g, 1.50 mmol) or L2 (1.18 g, 1.50 mmol) in 25 mL of dichloromethane, copper(I) halide (CuI: 0.29 g, 1.50 mmol; CuBr: 0.22 g, 1.50 mmol; CuCl: 0.15 g, 1.50 mmol) was prepared, and the mixture was stirred for 4 h. Then, the suspension was filtered off, and the filtrate was collected and concentrated in a vacuum to form a yellow solid. The yellow solid was dissolved in dichloromethane and n-hexane was added, and the precipitate formed was collected and the solvent was removed to obtain the pure product. Yellow crystals for 1–6 were obtained by dissolving solid in solvents (CH₂Cl₂/CH₃CN for 1, 4, 5 and 6, CH₂Cl₂/n-hexane for 2, and CH₂Cl₂/ethanol for 3) and slow evaporation at room temperature.

Complex 1 (yield: 1.12 g, 89.6%). ¹H NMR (400 MHz, d₆-DMSO), δ 8.26 (d, J = 4 Hz, 2H), 7.85–7.75 (m, 4H), 7.59 (t, J = 8 Hz, 2H), 7.48–7.32 (m, 9H), 7.34 (t, J = 4 Hz, 2H), 7.16 (t, J = 8 Hz, 4H), 7.10–7.06 (m, 2H), 6.85–6.70 (m, 4H). ³¹P NMR (162 MHz, CDCl₃), δ −21.27 (s, 2P), −41.56 (t, J_P–P = 142.56 Hz, 1P). Anal. calcd for C₃₈H₂₉CuIP₃S₂: C, 54.78; H, 3.51, found: C, 54.79; H, 3.50. HRMS (ESI): m/z calcd for [C₃₈H₂₉CuP₃S₂]⁺, 705.0220, found: 705.0206.

Complex 2 (yield: 1.03 g, 87.3%). ¹H NMR (400 MHz, d₆-DMSO), δ 8.26 (d, J = 4 Hz, 2H), 7.96–7.87 (m, 4H), 7.66–7.59 (m, 2H), 7.51–7.42 (m, 10H), 7.32 (t, J = 8 Hz, 2H), 7.12 (t, J = 8 Hz, 6H), 6.66–6.59 (m, 3H). ³¹P NMR (162 MHz, CDCl₃), δ −21.29 (d, J_P–P = 105.3 Hz, 2P), −48.08 (1P). Anal. calcd for C₃₈H₂₉CuBrP₃S₂: C, 58.06; H, 3.72, found: C, 58.08; H, 3.70. HRMS (ESI): m/z calcd for [C₃₈H₂₉CuP₃S₂]⁺, 705.0220, found: 705.0219.

Complex 3 (yield: 0.94 g, 84.5%). ¹H NMR (400 MHz, d₆-DMSO), δ 8.25 (d, J = 4 Hz, 2H), 8.01–7.90 (m, 4H), 7.60–7.54 (m, 2H), 7.53–7.43 (m, 10 H), 7.31 (t, J = 8 Hz, 2H), 7.11 (t, J = 8 Hz, 6H), 6.62–6.56 (m, 3H). ³¹P NMR (162 MHz, CDCl₃), δ −21.23 (d, J_P–P = 102.06 Hz, 2P), −44.93 (t, J_P–P = 134.46 Hz, 1P). Anal. calcd for C₃₈H₂₉CuClP₃S₂: C, 61.54; H, 3.94, found: C, 61.52; H, 3.96. HRMS (ESI): m/z calcd for [C₃₈H₂₉CuP₃S₂]⁺, 705.0220, found: 705.0175.

Complex 4 (yield: 1.30 g, 88.7%). ¹H NMR (400 MHz, d₆-DMSO), δ 7.90–7.75 (m, 5H), 7.55–7.40 (m, 10H), 7.33 (t, J = 8.0 Hz, 2H), 7.22 (d, J = 2.4 Hz, 2H), 7.11 (t, J = 8 Hz, 4H), 6.75–6.65 (m, 4H), 0.27 (s, 18H, 2SiMe₃). ³¹P NMR (162 MHz, CDCl₃), δ −22.10 (2P), −44.56 (t, J_P–P = 162 Hz, 1P). Anal. calcd for C₄₄H₄₅CuIP₃S₂Si₂: C, 54.06; H, 4.64, found: C, 54.07; H, 4.62. HRMS (ESI): m/z calcd for [C₄₄H₄₅CuP₃S₂Si₂]⁺, 849.1010, found: 849.1057.

Complex 5 (yield: 1.16 g, 83.1%). ¹H NMR (400 MHz, d₆-DMSO), δ 7.95–7.87 (m, 4H), 7.77–7.69 (m, 2H), 7.46 (t, J = 8.0 Hz, 9H), 7.33 (t, J = 8.0 Hz, 2H), 7.22 (d, J = 2.8 Hz, 2H), 7.12 (t, J = 8.0 Hz, 4H), 6.74–6.62 (m, 4H), 0.26 (s, 18H, 2SiMe₃). ³¹P NMR (162 MHz, CDCl₃), δ −20.90 (d, J_P–P = 102.06 Hz, 2P), −43.53 (t, J_P–P = 152.28 Hz, 1P). Anal. calcd for C₄₄H₄₅CuBrP₃S₂Si₂: C, 56.80; H, 4.87, found: C, 56.78; H, 4.86. HRMS (ESI): m/z calcd for [C₄₄H₄₅CuP₃S₂Si₂]⁺, 849.1010, found: 849.1004.

Complex 6 (yield: 1.08 g, 81.3%). ¹H NMR (400 MHz, d₆-DMSO), δ 8.05–7.97 (m, J = 8.0 Hz, 4H), 7.75–7.68 (m, 2H), 7.52–7.44 (m, 9H), 7.31 (t, J = 8.0 Hz, 2H), 7.24 (d, J = 2.4 Hz, 2H), 7.09 (t, J = 8.0 Hz, 4H), 6.62–6.54 (m, 4H), 0.26 (s, 18H, 2SiMe₃). ³¹P NMR (162 MHz, d₆-DMSO), δ −19.79 (d, J_P–P = 157.14 Hz, 2P), −42.12 (t, J_P–P = 162 Hz, 1P). Anal. calcd for C₄₄H₄₅CuClP₃S₂Si₂: C, 59.64; H, 5.12, found: C, 59.65; H, 5.11. HRMS (ESI): m/z calcd for [C₄₄H₄₅CuP₃S₂Si₂]⁺, 849.1010, found: 849.1052.

3 Results and discussion

3.1 Syntheses and characterization

Scheme 1 presents the synthetic pathways to ligands L1, L2 and complexes 1–6. The ligand L1 was synthesized in a mixture of bis(3-bromothiophen-2-yl)(phenyl)phosphine and n-BuLi to which PPh₂Cl was added to form a mole ratio of 1 : 2.2 : 2.2 in THF/Et₂O at −90 °C under N₂. L2 was synthesized from a mixture of L1, n-BuLi and TMSCl at a mole ratio of 1 : 2.2 : 2.2 in THF/Et₂O at 0–5 °C under N₂. L1 and L2 were obtained in 55.3% and 87.5% yields, respectively. Complexes 1–6 were synthesized in 81.3%−89.6% yields from the mixture of CuX and 1 equivalent of the ligand L1 or L2 in CH₂Cl₂. The structures of complexes 1–6 were identified (Fig. 2 and Fig. S1–S26†). They are stable in the air (Fig. S27†) and dissolved in dichloromethane, chloroform, ethyl acetate and THF.

Scheme 1 Synthetic routes of the ligands L1 and L2 and complexes 1–6. (1) n-BuLi, PPh₂Cl, THF/Et₂O, −90 °C; (2) n-BuLi, TMSCl, THF/Et₂O, 0–5 °C; and (3) CuX, DCM, r.t.

Fig. 2 ORTEP diagrams of complexes 1–6. H atoms were omitted for clarity.

The Oak Ridge thermal ellipsoid plots (ORTEP) diagrams of complexes 1–6 show that one copper(I) center is tetrahedrally coordinated with one halogen atom and three P atoms of ligand L1 or L2 (Fig. 2). There is one solvent CH₂Cl₂ molecule in the complex 2 (Tables 1 and S1†). The bond length of Cu–X increases as the X radius increases (1 > 2 > 3 and 4 > 5 > 6). Under the same halogen, the bond lengths of Cu–X in 4–6 are shorter than those in 1–3 due to the introduction of two trimethylsilyl groups. The bond lengths of Cu–X in 1–3 are very close to those in Cu(I) halide complexes [Cu(I-4)X] with the symmetrically substituted thiophenyl triphosphine I-4²⁰ (Fig. 1, Cu–I: 2.5631(4), Cu–Br: 2.3956(5) and Cu–Cl: 2.2670(6) Å), while the bond lengths of Cu–X in 4–6 are shorter than those in Cu(I) halide complexes [Cu(I-3)X] with symmetrically substituted dimethylthiophenyl triphosphine I-3²⁰ (Fig. 1, Cu–I: 2.5261(4), Cu–Br: 2.3599(5) and Cu–Cl: 2.2389(6) Å). The average bond lengths of Cu–P in 1–3 (2.2797–2.2883 Å) are shorter than those in 4–6 (2.3036–2.3091 Å), suggesting that L1 has stronger coordinating ability with Cu(I) than L2. The bond angles of P1–Cu–P2 and P1–Cu–P3 in 1–3 (89.50–90.56°) are very close to those in Cu(I) halide complexes [Cu(I-4)X] with symmetrically substituted thiophenyl triphosphine I-4 (89.00–91.56°)²⁰ larger than that in 4–6 (86.11–88.33°), showing more compact configuration around Cu(I) center in 4–6 than that in 1–3. Complexes 4–6 exhibit slightly stronger π–π interactions between the two thiophenyl rings than in complexes 1–3, the centroid–centroid distances between the two thiophenyl rings in complexes 4–6 are 4.599–4.774 Å in comparison to 4.858–4.929 Å in 1–3 (Fig. S28–S33†).

Table 1 Selected bond lengths (Å) and angles (°) for complexes 1–6

Complex	1	2·CH2Cl2	3	4	5	6
Cu–X	2.5698(18)	2.4034(3)	2.2828(6)	2.5480(4)	2.3782(3)	2.2510(4)
Cu–P1	2.298(3)	2.2798(5)	2.2875(7)	2.3051(6)	2.3073(5)	2.3144(4)
Cu–P2	2.265(3)	2.2807(5)	2.2786(6)	2.2949(7)	2.3182(5)	2.2947(5)
Cu–P3	2.276(3)	2.2794(6)	2.2988(6)	2.3108(7)	2.2944(5)	2.3181(5)
P1–Cu–P2	89.50(12)	89.575(19)	90.38(2)	88.33(2)	86.217(17)	87.978(16)
P1–Cu–P3	89.66(11)	90.379(19)	90.56(2)	86.43(2)	88.166(17)	86.112(16)
P2–Cu–X	115.34(10)	108.606(17)	116.49(2)	119.75(2)	118.336(16)	120.076(18)
P3–Cu–X	109.97(9)	117.578(17)	114.12(2)	117.41(2)	119.792(16)	118.261(18)

---

3.2 Photophysical properties, electrochemical properties and computational studies

UV-vis absorption spectra of ligands L1, L2 and complexes 1–6 in CH₂Cl₂ at room temperature are shown in Fig. 3. Ligand L1 shows strong absorption peaks at 263 and 278 nm, and ligand L2 exhibits more intense and red-shifted absorption peaks at 264 and 285 nm due to the introduction of the trimethylsilyl groups, which correspond to π → π* and n → π* transitions of phenylphosphine and thiophenylphosphine, respectively.¹⁸ The red shift of the absorption peaks is due to the introduction of the trimethylsilyl groups, which shows σ–π hyperconjugated effect.²⁹ Complexes 1–3 display intense absorption bands (251–257 nm), broad bands (276–281 and 305–307 nm) and tails (365–420 nm), and complexes 4–6 exhibit more intense and red-shifted absorption bands (256–266 nm), two broad bands (286–287 and 314–317 nm) and tails (370–420 nm). The weak low-energy absorption tails, which are not observed in the corresponding free ligands spectra, might be ascribed to the charge transfer transitions including metal-to-ligand charge transition (MLCT) and halogen-to-ligand charge transition (XLCT).³⁰

Fig. 3 Absorption spectra of (a) ligand L1 and complexes 1–3 (b) ligand L2 and complexes 4–6 in CH₂Cl₂ at room temperature.

In order to clarify the transition character of these weak low-energy absorption tails, we carried out the time-dependent density functional theory (TD-DFT) calculations for complexes 1–6 on the basis of their optimized S₀ geometries. All the simulated UV-vis absorption spectra showed a similar profile to the corresponding experimental ones, indicating the validity of our calculation method (Fig. 4 and Fig. S34†). According to the calculation, the absorption tails can be ascribed to the electronic transitions of the highest occupied molecular orbital (HOMO) to the lowest unoccupied molecular orbital (LUMO) due to its overwhelming contribution (≥96%) (Tables S2–S7†). According to the orbital composition analysis (Table 2, Fig. 5 and Fig. S37–S42†), it can be seen that the Cu, halogen, P of triphosphine ligand L1 or L2 contribute significantly to HOMO. The LUMO of the complexes is mainly localized on the thiophenyl rings of the ligand L1 or L2 (ca. 99%). Therefore, the absorption tails of complexes 1–6 in the experiment can reasonably be assigned to (metal and halogen)-to-ligand charge transitions (M + X)LCT and intraligand charge transitions (ILCT). The ratio of charge transfer contribution at optimized S₀ geometry of complexes 1–6 shows that the contribution from ILCT is much higher than MLCT and XLCT (Table 2). As the halogen atomic number decreases, the ratio of ILCT and MLCT further increases. According to the MO distribution patterns of complexes 1–6 in Fig. 5 and the orbital compositions analysis in Fig. S37–S42,† the trimethylsilyl group linked to the LUMO-dominating thiophenyl rings of complexes 4–6 can slightly extend the LUMO distribution and show σ–π hyperconjugated effect, leading to a stabilized LUMO energy level. Hence, complexes 4–6 show lower LUMO energy levels than those of 1–3. Therefore, complexes 4–6 show slightly red-shifted absorption tails relative to those of 1–3.

Table 2 TD-DFT results of complexes 1–6 on the basis of their optimized S₀ geometries

Complex	MO	Contribution ratios of metal, halogen, and triphosphine ligand to MOs (%)			Main configuration of S0 → S1 excitation/Ecal/λcal/f^a
		Cu	X	L1 or L2
a H → L denotes the transition from HOMO to LUMO. Ecal, λcal and f denote calculated excitation energy, absorption wavelength and oscillator strength, respectively.
1	H	26.12	29.28	44.60	H → L (97%)
	L	0.91	0.12	98.97	3.21 eV/385.9 nm/0.0185
2	H	31.59	14.19	54.22	H → L (97%)
	L	0.90	0.10	99.00	3.24 eV/383.1 nm/0.0201
3	H	33.91	8.61	57.48	H → L (98%)
	L	0.90	0.08	99.02	3.24 eV/383.1 nm/0.0204
4	H	25.96	29.08	44.96	H → L (96%)
	L	0.88	0.12	99.00	3.17 eV/391.2 nm/0.0250
5	H	31.16	14.16	54.68	H → L (98%)
	L	0.88	0.10	99.02	3.19 eV/388.1 nm/0.0273
6	H	33.44	8.61	57.95	H → L (98%)
	L	0.89	0.09	99.02	3.19 eV/388.1 nm/0.0280

---

Fig. 4 Experimental UV-vis absorption spectra and simulated spectra with oscillator strength for complexes 1 and 4.

Fig. 5 Molecular orbital (MO) distribution patterns of complexes 1–6 based on their optimized S₀ geometries.

The electrochemical properties of complexes 1–6 were studied by cyclic voltammetry (CV). Cyclic voltammograms of complexes 1–6 in CH₂Cl₂ (2 × 10⁻³ M) and TBAPF₆ (0.1 M) are provided in Fig. 6, and the electrochemical data are shown in Table S8.† The first oxidation peak potentials (E_ox1) of complexes 1–3 were found to be 0.65–0.78 V, higher than those of 4–6 (0.62–0.72 V), indicating easier oxidation by the electron-rich trimethylsilyl moieties in 4–6. The first oxidation stages of all the complexes correspond to the oxidation of Cu⁺ ions. The onset oxidation potentials (E_on-s) of the complexes were found to be 0.10–0.21 V vs. Fc/Fc⁺ (Table S8†), and the energy levels for their HOMOs were calculated to be −4.84–−4.95 eV (E_HOMO = −4.74 − E_on-s). In association with the values of their energy gaps (ΔE_g), which were estimated from the onset wavelengths of their absorption spectra (Fig. 3), the energy levels of their LUMOs were calculated to be −1.92–−2.00 eV (E_LUMO = E_HOMO + ΔE_g).

Fig. 6 Cyclic voltammograms of 2 × 10⁻³ M solutions of complexes 1–6 in DCM containing 0.1 M TBAPF₆ using the saturated calomel electrode as a reference electrode.

At 297 K, complexes 1–6 in powder exhibit intense yellow-green to yellow emissions (1 → 6: λ_em: 553, 581, 577, 565, 578 and 589 nm; τ: 8.0, 3.8, 9.4, 2.2, 6.4 and 7.6 μs; Φ: 0.29, 0.19, 0.27, 0.61, 0.38 and 0.36, Fig. 7, Fig. S36† and Table 3). The maximum emission wavelengths of complexes decrease (except complex 2) with the decrease of the field strength of the halogen (I < Br < Cl).¹² Compared with complexes 1 and 3, the maximum emission wavelengths of complexes 4 and 6 are red-shifted by 12 nm due to the introduction of two trimethylsilyl groups into two thiophenyl rings. The σ–π hyperconjugation effect between trimethylsilyl and thiophenyl rings, as well as slightly stronger π–π interactions between the two thiophenyl rings (see crystal discussion part), lead to a lower LUMO energy level compared to that in 1–3. Compared with the previously reported Cu(I) halide complexes [Cu(I-4)X] containing two symmetrically substituted thiophenyl triphosphine I-4 (I → Cl: λ_em: 550, 559 and 507 nm; PLQY: 0.09, 0.04, 0.27),²⁰ the emission wavelengths of 1–3 are red-shifted by 3–70 nm, and the PLQYs of 1 and 2 increase by 3.2–4.8 times. The Commission Internationale de L'Eclairage (CIE) color coordinates of complexes 1–6 at 297 K are (0.42, 0.53), (0.47, 0.49), (0.47, 0.50), (0.44, 0.52), (0.48, 0.50), and (0.50, 0.49), respectively (Fig. 8).

Fig. 7 Normalized emission spectra of complexes 1–6 in powder with λ_ex = 375 nm at (a) 297 K and (b) 77 K.

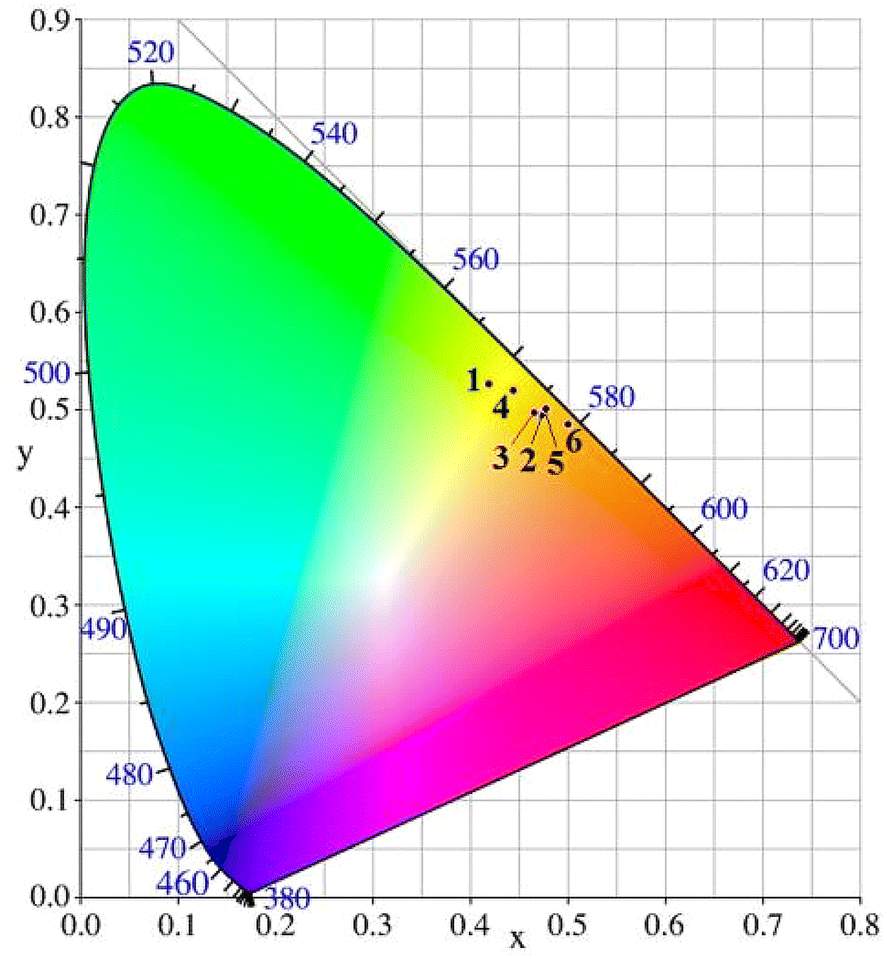

Fig. 8 CIE graph of complexes 1–6 at 297 K.

Table 3 Photophysical data of complexes 1–6 in the powder form

	λ max  (nm)		τ (μs)^b		Φ 297 K	k r (10^4 s^−1)	k nr (10^4 s^−1)	E(S1)^e (eV)	E(T1)^e (eV)	ΔE(S1 − T1)^e (eV)	λ (nm)
	297 K	77 K	297 K	77 K		297 K
a Emission peak wavelength. b Decay lifetime. c Absolute emission photoluminescence quantum yield. d Radiative decay rate constant. kr = Φ/τ. e E(S1) and E(T1) are the adiabatic excitation energies, ΔE(S1 − T1) = E(S1) − E(T1). f Calculated adiabatic emission wavelengths according to the optimized S1 and S0 geometries.
1	553	544	8.0	155	0.29	3.6	8.9	2.152	2.088	0.064	576
2	581	580	3.8	933	0.19	5.0	21.3	2.196	2.118	0.078	565
3	577	555	9.4	1130	0.27	2.9	7.8	2.197	2.123	0.074	564
4	565	554	2.2	67.6	0.61	27.7	17.7	2.136	2.057	0.079	580
5	578	573	6.4	720	0.38	5.9	9.7	2.183	2.084	0.099	568
6	589	584	7.6	1550	0.36	4.7	8.4	2.185	2.089	0.096	568

---

Based on the TD-DFT calculations, the simulated emission wavelengths of complexes 1–6 are close to the experimental values (Table 3), showing the validity of our calculation method. Natural transition orbital (NTO) analysis was performed to investigate the singlet transition characteristics of complexes 1–6 (Fig. 9 and Table 4). For the S₀ → S₁ excitation, the “hole” is mainly localized on Cu, X and P of triphosphine ligand L1 or L2, and the “electron” is mostly confined on two thiophenyl rings of L1 or L2. Therefore, the emissions of complexes 1–6 mainly originate from MLCT, XLCT and ILCT. Compositions of the frontier natural transition orbitals at the optimized S₁ geometry of complexes 1–6 are shown in Fig. S43–S48,† among them, the highest contribution ratio of MLCT and XLCT results in the shortest decay lifetime (2.2 μs) of complex 4, which is the record for the shortest decay lifetime among the reported copper halide complexes containing the triphosphine ligand.^14,20

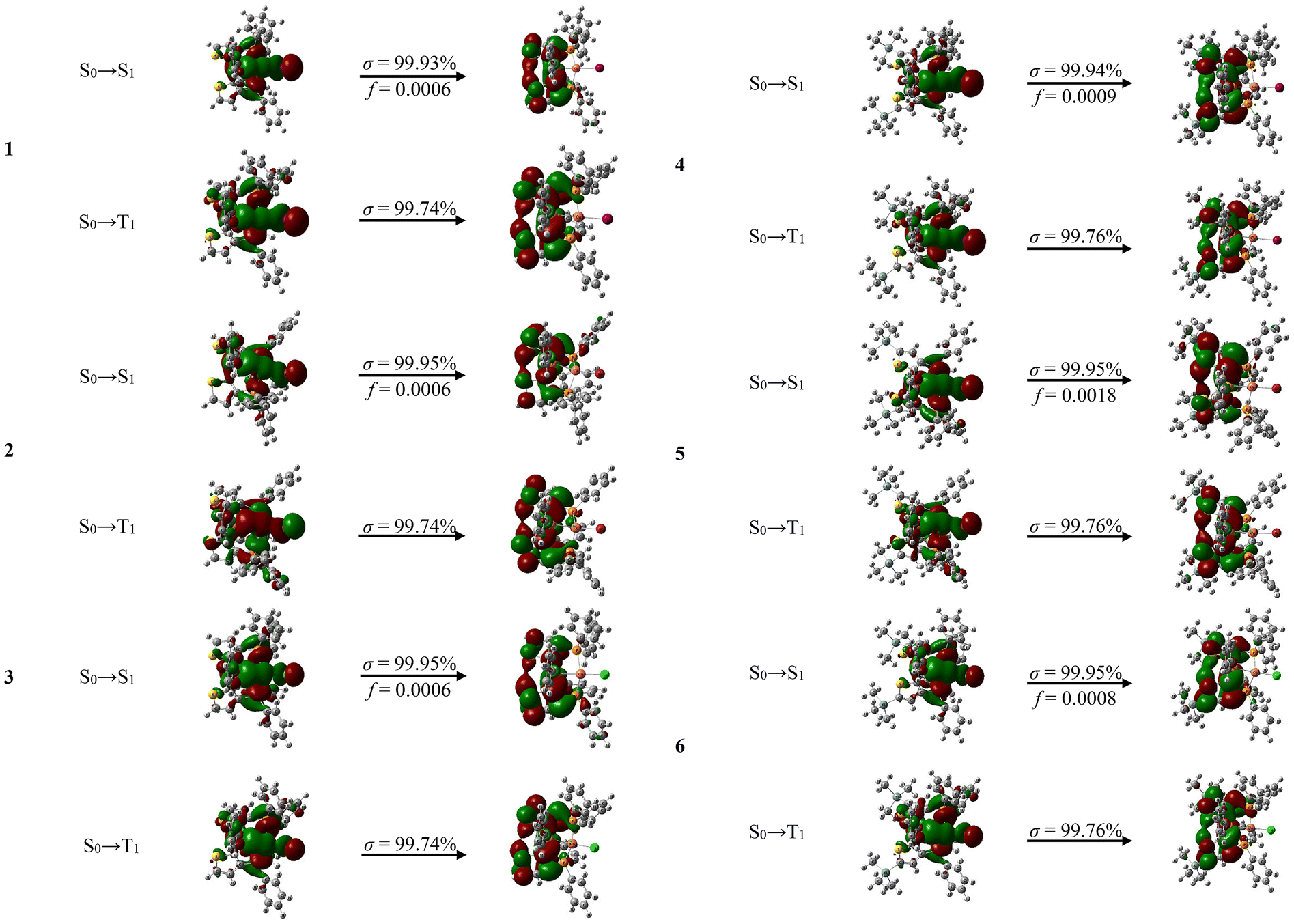

Fig. 9 NTO patterns of both S₀ → S₁ and S₀ → T₁ excitations based on the optimized S₁ and T₁ geometries for complexes 1–6. σ and f refer to the associated weight and oscillator strength, respectively.

Table 4 NTO results for complexes 1–6 based on the optimized S₁ and T₁ geometries

Complex	NTO^a	Contribution ratios of metal, halogen, and the triphosphine ligand to NTOs (%)
		S1			T1
		Cu	X	L1 or L2	Cu	X	L1 or L2
a H and E imply NTO hole and electron orbital, respectively.
1	H	27.58	27.51	44.91	26.68	22.43	50.89
	E	0.66	0.11	99.23	1.00	0.23	98.77
2	H	31.07	18.47	50.46	29.52	16.46	54.02
	E	0.53	0.03	99.44	1.02	0.20	98.78
3	H	33.36	14.47	52.17	31.43	12.96	55.61
	E	0.51	0.03	99.46	1.04	0.17	98.79
4	H	27.36	29.25	43.39	26.36	23.47	50.17
	E	0.76	0.16	99.08	1.06	0.26	98.68
5	H	30.61	19.36	50.03	29.43	17.08	53.49
	E	0.71	0.10	99.19	1.08	0.23	98.69
6	H	34.22	15.66	50.12	31.37	13.30	55.33
	E	0.69	0.09	99.22	1.10	0.19	98.71

---

At 77 K, the emission maxima of complexes 1–6 are 544, 580, 555, 554, 573 and 584 nm, respectively, which are blue-shifted than those at 297 K due to the suppression of the energy relaxation of the excited state by vibrations and rotations.³¹ The decay lifetimes of 1–6 at 77 K (155, 933, 1130, 67.6, 720 and 1550 μs, Table 3 and Fig. S36†) are 19–246 times longer than those at 297 K, respectively, indicating that complexes 1–6 could emit thermally activated delayed fluorescence (TADF). Furthermore, the ΔE(S₁ − T₁) values calculated by TD-DFT for complexes 1–6 are very low (0.064–0.099 eV, Table 3), which are smaller than those previously reported for Cu(I) halide complexes containing two symmetric thiophenyl triphosphine,²⁰ exhibiting efficient TADF. The radiative rate constants k_r of complexes 1–6 were calculated to be 2.9 × 10⁴ to 2.8 × 10⁵ s⁻¹, much larger than those previously reported for Cu(I) halide triphosphine complexes containing two symmetrically substituted thiophenyl rings (5.2 × 10³ to 2.3 × 10⁴ s⁻¹).²⁰ Especially, the k_r value of complex 4 is as high as 2.8 × 10⁵ s⁻¹, which is 3.7 times higher than that previously reported for complex CuI(TTPP) (k_r = 7.5 × 10⁴ s⁻¹),¹⁴ and comparable to that of phosphorescent Ir(III) metal complexes. NTO analysis displays that for the S₀ → T₁ excitation, the “hole” is mainly focused on Cu, X and P of the triphosphine ligand L1 or L2, and the “electron” is primarily concentrated on the two thiophenyl rings of L1 or L2. Compositions of the frontier natural transition orbitals at optimized T₁ geometry of complexes 1–6 are shown in Fig. S49–S54,† the lower contribution ratio of MLCT and XLCT than that at optimized S₁ geometry, results in the much longer decay lifetimes of complexes 1–6 at 77 K relative to those at 297 K.

To prove the existence of TADF in the complexes, the temperature-dependent emission spectra of complexes 1–6 were measured at 77–297 K in the powder state (Fig. 10). As the temperature decreases, the luminescence intensity of the complexes increases, indicating that the decrease in temperature reduces the non-radiative decay process. The relationship between different temperatures (77 K–297 K) and decay times (τ_obs) of complexes 1–6 were also studied. The decay time (τ_obs) is described by a Boltzmann-type relation¹ as follows:

Fig. 10 Temperature-dependent emission spectra of complexes 1–6 at 77–297 K in the powder state.

Based on eqn (1), a fitted curve is presented in Fig. 11 (K_B: Boltzmann constant; T: absolute temperature; τ(S₁): lifetime of S₁; τ(T₁): lifetime of T₁; ΔE_ST: the energy separation between S₁ and T₁). The fitted results show that the τ(S₁) and τ(T₁) values of complexes 1–6 are in the ranges of 0.1117–0.7827 and 68.3–1590 μs, respectively, and the ΔE_ST values are 0.048–0.076 eV. The fitted τ(T₁) values are close to the experimental decay times at 77 K. The fitted ΔE_ST values (0.048–0.076 eV) are very small, close to the calculated values (0.064–0.099 eV). The experimental decay times of complexes 1–6 at 297 K are 2.2–9.4 μs, indicating that they represent a delayed fluorescence. At 77 K, complexes 1–6 mainly emit phosphorescence. As the temperature increases, the phosphorescence decreases and TADF increases.

Fig. 11 Experimental and fitted decay times of complexes 1–6 at different temperatures. The values of the fitted results τ(S₁), τ(T₁) and ΔE_ST are indicated.

Fig. 12 shows the geometries of complexes 1–6 with Cu(I) as the core under optimized S₀, S₁, and T₁. The small change in the bond angles of P1–Cu–P2 and P1–Cu–P3 at S₀, S₁ and T₁ geometries indicates the rigidity of the ligands L1 and L2, while significant changes in bond angles of P2–Cu–X and P3–Cu–X were found. The changes in the sum of the angles around the Cu(I) center in S₀ and S₁ geometries in 1–6 are 37.84° for 1, 41.70° for 2, 40.09° for 3, 36.85° for 4, 35.35° for 5 and 36.88° for 6. The change in the bond angles of complexes 1–3 is greater than those in complexes 4–6, showing a more compact configuration around the Cu(I) center in 4–6 due to the steric hindrance caused by two trimethylsilyl groups, which is also consistent with the result in the section on crystal discussion. A more compact configuration of 4–6 results in smaller Jahn–Teller distortion of the excited states and higher PLQYs relative to 1–3. In addition, the PLQY of complex 4 is the highest, which is also related to the lowest contribution ratio of MLCT (Table 4).

Fig. 12 The core structures in the optimized S₀, S₁, and T₁ geometries for complexes 1–6.

3.3. Thermal properties

Thermal properties of complexes 1–6 in powder were investigated by thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC) under a stream of nitrogen (Fig. 13). From the onset of the TGA curves, complexes 1, 2 and 4 show good thermal stability with their T_dec values of 443, 435 and 364 °C, respectively, the small weight loss of ca. −4% below 177 °C is ascribed to the removal of solvent molecules. At 153 °C, complex 3 shows weight loss of ca. 9%, which is ascribed to the removal of solvent molecules and halogen. From 200 to 368 °C, complex 5 gradually removes all halogen with weight loss of ca. 9%. For complex 6, the small weight loss of ca. −4% below 160 °C is ascribed to the removal of solvent molecules. Starting from 253 °C, complex 6 gradually loses halogen until the weight loss reaches ca. 9% at 327 °C, corresponding to the loss of all the halogen. A large weight loss of ca. 61%−73% for complexes 1–6 was observed, which is due to the removal of the organic and/or halide ligands. The DSC curves of complexes 1–6 show that the T_m (melting point) values are 315 °C for complex 1, 291 °C for complex 2 and 295 °C for complex 4. For complexes 3, 5 and 6, the T_m values are 292 °C, 265 °C and 283 °C, respectively, accompanied by partial decomposition, especially for complex 6, where evident weight loss can be observed.

Fig. 13 TGA and DSC (inset) curves of complexes 1–6.

3.4 Electroluminescent properties

Due to the highest quantum efficiency among complexes 1–6 and good thermal stability with the onset decomposition temperature (T_dec) 364 °C, complex 4 was selected to construct OLED devices by vacuum deposition with the structure of indium tin oxide (ITO)/HAT-CN (5 nm)/TAPC (50 nm)/TCTA (10 nm)/TCTA : DPEPO : x nm complex 4 (10%)/DPEPO (10 nm)/TPBi (40 nm)/LiF (1 nm)/Al (100 nm). In these devices, HAT-CN, TAPC, TPBi and LiF were used for hole injection, hole transport, electron transport and electron injection, respectively. TCTA was used as the hole buffer and host material, and DPEPO was used as exciton blocking and the host material. TCTA : DPEPO = w/w 1 : 1, and complex 4 was doped with 10 wt% in the emissive layer (EML) with thicknesses of 20, 25, 30 and 35 nm, respectively (Fig. 14).

Fig. 14 Device configuration and molecular structures of the materials for the OLEDs.

The EL characteristics and the key data of OLEDs are shown in Fig. 15 and Table 5, respectively. The excitons are recombined and confined in the emitting layer to exhibit yellow light with a peak wavelength of 584 nm for complex 4, which is red-shifted compared to the photoluminescence maximum emission wavelength of 565 nm for complex 4. A similar EL bathochromic shift was also observed for other copper(I) halide complexes and attributed to the microcavity effect.¹² No emission from TCTA and DPEPO was observed, implying that the emission peak is indeed derived from complex 4 and good energy transfer occurred between the host material and complex 4. When the thickness of EML increases from 20 nm to 25 nm, the maximum EQE value increases from 10.93% to 14.57%, indicating that the thicker EML can expand the exciton recombination region, reduce exciton density, and effectively alleviate exciton annihilation. However, when the thickness of EML increases to 30 and 35 nm, the maximum EQE value decreases to 11.76% and 11.78%, respectively, indicating that as the thickness of EML increases, the migration distance of charge carriers relatively increases, which increases the transport resistance of charge carriers and leads to a decrease in device efficiency.

Fig. 15 EL characteristics of OLEDs based on complex 4: (a) EL spectra, (b) J–V–L properties, (c) curves of EQE vs. luminance, and (d) curves of CE and PE vs. luminance.

Table 5 EL data for the vacuum deposition devices

Device	Emitter (thickness of EML)	λ em (nm)	CIE 1931	V (V)	L max (cd m^−2)	EQE^b (%)	CE^b (cd A^−1)	PE^b (lm W^−1)
a Driving voltages (V) in the order of at luminance of 1, and 100 cd m^−2. b EQE, CE, and PE in the order of the maximum value and at 100 cd m^−2.
A1	4 (20 nm)	584	(0.46, 0.49)	4.0/5.0	3913	10.93/10.82	24.55/24.32	17.14/15.25
A2	4 (25 nm)	584	(0.46, 0.50)	4.0/5.7	844.9	14.57/14.11	33.44/32.41	21.63/17.85
A3	4 (30 nm)	584	(0.46, 0.50)	4.0/6.1	3036	11.76/10.87	27.12/25.23	20.62/13.43
A4	4 (35 nm)	584	(0.45, 0.50)	4.0/5.6	3475	11.78/11.57	27.50/27.05	19.20/15.20

---

Device A2 (the concentration of 4 in the EML is 10% and the thickness of EML is 25 nm) afforded the maximum EQE of 14.57% (operation voltage = 6 V). The maximum luminance obtained was 844.9 cd m⁻² at 8.38 mA cm⁻², and the maximum current efficiency and power efficiency were 33.44 cd A⁻¹ and 21.63 lm W⁻¹, respectively. The EQE, CE and PE were maintained as high as 14.11%, 32.41 cd A⁻¹, and 17.85 lm W⁻¹ with very low−efficiency roll-off at a luminance of 100 cd m⁻², which suggests that the holes and electrons can be completely confined in the EML and current-induced exciton quenching is also effectively suppressed. As far as we know, this is one of the best performances for the OLEDs fabricated using mononuclear copper halide complexes as emitters (Table 6).^13,14,31

Table 6 Reported performances of vacuum-deposited devices based on mononuclear Cu(I) halide complexes

The structure of Cu(I) complexes		k r (10^5 s^−1)	λ EL (nm)	EQE (%)	Ref.
	R = Me, X = Cl	0.82	527	21.1	13 and 31
	R = Me, X = Br	0.69	517	21.3
	R = Me, X = I	0.83	513	21.2
	R = Et, X = Br	0.12	529	22.5
	R = ^iPr, X = Br	1.07	515	18.6
	X = I	0.75	584	16.3	14
	X = Br	0.49	584	12.4
	X = Cl	0.40	584	9.6
	X = I	1.20	521	16.4	32
	X = I	0.46	613	3.4	33
	X = I	0.84	645	2.68	34
	X = I	2.77	584	14.57	This work

---

4 Conclusions

In this work, two rigid triphosphine ligands with unsymmetrically substituted thiophenyl were synthesized, and single crystals of six corresponding mononuclear four-coordinate copper(I) halide complexes were successfully obtained. Two trimethylsilyl groups displayed σ–π hyperconjugation effect with thiophenyl rings, which lowers the LUMO level and results in the red-shifted absorption and emission of complexes 4–6 in comparison with complexes 1–3. On the other hand, the large steric hindrance of the trimethylsilyl group makes the structure of the complexes more compact, thereby reducing the geometric distortion of the copper center and suppressing the Jahn–Teller effect, which improves PLQYs of complexes 4–6. These complexes exhibit thermally activated delayed fluorescence at room temperature due to the very small ΔE(S₁ − T₁) values <0.1 eV. The emissions mainly originate from MLCT, XLCT and ILCT. Among them, complex 4 in the powder form displayed the highest PLQY (0.61) due to the compact geometry and the lowest ratio of MLCT contribution. NTO analysis shows that the highest contribution ratio of MLCT and XLCT results in the shortest decay lifetime (2.2 μs) of complex 4, which is the record for the shortest decay lifetime among the reported copper halide complexes containing the triphosphine ligand. High PLQY and short decay lifetime of complex 4 results in the high k_r of 2.8 × 10⁵ s⁻¹, which is comparable to that of phosphorescent Ir(III) metal complexes. Complex 4-based vacuum-deposited devices exhibited yellow light with an EQE of 14.57%, which is one of the best performances of the fabricated OLEDs using mononuclear copper halide complexes as emitters. Our work indicates that mononuclear Cu(I) halide complexes containing unsymmetrically substituted heteroaryl triphosphine have the advantages of red-shifted emission and elevated PLQY compared to symmetrically substituted heteroaryl triphosphine. By introducing functional groups such as trimethylsilyl groups into unsymmetrically substituted thiophenyl rings, the PLQYs of the complexes are effectively improved and the decay lifetimes are shortened. High PLQYs and short decay lifetimes provide the Cu(I) halide complexes with rigid triphosphine great potential as abundant and inexpensive luminescent materials for application in TADF-OLEDs.
