Exploring protonation sites with cation-responsive polyethylene glycol (PEG) tethers in [FeFe]-hydrogenase mimics

Abstract

Mimics of [FeFe]-hydrogenases having two [(μ-adt)Fe₂(CO)₆] moieties linked through 1,2,3-triazole rings with polyethylene glycol (PEG) chains [(–OCH₂CH₂O–)₄ (7) and (–OCH₂CH₂O–)₅ (8)] are able to coordinate to alkali ions (Na⁺, K⁺) via the O-PEG atoms and the triazole-N3 positions. Electrocatalytic studies in trifluoroacetic acid (TFA) demonstrate that their catalytic performance is affected by the presence of Na⁺ and K⁺ salts. The addition of NaPF₆ decreases the electrocatalytic activity of 7 and 8 (about 50% reduction of the TOF values). As, in TFA, 7 and 8 could be protonated in both the triazole and adt-amino groups, the reduction in TOF values suggests that NaPF₆ inhibits the contribution of the triazolium species to the electrocatalytic process, likely due to the involvement of the triazole-N3 positions in Na⁺ binding. However, the addition of KPF₆ either does not change (7) or increases the TOF values (8). ¹H NMR titration experiments demonstrate that, despite the presence of K⁺ ions in the media, triazolium salts are formed. Therefore, the TOF values should reflect the contribution of species protonated in both the triazole and adt-amino groups to the HER process.

---

Introduction

[FeFe]-hydrogenases ([FeFe]-H₂ases) are metalloenzymes featuring a bimetallic complex composed of two iron atoms linked by an azadithiolate (adt) bridged ligand, to which a [Fe₄S₄] cluster is attached through cysteine sulfur atoms (1 in Fig. 1).¹ The metal core completes the coordination sphere with CO and CN⁻ ligands.² While the [Fe₄S₄] cluster plays a fundamental role in electron transport, the adt bridge is responsible for providing/removing protons due to the basic properties of the secondary amine.³ Diiron hexacarbonyl complexes of general formula [(μ SR)₂Fe₂(CO)₆] (2) are considered [FeFe]-H₂ase mimics, as they exhibit significant structural similarities with the active center of enzymes 1 ⁴ and also show an analogous acid–base and redox behavior.⁵ In mimics 2, the iron centers of the [FeFe] subsite have a formal oxidation state of +1, form a single Fe–Fe bond (∼2.5 Å)⁶ and complete their coordination sphere with CO ligands. Depending on the substituents on the dithiolate bridgehead, these complexes belong to two different structural classes: complexes of general structure 3 have an adt bridge (as in natural enzymes 1), while complexes such as 4 (propanedithiolate bridge, pdt) and 5 (benzenedithiolate bridge, bdt) have all-carbon chains between the sulfur atoms⁵ (Fig. 1).

Fig. 1 The schematic representation of a [FeFe]-H₂ase active center and the main synthetic mimics.

The hydrogen evolution reaction (HER) in 1 and [FeFe]-hydrogenase mimics is a two-proton/two-electron reduction process, but the mechanistic steps differ depending on the type of mimic (3, 4, 5) and the catalytic conditions.⁷ The introduction of additional basic centers in pdt- and bdt-[FeFe]-H₂ase mimics has been recognized as beneficial for the electrocatalytic properties of these molecules, and this effect has been studied.⁸ It is known that the HER cycle is facilitated by the initial protonation of an additional basic site^8h and is also favored by the presence of basic substituents (i.e. phosphines) that increase the basicity of the metal centers.^8d,i In natural [FeFe] and [NiFe]-hydrogenase enzymes, the protonation of one of the cysteinyl thiolate substituents of the [Fe₄S₄] cluster has been proposed as a key step in the catalytic cycle.^8a,k,l Also, in [FeFe]-hydrogenases, it has been demonstrated that the strongly conserved secondary ligand sphere around the (2Fe_H) cluster plays a major role in preserving a stable cofactor coordination and geometry, favoring the stabilization of the CN-ligands.^8m However, while the protonation of the N atom of the adt bridge is generally accepted to be the first step in the HER cycle for adt-[FeFe] mimics, the influence of additional basic centers in the process has been less explored. In this regard, recent work by our group showed that the basic 1,2,3-triazole ring in complex 6 (Fig. 1) can be protonated with a strong acid (H₂SO₄), and the formation of the triazolium species considerably enhances the electrocatalytic activity of the complex.⁹

The incorporation of secondary metal ions has emerged as an attractive strategy to tune chemical properties and to observe new reactivity patterns in metal complexes.^10,11 In fact, recent attention has been paid to the study of the effect of adding redox-inactive metal ions (i.e. Li⁺, Na⁺, K⁺, Ca²⁺), as a way to modulate the electrochemical properties of a metal complex.^10b,e Inspired by this idea, we devised compounds 7 and 8, which combine two [(μ-adt)Fe₂(CO)₆] moieties linked by polyethylene glycol (PEG) chains of different lengths, through 1,2,3-triazole rings (Fig. 2). The coordination of 7 and 8 to alkali ions (Na⁺, K⁺) must involve the O-PEG and the basic triazole-N3 atoms.¹² In these complexes, we should be able to control the participation/inhibition of the triazole rings in cation binding by acid addition, modulating the electrochemical properties. Therefore, the study of the electrochemical response of 7 and 8 in the presence/absence of Na⁺ or K⁺ salts in acid media will allow us to determine the contribution of the N-amino-adt versus N3 triazole-protonated species to the HER process.

Fig. 2 The structure of the compounds 7 (n = 3) and 8 (n = 4) studied in this work.

Results and discussion

The synthesis of [FeFe]-H₂ase mimetics 7 and 8 was achieved by a cycloaddition reaction between alkynes 9 and 10 and azide 11, catalyzed by Cu(I) (Scheme 1).¹³ The synthesis of azide 11 was previously described by us.⁹ Meanwhile, alkynes 9 ¹⁴ and 10 ¹⁵ were prepared by reacting the corresponding commercially available diols with propargyl bromide and NaH in THF at room temperature. Compounds 7 and 8 were obtained in 92% and 74% yields, respectively, after column chromatography (SiO₂, CH₂Cl₂/MeOH 95 : 5) and were characterized by spectroscopic techniques. Significant in the NMR spectra of 7 and 8 are the signals attributable to the CH of the newly formed 1,2,3-triazole rings at 7.96 ppm in the ¹H NMR and 120.9 ppm in the ¹³C{¹H} NMR spectra.

Scheme 1 Preparation of the tetrametallic complexes 7 and 8.

Coordination studies with alkali metal cations

The ability of complexes 7 and 8 to coordinate to alkali metal cations was evaluated by ¹H-NMR. The polyethylene glycol (PEG) bridges in compounds 7 and 8 are analogous to those of 15-crown-5 and 18-crown-6 ethers, which have cavity diameters of 1.7–2.2 Å and 2.6–3.2 Å, respectively, capable of forming 1 : 1 coordination complexes with Na⁺ and K⁺.¹⁶ Coordination studies were performed in solutions of complexes 7 and 8 in CD₃CN with increasing concentrations of NaPF₆ or KPF₆ (0–4 equivalents). The selection of NaPF₆ and KPF₆ as cation sources was based on their higher solubility under the experimental conditions. In all cases, in the ¹H NMR spectra, the signals of the PEG fragments were shifted to lower fields as the cation concentration increased, indicating cation coordination to the oxygen atoms (Fig. 3). The most affected signals were those of the four central methylene protons of the polyether units (singlets at 3.55 ppm and 3.54 ppm, for 7 and 8, respectively, in Fig. 3), which served as references for the subsequent calculations. Fig. 4 shows the plots of Δδ (ppm) versus the amounts of Na⁺ and K⁺ for compounds 7 and 8. The plots reveal a steady increase in Δδ values until the stationary region is reached, indicating saturation. Job plots were constructed from the ¹H NMR data to determine the stoichiometry of the complexes (Fig. 5), with maxima at χ¹ and χ² = 0.5, suggesting a 1 : 1 stoichiometry for the metal cation coordination complexes.¹⁷

Fig. 3 ¹H NMR spectra (500 MHz) of complexes 7 (left) and 8 (right) upon the addition of 4 equiv. of NaPF₆ (in green) and KPF₆ (in red) in CD₃CN at 25 °C. The signal at 3.55 ppm (*) was used as reference in the study.

Fig. 4 Representation of Δδ (ppm) vs. equivalents of Na⁺ and K⁺ for 7 (left) and 8 (right) at 25 °C.

Fig. 5 Job plots of compounds 7 (left) and 8 (right) with NaPF₆ and KPF₆ at 25 °C.

Once the stoichiometry of coordination complexes was known, the association constants (K_a, M⁻¹) of the different equilibria were calculated following the reported procedure.¹⁷ Experimental K_a values in CH₃CN for [7-Na⁺] and [7-K⁺] were 6.66 × 10² M⁻¹ and 1.16 × 10³ M⁻¹, respectively, while for [8-Na⁺] and [8-K⁺], they were 8.49 × 10² M⁻¹ and 1.63 × 10³ M⁻¹, respectively. The calculated association constants are about two orders of magnitude higher than those obtained for analogous acyclic polyethers in the presence of Na⁺ and K⁺, which highlights the ability of 7 and 8 to bind sodium and potassium and points to the participation of the triazole N3 positions in the process.^17,18

Additional support for the structures of the alkali complexes was obtained using DFT calculations at the SMD (CH₃CN)-M06/6-31G** level. As shown in Fig. 6, in [7-Na⁺], the cation is coordinated to seven donor atoms: the five O (PEG) atoms and the two triazole N3 atoms. The Na–O distances fit well with the expected Na–O distance (2.42 Å), and the Na–N distances (2.48 Å and 2.65 Å, respectively) agree with the expected Na–N distance (2.54 Å), which confirms the strong interaction between the sodium ion and the N3 positions of both triazole rings. In turn, in the potassium complex [7-K⁺], the cation is coordinated to the five O positions of the PEG moiety (K–O average distance of 2.72 Å) and to one of the triazole N3 atoms (K–N distance of 2.83 Å), in a pseudo-crown-6 structure, with K–O and K–N distances in the range of the expected values (K–O 2.78 Å and K–N 2.80 Å, respectively). The remaining triazole ring is positioned above the macrocycle at a distance of K–N3 of 3.08 Å.

Fig. 6 Calculated structures of complexes [7-Na⁺] (top) and [7-K⁺] (bottom) (SMD (CH₃CN)-M06/6-31G** level). Hydrogen atoms have been omitted for clarity. Bond distances in Å. Na–N and K–N distances are shown in red.

The computed structures of [8-Na⁺] and [8-K⁺] are depicted in Fig. 7. In both cases, the N3 positions of the triazole fragments are deeply involved in the coordination to the alkali cations together with the PEG fragments. For complex [8-Na⁺], the average distance Na–O is 2.68 Å and the Na–N3 distances are 2.49 Å and 2.68 Å, respectively. In turn, for complex [8-K⁺], the average K–O distance is 2.82 Å and the Na–N3 distances are 2.89 Å and 2.85 Å, all within the range of the literature data.¹⁹

Fig. 7 Calculated structures of complexes [8-Na⁺] (top) and [8-K⁺] (bottom) (SMD (CH₃CN)-M06/6-31G** level). Hydrogen atoms have been omitted for clarity. Bond distances in Å. Na–N and K–N distances are shown in red.

Electrochemistry

The electrochemical and electrocatalytic properties of compounds 7 and 8 and their Na⁺ and K⁺ coordination complexes were explored. Compounds 7 and 8 exhibited similar electrochemical behavior. Both showed a reduction wave at E_pc = −1.57 V attributed to the [Fe^IFe^I]/[Fe⁰Fe^I] process in the [(μ-adt)Fe₂(CO)₆] moieties, together with an irreversible second reduction wave at E_pc = −2.18 V, corresponding to the [Fe⁰Fe^I]/[Fe⁰Fe⁰] process in the same fragment (Fig. 8).²⁰

Fig. 8 Cyclic voltammograms of complexes 7 and 8 in a 10⁻³ M MeCN solution containing [(ⁿBu)₄N]PF₆ 10⁻¹ M as the supporting electrolyte. Voltammograms were registered at 25 °C using a Pt counter electrode and a glassy carbon working electrode. Potentials are given in V vs. Fc⁺/Fc. Scan rate: 100 mVs.

In the presence of a weak acid (AcOH), 7 and 8 display the expected behavior for a [(μ-adt)Fe₂(CO)₆] derivative.²¹ The band at −1.56 V does not change, but the intensity of the second reduction wave at −2.18 V steadily increases with the successive additions of acid (Fig. 9, top). Upon the addition of the stronger trifluoroacetic acid (TFA, pK^MeCN_a ≈ 12.6), there is a clear electrocatalytic response of the wave at −1.56 V (Fig. 9, bottom). However, at high concentrations of acid (6–10 equiv.), the catalytic current (i_cat) at −2.18 V also increases. In agreement with our previous results, the electrocatalytic behavior observed for 7 and 8 in TFA must be due to the contribution of the species protonated in both the triazole ring and the adt-amino groups.⁸ The i_cat/i_p plots vs. increasing acid concentrations were used to evaluate the electrocatalytic properties of 7 and 8 in the reduction of protons from TFA (i_p is the peak current in the absence of acid, Fig. 10). The data revealed that 8 displayed a higher (about 15% more) electrocatalytic activity than 7 with AcOH, but their performance was similar with TFA.

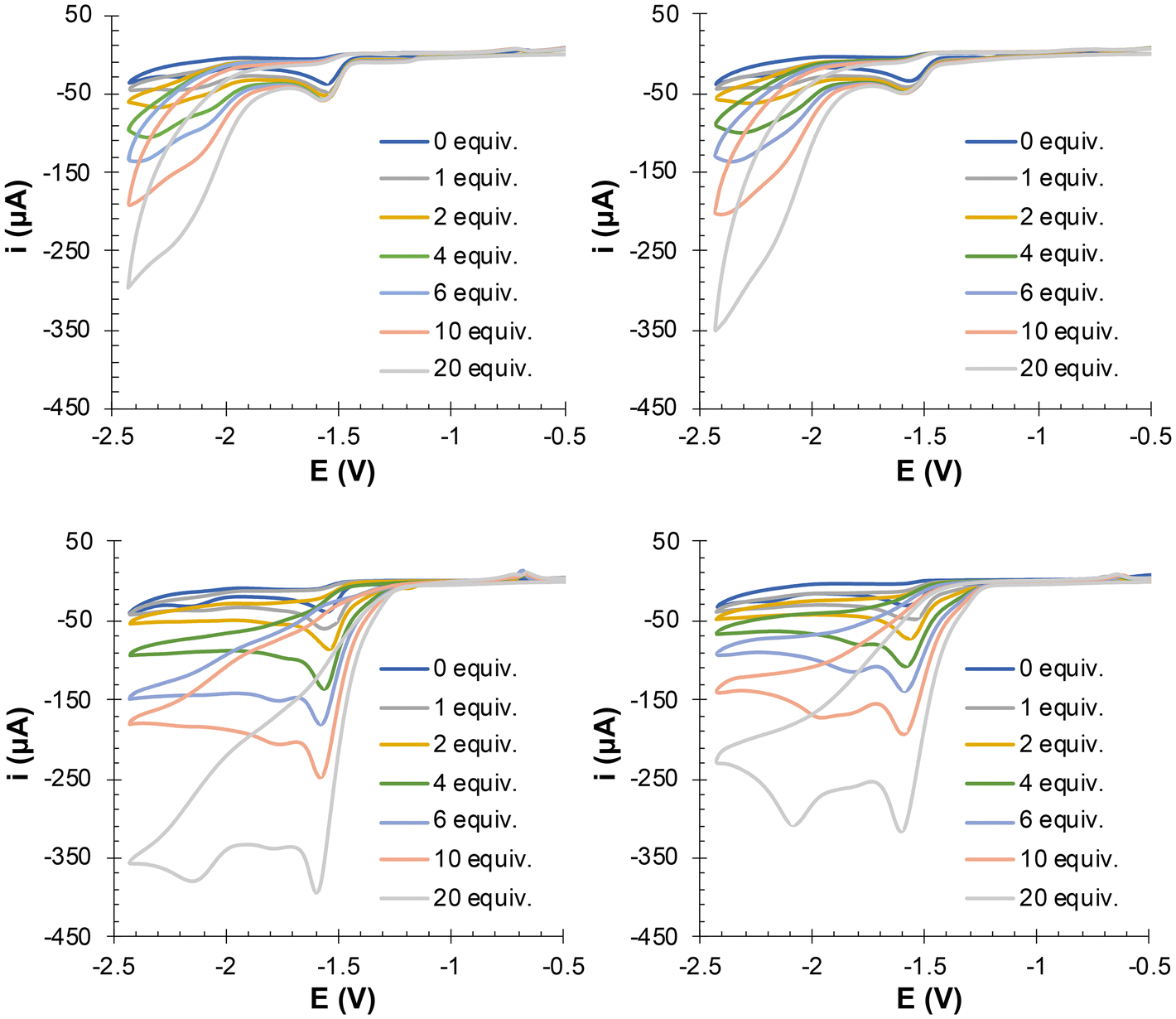

Fig. 9 CVs of compounds 7 (left) and 8 (right) with increasing amounts of AcOH (top) and TFA (bottom) obtained from 10⁻³ M solutions in MeCN containing [(ⁿBu)₄N]PF₆ 10⁻¹ M as the supporting electrolyte, recorded at 25 °C. Counter-electrode: Pt; working electrode: glassy carbon; potentials given in V vs. Fc⁺/Fc; scan rate: 100 mV s⁻¹.

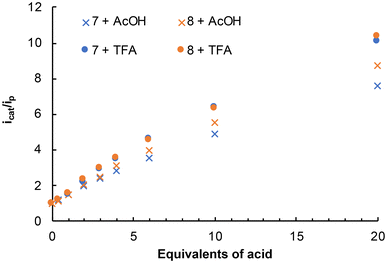

Fig. 10 Representation of i_cat/i_p of 7 and 8 vs. equivalents of AcOH and TFA.

To determine the effect of cation binding on the process, the cyclic voltammograms (CVs) of 7 and 8 were recorded in the presence of NaPF₆ or KPF₆ (5 equiv.) (Fig. 11). Compared to the CVs of 7 and 8, the current intensity of the first reduction wave increased for both [7-Na⁺] and [8-Na⁺] but slightly decreased for the potassium complexes. However, the second reduction wave that appeared at −2.18 V in the CV of the uncoordinated compounds was significantly altered by the nature of the cation. The CV of complex [7-Na⁺] displayed a crossover upon reversing the potential scan direction, likely due to the deposition of insoluble material on the working electrode. In contrast, complex [8-Na⁺] showed no such deposition. This displacement has been observed previously in different transition metal complexes bearing crown ether moieties.²²

Fig. 11 CVs of compounds [7-Na⁺], [7-K⁺], [8-Na⁺] and [8-K⁺] obtained from 10⁻³ M solutions in MeCN containing [(ⁿBu)₄N]PF₆ 10⁻¹ M as the supporting electrolyte, recorded at 25 °C. Counter-electrode: Pt; working electrode: glassy carbon; potentials given in V vs. Fc⁺/Fc; scan rate: 100 mV s⁻¹.

The electrocatalytic activity of 7 and 8 in the presence of 5 equiv. of NaPF₆ or KPF₆ and with increasing amounts of TFA (1–20 equiv.) was next addressed (Fig. 12). The i_cat/i_p plots and the turnover frequency (TOF s⁻¹) values for the [Fe^IFe^I]/[Fe^IFe⁰] reduction wave, with 20 equiv. of TFA, were used to evaluate the electrocatalytic activity of the complexes (Fig. 13 and Table 1). The calculated overpotential was 0.68 V. The results revealed that, in TFA, the electrocatalytic activity of 7 and 8 in the presence of NaPF₆ was considerably diminished, as indicated by the 50% reduction in the TOF values. As compounds 7 and 8 could be protonated in both the triazole rings and the adt-amino groups,⁹ the reduction in the TOF values suggests that the contribution of the triazolium species to the electrocatalytic process is inhibited with NaPF₆. Undoubtedly, despite the addition of acid, complexes [7-Na⁺] and [8-Na⁺] are formed in the medium, with the N3 positions of the triazole rings involved in the Na⁺ binding.

Fig. 12 CVs of (a) complex 7 with TFA + 5 equiv. of NaPF₆, (b) complex 8 with TFA + 5 equiv. of NaPF6, (c) complex 7 with TFA + 5 equiv. of KPF₆, and (d) complex 8 with TFA + 5 equiv. of KPF₆, obtained from 10⁻³ M solutions in MeCN containing [(ⁿBu)₄N]PF₆ 10⁻¹ M as the supporting electrolyte, recorded at 25 °C. Counter-electrode: Pt; working electrode: glassy carbon; potentials given in V vs. Fc⁺/Fc; scan rate: 100 mV s⁻¹.

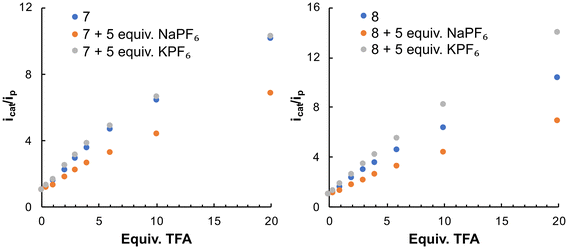

Fig. 13 Representation of i_cat/i_p of complexes 7 and 8 with 5 equivalents of NaPF₆ and KPF₆ vs. equivalents of TFA.

Table 1 TOF data^a,b

	7	7/NaPF6	7/KPF6	8	8/NaPF6	8/KPF6
a Data obtained from Fig. 12 and 13.b icat = −1.57 V; overpotential (η) = 0.68 V, calculated using E0(TFA) = 0.89 V.c TOF calculated with 20 equiv. of TFA.
TOF (s^−1)^c	19.9	9.0	20.4	21.0	9.2	37.9

---

These assertions were confirmed by an ¹H NMR study carried out with complex 8. The spectra in Fig. 14 show the protonation of the triazole rings in compound 8 as the amount of TFA increased in solution (0–10 eq.) The formation of the triazolium salt causes the broadening and the significant downfield shift of the H5 signal of the triazole due to a rapid proton exchange between the protonated centers in the triazole-PEG region.⁹ The signals corresponding to the [(μ-adt)Fe₂(CO)₆] fragment (7.70, 6.96 and 4.45 ppm) are hardly affected by the addition of acid, which suggests that protonation is specific to the triazole moiety. When the titration with TFA was done in the presence of NaPF₆, the ¹H NMR spectra of 8 changed significantly (Fig. 15). Unlike the free complex, the signals corresponding to the triazole fragment remain sharp and barely shift as the TFA concentration increases. This indicates that the triazole-PEG region does not undergo rapid proton exchange when Na⁺ is present, supporting the formation of the coordination complex [8-Na⁺] in the acid media.

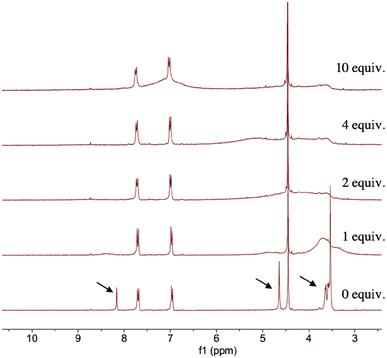

Fig. 14 ¹H NMR spectra (300 MHz) of compound 8 with TFA (0–10 equiv.) in CD₃CN at 25 °C. Arrows indicate signals corresponding to the triazole-PEG fragment.

Fig. 15 ¹H NMR spectra (300 MHz) of compound 8 with 5 equiv. of NaPF₆ and TFA (0–10 equiv.) in CD₃CN at 25 °C.

The electrochemical experiments of 7 and 8 with the potassium salt in the presence of TFA had a different outcome. Data for compound 7 in Fig. 12 and 13 and Table 1 indicate a similar electrocatalytic response in the presence or absence of KPF₆ (TOF values of 20.4 s⁻¹ and 19.9 s⁻¹, respectively). However, the addition of the potassium salt in TFA enhances the electrocatalytic activity of 8 (TOF values of 21.0 s⁻¹ versus 37.9 s⁻¹ with KPF₆). These experimental data suggest that the addition of KPF₆ does not hamper the protonation of the triazole rings of 7 and 8. Obviously, in the presence of KPF₆, the triazole N3-positions are not involved in the coordination of K⁺ in acid media. The TOF values in these cases should reflect the contributions of the species protonated in both the triazole rings and the adt-amino groups to the HER process.

The ¹H NMR spectroscopy study of complex 8 with KPF₆ in the presence of increasing amounts of TFA (0–10 eq.) supported these claims. As shown in Fig. 16, the signal of the H5 proton of the triazole ring broadens and experiences a significant downfield shift as the amount of TFA increases in solution. The process is almost identical to that observed in Fig. 14 for complex 8 in the presence of increasing amounts of TFA.

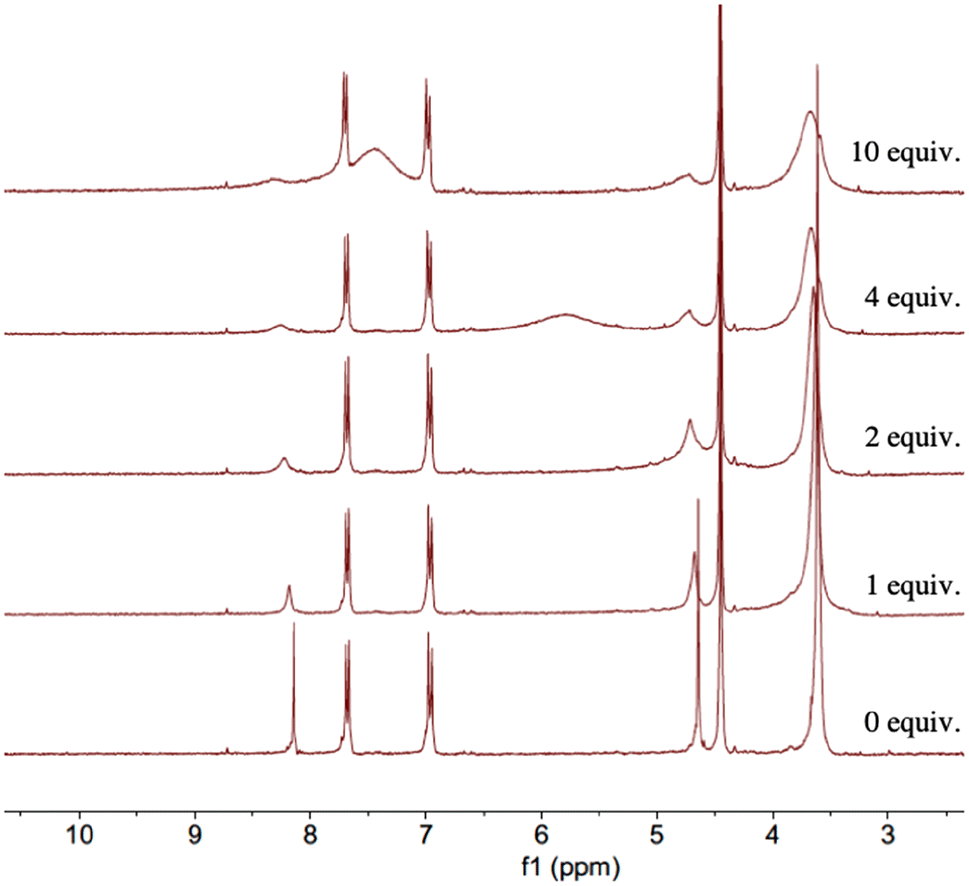

Fig. 16 ¹H NMR spectra (300 MHz) of compound 8 with 5 equiv. of KPF₆ and TFA (0–10 equiv.) in CD₃CN at 25 °C.

Additional insights into the coordinating behavior of complex 8 in trifluoroacetic acid media were obtained by determining its complexation constants using the same methodology applied under neutral conditions, in the presence of 5 equivalents of TFA (see above and the ESI‡) and NaPF₆ and KPF₆. The data from Job's plots show that the ratio of ligand 8 to the alkali cation was 1 : 1 in both cases (Fig. S69‡). The association constants (K_a) in MeCN for [8-Na⁺ + TFA] and [8-K⁺ + TFA] were found to be 4.04 × 10² M⁻¹ and 1.26 × 10³ M⁻¹, respectively. As anticipated, these values were lower than those obtained under neutral conditions (6.66 × 10² M⁻¹ and 1.63 × 10³ M⁻¹ for [8-Na⁺] and [8-K⁺], respectively), since, under acidic conditions, the 1,2,3-triazole moiety is expected to be protonated, rendering it unavailable for coordination with the alkali metal cations.

The electrocatalytic and NMR experiments demonstrate the fundamental role of the alkali ions in modulating the electrocatalytic response of 7 and 8 in acid medium. With NaPF₆/TFA, the triazole units are engaged in the coordination with Na⁺ and are not able to contribute to the HER process. The experimental TOF values of 9.0 s⁻¹ for 7 and 9.2 s⁻¹ for 8 in the presence of NaPF₆/TFA essentially show the contribution of the species protonated in the amino adt groups, whereas with KPF₆/TFA, the triazole units in 7 and 8 are protonated and can participate in the reaction.

It is well established that the protonated amine plays a fundamental role in the mechanism of hydrogen generation from [(μ-adt)Fe₂(CO)₆] mimics, serving as a readily available source of protons for the neighboring Fe atom.^5b,7f,21a Our results provide new insights into the contribution of N3-protonated 1,2,3-triazolium salts, which significantly enhance the electrocatalytic activity of [(μ-adt)Fe₂(CO)₆] mimics in strong acidic media. While the protonated amine serves as a direct proton donor for the Fe atom, the N3-protonated 1,2,3-triazolium salts would provide an additional reservoir of protons, enhancing the overall catalytic efficiency. Although the potential role of the 1,2,3-triazole moieties as electron reservoirs could also be considered, recent studies on [FeFe]H₂ase mimics with alkyl 1,2,3-triazolium salts as ligands exclude the triazolium ring as an additional redox-active site in the hydrogen evolution reaction (HER) process.^8e,f,9

The observed increase in the turnover frequency (TOF) for compound 8 in trifluoroacetic acid (TFA) with KPF₆ (37.9 s⁻¹) compared to the TOF for compound 8 without the potassium salt (21.0 s⁻¹) remains unclear. Experimental evidence indicates that the triazole rings are protonated in both cases and can contribute to the HER process together with the protonated amino adt groups. A computational study would shed some light on this question. The SMD (CH₃CN)-M06/6-31G** computed structure of 8, protonated in both the triazole and [(μ-adt)Fe₂(CO)₆] amino groups [8H4-K], reveals the six PEG oxygen atoms coordinated to K⁺ in a very regular pseudo-18-crown-6 structure (Fig. 17). The average K–O distance in the hexacoordinated potassium complex is 2.77 Å, in excellent agreement with the expected K–O distance (2.78 Å), calculated as the sum of the oxygen van der Waals radius (1.40 Å) and the effective ionic radius of K⁺ (1.38 Å).²³ The incorporation of alkali metal ions is known to enhance the electrocatalytic activity of metal complexes,^10,11 and the formation of the coordination complex [8H4-K] could account for the increased TOF observed for compound 8 in TFA in the presence of KPF₆. The fact that the TOF values for complex 7 in TFA are almost identical in the presence/absence of KPF₆ (20.4 s⁻¹ and 19.9 s⁻¹, respectively) supports the importance of the six-oxygen coordination environment for the K⁺ in [8H4-K], likely allowing greater catalytic performance. These findings underscore the critical role of ligand design and metal-ion coordination in optimizing the performance of hydrogenase mimics for electrocatalytic applications.

Fig. 17 Computed SMD (CH₃CN)-M06/6-31G** structure of [8H4-K]. The hydrogen atoms of the PEG linker have been omitted for clarity. Bond distances are in Å.

Conclusions

[FeFe]H₂ase mimics 7 and 8, which feature two [(μ-adt)Fe₂(CO)₆] moieties and two 1,2,3-triazole rings linked through PEG chains of different lengths, have been prepared to study the effect of additional basic centers on the electrocatalytic properties of [(μ-adt)Fe₂(CO)₆] derivatives in acidic media. Compounds 7 and 8 are capable of binding alkali ions (Na⁺, K⁺) to form 1 : 1 coordination complexes, in which the oxygen atoms of the PEG moiety and the N3 positions of the triazole rings are involved. Through ¹H NMR titration experiments and electrochemical studies of 7 and 8 in the presence or absence of NaPF₆ or KPF₆, we determined the relative contributions of N-adt amino versus N3 triazole protonated species to the HER process in TFA. The addition of Na⁺ ions inhibits the protonation of the triazole rings in both 7 and 8, and their electrochemical response is primarily attributed to the species protonated at the amino adt groups. However, with K⁺, the triazolium salts are formed in TFA, and the electrocatalytic behavior of 7 and 8 reflects the contributions from species protonated at both the triazole and amino adt groups.

A computational study of the protonated complex 8 with KPF₆ in the presence of TFA could explain the increase in the turnover frequency (TOF) observed for this complex (37.9 s⁻¹) compared to the TOF calculated in the absence of the potassium salt (21.0 s⁻¹). The computed complex [8H4-K], protonated in both the triazole and amino [(μ-adt)Fe₂(CO)₆] groups, is still able to coordinate the K⁺ ion through the six O-PEG atoms, in a very regular pseudo-18-crown-6 structure. Since the incorporation of alkali metal ions is known to enhance the electrocatalytic activity of metal complexes, the formation of complex [8H4-K] could account for the increased TOF observed for compound 8 in TFA in the presence of KPF₆. These findings highlight the intricate interplay between ligand design, ion-binding fragments and their effects on catalytic behavior in acidic media. Future studies are underway to explore the incorporation of other ion-binding fragments and investigate their impact on the HER process, with the aim of further optimizing the performance of hydrogenase mimics for electrocatalytic applications.

Experimental section

General

Unless otherwise stated, all the reactions were carried out under an Ar atmosphere using anhydrous solvents. Alkynes 9 ¹⁴ and 10 ¹⁵ and azide 11 ⁹ were prepared according to reported protocols. ¹H and ¹³C{¹H} NMR spectra were recorded at ambient temperature in CDCl₃ using Bruker 500 or 300 MHz spectrometers. Chemical shifts are expressed in part per million and are referenced to residual solvent peaks. ESI-HRMS was performed using an Agilent 6500 accurate mass spectrometer with a Q-TOF analyser. Cyclic voltammograms were recorded using a Metrohm PGSTAT302N potentiostat model. In all cases, the solutions were degassed with an argon flow and sonicated prior to electrochemical analysis. For cyclic voltammograms, a 3 mm glassy-carbon working electrode, an Ag/AgCl 3 M reference electrode, and a 2 mm Pt-wire counter electrode were used. All measurements were performed at room temperature and under an argon atmosphere in CH₃CN solutions containing 10⁻¹ M [ⁿBu₄]PF₆ as the supporting electrolyte, with analyte concentrations of 10⁻³ M.

General procedure for the CuAAC reactions

In a round-bottom flask, 1 equiv. of the dialkyne, 2 equiv. of azide 11, and a MeCN/THF mixture in a 1 : 1 ratio were added. The resulting suspension was bubbled with Ar for 10 minutes. Subsequently, 2 equiv. of CuI and 2 equiv. of DIPEA were added. The reaction mixture was stirred at room temperature for 72 h. The solvent was evaporated under reduced pressure, and the obtained solid was purified by column chromatography (SiO₂, CH₂Cl₂/MeOH 95 : 5).

Synthesis of 7. Compound 7 was synthesized following the general procedure using 102 mg (0.38 mmol) of dialkyne 3, 381 mg (0.76 mmol) of 11, 18 mL of the solvent mixture, 145 mg (0.76 mmol) of CuI, and 0.13 mL (0.76 mmol) of DIPEA. After purification, 7 was obtained as a red solid with a yield of 92% (444 mg, 0.35 mmol). ¹H NMR (300 MHz, CDCl₃) δ: 7.96 (s, 2H, CH_triazole), 7.67 (d, J = 8.8 Hz, 4H, CH_Ar), 6.85 (d, J = 8.8 Hz, 4H, CH_Ar), 4.76 (s, 4H, OCH₂C_triazole), 4.35 (s, 8H, NCH₂S,), 3.75–3.67 (m, 16H, CH₂) ppm. ¹³C{¹H} NMR (75 MHz, CDCl₃) δ: 206.9 (CO), 145.9 (C_triazole), 144.9 (C_Ar), 130.1 (C_Ar), 122.5 (CH_Ar), 120.9 (CH_triazole), 116.4 (CH_Ar), 70.7 (CH₂), 70.0 (CH₂), 64.8 (OCH₂C_triazole), 49.8 (SCH₂N) ppm. FTIR (film): ν_C≡O 2073, 2031 and 1992 cm⁻¹. HRMS-ESI m/z: calcd for C₄₂H₃₉Fe₄N₈O₁₇S₄ [M + H]⁺: 1278.8714; found [M + H]⁺: 1278.8724.

Synthesis of 8. Compound 8 was synthesized following the general procedure using 117 mg (0.37 mmol) of dialkyne 10, 378 mg (0.75 mmol) of 11, 18 mL of the solvent mixture, 142 mg (0.75 mmol) of CuI, and 0.13 mL (0.75 mmol) of DIPEA. After purification, 8 was obtained as a red solid with a yield of 74% (367 mg, 0.28 mmol). ¹H NMR (300 MHz, CDCl₃) δ: 7.96 (s, 2H, CH_triazole), 7.67 (d, J = 9.0 Hz, 4H, CH_Ar), 6.85 (d, J = 9.0 Hz, 4H, CH_Ar), 4.76 (s, 4H, OCH₂C_triazole), 4.35 (s, 8H, NCH₂S,), 3.75–3.66 (m, 20H, CH₂) ppm. ¹³C{¹H} NMR (75 MHz, CDCl₃) δ: 206.9 (CO), 145.9 (C_triazole), 144.9 (C_Ar), 130.1 (C_Ar), 122.5 (CH_Ar), 120.9 (CH_triazole), 116.4 (CH_Ar), 70.7 (CH₂), 70.0 (CH₂), 64.8 (OCH₂C_triazole), 49.8 (SCH₂N) ppm. FTIR (film): ν_C≡O 2073, 2030 and 1991 cm⁻¹. HRMS-ESI m/z: calcd for C₄₄H₄₃Fe₄N₈O₁₈S₄ [M + H]⁺: 1322.8976; found [M + H]⁺: 1322.8986.

Computational details

Calculations were performed at the DFT level using the M06 functional²⁴ with an ultrafine integration grid²⁵ as implemented in Gaussian 16.²⁶ Fe, S, and K atoms were described using the scalar relativistic Stuttgart–Dresden SDD pseudopotential²⁷ and its associated double-ζ basis set complemented with a set of d- and f-polarization functions.²⁸ The 6-31G** basis set was used for the H, C, N, and O atoms.²⁹ All structures were fully optimized in acetonitrile solvent using the SMD continuum model.^24,30

Author contributions

Miguel A. Sierra (MAS) designed the work. MAS and Alba Collado (AC) directed the research and interpreted the results. Elena Sáez recorded all the NMR experiments and titrations. Alejandro Torres and Sergio Aguado executed the experimental part and interpreted the experimental results. Mar Gómez-Gallego executed the DFT calculations and was involved in the electrochemical studies. The manuscript was written through contributions of all authors. All authors have given approval to the final version of the manuscript.

Data availability

The data supporting this article have been included as part of the ESI.‡

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

Support for this work from the Ministerio de Ciencia, Innovación y Universidades (Grants PID2022-139177OB-I00 and RED2022-134287-T) is acknowledged. AT was the recipient of an FPU fellowship (FPU16/02062).
