Modulating built-in electric field via Br induced partial phase transition for robust alkaline freshwater and seawater electrolysis

Abstract

Repulsing Cl⁻ to reduce its negative effects during seawater electrolysis is a promising strategy to guard against the corrosion of high-valence metal sites. Herein, we synthesized Fe₂P/Ni₂P by a facile Br-induced partial in situ phase transition strategy. This Fe₂P/Ni₂P possessed intensified built-in electric field (BEF) due to large work function difference (ΔΦ), demonstrating outstanding OER and HER activity in alkaline freshwater/seawater solution and exhibiting a low cell voltage for an anion exchange membrane water electrolyzer (AEMWE) system. Both experiments and theoretical results verify that the interfacial charge redistribution induced by the enhanced BEF optimizes the adsorption strength for the intermediates. Moreover, the appropriate phosphorus–oxygen anion self-transformation can protect the NiOOH active species from corrosion by repulsing Cl⁻ in alkaline seawater. This work not only proposes a fresh perception of the water/seawater splitting mechanism but also provides new design principles to defend active sites in seawater-to-H₂ conversion systems.

---

1. Introduction

Electrolysis of water powered by renewable energy constitutes a sustainable strategy for the production of transportable and green hydrogen (H₂).^1,2 Apart from considering the expense of electrolyzers and the intermittence of renewable electricity, a supply of freshwater may be a practical problem for deploying large-scale electrocatalytic H₂ production.^3,4 If saline water, particularly seawater—which constitutes nearly 96.5% of Earth's total water resources—could serve as an ideal feedstock for electrocatalytic H₂ production, it would help alleviate the shortage of freshwater resources. While the transformation of seawater to H₂ is an intriguing prospect, chloride ions (Cl⁻) and their derivatives (such as Cl₂ or HClO/ClO⁻) can significantly accelerate the corrosion or deactivation of electrocatalysts. This occurs through surface adsorption or coordination mechanisms, especially during the anodic oxygen evolution reaction (OER) associated with seawater splitting.^5,6 Moreover, the standard thermodynamic voltage of OER is 0.48 V lower than that of the chlorine oxidation reaction (ClOR) at pH > 7.5. This means that superior water splitting performance can significantly suppress Cl⁻ transformation into Cl₂ or HClO/ClO⁻. Even if the electrode shows excellent activity in inhibiting Cl⁻ oxidation, Cl⁻ ions themselves can etch electron-poor transition metals, leading to metal leaching and a deterioration in performance.^7,8 Therefore, the exploration and construction of catalysts that suppress the loss of reaction sites to maintain high seawater splitting activity and optimize adsorption behaviors for intermediates to safeguard the electrode against Cl⁻ attack are of paramount importance.

The exquisite construction of a built-in electric field (BEF) between two hetero substances with a difference in Fermi level, would be a promising way to manipulate the electronic state of active sites and stabilize the surficial dynamical adsorption balance.^9,10 For example, a Co LDH/Cu₃P composite can accelerate charge transport and improve active sites due to an enhanced built-in potential (E_BI).¹¹ Zhang et al. have constructed N–Ni₅P₄/CoP nanowires with a strong BEF for hydrazine-assisted H₂ production.¹² Very recently, Xu et al. demonstrated that the enhanced BEF at the Fe₂P/NiCoP interface facilitates the surface transformation of NiCoP into NiCoOOH active species, exhibiting high freshwater and seawater oxidation activity.¹³ Essentially, the constructed BEF can facilitate the division of positive and negative charges, inducing their separation in opposite directions at the heterointerface to accelerate regional charge polarization.¹⁴ Consequently, manipulating the features of the BEF can achieve an asymmetric distribution of charge that is promising for realizing the stable adsorption of intermediates on the heterointerface or active sites.¹⁵ However, while coupling transition metal phosphides (TMPs) with other components (nitrides or sulfides), charge carriers would experience severe localization due to the overlap of the electron cloud across the heterointerface, where the electrons are completely delocalized via the metal whereas the protons are still confined and greatly weaken the BEF.^16,17 Fortunately, by manipulating the difference in the work function (ΔΦ) between TMP and other substances, the charge transfer direction across the heterointerface can be controlled.¹⁸ Based on the above discussion, it is rational and promising to simultaneously regulate the adsorption behaviors for intermediates by exquisitely designing the appropriate components with suitable work functions to control and modulate the BEF. Moreover, revealing the relationship between BEF and ΔΦ and its effect on catalytic activity and selectivity is important.

Herein, for the first time, we have exquisitely designed and manipulated the Br-induced partial in situ phase transition from Fe₂P/Ni₅P₄ to Fe₂P/Ni₂P under the phosphorization process, which strongly influences the ΔΦ. Specifically, Fe₂P/Ni₂P, with a large ΔΦ (0.5 eV) compared with Fe₂P/Ni₅P₄ (0.3 eV), demonstrates an enhanced BEF, as confirmed by various electrochemical tests. Furthermore, in situ/ex situ spectroscopic investigations confirm that the enhanced BEF plays an important role in subtly tailoring the intermediates and phosphate absorption strength, which is essential for water and seawater splitting. As a result, the Fe₂P/Ni₂P catalyst reveals remarkable OER and HER activity with low overpotentials of 196 mV and 108 mV for freshwater and 229, 203 mV for seawater, respectively, and can be used in an anion exchange membrane water electrolyzer (AEMWE) with low cell voltage. This work paves the way for synthesizing bifunctional water-splitting electrocatalysts by exquisitely designing and modulating the interfacial BEF.

2. Experimental section

2.1 Synthesis of NiFe LDH

First, 0.582 g of Ni(NO₃)₂·6H₂O, 0.404 g of Fe(NO₃)₃·9H₂O, and 0.841 g of C₆H₁₂N₄ were weighed and fully dissolved in a Teflon autoclave with 45 mL of ethanol solution, and stirred for 2 h. After reaction for 12 h at 120 °C, a brown product (NiFe LDH) was obtained by centrifugation with ethanol and dried at 60 °C all night.

2.2 Synthesis of Fe₂P/Ni₂P

The as-prepared NiFe LDH precursors, a small amount of hexabromobenzene (HBB) and 300 mg of NaH₂PO₂·H₂O were placed in three separate positions in a ceramic boat inside a tube furnace, where NaH₂PO₂·H₂O was at the midstream of the gas flow, NiFe LDH was placed on the downstream side, and one piece of HBB flake (pressurized at 14 MPa at room temperature) was located upstream. Then the temperature was raised to 350 °C for 2 h. After cooling down to room temperature, a black product consisting of thick Fe₂P/Ni₂P nanosheets was obtained. For the synthesis of Fe₂P/Ni₅P₄, the same synthetic method was adopted as for the Fe₂P/Ni₂P sample without the addition of HBB flake.

2.3 Material characterizations and electrochemical methods

The material characterizations and electrochemical methods are documented in detail in the ESI.†

3. Results and discussion

3.1 Material synthesis and characterization

In general, thermodynamic stability can be altered when materials are doped with heteroatoms. Bromine, being more electronegative than phosphorus, was chosen as a candidate to induce the formation of a P-poor phase. The relatively large size of Br favors the creation of phosphorus vacancies due to the strain field it generates.^19,20 As schematically illustrated in Fig. 1, an Fe₂P/Ni₂P catalyst could be successfully synthesized by a two-step route. Firstly, NiFe LDH nanosheets with a large surface area were obtained via an appropriate solvothermal pathway. Next, the NiFe LDH was completely transformed into Fe₂P/Ni₅P₄ (the ratio of P/Ni = 0.8) via a thermal phosphorization process at 350 °C. However, Fe₂P/Ni₅P₄ adopts the bulk nanosheet structure, which may be attributed to the introduction of molten NaH₂PO₂ salt gas with high viscosity, causing the NiFe LDH to agglomerate easily. In addition, during the process of synthesizing Fe₂P/Ni₂P, a small amount of Br atoms and more P atoms first form an Fe₂P/Ni₅P₄Br_4−x intermediate. Subsequently, the remaining P atoms struggle with Br and consume each other. Eventually Br atoms are completely replaced by P atoms, causing a partial phase transition, thus forming a P-poor-phase Fe₂P/Ni₂P (P/Ni = 0.5) catalyst.

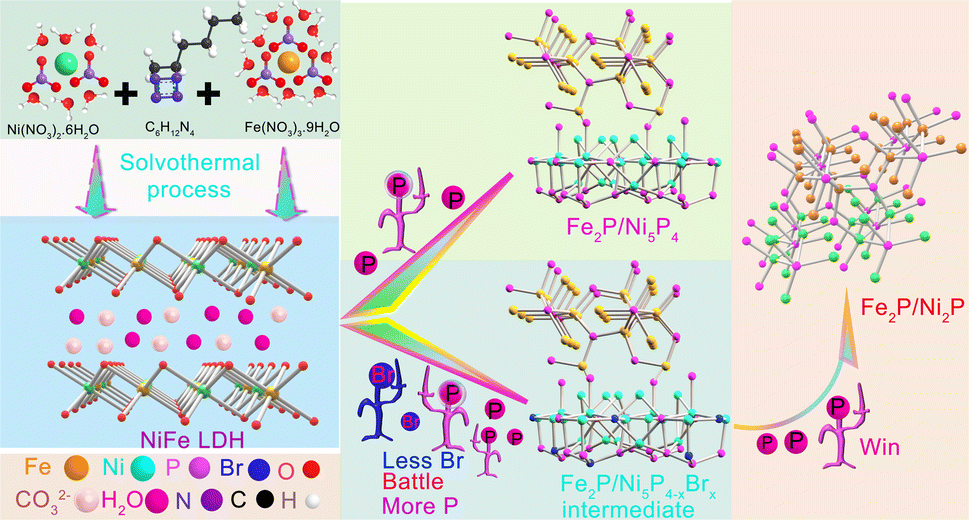

Fig. 1 Schematic illustration of the formation of Fe₂P/Ni₅P₄ and Fe₂P/Ni₂P.

The morphology of the as-prepared catalysts was characterized via scanning electron microscopy (SEM) and transmission electron microscopy (TEM). As illustrated in Fig. 2a and S1,† the NiFe LDH exhibits a nanosheet morphology. After being subjected to a phosphorylation process, both with and without Br atoms, the synthesized Fe₂P/Ni₂P and Fe₂P/Ni₅P₄ catalysts display a bulk nanosheet structure, attributed to the introduction of molten NaH₂PO₂ salt gas with high viscosity, causing the NiFe LDH to agglomerate easily (Fig. 2b and c). Moreover, the high-resolution TEM (HRTEM) images in Fig. 2d–f and S2a–c† show that both Fe₂P/Ni₂P and Fe₂P/Ni₅P₄ contain common clear lattice fringes with an approximate spacing of 0.17 nm (Fig. 2e, e-1, S2c and c-1†) that are indexed to the (300) crystal plane of Fe₂P. While, two clear lattice fringes with approximate spacings of 0.2 (Fig. 2f and f-1) and 0.22 nm (Fig. S2b and b-1†) are indexed to the (201) and (210) crystal planes of Ni₂P and Ni₅P₄ in the Fe₂P/Ni₂P and Fe₂P/Ni₅P₄ catalysts, respectively, confirming the successful fabrication of the Fe₂P/Ni₂P and Fe₂P/Ni₅P₄ structures.^21–24 These results can be further confirmed via selected area electron diffraction (SAED) patterns (Fig. 2g and S2d†). Moreover, the EDS analysis of the as-synthesized Fe₂P/Ni₂P proved that Ni, Fe, and P were the main elemental components with Ni : Fe : P : Br mass ratios of 1 : 1.04 : 2.73 : 0 (Fig. S3†), which may be ascribed to a small amount of Br atoms and more P atoms first forming an Fe₂P/Ni₅P₄Br_4−x intermediate, and the remaining P atoms struggle with Br atoms and consume each other. Eventually, the Br is replaced by P, causing a phase transition. This result strongly proves that the Br atoms play a brief intervention role in synthesizing Fe₂P/Ni₂P. The element mapping images of the Fe₂P/Ni₂P and Fe₂P/Ni₅P₄ catalysts also confirmed the uniform dispersion of the elements of Fe, Ni and P (Fig. 2h and S2f†).

Fig. 2 TEM images of (a) NiFe LDH, (b) Fe₂P/Ni₂P and (c) Fe₂P/Ni₂P. (d–f) High-resolution TEM images of Fe₂P/Ni₂P, integrated pixel intensities (e-1 and f-1) of Fe₂P and Ni₂P (taken from the green dotted rectangles in (e) and (f)). (g) SAED pattern of Fe₂P/Ni₂P. (h) Elemental mapping images of Fe₂P/Ni₂P.

To verify this portion-limited phase-transition mechanism, X-ray diffraction (XRD) patterns of NiFe LDH, Fe₂P/Ni₅P₄ and Fe₂P/Ni₂P were recorded first. As shown in Fig. S4,† four prominent peaks can be observed at approximately 33.5°, 34.4°, 59.9° 61.3°, attributed to the (110), (012), (101) and (113) crystal planes of NiFe LDH (JCPDS no. 40-0215), respectively.²⁵ Notably, the peaks located at 40.3°, 44.2°, 47.3°, 54.1° and 54.6° belonging to the (111), (201), (210), (300) and (211) crystal planesof Fe₂P (JCPDS no. 51-0943), respecitvely, which can be observed in both Fe₂P/Ni₅P₄ and Fe₂P/Ni₂P samples,²⁶ while peaks located at approximately 31.5°, 36.1°, 40.6°, 41.4°, 43.9°, 45.1°, 47.8°, 53.9° and 56.4° belong to the (201), (104), (210), (211), (212), (204), (213), (220) and (310) crystalline planes of Ni₅P₄ (JCPDS no. 18-0883), respectively.²³ However, after a brief intervention by the Br atoms, the Ni₅P₄ phase disappears and new peaks located at 40.8°, 44.6°, 47.3°, 54.2°, 54.9° and 74.7° correspondly ascribed to the (111) (201), (210), (300), (211) and (400) crystal planes of Ni₂P (JCPDS no. 03-0953) can be found (Fig. 3a).²⁷ The above results confirm the successful synthesis of Fe₂P/Ni₅P₄ and Fe₂P/Ni₂P, and also strongly verify the phase transition from Ni₅P₄ to Ni₂P. Moreover, to reveal the structural characteristics and bonding properties of Fe₂P/Ni₅P₄ and Fe₂P/Ni₂P, the Fourier transform infrared (FT-IR) spectra were measured. As illustrated in Fig. 3b, two dominant absorption bands of M–P at 920 and 1024 cm⁻¹ can be observed, and one broad band at 551 cm⁻¹ is ascribed to bending vibration of the ν₄ (O–P–O) bond.^28–30 Furthermore, to reveal the role of the portion-limited phase transition in tuning the electronic structure, electron paramagnetic resonance (EPR) spectra of Fe₂P/Ni₅P₄ and Fe₂P/Ni₂P were documented (Fig. 3c). The relatively large size of Br favors the formation of abundant P vacancies due to the strain field. Fe₂P/Ni₂P displays a pair of prominent signals, suggesting the existence of abundant unpaired electrons derived from dangling bonds in the portion-limited phase-transition structure compared with Fe₂P/Ni₅P₄, also confirming that it may form an Fe₂P/Ni₅P₄Br_4−x intermediate first and then phase change into Fe₂P/Ni₂P, or directly form Fe₂P/Ni₂PBr_1−x and Fe₂P/Ni₅P₄Br_4−x. However, the XRD proves the phase transition from Ni₅P₄ to Ni₂P, and EDS demonstrates that there are no Br atoms. Thus, it is directly proved that Fe₂P/Ni₅P₄Br_4−x is formed first and then converted into Fe₂P/Ni₂P, instead of directly forming Fe₂P/Ni₂PBr_1−x and Fe₂P/Ni₅P₄Br_4−x.^19,20,31 In fact, numerous dangling bonds offer more accessible active sites for electrochemical water splitting.³² Accordingly, X-ray photoelectron spectroscopy (XPS) was employed to reveal the chemical composition and bonding configuration of Fe₂P/Ni₅P₄ and Fe₂P/Ni₂P. The XPS full spectra (Fig. S5a†) reveal the coexistence of Fe, Ni and P elements, which correspond to the above elemental mapping.³³ As shown in the high-resolution Fe 2p spectrum (Fig. 3d), for Fe₂P/Ni₂P, the prominent peak at 705.9 eV belongs to Fe–P, while three peak doublets located at (710.6 and 723.5 eV), (713.2 and 726.7 eV), and (717.2 and 730.6 eV), consistent with Fe²⁺, Fe³⁺, and satellite signals, respectively. The peaks of Fe 2p display a slight positive shift compared with Fe₂P/Ni₅P₄, demonstrating greater electron transfer from Fe to the P atom.³⁴ Likewise, three pairs of peaks corresponding to satellite peaks (861.1, 879.9 eV), Ni–O (855.9, 874.3 eV), and Ni–P (852.7, 870.1 eV) are also observed in the high-resolution Ni 2p spectra (Fig. 3e), which exhibit a remarkable positive shift (about 1.0 eV), implying a reduction in charge density around the metal atom.¹⁸ Meanwhile, for P 2p orbitals, the peaks located at 129.1, 130.0 and 133.6 eV in Fig. 3f are ascribed to P 2p_3/2, P 2p_1/2 and the P–O bonding state, respectively.³⁵ Compared with Fe₂P/Ni₅P₄, the peaks of Fe₂P/Ni₂P exhibit a slight negative shift (about 0.42 eV), indicating more accumulated electrons on P due to the Br and P consuming each other and thus introducing abundant P vacancies.³⁶ These shifts confirm the abundant electron transfer from the Ni atom to the P atom compared with the Fe atom. In order to balance the charge, the Fe atom spontaneously transfers partial electrons to the Ni atom, which further confirms the electron transfers from Fe₂P to Ni₂P, thus signifying the formation of a BEF with electron-rich Ni atoms and electron-poor Fe atoms, optimizing the adsorption energy of the intermediate in the water-splitting process.

Fig. 3 (a) XRD patterns of Fe₂P/Ni₅P₄ and Fe₂P/Ni₂P. (b) FT-IR spectra of Fe₂P/Ni₅P and Fe₂P/Ni₂P. (c) EPR spectra of Fe₂P/Ni₅P and Fe₂P/Ni₂P. High-resolution XPS spectra of (d) Fe 2p, (e) Ni 2p and (f) P 2p in Fe₂P/Ni₅P₄ and Fe₂P/Ni₂P. (g) UPS spectra of Ni₅P₄, Fe₂P and Ni₂P. (h) Energy-band alignment diagram of Ni₅P₄ and Ni₂P with respect to Fe₂P. (i) Schematic diagram of the BEF based on the interfaces between Fe₂P and Ni₂P.

Generally, the charge transfer direction is closely correlated with the difference ΔΦ in the semiconductor heterostructure.^37,38 Ultraviolet photoelectron spectroscopy (UPS) was undertaken to analyze the values for Fe₂P, Ni₅P₄ and Ni₂P. As illustrated in Fig. 3g and Table S1,† the Φ value of Ni₂P is increased by 0.8 eV compared with Ni₅P₄, suggesting that a brief intervention by the Br atom can decrease the Fermi level. Accordingly, the measured Φ values of Ni₅P₄, Fe₂P and Ni₂P are 5.92, 6.22, and 6.72 eV, respectively (Fig. 3h). Compared with a relatively small ΔΦ of 0.3 eV at the Fe₂P/Ni₅P₄ heterogeneous interface, the Fe₂P/Ni₂P interface possesses a relatively large ΔΦ of 0.5 eV. Moreover, the Mott–Schottky (M–S) plots of Ni₅P₄, Fe₂P and Ni₂P were calculated to construct energy diagrams. As shown in Fig. S5b–d,† Ni₅P₄, Fe₂P and Ni₂P possess a positive slope, indicating that these catalysts are n-type semiconductors, and the flat band potentials (E_FB) of Ni₅P₄, Fe₂P and Ni₂P can be tested to be 0.64, 0.59 and 0.66 (vs. Hg/HgO), respectively; thus, the conduction band potential (E_CB) values of Ni₅P₄, Fe₂P and Ni₂P can be calculated as 0.64, 0.59 and 0.66 V vs. NHE (E_NHE = E_Hg/HgO + 0.098 V).^39,40 Furthermore, the valence band (E_VB) maximum values were measured as 3.96, 2.47 and 3.67 eV for Ni₅P₄, Fe₂P and Ni₂P, respectively. Therefore, the band gap (E_g) values of Ni₅P₄, Fe₂P and Ni₂P were calculated as 3.32 eV, 1.88 eV and 1.5 eV by using the formula: E_VB = E_CB + E_g; the smaller E_g of Ni₂P (1.5 eV) confirms the faster charger transfer across the Fermi level.⁴¹ Based on the above results, the interfacial electronic structure in the Fe₂P/Ni₂P heterojunction can be modified, and the large discrepancy in Φ forms an n–n heterojunction, where ΔΦ would drive the charge migration from high level to low until the heterojunction interface recovers balance.⁴² Therefore, the charge in Fe₂P will flow into Ni₂P, forming a positively charged donor. Concurrently, a BEF is formed with the orientation pointing from Fe₂P to Ni₂P (Fig. 3i). Generally, the largest ΔΦ indicates the presence of the strongest BEF between the two semiconductors. A BEF with electron flow in a single direction can effectively adjust the charge redistribution and can concurrently induce an electron-rich Ni₂P zone and an electron-poor Fe₂P zone, thus promoting the adsorption process for intermediates and PO₄³⁻.^43,44

3.2 OER and HER in freshwater

The electrochemical performance of the as-prepared catalysts was documented by a standard three-electrode system in 1 M KOH solution. For comparison, RuO₂ and Pt/C catalysts were employed as reference HER and OER catalysts, respectively. Linear sweep voltammetry (LSV) curves in Fig. 4a show that the Fe₂P/Ni₂P catalyst displays superior electrocatalytic performance for OER and HER compared with Fe₂P/Ni₅P₄ and NiFe LDH. Concretely, it requires ultra-small overpotentials of 196 and 224 mV to achieve η₁₀ and η₂₀ for OER (Fig. 4b), which are superior to those of Fe₂P/Ni₅P₄ (237 and 258 mV), NiFe LDH (272 and 307 mV), and RuO₂ (327 and 389 mV). Additionally, Fe₂P/Ni₂P shows the highest HER activity, requiring overpotentials of only 108 and 151 mV to attain η₁₀ and η₂₀, also being superior to Fe₂P/Ni₅P₄ (204 and 250 mV) and NiFe LDH (422 and 475 mV). These results confirm that the introduction of Br induces a phase change and constructs a stronger BEF due to the larger ΔΦ. This, in turn, substantially enhances the OER and HER activities,⁴⁵ also outperforming the majority of reported electrocatalysts (Tables S2 and S3†). The Tafel slope is usually used to reveal OER and HER kinetics, and a low Tafel slope means favorable reaction kinetics. As shown in Fig. 4c and d, the Tafel slopes of the Fe₂P/Ni₂P catalyst are determined to be 89.1 and 121.5 mV dec⁻¹ for OER and HER, respectively, which are smaller than those of Fe₂P/Ni₅P₄ (91.2 and 134.4 mV dec⁻¹) and NiFe LDH (96.3 and 148.1 mV dec⁻¹), indicating a Volmer–Heyrovsky water-splitting procedure. Moreover, the electrochemically active surface area (ECSA) was probed by using double-layer capacitance (C_dl) to understand the surface properties of the samples. Fig. S6 and S7† show that the C_dl for Fe₂P/Ni₅P₄–Ov are calculated to be 1.0 and 13.9 mF cm⁻² for OER and HER, respectively, suggesting a greater electrochemically active surface area. Furthermore, the electrochemical stability of Fe₂P/Ni₂P for OER and HER was assessed via a cyclic voltammetry (CV) test. The LSV curve of Fe₂P/Ni₂P after 1000 CV cycles coincides well with the initial curve, indicating its outstanding cyclability (Fig. 4f). To estimate the intrinsic OER and HER activity, Fig. S8† documents the turnover frequency (TOF) values of Fe₂P/Ni₂P and referenced samples, where Fe₂P/Ni₂P demonstrates higher TOF values for OER (0.029 s⁻¹) and HER (0.195 s⁻¹).^46,47 The superb long-term stability was evaluated using chronoamperometry measurements, in which the electrochemical OER and HER activities of Fe₂P/Ni₂P were conducted smoothly for more than 135 h without a remarkable change (Fig. 4e and g), demonstrating its high stability and good corrosion resistance properties in anodic and cathodic conditions. Multi-current curves of Fe₂P/Ni₂P were tested by changing the current density from 10 to 50 mA cm⁻² for OER and from −10 to −50 mA cm⁻² for HER per 1000 s. The high mass transport capability and stability can be further confirmed by the instantaneous potential response of each step when different currents are applied, suggesting the superb durability and fast charge/mass transport in the Fe₂P/Ni₂P sample.

Fig. 4 (a) Electrocatalytic OER and HER performance of Fe₂P/Ni₂P and the references in 1.0 M KOH solution. (b) Overpotentials of as-prepared samples at 10 and 20 mA cm⁻² for OER and HER. (c and d) Corresponding Tafel plots of Fe₂P/Ni₂P for OER and HER. (f) Polarization curves for OER and HER after 1000 cycles. (e and g) Chronopotentiometric (CP) curves and multi-step chronopotentiometry tests results of Fe₂P/Ni₂P for OER and HER.

3.3 OER and HER in alkaline seawater

With the shortage of fresh water resources in the world, seawater electrolysis and sustainable hydrogen energy have attracted increasing attention. One of the dominant challenges in seawater splitting is the chlorine evolution reaction (CER) on the anode, which is driven by the existence of Cl⁻ ions. This reaction competes with the OER and leads to the formation of insoluble precipitates, such as calcium hydroxide, on the catalyst surface.⁴⁸ To verify the selective inhibition of CER and shielding from impurities in seawater, the OER and HER performance of the samples were also measured in alkaline seawater solution. As shown in Fig. 5a–d, the Fe₂P/Ni₂P catalyst requires a smaller OER η₁₀ of only 229 mV with faster kinetics of 55.1 mV dec⁻¹ compared to Fe₂P/Ni₅P₄ (260 mV, 60.0 mV dec⁻¹), NiFe LDH (277 mV, 62.0 mV dec⁻¹) and RuO₂ (345 mV, 134.6 mV dec⁻¹), outperforming some reported electrocatalysts (Table S6†). The activity of Fe₂P/Ni₂P is almost unaffected compared with freshwater due to the construction of a stronger BEF and the appearance of the surface of PO₄³⁻ that effectively suppresses Cl⁻ oxidation, indicating its highly selective inhibition and shielding from impurities.⁴⁹ In addition, Fe₂P/Ni₂P exhibits better HER activity, which requires overpotentials of only 203 and 247 mV to attain η₁₀ and η₂₀, respectively, smaller than those of Fe₂P/Ni₅P₄ (293 and 339 mV), and NiFe LDH (448 and 496 mV). Fig. 5d demonstrates that the Tafel slop of Fe₂P/Ni₂P is 127 mV dec⁻¹, which is lower than that of other as-prepared samples, indicating faster kinetics for HER. Fe₂P/Ni₂P displays apparent C_dl values of 0.71 and 13.4 mF cm⁻² for OER and HER beyond those of Fe₂P/Ni₅P₄ (0.29 and 6.2 mF cm⁻²) and NiFe LDH (0.48 and 1.5 mF cm⁻²), which can be ascribed to the abundant exposed active sites of the nanosheets (Fig. S9 and S10†). The TOF values of Fe₂P/Ni₂P, Fe₂P/Ni₅P₄ and NiFe LDH follow the same trend as the apparent electrochemical activities in alkaline seawater solution (Fig. S11†). Furthermore, the cycling stability of the Fe₂P/Ni₂P sample was further evaluated through continuous CV test, in which the LSV curves after 1000 cycles almost coincide with the initial curve, indicating its remarkable cyclability. Additionally, as shown in Fig. 5e and g, the CP test demonstrates that Fe₂P/Ni₂P maintains stable operation without remarkable current degradation for 70 and 140 h for OER and HER. The figures also display consecutive multi-step CP tests for Fe₂P/Ni₂P, where the instant response in potential almost remains steady at each step. These results confirm that Fe₂P/Ni₂P exhibits exceptional OER/HER performance and enduring stability in harsh conditions. This is ascribed to the stronger BEF, and the existence of negatively charged anionic (PO₄³⁻) layers that can repel Cl⁻ and thus protect the electrode from corrosion.

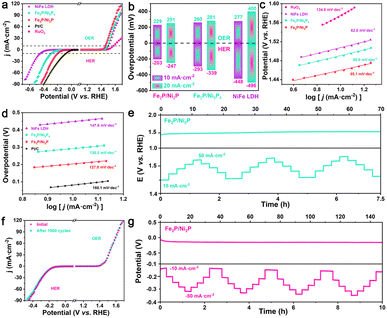

Fig. 5 (a) Electrocatalytic OER and HER performance of Fe₂P/Ni₂P and references in alkaline seawater solution. (b) Overpotential of the as-prepared samples at 10 and 20 mA cm⁻² for OER and HER. (c and d) Corresponding Tafel plots of Fe₂P/Ni₂P for OER and HER. (f) Polarization curves for OER and HER after 1000 cycles. (e and g) CP curves and multi-step chronopotentiometry tests results of Fe₂P/Ni₂P for OER and HER.

3.4 Mechanism discussion

Operando electrochemical impedance spectroscopy (EIS) was documented to gain a better understanding of the OER kinetics in the different catalyst surfaces.⁵⁰ As illustrated in Fig. 6a and d, the Nyquist plots of Fe₂P/Ni₂P and Fe₂P/Ni₅P₄ under different applied potentials were obtained, indicating various electrochemical reaction properties. The equivalent circuits of two continuous electrochemical processes were employed for data fitting (Fig. 6c), and the best fitting parameters are shown in Tables S4 and S5.† The high-frequency (HF) region is considered to be the oxidation processes occurring within the electrode, whereas the low-frequency (LF) region is concerned with the asymmetric distribution of interface charges caused by the oxidized materials (Fig. 6b and e).¹⁰R₁ and R₂ embody the oxidation resistance of the catalysts under electrochemical operation in the HF and LF zones, respectively. When the potential shifts from 1.2 to 1.6 V vs. RHE, after 1.4 V (Fe₂P/Ni₂P) and 1.45 V (Fe₂P/Ni₅P₄) in the HF region, the catalyst reconstruction concludes, R₁ becomes remarkably smaller and the OER occurs in the LF interface, indicating that Fe₂P/Ni₅P₄ undergoes a severe surface electrooxidation process. Moreover, the phase angle of the LF region symbolizing the OER decreases earlier for Fe₂P/Ni₂P (at 1.35 V) than for Fe₂P/Ni₅P₄ (at 1.4 V), suggesting that Fe₂P/Ni₂P is more susceptible to polarization. The changes in R₁ and R₂ with potentials in Fig. 6f indicate that Fe₂P/Ni₂P undergoes an accelerated rate of electrooxidation compared with Fe₂P/Ni₅P₄, and the OER process is faster.^51–53

Fig. 6 (a and d) Operando Nyquist plots, (b and e) Bode-phase plots of Fe₂P/Ni₂P and Fe₂P/Ni₅P₄. (c) Electrical equivalent circuit model used for analyzing the interfacial charge transfer. (f) Correlation of the equivalent resistances (R₁ and R₂) and potentials for Fe₂P/Ni₂P and Fe₂P/Ni₅P₄.

In situ Raman techniques were conducted to explore the origin of the activity enhancement of the as-prepared black products of Fe₂P/Ni₅P₄ and Fe₂P/Ni₂P catalysts (Fig. 7a and b). As shown in Fig. 7c–f, the spectra of Fe₂P/Ni₅P₄ and Fe₂P/Ni₂P exhibit a prominent pair of peaks at 476 cm⁻¹ (e_g bending vibration) and 554 cm⁻¹ (A_1g Ni^III–O stretching vibration) corresponding to characteristic peaks in the OER-active phase of γ-NiOOH that appear at potentials of 1.5 and 1.4 V vs. RHE, respectively. No characteristic peaks assigned to FeOOH appear, suggesting Ni₂P undergoes a surface reconstruction process and is transformed into the Ni–OOH active species during the OER test, while Fe₂P is still robust (white/black dotted oval frame in Fig. 7c).⁵⁴ Moreover, a weak band located in the range of 1000–1100 cm⁻¹ can be observed in Fe₂P/Ni₂P, which can be ascribed to PO₄³⁻.⁴⁹ The fitted band intensities of Fe₂P/Ni₂P are stronger than those of Fe₂P/Ni₅P₄ (Fig. 7d), implying an accelerated partial phase transformation to disordered NiOOH. Furthermore, FT-IR spectra of Fe₂P/Ni₂P were recorded to further confirm the phase transition before and after the OER test. Fig. 7g shows that the dominant absorption bands belonging to M–P and ν₄ (O–P–O) become weaker after OER operation. Three new absorption peaks appear at 630 cm⁻¹ (Ni–O–H), 1150 cm⁻¹ (PO₄³⁻) and 1230 cm⁻¹ (NiOOH) after the reaction.^55,56 These above results suggest that Fe₂P/Ni₂P will interact with OH⁻ to form Fe₂P/Ni(OH)₂ first, and will then be further oxidized and evolve to Fe₂P/NiOOH during the OER process (Fe₂P/Ni(OH)₂ + OH⁻ → Fe₂P/NiOOH + H₂O + e⁻). The in situ Raman and FT-IR confirm the existence of NiOOH and the formation and adsorption of PO₄³⁻ on the electrode surface, where the negatively charged PO₄³⁻ layer can protect the active species NiOOH from corrosion by repulsing Cl⁻ (Fig. 7a).⁷ After the OER test, Fe₂P/Ni₂P shows negligible change in the XRD pattern, except that the peak intensity becomes weaker than that before the test, indicating that the electrode undergoes surface reconstruction and partial transformation into the corresponding amorphous NiOOH (Fig. S12†). It is particularly important to note that Fe₂P/Ni₅P₄ displays a potential loss of 42 mV, whereas the loss of activity of Fe₂P/Ni₂P can be ignored under 50 mA cm⁻² for 30 h, showing that the PO₄³⁻ of the electrode surface plays a crucial role in maintaining OER active sites (Fig. S13†). In addition, partial Fe elements were dissolved from Fe₂P/Ni₂P in the initial period of the stability test (from 0 to 20 h), but the loss of Fe element had not remarkably increased after 20 h, showing that Fe leaching had increasingly stopped, attaining a dynamic balance process. However, the Ni element could not be detected in seawater electrolyte after 30 h of continuous operation, confirming that the formed negatively charged PO₄³⁻ layer at the electrode surface can protect the NiOOH active species from corrosion and dissolution by repulsing Cl⁻ ions (Fig. S14†). Fe₂P/Ni₅P₄ shows a negative zeta potential (−17.86 eV), while Fe₂P/Ni₂P exhibits higher surface electronegativity (−18.93 eV), indicating the adsorption of a PO₄³⁻ protective layer on the surface of catalyst (Fig. S15†). Furthermore, the active chlorine concentration in alkaline seawater solution was investigated and detected using the colorimetric method and UV/Vis spectroscopy (Fig. S16–S18†). The hypochlorite content did not increase after 30 h of CP testing, suggesting that the Cl⁻ evolution was significantly inhibited.⁴⁰ Corrosion polarization plots (Fig. S19†) demonstrate a higher potential and a smaller j for Fe₂P/Ni₂P than for Fe₂P/Ni₅P₄, indicating that Fe₂P/Ni₂P with the strongest BEF can facilitate the adsorption of intermediates, thus showing stronger resistance against chloride corrosion.⁷ As a result, the Fe₂P/Ni₅P₄ catalysts with weaker BEF dissolve successively, while Fe₂P/Ni₂P is very robust (Fig. S20†).

Fig. 7 (a) Schematic diagram of the possible evolution of catalyst. (b) The in situ Raman measurement device. (c) The image of Fe₂P/Ni₂P in the in situ Raman test process. (d and e) In situ Raman spectra of Fe₂P/Ni₅P₄ and Fe₂P/Ni₂P with different operating potentials (vs. RHE). (f) Comparison of the ratios of band intensity (I₄₇₆/I₅₅₄). (g) FT-IR spectra of Fe₂P/Ni₂P before and after test.

To emphasize the tremendous potential of Fe₂P/Ni₂P for practical application, a lab-scale AEMWE device was built (Fig. 8a). The overall water-splitting (OWS) performance of the Fe₂P/Ni₂P catalyst in the AEMWE system was documented using LSV in 1 M KOH electrolyte. As shown in Fig. 8b, the Fe₂P/Ni₂P catalyst requires only a voltage of 1.63 V to achieve η₁₀, which is superior to other recently reported bifunctional electrocatalysts (Fig. 8c and Table S7†). Moreover, in Fig. 8d, the Fe₂P/Ni₂P catalyst demonstrates good stability over 80 h in the AEMWE system, indicating highly promising potential for practical application. Previous tests have demonstrated that the Fe₂P/Ni₂P catalyst exhibits excellent activity in alkaline HER, OER, and OWS, suggesting the superior all-around catalytic activity of the target catalyst. The mechanisms of improved OER and HER performance for Fe₂P/Ni₂P can be summarized, as schematically illustrated in Fig. 8e. The large ΔΦ will drive spontaneous electron transfer from Fe₂P to Ni₂P in heterogeneous Fe₂P/Ni₂P, and concurrently a strong interfacial BEF with an asymmetric charge distribution is constructed.^57,58 During the water-splitting process, water molecules are first adsorbed on the catalyst surface and dissociated into intermediates (Volmer step). The negative-charge-rich Ni₂P region prefers to absorb hydrogen intermediates, and subsequently generates hydrogen molecules by combining with two electrons. Meanwhile, the oxygen species are attracted by the positive-charge-enriched Ni₂P side for catalyzing OER, which facilitates the shedding of hydrogen protons by decreasing the free energy in Fe₂P/Ni₂P. Therefore, significant bifunctionality for OWS activity is developed. For comparison, the adsorption of hydrogen protons by Ni₂P and Fe₂P is either too strong or too weak for HER, while the high energy barrier for the shedding of hydrogen protons for OER is attributed to the conventional charge distribution.

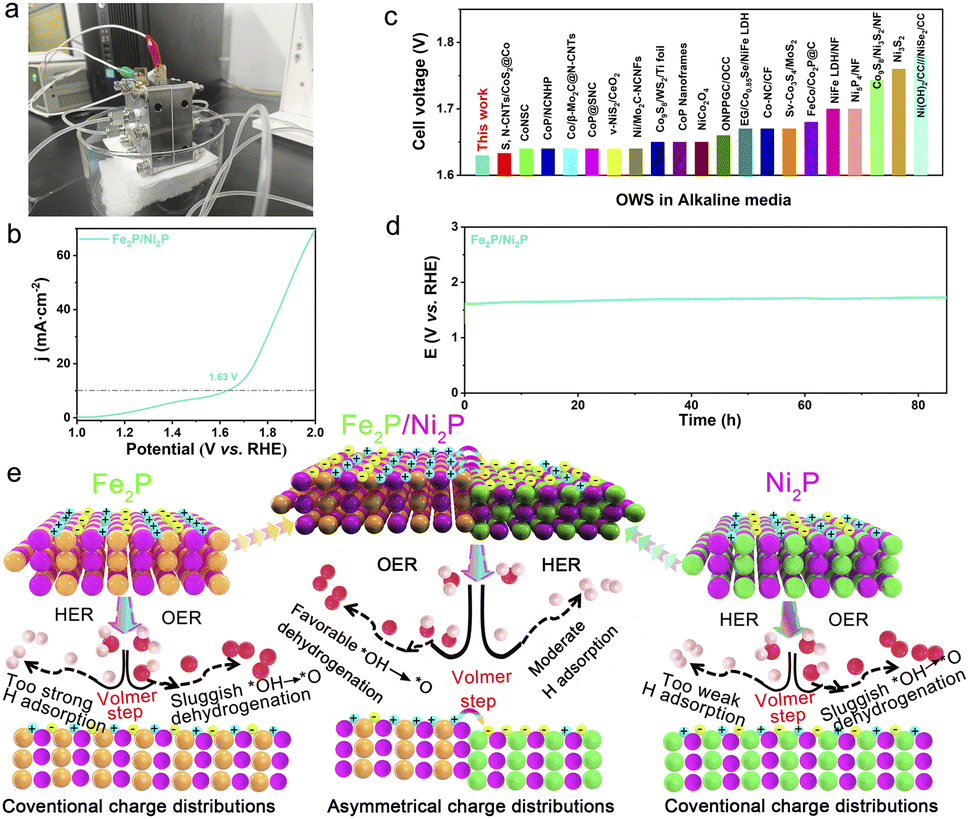

Fig. 8 (a) The AEMWE device. (b) Polarization curves of AEM water electrolyzer with Fe₂P/Ni₂P. (c) Comparison of Fe₂P/Ni₂P with reported bifunctional electrocatalysts at 10 mA cm⁻². (d) Stability of Fe₂P/Ni₂P//Fe₂P/Ni₂P at 10 mA cm⁻² in AEMWE. (e) Schematic illustration of OER and HER mechanisms for Fe₂P/Ni₂P bifunctional electrocatalyst.

4. Conclusions

We have exquisitely designed and manipulated a Br-induced partial in situ phase transition from Fe₂P/Ni₅P₄ to Fe₂P/Ni₂P under the phosphorization process, which leads to a strong BEF due to the large ΔΦ difference. As a result, the Fe₂P/Ni₂P catalyst demonstrates remarkable OER and HER activity with low overpotentials of 196, 108 mV for freshwater and 229, 203 mV for seawater, respectively. Experiments and in situ/ex situ spectroscopic investigations confirm that the enhanced BEF plays an important role in subtly engineering absorption strength for reaction intermediates and phosphate intermediates due to an asymmetric charge distribution at the Fe₂P/Ni₂P interface. In particular, the existence of high-valence NiOOH and the co-existence of adsorbed PO₄³⁻ at the electrode surface confirm that the negatively charged PO₄³⁻ layer can protect the NiOOH active species from corrosion by repulsing Cl⁻. Moreover, Fe₂P/Ni₂P also exhibits a low cell voltage for an AEMWE system. This work paves the way for synthesizing bifunctional seawater/water-splitting electrocatalysts by exquisitely designing and modulating the interfacial BEF.

Data availability

All data that support the findings of this study are included within the article.

Author contributions

Lei Jin: conceptualization, methodology, writing – original draft, data curation, visualization. Hui Xu: methodology, formal analysis, writing – review & editing. Kun Wang: data curation. Yang Liu: investigation. Xingyue Qian: formal analysis, supervision, writing – review & editing. Haiqun Chen: project administration. Guangyu He: validation, funding acquisition, resources.

Conflicts of interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgements

This work was financially supported by National Natural Science Foundation of China (No. 22305025, 21978026, 22078028) and the Natural Science Foundation of Jiangsu Province (BK20230640). We also thank the Analysis and Testing Center of Changzhou University for assistance in characterizations.
