Jake X. Shi‡
ab,
Diane D. Kim‡
a,
Nicodemo R. Ciccia‡
ab,
Pierre Lahaie-Boivin
a and
John F. Hartwig
*ab
aDepartment of Chemistry, University of California, Berkeley, California 94720, USA. E-mail: jhartwig@berkeley.edu
bDivision of Chemical Sciences, Lawrence Berkeley National Laboratory, Berkeley, California 94720, USA
First published on 2nd June 2025
Polyethylene is the most widely produced commodity plastic and is used in many applications, including packaging, insulation, and medical devices. However, the inertness of polyethylene makes chemical recycling inefficient and challenging. We report the conversion of oxidized high-density and low-density polyethylene, formed by direct, catalytic oxidation, to polyamides by Beckmann rearrangement of the corresponding oximes. These polyamides have enhanced surface properties over those of unmodified polyethylene, while maintaining the same, favorable mechanical profiles. The amide sites were reductively cleaved by hydrogenolysis with ruthenium-based catalysts to furnish alcohol- and amine-terminated fragments, which were used for the synthesis of polyurea-urethanes with poly(tetrahydrofuran) and methylene diphenyl diisocyanate. These experiments show how to install cleavable moieties into the backbone of polyethylene to facilitate deconstruction and the generation of new materials to affect greater sustainability in polyolefins.
Functionalized polyethylenes could serve as a more sustainable alternative to these polyethylene composites. They can be tailored to possess enhanced properties, such as increased adhesion and solubility in polar solvents over their unmodified counterparts, whereas accessing such properties from polyethylene would require polymer blending. The functionalized polymers have been shown to be more amenable to deconstruction and recycling than composite materials.7–13 Typically, these functionalized polyolefins are synthesized by copolymerization of ethylene and polar comonomers. However, copolymerization methods are limited; free-radical copolymerization does not allow for a significant degree of control over monomer ratios or polymer architecture, and copolymerization catalyzed by transition-metal systems is prone to catalyst deactivation by polar functional groups.8,9 Therefore, these processes can generate only a limited range of functional materials.
Post-polymerization functionalization can circumvent some of these disadvantages by enabling the structure of the polymer to be established prior to the introduction of polar groups.8,9 In addition, post-polymerization functionalization can occur with existing polyolefins as feedstock to upcycle post-consumer polyolefins directly into functional materials suitable for a range of applications.14–17
Our group reported a ruthenium-catalyzed oxidation of the C–H bonds in polyethylenes of varying architectures and in waste polyethylenes to generate oxo-polyethylenes containing a mixture of pendant alcohol and ketone units.18 These oxo-polyethylenes displayed enhanced bulk properties and were amenable to further modification by conversion of all installed polar moieties to either the alcohols or the ketones, followed by grafting of substituents containing functional groups. One such transformation generated oxime-containing polyethylenes by reaction of ketone-functionalized polyethylene with a variety of O-substituted hydroxylammonium chloride salts. The resulting oxime-polyethylenes displayed enhanced adhesion over the unmodified polyethylene and could be reverted to their ketone-containing precursors by simple hydrolysis. Because most previously reported functionalizations of polyolefins modify only the pendent C–H bonds, methods for in-chain modification that could further broaden the range of polymer structures and properties accessible by post-polymerization functionalization are needed.19–21

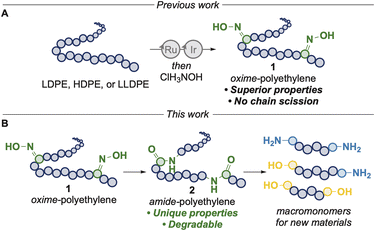

We envisioned that further derivatization of oxime-polyethylenes could generate polymers with in-chain amide linkages by a Beckmann rearrangement and that the resulting polymers could have properties different from those of polyethylene or that they could be cleaved to form telechelic units to create new materials with greater circularity, or both (Fig. 1). During the preparation of this manuscript, Nozaki and coworkers published the formation of polyamides from linear polyketones generated from palladium-catalyzed copolymerization of ethylene and diiron nonacarbonyl, by sequential oxime formation and Beckmann rearrangement using a large excess of diethylamino sulfur trifluoride (DAST) and assessed the thermal and mechanical profiles of the polyamides.22 However, this work was not extended to commercial polyethylenes or those derived from waste. De Vos and coworkers reported the synthesis of polyamides from the direct oxidation of low molecular weight polyethylenes (Mn < 2000 Da), by sequential oxime formation and Beckmann rearrangement with sulfuric acid at high temperatures, but the latter step reverted some of the oximes back to ketones.23 Aube, Zhukhovitskiy and coworkers demonstrated the rearrangement of alcohol and ketone units on oxidized low-molecular weight polyethylene (Mn < 2000 Da) with alkyl azides and scandium(III) triflate to furnish polyamides with tertiary amide linkages, but only moderate yields of amide were achieved and significant amounts of chain scission was observed.24
To address these limitations, we envisioned that access to these polyamides from the direct oxidation of high molecular weight polyethylenes, using mild, effective catalysts and reagents with minimal side reactions is needed. Here, we report the synthesis of amide-containing polyethylenes from multiple forms of oxo-polyethylene from commercial and waste polyethylenes, testing of thermal, tensile and surface properties of the materials, and the cleavage of the amide linkages to form telechelic macromonomers that serve as chain extenders for the synthesis of polyurea urethanes.
Thus, we started our work from oxime-containing low-density polyethylene (LDPE) 1a derived from oxidation and condensation of LDPE to furnish in-chain amide linkages through Beckmann rearrangement. In 1961, the Beckmann rearrangement of keto-polyethylene into polyamides through sequential oxime installation and reaction with phosphorus pentachloride (PCl5) was reported; however, when applied to our system from commercial polyethylenes, generation of alkyl chlorides by Beckmann fragmentation occurred, as assessed by 1H NMR spectroscopy (Fig. S41†).26
Thus, we investigated for the reactions of our oxidized polyolefins alternative conditions that readily convert small-molecule oximes to amides (Table 1).29 Organocatalysts, such as cyanuric chloride (CNC) and the combination of triphenylphosphine with carbon tetrabromide,30,31 did not catalyze the formation of amides from the oximes (Table 1 entries 1 and 2). Furthermore, strong acids, such as p-toluenesulfonic acid (PTSA) and trifluoroacetic acid (TFA), formed the amides in just trace amounts (Table 1 entries 3 and 4). Low conversions of the oxime occurred from reactions with trifluoroacetic anhydride (TFAA) (Table 1 entry 5). The low conversions of the reactions with these reagents highlight the challenges of applying transformations of small molecules to polyethylene.
Entrya | Conditionsg | Conversionh | Mn (kDa)i,j | Đ |
---|---|---|---|---|
a All reactions run for 24 h.b Reaction run in PhMe.c Reaction run in DCM.d Reaction run in THF.e Reaction run at 120 °C.f Reaction run at 80 °C.g Equivalents with respect to the number of oximes.h Conversion of oximes to amides as determined by 1H NMR spectroscopy in CDCl3 at room temperature.i Molecular weight with respect to polyethylene standards.j Mn,LDPE = 9.6 kDa and ĐLDPE = 6.7. n.r. = no reaction. CNC = cyanuric chloride. PTSA = p-toluenesulfonic acid. TFA = trifluoroacetic acid. TFAA = trifluoroacetic anhydride. T3P = propylphosphonic anhydride. | ||||
1b,e | 1 equiv. PPh3, 1 equiv. CBr4 | n.r. | — | — |
2b,e | 1 equiv. CNC | n.r. | — | — |
3b,e | 5 equiv. PTSA | Trace | — | — |
4c,f | 50 equiv. TFA | Trace | — | — |
5c,f | 30 equiv. TFAA | 15% | — | — |
6b,e | 5 equiv. TsCl | >99% | 2.7 | 2.3 |
7d,f | 3 equiv. T3P | >99% | 8.1 | 2.4 |
Instead, reactions conducted with para-toluenesulfonyl chloride (TsCl) and propylphosphonic anhydride (T3P) converted the oximes quantitatively, as assessed by 1H NMR spectroscopy (Table 1 entries 6 and 7); however, hydrolysis of the oxime to the ketone was also observed after reactions with TsCl (presumably catalyzed by the HCl that is formed as a byproduct). In addition, a substantial decrease in Mn from unmodified LDPE to amide-LDPE 2a was observed after reactions with TsCl, presumably caused by competing Beckmann fragmentation (Table 1 entry 6).32 A lower extent of hydrolysis of the oxime to the ketone was observed after reactions with T3P, and less chain scission was observed from reactions with T3P than from reactions with TsCl (Table 1, entry 7). Notably, the dispersity of amide-LDPE 2a (Đ = 2.0) decreased from the starting LDPE (Đ = 6.7). We hypothesized that the decrease in dispersity of the polymer could be caused by the transamidation of the polymer chains over the course of the reaction. To probe this hypothesis, we synthesized small-molecule oximes and subjected them to the Beckmann rearrangement with T3P (see Scheme S1†). However, no scrambling of the alkyl chains was observed by GC-MS, indicating that no transamidation occurs over the course of the reaction and that the decrease in dispersity of the polymers after rearrangement is not due to transamidation. Instead, we propose that this decrease could be due to a change in polymer conformation that affects its behavior in size-exclusion chromatography.
Based on these results, we reasoned that T3P could be a safer, cheaper, and more selective reagent than DAST, H2SO4, or Sc(OTf)3 for the synthesis of amide-polyethylenes from other polyethylenes. To this end, we applied the reaction conditions to oxime-polyethylenes derived from high-density polyethylene (HDPE) and post-consumer HDPE from a milk jug (Scheme 1). The conversion of oximes to amides in all these polymers was quantitative, as judged by 1H NMR spectroscopy (see ESI†), indicating installation of amide linkages into the main chains of polyethylene.
We tested the ability of several ruthenium complexes that have been reported to catalyze the hydrogenolysis of aliphatic amides to catalyze hydrogenolysis of the amide units in polymer 2a (see Table S1†).33–37 We found that air-stable catalyst Ru5, which contains a tetradentate bipyridyl bisphosphine ligand, converted the amide linkages in polymer 2a quantitatively to alcohol- and amine-terminated oligomers, as assessed by 1H NMR spectroscopy. A decrease in Mn was also observed by high-temperature, size-exclusion chromatography (HTSEC), indicating that polymer 2a was cleaved at the amide linkages (Fig. 2). We hypothesized that the activity of catalyst Ru5 for hydrogenolysis of polymer 2a can be attributed to the resistance of the tetradentate bipyridyl bisphosphine ligand to dissociate from the ruthenium because of its high binding affinity. Application of the optimized conditions to amide-polyethylenes 2b and 2c afforded complete hydrogenolysis of the amide linkages, as assessed by 1H NMR spectroscopy (see ESI†). These results show that this system for catalytic hydrogenolysis operates on polyamides with various architectures and tolerates additives that may remain in amide-polyethene 2c derived from post-consumer waste HDPE.
![]() | ||
Fig. 2 Hydrogenolysis of amide linkages in amide-LDPE. aMolecular weight with respect to polyethylene standards. |
Because polymer 2a contains amide linkages, we envisioned that it would be adhesive to nylon-6,6. To this end, we analyzed the adhesion of amide-PE 2a to nylon-6,6 by lap-shear tests (Fig. 3C). The lap-shear tests indicated that polymer 2a was more adhesive to nylon-6,6 (2.62 ± 0.15 MPa) than was unmodified LDPE (0.31 ± 0.04 MPa). As a comparison to widely used commercial glues, the adhesion strength of Gorilla Glue to nylon-6,6 (0.65 ± 0.24 MPa) was evaluated under identical conditions and found to be less adhesive to the nylon substrate than was polymer 2a (Fig. S43†).
We also measured the adhesion of amide-LDPE 2a to aluminum and glass. When used as an interlayer between aluminum or glass substrates, unmodified LDPE was not sufficiently adhesive to create a testable sample, whereas polymer 2a adhered to both aluminum and glass (5.87 ± 0.33 MPa and 10.9 ± 0.90 MPa respectively). The adhesion of polymer 2a to both aluminum and glass is stronger than the adhesion of commercial Gorilla Glue to both substrates (4.30 ± 0.90 MPa and 6.54 ± 1.95 MPa respectively) under identical conditions (Fig. S43†). In addition, the adhesion of polymer 2a to glass is stronger than the adhesion of some epoxy resins.40,41 These adhesion data suggest that the installation of amide linkages into the backbone of polyethylene can create polymers with adhesive properties that are enhanced over those of unmodified LDPE. PUU 4 was moderately adhesive to nylon-6,6, aluminum, and glass (1.17 ± 0.22 MPa, 0.76 ± 0.05 MPa, 0.65 ± 0.01 and MPa respectively), indicating that the surface properties of materials derived from LDPE also can be more favorable than those of unmodified LDPE.
We also investigated the mechanical properties of amide-PE 2a and PUU 4 by tensile tests (Fig. 3D). The elongation at break (εB), tensile strength (σB), toughness (UT), and Young's modulus (E) of 2a were 303.9 ± 75.0%, 11.2 ± 1.4 MPa, 27.2 ± 7.2 MJ m−3, and 57.0 ± 10.2 MPa respectively. These values for εB, UT, and σB are similar to the values of unmodified LDPE (227.8 ± 96.8%, 20.9 ± 9.8 MJ m−3, 11.4 ± 1.1 MPa respectively). However, the E of polymer 2a (57.0 ± 10.2 MPa) was significantly lower than that of unmodified LDPE (148.5 ± 16.8 MPa), presumably because of the defects in the crystalline regions caused by the amide linkages in 2a. Overall, the bulk properties of the polymer are largely retained after incorporation of an in-chain amide linkage. However, when PUU 4 was subjected to tensile testing, the E and σB of PUU 4a (0.9 ± 0.2 MPa and 5.5 ± 0.9 MPa respectively) were found to be significantly different from the values of unmodified LDPE (148.5 ± 16.8 MPa and 11.4 ± 1.1 MPa respectively) and polymer 2a (57.0 ± 10.2 MPa and 11.2 ± 1.4 MPa respectively). The εB of PUU 4 (939.2 ± 89.9%) was found to be much greater than the εB of LDPE (227.8 ± 96.8%) and polymer 2a (303.9 ± 75.0%), while the UT of PUU 4 (29.9 ± 6.6 MJ m−3) was similar to the UT of LDPE (20.9 ± 9.8 MJ m−3) and of polymer 2a (27.2 ± 7.2 MJ m−3). Elastic hysteresis curves of PUU 4 verified the elastic nature of this material containing the harder polyethylene and softer polyether units (see Fig. S50†). In contrast, PU 4′, which was synthesized in the absence of polyethylene fragments, was isolated as an amorphous solid and was not suitable for mechanical testing. This result indicates that the telechelic polyethylene fragments serve as hard segments to add rigidity to PUU 4. The wide range of bulk and surface properties possessed by these new polymers highlight the ability to create valuable materials by selective chemical transformations of polyolefins.
