Bimetallic Mg/Zn-based zeolitic imidazolate frameworks for zinc–air batteries: disclosing the role of defective imidazole-Mg sites in the electrocatalytic performance

Abstract

The development of new noble metal-free, non-toxic and low-cost materials with efficient catalytic properties for the oxygen reduction reaction (ORR) is a key issue for improving energy storage devices, such as fuel cells or metal–air batteries. Herein, taking inspiration from the function of Mg in nature as a cofactor in many catalytic reactions, we have synthesized bimetallic Mg/Zn-based zeolitic imidazolate frameworks (Mg-doped ZIF-8), which resulted in a significant improvement in the electrocatalytic activity for ORR compared to pristine ZIF-8, especially when prepared as nanosized rather than microsized particles. Under optimized synthetic conditions, we succeeded in incorporating a large amount of Mg within the ZIF-structure (17.5% mol Mg doping), which was critical for improving the ORR response. Importantly, this work demonstrates for the first time the role of Mg as a dopant in ZIFs to boost the ORR performance, revealing that di-coordinated imidazole-Mg species (Im₂Mg) are the key active sites that enhance the adsorption of O₂ and water in the ORR process, as evidenced by our computational studies. Exploiting the exceptional electrocatalytic performance of the as-prepared Mg-doped ZIF-8 nanoparticles, we built zinc–air batteries that exhibited a specific capacity of 4.95 A h g⁻¹, significantly surpassing the values reported previously for other catalysts containing single-atom M–N–C sites.

---

1. Introduction

Electrochemical energy conversion and storage (EECS) is an emerging field of energy technology, which applies electrochemistry for storing energy in chemical fuels and supplying electricity appropriately through reversible reactions. For instance, fuel cells, electrolyzers or photoelectrolyzers, batteries, and supercapacitors are some representative EECS devices, which play a key role in the advancement of electric vehicles, grid storage, portable devices, and other applications yet to be explored. The development of low-cost high-performance electrocatalysts is essential to the overall performance of all these devices.¹

To date, Li-ion batteries (LIBs) are probably the most used energy storage devices.^2,3 Unfortunately, LIBs have several drawbacks, such as lithium (Li) is a critical raw material with limited global Li reserves, detrimental environmental impacts of Li extraction, LIBs generate hazardous waste when disposed of, and they carry a risk of fire or explosion due to failure or overheating. In this scenario, zinc–air batteries (ZABs) have emerged as a highly promising alternative, displaying a number of intrinsic advantages. For instance, ZABs contain a cheap and sustainable Zn-anode, which is an easily recyclable and biocompatible raw material. In addition, ZABs use non-toxic and non-flammable aqueous electrolyte, and oxygen from air as the cathodic active material, offering competitive values of energy density, specific capacity and power performance.⁴ One of the major limitations of ZABs is the need for catalysts in the cathodic reaction for the oxygen electroreduction (ORR) to lower the overpotential value and to promote practical applications of these types of energy storage devices.⁵ Pt-based materials are the benchmark electrocatalysts for the ORR. Unfortunately, the cost of this noble metal together with its limited earth-abundance are probably the major barriers to its commercial viability. For this reason, it is relatively urgent to design low-cost, efficient and stable non-precious metal-based electrocatalysts for ORR to increase the catalytic efficiency and enable the development of green energy devices with good potential for translation to an industrial environment.

Among the different strategies for generating efficient and sustainable electrocatalyst materials with single-atom active sites, metal–organic frameworks (MOFs) have attracted much attention in recent years due to their structural diversity, easy tunability, and abundant accessible metal centres.^6–8 As a subfamily of MOFs, zeolitic imidazolate frameworks (ZIFs), constructed from tetrahedrally coordinated transition metal (M) ions linked by imidazole (Im) units, have been widely studied in electrocatalytic applications,^9–11 because of its high porosity, high chemical and thermal stability, easy and scalable preparation, and the possibility of incorporating different electrochemically active metal ions alone or in combination (Zn/Co, Zn/Mn).^12–14 Notably, the unique structure of ZIFs allows for multiple metal–nitrogen coordination units (M–N₄; M = Zn, Co, Cu), which have been widely demonstrated to be very effective electroactive sites. However, in most of these studies, the ZIF is simply used as a sacrificial template to prepare N-doped porous carbon materials after a carbonization step, thus losing the intrinsic well-ordered structure of ZIFs. In general, when MOFs are subjected to high temperatures for carbonization/pyrolysis, they are likely to suffer from (i) collapse of the pore network, (ii) aggregation of particles with a consequent decrease in the accessible surface area, and (iii) poor batch-to-batch reproducibility since the carbonization process is quite difficult to control precisely.¹⁵ To avoid these issues, the design of MOFs with good electrocatalytic response in their pristine form (i.e., well-defined structure, with homogeneous catalytic sites, and regular and controlled porosity) is essential. To date, only a few studies have exploited pristine MOFs as electrocatalysts,^16–20 clearly indicating that it is still challenging to prepare high-quality MOF particles (i.e., precise structural control with abundant accessible active sites) endowed with good electrocatalytic activity.

Taking inspiration from biochemical reaction of enzymes, Liu and co-workers recently proposed the incorporation of atomically dispersed magnesium (Mg) within a graphene framework, demonstrating that N-coordinated Mg cations exhibited high oxophilicity due to an elevated p-band centre position compared to other coordination environments, transforming the main-group element Mg into a highly active electrocatalyst for the ORR.²¹ This idea was based on enzymes that use Mg as a cofactor, which are extremely active in biochemical reactions. For instance, more than 300 enzymes require Mg ions for their catalytic action, including all enzymes using or synthesizing ATP, and those that use other nucleotides to synthesize DNA and RNA.²² Other representative example in the nature is the presence of Mg as single atoms in chlorophyll molecules, playing a key role in photosynthesis reactions.²³

With the aim of combining the advantages of ZIFs, their well-defined porous architecture containing M–N₄ sites, with the potential of Mg as an active ORR element as well as its other beneficial properties such as its biocompatible nature and its abundance in the Earth's crust,²¹ we set out to synthetize Mg-doped ZIF-8 by using a one-pot simple, reproducible, and sustainable method; key issues in view of future industrial applications of these MOFs include minimizing the cost, use environmentally friendly conditions, and ensuring the scalability of the synthetic procedure. Unfortunately, according to the literature this does not seem to be a straightforward task as the tetrahedral Mg²⁺–N coordination geometry is uncommon. Kitagawa and co-workers reported the successful preparation of Mg-ZIF-8 from Mg(BH₄)₂ as a precursor under an Ar atmosphere and using acetonitrile as a synthesis solvent.²⁴ Regrettably, in contrast to Zn-ZIF-8, the obtained Mg-ZIF-8 was very sensitive to humidity in air, resulting in immediate decomposition upon exposure to air, thus making it unsuitable for applications. Other attempts under different conditions, such as using anhydrous MgCl₂ as the salt precursor and another synthesis solvent (tetrahydrofuran), also failed to produce stable Mg-ZIF-8. Besides, the use of protic solvents (water and methanol), which are most commonly used in the synthesis of ZIFs, was not possible due to the reactivity of Mg(BH₄)₂. These results clearly highlight that finding the optimal synthetic conditions is critical to stabilising the tetrahedral Mg²⁺–N coordination geometry.

In this work, several Mg-doped ZIF-8 materials have been synthesized under optimized conditions to enable the incorporation and stabilization of the Mg ions within the framework, and exhaustively characterized in order to investigate the maximum doping percentage that yields stable Mg-doped ZIF-8 particles, as well as the effect of doping percentage on the ORR electrochemical response. In addition, the influence of particle size of the Mg-doped ZIF-8 on ORR performance has been evaluated. Finally, the best Mg-doped ZIF-8 candidate was tested as an air electrode in a ZAB and compared against a benchmark 10% wt. Pt–C based electrode to investigate the actual potential of the designed MOF for the construction of ZABs.

2. Results and discussion

The synthetic process of the Mg-doped ZIF-8 particles is illustrated in Fig. 1, with the samples designated as nZIFMg_X and mZIFMg_X for the nanosized and microsized particles, respectively. In brief, the particles were fabricated using the coprecipitation method at RT in water as the synthesis solvent, and different ratios of Zn/Mg were used to yield Mg-doped ZIF-8 particles with increasing Mg doping percentages (X corresponds to the Mg mol% used in the synthesis). By controlling the experimental conditions (i.e., the metal to MeIm ratio, metal salts used as precursors, and reaction time) and the presence or absence of the surfactant CTAB as a capping agent for controlling the crystal growth, we could prepare either nanosized or microsized particles of ZIF-8 containing Mg(II), which replaced some Zn(II). In principle, the smaller ionic radius of Mg²⁺ (0.72 Å) compared to Zn²⁺ (0.74 Å) favors the incorporation of Mg into the structure, ruling out potential steric hindrance. SEM images revealed that mZIFMg_X (X = 0, 20) particles exhibited a rhombic dodecahedron shape with a size of ca. 1 μm, while the nZIFMg_X (X = 0, 20) particles of ca. 120 nm had a cubic shape, as shown in Fig. 1. More representative SEM images of samples with different Mg mol% are included in the ESI (Fig. S1).† EDX-SEM was routinely used to confirm the presence of Mg in the doped samples (Fig. S2†). The change in crystal morphology in the presence of CTAB is due to the fact that the CTAB molecules are adsorbed more strongly on {100} faces of ZIF-8 than on other faces, due to the higher hydrophobicity of the {100} faces, thereby leading to a decrease in the growth rate on those faces.²⁵ Our results showed that the substitution of some Mg(II) ions for Zn(II) ions does not modify the effect of CTAB, as it has also been observed in the case of replacing Co(II) by Zn(II) ions.^26,27 However, the addition of Mg(II) ions did significantly affect the kinetics of crystal formation; specifically, it slowed down the kinetics of the crystal growth, which was observable with the naked eye through the change in the turbidity of the reaction mixture with time.

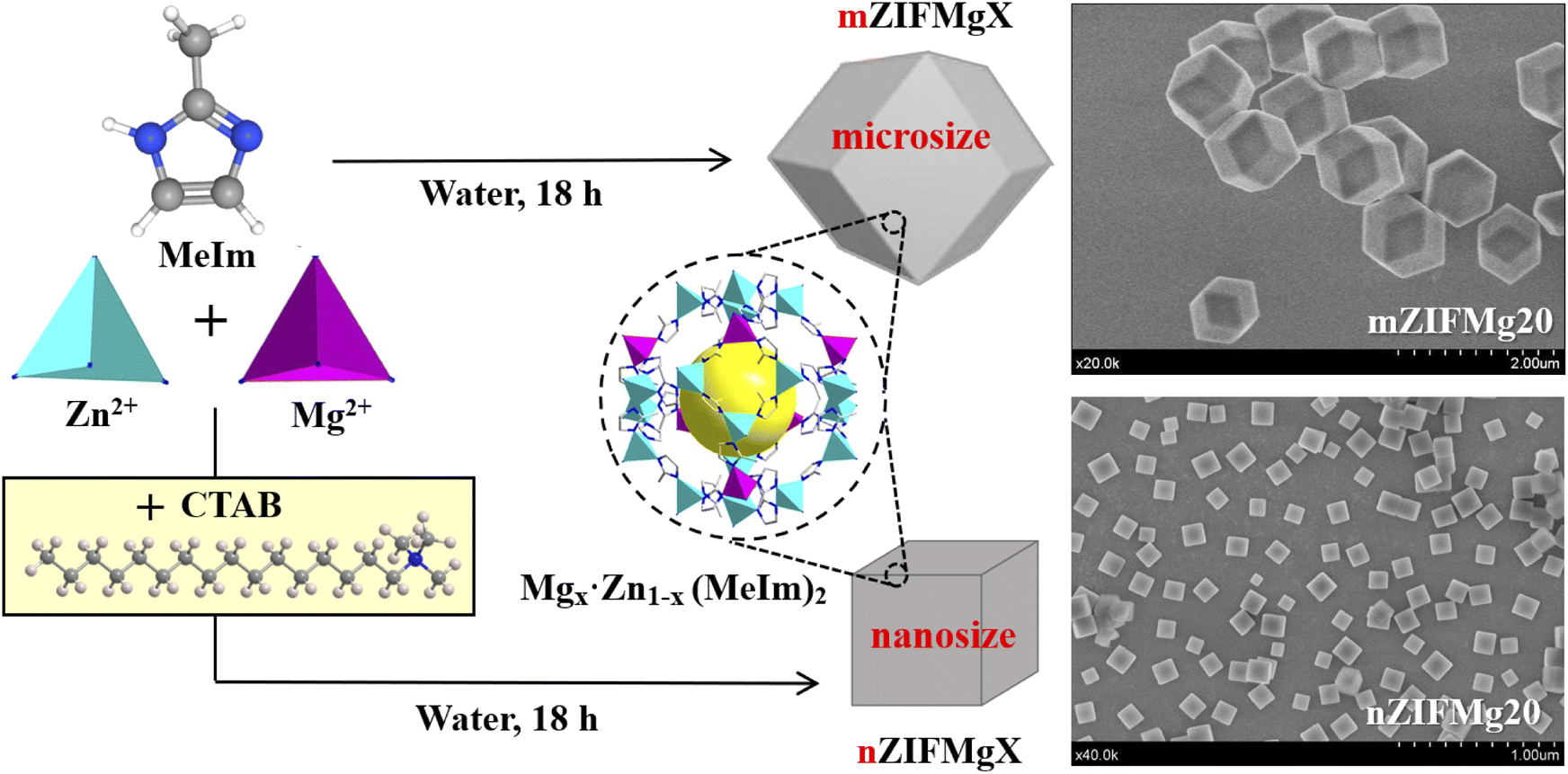

Fig. 1 Schematic illustration of the synthesis procedure of microsized mZIFMg_X and nanosized nZIFMg_X particles, including representative SEM images of the samples prepared with 20% mol Mg (nZIFMg₂₀ and mZIFMg₂₀).

To investigate in more detail the doping reaction mechanism, we used 5 different initial Mg percentages in the preparation of the nZIFMg_X series (5, 20, 50, 70, and 100%). Notably, when the percentage of Mg was greater than 50% we did not obtain any solid even after increasing the reaction time to 48 h, which indicates that the Mg–MeIm coordination is less favourable, or at least less stable, than the Zn–MeIm coordination. This agrees with a previous study²⁷ that estimated the lattice formation energies of Zn-ZIF-8 and Mg-ZIF-8 using ab initio calculations, revealing that the energy of the coordination bond of Mg²⁺–N in Mg-ZIF-8 is 138 kJ mol⁻¹ lower than that of Zn²⁺–N in Zn-ZIF-8, which evidences the substantial thermodynamic instability of Mg–MeIm. Furthermore, we again observed that the higher the percentage of Mg added, the slower the particle growth rate, resulting in smaller nanoparticles if the synthesis was stopped at short times (ca. 2–3 h). However, when the reaction time was prolonged (overnight, 18 h), the final sizes of the particles showed very little difference, as shown by SEM images (Fig. S1†) and, more exhaustively, by the comparison of the hydrodynamic sizes of the particles in solution, as determined by DLS (Fig. 2A and Table S1†). EDX-SEM clearly showed the presence of Mg after doping (Fig. S2†). Regardless of the particle size, Mg was uniformly distributed within the particles, as demonstrated by EDX-STEM elemental mapping analysis (Fig. S3 and S4†). Next, we studied the crystallinity of the prepared particles by PXRD. As shown in Fig. 2B, all the samples showed the typical diffraction peaks of the sodalite structure of ZIF-8.²⁸ This is a cubic structure with space group I4̄₃m (no. 217) and a network size of 17.012 Å. All peaks exhibited high intensity and narrow width, even in the nanosized particles, which is indicative of a high degree of crystallinity in the samples. No additional peaks were found in the Mg-doped samples compared to the control ones (nZIFMg₀ and mZIFMg₀) and the simulated ZIF-8 pattern, confirming that the incorporation of different amounts of Mg to replace Zn does not affect the crystalline structure of pristine ZIF-8.

Fig. 2 (A) DLS number (N) distributions of the hydrodynamic diameter d_h for the as-prepared nanosized (nZIFMg_X; X = 0, 5, 20, 50) and microsized (mZIFMg_X; X = 0, 20) particles dispersed in methanol. (B) PXRD patterns of the different samples, showing the crystalline planes; the simulated ZIF-8 pattern (black, COD: 7111970) is included for comparison. (C) Plot of the actual Mg incorporated versus the added values (expressed in mol%) in the different samples as determined by ICP-OES. (D) N₂ isotherms (77 K) of the nanosized nZIFMg₀ and nZIFMg₂₀ particles. Closed symbols represent adsorption, and empty symbols represent desorption. (E) XPS survey spectra of the nanosized nZIFMg₀ and nZIFMg₂₀ particles.

Afterwards, we determined the actual amount of Mg incorporated in the samples by digesting them with aqua regia and subsequent analysis by ICP-OES. Fig. 2C shows the actual Mg incorporated (Mg found, mol%) compared to the theoretical amount added during synthesis (Mg added, mol%); values are given in Table S2.† Surprisingly, these values were significantly lower than expected, further indicating that the coordination of Mg with the MeIm ligands is much less favourable than that of Zn, and the maximum doping percentages were 17.5 and 12.6% for the nanosized and microsized particles, respectively. It was not possible to achieve higher Mg doping with the same synthetic procedure, since increasing the ratio of Mg to Zn in the reaction mixture inhibited the formation of crystals as mentioned above. In an attempt to increase the amount of Mg incorporated into the structure, we carried out the synthesis of mZIFMg₂₀ in methanol. Surprisingly, we found that the Mg doping was almost negligible, at only 2.8%, which clearly reveals the key role played by water as solvent in the synthesis for the stabilization of the tetrahedral coordination of Mg ions (Mg–N₄). As previously reported, the solvent plays an active role in the synthesis of ZIF-8 by influencing the crystallization rate, crystal size and morphology, crystallinity, and metal coordination.^29–32 In methanol, ZIF-8 crystallizes extremely rapidly, typically within 1–2 minutes. This ultra-fast crystallization significantly limits the incorporation of dopant metals with lower coordination energies than Zn, such as Mg, into the framework. In contrast, the growth rate in water is substantially slower, with turbidity typically appearing only after 1–2 hours, depending on the Mg mol%. This slower process provides enough time for Mg ions to coordinate with the imidazole linker. Additionally, the higher hydrogen bond donation (HBD) capacity of water compared to methanol likely enhances the polarization of the pyrimidinic hydrogen on the imidazole linker, facilitating its deprotonation and subsequent coordination with metal cations (i.e., M–MeIm–M complexes; M = Zn or Mg). This behavior supports the reaction progression at the high linker concentrations used in this work. The superior HBD ability of water may also compensate for the lower thermodynamic stability of Mg²⁺–N bonds in Mg-doped ZIF-8, leading to more efficient Mg incorporation when the synthesis is carried out in water. In other words, the favorable Mg–water interaction³³ may enhance Mg ion accessibility to the deprotonated linker molecules, where water molecules, acting as ligands, can provide a growth template and facilitate further ZIF-8 crystal growth.

To evaluate whether the beneficial role of water as a solvent in enhancing metal doping levels could be extended to other metal cations, we applied the same synthetic procedure using either Fe(II) or Cu(II) as dopant cations, with methanol or water as solvents. Interestingly, in all cases, higher doping percentages were achieved when the synthesis was carried out in water, as determined by ICP-OES (Table S3†). The values obtained from the methanol-based synthesis were consistent with those reported in the literature,^34,35 with maximum doping percentages remaining relatively low (<5%). Importantly, under our optimized water-based synthesis conditions, we achieved 17.5% Mg doping in the nanosized particles, which is expected to be decisive in enhancing the ORR activity of pristine ZIF-8.

We also studied the effect of Mg doping on the textural properties of ZIF-8 by measuring the N₂ sorption isotherms of nanosized particles containing 0 and 20% Mg. As shown in Fig. 2D, both particles exhibited a reversible type I isotherm, typical for microporous materials. The Brunauer–Emmett–Teller (BET) surface area decreased slightly after Mg doping (S_BET = 1100 m² g⁻¹) compared to the non-doped ZIF-8 (S_BET = 1218 m² g⁻¹), in agreement with the results reported for Cu-doped ZIF-8,³⁶ and Cu/Fe-doped ZIF-8.³⁴ Nevertheless, the overall results indicate that the partial replacement of Zn by Mg ions within the framework did not significantly affect the porosity of the material in terms of micropore area and total pore volume (Table S4†). Fig. 2E compares the resulting XPS survey spectra of nZIFMg₀ and nZIFMg₂₀ particles, where the presence of Mg in the latter case can be observed with two characteristic peaks at ca. 303 and 47 eV (Fig. S6B†), which can be assigned to Mg Auger and Mg 2p, respectively. In addition, three characteristic peaks of Zn were identified in both samples, at ∼1021 eV, and at ca. 136 and 196 eV assigned to Zn 3p and Zn 3s, respectively. Regarding the oxidation state of Zn and Mg ions in the particles, high resolution XPS Zn 2p and Mg 2p analyses were carried out for nZIFMg₀ and nZIFMg₂₀ samples (Fig. S5G and S5H†). On the one hand, the deconvoluted Zn 2p_3/2 core level XPS spectra showed similar single peaks, centred at ca. 1019 eV, attributed to the presence of Zn(II).³⁷ And on the other hand, Fig. S6† shows the resulting Mg 2p core level XPS spectrum for nZIFMg₂₀, which shows a single peak at ca. 47 eV, attributed to the electronic state 2p_1/2 of Mg ions in the +2-oxidation state.³⁸ In addition, HR C 1s, O 1s, and N 1s XPS spectra of nZIFMg₀ and nZIFMg₂₀ were almost identical (Fig. S5†), further confirming that the partial replacement of Zn by Mg ions within the framework did not affect the chemical composition and oxidation states of the other elements. It is worth noting that a higher amount of O₂ was observed for nZIFMg₂₀ compared to nZIFMg₀, as can be seen in Fig. S6A† where the intensity of the O₂ peak in both samples is compared.

Once characterized, the electrocatalytic performance of the Mg-doped ZIF-8 particles for the ORR was investigated. Fig. S7† shows representative cyclic voltammograms (CVs) of GCEs modified with nZIFMg₀ and nZIFMg₂₀ in 0.1 M KOH electrolyte solution, under nitrogen- and oxygen-saturated conditions, respectively. The absence of any redox process under N₂-saturated conditions confirmed that the ORR catalysis occurred in the presence of O₂. Importantly, significant differences in the onset potential and in maximum current density values were observed, with nZIFMg₂₀ showing better catalytic properties for the ORR (0.71 V vs. RHE and −0.42 mA cm⁻²) than nZIFMg₀ (0.66 V vs. RHE and −0.21 mA cm⁻²), demonstrating the benefit of Mg doping in the ZIF-8 structure. When comparing the different Mg doping percentages (Fig. 3A), we found that the nZIFMg₂₀ sample, which contains 14.2 mol% Mg according to ICP analysis, exhibited the best electrocatalytic performance for the ORR. It is worth noting that a further increase in the amount of Mg to 17.5 mol% did not lead to an improvement in the response as observed for nZIFMg₅₀. A similar trend could be observed with RDV curves measured using a rotation rate of 2500 rpm (Fig. 3C). On the other hand, the particle size strongly affected the ORR activity, as shown in Fig. 3B and D under static and dynamic conditions, respectively. These results demonstrate that nanosized particles, either Mg-doped or undoped, showed a higher electrocatalytic response compared to their respective microsized counterparts. This finding has already been reported for other MOF-based catalysts,³⁹ and is attributed to the higher surface-to-volume ratio and shorter diffusion paths in nanosized MOFs, thus allowing easier accessibility to active sites located in the innermost pores. Furthermore, the electrochemical surface areas (ECSAs) of the nZIFMg₀ and nZIFMg₂₀ samples were determined by the double layer capacitance method.¹⁶ Fig. S8A and S8B† show the typical CV curves obtained in the non-faradaic region for both samples at various scan rates (from 20 to 100 mV s⁻¹), while Fig. S8C† plots the difference in current density between the anodic and cathodic sweeps (ΔJ) against the scan rates. The double-layer capacitance (C_dl) was calculated using the equation C_dl = ΔJ/2, obtaining values of 13.6 and 33.2 μF cm⁻² for nZIFMg₀ and nZIFMg₂₀, respectively. These results clearly demonstrate that nZIFMg₂₀ has a higher number of electrochemically active sites than nZIFMg₀. In addition, electrochemical impedance spectroscopy (EIS) was performed on both samples. The EIS data were fitted using the Randles equivalent circuit shown in Fig. S8D,† where R₁ represents the solution resistance, R₂ represents the charge-transfer resistance, Q₁ is the double-layer capacitance at the electrode surface, and W₁ is the Warburg resistance. The extracted parameters are listed in Table S6† for both samples. Overall, the lower R₂ value and higher Q₁ value for nZIFMg₂₀ indicate enhanced electron transfer compared to nZIFMg₀.

Fig. 3 (A and B) Cyclic voltammetry (CV) and (C and D) rotating disk voltammetry (RDV) curves recorded at a rotation rate of 2500 rpm for the different nanosized (nZIFMg₀, nZIFMg₅, nZIFMg₂₀, and nZIFMg₅₀) and microsized (mZIFMg₀, mZIFMg₂₀) Mg-doped samples. (E) Linear sweep voltammetry curves of RRDE modified with nZIFMg₂₀, nZIFMg₀ and 10% wt. Pt–C, using a rotation rate of 1600 rpm and keeping Au-ring at a constant potential of 1.4 V vs. RHE. (F) RDV curves of the GCE modified with nZIFMg₂₀ before and after 1000 cycles of the AAT, using a rotation rate of 2500 rpm. All measurements were performed in O₂-saturated 0.1 M KOH. Scan rates: 0.1 V s⁻¹ for CV and 0.01 V s⁻¹ for RDV and RRDE.

Next, RRDE analysis was performed for nZIFMg₀, nZIFMg₂₀ and 10% wt. Pt–C to compare the ORR kinetics. Fig. 3E shows the resulting linear sweep voltammetry curves in O₂-saturated 0.1 M KOH, using a rotation rate of 1600 rpm and keeping the Au ring at a constant potential of 1.4 V vs. RHE. Although the electrode modified with 10% wt. Pt–C displayed a higher onset potential, notably the one modified with nZIFMg₂₀ exhibited a higher maximum current density with a value of −2.61 mA cm⁻² compared to −1.84 mA cm⁻² for the standard/reference 10% wt. Pt–C catalyst. Additionally, the number of electrons transferred per O₂ molecule, and the percentage of peroxide produced for each material were calculated (see the ESI for details, Table S5†), showing a dominant four-electron pathways and quite low percentages of peroxide produced (<1%) in all cases.

The long-term stability of nZIFMg₂₀ as an ORR electrocatalyst was investigated using an accelerated aging test (AAT), which consisted of 1000 continuous potential cycles performed by CV measurements in O₂-saturated 0.1 M KOH solution.¹⁶ Importantly, only a slight decrease in current density was observed after 1000 cycles (Fig. 3F), which can be associated with the loss of material deposited on the GCE surface during the AAT. This study confirms the good stability of nZIFMg₂₀ under working conditions in alkaline electrolytes, which is a relevant aspect for future industrial applications of these materials.

In order to investigate the reason behind the improved electrochemical performance of the nanosized Mg-doped ZIF-8 compared to pristine ZIF-8, we carried out computational studies. It is important to highlight that the catalytic activity of ZIF-8 has been primarily attributed to unsaturated coordination sites, where metal ions or ligands are exposed with incomplete coordination, rather than to the fully tetrahedrally coordinated metal nodes.^40,41 Experimental evidence supporting the link between catalytic activity and surface defects includes the superior performance of nanosized nZIFMg_X particles compared to their microsized mZIFMg_X counterparts. This is likely due to the higher specific surface area of the nanoparticles, which results in a greater density of low-coordination sites. Although alternative scenarios were also considered to explain the effect of Mg doping, computational studies ruled out those possibilities (see the ESI† for details). Therefore, we modelled the ZIF-8 and Mg-doped ZIF-8 structures by incorporating surface defects, that is Zn or Mg ions with lower coordination (Fig. 4A, see details in the Experimental section). Fig. 4A(1) shows the appropriate cutting plane (indicated with a red line) to generate Zn atoms bound to only two ligands (Im₂Zn) on the exposed surface. Likewise, another cutting plane (indicated with a black line) was used to generate Zn atoms coordinated with 3 ligands (Im₃Zn) on the surface. From this structure, cut-out surfaces have been constructed along the face (110), as shown in Fig. 4A(2). The option of generating cutting planes that expose Zn atoms bound to a single ligand (ImZn) was not considered, due to the low probability of such configurations occurring at room temperature and atmospheric pressure as previously reported.³⁸ Next, the 2D structures constructed using the previous procedure were transformed into 3D structures, incorporating an empty region to achieve a thickness of 25 Å. Therefore, the final unit cell dimensions are 17.012 Å × 24.058 Å × 25 Å, and the stoichiometry is C₉₆H₁₂₀N₄₈Zn₁₂. Using this procedure, structures were constructed in which only 4 Zn atoms per unit cell are exposed on the surface, either in the Im₂Zn or Im₃Zn form. While for the construction of the Im₂Mg and Im₃Mg systems, 25% of the Zn atoms on the surface (1 of each 4) were replaced by Mg, keeping the internal Zn atoms unchanged.

Fig. 4 (A) Constructed structures based on ZIF-8 for our computational studies. (1 and 2) Cut-out surfaces constructed along the face (110), and the resulting 3D structure obtained from the 2D one, but including an empty region until completing a thickness of 25 Å. Note that for the Mg-doped ZIF-8, the same structures were constructed by replacing 25% of the Zn atoms on the surface (1 of each 4) with Mg, while keeping the internal Zn atoms unchanged. (B) Free-energy diagrams for ORR elementary steps on (i–iii) Im₃Zn and Im₃Mg at different electrode potentials U, and (iv–vi) Im₂Zn and Im₂Mg at different electrode potentials U (pH = 13).

On the one hand, considering that the catalytic activity of ZIF-8 originates mainly from unsaturated coordination sites, the better electrochemical response obtained with both the pristine ZIF-8 and Mg-doped ZIF-8 at the nanoscale compared to their respective microsize counterparts is explained by the increased number of defects present in nanosized ZIF-8 particles.⁴² On the other hand, to explain the differences observed in the absence or presence of Mg ions, we carefully studied the mechanism of the ORR process using the method developed by Nørskov et al.⁴³ In an alkaline medium, H₂O instead of H₃O⁺ can act as a proton donor, i.e. O₂ + 2H₂O + 4e⁻ ↔ 4OH⁻. Given the incomplete coordination of the metal, it was assumed that the entire process takes place through adsorbed species, thus incorporating the adsorptions of O₂ and H₂O into the model. Therefore, the 4 elementary steps that describe the mechanism were as follows:

MO₂ + H₂O(l) + e⁻ ↔ MOOH + OH⁻ (1)

MOOH + e⁻ ↔ MO + OH⁻ (2)

MO + H₂O(l) + e⁻ ↔ MOH + OH⁻ (3)

MOH + H₂O(l) + e⁻ ↔ MH₂O + OH⁻ (4)

The exchange reaction was incorporated into these elementary steps:

MH₂O + H₂O(l) ↔ MO₂ + 2H₂(g) (5)

where M represents Im₃Zn, Im₃Mg, Im₂Zn or Im₂Mg. The absorption free energies of each component were obtained from the following relationships:

M + 2H₂O(g) ↔ MO₂ + 2H₂(g) ΔG_MO2

M + 2H₂O(g) ↔ MOOH + (3/2)H₂(g) ΔG_MOOH

M + H₂O(g) ↔ MO + H₂(g) ΔG_MO

M + H₂O(g) ↔ MOH + (1/2)H₂(g) ΔG_MOH

M + H₂O(g) ↔ MH₂O ΔG_MH2O

The free energy variations for steps (1)–(5) were calculated from the following relations:

ΔG₁ = ΔG_MOOH − ΔG_MO2

ΔG₂ = ΔG_MO − ΔG_MOOH

ΔG₃ = ΔG_MOH − ΔG_MO

ΔG₄ = ΔG_MH2O − ΔG_MOH

ΔG₅ = ΔG_MO2 − ΔG_MH2O − 4.92

In this model, the reversible hydrogen electrode RHE was selected as the reference electrode, which allowed us to replace the chemical potential (μ) of the proton–electron pair with that of the hydrogen molecule divided by two (μ_H+ + μ_e− = 1/2μ_H2) for potential U = 0 V, pH = 0 and P = 1 bar. For non-zero potentials, ΔU = −neU, where U is the applied potential relative to the RHE and for pH different from zero, ΔG_pH = kT ln(10)pH. Likewise, the following the relationship was used for the energy of O₂ formation:

G_O2 = 4.92 eV − 2G_H2(g) + 2G_H2O(l)

The resulting ΔG values calculated using DFT without considering the effects of potential and at pH = 0 are shown in Table S7.† The difference between ΔG_MOOH and ΔG_MOH is 3.3 ± 0.3 eV, which is in consonance with previously reported values for transition metal-based catalysts.^44,45 While the resulting ΔG values calculated under different potentials (0.0, −0.5 and −1.0 V) at pH 13 are presented in Tables S8–S10.†

Fig. 4B(i–iii) compares the resulting variation in free energies for Im₃Zn and Im₃Mg, demonstrating that the determining stage was the formation of Im₃M–O, both with Zn and with Mg. The comparison of Im₂Zn and Im₂Mg, shown in Fig. 4B(iv–vi), led to similar mechanisms for Zn and Mg species.

As expected, the decrease in the number of Im ligands implies a decrease in the adsorption free energy in all cases. However, the main difference observed was a great decrease in free energy in the adsorption of O₂ and water in the case of Im₂Mg compared to Im₂Zn, as shown in Fig. 4B(iv–vi). This favorable adsorption of O₂ and water at Im₂Mg sites was observed regardless of the electrode potential used but was more significative at 0 V. This result is consistent with the improvement in the ORR catalytic behavior of the Mg-doped ZIF-8, as has already been found experimentally by voltametric analysis (Fig. 3).

Furthermore, based on the DFT results, we could attribute the superior catalytic properties of nZIFMg₂₀ to the more efficient adsorption of O₂ and water molecules on Im₂Mg than on Im₂Zn. In this regard, it is important to note that the more intense O 1s peak obtained for nZIFMg₂₀ (Fig. S6B†) further confirms the enhanced adsorption of O₂ and H₂O on Mg-doped ZIF8. Besides, the higher specific area of the nanosized nZIFMg₂₀ or nZIFMg₀, favors a greater number of Im₂Mg or Im₂Zn defects with respect to their microsized counterparts, thus increasing the catalytic activity of the nanosized particles. It should be noted that the enhanced adsorption of O₂ and H₂O on nZIFMg₂₀ occurs despite the fact that the BET surface area of Mg-doped ZIF-8 is slightly lower than that of pristine ZIF-8 (nZIFMg₀), as shown in Table S3.† This suggests that the increased adsorption of O₂ must be related to subtle structural changes induced by the partial substitution of Zn²⁺ with Mg²⁺ ions. One possible explanation lies in the altered flexibility of the MOF framework upon gas adsoprtion. This structural flexibility, attributed to the swinging motion of the imidazolate linkers, may facilitate the adsorption of molecules that are otherwise too large to pass through the narrow pore windows.^46,47 Another plausible explanation is related to the higher ionic character of the Mg²⁺–N bond compared to the Zn²⁺–N,²⁴ which influences the electronic density distribution and, therefore, it may determine the mode of adsorption of O₂, adsorption energy, and/or dissociation energy, ultimately affecting the ORR catalytic activity.

To further demonstrate the excellent cathodic features of nZIFMg₂₀ (i.e., nanosized particles containing 14.2 mol% Mg) for O₂ transport in ORR, a flooded ZAB was built to investigate its possible application in a real device. During operation, the attainment of high-power density in ZABs relies on the establishment of adequate three-phase boundaries involving the electrolyte, ORR catalyst, and O₂ from air.^16,48,49 Hence, the O₂ supply from the air electrode is crucial to enable the formation of abundant liquid/solid/gas interfaces, essential for efficient power generation. nZIFMg₀, nZIFMg₂₀ and 10% wt. Pt–C were tested as the positive electrodes, using the same amount of catalyst (0.675 mg), with a Zn plate as the anode and KOH (6 M) as the liquid electrolyte. Fig. 5A shows the galvanostatic discharge for nZIFMg₂₀ at different intensities (first from 1 mA to 20 mA, and later from 20 mA to 1 mA), confirming the remarkable stability of this material as a cathode in ZABs. The potential values obtained demonstrated not only the stability of nZIFMg₂₀ but also the excellent battery performance recovery.

Fig. 5 (A) Representative short-term galvanostatic discharge curves at different intensities, (B) polarization curves, (C) power density plot, and (D) long-term galvanostatic discharge curves at −1 and −5 mA for nZIFMg₀, nZIFMg₂₀ and 10% wt. Pt–C, respectively.

Fig. 5B and C compare the resulting polarization and power density curves for nZIFMg₀, nZIFMg₂₀ and 10% wt. Pt–C as air electrodes in ZAB, confirming that nZIFMg₂₀ provided higher potential and maximum power density values than 10% wt. Pt–C. A maximum power density of 36.1 mW cm⁻² at 53.4 mA was obtained for the battery with an air electrode containing 0.675 mg of nZIFMg₂₀, which revealed an excellent specific power density value of 53.5 kW cm⁻² kg⁻¹ (considering only the catalyst mass) or 0.58 kW cm⁻² kg⁻¹ (taking into account the mass of the entire air electrode, carbon paper + catalyst). It should be noted that the battery using 10% wt. Pt–C as the catalyst achieved a maximum power density of 29.1 mW cm⁻² at 34.9 mA, and considering that 0.675 mg of Pt was added to the air electrode, the specific power density for this Pt–C air electrode was 43.1 kW cm⁻² kg⁻¹ (i.e. considering only the catalyst mass), which is 20% less than that obtained with nZIFMg₂₀.

Interestingly, a comparative study of the maximum discharge capacity at −5 mA for nZIFMg₀, nZIFMg₂₀ and 10% wt. Pt–C as air electrodes (Fig. 5D) showed that nZIFMg₂₀ exhibited a higher voltage and a lower potential loss than 10% wt. Pt–C. In addition, the maximum discharge capacity values were achieved with nZIFMg₂₀, which were significantly greater than those obtained with 10% wt. Pt–C both at −1 and −5 mA (Table 1). These values significantly exceed the specific capacities reported previously for others carbon-based catalysts containing M–N₄ single sites,⁴⁹ which clearly demonstrates the outstanding efficiency of nZIFMg₂₀ as a cathode in primary ZABs. It should be noted that the interaction between nZIFMg₂₀ and the GDL provides an enhanced catalyst–support interaction, significantly promoting the activity of the catalytic active sites and demonstrating that the choice of carbon-based electrode material strongly influences the resulting electrocatalytic performance.

Table 1 Specific capacity values obtained for ZABs based on nZIFMg₀, nZIFMg₂₀ and 10% wt. Pt–C

Intensity (mA)	Specific capacity (A h g^−1)
	nZIFMg0	nZIFMg20	10% wt. Pt–C
−5	1.67	2.17	1.89
−1	3.66	4.95	4.41

---

Finally, a galvanostatic discharge of nZIFMg₂₀ into a flooded ZAB was performed at a high current of −10 mA, and the corresponding XPS post-characterization is shown in Fig. S9.† Overall, a comparison of the survey XPS spectra of nZIFMg₂₀ before and after the ZAB discharge reveals the presence of fluoride (F 1s) from the Nafion used as the catalyst-coated membrane, as well as a slight reduction in the Zn 2p and Mg 2p peaks, which is attributed to the additional Nafion layer. In addition, the HR-XPS spectra of Zn 2p and of Mg 2p showed that the oxidation states of zinc and magnesium remained unchanged after the ZAB discharge, with only a slight shift towards higher binding energies (Fig S8C†). Notably, an increase in the intensity of the HR-XPS O 1s was observed, which can be attributed to adsorbed O₂ during the ORR process under ZAB discharge conditions. Taken together, these results highlight the excellent ZAB performance of nZIFMg₂₀, a MOF material synthesized without calcination (i.e., retaining its pristine porous and crystalline structure).

3. Experimental

3.1. Chemicals

All the reagents including 2-methylimidazole (MeIm), zinc nitrate hexahydrate (Zn(NO₃)₂·6H₂O), zinc acetate dihydrate (Zn(OAc)₂·2H₂O), magnesium nitrate hexahydrate (Mg(NO₃)₂·6H₂O), magnesium acetate tetrahydrate (Mg(OAc)₂·4H₂O), hexadecyltrimethylammonium bromide (CTAB), potassium hydroxide (KOH), Nafion and 10% wt. Pt–C were purchased from Merck and used as received without any purification.

3.2. Synthesis of nanosized Mg-doped ZIF-8 particles (nZIFMg_X)

Stock aqueous solutions of MeIm (1 M), Zn(NO₃)₂ (25 mM), Mg(NO₃)₂ (25 mM), and CTAB (1 mM) were prepared. 3 mL of MeIm solution was added under magnetic stirring at room temperature (RT) to 3 mL of a mixed solution of both metal salts (in different proportions according to the theoretical doping percentage, X = 0, 5, 20 and 50% Mg). After that, 3 mL of CTAB solution was added, and the mixture was stirred for 5 min and then left undisturbed overnight (18 h) at RT. The particles were then collected by centrifugation (10 000 RCF, 5 min), washed twice with methanol, and finally redispersed in methanol at a concentration of 15 mg mL⁻¹. These stock methanolic dispersions of the Mg-doped ZIF-8 nanoparticles (denoted as nZIFMg₀, nZIFMg₅, nZIFMg₂₀ and mZIFMg₅₀ for 0, 5, 20 and 50% mol of Mg added in the synthesis, respectively) were stored in a fridge until use.

3.3. Synthesis of microsized Mg-doped ZIF-8 particles (mZIFMg_X)

Stock aqueous solutions of MeIm (960 mM), Zn(OAc)₂ (60 mM), and Mg(OAc)₂ (60 mM) were prepared. 4 mL of MeIm solution was added under magnetic stirring at RT to 4 mL of a mixed solution of both metal salts (in different proportions according to the theoretical doping percentage, X = 0 and 20% Mg). The mixture was stirred for 5 min and then left undisturbed overnight (18 h) at RT. The particles were then collected by centrifugation (6000 RCF, 5 min), washed twice with methanol, and finally redispersed in methanol at a concentration of 15 mg mL⁻¹. These stock methanolic dispersions of the Mg-doped ZIF-8 microparticles (denoted as mZIFMg₀ and mZIFMg₂₀ for 0 and 20% mol of Mg added in the synthesis, respectively) were stored in a fridge until use.

3.4. Scale-up synthesis of Mg-doped ZIF-8

To evaluate the scalability of the synthesis methods, both nanosized and microsized Mg-doped ZIF-8 particles were prepared in large quantities by multiplying the volumes of the precursor's solutions by 10.

3.5. Characterization of materials

Scanning electron microscopy (SEM) images were acquired using a HITACHI S4800 field emission microscope operated at 2 kV in secondary electron and backscattered electron modes. Elemental composition was determined by Energy Dispersive X-ray analysis (EDX) using the same SEM instrument equipped with a Bruker-X Flash-4010 EDX detector, operated at 10 kV. A Talos F200i HR-TEM system, operated at an accelerating voltage of 80 kV, was used to record HR-TEM images and STEM-HAADF mode was employed to perform the mapping of the particles. The samples were prepared on 200 mesh copper grids coated with Formvar/carbon films. Powder X-ray diffraction (PXRD) analyses of the crystalline powder of samples were performed using X-ray radiation of Cu Kα on a Bruker D8-Advance diffractometer. Dynamic light scattering (DLS) measurements were carried out using a Malvern Zetasizer Nano ZSP equipped with a 10 mW He–Ne laser operating at a wavelength of 633 nm and fixed scattering angle of 173°. Inductively coupled plasma optical emission spectroscopy (ICP-OES) analyses were performed on an iCAP 7200 ICP-OES Duo (ThermoFisher Scientific) instrument. Prior to the measurement process to determine the Zn and Mg content, the particles were digested with aqua regia solution (3 : 1 nitric acid to hydrochloric acid) for 24 h at 80 °C. N₂ sorption isotherms (77 K) of powder samples were carried out in a Micromeritics Tristar II 3020 system. Before analysis, the samples were degassed under vacuum for 18 h at 120 °C. The apparent surface areas were calculated using the Barrett–Emmett–Teller (BET) method in the pressure interval P/P_o = 0.01–0.2 (with P_o being the saturation pressure). The pore volume and external surface area were calculated by the t-plot method. XPS studies were performed on an XPS SPECS PHOIBOS150 MCD spectrometer (X-ray source with Mg and Al anodes and Al and Ag monochromatic sources, and 1253.6 eV). Spectra were recorded in constant pass energy mode at 30 eV, using a 720 μm diameter analysis area with charge compensation. Charge referencing was carried out using the adventitious carbon peak (C 1s at 284.8 eV). The CasaXPS version 2.3.16 software package was used for data analysis.

3.6. Electrochemical methods

Electrochemical measurements were performed in a classical three-electrode cell, using a potentiostat/galvanostat (PalmSens4). 0.1 M KOH solution was used as an aqueous electrolyte solution, while Ag/AgCl and graphite rods were used as reference and counter electrodes, respectively. A glassy carbon disk (GCE, 5 mm in diameter, from Pine Research, Ref. AFE3T050GC) was used as a working electrode. Additionally, a rotating ring-disk electrode (RRDE) composed of a glassy carbon-disk with a Au-ring (Ref. AFE6R2GCAU from Pine Research) electrode was employed in a modulated speed rotator (AFMSRCE model from Pine Research).

Both working electrodes were modified with the different as-prepared ZIF-materials by drop-casting a mixture containing 5 μL of Nafion and 20 μL of the ZIF-sample at a concentration of 5 mg mL⁻¹. All potentials were referenced to the reversible hydrogen electrode (RHE) by using the Nernst equation.¹⁶

3.7. Computational methods

3.7.1 Structure construction. The crystal structure of ZIF-8 was obtained from Huang et al.⁵⁰ This structure is cubic with a lattice size of 17.012 Å, and the stoichiometry of the unit cell is C₉₆H₁₂₀N₄₈Zn₁₂ (Fig. 4A(1)). From this structure, cut-out surfaces were constructed along the (110) face, with dimensions of 17.012 Å × 24.058 Å and a thickness of 12.029 Å (Fig. 4A(1) and (2)). These cut-out slabs retain the same total volume and stoichiometry as the original cubic framework. The overall structure remains electrically neutral, as any excess positive or negative charge on the upper surface is compensated by an equal and opposite charge on the lower surface.

3.7.2 Density functional theory (DFT) studies. DFT calculations were performed using the DMol3 module implemented in the Materials Studio 2021 software package from Accelrys.^51,52 The positions of the metal, the ligands coordinated to metals, and the adsorbates (O₂, OOH, O, OH and H₂O) were optimized, keeping the positions of the rest of the atoms (C and N) in the unit cell fixed. For this purpose, the generalized gradient approximation parametrized by the revised Perdew–Burke–Ernzerhof (GGA/RPBE) exchange–correlation functional was employed,⁵³ using dispersion corrections,⁵⁴ spin-unrestricted calculations and an accuracy level corresponding to the 4.4 DNP basis set. All electrons were included in the calculations, and the solvation effects were considered using the Conductor-like Screening Model (COSMO).^55,56

3.8. Batteries

A battery cycler BioLogic BCS-810 was used to perform the galvanostatic discharge analysis of the selected ZIF-materials, specifically the nanosized sample doped with 20% mol Mg (nZIFMg₂₀) and it was compared with its non-doped counterpart (nZIFMg₀). nZIFMg₀, nZIFMg₂₀ and 10% wt. Pt–C (from Sigma-Aldrich) were used to prepare the positive electrodes, which were tested in a Zn/KOH/air battery. A 45 μL drop of different samples at a concentration of 15 mg mL⁻¹ (i.e., 0.675 mg of catalyst) was mixed with 5 μL of Nafion solution 5% wt. and then loaded drop by drop onto a carbon cloth gas diffusion layer (GDL ELAT LT1400W from Fuel Cells Store). A 6 M KOH aqueous solution as liquid electrolyte with a final volume of 1 mL, and a Zn plate was used as the anode. Nickel mesh was used as the current collector, and the electrode/electrolyte contact area was 0.63 cm² in all cases. Galvanostatic discharge curves were recorded at current intensities of −1 and −5 mA.

4. Conclusions

Inspired by the role of Mg as a cofactor in nature, bimetallic Mg-doped ZIF-8 materials with different Mg doping percentages and tuneable particle sizes (nano- or microsizes) were efficiently synthesized using a one-pot simple, reproducible and green method (in water media under atmospheric conditions). On the one hand, we found that nanosized catalysts clearly favoured the ORR electrocatalytic performance, as expected. On the other hand, the incorporation of the Mg ions into the ZIF-structure drastically improved the ORR response, with the nZIFMg₂₀ sample (containing an actual Mg-doping of 14.2 mol%) exhibiting the best ORR electrocatalytic performance following a four-electron pathway and producing a very low percentage of peroxide (<1%). Moreover, durability tests conducted in alkaline electrolyte demonstrated the exceptional stability of nZIFMg₂₀, which is a critical factor for its industrial applications. Computational studies revealed that Mg-doping promotes the formation of surface defects on ZIF-8, which greatly decreases the free energies of adsorption for both O₂ and H₂O molecules, facilitating the ORR process.

The outstanding ORR electrocatalytic performance of the nZIFMg₂₀ material as a cathode in primary ZABs was investigated, demonstrating not only its better response compared to the pristine ZIF-8 (i.e. nZIFMg₀) but also its superior performance with respect to the 10% wt. Pt–C standard. Interestingly, this work paves the way to explore other bimetallic approaches in the design of MOF-based catalysts for batteries and other energy storage devices.

Data availability

The data for this article are available in the ZENODO repository at DOI: https://doi.org/10.5281/zenodo.14380339, including Dynamic Light Scattering (DLS) particle size distribution analysis, Powder X-ray Diffraction (PXRD) patterns, Inductively Coupled Plasma Optical Emission Spectroscopy (ICP-OES) analysis, N₂ adsorption–desorption isotherms, X-ray Photoelectron (XPS) spectra, ORR electrochemical analysis under static and dynamic conditions (RDE and RRDE), DFT calculations of the free energy adsorption values of the different adsorbates involved in the ORR mechanism and analysis of the best material as the air electrode of a zinc–air battery.

Author contributions

C. C.-C. and M. C. conceived the idea and designed the research; C. C.-C. synthesized and characterized the materials; J. A. S.-D., V. G.-C., M. C., and J. J. G.-C. carried out the electrocatalytic experiments; L. C. performed the theoretical studies; V. G.-C., and A. J. F. R. performed the Zn–air battery tests; C. C.-C. drafted the manuscript. All authors have discussed the results and given approval to the manuscript.

Conflicts of interest

There are no conflicts to declare.

Acknowledgements

The authors would like to acknowledge the financial support from MICIU/AEI/10.13039/501100011033 and FEDER/UE (PID2022-141034OB-C22 project to C.C.-C., PID2022-139191OB-C32 project to A. J. F.-R. and PID2020-112744GB-I00 to J. J. G. C.). V. G.-C. thanks the “Plan Propio de Investigación” from the University of Córdoba for financial support through a predoctoral contract (Submodality 2.2).
